Page 81 of 113
i
76
CHANGING A BULB
Front lights
1. Direction indicators
(PY21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4. Main beam headlamps (H1-55 W).
5. Fog lamps (PSX-24 W).
Operating procedure for replacing a
faulty bulb with a new bulb. These
operations must be carried out
with the
ignition off .
To gain access to the bulbs on the right-
hand side:
- Remove the screenwash reservoir fi l l e r t u b e .
- Unclip the engine harness 1 .
- Remove the nut from the engine control unit support 2 using a size
10 spanner.
- Remove the engine control unit and support assembly. After changing the faulty bulb:
- Slide the two lugs of the control unit
support into the locations A .
- Put the engine control unit back in place.
- Tighten the engine control unit sup- port nut (size 10 spanner).
- Reclip the engine harness.
These bulbs are available from
PEUGEOT dealers.
In certain climatic conditions (low
temperature, humidity), conden-
sation inside the glass of the
headlamps and lights is normal .
However, contact a PEUGEOT
dealer if water is present in the
headlamps.
Page 82 of 113
i
77
Turn the bulb holder a quarter turn
and remove it.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order.
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
s p e c i fi c a t i o n a n d c o l o u r .
Direction indicators
Disconnect the headlamp main con-
nector, pulling the red control.
Remove the plastic protective cover
turning it a quarter turn.
Pull the bulb and change it. Dipped headlamps
Disconnect the headlamp main con-
nector, pulling the red control.
Remove the plastic protective cover
turning it a quarter turn.
Press the connector downwards to
release the bulb.
Pull the bulb and change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n r e -
verse order.
Side lights
Page 83 of 113
!
78
Front fog lamp
Slide a hand under the bumper.
Turn the connector a quarter turn
and remove the assembly.
Remove the bulb and change it.
Main bean headlamps
Disconnect the headlamp main con-
nector, pulling the red control.
Remove the plastic protective cover
turning it a quarter turn.
Move aside the springs to release
the bulb and pull the bulb.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order. Direction indicator side repeater
Push the repeater forwards and
release it.
Remove the repeater and change it.
Repeaters can be obtained from a
PEUGEOT dealer.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist
on the headlamps, the lights and
their surround to avoid damaging
their coating and their seal.
Page 84 of 113
79
Third brake light 5 bulbs W 5 W
Unclip the boot side trim.
Remove the wing nut.
Release the light unit from the outside.
Press the lug A and disconnect the con-
nector.
Remove the sealing foam.
Move aside the tabs B and remove the
bulb holder.
Turn the faulty bulb a quarter turn and
change it.
T o r e fi t , c a r r y o u t t h e s e o p e r a t i o n s i n
reverse order and ensure that the bulb
holder, the light and the foam cover are
repositioned correctly. Using a 10 mm spanner, unscrew the
2 nuts
A .
Release the light unit.
Squeeze the two tabs B to release the
bulb holder.
Change the faulty bulb.
1. Direction indicators
(P21 W amber).
2. Reversing lights P21 W.
3. Brake lights/side lights
(P21/5 W).
4. Fog lamp (P21 W).
Rear lights
Page 85 of 113
80
Rear fog lamp (P21 W)
The fog lamp is located on the rear
bumper, on the left-hand side.
Unscrew the lamp and release the as-
sembly.
Turn the pin connector a quarter turn
and remove it.
Change the bulb. Number plate lights W 5 W
Insert a thin screwdriver into one of the
outer holes of the transparent cover.
Push it outwards to unclip it.
Remove the transparent cover.
Change the faulty bulb.
Page 86 of 113
81

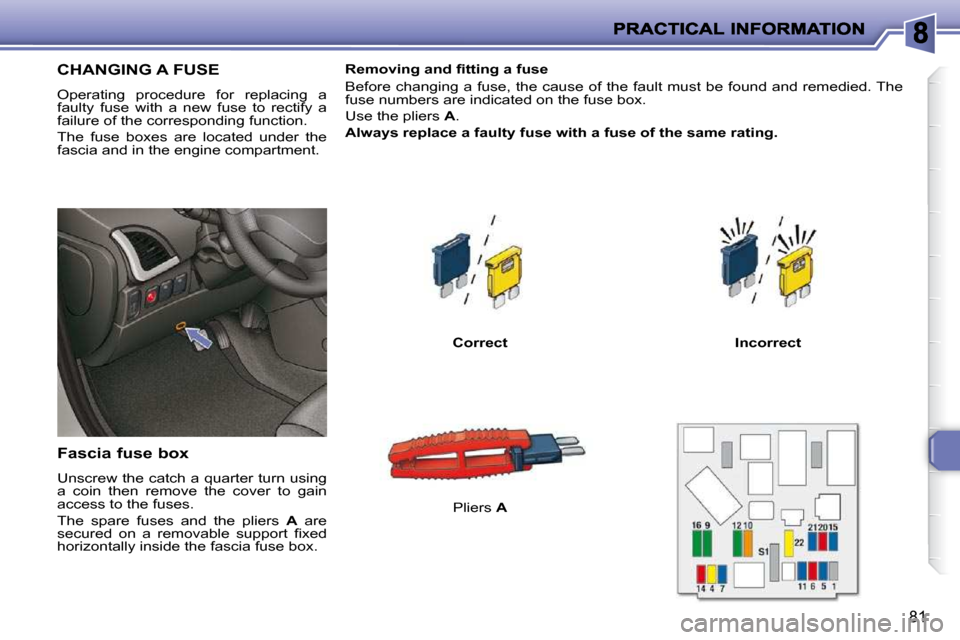

CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The fuse boxes are located under the
fascia and in the engine compartment.
Fascia fuse box
Unscrew the catch a quarter turn using
a coin then remove the cover to gain
access to the fuses.
The spare fuses and the pliers A are
s e c u r e d o n a r e m o v a b l e s u p p o r t fi x e d
horizontally inside the fascia fuse box. R e m o v i n g a n d fi t t i n g a f u s e
Before changing a fuse, the cause of the fault must be fou
nd and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A .
Always replace a faulty fuse with a fuse of the same rating .
Pliers A
Correct Incorrect
Page 87 of 113
81
CHANGING A FUSE
Operating procedure for replacing a
faulty fuse with a new fuse to rectify a
failure of the corresponding function.
The fuse boxes are located under the
fascia and in the engine compartment.
Fascia fuse box
Unscrew the catch a quarter turn using
a coin then remove the cover to gain
access to the fuses.
The spare fuses and the pliers A are
s e c u r e d o n a r e m o v a b l e s u p p o r t fi x e d
horizontally inside the fascia fuse box. R e m o v i n g a n d fi t t i n g a f u s e
Before changing a fuse, the cause of the fault must be fou
nd and remedied. The
fuse numbers are indicated on the fuse box.
Use the pliers A .
Always replace a faulty fuse with a fuse of the same rating .
Pliers A
Correct Incorrect
Page 88 of 113
82
Fuse N° Rating
Functions
1 - Not used
4 20 A Multifunction display - Boot lighting - Audio equipment - Steering wheel controls - Trailer
5 - Not used
6 10 A Coolant level - Audio equipment
7 15 A D r i v i n g s c h o o l a c c e s s o r y - A l a r m fi t t e d a s a n a c c e s s o r y
9 - Not used
10 40 A Rear screen demisting 11 15 A Rear windscreen wiper
12 30 A Front electric windows
14 10 A Engine fuse box - Air bags - Steering wheel con trols - Rain sensor
15 15 A Instrument panel - Multifunction display - Air conditioning - Audio equipment
16 30 A Locking/unlocking controls for doors, bonnet a nd boot
20 10 A Right-hand brake light
21 15 A Left-hand brake light - 3rd brake light
22 20 A Front courtesy light - 12 volt accessories socket
S1 Shunt PARC shunt
Page 89 of 113
83
or
Fuse N° Rating Functions
1 10 A Pre-heat unit (diesel) - Water in diesel sensor -
R e v e r s i n g l i g h t s w i t c h - S p e e d s e n s o r - A i r fl o w
sensor (diesel)
2 15 A Canister solenoid valve - Fuel pump
3 10 A ABS engine control unit
4 10 A Engine control unit
5 - Not used
6 15 A Front fog lamps
7 - Not used
8 20 A Fan assembly relay - Engine control unit - Diesel
injection pump - Diesel high pressure regulator -
Engine management solenoid valve
9 15 A Left-hand dipped beam
10 15 A Right-hand dipped beam 11 10 A Left-hand main beam
12 10 A Right-hand main beam
13 15 A Horn
14 10 A Front and rear windscreen wash pumps
15 30 A Throttle housing heater - Diesel injection pump -
O x y g e n s e n s o r - E n g i n e c o n t r o l u n i t - A i r fl o w
sensor - Ignition coil - Engine management
solenoid valve - Diesel heater - Injectors
16 30 A Air pump relay
17 30 A High and low speed windscreen wiper
18 40 A Air conditioning fan
Engine compartment fuse box
To gain access to the box in the engine
compartment (next to the battery), un-
clip the cover.
After carrying out work, close the cover
very carefully.
Page 90 of 113
!
84
The electrical circuit of your
vehicle is designed to operate with
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, consult a PEUGEOT
dealer.
Some electrical accessories or
t h e w a y i n w h i c h t h e y a r e fi t t e d
may have an adverse effect on
the operation of your vehicle (its
electronic control circuits, the
audio circuit and the electrical
charging circuit).
PEUGEOT declines any respon-
sibility for expenses incurred
through the repair of your vehicle
or for any malfunctions resulting
from the installation of auxiliary
accessories, not supplied and not
recommended by PEUGEOT and
not installed in accordance with
PEUGEOT's instructions, in par-
ticular when the combined con-
sumption of all of the additional
equipment connected exceeds
10 milliamps.
The maxi fuses present provide
additional protection for the elec-
trical systems. Any work on these
fuses must be carried out by a
PEUGEOT dealer.

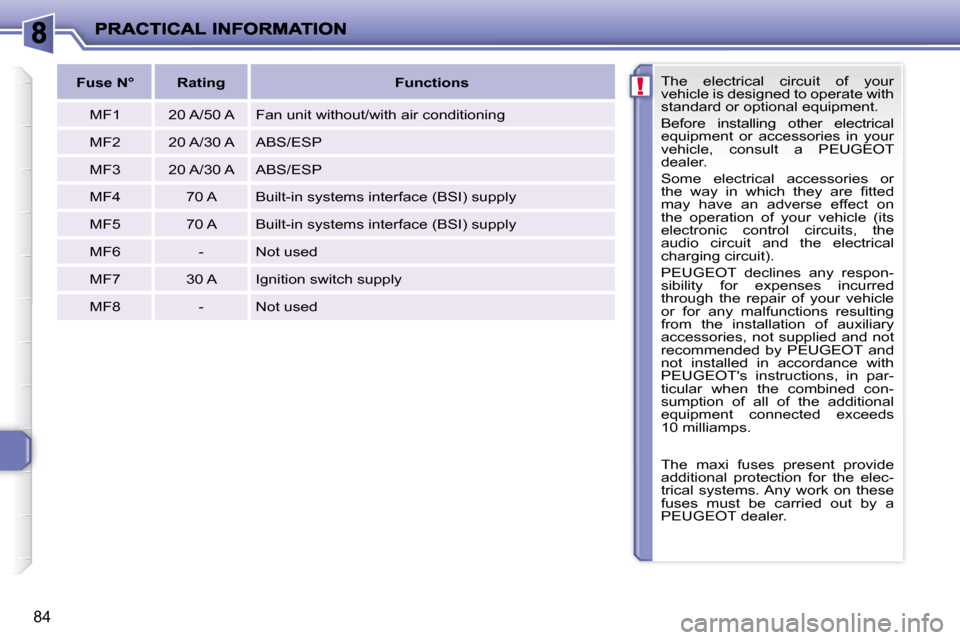

Fuse N° Rating Functions
MF1 20 A/50 A Fan unit without/with air conditio ning
MF2 20 A/30 A ABS/ESP
MF3 20 A/30 A ABS/ESP
MF4 70 A Built-in systems interface (BSI) supply
MF5 70 A Built-in systems interface (BSI) supply
MF6 - Not used
MF7 30 A Ignition switch supply
MF8 - Not used
