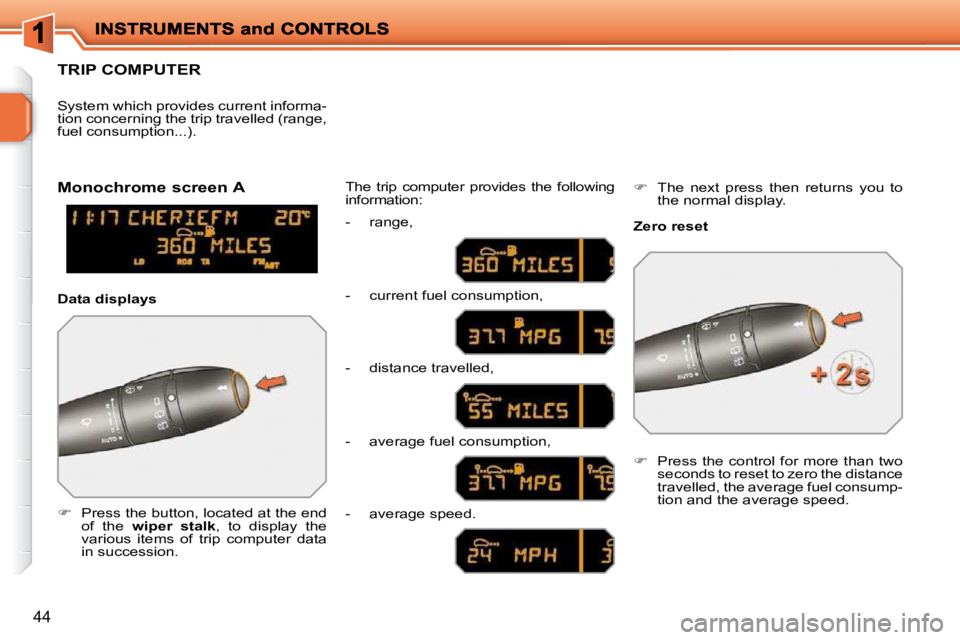

TRIP COMPUTER
Press the button, located at the end
of the wiper
stalk , to display the
various items of trip computer data
in succession. The trip computer provides the following
information:
System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).
Press the control for more than two
seconds to reset to zero the distance
travelled, the average fuel consump-
tion and the average speed.
Monochrome screen A
Zero reset
Data displays - range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
The next press then returns you to
the normal display.
Page 42 of 279
!
i
i
46
Distance remaining to be travelled
(km or miles)
This is the distance remaining t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t is calculated either instantly by the navi-gation system if guidance is activated, or entered by the user.
If the distance is not entered, dashes are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed calculated since the last trip computer zero reset (ignition on).
Range
(km or miles)
This indicates the number of
miles (or kilometres) which
can still be travelled with the fuel re-
maining in the tank in relation to the
average fuel consumption over the last
few miles (kilometres) travelled. Current fuel consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed over the last few seconds.
Average fuel
consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip computer zero reset.
Distance travelled
(km or miles)
This indicates the distance travelled since the last trip computer zero reset.

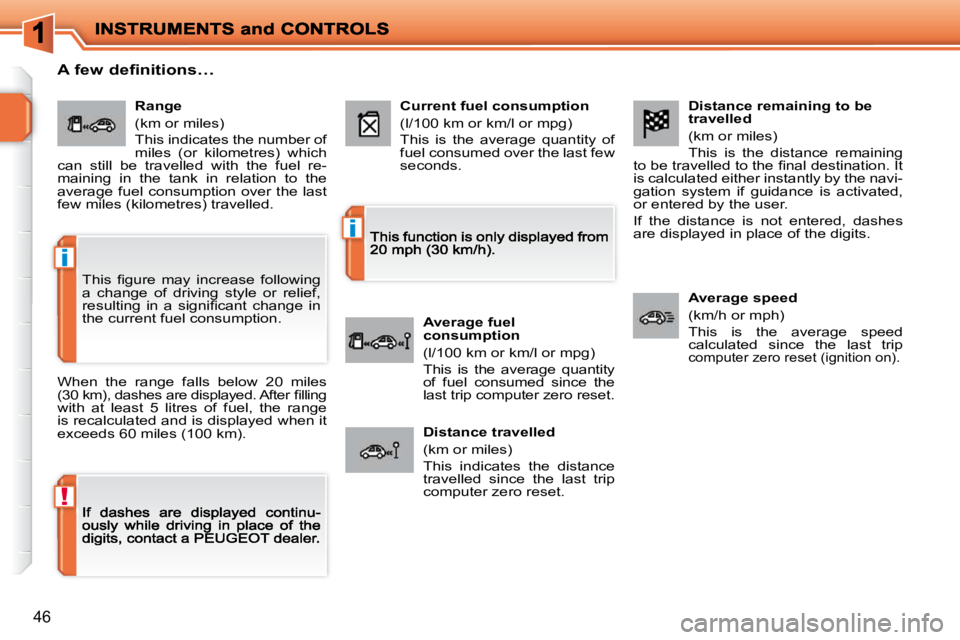

A few definitions…
When the range falls below 20 miles ( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l i n gwith at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change of driving style or relief,
r e s u l t i n g i n a s i g n i fi c a n t c h a n g e i n
the current fuel consumption.
Page 43 of 279
45

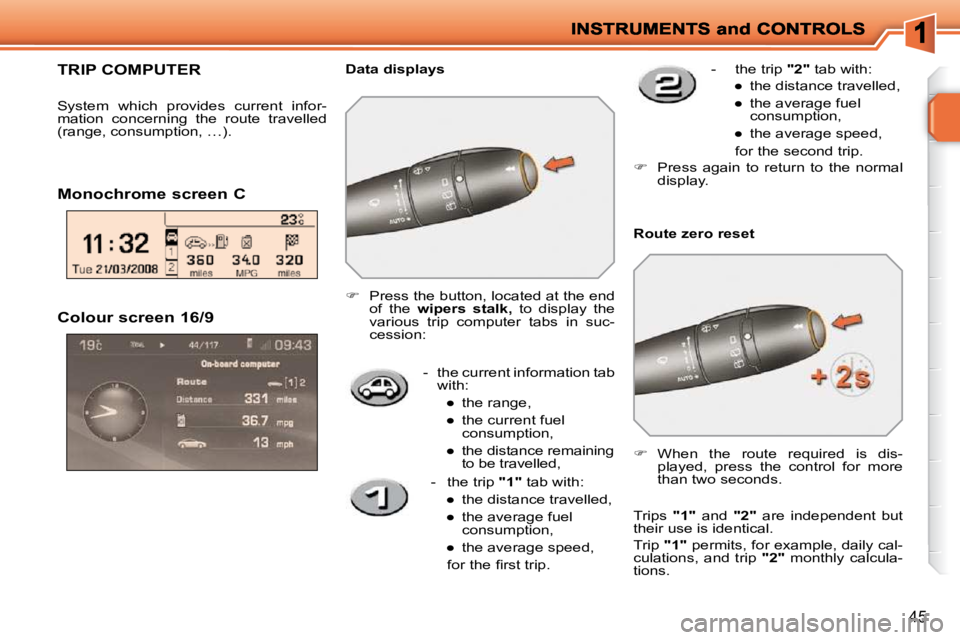

Colour screen 16/9
- the current information tab with:
Page 44 of 279
!
i
i
46
Distance remaining to be travelled
(km or miles)
This is the distance remaining t o b e t r a v e l l e d t o t h e fi n a l d e s t i n a t i o n . I t is calculated either instantly by the navi-gation system if guidance is activated, or entered by the user.
If the distance is not entered, dashes are displayed in place of the digits.
Average speed
(km/h or mph)
This is the average speed calculated since the last trip computer zero reset (ignition on).
Range
(km or miles)
This indicates the number of
miles (or kilometres) which
can still be travelled with the fuel re-
maining in the tank in relation to the
average fuel consumption over the last
few miles (kilometres) travelled. Current fuel consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed over the last few seconds.
Average fuel
consumption
(l/100 km or km/l or mpg)
This is the average quantity of fuel consumed since the last trip computer zero reset.
Distance travelled
(km or miles)
This indicates the distance travelled since the last trip computer zero reset.
A few definitions…
When the range falls below 20 miles ( 3 0 k m ) , d a s h e s a r e d i s p l a y e d . A f t e r fi l l i n gwith at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 60 miles (100 km).
T h i s fi g u r e m a y i n c r e a s e f o l l o w i n g
a change of driving style or relief,
r e s u l t i n g i n a s i g n i fi c a n t c h a n g e i n
the current fuel consumption.
Page 45 of 279
47

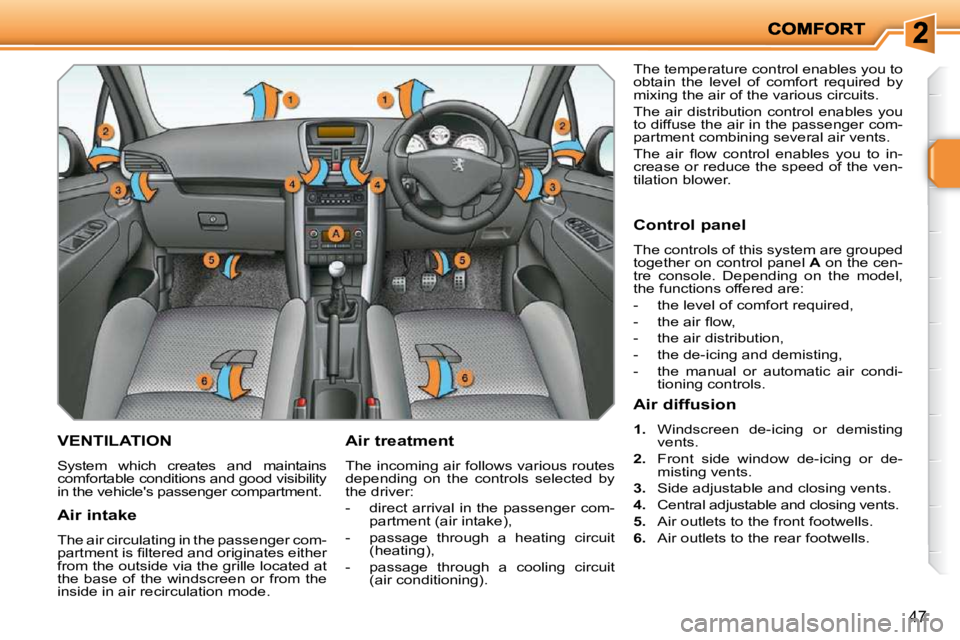

VENTILATION
System which creates and maintains
comfortable conditions and good visibility
in the vehicle's passenger compartment. Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit (heating),
- passage through a cooling circuit (air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
T h e a i r fl o w c o n t r o l e n a b l e s y o u t o i n -
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger com-
p a r t m e n t i s fi l t e r e d a n d o r i g i n a t e s e i t h e r
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode. Control panel
The controls of this system are grouped
together on control panel
A on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- t h e a i r fl o w ,
- the air distribution,
- the de-icing and demisting,
- the manual or automatic air condi- tioning controls.
Air diffusion
1. Windscreen de-icing or demisting
vents.
2. Front side window de-icing or de-
misting vents.
3. Side adjustable and closing vents.
4. Central adjustable and closing vents.
5. Air outlets to the front footwells.
6. Air outlets to the rear footwells.
Page 46 of 279
i
48
In order for these systems to be fully effective, follow the operation and main-
tenance guidelines below:
If the interior temperature remains very high after the vehicle has been
p a r k e d i n t h e s u n f o r a c o n s i d e r a b l e t i m e , fi r s t v e n t i l a t e t h e p a s s e n g e r
compartment for a few minutes.
P l a c e t h e a i r fl o w c o n t r o l a t a s u f fi c i e n t l e v e l t o p r o v i d e a n a d e q u a t e r e -
newal of air in the passenger compartment.
To obtain an even air distribution, take care not to obst ruct the exterior air
intake grilles located at the base of the windscreen, the n ozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
Do not cover the sunshine sensor, located on the fascia; th is is used for
regulation of the air conditioning system.
Operate the air conditioning system for 5 to 10 minutes, on ce or twice a
month to keep it in perfect working order.
E n s u r e t h a t t h e p a s s e n g e r c o m p a r t m e n t fi l t e r i s i n g o o d c o n d i t i o n a n d
h a v e t h e fi l t e r e l e m e n t s r e p l a c e d r e g u l a r l y ( r e f e r t o t h e " C h e c k s " s e c t i o n ) .
W e r e c o m m e n d t h e u s e o f a c o m b i n e d p a s s e n g e r c o m p a r t m e n t fi l t e r . T h a n k s
t o i t s s e c o n d s p e c i a l a c t i v e fi l t e r , i t c o n t r i b u t e s t o t h e p u r i fi c a t i o n o f t h e a i r
breathed by the occupants and the cleanness of the passenger co mpart-
ment (reduction of allergic symptoms, bad odours and greasy deposits).
To guarantee correct operation of the air conditioning syste m, you are also
advised to have it checked regularly.
If the system does not produce cold air, do not use it a nd contact a
PEUGEOT dealer.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning permits the recovery of engi ne power and
therefore improvement of the towing capacity.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 47 of 279
49

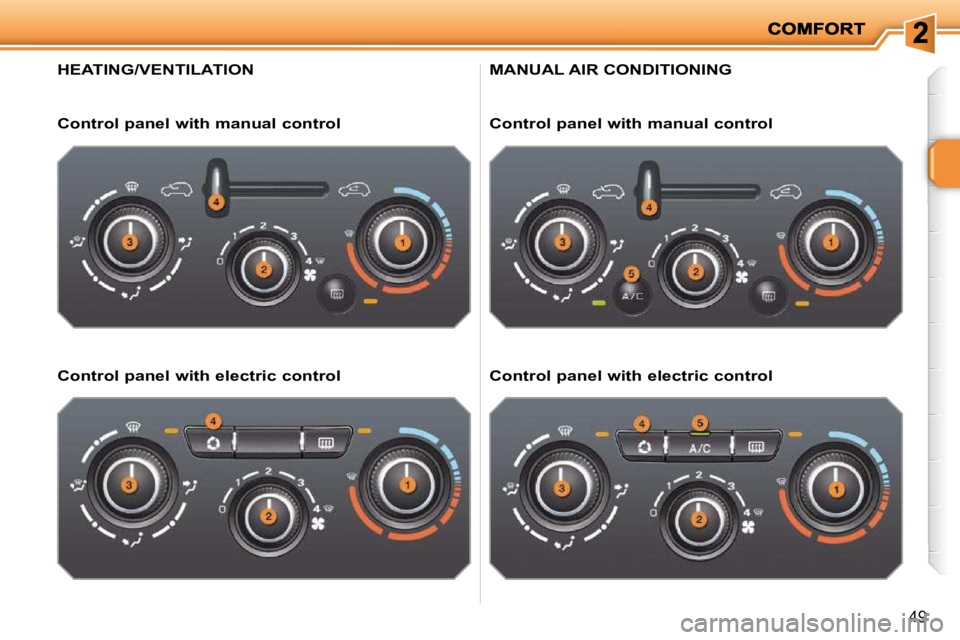

HEATING/VENTILATION
Control panel with manual control
Control panel with electric control MANUAL AIR CONDITIONING
Control panel with manual control
Control panel with electric control
Page 48 of 279
i
50

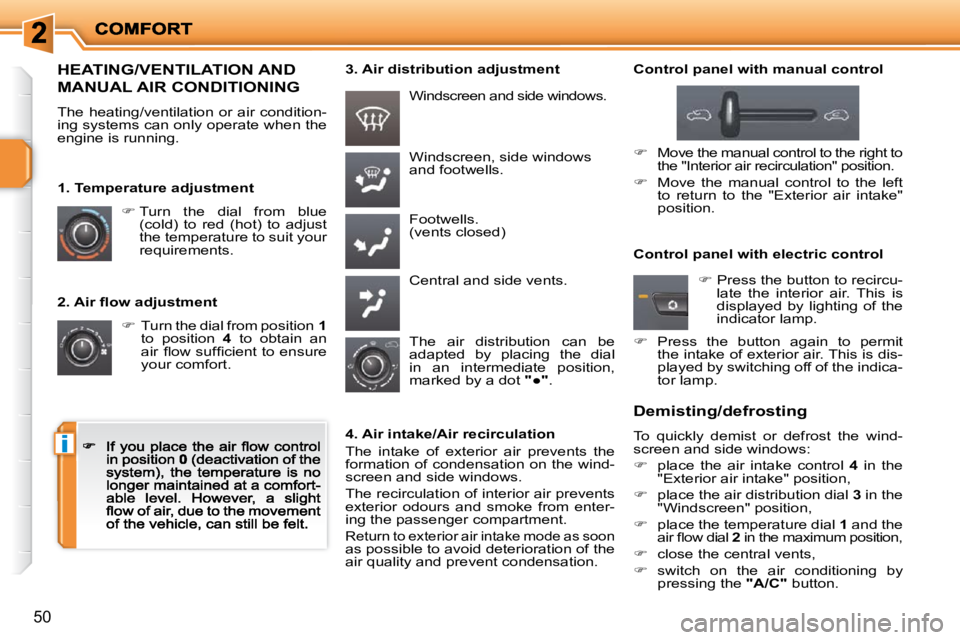

2 . A i r fl o w a d j u s t m e n t
