Page 35 of 279
38
16/9 COLOUR SCREEN
(WITH PC COM)
Displays on the screen When the PC Com is switched on, se-
lect the menu which corresponds to the
following applications:
- the satellite navigation system,
- the guidance on the map,
- t h e t r a f fi c i n f o r m a t i o n ,
- the audio sources (radio, CD, Juke-
box, ...),
- the phone books and the telephone functions,
- t h e c o n fi g u r a t i o n o f t h e s c r e e n a n d the setting of the parameters of the
vehicle's equipment,
- the displaying of a video,
- the vehicle diagnostics. Controls
When the ignition is switched on, this
displays the following information auto-
matically and directly:
- the time,
- the date,
- the ambient temperature (if there is a risk of ice, you are warned by a
message).
Warning messages (e.g.: "Fuel level
low") and vehicle function status mes-
sages (e.g.: "Automatic headlamp light-
ing activated") may appear temporarily.
These can be cleared by pressing the
"ESC" button. From the PC Com control panel, to se-
lect one of the applications:
press the "MENU" button for access
to the general menu ,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the operation in progress and return
to the previous display.
For further details concerning these ap-
plications, refer to the PC Com part of the
"Audio and Telematics" section.
General menu
Page 39 of 279
i
42
16/9 COLOUR SCREEN
(WITH WIP NAV)
For more information on these ap-
plications, refer to the "Audio and
Telematics" section or to the spe-
c i fi c u s e r g u i d e g i v e n t o y o u w i t h
the other owner’s documents.
Displays on the screen
This displays the following information
automatically and directly:
- the time,
- the date,
- the altitude,
- the ambient temperature (the value d i s p l a y e d fl a s h e s i f t h e r e i s a r i s k o f
ice),
- the check on openings,
- the warning and vehicle function status messages, displayed tempo-
rarily,
- the audio functions,
- the trip computer information,
- the satellite navigation system infor- mation. Controls
From the PC Nav control panel, to select
one of the applications:
press the dedicated "RADIO" , "MU-
SIC" , "NAV" , "TRAFFIC" , "SETUP"
or "PHONE" button for access to the
corresponding menu,
turn the navigator to move the se-
lection,
p r e s s t h e n a v i g a t o r t o c o n fi r m t h e
selection,
or
press the "ESC" button to abandon
the current operation and return to
the previous display.
Page 164 of 279
!
!
i
156
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a " 2 T r o n i c "
g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of cer-tain functions in relation to the level of charge remaining in the battery.
When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air condi-tioning, the rear screen de-icing...
The deactivated functions are reactivat-ed automatically as soon as conditions permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the one-touch electric windows,
- the GPS satellite navigation
system.
Page 165 of 279
!
!
i
156
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
d i s c o n n e c t i n g t h e t e r m i n a l s fi r s t .
Do not push the vehicle to start the
e n g i n e i f i t i s fi t t e d w i t h a " 2 T r o n i c "
g e a r b o x .
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger
Disconnect the battery from the ve-
hicle.
Follow the instructions for use pro-
vided by the manufacturer of the
charger.
Reconnect starting with the nega-
t i v e t e r m i n a l ( - ) .
Check that the terminals and connec-
tors are clean. If they are covered with
s u l p h a t e ( w h i t i s h o r g r e e n i s h d e p o s i t ) ,
remove them and clean them.
LOAD REDUCTION MODE
System which manages the use of cer-tain functions in relation to the level of charge remaining in the battery.
When the vehicle is being driven, the load reduction function temporarily deactivates certain functions, such as the air condi-tioning, the rear screen de-icing...
The deactivated functions are reactivat-ed automatically as soon as conditions permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off
the ignition before disconnecting
the battery.
Close the windows and the doors
before disconnecting the battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
H o w e v e r , i f s l i g h t d i f fi c u l t i e s a r e e n -
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
t i o n , y o u m u s t y o u r s e l f r e i n i t i a l i s e :
- the remote control key,
- the one-touch electric windows,
- the GPS satellite navigation
system.

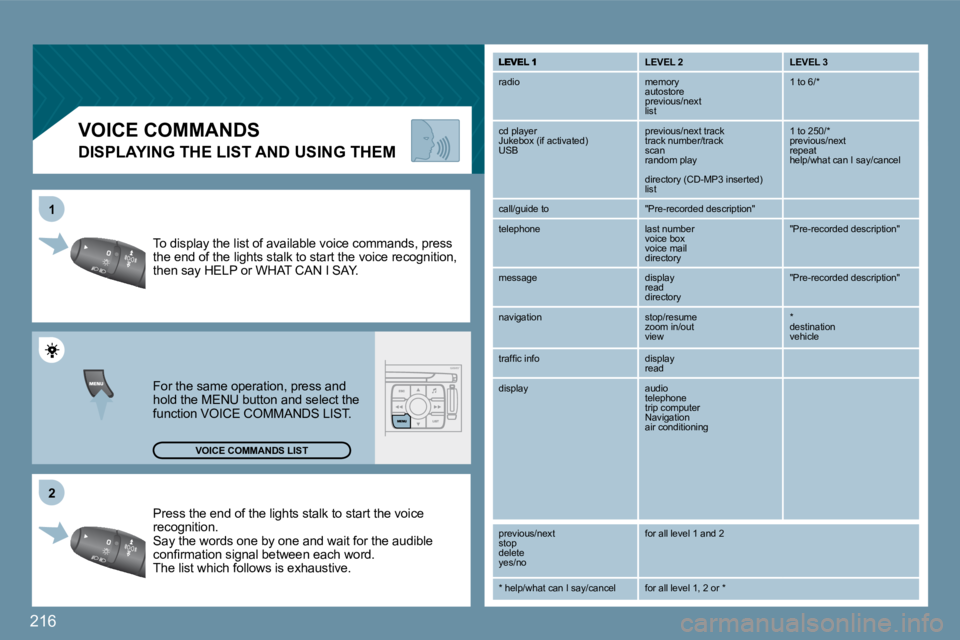

Page 225 of 279
216
2 2
11
Press the end of the lights stalk to start the voice
recognition.
Say the words one by one and wait for the audible
c o n fi r m a t i o n s i g n a l b e t w e e n e a c h w o r d .
The list which follows is exhaustive.
To display the list of available voice commands, p ress the end of the lights stalk to start the voice recognition, t h e n s a y H E L P o r W H A T C A N I S A Y .
For the same operation, press and
hold the MENU button and select the
f u n c t i o n V O I C E C O M M A N D S L I S T .
V O I C E C O M M A N D S L I S T
DISPLAYING THE LIST AND USING THEM
V O I C E C O M M A N D S
L E V E L 2 L E V E L 3
radio memory autostore previous/next list
1 to 6/*
cd player J u k e b o x ( i f a c t i v a t e d ) U S B
previous/next track track number/track scan random play d i r e c t o r y ( C D - M P 3 i n s e r t e d ) list
1 to 250/* previous/next repeat help/what can I say/cancel
call/guide to "Pre-recorded description"
telephone last number voice box voice mail directory
"Pre-recorded description"
message display read directory
"Pre-recorded description"
navigation stop/resume zoom in/out view
* destination vehicle
t r a f fi c i n f o display read
display audio telephone trip computer Navigation air conditioning
previous/next stop delete yes/no
for all level 1 and 2
* help/what can I say/cancel for all level 1, 2 or *
Page 240 of 279
231
0 3
1
2
3
5
6
4
N A V I G A T I O N - G U I D A N C E
SELECTING A DESTINATION
Press the NAV button again or select the "Navigation" Menu function and p r e s s t h e d i a l t o c o n fi r m .
S e l e c t t h e " D e s t i n a t i o n i n p u t " f u n c t i o n a n d p r e s s t h e d i a l t o c o n fi r m .
Press the NAV button.
Select the letters of the town one by o n e c o n fi r m i n g e a c h t i m e b y p r e s s i n g the dial.
Once the country has been selected, turn the dial and select the town f u n c t i o n . P r e s s t h e d i a l t o c o n fi r m .
" N A V I G A T I O N " M E N U
DESTINATION INPUT
I n s e r t t h e S D c a r d i n t h e f r o n t p a n e l r e a d e r a n d l e a v e i t t h e r e t o u s e t h e N a v i g a t i o n f u n c t i o n s . T h e n a v i g a t i o n S D c a r d d a t a m u s t n o t b e m o d i fi e d . Map data updates are available from PEUGEOT dealer s.
A p r e - s e t l i s t ( b y e n t e r i n g t h e fi r s t f e w l e t t e r s ) o f t h e t o w n s i n t h e A p r e - s e t l i s t ( b y e n t e r i n g t h e fi r s t f e w l e t t e r s ) o f t h e t o w n s i n t h e country selected can be accessed via the LIST butto n ontton on the virtual keypad.
Select the "Address input" function a n d p r e s s t h e d i a l t o c o n fi r m .
ADDRESS INPUT
The list of the last 20 destinations appears under the "Nthe "Navigation" Menu function.
Page 242 of 279
233
0 3
4
3
2
1
7
6
5
N A V I G A T I O N - G U I D A N C E
ROUTE OPTIONS
Select the "Route dynamics" function. This function gives access to the " T r a f fi c i n d e p e n d e n t " o r " S e m i -dynamic" options.
Select the "Avoidance criteria" function. This function provides a c c e s s t o t h e A V O I D o p t i o n s ( m o t o r w a y s , t o l l r o a d s , f e r r i e s ) .
Turn the dial and select the "Recalculate" function to take into account the route options selected. P r e s s t h e d i a l t o c o n fi r m .
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and p r e s s t h e d i a l t o c o n fi r m .
Select the "Route type" function and p r e s s t h e d i a l t o c o n fi r m . T h i s f u n c t i o n allows you to change the route type.
Select the "Route options" function a n d p r e s s t h e d i a l t o c o n fi r m .
RECALCULATE
A V O I D A N C E C R I T E R I A
ROUTE DYNAMICS
ROUTE TYPE
ROUTE OPTIONS
" N A V I G A T I O N " M E N U
The route selected by the PC Nav audio/telephone d
epends directly on the route options. Changing these options may change the route comple tely.
Page 243 of 279
234
7
6
5
4
3
2
1
Enter a new address, for example.
Once the new address has been entered, select OK and press the dial t o c o n fi r m .
Select "Recalculate" and press the d i a l t o c o n fi r m .
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and p r e s s t h e d i a l t o c o n fi r m .
Select the "Add stopover" function ( 5 s t o p o v e r s m a x i m u m ) a n d p r e s s t h e d i a l t o c o n fi r m .
Select the "Stopovers" function and p r e s s t h e d i a l t o c o n fi r m .
OK
ADDRESS INPUT
A D D S T O P O V E R
S T O P O V E R S
" N A V I G A T I O N " M E N U
RECALCULATE
The stopover must be completed or deleted in order
for er for the guidance to continue to the next destination. Otherwise, the PC N PC Nav will always return you to the previous stopover.
Stopovers can be added to the route once the destination has been selected.
Page 244 of 279
235
0 3
8
6
7
4
3
5
2
1
N A V I G A T I O N - G U I D A N C E
SEARCHING FOR POINTS OF INTEREST
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and p r e s s t h e d i a l t o c o n fi r m .
Select the "POI nearby" function to search for POIs around the vehicle.
Select the "POI search" function and p r e s s t h e d i a l t o c o n fi r m .
" N A V I G A T I O N " M E N U
POI SEARCH
POI NEARBY
Select the "POI in city" function to search for POIs in the city required. Select the country then enter the name of the city using the virtual keypad.
Select the "POI near route" function to search for POIs near the route.
Select the "POI in country" function to search for POIs in the country required.
Select the "POI near destination" function to search for POIs near the point of arrival of the route.
POI NEAR DESTINATION POI NEAR ROUTE
POI IN COUNTRY
POI IN CITY
A list of cities present in the country selected c
an be accbe accessed via the LIST button on the virtual keypad.
T h e p o i n t s o f i n t e r e s t ( P O I s ) i n d i c a t e a l l o f t h e s e r v i c e l o c a t i o n s i n t h e v i c i n i t y ( h o t e l s , v a r i o u s b u s i n e s s e s , a i r p o r t s . . . ) .
Page 246 of 279
237
0 3
5
4
6
3
2
1
Select the "Navi volume" function and turn the dial to set the volume of each v o i c e s y n t h e s i s e r ( t r a f fi c i n f o r m a t i o n , a l e r t m e s s a g e s … ) .
Select "Set parameters for risk areas" t o g a i n a c c e s s t o t h e " D i s p l a y o n map", "Visual alert" and "Sound alert" functions.
Select the "POI categories on Map" function to select the POIs to be displayed on the map by default.
N A V I V O L U M E
Press the NAV button.
Press the NAV button again or select the "Navigation" Menu function and p r e s s t h e d i a l t o c o n fi r m .
Select the "Settings" function and p r e s s t h e d i a l t o c o n fi r m .
POI CATEGORIES ON MAP
SETTINGS SET PARAMETERS FOR RISK AREAS
" N A V I G A T I O N " M E N U
N A V I G A T I O N - G U I D A N C E
C o n t a c t a P E U G E O T d e a l e r f o r d e t a i l s o f t h e p r o c e d
u r e f o r o b t a i n i n g t h e H A Z A R D O U S L O C A T I O N P O I s . U p d a t i n g o f t h e H A Z A R D O U S L O C A T I O N P O I s r e q u i r e s a n S D H C ( H i g h C a p a c i t y ) c o m p a t i b l e r e a d e r .
