PEUGEOT 207 2010 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010, Model line: 207, Model: PEUGEOT 207 2010Pages: 218, PDF Size: 10.37 MB
Page 161 of 218
10
168
TECHNICAL DATA

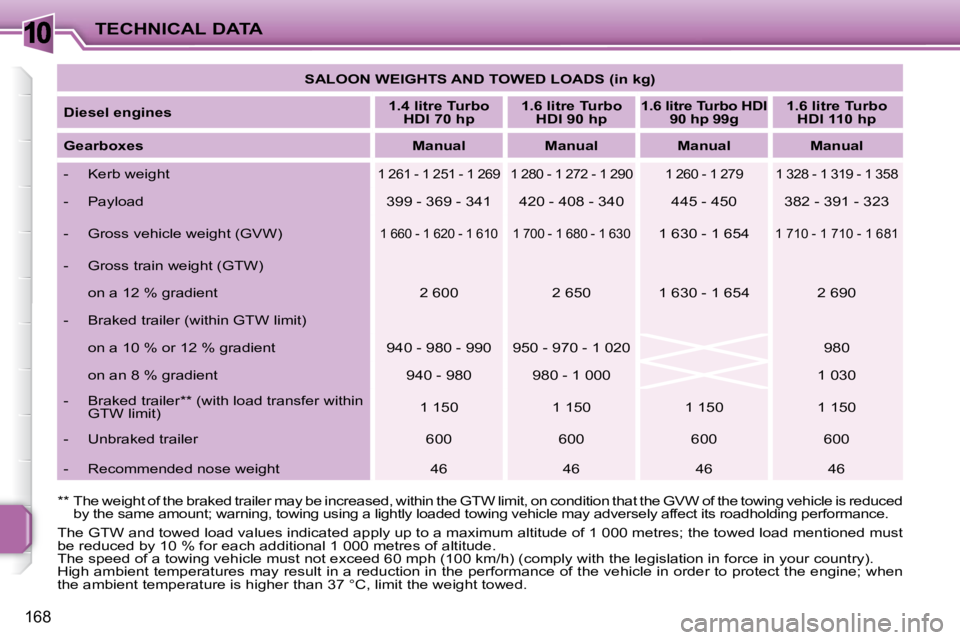

SALOON WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.4 litre Turbo
HDI 70 hp
1.6 litre Turbo
HDI 90 hp
1.6
litre Turbo HDI
90 hp 99g
1.6 litre Turbo
HDI 110 hp
Gearboxes
Manual Manual Manual Manual
- Kerb weight
1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290 1 260 - 1 279 1 328 - 1 319 - 1 358
- Payload 399 - 369 - 341 420 - 408 - 340 445 - 450 382 - 391 - 323
- Gross vehicle weight (GVW)
1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630 1 630 - 1 654 1 710 - 1 710 - 1 681
- Gross train weight (GTW)
on a 12 % gradient 2 600 2 650 1 630 - 1 65 4 2 690
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 940 - 980 - 990 950 - 970 - 1 020
980
on an 8 % gradient 940 - 980 980 - 1 000
1 030
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150 1 150 1 150
- Unbraked trailer 600 600 600 600
- Recommended nose weight 46 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
Page 162 of 218
10
164
TECHNICAL DATA

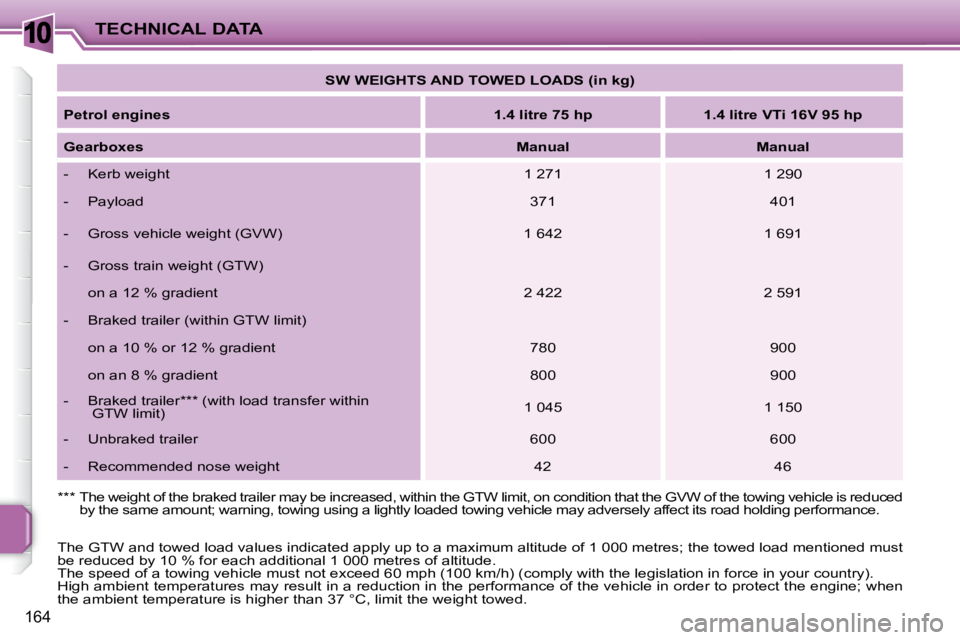

SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre 75 hp 1.4 litre VTi 16V 95 hp
Gearboxes
Manual Manual
- Kerb weight 1 271 1 290
- Payload 371 401
- Gross vehicle weight (GVW) 1 642 1 691
- Gross train weight (GTW)
on a 12 % gradient 2 422 2 591
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 780 900
on an 8 % gradient 800 900
- Braked trailer *** (with load transfer within GTW limit) 1 045 1 150
- Unbraked trailer 600 600
- Recommended nose weight 42 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be in
creased, within the GTW limit, on condition that th e GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 163 of 218
10
165

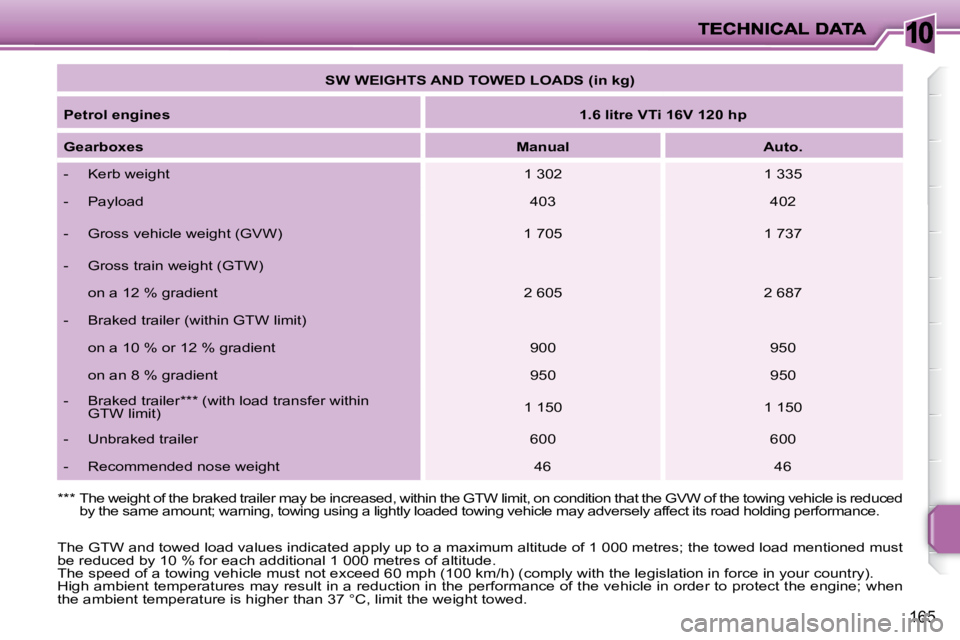

SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V 120 hp
Gearboxes
Manual Auto.
- Kerb weight 1 302 1 335
- Payload 403 402
- Gross vehicle weight (GVW) 1 705 1 737
- Gross train weight (GTW)
on a 12 % gradient 2 605 2 687
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 900 950
on an 8 % gradient 950 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be in
creased, within the GTW limit, on condition that th e GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 164 of 218
10
169
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.

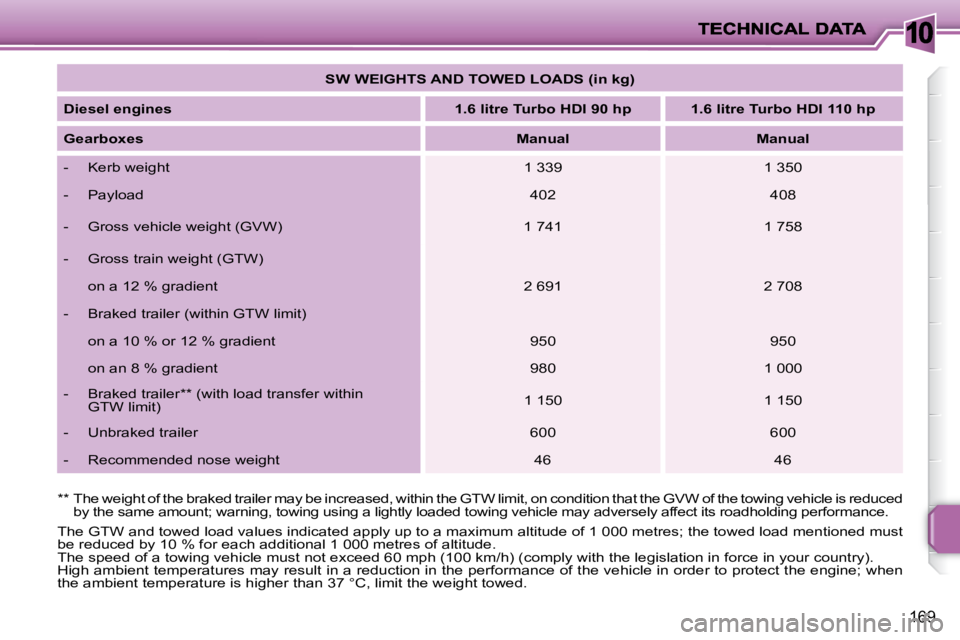

SW WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 90 hp 1.6 litre Turbo HDI 110 hp
Gearboxes
Manual Manual
- Kerb weight 1 339 1 350
- Payload 402 408
- Gross vehicle weight (GVW) 1 741 1 758
- Gross train weight (GTW)
on a 12 % gradient 2 691 2 708
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 950 950
on an 8 % gradient 980 1 000
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
** The weight of the braked trailer may be inc reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
Page 165 of 218
10TECHNICAL DATA

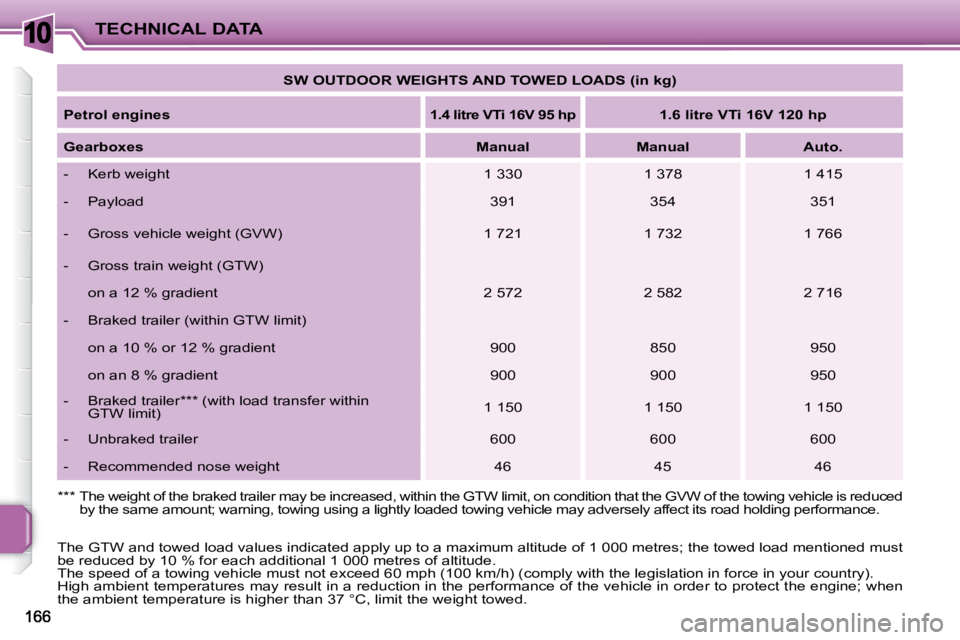

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre VTi 16V 95 hp
1.6 litre VTi 16V 120 hp
Gearboxes
Manual Manual Auto.
- Kerb weight 1 330 1 378 1 415
- Payload 391 354 351
- Gross vehicle weight (GVW) 1 721 1 732 1 766
- Gross train weight (GTW)
on a 12 % gradient 2 572 2 582 2 716
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 900 850 950
on an 8 % gradient 900 900 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 45 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
*** The weight of the braked trailer may be in
creased, within the GTW limit, on condition that th e GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 166 of 218
10
170
TECHNICAL DATA

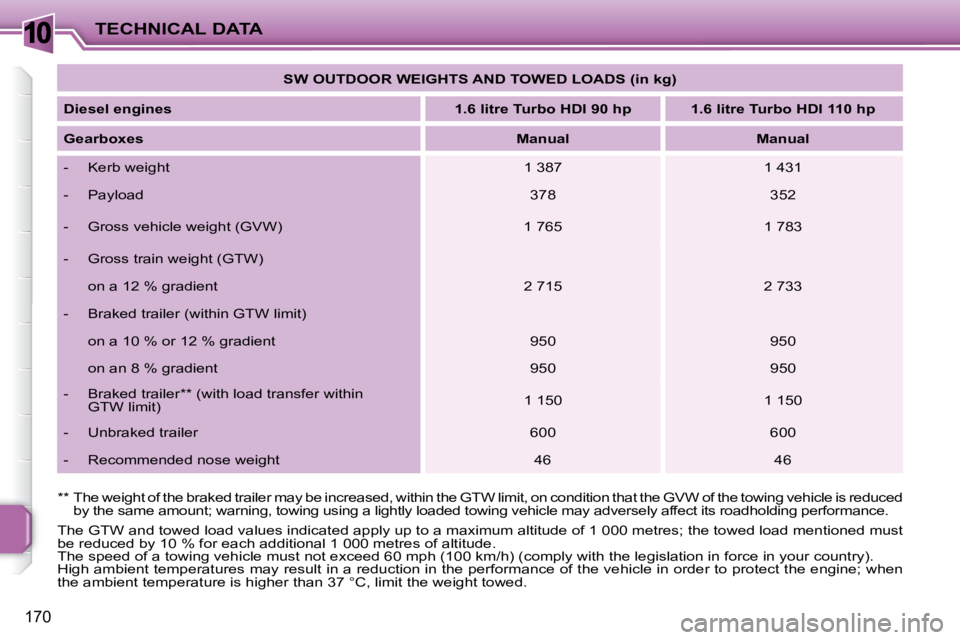

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 90 hp 1.6 litre Turbo HDI 110 hp
Gearboxes
Manual Manual
- Kerb weight 1 387 1 431
- Payload 378 352
- Gross vehicle weight (GVW) 1 765 1 783
- Gross train weight (GTW)
on a 12 % gradient 2 715 2 733
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 950 950
on an 8 % gradient 950 950
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the pe rformance of the vehicle in order to protect the engine; when
the ambient temperature is higher than 37 °C, limit the we ight towed.
** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
Page 167 of 218
10
171
DIMENSIONS (IN MM)
207 saloon (3 and 5 door versions) 207 SW/207 SW Outdoor
* SW with roof bars.
** SW Outdoor with roof bars.
Page 168 of 218
10
!
i
172
TECHNICAL DATA

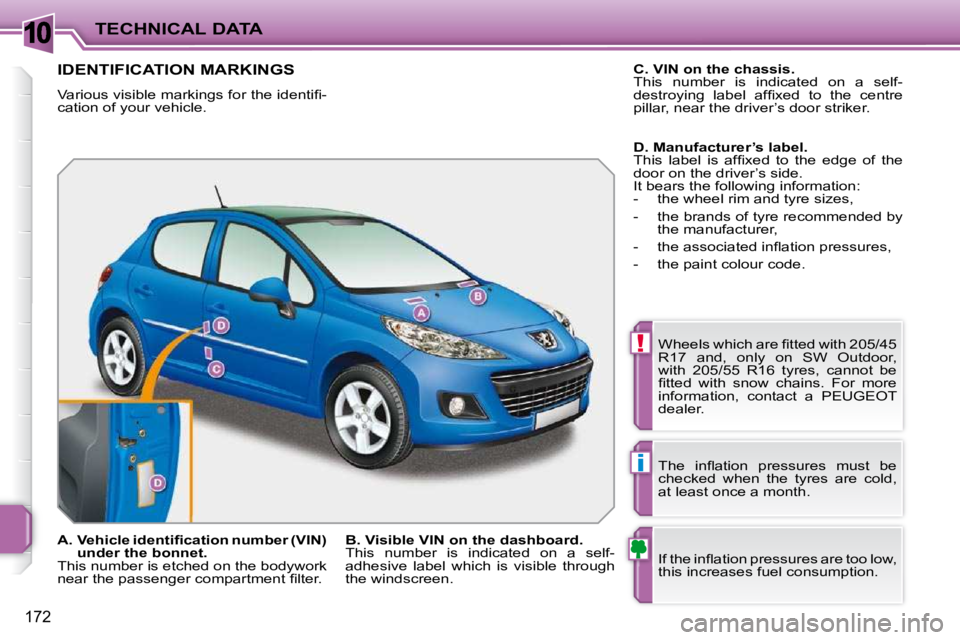

IDENTIFICATION MARKINGS
V a r i o u s v i s i b l e m a r k i n g s f o r t h e i d e n t i fi -
cation of your vehicle. W h e e l s w h i c h a r e fi t t e d w i t h 2 0 5 / 4 5
R17 and, only on SW Outdoor,
with 205/55 R16 tyres, cannot be
fi t t e d w i t h s n o w c h a i n s . F o r m o r e
information, contact a PEUGEOT
dealer.
I f t h e i n fl a t i o n p r e s s u r e s a r e t o o l o w ,
this increases fuel consumption.
T h e i n fl a t i o n p r e s s u r e s m u s t b e
checked when the tyres are cold,
at least once a month.
A . V e h i c l e i d e n t i fi c a t i o n
number
(VIN)
under the bonnet.
This number is etched on the bodywork
n e a r t h e p a s s e n g e r c o m p a r t m e n t fi l t e r .
B. Visible VIN on the dashboard.
This number is indicated on a self-
adhesive label which is visible through
the windscreen.
C. VIN on the chassis.
This number is indicated on a self-
d e s t r o y i n g l a b e l a f fi x e d t o t h e c e n t r e
pillar, near the driver’s door striker.
D. Manufacturer’s label.
T h i s l a b e l i s a f fi x e d t o t h e e d g e o f t h e
door on the driver’s side.
It bears the following information:
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e a s s o c i a t e d i n fl a t i o n p r e s s u r e s ,
- the paint colour code.
Page 169 of 218

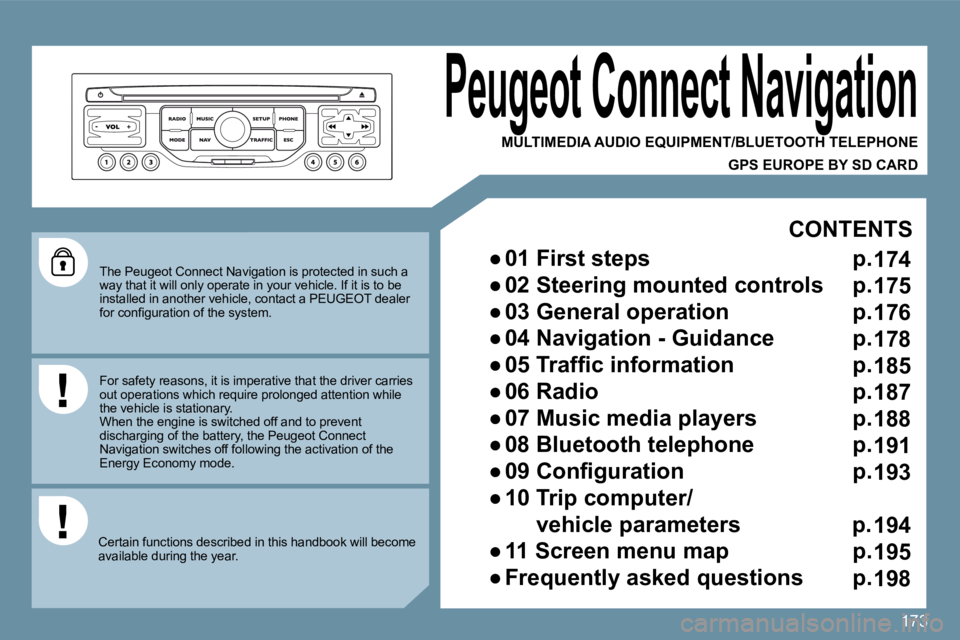

173
The Peugeot Connect Navigation is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a PEUGEOT dea ler f o r c o n fi g u r a t i o n o f t h e s y s t e m .
C e r t a i n f u n c t i o n s d e s c r i b e d i n t h i s h a n d b o o k w i l l b e c o m e available during the year.
Peugeot Connect Navigation
CONTENTS
Page 170 of 218
174
1
5
1 0
0 1
2
3 4 6
1 3
1 1
9
1 4 1 5
7 8 1 2 1 6
Engine not running - Short press: on/off. - L o n g p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . Engine running - S h o r t p r e s s : C D p a u s e , m u t e f o r t h e r a d i o . - L o n g p r e s s : r e i n i t i a l i s a t i o n o f t h e s y s t e m .
2 . V o l u m e a d j u s t m e n t ( e a c h s o u r c e i s i n d e p e n d e n t , i n c
l u d i n g a l s o n a v i g a t i o n m e s s a g e s a n d a l e r t s ) .
3 . Access to the "Radio" Menu. Display the list of stations.
4 . Access to the "Music" Menu. Display the tracks.
6 . Access to the "Phone" Menu. Display the call list.
7 . A c c e s s t o t h e " M O D E " m e n u . Selection of the successive display of: R a d i o , M a p , N A V ( i f n a v i g a t i o n i s i n p r o g r e s s ) , T e l e p h o n e ( i f a c o n v e r s a t i o n i s i n p r o g r e s s ) , T r i p c o m p u t e r . L o n g p r e s s : d i s p l a y o f a b l a c k s c r e e n ( D A R K ) .
8 . Access to the "Navigation" Menu. Display the last destinations.
9 . A c c e s s t o t h e " T r a f fi c " M e n u . D i s p l a y t h e c u r r e n t t r a f fi c a l e r t s .
1 0 . ESC: abandon the operation in progress.
1 1 . C D e j e c t .
1 2 . S e l e c t i o n o f t h e p r e v i o u s / n e x t r a d i o s t a t i o n f r o m t h e l i s t . Selection of the previous/next MP3 directory. Selection of the previous/next page of a list.
1 3 . Selection of the previous/next radio station. Selection of the previous/next CD or MP3 track. Selection of the previous/next line of a list.
1 4 . Buttons 1 to 6: Selection of the stored radio station. Long press: store the current radio station.
1 5 . S D c a r d r e a d e r ( n a v i g a t i o n S D c a r d o n l y ) .
1 6 . Dial for selection of the screen display and accor ding to the c o n t e x t o f t h e m e n u S h o r t p r e s s : c o n t e x t u a l m e n u o r c o n fi r m a t i o n . L o n g p r e s s p r e s s : c o n t e x t u a l m e n u s p e c i fi c t o t h e l i s t displayed.

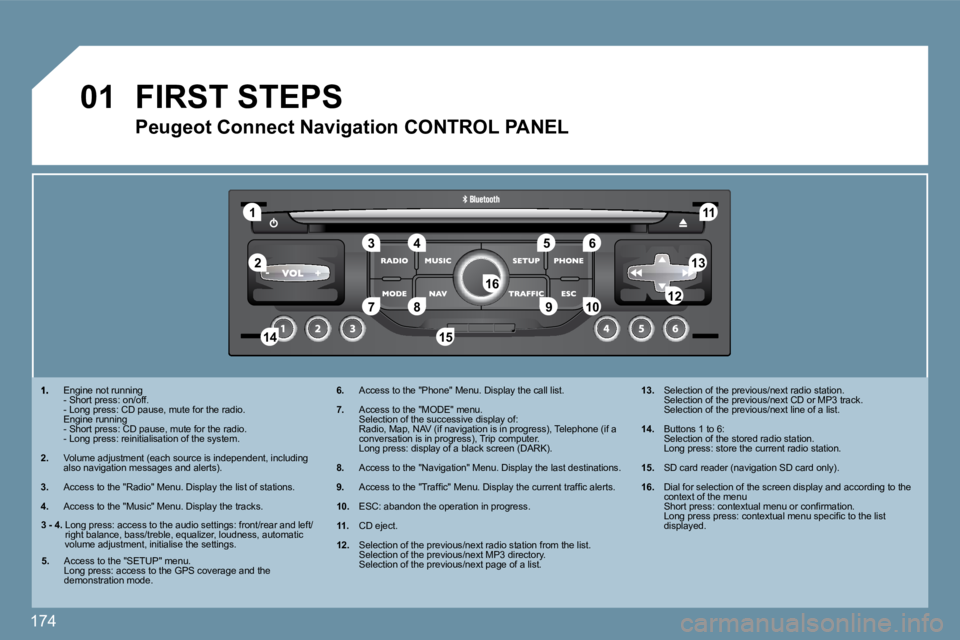

P e u g e o t C o n n e c t N a v i g a t i o n C O N T R O L P A N E L
3 - 4 . Long press: access to the audio settings: front/rear and left/ r i g h t b a l a n c e , b a s s / t r e b l e , e q u a l i z e r , l o u d n e s s , a u t o m a t i c v o l u m e a d j u s t m e n t , i n i t i a l i s e t h e s e t t i n g s .
5 . A c c e s s t o t h e " S E T U P " m e n u . Long press: access to the GPS coverage and the d e m o n s t r a t i o n m o d e .
F I R S T S T E P S
