PEUGEOT 207 2011 User Guide

9
FAMILIARISATION

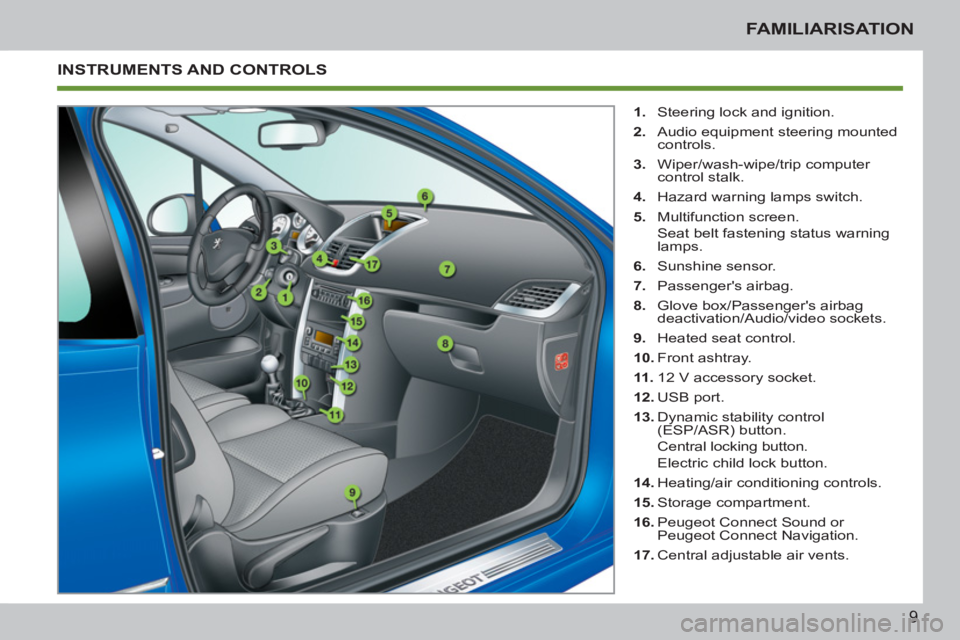

INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio equipment steering mounted
controls.

3.
Wiper/wash-wipe/trip computer
control stalk.

4.
Hazard warning lamps switch.

5.
Multifunction screen.
Seat belt fastening status warning
lamps.

6.
Sunshine sensor.

7.
Passenger's airbag.

8.
Glove box/Passenger's airbag
deactivation/Audio/video sockets.

9.
Heated seat control.

10.
Front ashtray.

11 .
12 V accessory socket.

12.
USB port.

13.
Dynamic stability control
(ESP/ASR) button.
Central locking button.
Electric child lock button.

14.
Heating/air conditioning controls.

15.
Storage compartment.

16.
Peugeot Connect Sound or
Peugeot Connect Navigation.

17.
Central adjustable air vents.

i

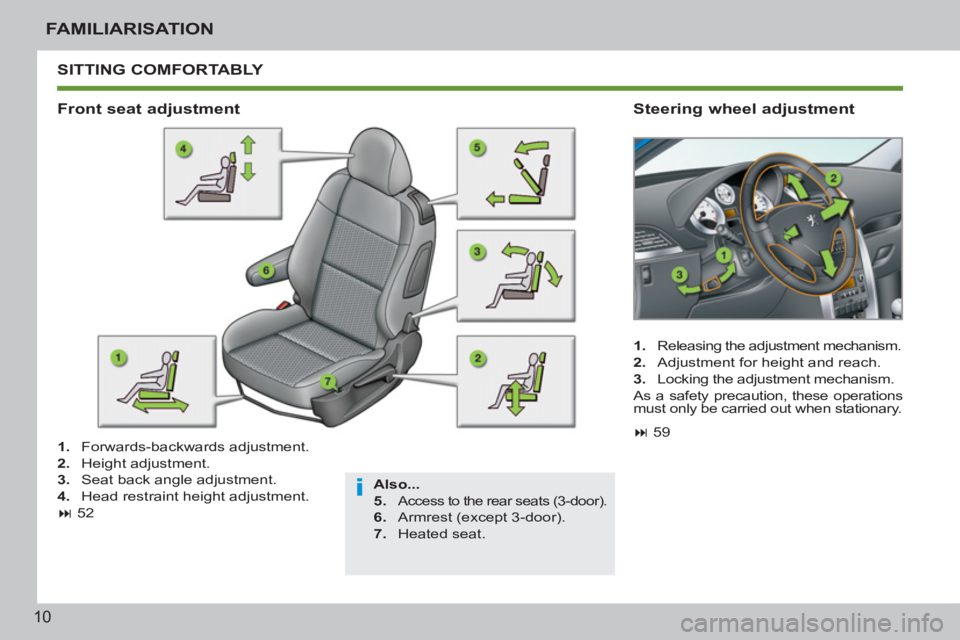

10
FAMILIARISATION
SITTING COMFORTABLY

Also...


5.

Access to the rear seats (3-door).


6.
Armrest (except 3-door).

7.
Heated seat.


Front seat adjustment
Steering wheel adjustment


1.
Forwards-backwards adjustment.

2.
Height adjustment.

3.
Seat back angle adjustment.

4.
Head restraint height adjustment.



52

1.
Releasing the adjustment mechanism.

2.
Adjustment for height and reach.

3.
Locking the adjustment mechanism.
As a safety precaution, these operations
must only be carried out when stationary.



59

i
11
FAMILIARISATION
SITTING COMFORTABLY

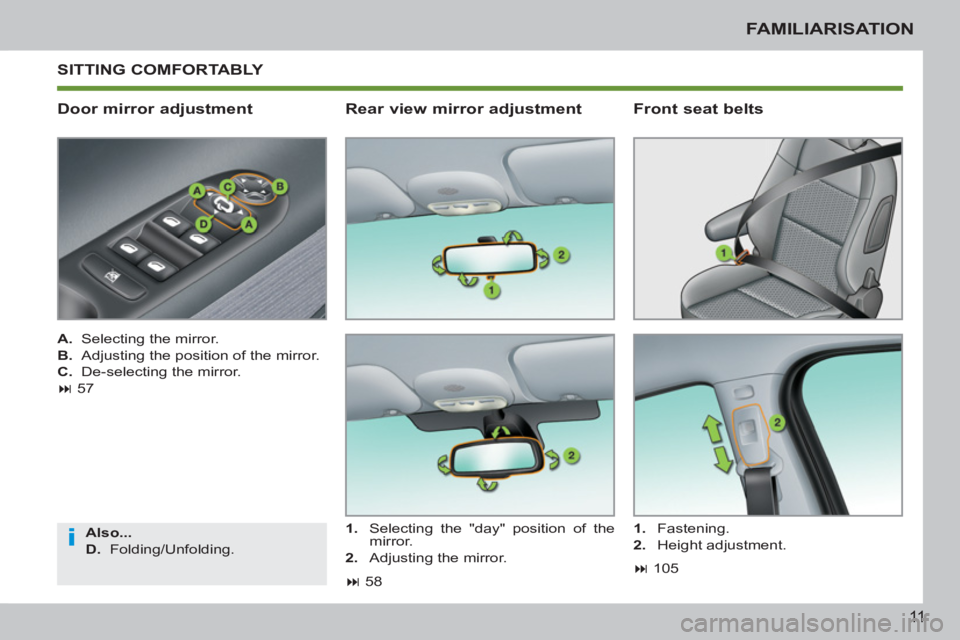

Door mirror adjustment


A.
Selecting the mirror.

B.
Adjusting the position of the mirror.

C.
De-selecting the mirror.



57

Also...


D.
Folding/Unfolding.


Rear view mirror adjustment



1.
Selecting the "day" position of the
mirror.

2.
Adjusting the mirror.



58



Front seat belts



1.
Fastening.

2.
Height adjustment.



105

12
FAMILIARISATION

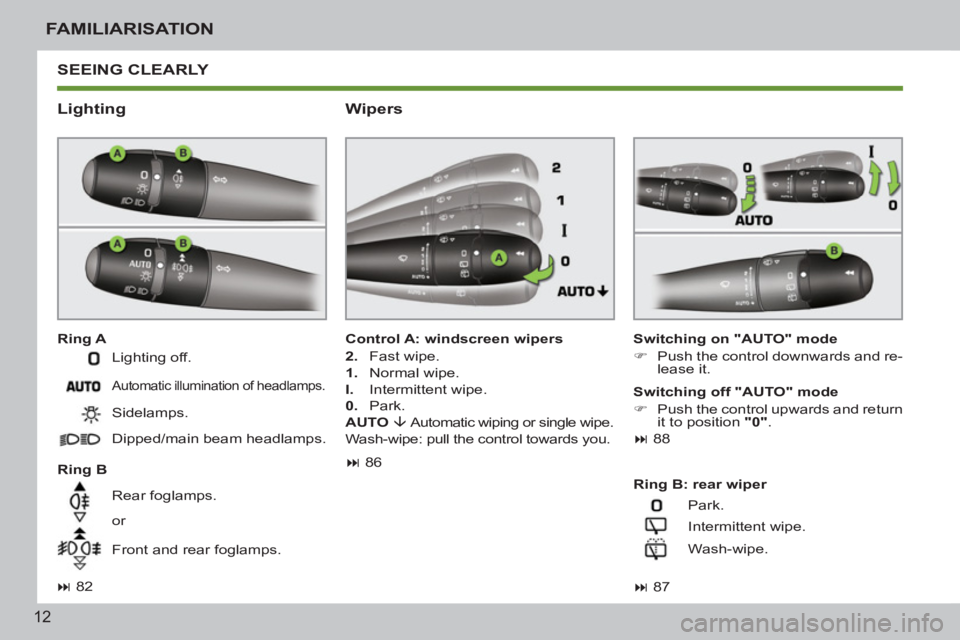

SEEING CLEARLY

Lighting


Ring A

Switching on "AUTO" mode


)
Push the control downwards and re-
lease it.


Ring B
Control A: windscreen wipers

2.
Fast wipe.

1.
Normal wipe.

I.
Intermittent wipe.

0.
Park.

AUTO È

Automatic wiping or single wipe.
Wash-wipe: pull the control towards you.



86



Wipers


Switching off "AUTO" mode


)
Push the control upwards and return
it to position "0"
.



88




82

Lighting off.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamps.
or
Front and rear foglamps.
Automatic illumination of headlamps.


Ring B: rear wiper
Park.



87

Intermittent wipe.
Wash-wipe.

–
13
FAMILIARISATION

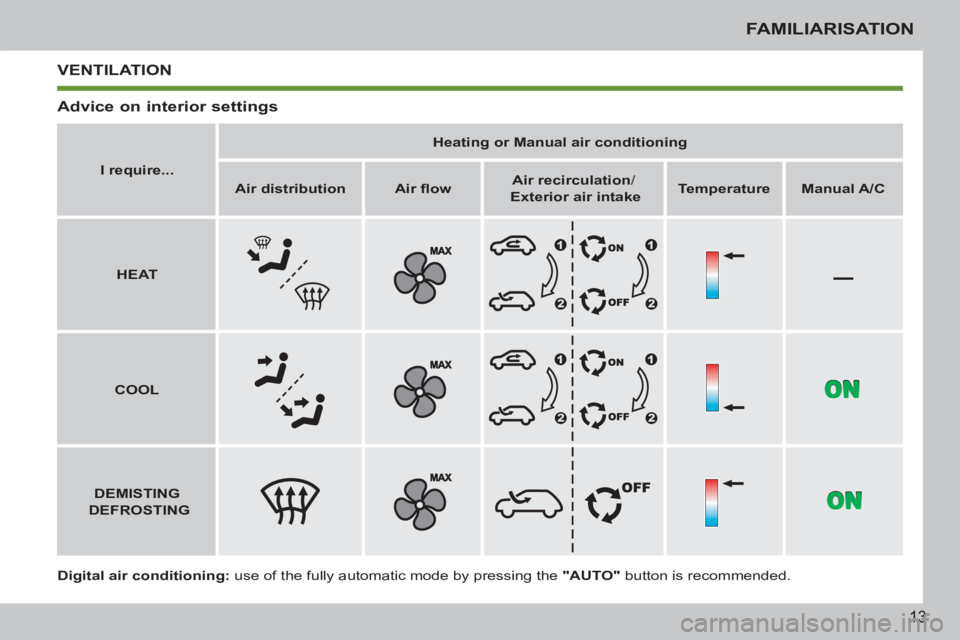

Digital air conditioning:
use of the fully automatic mode by pressing the "AUTO"
button is recommended.

I require...



Heating or Manual air conditioning




Air distribution



Air fl ow



Air recirculation
/
Exterior air intake



Temperature



Manual A/C




HEAT




COOL




DEMISTING

DEFROSTING


VENTILATION

Advice on interior settings

14
FAMILIARISATION

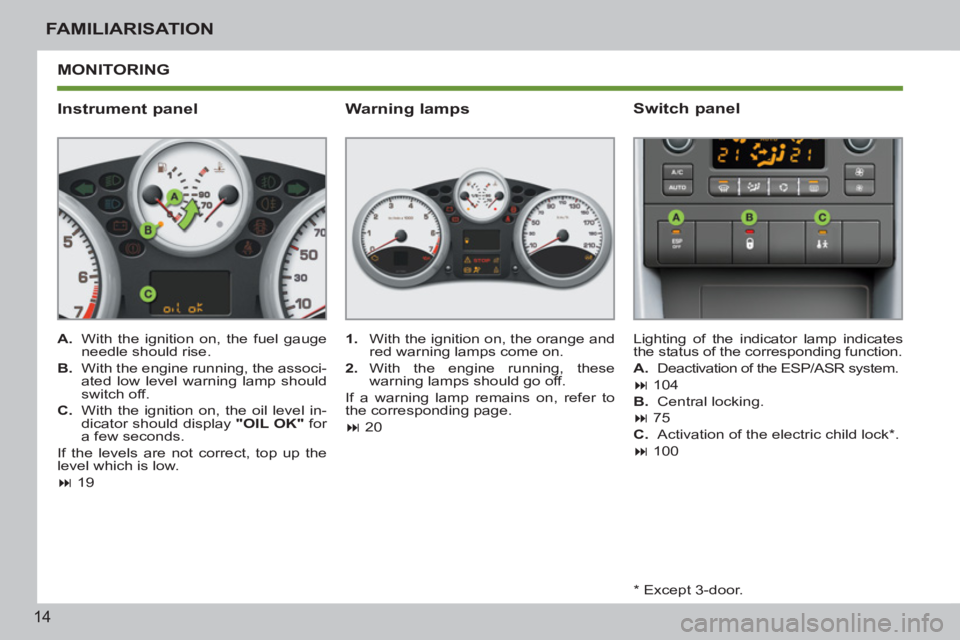

MONITORING

Instrument panel



A.
With the ignition on, the fuel gauge
needle should rise.

B.
With the engine running, the associ-
ated low level warning lamp should
switch off.

C.
With the ignition on, the oil level in-
dicator should display "OIL OK"
for
a few seconds.
If the levels are not correct, top up the
level which is low.



19


1.
With the ignition on, the orange and
red warning lamps come on.

2.
With the engine running, these
warning lamps should go off.
If a warning lamp remains on, refer to
the corresponding page.



20



Warning lamps


*
Except 3-door. Lighting of the indicator lamp indicates
the status of the corresponding function.


A.
Deactivation of the ESP/ASR system.

104

B.
Central locking.

75

C.
Activation of the electric child lock * .

100




Switch panel

!
15
FAMILIARISATION

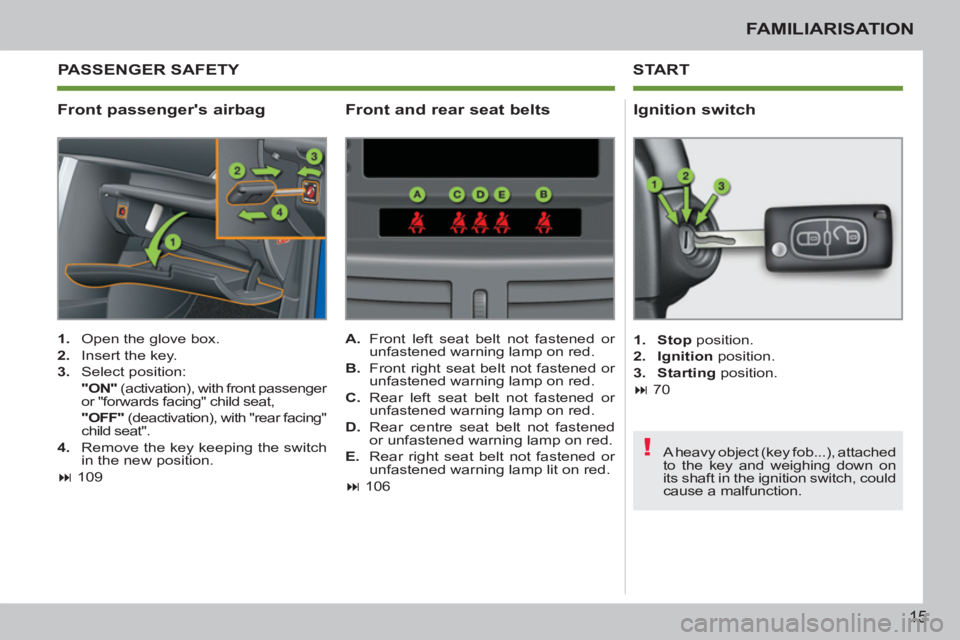

Front passenger's airbag
START



1.
Open the glove box.

2.
Insert the key.

3.
Select position:
"ON"
(activation), with front passenger
or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing"
child seat".

4.
Remove the key keeping the switch
in the new position.



109



Ignition switch



A.
Front left seat belt not fastened or
unfastened warning lamp on red.

B.
Front right seat belt not fastened or
unfastened warning lamp on red.

C.
Rear left seat belt not fastened or
unfastened warning lamp on red.

D.
Rear centre seat belt not fastened
or unfastened warning lamp on red.

E.
Rear right seat belt not fastened or
unfastened warning lamp lit on red.



106



Front and rear seat belts



1.
Stop
position.

2.
Ignition
position.

3.
Starting
position.



70

PASSENGER SAFETY


A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.

16
FAMILIARISATION
DRIVING SAFELY

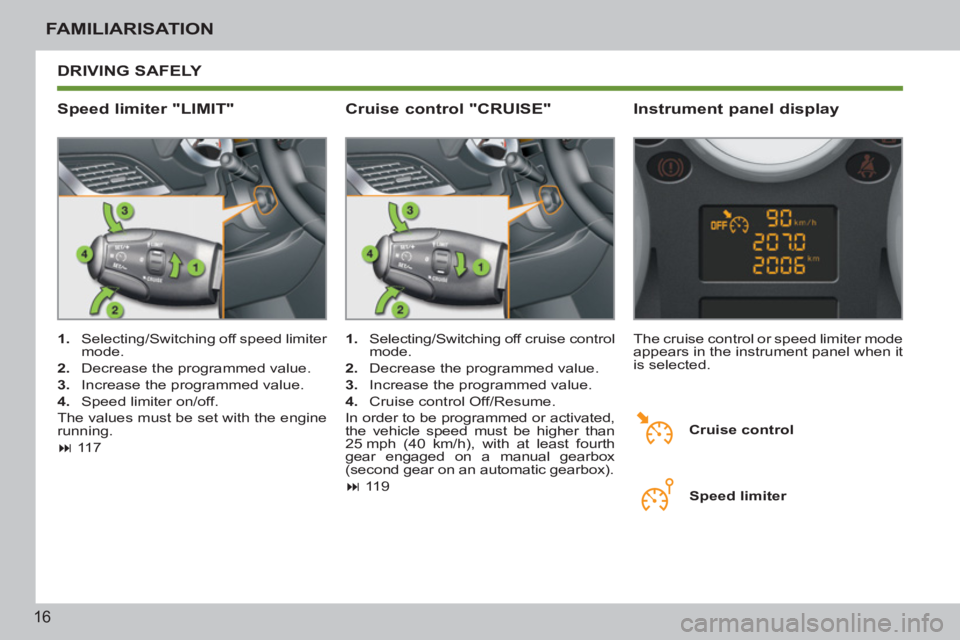

Speed limiter "LIMIT"
Instrument panel display



1.
Selecting/Switching off speed limiter
mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Speed limiter on/off.
The values must be set with the engine
running.



117
The cruise control or speed limiter mode
appears in the instrument panel when it
is selected.

1.
Selecting/Switching off cruise control
mode.

2.
Decrease the programmed value.

3.
Increase the programmed value.

4.
Cruise control Off/Resume.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear on an automatic gearbox).



119



Cruise control "CRUISE"


Cruise control

Speed limiter

17

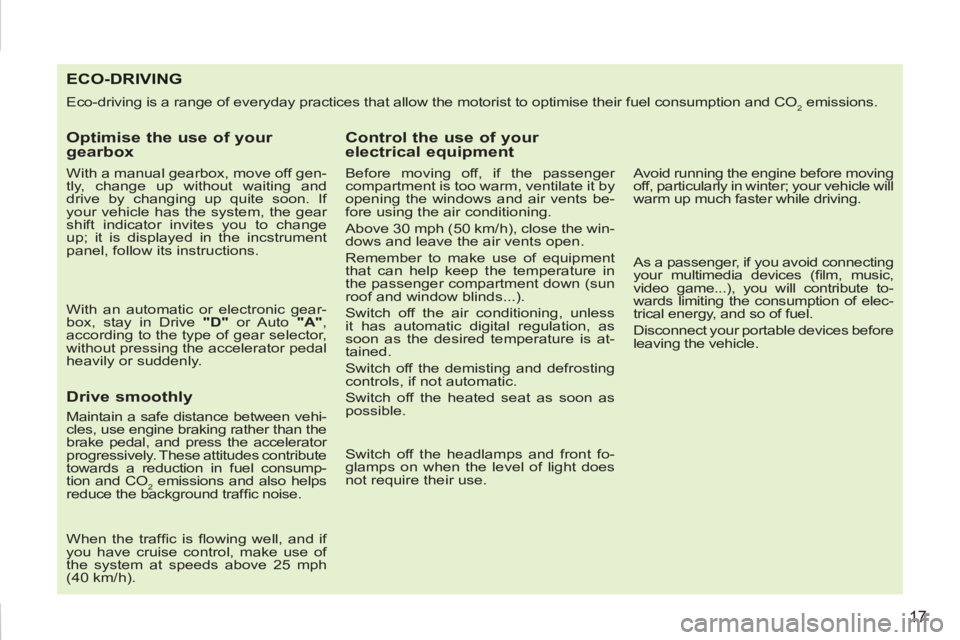

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2 emissions.


Optimise the use of your
gearbox

With a manual gearbox, move off gen-
tly, change up without waiting and
drive by changing up quite soon. If
your vehicle has the system, the gear
shift indicator invites you to change
up; it is displayed in the incstrument
panel, follow its instructions.

With an automatic or electronic gear-
box, stay in Drive "D"
or Auto "A"
,
according to the type of gear selector,
without pressing the accelerator pedal
heavily or suddenly.



Drive smoothly


Maintain a safe distance between vehi-
cles, use engine braking rather than the
brake pedal, and press the accelerator
progressively. These attitudes contribute
towards a reduction in fuel consump-
tion and CO
2 emissions and also helps
reduce the background traffi c noise.

When the traffi c is fl owing well, and if
you have cruise control, make use of
the system at speeds above 25 mph
(40 km/h).



Control the use of your
electrical equipment

Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the win-
dows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature in
the passenger compartment down (sun
roof and window blinds...).
Switch off the air conditioning, unless
it has automatic digital regulation, as
soon as the desired temperature is at-
tained.
Switch off the demisting and defrosting
controls, if not automatic.
Switch off the heated seat as soon as
possible.

Switch off the headlamps and front fo-
glamps on when the level of light does
not require their use.
Avoid running the engine before moving
off, particularly in winter; your vehicle will
warm up much faster while driving.

As a passenger, if you avoid connecting
your multimedia devices (fi lm, music,
video game...), you will contribute to-
wards limiting the consumption of elec-
trical energy, and so of fuel.
Disconnect your portable devices before
leaving the vehicle.

18

Limit the causes of excess
consumption

Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to the
rear seats.
Limit the loads carried in the vehicle
and reduce wind resistance (roof bars,
roof rack, bicycle carrier, trailer...). Use
a roof box in preference.
Remove roof bars and roof racks after
use.

At the end of winter, remove snow
tyres and refi t your summer tyres.



Observe the recommendations
on maintenance

Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:


- before a long journey,

- at each change of season,

- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.

Have your vehicle serviced regularly (en-
gine oil, oil fi lter, air fi lter...) and observe the
schedule of operations recommended by
the manufacturer.


When refuelling, do not continue after
the 3 rd cut-off of the nozzle to avoid
any overfl ow.


At the wheel of your new vehicle, it is only
after the fi rst 1 800 miles (3 000 kilome-
tres) that you will see the fuel consumption
settle down to a consistent average.
