PEUGEOT 207 2011 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2011, Model line: 207, Model: PEUGEOT 207 2011Pages: 248, PDF Size: 8.61 MB
Page 21 of 248
1INSTRUMENTS and CONTROLS
19

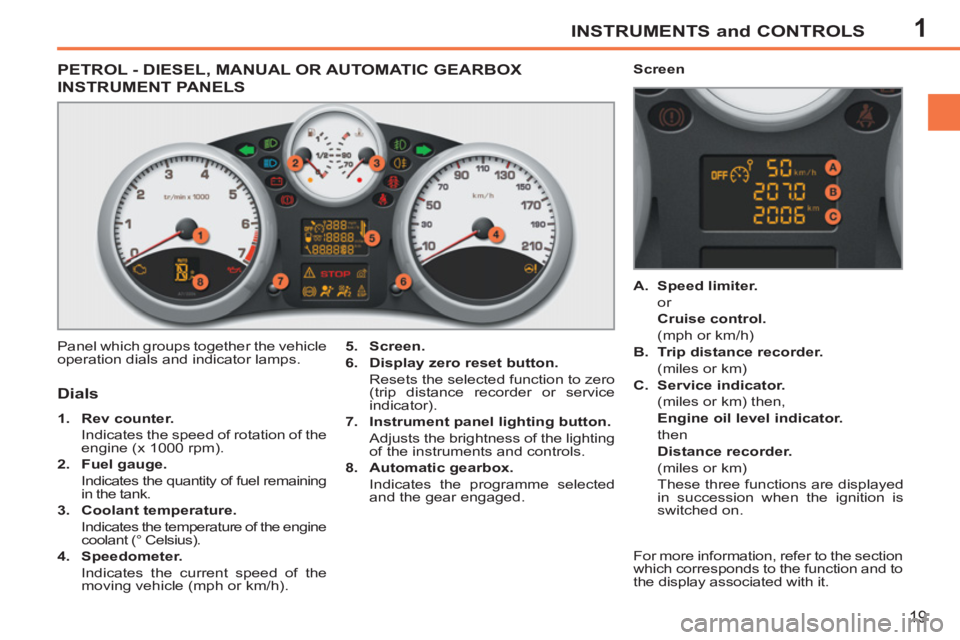

PETROL - DIESEL, MANUAL OR AUTOMATIC GEARBOX
IN
STRUMENT PANELS
Panel which groups together the vehicle
operation dials and indicator lamps.
5.
Screen.
6.
Display zero reset button.
Resets the selected function to zero
(trip distance recorder or service
indicator).
7.
Instrument panel lighting button.
Adjusts the brightness of the lighting
of the instruments and controls.
8.
Automatic gearbox.
Indicates the programme selected
and the gear engaged.
Dials
1.
Rev counter.
Indicates the speed of rotation of the
engine (x 1000 rpm).
2.
Fuel gauge.
Indicates the quantity of fuel remaining
in the tank.
3.
Coolant temperature.
Indicates the temperature of the engine
coolant (° Celsius).
4.
Speedometer.
Indicates the current speed of the
moving vehicle (mph or km/h).
A.
Speed limiter.
or
Cruise control.
(mph or km/h)
B.
Trip distance recorder.
(miles or km)
C.
Service indicator.
(miles or km) then,
Engine oil level indicator.
then
Distance recorder.
(miles or km)
These three functions are displayed
in succession when the ignition is
switched on.
Screen
For more information, refer to the section
which corresponds to the function and to
the display associated with it.
Page 22 of 248
1
!
INSTRUMENTS and CONTROLS
20

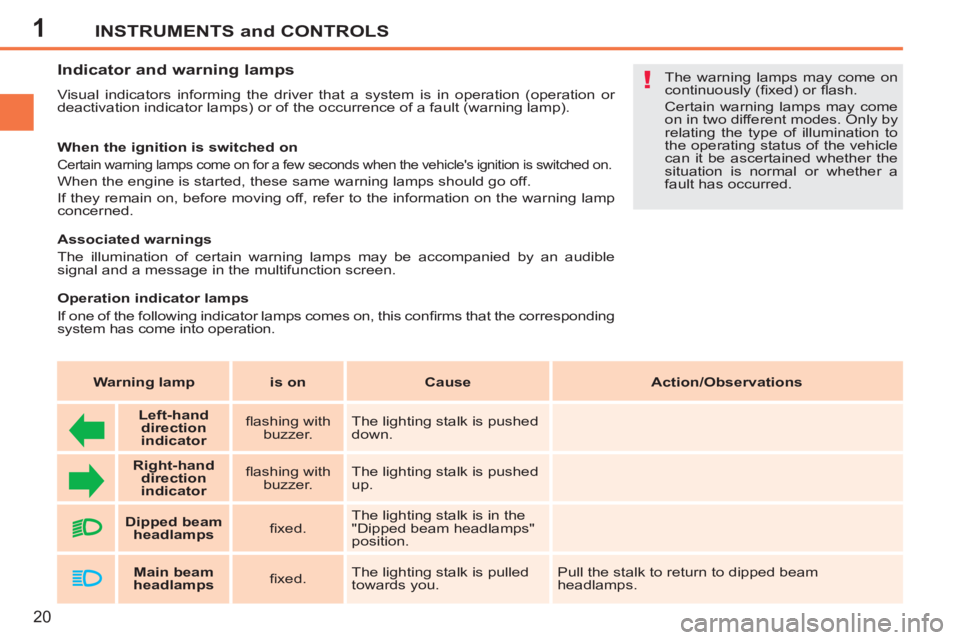

Indicator and warning lamps
Visual indicators informing the driver that a system is in operation (operation or
deactivation indicator lamps) or of the occurrence of a fault (warning lamp).
When the ignition is switched on
Certain warning lamps come on for a few seconds when the vehicle's ignition is switched on.
When the engine is started, these same warning lamps should go off.
If they remain on, before moving off, refer to the information on the warning lamp
concerned.
Associated warnings
The illumination of certain warning lamps may be accompanied by an audible
signal and a message in the multifunction screen. The warning lamps may come on
continuously (fi xed) or fl ash.
Certain warning lamps may come
on in two different modes. Only by
relating the type of illumination to
the operating status of the vehicle
can it be ascertained whether the
situation is normal or whether a
fault has occurred.
Operation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding
system has come into operation.
Warning lamp
is on
Cause
Action/Observations
Left-hand
direction
indicato
r
fl ashing with
buzzer. The lighting stalk is pushed
down.
Right-hand
direction
indicator
fl ashing with
buzzer. The lighting stalk is pushed
up.
Dipped beam
headlamps
fi xed. The lighting stalk is in the
"Dipped beam headlamps"
position.
Main beam
headlamps
fi xed. The lighting stalk is pulled
towards you. Pull the stalk to return to dipped beam
headlamps.
Page 23 of 248
1INSTRUMENTS and CONTROLS
21

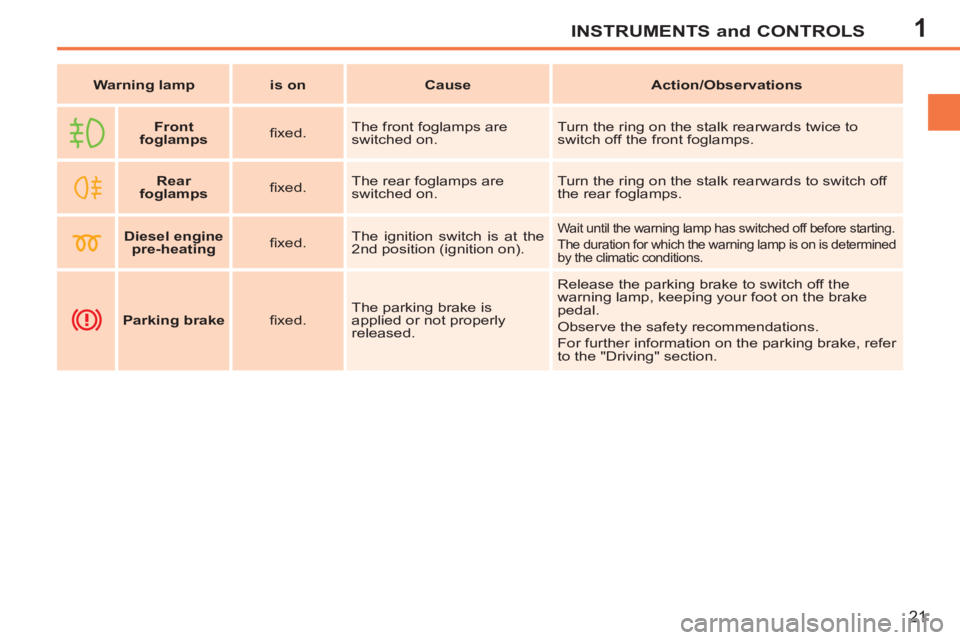

Warning lamp
is on
Cause
Action/Observations
Front
foglamps
fi xed. The front foglamps are
switched on. Turn the ring on the stalk rearwards twice to
switch off the front foglamps.
Rear
foglamps
fi xed. The rear foglamps are
switched on. Turn the ring on the stalk rearwards to switch off
the rear foglamps.
Diesel engine
pre-heating
fi xed. The ignition switch is at the
2nd position (ignition on). Wait until the warning lamp has switched off before starting.
The duration for which the warning lamp is on is determined
by the climatic conditions.
Parking brake
fi xed. The parking brake is
applied or not properly
released. Release the parking brake to switch off the
warning lamp, keeping your foot on the brake
pedal.
Observe the safety recommendations.
For further information on the parking brake, refer
to the "Driving" section.
Page 24 of 248
1INSTRUMENTS and CONTROLS
22

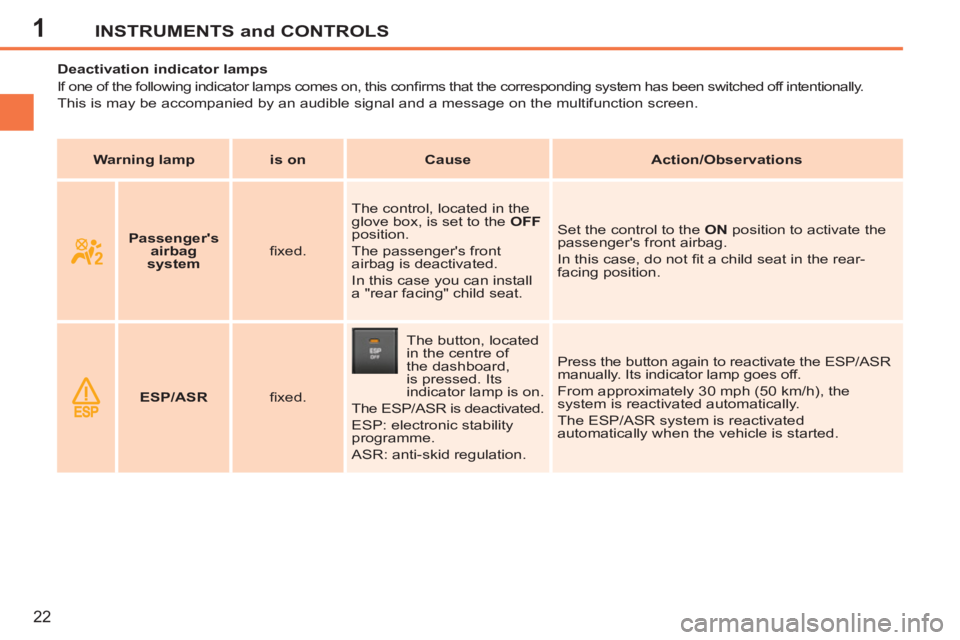

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.
Warning lamp
is on
Cause
Action/Observations
Passenger's
airbag
system
fi xed. The control, located in the
glove box, is set to the OFF
position.
The passenger's front
airbag is deactivated.
In this case you can install
a "rear facing" child seat. Set the control to the ON
position to activate the
passenger's front airbag.
In this case, do not fi t a child seat in the rear-
facing position.
ESP/ASR
fi xed. The button, located
in the centre of
the dashboard,
is pressed. Its
indicator lamp is on.
The ESP/ASR is deactivated.
ESP: electronic stability
programme.
ASR: anti-skid regulation. Press the button again to reactivate the ESP/ASR
manually. Its indicator lamp goes off.
From approximately 30 mph (50 km/h), the
system is reactivated automatically.
The ESP/ASR system is reactivated
automatically when the vehicle is started.
Page 25 of 248
1
!
INSTRUMENTS and CONTROLS
23

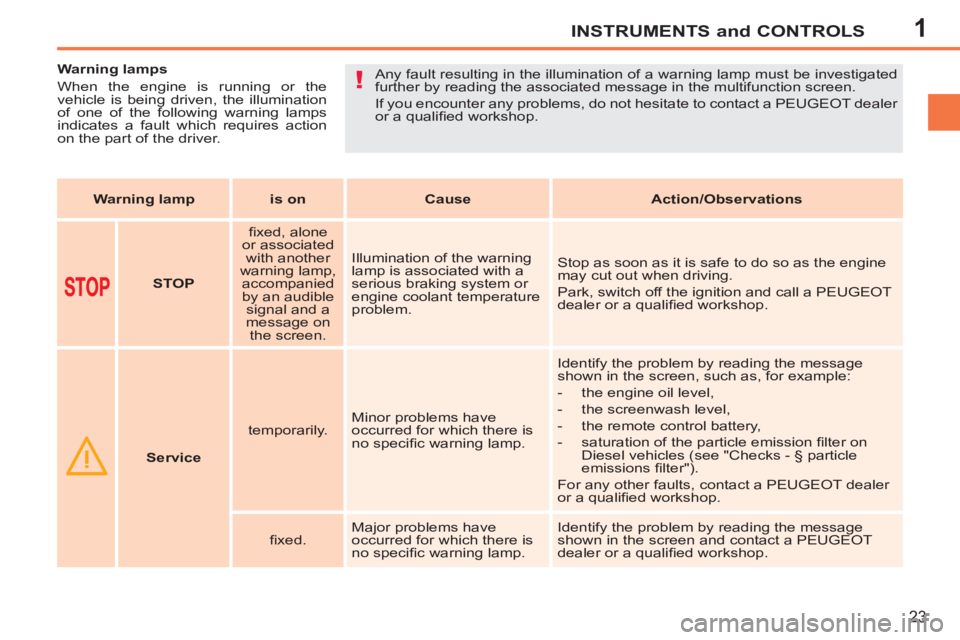

Warning lamps
When the engine is running or the
vehicle is being driven, the illumination
of one of the following warning lamps
indicates a fault which requires action
on the part of the driver. Any fault resulting in the illumination of a warning lamp must be investigated
further by reading the associated message in the multifunction screen.
If you encounter any problems, do not hesitate to contact a PEUGEOT dealer
or a qualifi ed workshop.
Warning lamp
is on
Cause
Action/Observations
STOP
fi xed, alone
or associated
with another
warning lamp,
accompanied
by an audible
signal and a
message on
the screen. Illumination of the warning
lamp is associated with a
serious braking system or
engine coolant temperature
problem. Stop as soon as it is safe to do so as the engine
may cut out when driving.
Park, switch off the ignition and call a PEUGEOT
dealer or a qualifi ed workshop.
Service
temporarily. Minor problems have
occurred for which there is
no specifi c warning lamp. Identify the problem by reading the message
shown in the screen, such as, for example:
- the engine oil level,
- the screenwash level,
- the remote control battery,
- saturation of the particle emission fi lter on
Diesel vehicles (see "Checks - § particle
emissions fi lter").
For any other faults, contact a PEUGEOT dealer
or a qualifi ed workshop.
fi xed. Major problems have
occurred for which there is
no specifi c warning lamp. Identify the problem by reading the message
shown in the screen and contact a PEUGEOT
dealer or a qualifi ed workshop.
Page 26 of 248
1INSTRUMENTS and CONTROLS
24

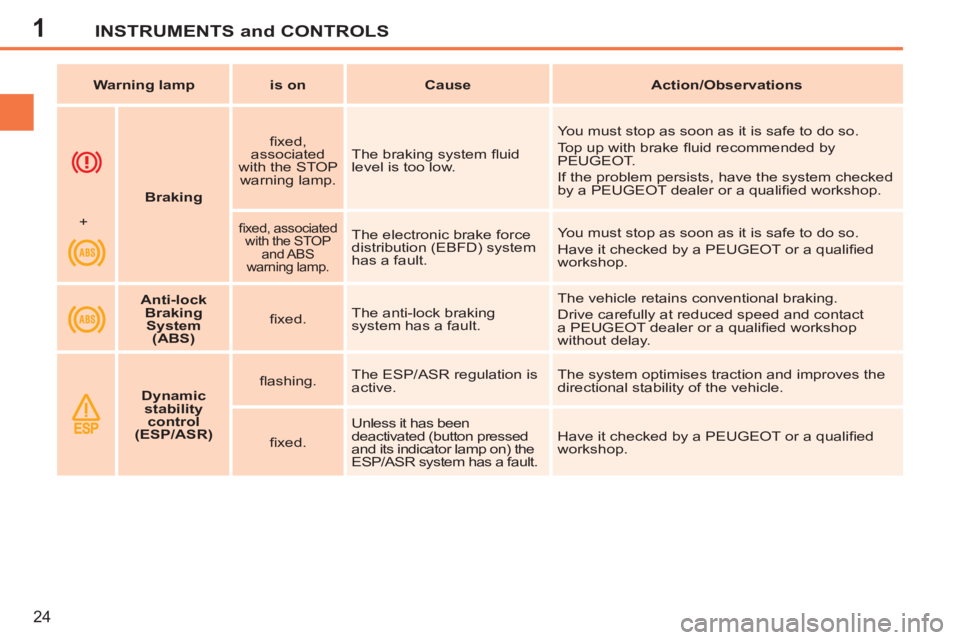

Braking
fi xed,
associated
with the STOP
warning lamp. The braking system fl uid
level is too low. You must stop as soon as it is safe to do so.
Top up with brake fl uid recommended by
PEUGEOT.
If the problem persists, have the system checked
by a PEUGEOT dealer or a qualifi ed workshop.
+
fi xed, associated
with the STOP
and ABS
warning lamp.
The electronic brake force
distribution (EBFD) system
has a fault. You must stop as soon as it is safe to do so.
Have it checked by a PEUGEOT or a qualifi ed
workshop.
Warning lamp
is on
Cause
Action/Observations
Anti-lock
Braking
System
(ABS)
fi xed. The anti-lock braking
system has a fault. The vehicle retains conventional braking.
Drive carefully at reduced speed and contact
a PEUGEOT dealer or a qualifi ed workshop
without delay.
Dynamic
stability
control
(ESP/ASR)
fl ashing. The ESP/ASR regulation is
active. The system optimises traction and improves the
directional stability of the vehicle.
fi xed. Unless it has been
deactivated (button pressed
and its indicator lamp on) the
ESP/ASR system has a fault. Have it checked by a PEUGEOT or a qualifi ed
workshop.
Page 27 of 248
1INSTRUMENTS and CONTROLS
25

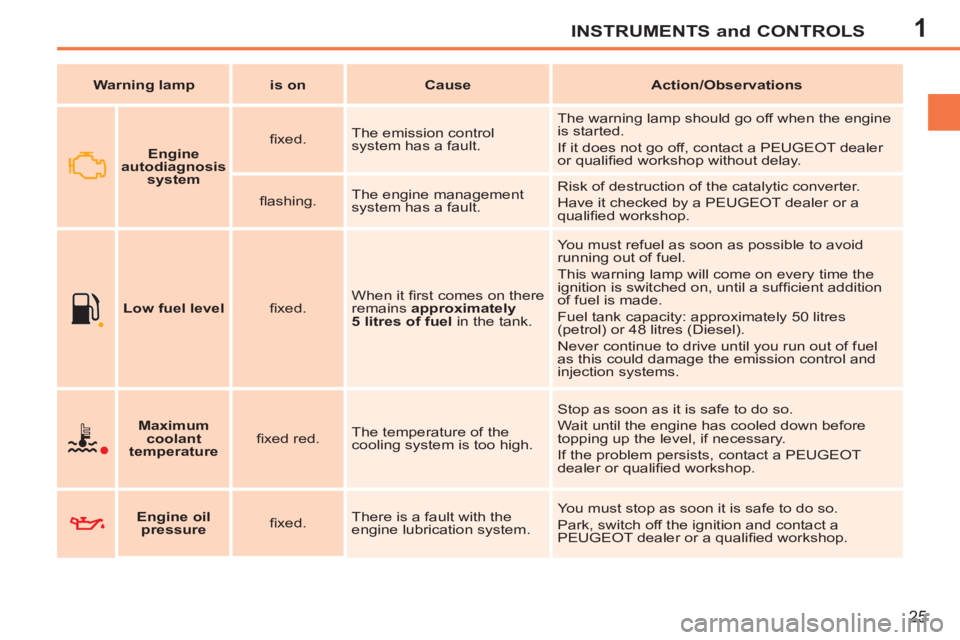

Warning lamp
is on
Cause
Action/Observations
Maximum
coolant
temperature
fi xed red. The temperature of the
cooling system is too high. Stop as soon as it is safe to do so.
Wait until the engine has cooled down before
topping up the level, if necessary.
If the problem persists, contact a PEUGEOT
dealer or qualifi ed workshop.
Engine oil
pressure
fi xed. There is a fault with the
engine lubrication system. You must stop as soon it is safe to do so.
Park, switch off the ignition and contact a
PEUGEOT dealer or a qualifi ed workshop.
Engine
autodiagnosis
system
fi xed. The emission control
system has a fault. The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or qualifi ed workshop without delay.
fl ashing. The engine management
system has a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
Low fuel level
fi xed. When it fi rst comes on there
remains approximately
5 litres of
fuel
in the tank. You must refuel as soon as possible to avoid
running out of fuel.
This warning lamp will come on every time the
ignition is switched on, until a suffi cient addition
of fuel is made.
Fuel tank capacity: approximately 50 litres
(petrol) or 48 litres (Diesel).
Never continue to drive until you run out of fuel
as this could damage the emission control and
injection systems.
Page 28 of 248
1INSTRUMENTS and CONTROLS
26

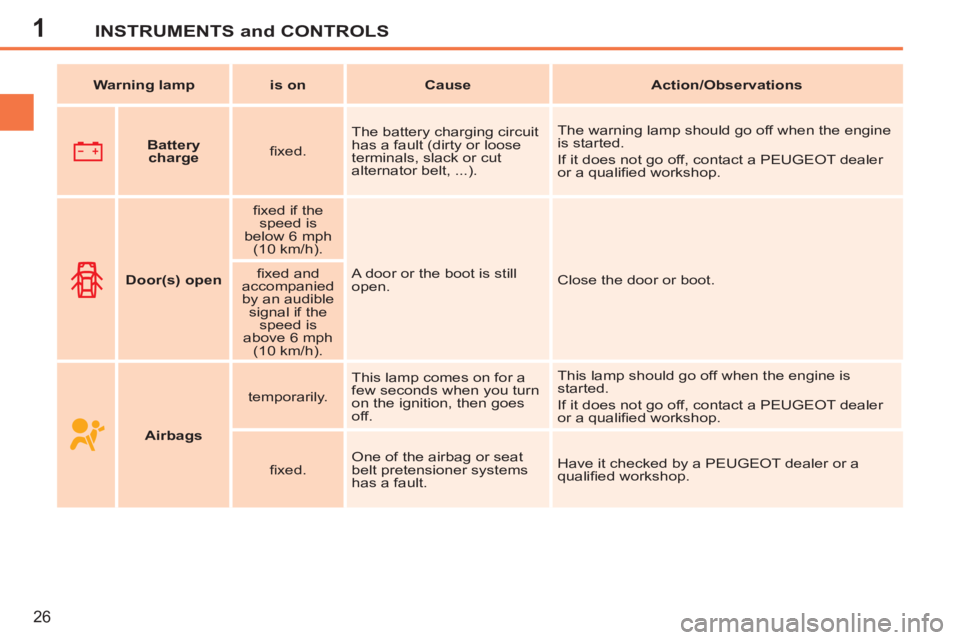

Battery
charge
fi xed. The battery charging circuit
has a fault (dirty or loose
terminals, slack or cut
alternator belt, ...). The warning lamp should go off when the engine
is started.
If it does not go off, contact a PEUGEOT dealer
or a qualifi ed workshop.
Door(s) open
fi xed if the
speed is
below 6 mph
(10 km/h).
A door or the boot is still
open. Close the door or boot.
fi xed and
accompanied
by an audible
signal if the
speed is
above 6 mph
(10 km/h).
Warning lamp
is on
Cause
Action/Observations
Airbags
temporarily. This lamp comes on for a
few seconds when you turn
on the ignition, then goes
off. This lamp should go off when the engine is
started.
If it does not go off, contact a PEUGEOT dealer
or a qualifi ed workshop.
fi xed. One of the airbag or seat
belt pretensioner systems
has a fault. Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
Page 29 of 248
1INSTRUMENTS and CONTROLS
27

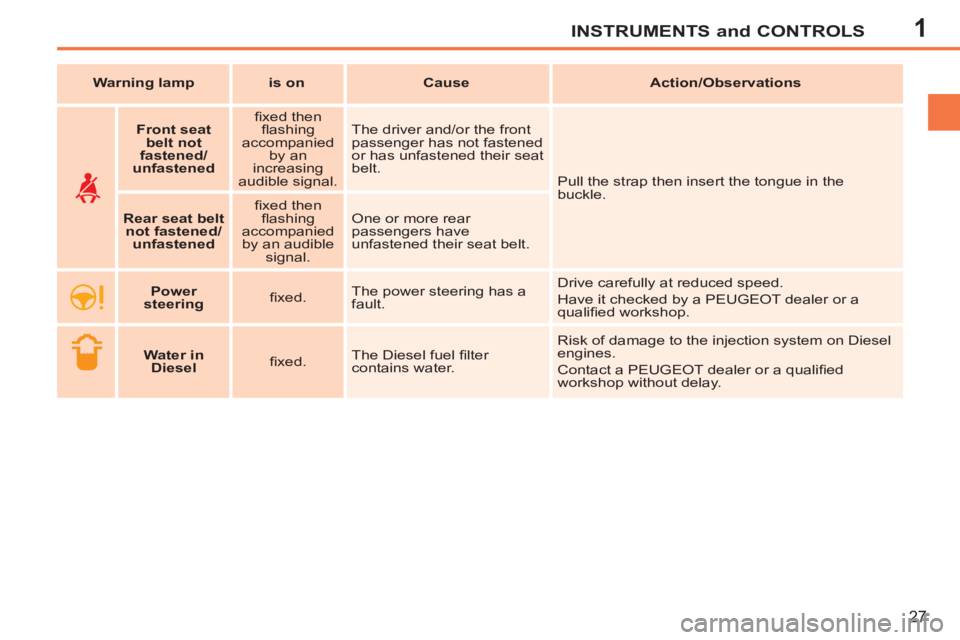

Front seat
belt not
fastened/
unfastened
fi xed then
fl ashing
accompanied
by an
increasing
audible signal. The driver and/or the front
passenger has not fastened
or has unfastened their seat
belt.
Pull the strap then insert the tongue in the
buckle.
Rear seat belt
not fastened/
unfastened
fi xed then
fl ashing
accompanied
by an audible
signal. One or more rear
passengers have
unfastened their seat belt.
Power
steering
fi xed. The power steering has a
fault. Drive carefully at reduced speed.
Have it checked by a PEUGEOT dealer or a
qualifi ed workshop.
Water in
Diesel
fi xed. The Diesel fuel fi lter
contains water. Risk of damage to the injection system on Diesel
engines.
Contact a PEUGEOT dealer or a qualifi ed
workshop without delay.
Warning lamp
is on
Cause
Action/Observations
Page 30 of 248
1INSTRUMENTS and CONTROLS
28

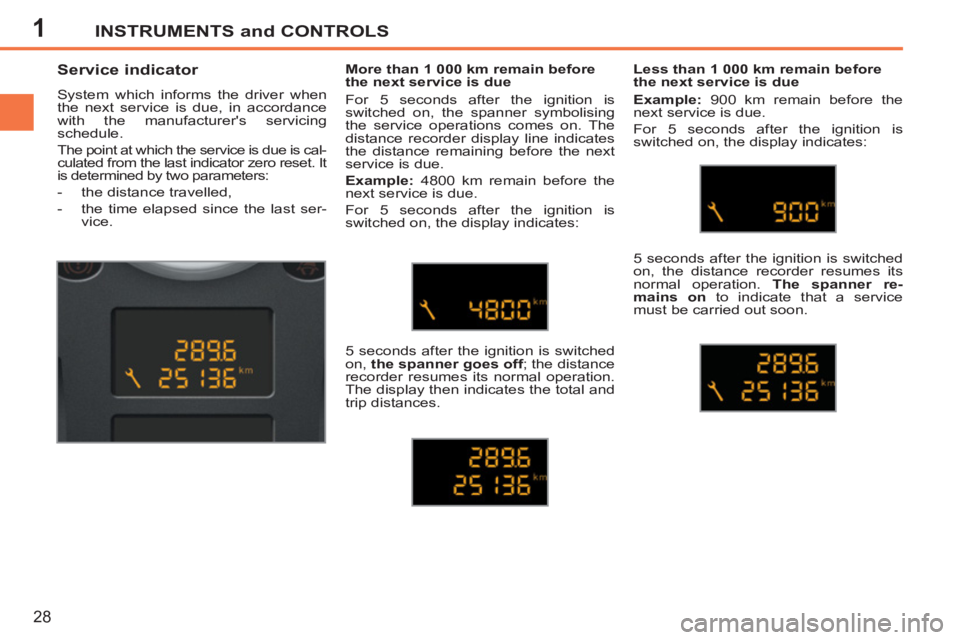

Service indicator
System which informs the driver when
the next service is due, in accordance
with the manufacturer's servicing
schedule.
The point at which the service is due is cal-
culated from the last indicator zero reset. It
is determined by two parameters:
- the distance travelled,
- the time elapsed since the last ser-
vice.
More than 1 000 km remain before
the next service is due
For 5 seconds after the ignition is
switched on, the spanner symbolising
the service operations comes on. The
distance recorder display line indicates
the distance remaining before the next
service is due.
Example:
4800 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the spanner
goes
off
; the distance
recorder resumes its normal operation.
The display then indicates the total and
trip distances.
Less than 1 000 km remain before
the next service is due
Example
:
900 km remain before the
next service is due.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
to indicate that a service
must be carried out soon.
