Handbook
Page 2 of 248
!
Please note the following point:
The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of
your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be
shown the recommended equipment and accessories.

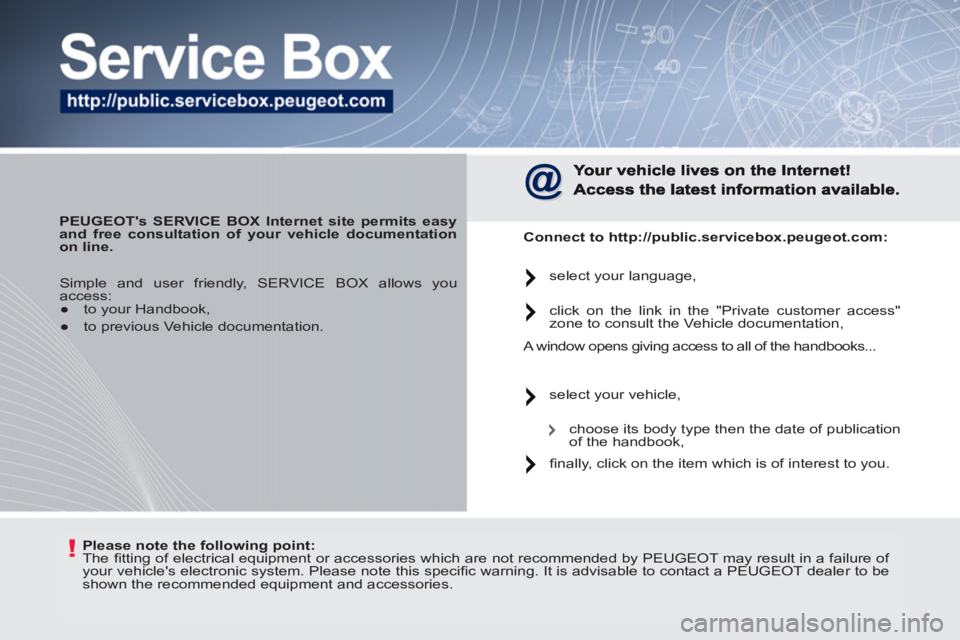

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.
Connect to http://public.servicebox.peugeot.com:
Simple and user friendly, SERVICE BOX allows you
access:
●
to your Handbook,
●
to previous Vehicle documentation.
select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
A window opens giving access to all of the handbooks...
select your vehicle,
choose its body type then the date of publication
of the handbook,
fi nally, click on the item which is of interest to you.
Page 3 of 248
!
i
1

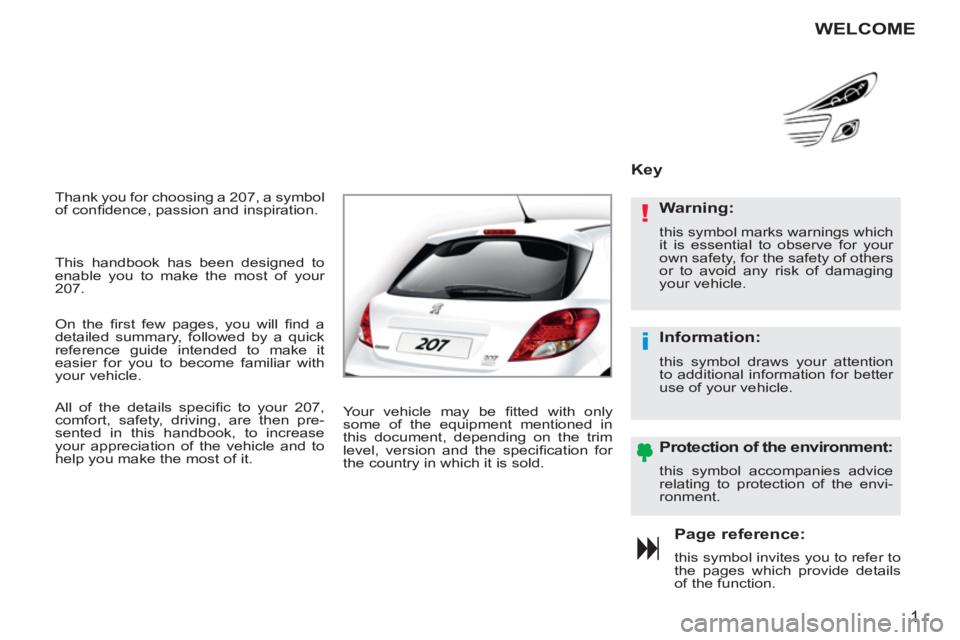

Thank you for choosing a 207, a symbol
of confi dence, passion and inspiration.
Page reference:
this symbol invites you to refer to
the pages which provide detailsof the function.
Key
Protection of the environment:
this symbol accompanies advice relating to protection of the envi-ronment.
Information:
this symbol draws your attention to additional information for better use of your vehicle.
Warning:
this symbol marks warnings which it is essential to observe for your own safety, for the safety of others or to avoid any risk of damaging your vehicle.
Your vehicle may be fi tted with only
some of the equipment mentioned in
this document, depending on the trim
level, version and the specifi cation for
the country in which it is sold.
WELCOME
This handbook has been designed to
enable you to make the most of your
207.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specifi c to your 207,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle and to
help you make the most of it.
Page 4 of 248
2

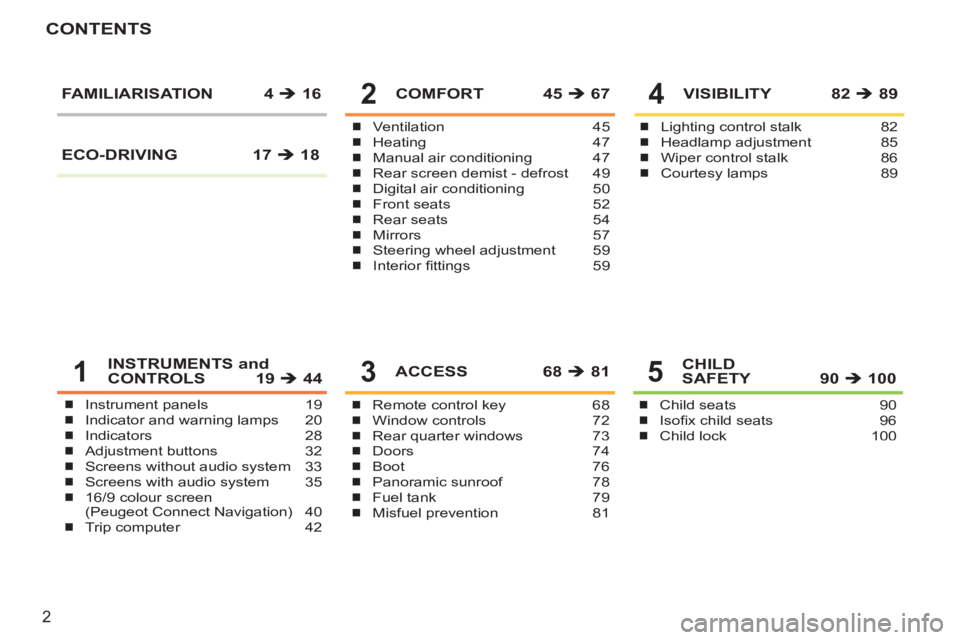

CONTENTS
Instrument panels 19Indicator and warning lamps 20Indicators 28Adjustment buttons 32Screens without audio system 33Screens with audio system 3516/9 colour screen(Peugeot Connect Navigation) 40Trip computer 42
„ „ „ „ „ „ „
„
Ventilation 45Heating 47Manual air conditioning 47Rear screen demist - defrost 49Digital air conditioning 50Front seats 52Rear seats 54Mirrors 57Steering wheel adjustment 59Interior fi ttings 59
„ „ „ „ „ „ „ „ „ „
COMFORT 45 Î67
Remote control key 68Window controls 72Rear quarter windows 73Doors 74
Boot 76Panoramic sunroof 78Fuel tank 79Misfuel prevention 81
„ „ „ „ „ „ „ „
ACCESS 68 Î81
Lighting control stalk 82Headlamp adjustment 85Wiper control stalk 86Courtesy lamps 89
„ „ „ „
VISIBILITY 82 Î 89
Child seats 90Isofi x child seats 96Child lock 100
„ „ „
CHILD
SAFETY 90 Î 100 FAMILIARISATION 4
Î 16
INSTRUMENTS and
CONTROLS 19 Î445
4
3
2
1
ECO-DRIVING 17 Î18
Page 5 of 248
3

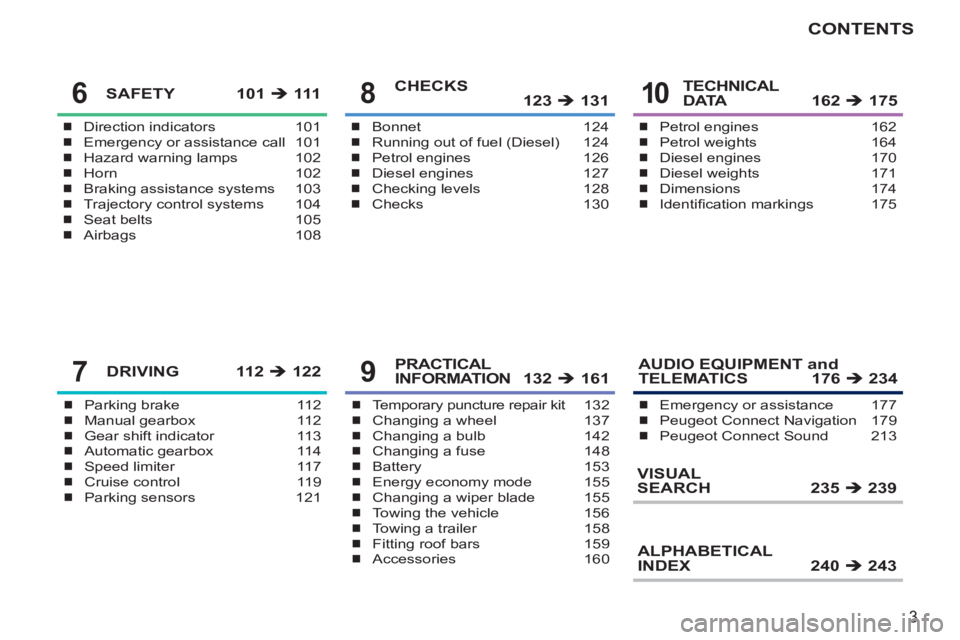

CONTENTS
Direction indicators 101Emergency or assistance call 101Hazard warning lamps 102Horn 102Braking assistance systems 103Trajectory control systems 104Seat belts 105Airbags 108
„ „ „ „ „ „ „ „
SAFETY 101 Î111
Parking brake 112Manual gearbox 112Gear shift indicator 113Automatic gearbox 114Speed limiter 117Cruise control 119Parking sensors 121
„ „ „ „ „ „ „
DRIVING 112 Î122
Bonnet 124Running out of fuel (Diesel) 124Petrol engines 126Diesel engines 127Checking levels 128Checks 130
„ „ „ „ „ „
CHECKS123 Î 131
Temporary puncture repair kit 13t2Changing a wheel 137Changing a bulb 142Changing a fuse 148Battery 153Energy economy mode 155Changing a wiper blade 155Towing the vehicle 156Towing a trailer 158Fitting roof bars 159Accessories 160
„ „ „ „ „ „ „ „ „ „ „
PRACTICAL
INFORMATION 132 Î161
Petrol engines 162Petrol weights 164
Diesel engines 170Diesel weights 171Dimensions 174
Identifi cation markings 175
„ „ „ „ „ „
TECHNICALD ATA162 Î 175
AUDIO EQUIPMENT andTELEMATICS 176 Î234
Emergency or assistance 177Peugeot Connect Navigation 179Peugeot Connect Sound 213
„ „ „
ALPHABETICAL
INDEX 240 Î 243
7
86
9
10
VISUALSEARCH 235 Î239
Page 6 of 248
4
FAMILIARISATION

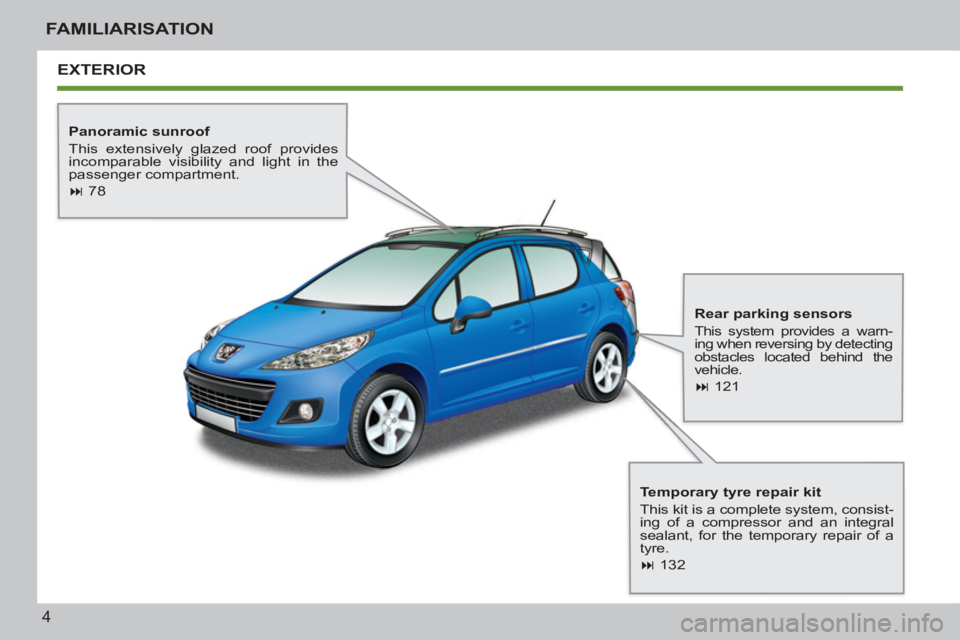

EXTERIOR
Panoramic sunroof
This extensively glazed roof provides
incomparable visibility and light in the
passenger compartment.
78
Temporary tyre repair kit
This kit is a complete system, consist-
ing of a compressor and an integral
sealant, for the temporary repair of a
tyre.
132
Rear parking sensors
This system provides a warn-
ing when reversing by detecting
obstacles located behind the
vehicle.
121
Page 7 of 248
5
FAMILIARISATION

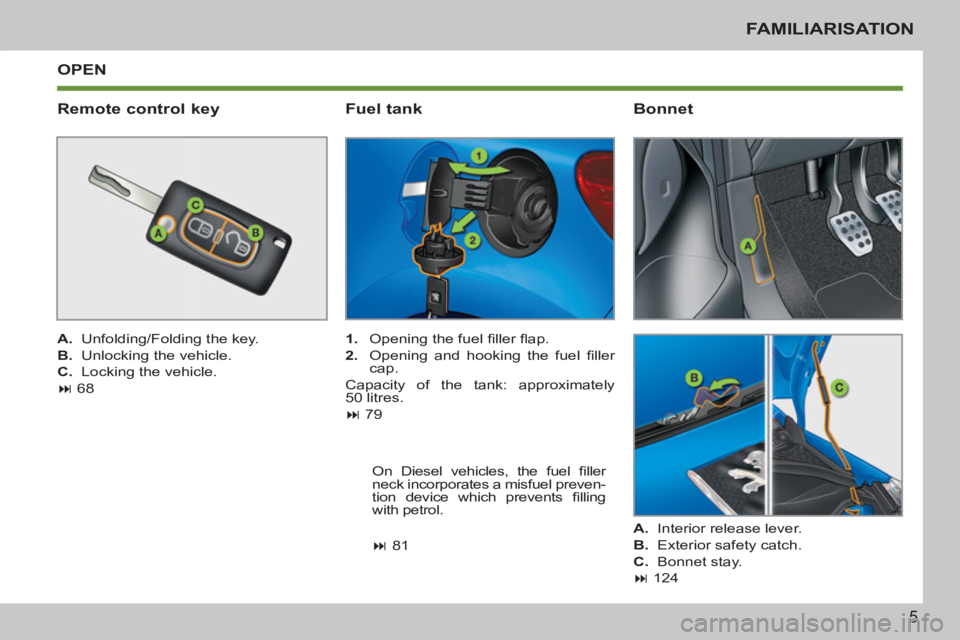

OPEN
Remote control key
A.
Unfolding/Folding the key.
B.
Unlocking the vehicle.
C.
Locking the vehicle.
68
Fuel tank
1.
Opening the fuel fi ller fl ap.
2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
50 litres.
79
Bonnet
A.
Interior release lever.
B.
Exterior safety catch.
C.
Bonnet stay.
124
On Diesel vehicles, the fuel fi ller
neck incorporates a misfuel preven-
tion device which prevents fi lling
with petrol.
81
Page 8 of 248
6
FAMILIARISATION
ACCESS
Boot
1.
Unlocking the vehicle.
2.
Opening the boot.
77
Panoramic sunroof (SW)
1.
Opening the blind.
2.
Closing the blind.
78
Page 9 of 248
7
FAMILIARISATION

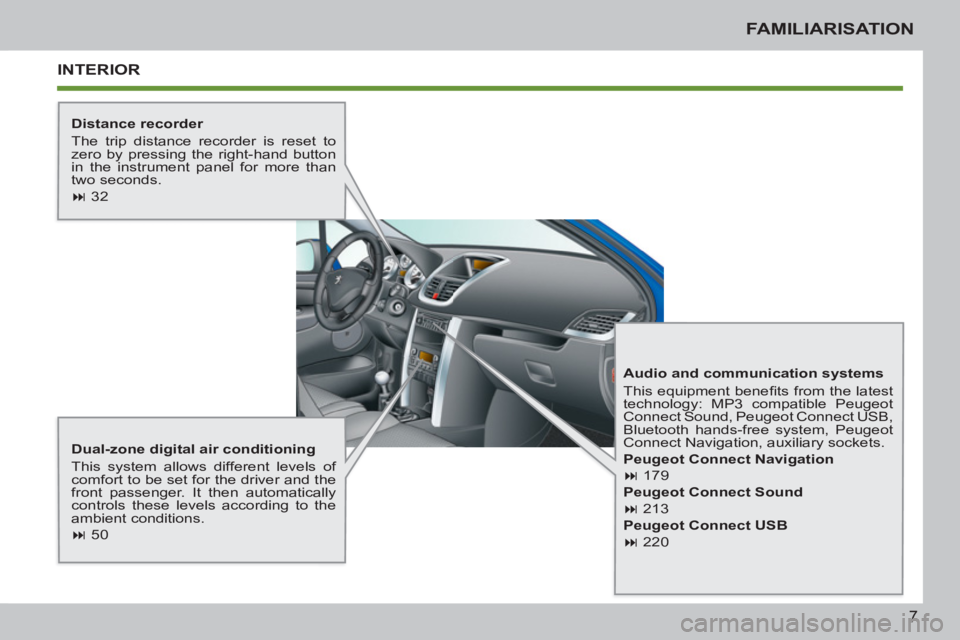

INTERIOR
Dual-zone digital air conditioning
This system allows different levels of
comfort to be set for the driver and the
front passenger. It then automatically
controls these levels according to the
ambient conditions.
50
Distance recorder
The trip distance recorder is reset to
zero by pressing the right-hand button
in the instrument panel for more than
two seconds.
32
Audio and communication systems
This equipment benefi ts from the latest
technology: MP3 compatible Peugeot
Connect Sound, Peugeot Connect USB,
Bluetooth hands-free system, Peugeot
Connect Navigation, auxiliary sockets.
Peugeot Connect Navigation
179
Peugeot Connect Sound
213
Peugeot Connect USB
220
Page 10 of 248
8
FAMILIARISATION

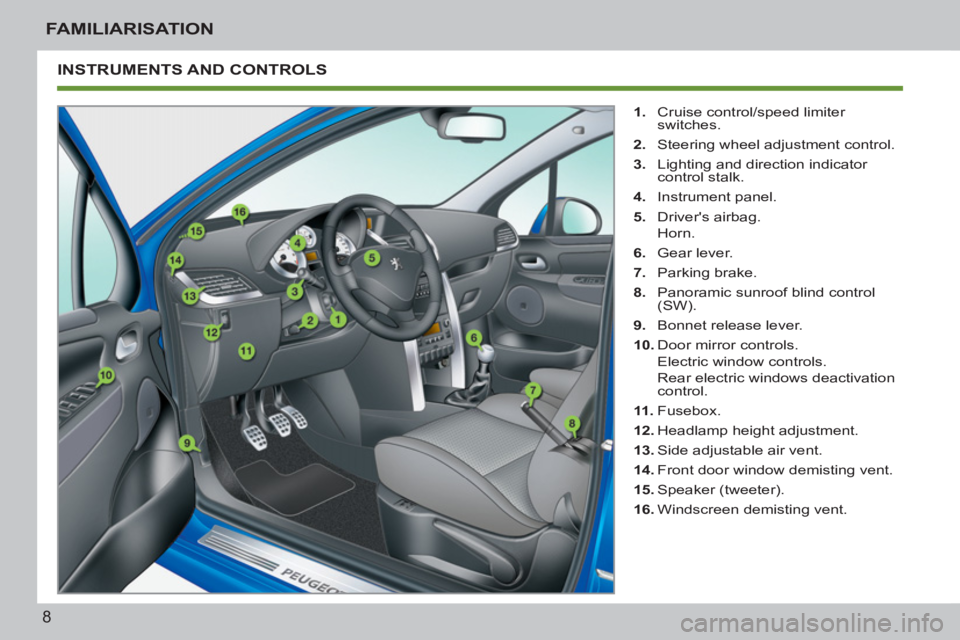

INSTRUMENTS AND CONTROLS
1.
Cruise control/speed limiter
switches.
2.
Steering wheel adjustment control.
3.
Lighting and direction indicator
control stalk.
4.
Instrument panel.
5.
Driver's airbag.
Horn.
6.
Gear lever.
7.
Parking brake.
8.
Panoramic sunroof blind control
(SW).
9.
Bonnet release lever.
10.
Door mirror controls.
Electric window controls.
Rear electric windows deactivation
control.
11 .
Fusebox.
12.
Headlamp height adjustment.
13.
Side adjustable air vent.
14.
Front door window demisting vent.
15.
Speaker (tweeter).
16.
Windscreen demisting vent.
