Page 81 of 207
i
DIESEL
ACCESS
76

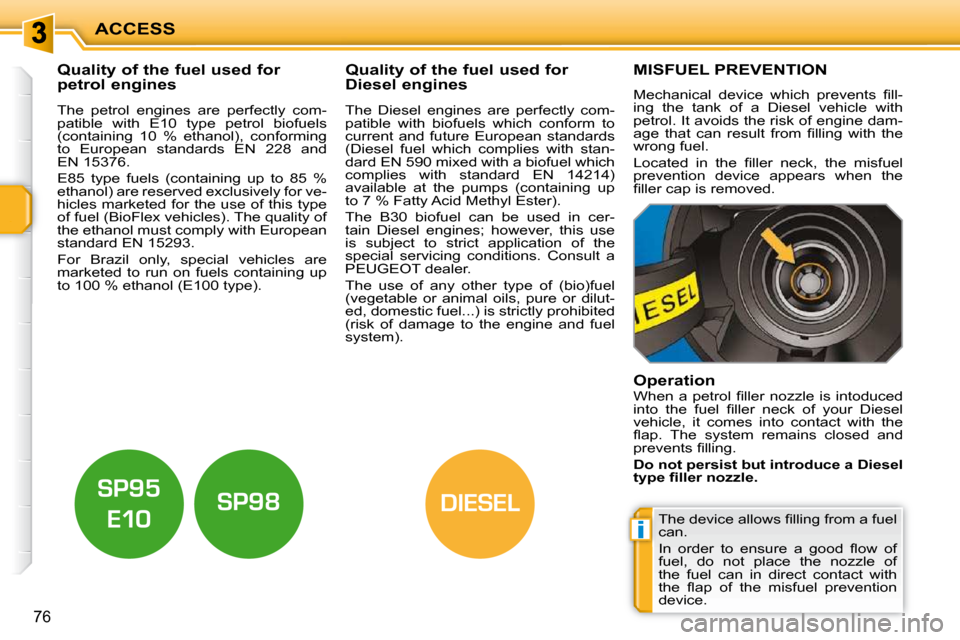

Quality of the fuel used for
petrol engines Quality of the fuel used for
Diesel engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system). MISFUEL PREVENTION
M e c h a n i c a l d e v i c e w h i c h p r e v e n t s fi l l -
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
a g e t h a t c a n r e s u l t f r o m fi l l i n g w i t h t h e
wrong fuel.
L o c a t e d i n t h e fi l l e r n e c k , t h e m i s f u e l
prevention device appears when the
fi l l e r c a p i s r e m o v e d .
Operation
W h e n a p e t r o l fi l l e r n o z z l e i s i n t o d u c e d
i n t o t h e f u e l fi l l e r n e c k o f y o u r D i e s e l
vehicle, it comes into contact with the
fl a p . T h e s y s t e m r e m a i n s c l o s e d a n d
p r e v e n t s fi l l i n g .
Do not persist but introduce a Diesel
t y p e fi l l e r n o z z l e .
T h e d e v i c e a l l o w s fi l l i n g f r o m a f u e l
can.
I n o r d e r t o e n s u r e a g o o d fl o w o f
fuel, do not place the nozzle of
the fuel can in direct contact with
t h e fl a p o f t h e m i s f u e l p r e v e n t i o n
device.
Page 82 of 207
i
DIESEL
ACCESS
76
Quality of the fuel used for
petrol engines Quality of the fuel used for
Diesel engines
The petrol engines are perfectly com-
patible with E10 type petrol biofuels
(containing 10 % ethanol), conforming
to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 %
ethanol) are reserved exclusively for ve-
hicles marketed for the use of this type
of fuel (BioFlex vehicles). The quality of
the ethanol must comply with European
standard EN 15293.
For Brazil only, special vehicles are
marketed to run on fuels containing up
to 100 % ethanol (E100 type). The Diesel engines are perfectly com-
patible with biofuels which conform to
current and future European standards
(Diesel fuel which complies with stan-
dard EN 590 mixed with a biofuel which
complies with standard EN 14214)
available at the pumps (containing up
to 7 % Fatty Acid Methyl Ester).
The B30 biofuel can be used in cer-
tain Diesel engines; however, this use
is subject to strict application of the
special servicing conditions. Consult a
PEUGEOT dealer.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or dilut-
ed, domestic fuel...) is strictly prohibited
(risk of damage to the engine and fuel
system). MISFUEL PREVENTION
M e c h a n i c a l d e v i c e w h i c h p r e v e n t s fi l l -
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
a g e t h a t c a n r e s u l t f r o m fi l l i n g w i t h t h e
wrong fuel.
L o c a t e d i n t h e fi l l e r n e c k , t h e m i s f u e l
prevention device appears when the
fi l l e r c a p i s r e m o v e d .
Operation
W h e n a p e t r o l fi l l e r n o z z l e i s i n t o d u c e d
i n t o t h e f u e l fi l l e r n e c k o f y o u r D i e s e l
vehicle, it comes into contact with the
fl a p . T h e s y s t e m r e m a i n s c l o s e d a n d
p r e v e n t s fi l l i n g .
Do not persist but introduce a Diesel
t y p e fi l l e r n o z z l e .
T h e d e v i c e a l l o w s fi l l i n g f r o m a f u e l
can.
I n o r d e r t o e n s u r e a g o o d fl o w o f
fuel, do not place the nozzle of
the fuel can in direct contact with
t h e fl a p o f t h e m i s f u e l p r e v e n t i o n
device.
Page 83 of 207
VISIBILITY
77
LIGHTING CONTROL STALK
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting. Manual controls
The lighting commands are made di-
rectly by the driver by means of ring
A
and stalk B .
A. main lighting mode selection ring,
with:
Model without AUTO lighting
Model with AUTO lighting lighting off,
sidelamps only,
dipped or main beam
headlamps,
B. stalk for inversion of the beam by
pulling:
dipped/main beam headlamps. automatic illumination of
headlamps.
Displays
The corresponding indicator lamp
comes on on the instrument panel to
c o n fi r m t h e s w i t c h i n g o n o f t h e l i g h t i n g
selected.
Main lighting
The vehicle's various front and rear
lamps are designed to adapt the driv-
er's visibility gradually in relation to the
climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps for good visi- bility when the road is clear.
Additional lighting
Other lamps are installed to respond to
particular driving conditions:
- rear foglamps to be seen from a dis- tance,
- front foglamps for even better visibi- lity,
- directional headlamps for improved visibility around corners.
Programmes
Various automatic lighting control
modes are also available according to
the following options:
- "guide-me-home" lighting,
- automatic illumination of headlamps,
- static directional lighting. In the lighting off and sidelamps modes,
the driver can switch on the main beam
h e a d l a m p s d i r e c t l y ( " h e a d l a m p fl a s h " )
by pulling and holding the stalk.
Page 84 of 207
!
i
VISIBILITY
78
Model with front and rear foglamps front and rear foglamps
C. foglamps selection ring.
These operate with the dipped and main
beam headlamps.
To switch on the foglamps, turn ring C
forwards.
To switch off the rear foglamps, turn
ring C rearwards twice in succession.
When the lighting is switched off auto-
m a t i c a l l y ( o n A U T O m o d e l ) o r w h e n t h e
dipped beam headlamps are switched
off manually, the foglamps and the side-
lamps will remain on.
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Do not forget to switch off the front
foglamps and the rear foglamps
when they are no longer neces-
sary. In normal light levels, the
power of their beams may dazzle
other drivers. Lighting on reminder
The triggering of an audible signal
when a door is opened warns the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
In this case, switching off the light-
ing will stop the audible signal.
When the ignition is switched off,
if the dipped beam headlamps re-
main on, they will be switched off
automatically after thirty minutes to
prevent discharging of the battery. This indicator lamp comes on
on the instrument panel.
* According to country.
Daytime running lamps *
O n v e h i c l e s fi t t e d w i t h d a y t i m e r u n n i n g
lamps, the dipped beam headlamps
come on when the vehicle is started.
The instruments and controls (multi-
function screen, air conditioning control
p a n e l , . . . ) a r e n o t l i t , u n l e s s t h e a u t o -
matic lighting mode is activated or the
lighting is switched on manually.
Page 85 of 207
!
VISIBILITY
Do not cover the sunshine sensor,
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumination of
headlamps provides the "guide-me-home"
lighting with the following additional options:
-
selection of the lighting duration to 15, 30
or 60 seconds in the vehicle parameters
o n t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu,
- automatic activation of "guide-me- home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically, with-
out any action on the part of the driver,
when a low level of external light is detect-
e d ( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) .
A s s o o n a s t h e b r i g h t n e s s r e t u r n s t o a s u f fi c i e n t
level, the lighting is switched off automatically.
"Guide-me-home" lighting
The dipped beam headlamps remain on
temporarily, after switching off the vehi-
cle's ignition, to make the driver's exit
easier in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p fl a s h " u s i n g s t a l k B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompanied
by a message on the multifunction
screen.
In fog or snow, the sunshine sensor
m a y d e t e c t s u f fi c i e n t l i g h t . T h e r e f o r e ,
the lighting will not be switched on auto-
matically. The dipped beam headlamps
must be switched on manually.
Deactivation
Turn ring A to a position other than
"AUTO" . Switching off is accompa-
nied by a message on the multifunction
screen. Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
Page 86 of 207
!
VISIBILITY
Do not cover the sunshine sensor,
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumination of
headlamps provides the "guide-me-home"
lighting with the following additional options:
-
selection of the lighting duration to 15, 30
or 60 seconds in the vehicle parameters
o n t h e m u l t i f u n c t i o n s c r e e n c o n fi g u r a -
tion menu,
- automatic activation of "guide-me- home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically, with-
out any action on the part of the driver,
when a low level of external light is detect-
e d ( s e n s o r b e h i n d t h e r e a r v i e w m i r r o r ) .
A s s o o n a s t h e b r i g h t n e s s r e t u r n s t o a s u f fi c i e n t
level, the lighting is switched off automatically.
"Guide-me-home" lighting
The dipped beam headlamps remain on
temporarily, after switching off the vehi-
cle's ignition, to make the driver's exit
easier in poor light.
Activation
With the ignition off, activate a
" h e a d l a m p fl a s h " u s i n g s t a l k B .
A s e c o n d " h e a d l a m p fl a s h " s w i t c h e s
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation
Turn ring A to the "AUTO" position.
The automatic lighting is accompanied
by a message on the multifunction
screen.
In fog or snow, the sunshine sensor
m a y d e t e c t s u f fi c i e n t l i g h t . T h e r e f o r e ,
the lighting will not be switched on auto-
matically. The dipped beam headlamps
must be switched on manually.
Deactivation
Turn ring A to a position other than
"AUTO" . Switching off is accompa-
nied by a message on the multifunction
screen. Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
Page 87 of 207
i
VISIBILITY
80
STATIC DIRECTIONAL LIGHTING
When the dipped or main beam headlam-
ps are on, this function enables the beam
to light the inside of the turn with an addi-
tional angle of approximately 30°.
The use of this lighting is optimum above
all at low and average speed (city driving,
w i n d i n g r o a d s , . . . ) .
with directional lighting
without directional lighting Programming
Switching on
The system is switched on from a certain
speed and a certain angle of rotation of the
steering wheel.
Operating fault The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated
by default.
In the event of a malfunction,
t h i s w a r n i n g l a m p fl a s h e s o n
the instrument panel, accom-
panied by a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer.
HEADLAMP ADJUSTMENT
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 people.
2. 4 people + maximum authorised
load.
3. Driver + maximum authorised load.
Switching off
The system is switched off below a certain
angle of rotation of the steering wheel.
It is switched off when reverse gear is
engaged.
Page 88 of 207
i
i
VISIBILITY
81
WIPER CONTROL STALK
System for the selection and control of
the various windscreen wiping modes
permitting the dispersal of rain and
cleaning.
The vehicle's windscreen wipers are
designed to gradually improve the driv-
er's visibility in relation to the weather
conditions. Manual controls
The wiping commands are made directly
by the driver using stalk
A .
f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (in proportion to
t h e s p e e d o f t h e v e h i c l e ) ,
off,
s i n g l e w i p e ( p r e s s d o w n w a r d s ) ,
Model with intermittent wiping
Windscreen wipers
A. wiping speed selection control: Windscreen and headlamp
wash
Pull the windscreen wiper stalk to-
wards you.
The headlamp wash is only activate if
the dipped headlamps are on .
With daytime running lamps, to
activate the headlamp wash, posi-
tion the lighting stalk in the dipped
beam position.
O n v e h i c l e s fi t t e d w i t h d i g i t a l a i r
conditioning, any action on the
windscreen wash control results in
temporary closing of the air intake
to avoid odours inside the passen-
ger compartment.
Automatic wiping is not available
on the 207CC at present.
Page 89 of 207
i
VISIBILITY
82
Special position of the windscreen
wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. COURTESY LAMP
A. Courtesy lamp
B. Map reading lamps In this position, the courtesy
lamp comes on gradually:
Map reading lamps
With the ignition on, press the cor-
responding switch. With the "permanent lighting" mode,
the duration of lighting varies, de-
pending on the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimi-ted.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
Courtesy lamp
Page 90 of 207
i
VISIBILITY
82
Special position of the windscreen
wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk. COURTESY LAMP
A. Courtesy lamp
B. Map reading lamps In this position, the courtesy
lamp comes on gradually:
Map reading lamps
With the ignition on, press the cor-
responding switch. With the "permanent lighting" mode,
the duration of lighting varies, de-
pending on the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimi-ted.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when a door is opened,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
Courtesy lamp
