Peugeot 207 CC 2012 Owner's Manual - RHD (UK. Australia)
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 207 CC, Model: Peugeot 207 CC 2012Pages: 224, PDF Size: 7.12 MB
Page 131 of 224
9
i
i
PRACTICAL INFORMATION
129

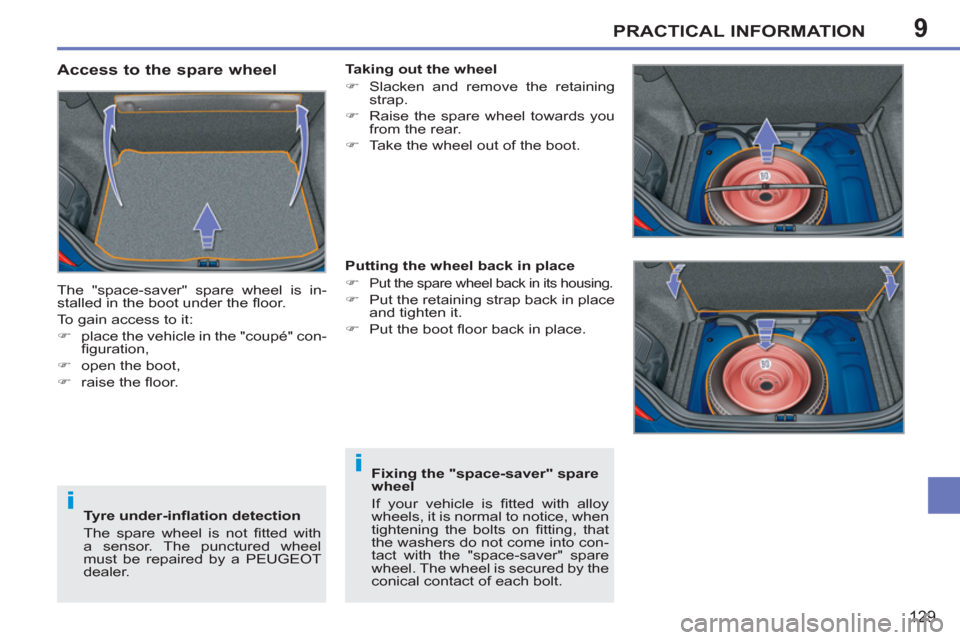

Access to the spare wheel
The "space-saver" spare wheel is in-
stalled in the boot under the fl oor.
To gain access to it:
)
place the vehicle in the "coupé" con-
fi guration,
)
open the boot,
)
raise the fl oor.
Fixing the "space-saver" spare
wheel
If your vehicle is fi tted with alloy
wheels, it is normal to notice, when
tightening the bolts on fi tting, that
the washers do not come into con-
tact with the "space-saver" spare
wheel. The wheel is secured by the
conical contact of each bolt.
Taking out the wheel
)
Slacken and remove the retaining
strap.
)
Raise the spare wheel towards you
from the rear.
)
Take the wheel out of the boot.
Putting the wheel back in place
)
Put the spare wheel back in its housing.
)
Put the retaining strap back in place
and tighten it.
)
Put the boot fl oor back in place.
Tyre under-infl ation detection
The spare wheel is not fi tted with
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.
Page 132 of 224
9
i
PRACTICAL INFORMATION
130

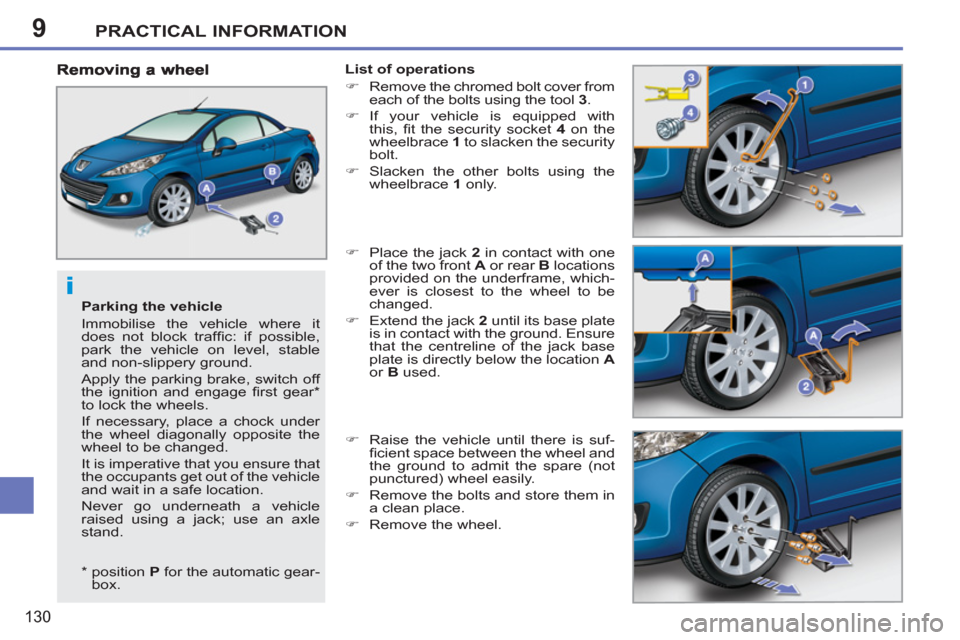

Parking the vehicle
Immobilise the vehicle where it
does not block traffi c: if possible,
park the vehicle on level, stable
and non-slippery ground.
Apply the parking brake, switch off
the ignition and engage fi rst gear *
to lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
It is imperative that you ensure that
the occupants get out of the vehicle
and wait in a safe location.
Never go underneath a vehicle
raised using a jack; use an axle
stand.
List of operations
)
Remove the chromed bolt cover from
each of the bolts using the tool 3
.
)
If your vehicle is equipped with
this, fi t the security socket 4
on the
wheelbrace 1
to slacken the security
bolt.
)
Slacken the other bolts using the
wheelbrace 1
only.
)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B
used.
)
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
)
Remove the bolts and store them in
a clean place.
)
Remove the wheel.
* position P
for the automatic gear-
box.
Page 133 of 224
9
i
PRACTICAL INFORMATION
131

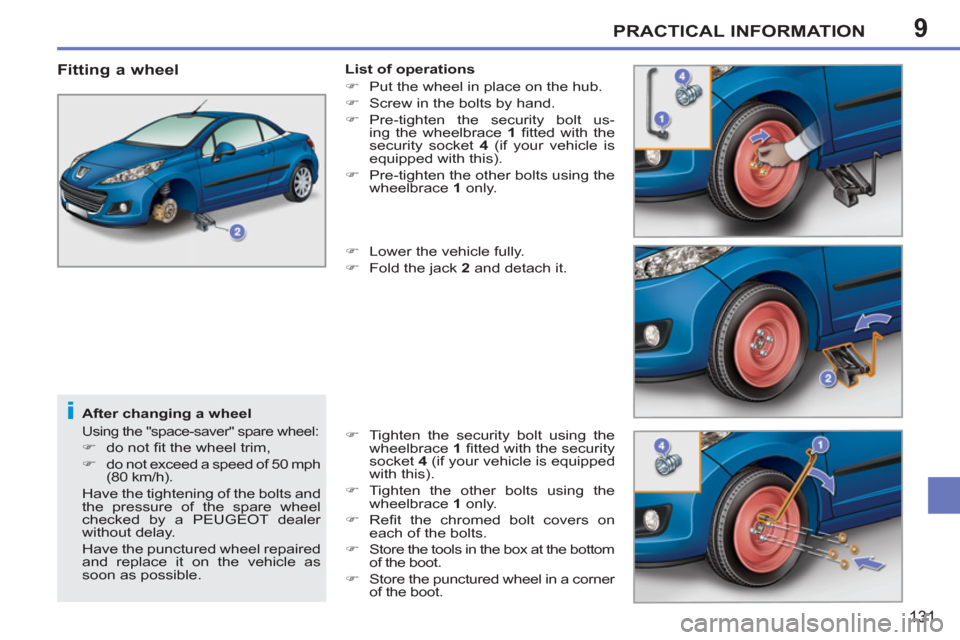

After changing a wheel
Using the "space-saver" spare wheel:
)
do not fi t the wheel trim,
)
do not exceed a speed of 50 mph
(80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting a wheel
List of operations
)
Put the wheel in place on the hub.
)
Screw in the bolts by hand.
)
Pre-tighten the security bolt us-
ing the wheelbrace 1
fi tted with the
security socket 4
(if your vehicle is
equipped with this).
)
Pre-tighten the other bolts using the
wheelbrace 1
only.
)
Lower the vehicle fully.
)
Fold the jack 2
and detach it.
)
Tighten the security bolt using the
wheelbrace 1
fi tted with the security
socket 4
(if your vehicle is equipped
with this).
)
Tighten the other bolts using the
wheelbrace 1
only.
)
Refi t the chromed bolt covers on
each of the bolts.
)
Store the tools in the box at the bottom
of the boot.
)
Store the punctured wheel in a corner
of the boot.
Page 134 of 224
9
i
i
PRACTICAL INFORMATION
132

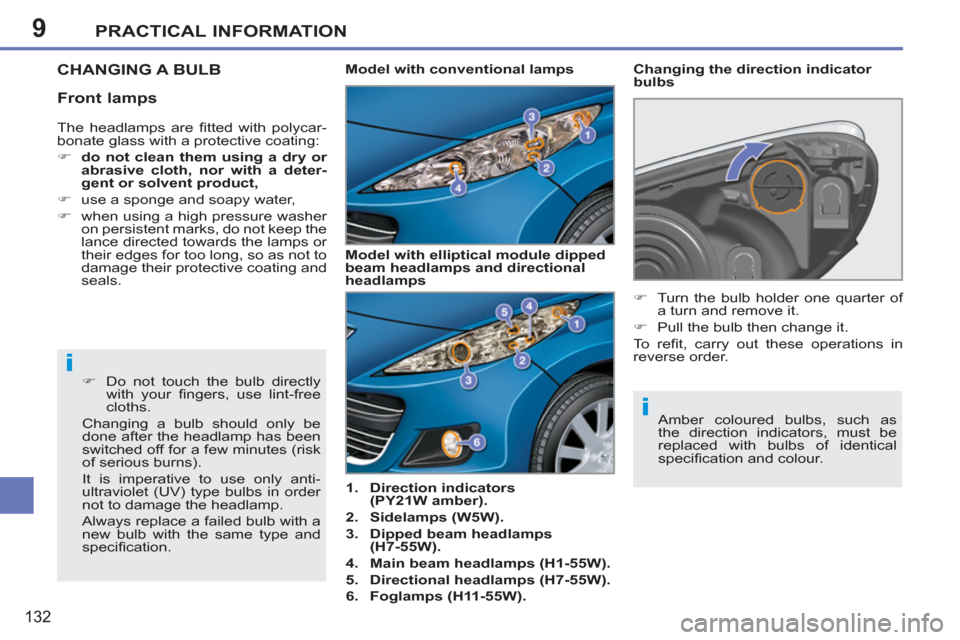

CHANGING A BULB
1.
Direction indicators
(PY21W amber).
2.
Sidelamps (W5W).
3.
Dipped beam headlamps
(H7-55W).
4.
Main beam headlamps (H1-55W).
5.
Directional headlamps (H7-55W).
6.
Foglamps (H11-55W).
Changing the direction indicator
bulbs
)
Do not touch the bulb directly
with your fi ngers, use lint-free
cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk
of serious burns).
It is imperative to use only anti-
ultraviolet (UV) type bulbs in order
not to damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.
Model with conventional lamps
Amber coloured bulbs, such as
the direction indicators, must be
replaced with bulbs of identical
specifi cation and colour.
)
Turn the bulb holder one quarter of
a turn and remove it.
)
Pull the bulb then change it.
To r efi t, carry out these operations in
reverse order. The headlamps are fi tted with polycar-
bonate glass with a protective coating:
)
do not clean them using a dry or
abrasive cloth, nor with a deter-
gent or solvent product,
)
use a sponge and soapy water,
)
when using a high pressure washer
on persistent marks, do not keep the
lance directed towards the lamps or
their edges for too long, so as not to
damage their protective coating and
seals. Model with elliptical module dipped
beam headlamps and directional
headlamps
Front lamps
Page 135 of 224
9PRACTICAL INFORMATION
133

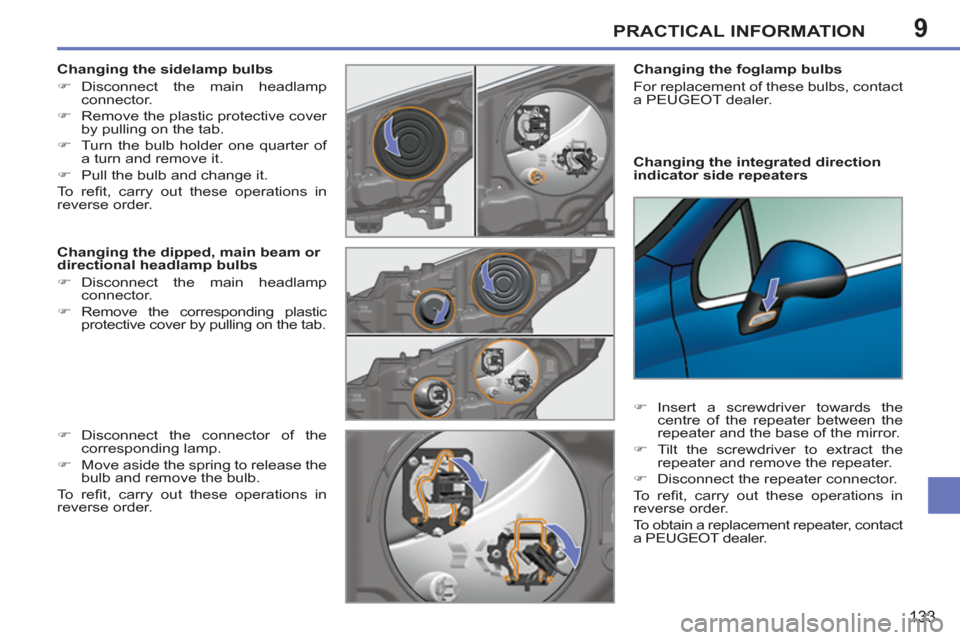

Changing the integrated direction
indicator side repeaters
Changing the foglamp bulbs
For replacement of these bulbs, contact
a PEUGEOT dealer.
)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
)
Tilt the screwdriver to extract the
repeater and remove the repeater.
)
Disconnect the repeater connector.
To r efi t, carry out these operations in
reverse order.
To obtain a replacement repeater, contact
a PEUGEOT dealer.
Changing the sidelamp bulbs
)
Disconnect the main headlamp
connector.
)
Remove the plastic protective cover
by pulling on the tab.
)
Turn the bulb holder one quarter of
a turn and remove it.
)
Pull the bulb and change it.
To r efi t, carry out these operations in
reverse order.
Changing the dipped, main beam or
directional headlamp bulbs
)
Disconnect the main headlamp
connector.
)
Remove the corresponding plastic
protective cover by pulling on the tab.
)
Disconnect the connector of the
corresponding lamp.
)
Move aside the spring to release the
bulb and remove the bulb.
To r efi t, carry out these operations in
reverse order.
Page 136 of 224
9
i
PRACTICAL INFORMATION
134

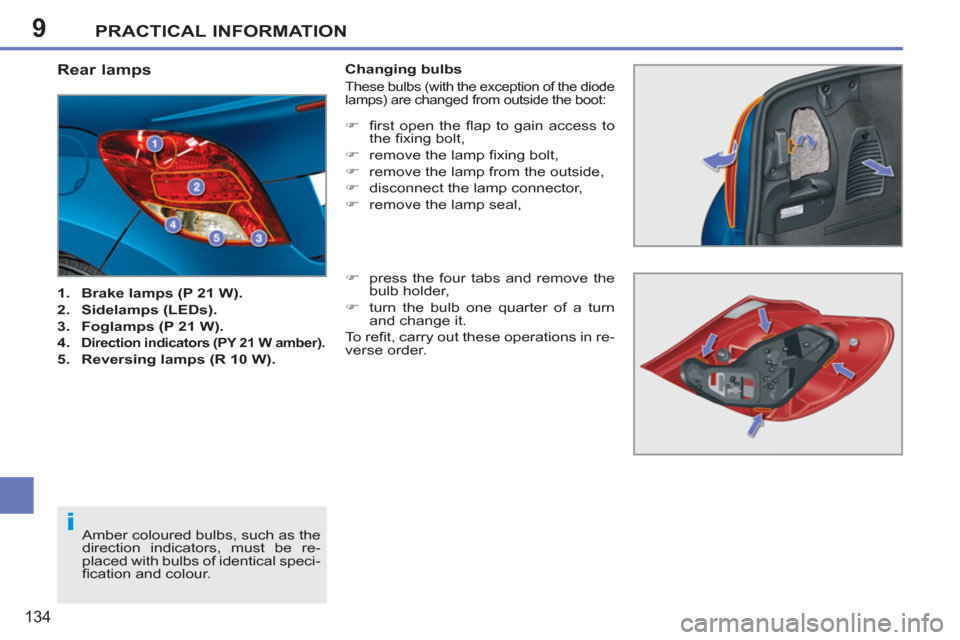

Rear lamps
1.
Brake lamps (P 21 W).
2.
Sidelamps (LEDs).
3.
Foglamps (P 21 W).
4.
Direction indicators (PY 21 W amber).
5.
Reversing lamps (R 10 W).
Changing bulbs
These bulbs (with the exception of the diode
lamps) are changed from outside the boot:
)
fi rst open the fl ap to gain access to
the fi xing bolt,
)
remove the lamp fi xing bolt,
)
remove the lamp from the outside,
)
disconnect the lamp connector,
)
remove the lamp seal,
)
press the four tabs and remove the
bulb holder,
)
turn the bulb one quarter of a turn
and change it.
To r efi t, carry out these operations in re-
verse order.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fi cation and colour.
Page 137 of 224
9
!
PRACTICAL INFORMATION
135

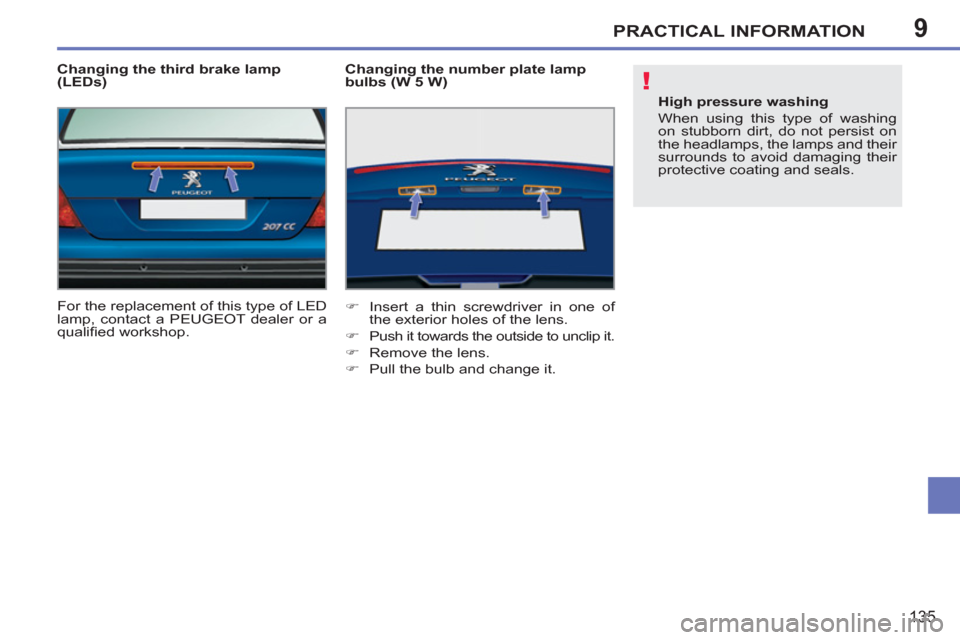

Changing the third brake lamp
(LEDs)
For the replacement of this type of LED
lamp, contact a PEUGEOT dealer or a
qualifi ed workshop.
Changing the number plate lamp
bulbs (W 5 W)
)
Insert a thin screwdriver in one of
the exterior holes of the lens.
)
Push it towards the outside to unclip it.
)
Remove the lens.
)
Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lamps and their
surrounds to avoid damaging their
protective coating and seals.
Page 138 of 224
9
!
i
i
PRACTICAL INFORMATION
136
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
ed exceeds 10 milliamperes.
Installation of electrical acces-
sories
Your vehicle’s electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT deal-
er or a qualifi ed workshop.
CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:
)
open the glove box lid,
)
push the opening guide to the left to
pass the fi rst notch,
)
open the glove box lid fully,
)
unclip the fusebox cover pulling at
the top,
)
remove the cover completely,
)
remove the tweezer.
Replacing a fuse
Before replacing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by examining
the condition of its fi lament.
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)
Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow.
Good
Failed
To close the glove box, take care to
push the opening guide back to the
left to pass the fi rst notch.
Page 139 of 224
9PRACTICAL INFORMATION
137
Dashboard fuses
The fusebox is placed in the lower part
of the dashboard (left-hand side).
Access to the fuses
)
refer to the "Access to the tools"
paragraph.
Fuse N°
Rating
Functions
G37
30 A
Retractable roof unit supply.
G38
20 A
Hi-Fi amplifi er.
G39
-
Not used.
G40
40 A
Trailer fuse box supply.
Fuse N°
Rating
Functions
F1
-
Not used.
F2
-
Not used.
F3
5 A
Airbags and pre-tensioners control unit.
F4
10 A
Clutch pedal switch, diagnostic socket,
electrochromatic interior mirror, air conditioning,
steering wheel angle sensor, particle emission fi lter
pump (Diesel).
F5
30 A
Rear electric windows, retractable roof.
F6
30 A
Front electric windows, folding mirrors supply.
F7
5 A
Front courtesy lamp, map reading lamps, sun visor
lighting, glove box lighting.
Fuse table
Page 140 of 224
9PRACTICAL INFORMATION
138
Fuse N°
Rating
Functions
F8
20 A
Audio/telephone, multifunction screen, steering
wheel controls, tyre under-infl ation detection, trailer
fusebox, alarm (accessory).
F9
30 A
Front 12 V socket, front courtesy lamp, map reading
lamps, sun visor lighting, glove box lighting.
F10
15 A
Alarm siren, alarm control unit, directional
headlamps.
F11
15 A
Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12
15 A
Brightness sensor, trailer fusebox, retractable roof.
F13
5 A
Engine fusebox, ABS relay, dual-function brake
switch.
F14
15 A
Instrument panel, seat belt warning lamp panel, headlamp
adjustment, air conditioning, audio equipment, hands-free
kit, rear parking assistance control unit.
F15
30 A
Locking and deadlocking.
F17
40 A
Rear screen and exterior mirrors demist/defrost.
SH
-
PARC shunt.
