Peugeot 207 CC 2012 Owner's Manual

Handbook

!

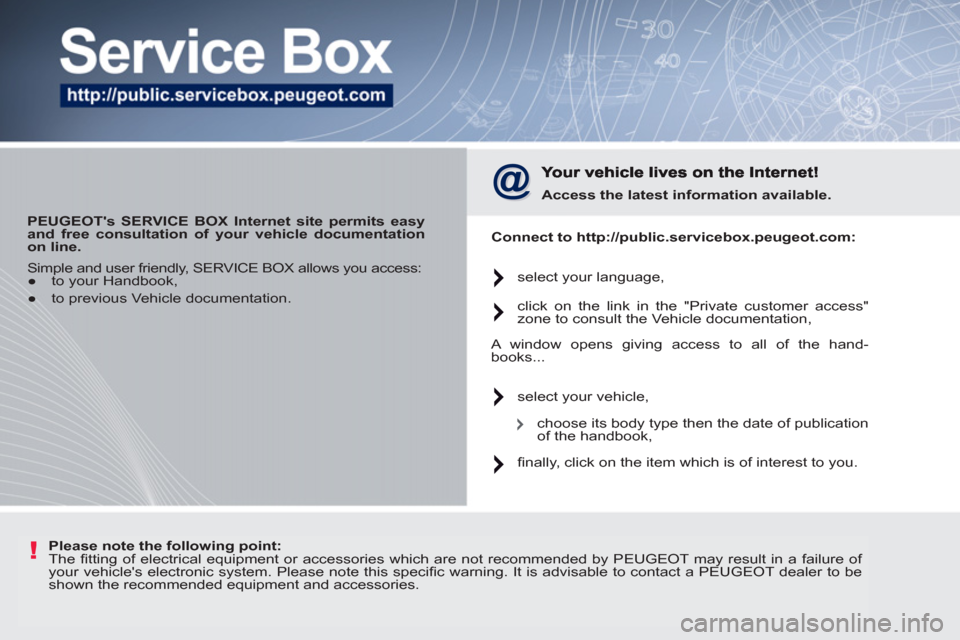

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.



Access the latest information available.


Connect to http://public.servicebox.peugeot.com:

Simple and user friendly, SERVICE BOX allows you access:


●
to your Handbook,

●
to previous Vehicle documentation.


Please note the following point:

The fi tting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure of
your vehicle's electronic system. Please note this specifi c warning. It is advisable to contact a PEUGEOT dealer to be
shown the recommended equipment and accessories. select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
A window opens giving access to all of the hand-
books...
select your vehicle,
choose its body type then the date of publication
of the handbook,
fi nally, click on the item which is of interest to you.

!
i

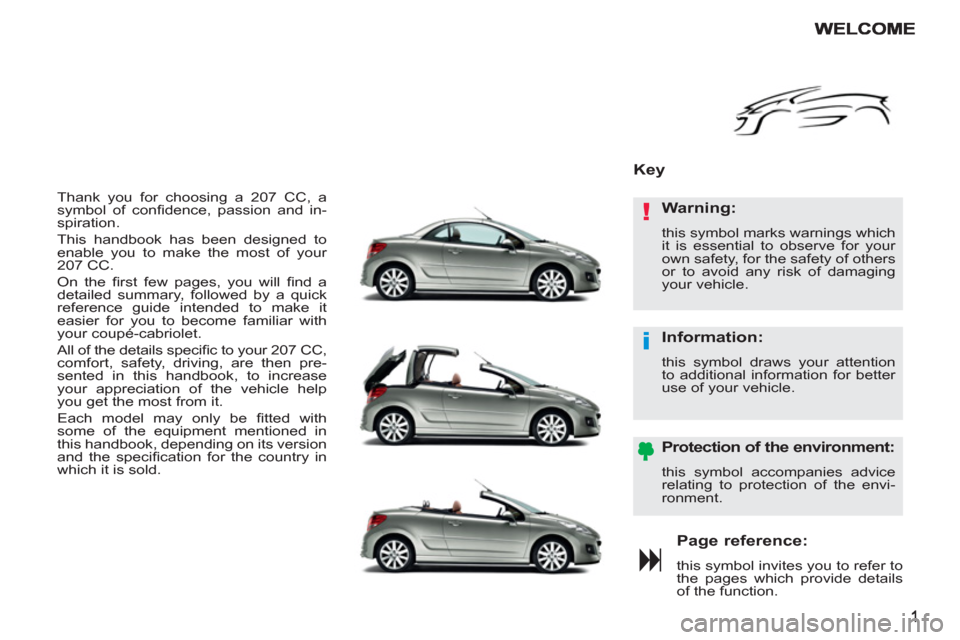

Thank you for choosing a 207 CC, a
symbol of confi dence, passion and in-
spiration.
This handbook has been designed to
enable you to make the most of your
207 CC.
On the fi rst few pages, you will fi nd a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your coupé-cabriolet.
All of the details specifi c to your 207 CC,
comfort, safety, driving, are then pre-
sented in this handbook, to increase
your appreciation of the vehicle help
you get the most from it.
Each model may only be fi tted with
some of the equipment mentioned in
this handbook, depending on its version
and the specifi cation for the country in
which it is sold.

Page reference:

this symbol invites you to refer to
the pages which provide details
of the function.


Key


Protection of the environment:

this symbol accompanies advice
relating to protection of the envi-
ronment.


Information:

this symbol draws your attention
to additional information for better
use of your vehicle.


Warning:

this symbol marks warnings which
it is essential to observe for your
own safety, for the safety of others
or to avoid any risk of damaging
your vehicle.

2

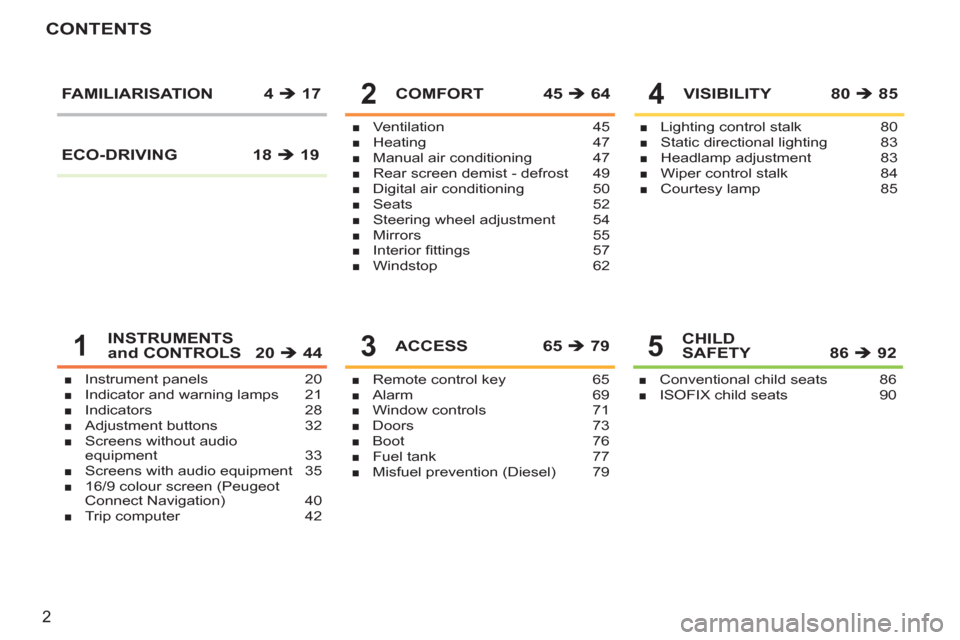

CONTENTS
Instrument panels 20
Indicator and warning lamps 21
Indicators 28
Adjustment buttons 32
Screens without audio
equipment 33
Screens with audio equipment 35
16/9 colour screen (Peugeot
Connect Navigation) 40
Trip computer 42■
■
■
■
■
■
■
■
Ventilation 45
Heating 47
Manual air conditioning 47
Rear screen demist - defrost 49
Digital air conditioning 50
Seats 52
Steering wheel adjustment 54
Mirrors 55
Interior fi ttings 57
Windstop 62■
■
■
■
■
■
■
■
■
■
COMFORT 45 Î 64
Remote control key 65
Alarm 69
Window controls 71
Doors 73
Boot 76
Fuel tank 77
Misfuel prevention (Diesel) 79■
■
■
■
■
■
■
ACCESS 65 Î 79
Lighting control stalk 80
Static directional lighting 83
Headlamp adjustment 83
Wiper control stalk 84
Courtesy lamp 85■
■
■
■
■
VISIBILITY 80 Î 85
Conventional child seats 86
ISOFIX child seats 90■
■
CHILD
SAFETY 86 Î 92 FAMILIARISATION 4 Î 17
INSTRUMENTS
and CONTROLS 20 Î 445
4
3
2
1
ECO-DRIVING 18 Î 19

3

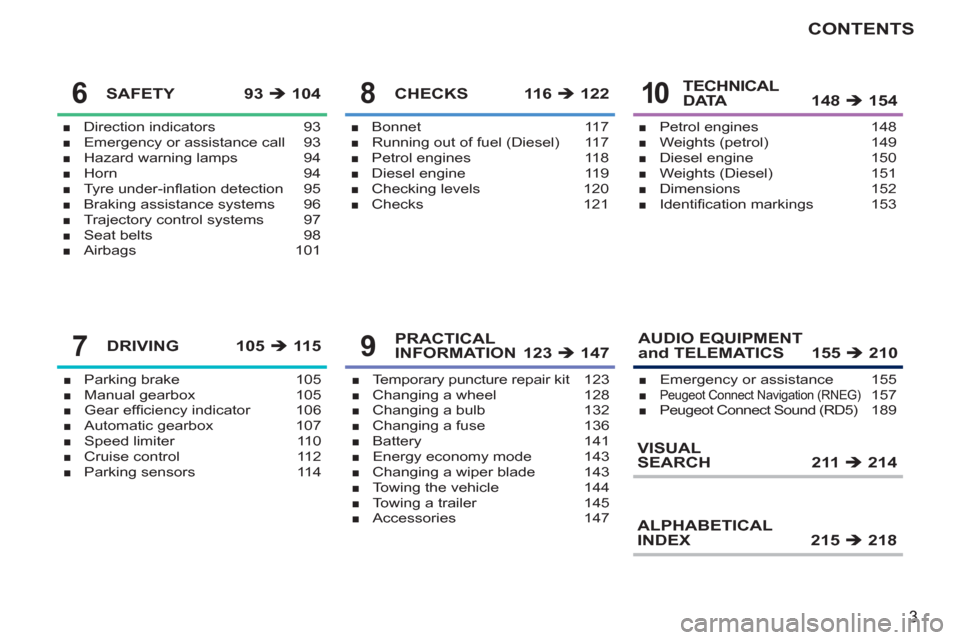

CONTENTS
Direction indicators 93
Emergency or assistance call 93
Hazard warning lamps 94
Horn 94
Tyre under-infl ation detection 95
Braking assistance systems 96
Trajectory control systems 97
Seat belts 98
Airbags 101■
■
■
■
■
■
■
■
■
SAFETY 93 Î 104
Parking brake 105
Manual gearbox 105
Gear effi ciency indicator 106
Automatic gearbox 107
Speed limiter 110
Cruise control 112
Parking sensors 114■
■
■
■
■
■
■
DRIVING 105 Î 11 5
Bonnet 117
Running out of fuel (Diesel) 117
Petrol engines 118
Diesel engine 119
Checking levels 120
Checks 121■
■
■
■
■
■
CHECKS 116 Î 122
Temporary puncture repair kit 123
Changing a wheel 128
Changing a bulb 132
Changing a fuse 136
Battery 141
Energy economy mode 143
Changing a wiper blade 143
Towing the vehicle 144
Towing a trailer 145
Accessories 147■
■
■
■
■
■
■
■
■
■
PRACTICAL
INFORMATION 123 Î 147
Petrol engines 148
Weights (petrol) 149
Diesel engine 150
Weights (Diesel) 151
Dimensions 152
Identifi cation markings 153■
■
■
■
■
■
TECHNICAL
D ATA 148 Î 154
AUDIO EQUIPMENT
and TELEMATICS 155 Î 210
Emergency or assistance 155Peugeot Connect Navigation (RNEG) 157
Peugeot Connect Sound (RD5) 189■
■
■
ALPHABETICAL
INDEX 215 Î 218
7
86
9
10
VISUAL
SEARCH 211 Î 214

4
FAMILIARISATION

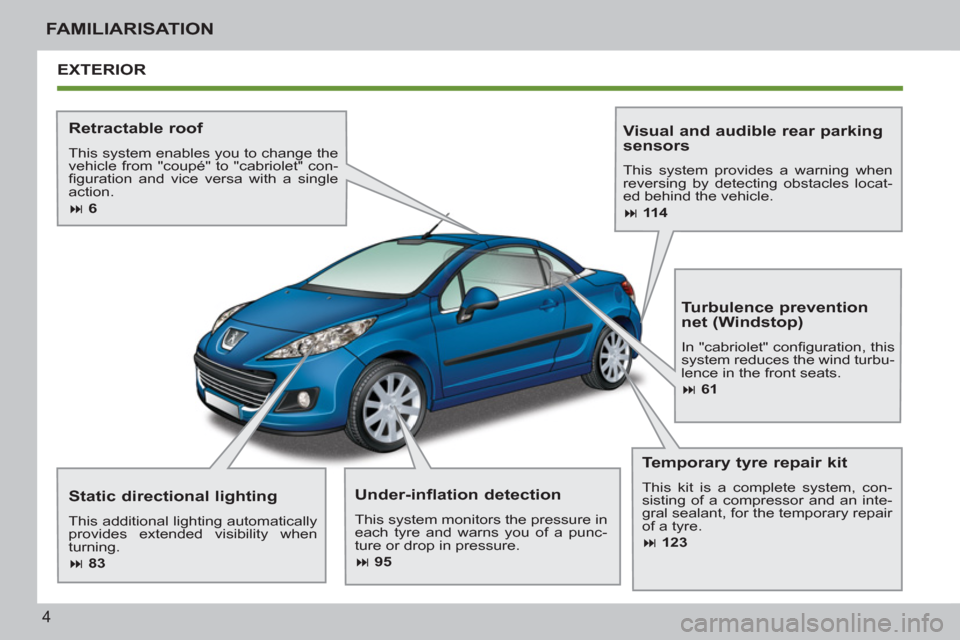

EXTERIOR

Retractable roof

This system enables you to change the
vehicle from "coupé" to "cabriolet" con-
fi guration and vice versa with a single
action.



6



Static directional lighting

This additional lighting automatically
provides extended visibility when
turning.



83



Visual and audible rear parking
sensors
This system provides a warning when
reversing by detecting obstacles locat-
ed behind the vehicle.



114



Under-inflation detection

This system monitors the pressure in
each tyre and warns you of a punc-
ture or drop in pressure.



95



Turbulence prevention
net (Windstop)
In "cabriolet" confi guration, this
system reduces the wind turbu-
lence in the front seats.



61



Temporary tyre repair kit

This kit is a complete system, con-
sisting of a compressor and an inte-
gral sealant, for the temporary repair
of a tyre.



123

ii

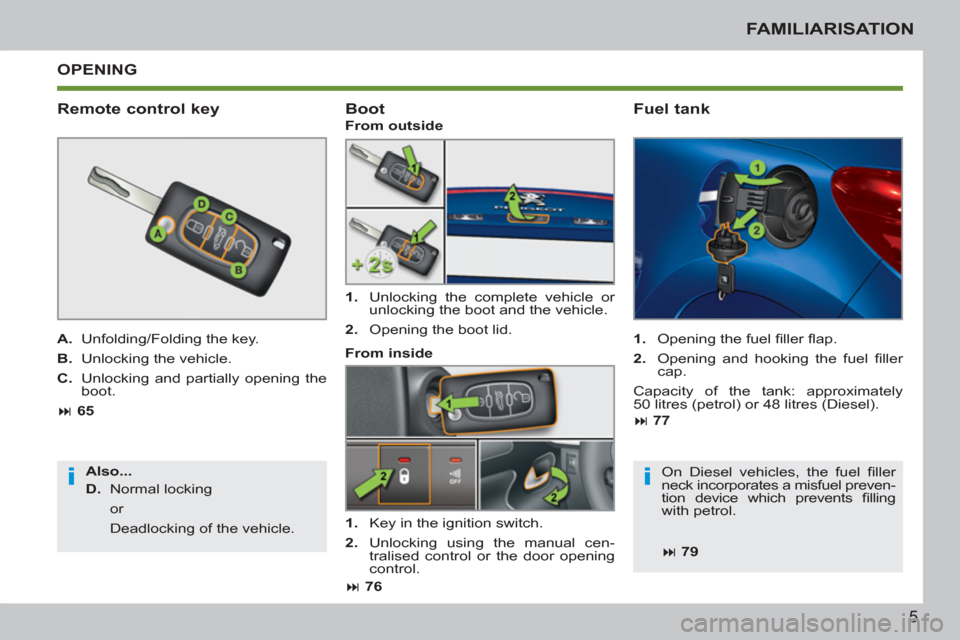

5
FAMILIARISATION
OPENING

Remote control key


A.
Unfolding/Folding the key.

B.
Unlocking the vehicle.

C.
Unlocking and partially opening the
boot.



65

Also...

D.
Normal locking
or
Deadlocking of the vehicle.



Fuel tank



1.
Opening the fuel fi ller fl ap.

2.
Opening and hooking the fuel fi ller
cap.
Capacity of the tank: approximately
50 litres (petrol) or 48 litres (Diesel).



77


Boot


From outside

From inside

1.
Unlocking the complete vehicle or
unlocking the boot and the vehicle.

2.
Opening the boot lid.



1.
Key in the ignition switch.

2.
Unlocking using the manual cen-
tralised control or the door opening
control.



76


On Diesel vehicles, the fuel fi ller
neck incorporates a misfuel preven-
tion device which prevents fi lling
with petrol.



79

! !
i
6
FAMILIARISATION
OPENING

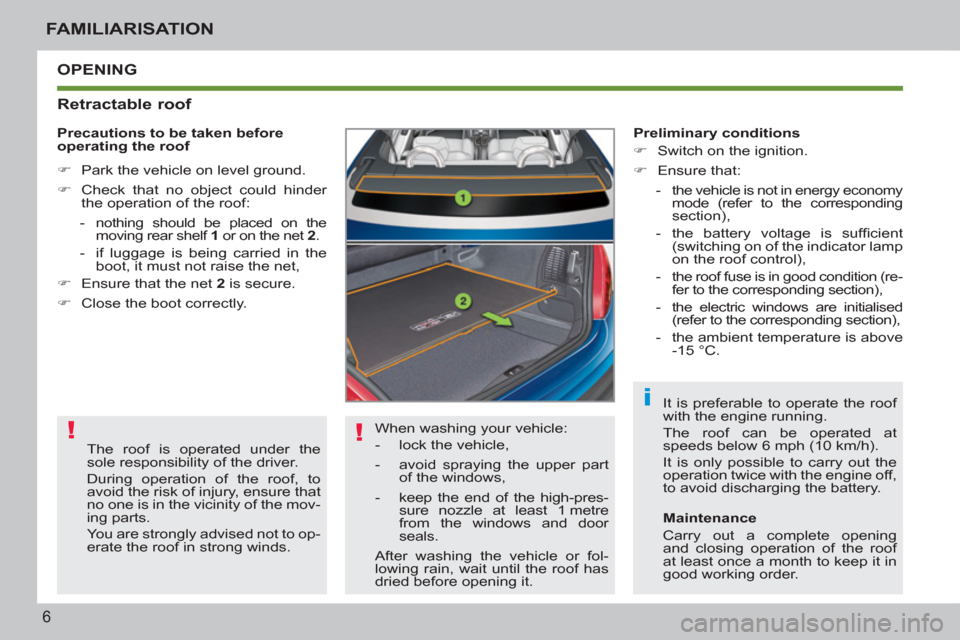

Retractable roof

When washing your vehicle:


- lock the vehicle,

- avoid spraying the upper part
of the windows,

- keep the end of the high-pres-
sure nozzle at least 1 metre
from the windows and door
seals.
After washing the vehicle or fol-
lowing rain, wait until the roof has
dried before opening it. The roof is operated under the
sole responsibility of the driver.
During operation of the roof, to
avoid the risk of injury, ensure that
no one is in the vicinity of the mov-
ing parts.
You are strongly advised not to op-
erate the roof in strong winds. It is preferable to operate the roof
with the engine running.
The roof can be operated at
speeds below 6 mph (10 km/h).
It is only possible to carry out the
operation twice with the engine off,
to avoid discharging the battery.
Preliminary conditions


)
Switch on the ignition.

)
Ensure that:


- the vehicle is not in energy economy
mode (refer to the corresponding
section),

- the battery voltage is suffi cient
(switching on of the indicator lamp
on the roof control),

- the roof fuse is in good condition (re-
fer to the corresponding section),

- the electric windows are initialised
(refer to the corresponding section),

- the ambient temperature is above
-15 °C.

Precautions to be taken before
operating the roof


)
Park the vehicle on level ground.

)
Check that no object could hinder
the operation of the roof:


- nothing should be placed on the
moving rear shelf 1
or on the net 2
.

- if luggage is being carried in the
boot, it must not raise the net,

)
Ensure that the net 2
is secure.

)
Close the boot correctly.

Maintenance
Carry out a complete opening
and closing operation of the roof
at least once a month to keep it in
good working order.

i
!
!
7
FAMILIARISATION
OPENING

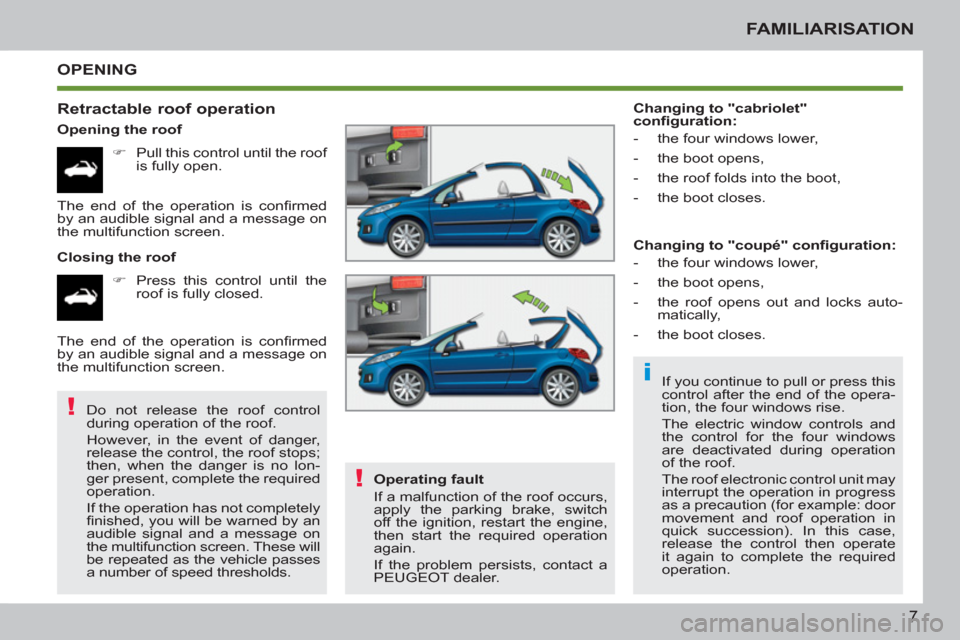

Retractable roof operation


Opening the roof


)
Pull this control until the roof
is fully open.

Closing the roof


)
Press this control until the
roof is fully closed.
Do not release the roof control
during operation of the roof.
However, in the event of danger,
release the control, the roof stops;
then, when the danger is no lon-
ger present, complete the required
operation.
If the operation has not completely
fi nished, you will be warned by an
audible signal and a message on
the multifunction screen. These will
be repeated as the vehicle passes
a number of speed thresholds.
Changing to "cabriolet"
confi guration:


- the four windows lower,

- the boot opens,

- the roof folds into the boot,

- the boot closes.

If you continue to pull or press this
control after the end of the opera-
tion, the four windows rise.
The electric window controls and
the control for the four windows
are deactivated during operation
of the roof.
The roof electronic control unit may
interrupt the operation in progress
as a precaution (for example: door
movement and roof operation in
quick succession). In this case,
release the control then operate
it again to complete the required
operation.

Operating fault
If a malfunction of the roof occurs,
apply the parking brake, switch
off the ignition, restart the engine,
then start the required operation
again.
If the problem persists, contact a
PEUGEOT dealer.
Changing to "coupé" confi guration:


- the four windows lower,

- the boot opens,

- the roof opens out and locks auto-
matically,

- the boot closes. The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.
The end of the operation is confi rmed
by an audible signal and a message on
the multifunction screen.

8
FAMILIARISATION

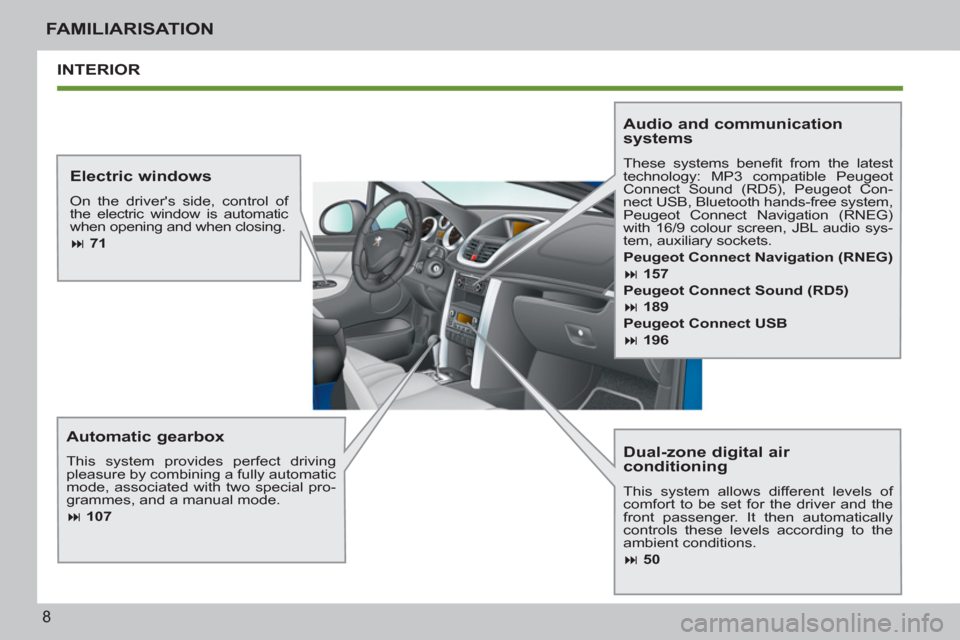

INTERIOR

Dual-zone digital air
conditioning
This system allows different levels of
comfort to be set for the driver and the
front passenger. It then automatically
controls these levels according to the
ambient conditions.



50



Automatic gearbox

This system provides perfect driving
pleasure by combining a fully automatic
mode, associated with two special pro-
grammes, and a manual mode.



107



Audio and communication
systems
These systems benefi t from the latest
technology: MP3 compatible Peugeot
Connect Sound (RD5), Peugeot Con-
nect USB, Bluetooth hands-free system,
Peugeot Connect Navigation (RNEG)
with 16/9 colour screen, JBL audio sys-
tem, auxiliary sockets.

Peugeot Connect Navigation (RNEG)




157

Peugeot Connect Sound (RD5)




189

Peugeot Connect USB




196


Electric windows

On the driver's side, control of
the electric window is automatic
when opening and when closing.



71
