Page 41 of 224
1
!
INSTRUMENTS and CONTROLS
39

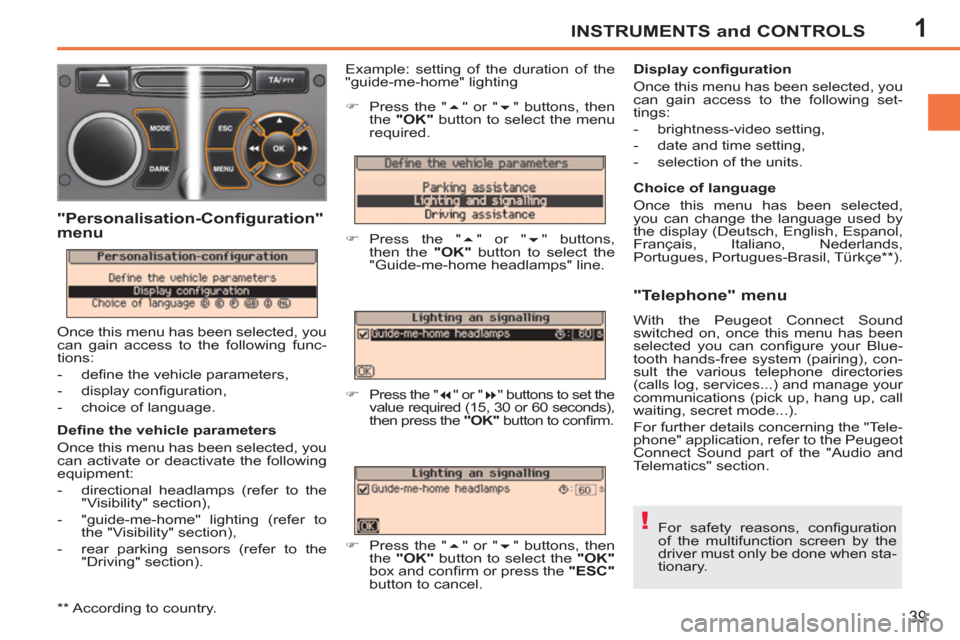

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to
the "Visibility" section),
- rear parking sensors (refer to the
"Driving" section).
"Telephone" menu
With the Peugeot Connect Sound
switched on, once this menu has been
selected you can confi gure your Blue-
tooth hands-free system (pairing), con-
sult the various telephone directories
(calls log, services...) and manage your
communications (pick up, hang up, call
waiting, secret mode...).
For further details concerning the "Tele-
phone" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
Display confi guration
Once this menu has been selected, you
can gain access to the following set-
tings:
- brightness-video setting,
- date and time setting,
- selection of the units.
Choice of language
Once this menu has been selected,
you can change the language used by
the display (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Portugues, Portugues-Brasil, Türkçe ** ).
Example: setting of the duration of the
"guide-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you
can gain access to the following func-
tions:
- defi ne the vehicle parameters,
- display confi guration,
- choice of language.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the menu
required.
)
Press the "
" or "
" buttons,
then the "OK"
button to select the
"Guide-me-home headlamps" line.
)
Press the "
" or "
" buttons to set the
value required (15, 30 or 60 seconds),
then press the "OK"
button to confi rm.
)
Press the "
" or "
" buttons, then
the "OK"
button to select the "OK"
box and confi rm or press the "ESC"
button to cancel.
**
According to country.
Page 42 of 224

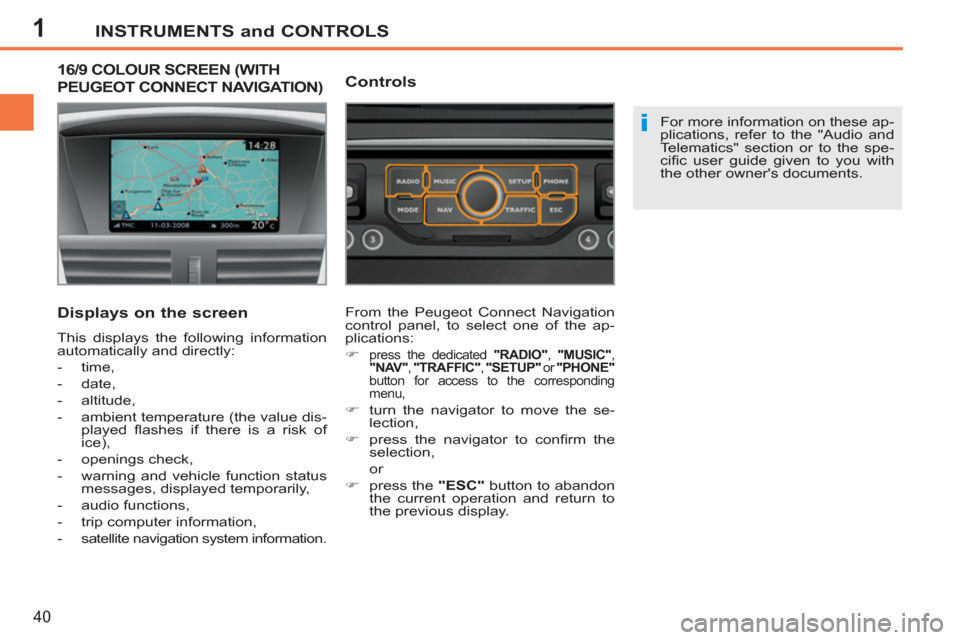

1
i
INSTRUMENTS and CONTROLS
40
16/9 COLOUR SCREEN (WITH
PEUGEOT CONNECT NAVIGATION)
Displays on the screen
This displays the following information
automatically and directly:
- time,
- date,
- altitude,
- ambient temperature (the value dis-
played fl ashes if there is a risk of
ice),
- openings check,
- warning and vehicle function status
messages, displayed temporarily,
- audio functions,
- trip computer information,
-
satellite navigation system information.
Controls
From the Peugeot Connect Navigation
control panel, to select one of the ap-
plications:
)
press the dedicated "RADIO"
, "MUSIC"
,
"NAV"
, "TRAFFIC"
, "SETUP"
or "PHONE"
button for access to the corresponding
menu,
)
turn the navigator to move the se-
lection,
)
press the navigator to confi rm the
selection,
or
)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For more information on these ap-
plications, refer to the "Audio and
Telematics" section or to the spe-
cifi c user guide given to you with
the other owner's documents.
Page 43 of 224

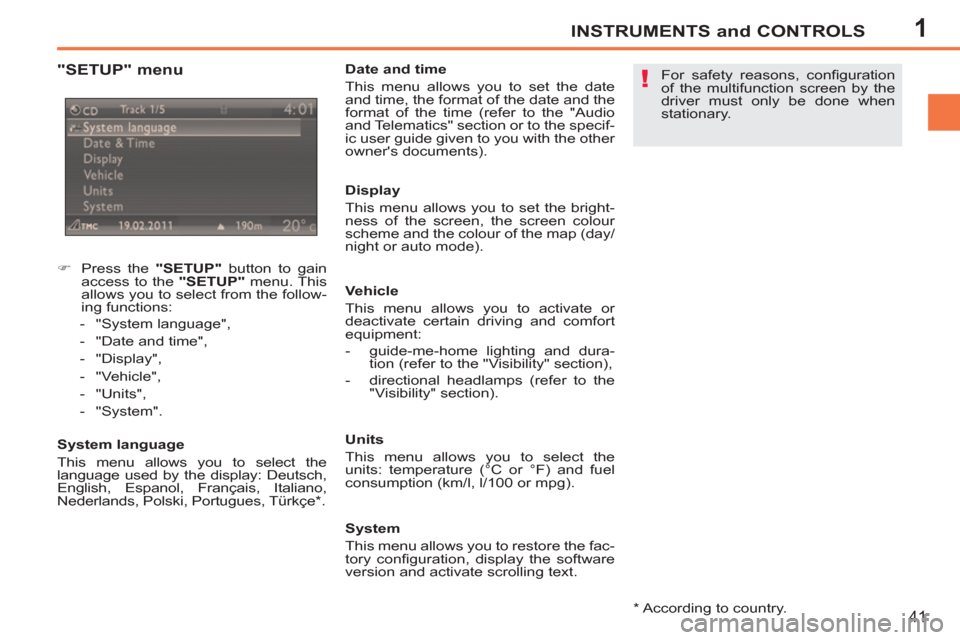

1
!
INSTRUMENTS and CONTROLS
41
"SETUP" menu
)
Press the "SETUP"
button to gain
access to the "SETUP"
menu. This
allows you to select from the follow-
ing functions:
- "System language",
- "Date and time",
- "Display",
- "Vehicle",
- "Units",
- "System".
System language
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues, Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents).
Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).
Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:
- guide-me-home lighting and dura-
tion (refer to the "Visibility" section),
- directional headlamps (refer to the
"Visibility" section).
Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).
System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.
*
According to country. For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.
Page 44 of 224

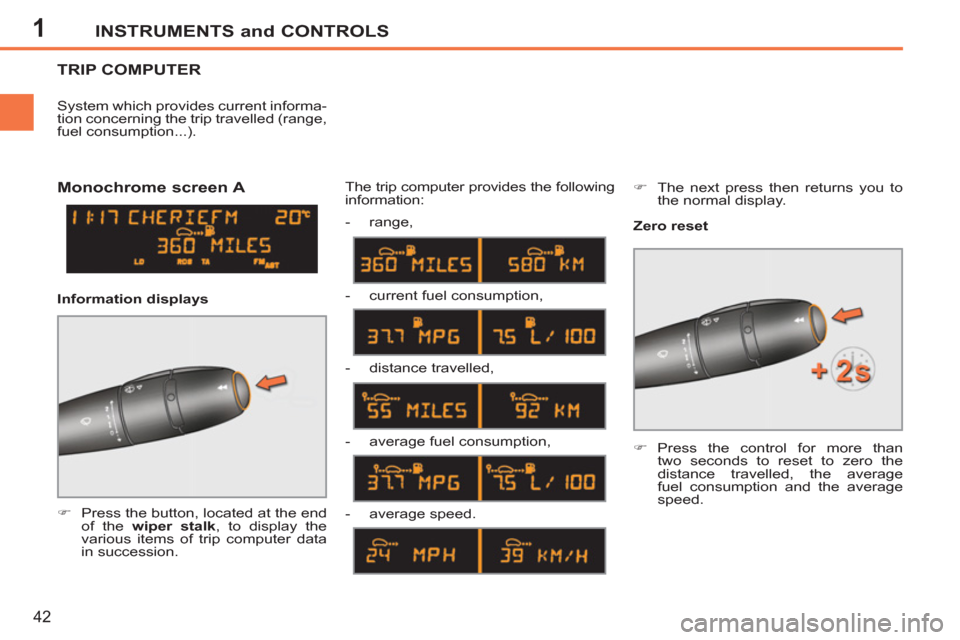

1INSTRUMENTS and CONTROLS
42
TRIP COMPUTER
)
Press the button, located at the end
of the wiper stalk
, to display the
various items of trip computer data
in succession. The trip computer provides the following
information: System which provides current informa-
tion concerning the trip travelled (range,
fuel consumption...).
Zero reset
Monochrome screen A
)
The next press then returns you to
the normal display.
Information displays
- range,
- current fuel consumption,
- distance travelled,
- average fuel consumption,
- average speed.
)
Press the control for more than
two seconds to reset to zero the
distance travelled, the average
fuel consumption and the average
speed.
Page 45 of 224

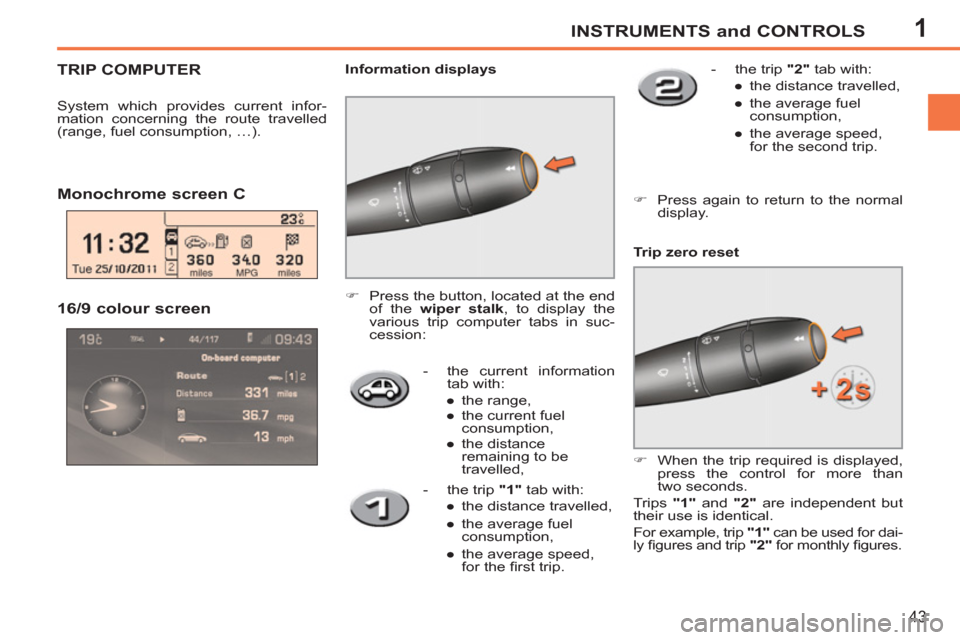

1INSTRUMENTS and CONTROLS
43
- the current information
tab with:
●
the range,
●
the current fuel
consumption,
●
the distance
remaining to be
travelled,
16/9 colour screen
)
Press again to return to the normal
display.
Monochrome screen C
)
Press the button, located at the end
of the wiper stalk, to display the
various trip computer tabs in suc-
cession:
Information displays
Trip zero reset
- the trip "1"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the fi rst trip.
- the trip "2"
tab with:
●
the distance travelled,
●
the average fuel
consumption,
●
the average speed,
for the second trip.
)
When the trip required is displayed,
press the control for more than
two seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for dai-
ly fi gures and trip "2"
for monthly fi gures.
TRIP COMPUTER
System which provides current infor-
mation concerning the route travelled
(range, fuel consumption, …).
Page 46 of 224

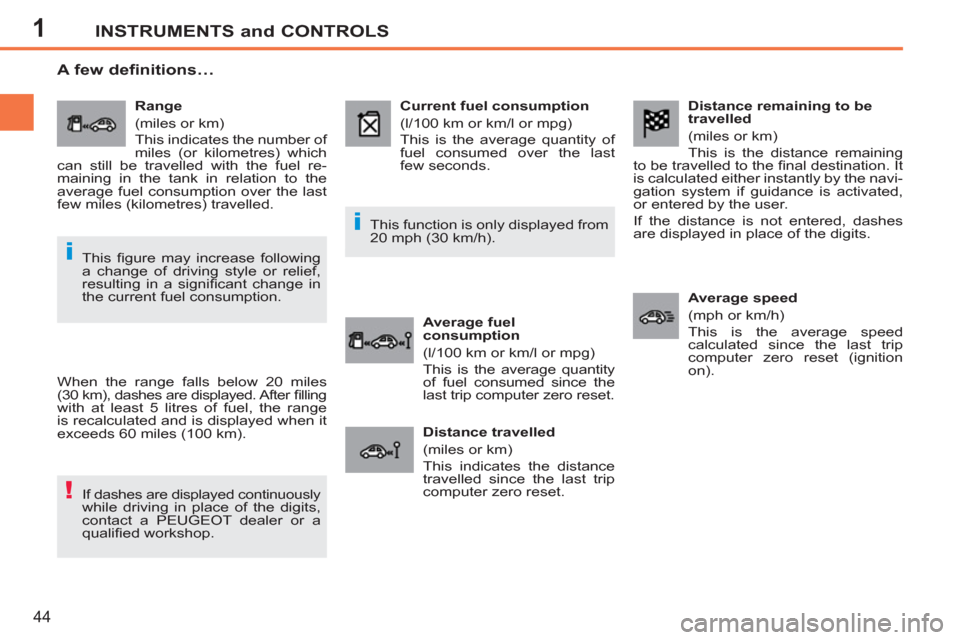

1
!
i
i
INSTRUMENTS and CONTROLS
44
Distance remaining to be
travelled
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is calculated either instantly by the navi-
gation system if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.
Average speed
(mph or km/h)
This is the average speed
calculated since the last trip
computer zero reset (ignition
on).
Range
(miles or km)
This indicates the number of
miles (or kilometres) which
can still be travelled with the fuel re-
maining in the tank in relation to the
average fuel consumption over the last
few miles (kilometres) travelled.
Current fuel consumption
(l/100 km or km/l or mpg)
This is the average quantity of
fuel consumed over the last
few seconds.
Average fuel
consumption
(l/100 km or km/l or mpg)
This is the average quantity
of fuel consumed since the
last trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.
A few definitions…
When the range falls below 20 miles
(30 km), dashes are displayed. After fi lling
with at least 5 litres of fuel, the range
is recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed continuously
while driving in place of the digits,
contact a PEUGEOT dealer or a
qualifi ed workshop. This function is only displayed from
20 mph (30 km/h).
This fi gure may increase following
a change of driving style or relief,
resulting in a signifi cant change in
the current fuel consumption.
Page 47 of 224

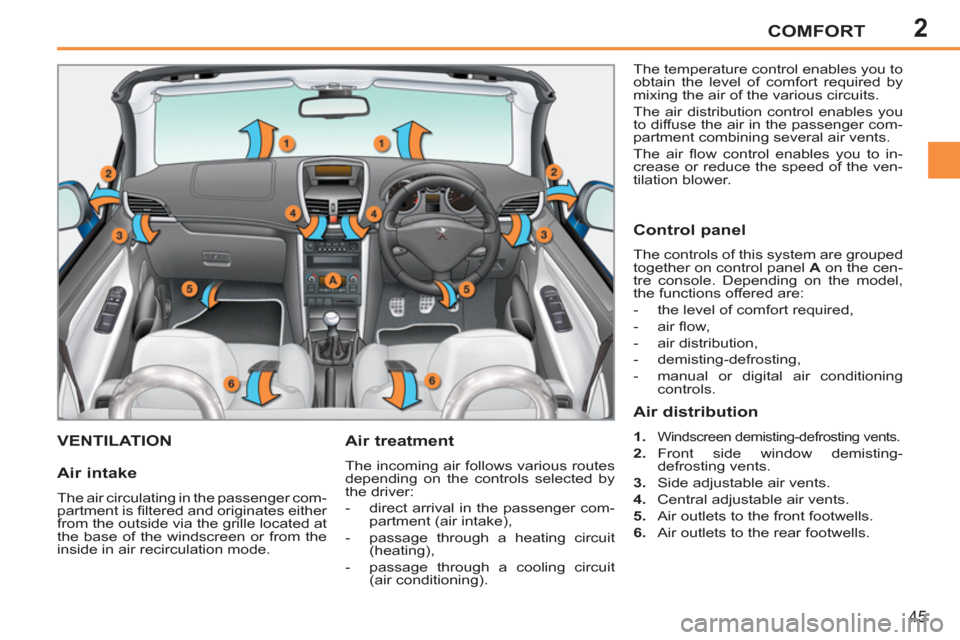

2COMFORT
45
VENTILATION
Air treatment
The incoming air follows various routes
depending on the controls selected by
the driver:
- direct arrival in the passenger com-
partment (air intake),
- passage through a heating circuit
(heating),
- passage through a cooling circuit
(air conditioning). The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air in the passenger com-
partment combining several air vents.
The air fl ow control enables you to in-
crease or reduce the speed of the ven-
tilation blower.
Air intake
The air circulating in the passenger com-
partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Control panel
The controls of this system are grouped
together on control panel A
on the cen-
tre console. Depending on the model,
the functions offered are:
- the level of comfort required,
- air fl ow,
- air distribution,
- demisting-defrosting,
- manual or digital air conditioning
controls.
Air distribution
1.
Windscreen demisting-defrosting vents.
2.
Front side window demisting-
defrosting vents.
3.
Side adjustable air vents.
4.
Central adjustable air vents.
5.
Air outlets to the front footwells.
6.
Air outlets to the rear footwells.
Page 48 of 224
2
i
COMFORT
46

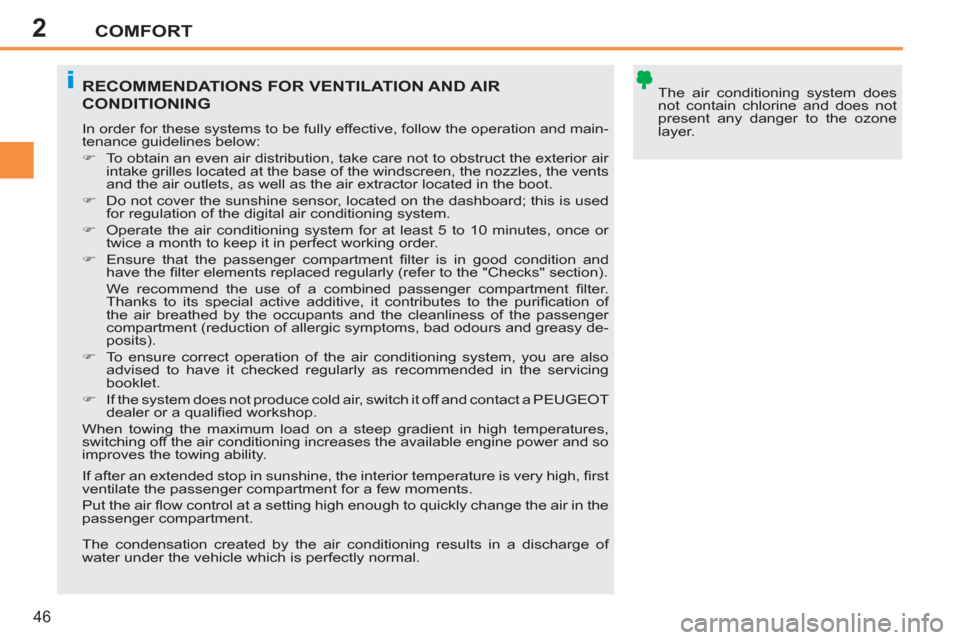

The air conditioning system does
not contain chlorine and does not
present any danger to the ozone
layer. RECOMMENDATIONS FOR VENTILATION AND AIR
CONDITIONING
In order for these systems to be fully effective, follow the operation and main-
tenance guidelines below:
)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.
)
Do not cover the sunshine sensor, located on the dashboard; this is used
for regulation of the digital air conditioning system.
)
Operate the air conditioning system for at least 5 to 10 minutes, once or
twice a month to keep it in perfect working order.
)
Ensure that the passenger compartment fi lter is in good condition and
have the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter.
Thanks to its special active additive, it contributes to the purifi cation of
the air breathed by the occupants and the cleanliness of the passenger
compartment (reduction of allergic symptoms, bad odours and greasy de-
posits).
)
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly as recommended in the servicing
booklet.
)
If the system does not produce cold air, switch it off and contact a PEUGEOT
dealer or a qualifi ed workshop.
When towing the maximum load on a steep gradient in high temperatures,
switching off the air conditioning increases the available engine power and so
improves the towing ability.
If after an extended stop in sunshine, the interior temperature is very high, fi rst
ventilate the passenger compartment for a few moments.
Put the air fl ow control at a setting high enough to quickly change the air in the
passenger compartment.
The condensation created by the air conditioning results in a discharge of
water under the vehicle which is perfectly normal.
Page 49 of 224
2COMFORT
47

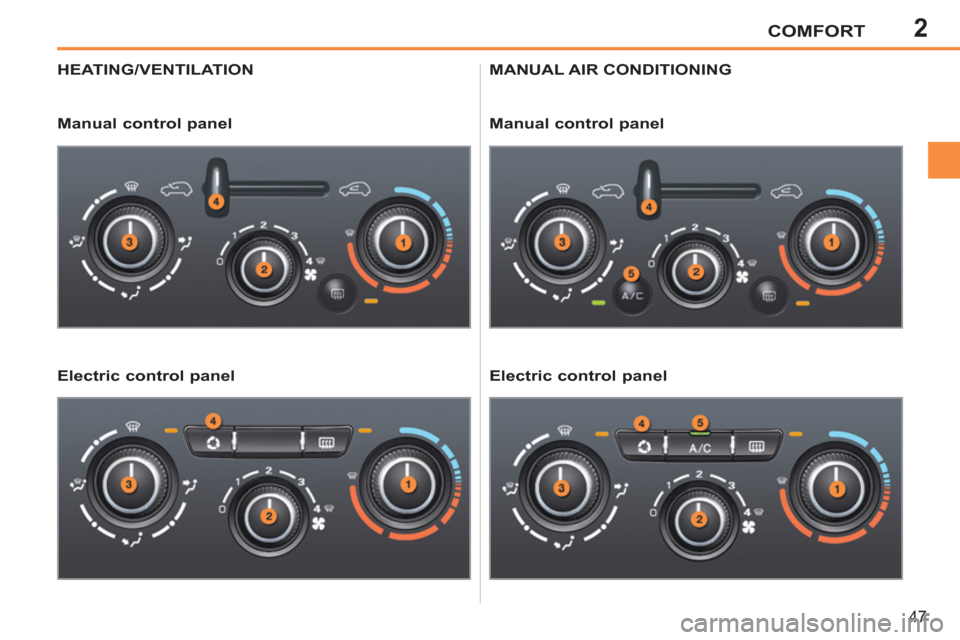

HEATING/VENTILATION
Manual control panel
Electric control panel MANUAL AIR CONDITIONING
Manual control panel
Electric control panel
Page 50 of 224
2
i
COMFORT

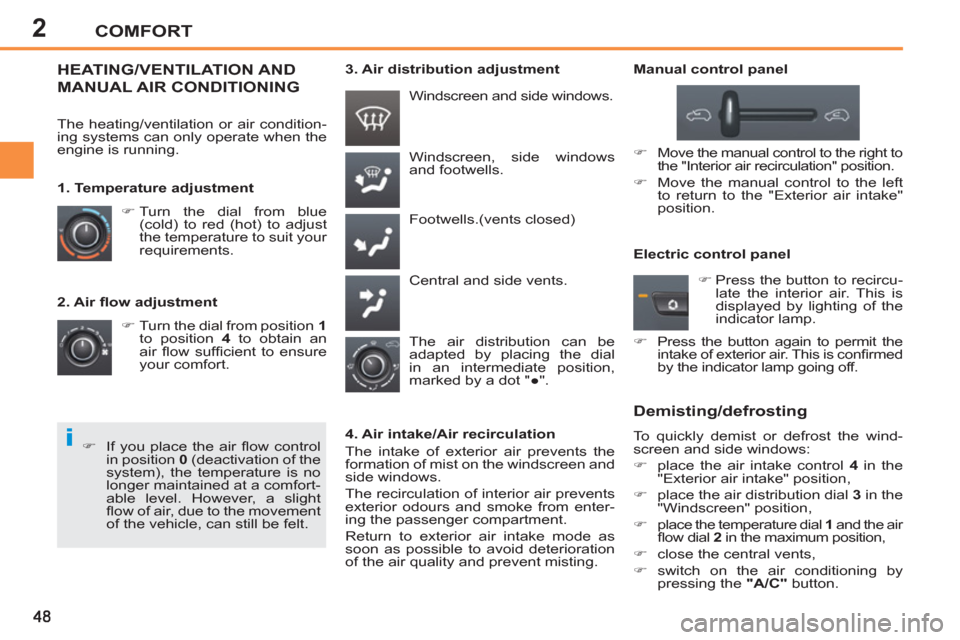

2. Air fl ow adjustment
)
Turn the dial from position 1
to position 4
to obtain an
air fl ow suffi cient to ensure
your comfort. Windscreen, side windows
and footwells.
Footwells.(vents closed)
Central and side vents.
)
Turn the dial from blue
(cold) to red (hot) to adjust
the temperature to suit your
requirements.
Windscreen and side windows.
1. Temperature adjustment
The air distribution can be
adapted by placing the dial
in an intermediate position,
marked by a dot "●". The heating/ventilation or air condition-
ing systems can only operate when the
engine is running.
HEATING/VENTILATION AND
MANUAL AIR CONDITIONING
Manual control panel
4. Air intake/Air recirculation
The intake of exterior air prevents the
formation of mist on the windscreen and
side windows.
The recirculation of interior air prevents
exterior odours and smoke from enter-
ing the passenger compartment.
Return to exterior air intake mode as
soon as possible to avoid deterioration
of the air quality and prevent misting.
Electric control panel
Demisting/defrosting
To quickly demist or defrost the wind-
screen and side windows:
)
place the air intake control 4
in the
"Exterior air intake" position,
)
place the air distribution dial 3
in the
"Windscreen" position,
)
place the temperature dial 1
and the air
fl ow dial 2
in the maximum position,
)
close the central vents,
)
switch on the air conditioning by
pressing the "A/C"
button.
)
If you place the air fl ow control
in position 0
(deactivation of the
system), the temperature is no
longer maintained at a comfort-
able level. However, a slight
fl ow of air, due to the movement
of the vehicle, can still be felt.
3. Air distribution adjustment
)
Move the manual control to the right to
the "Interior air recirculation" position.
)
Move the manual control to the left
to return to the "Exterior air intake"
position.
)
Press the button to recircu-
late the interior air. This is
displayed by lighting of the
indicator lamp.
)
Press the button again to permit the
intake of exterior air. This is confi rmed
by the indicator lamp going off.
