Page 12 of 224

10
FAMILIARISATION

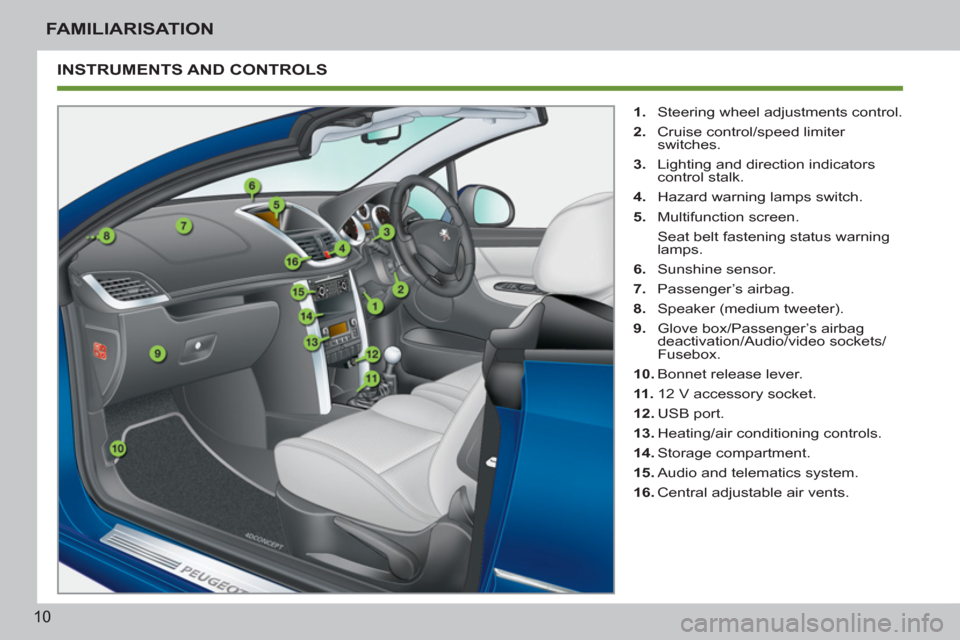

INSTRUMENTS AND CONTROLS
1.
Steering wheel adjustments control.
2.
Cruise control/speed limiter
switches.
3.
Lighting and direction indicators
control stalk.
4.
Hazard warning lamps switch.
5.
Multifunction screen.
Seat belt fastening status warning
lamps.
6.
Sunshine sensor.
7.
Passenger’s airbag.
8.
Speaker (medium tweeter).
9.
Glove box/Passenger’s airbag
deactivation/Audio/video sockets/
Fusebox.
10.
Bonnet release lever.
11 .
12 V accessory socket.
12.
USB port.
13.
Heating/air conditioning controls.
14.
Storage compartment.
15.
Audio and telematics system.
16.
Central adjustable air vents.
Page 18 of 224

!
16
FAMILIARISATION

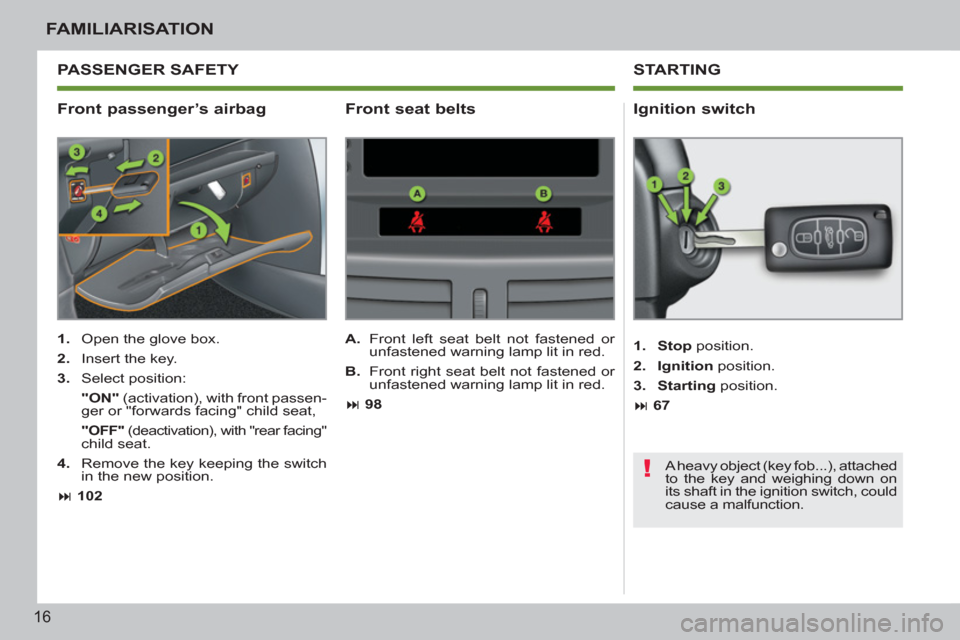

Front passenger’s airbag
Ignition switch
1.
Open the glove box.
2.
Insert the key.
3.
Select position:
"ON"
(activation), with front passen-
ger or "forwards facing" child seat,
"OFF"
(deactivation), with "rear facing" child seat.
4.
Remove the key keeping the switch
in the new position.
102
1.
Stop
position.
2.
Ignition
position.
3.
Starting
position.
67
A.
Front left seat belt not fastened or
unfastened warning lamp lit in red.
B.
Front right seat belt not fastened or
unfastened warning lamp lit in red.
98
Front seat belts
A heavy object (key fob...), attached
to the key and weighing down on
its shaft in the ignition switch, could
cause a malfunction.
PASSENGER SAFETY STARTING
Page 25 of 224

1INSTRUMENTS and CONTROLS
23

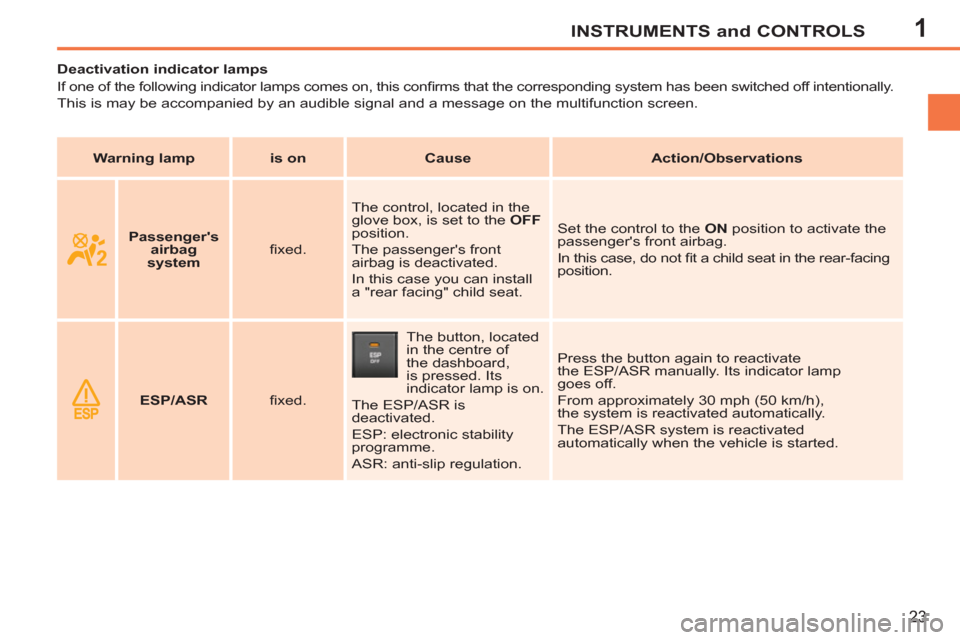

Deactivation indicator lamps
If one of the following indicator lamps comes on, this confi rms that the corresponding system has been switched off intentionally.
This is may be accompanied by an audible signal and a message on the multifunction screen.
Warning lamp
is on
Cause
Action/Observations
Passenger's
airbag
system
fi xed. The control, located in the
glove box, is set to the OFF
position.
The passenger's front
airbag is deactivated.
In this case you can install
a "rear facing" child seat. Set the control to the ON
position to activate the
passenger's front airbag.
In this case, do not fi t a child seat in the rear-facing
position.
ESP/ASR
fi xed. The button, located
in the centre of
the dashboard,
is pressed. Its
indicator lamp is on.
The ESP/ASR is
deactivated.
ESP: electronic stability
programme.
ASR: anti-slip regulation. Press the button again to reactivate
the ESP/ASR manually. Its indicator lamp
goes off.
From approximately 30 mph (50 km/h),
the system is reactivated automatically.
The ESP/ASR system is reactivated
automatically when the vehicle is started.
Page 60 of 224

2COMFORT
58

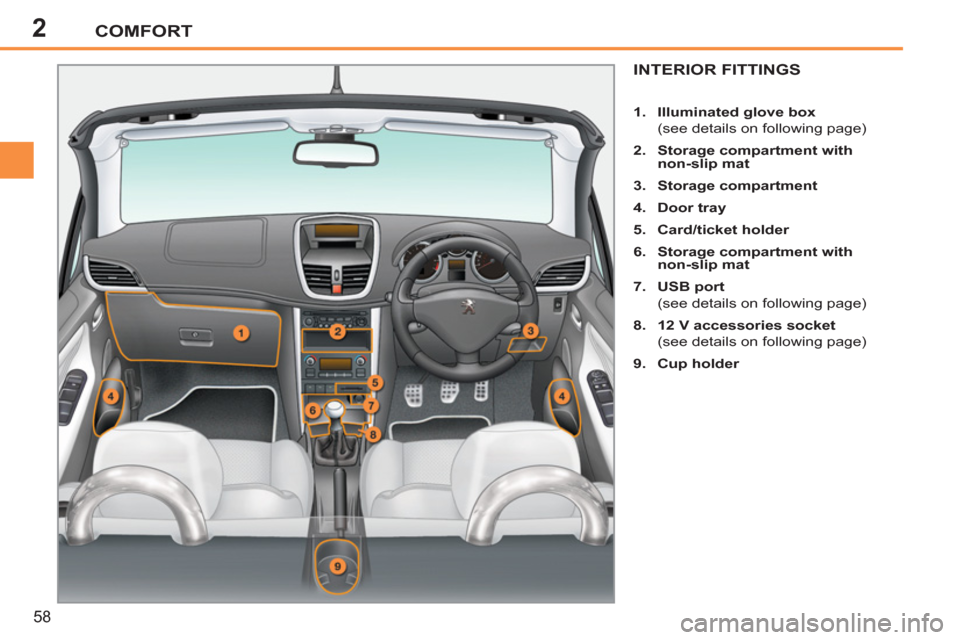

INTERIOR FITTINGS
1.
Illuminated glove box
(see details on following page)
2.
Storage compartment with
non-slip mat
3.
Storage compartment
4.
Door tray
5.
Card/ticket holder
6.
Storage compartment with
non-slip mat
7.
USB port
(see details on following page)
8.
12 V accessories socket
(see details on following page)
9.
Cup holder
Page 61 of 224

2COMFORT
59

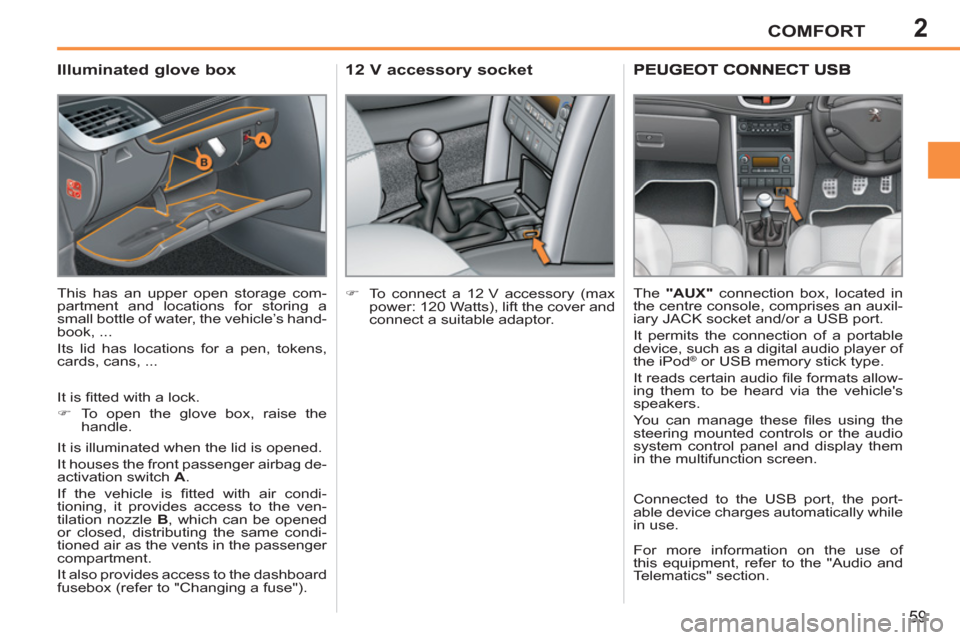

Illuminated glove box
This has an upper open storage com-
partment and locations for storing a
small bottle of water, the vehicle’s hand-
book, ...
Its lid has locations for a pen, tokens,
cards, cans, ...
12 V accessory socket
)
To connect a 12 V accessory (max
power: 120 Watts), lift the cover and
connect a suitable adaptor.
The "AUX"
connection box, located in
the centre console, comprises an auxil-
iary JACK socket and/or a USB port.
It permits the connection of a portable
device, such as a digital audio player of
the iPod
® or USB memory stick type.
It reads certain audio fi le formats allow-
ing them to be heard via the vehicle's
speakers.
You can manage these fi les using the
steering mounted controls or the audio
system control panel and display them
in the multifunction screen.
Connected to the USB port, the port-
able device charges automatically while
in use.
For more information on the use of
this equipment, refer to the "Audio and
Telematics" section. It is fi tted with a lock.
)
To open the glove box, raise the
handle.
It is illuminated when the lid is opened.
It houses the front passenger airbag de-
activation switch A
.
If the vehicle is fi tted with air condi-
tioning, it provides access to the ven-
tilation nozzle B
, which can be opened
or closed, distributing the same condi-
tioned air as the vents in the passenger
compartment.
It also provides access to the dashboard
fusebox (refer to "Changing a fuse").
Page 103 of 224

6
!
i
SAFETY
101
AIRBAGS
The airbags have been designed to
maximise the safety of the occupants in
the event of violent collisions. They sup-
plement the action of the force-limiting
seat belts.
In this case, the electronic detectors
record and analyse the front and side
impacts suffered in the impact detection
zones:
- in the event of a serious impact, the
airbags are deployed instantane-
ously and protect the occupants of
the vehicle; immediately after the
impact, the airbags defl ate rapidly
so that they do not hinder the visibil-
ity of the occupants or their possible
exit from the vehicle,
- in the event of a minor impact or
rear impact and in certain roll-over
conditions, the airbags will not be
deployed; the seat belt alone is suffi -
cient to provide maximum protection
in these situations.
The airbags do not operate when
the ignition is off.
This equipment only operates
once. If a second impact occurs
(during the same or a subsequent
accident), the airbag will not operate.
Impact detection zones
A.
Front impact zone.
B.
Side impact zone.
Front airbags
System which protects the head and
chest of the driver and front passenger
in the event of a front impact.
The driver's airbag is fi tted in the centre
of the steering wheel; the front passen-
ger's airbag is fi tted in the dashboard
above the glove box.
Operation
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of
a serious front impact applied to all or
part of the front impact zone A
, in the
longitudinal centreline of the vehicle on
a horizontal plane and directed from the
front to the rear of the vehicle.
The front airbag infl ates between the
front occupant of the vehicle and the
dashboard to cushion their forward
movement. The deployment of one or more
airbags is accompanied by a slight
discharge of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated
in the system.
This smoke is not harmful, but sen-
sitive individuals may experience
some irritation.
The noise of the detonation may
result in a slight loss of hearing for
a short time.
Page 130 of 224

9
i
PRACTICAL INFORMATION
128
*
According to country.
CHANGING A WHEEL *
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
Access to the tools
The tools are installed in a box at the
bottom of the boot under the spare
wheel.
For access to them, refer to the para-
graph "Access to the spare wheel" on
the following page.
List of tools
1.
Wheelbrace.
For removal of the wheel trim and
removal of the wheel fi xing bolts.
2.
Jack with integral handle.
For raising the vehicle.
3.
"Bolt cover" tool.
For removal of the bolt protectors
(covers) on alloy wheels.
4.
Socket for the security bolts (located
in the glove box).
For adaptation of the wheelbrace
to the special "security" bolts.
5.
Removable towing eye.
Refer to the paragraph "Towing
the vehicle".
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.
Other accessories
Wheel with trim
When removing the wheel
, detach
the trim fi rst using the wheelbrace 1
pulling at the valve passage hole.
When refi tting the wheel
, re-
fi t the trim starting by placing its
notch facing the valve and press
around its edge with the palm of
your hand.
Page 138 of 224

9
!
i
i
PRACTICAL INFORMATION
136
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
ed exceeds 10 milliamperes.
Installation of electrical acces-
sories
Your vehicle’s electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT deal-
er or a qualifi ed workshop.
CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.

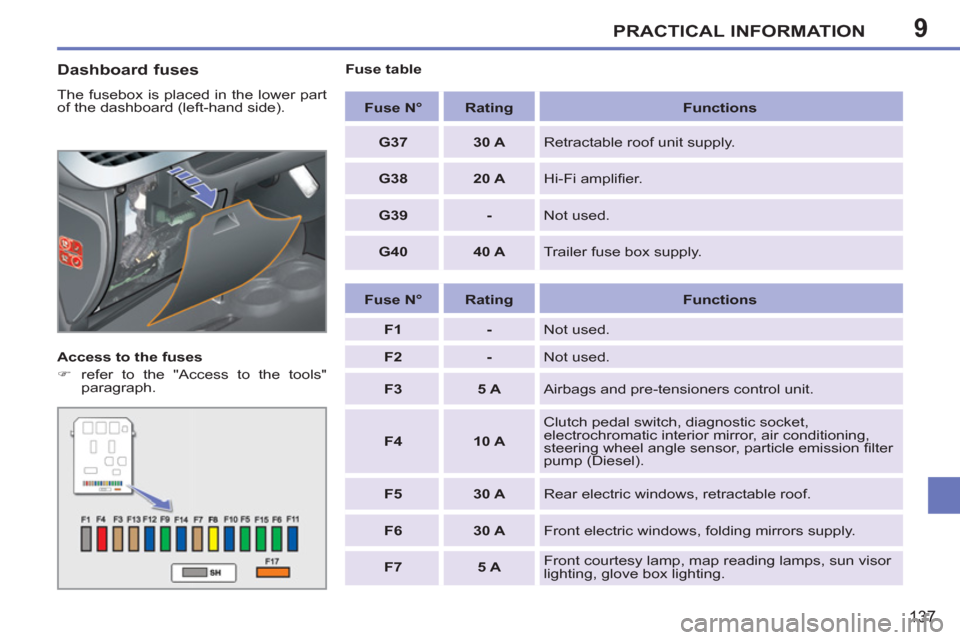

Access to the tools
The extraction tweezer is fi tted to the
back of the dashboard fusebox cover.
To gain access to them:
)
open the glove box lid,
)
push the opening guide to the left to
pass the fi rst notch,
)
open the glove box lid fully,
)
unclip the fusebox cover pulling at
the top,
)
remove the cover completely,
)
remove the tweezer.
Replacing a fuse
Before replacing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.
)
Identify the faulty fuse by examining
the condition of its fi lament.
)
Use the special tweezer to extract
the fuse from its housing.
)
Always replace the faulty fuse with a
fuse of the same rating.
)

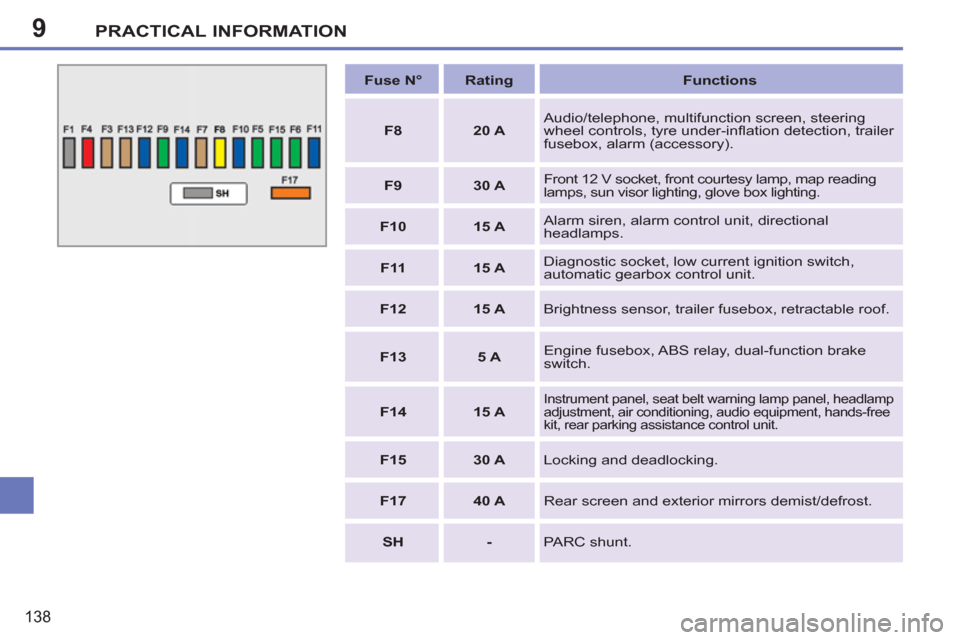

Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow.
Good
Failed
To close the glove box, take care to
push the opening guide back to the
left to pass the fi rst notch.
