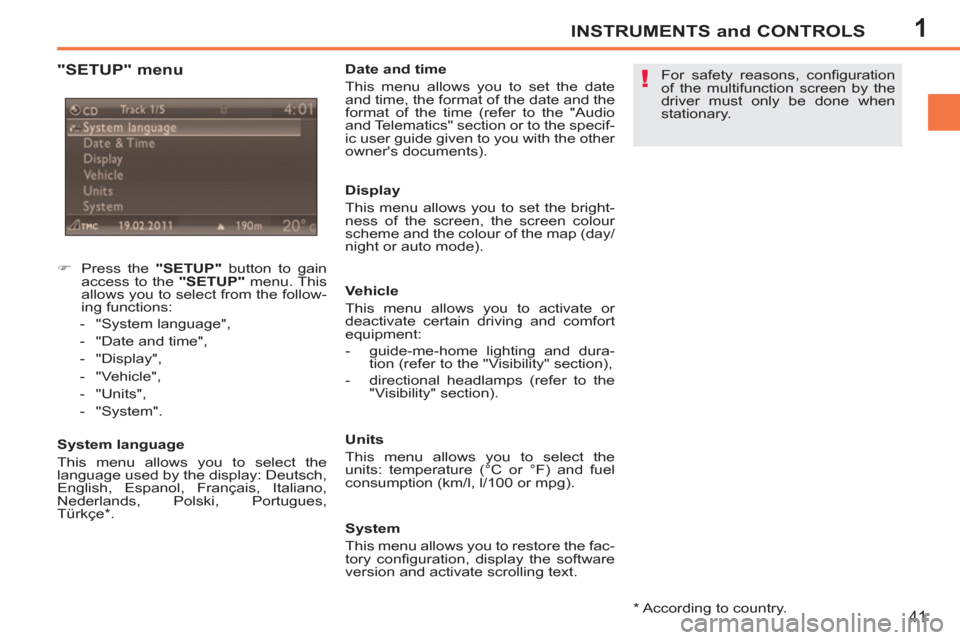

"SETUP" menu




)
Press the "SETUP"
button to gain
access to the "SETUP"
menu. This
allows you to select from the follow-
ing functions:


- "System language",

- "Date and time",

- "Display",

- "Vehicle",

- "Units",

- "System".




System language
This menu allows you to select the
language used by the display: Deutsch,
English, Espanol, Français, Italiano,
Nederlands, Polski, Portugues,
Türkçe * .
Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the specif-
ic user guide given to you with the other
owner's documents).

Display
This menu allows you to set the bright-
ness of the screen, the screen colour
scheme and the colour of the map (day/
night or auto mode).

Vehicle
This menu allows you to activate or
deactivate certain driving and comfort
equipment:


- guide-me-home lighting and dura-
tion (refer to the "Visibility" section),

- directional headlamps (refer to the
"Visibility" section).


Units
This menu allows you to select the
units: temperature (°C or °F) and fuel
consumption (km/l, l/100 or mpg).

System
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.

*
According to country. For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when
stationary.

2
!
i
COMFORT
56

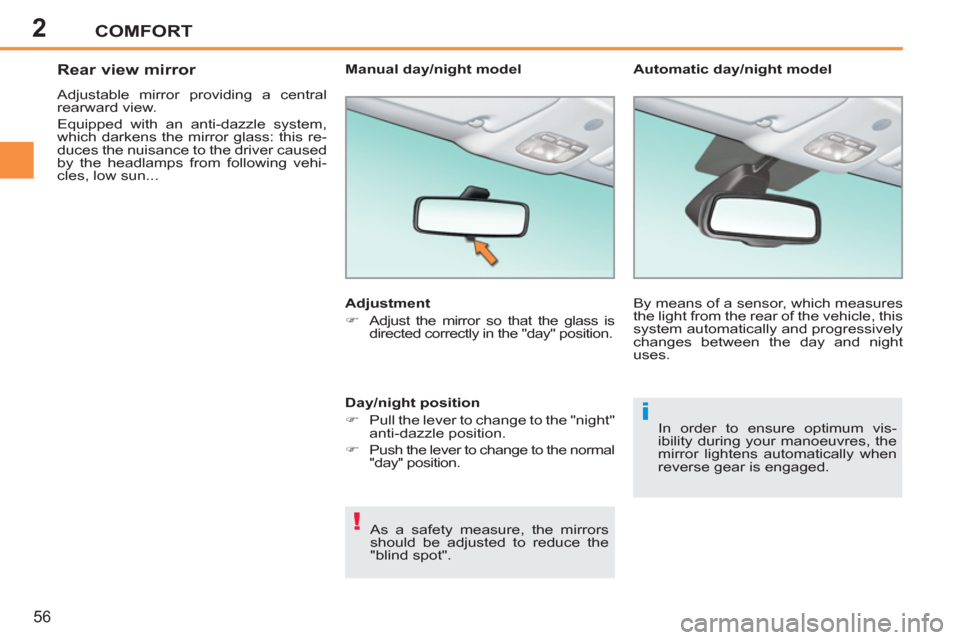

Rear view mirror

Adjustable mirror providing a central
rearward view.
Equipped with an anti-dazzle system,
which darkens the mirror glass: this re-
duces the nuisance to the driver caused
by the headlamps from following vehi-
cles, low sun...

Adjustment


)
Adjust the mirror so that the glass is
directed correctly in the "day" position.


As a safety measure, the mirrors
should be adjusted to reduce the
"blind spot".

In order to ensure optimum vis-
ibility during your manoeuvres, the
mirror lightens automatically when
reverse gear is engaged.







Automatic day/night model


Manual day/night model

Day/night position


)
Pull the lever to change to the "night"
anti-dazzle position.

)
Push the lever to change to the normal
"day" position.

By means of a sensor, which measures
the light from the rear of the vehicle, this
system automatically and progressively
changes between the day and night
uses.

4
80
VISIBILITY

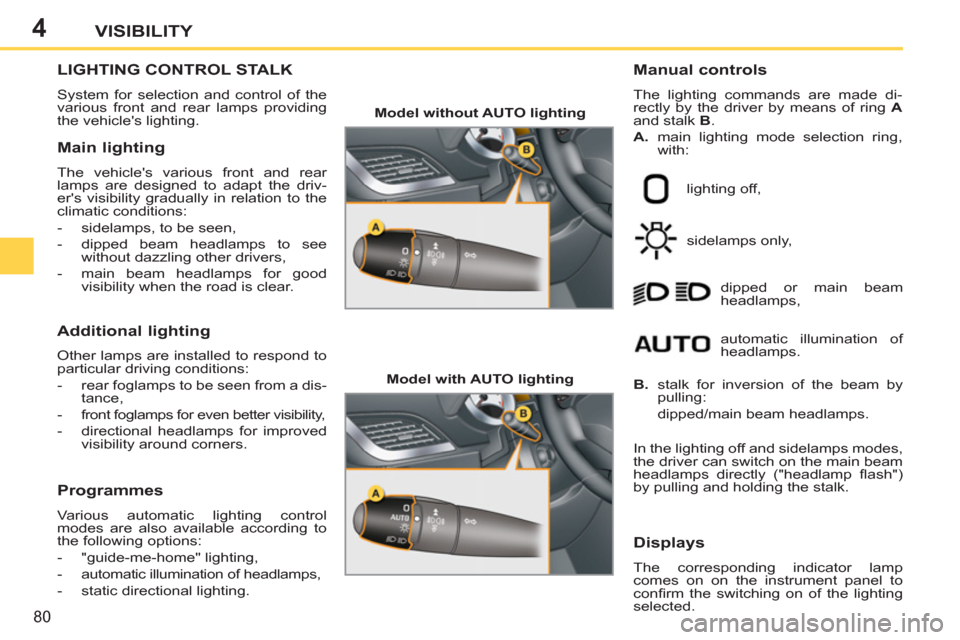

LIGHTING CONTROL STALK
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.

Manual controls

The lighting commands are made di-
rectly by the driver by means of ring A

and stalk B
.

A.
main lighting mode selection ring,
with:
Model without AUTO lighting

Model with AUTO lighting
lighting off,
sidelamps only,
dipped or main beam
headlamps,

B.
stalk for inversion of the beam by
pulling:
dipped/main beam headlamps. automatic illumination of
headlamps.

Displays

The corresponding indicator lamp
comes on on the instrument panel to
confi rm the switching on of the lighting
selected.

Main lighting

The vehicle's various front and rear
lamps are designed to adapt the driv-
er's visibility gradually in relation to the
climatic conditions:


- sidelamps, to be seen,

- dipped beam headlamps to see
without dazzling other drivers,

- main beam headlamps for good
visibility when the road is clear.



Additional lighting

Other lamps are installed to respond to
particular driving conditions:


- rear foglamps to be seen from a dis-
tance,

- front foglamps for even better visibility,

- directional headlamps for improved
visibility around corners.



Programmes

Various automatic lighting control
modes are also available according to
the following options:


- "guide-me-home" lighting,

- automatic illumination of headlamps,

- static directional lighting. In the lighting off and sidelamps modes,
the driver can switch on the main beam
headlamps directly ("headlamp fl ash")
by pulling and holding the stalk.

4
!
i
81
VISIBILITY

Model with front and rear foglamps
front and rear foglamps
C.
foglamps selection ring.
These operate with the dipped and main
beam headlamps.


)
To switch on the foglamps, turn
ring C
forwards.

)
To switch off the rear foglamps, turn
ring C
rearwards twice in succes-
sion.
When the lighting is switched off auto-
matically (on AUTO model) or when the
dipped beam headlamps are switched
off manually, the foglamps and the side-
lamps will remain on.


)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Do not forget to switch off the front
foglamps and the rear foglamps
when they are no longer neces-
sary. In normal light levels, the
power of their beams may dazzle
other drivers.
Lighting on reminder
The triggering of an audible signal
when a door is opened warns the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
In this case, switching off the light-
ing will stop the audible signal.
When the ignition is switched off,
if the dipped beam headlamps re-
main on, they will be switched off
automatically after thirty minutes to
prevent discharging of the battery.
This indicator lamp comes on
on the instrument panel.

* According to country.

Daytime running lamps *

On vehicles fi tted with daytime running
lamps, the dipped beam headlamps
come on when the vehicle is started.
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, unless the auto-
matic lighting mode is activated or the
lighting is switched on manually.

4
!
82
VISIBILITY
In fog or snow, the sunshine sensor
may detect suffi cient light. There-
fore, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.

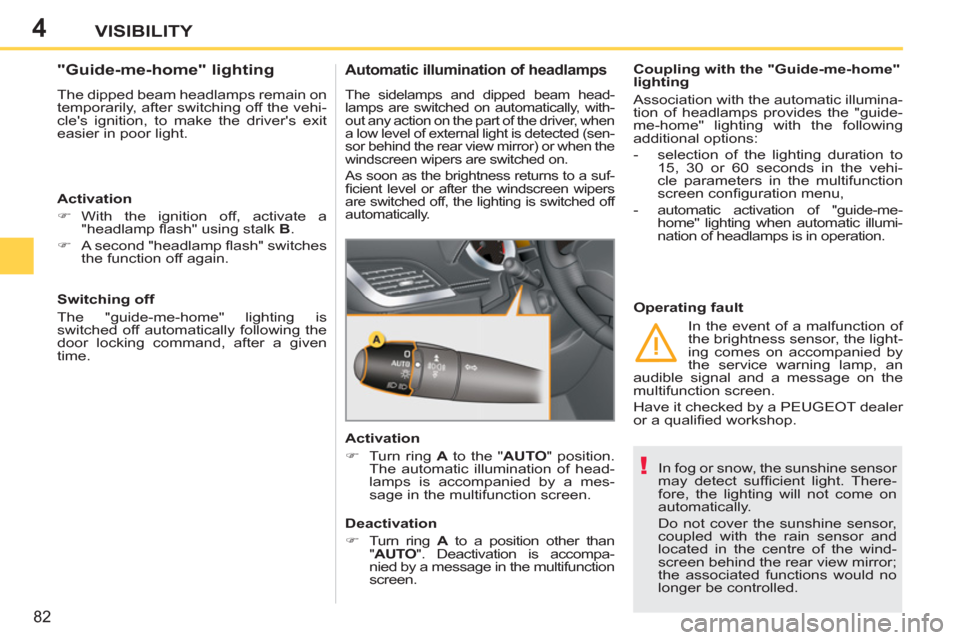

Coupling with the "Guide-me-home"
lighting
Association with the automatic illumina-
tion of headlamps provides the "guide-
me-home" lighting with the following
additional options:


- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
screen confi guration menu,

- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.











Automatic illumination of headlamps

The sidelamps and dipped beam head-
lamps are switched on automatically, with-
out any action on the part of the driver, when
a low level of external light is detected (sen-
sor behind the rear view mirror) or when the
windscreen wipers are switched on.
As soon as the brightness returns to a suf-
fi cient level or after the windscreen wipers
are switched off, the lighting is switched off
automatically.

"Guide-me-home" lighting

The dipped beam headlamps remain on
temporarily, after switching off the vehi-
cle's ignition, to make the driver's exit
easier in poor light.

Activation


)
With the ignition off, activate a
"headlamp fl ash" using stalk B
.

)
A second "headlamp fl ash" switches
the function off again.


Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time.


Activation


)
Turn ring A
to the " AUTO
" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.


Deactivation


)
Turn ring A
to a position other than
" AUTO
". Deactivation is accompa-
nied by a message in the multifunction
screen.

Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.

4
i
VISIBILITY

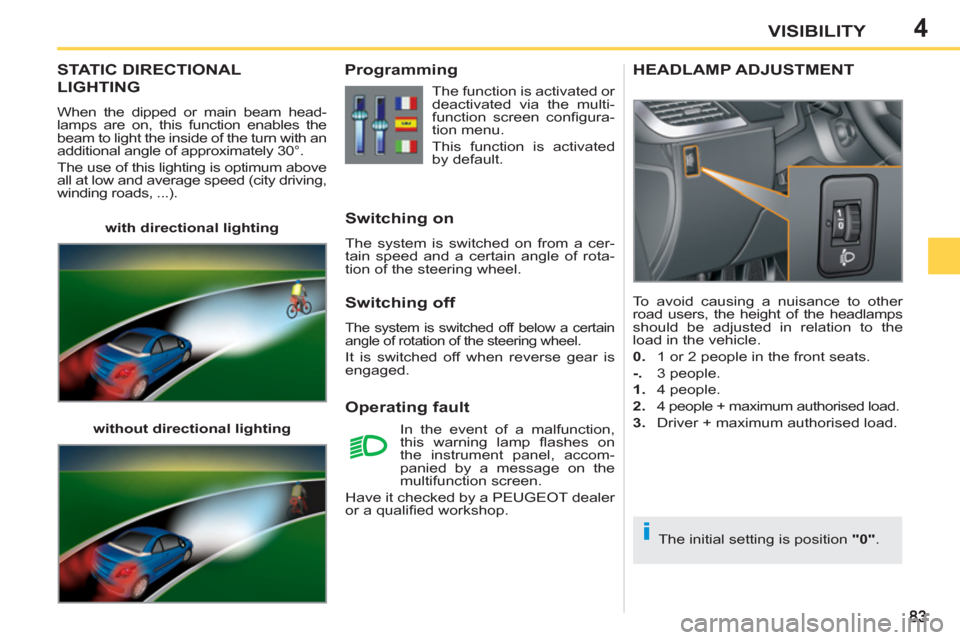

STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
beam to light the inside of the turn with an
additional angle of approximately 30°.
The use of this lighting is optimum above
all at low and average speed (city driving,
winding roads, ...).

with directional lighting


without directional lighting



Programming

Switching on

The system is switched on from a cer-
tain speed and a certain angle of rota-
tion of the steering wheel.


Operating fault

The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.
In the event of a malfunction,
this warning lamp fl ashes on
the instrument panel, accom-
panied by a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
HEADLAMP ADJUSTMENT

The initial setting is position "0"
. To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
4 people.

2.
4 people + maximum authorised load.

3.
Driver + maximum authorised load.


Switching off

The system is switched off below a certain
angle of rotation of the steering wheel.
It is switched off when reverse gear is
engaged.

4
i
i
84
VISIBILITY

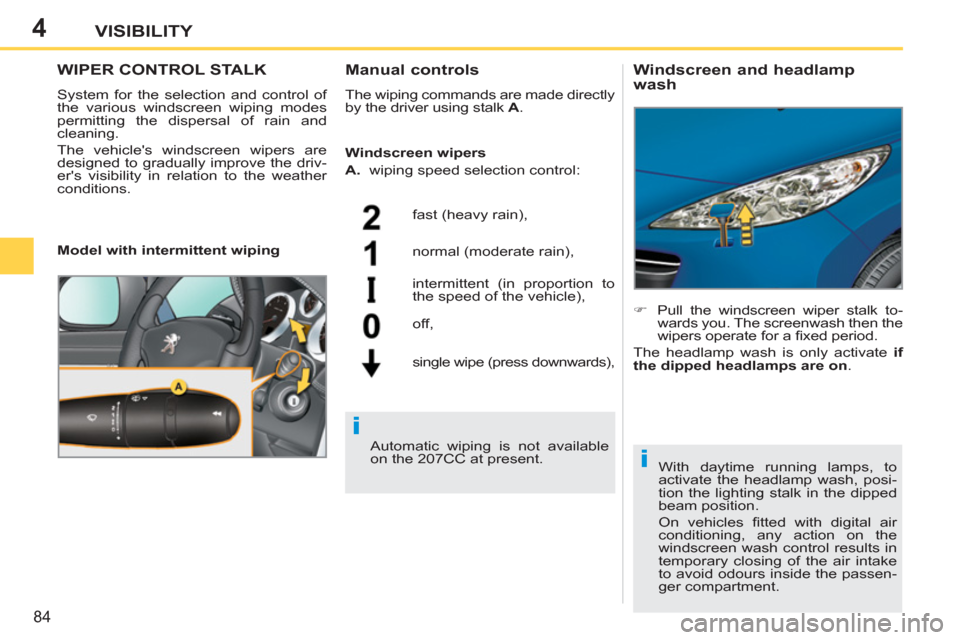

WIPER CONTROL STALK
System for the selection and control of
the various windscreen wiping modes
permitting the dispersal of rain and
cleaning.
The vehicle's windscreen wipers are
designed to gradually improve the driv-
er's visibility in relation to the weather
conditions.


Manual controls

The wiping commands are made directly
by the driver using stalk A
.
fast (heavy rain),
normal (moderate rain),
intermittent (in proportion to
the speed of the vehicle),
off,
single wipe (press downwards),
Model with intermittent wiping

Windscreen wipers


A.
wiping speed selection control:








Windscreen and headlamp
wash


)
Pull the windscreen wiper stalk to-
wards you. The screenwash then the
wipers operate for a fi xed period.
The headlamp wash is only activate if
the dipped headlamps are on
.
With daytime running lamps, to
activate the headlamp wash, posi-
tion the lighting stalk in the dipped
beam position.
On vehicles fi tted with digital air
conditioning, any action on the
windscreen wash control results in
temporary closing of the air intake
to avoid odours inside the passen-
ger compartment. Automatic wiping is not available
on the 207CC at present.

8CHECKS
118
PETROL ENGINES
The caps and covers provide access for checking the levels of the various fl uids and to replace certain components.


1.
Coolant reservoir.

2.
Passenger compartment fi lter.

3.
Screenwash and headlamp wash
reservoir.
4.
Air fi lter.

5.
Brake fl uid reservoir.

6.
Fusebox.
7.
Battery.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

8CHECKS
119
DIESEL ENGINE
The caps and covers provide access for checking the levels of the various fl uids, to replace certain components and to prime
the fuel system.


1.
Coolant reservoir.

2.
Passenger compartment fi lter.

3.
Screenwash and headlamp wash
reservoir.
4.
Priming pump.

5.
Brake fl uid reservoir.

6.
Fusebox.

7.
Battery.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Air fi lter.

8CHECKS
120
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Take care when working under the bon-
net, as some parts of the engine can be
extremely hot (risk of burns).

Brake fluid level

To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.

Oil level

The reading will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 30 minutes.
The check is carried out either when
the ignition is switched on using the oil
level indicator on the instrument panel,
or using the dipstick.
It is normal to top up the engine oil between
two services. The manufacturer recom-
mends a check of the oil level, and top up
if necessary, every 3 000 miles (5 000 km).
The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.

Changing the brake fl uid
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.


Coolant level

The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan. This can operate with the ig-
nition off.

On vehicles which are fi tted with a par-
ticle emission fi lter, the fan may oper-
ate after the vehicle has been switched
off, even if the engine is cold.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.

Screenwash and headlamp
wash * fluid

The minimum level of this fl uid
is indicated by an audible sig-
nal and a message on the mul-
tifunction screen.
Top up the level when you stop the ve-
hicle.

* According to country.
Changing the engine oil
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
Oil specifi cation
The oil must correspond to your engine
and conform to the manufacturer's rec-
ommendations.


Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
fulfi l the DOT4 standards.

Changing the coolant
The coolant does not have to be
changed.

Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.


Fluid specifi cation
To guarantee optimum cleaning and
avoid freezing, plain water should not
be used to top up or replace this fl uid.
