Peugeot 207 CC 2012 Owner's Guide
Manufacturer: PEUGEOT, Model Year: 2012, Model line: 207 CC, Model: Peugeot 207 CC 2012Pages: 224, PDF Size: 7.1 MB
Page 31 of 224
1
i
i
INSTRUMENTS and CONTROLS
29

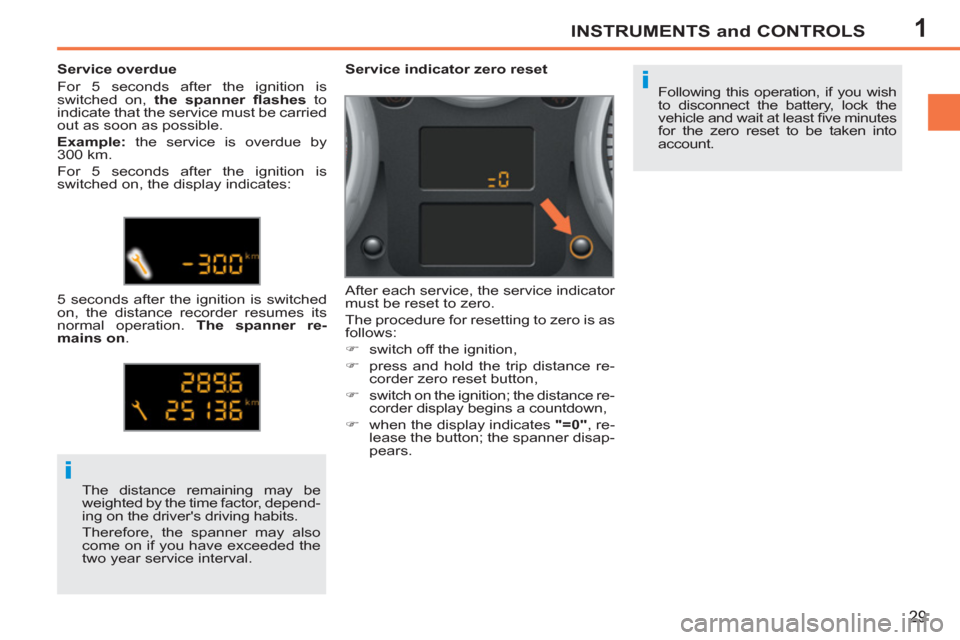

Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into
account.
Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
)
switch off the ignition,
)
press and hold the trip distance re-
corder zero reset button,
)
switch on the ignition; the distance re-
corder display begins a countdown,
)
when the display indicates "=0"
, re-
lease the button; the spanner disap-
pears.
The distance remaining may be
weighted by the time factor, depend-
ing on the driver's driving habits.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.
Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.
Example:
the service is overdue by
300 km.
For 5 seconds after the ignition is
switched on, the display indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains
on
.
Page 32 of 224
1
i
INSTRUMENTS and CONTROLS
30
The level shown will only be correct
if the vehicle is on level ground and
the engine has been off for more
than 30 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not.
This information is indicated for a few seconds
when the ignition is switched on, after the serv-
ice information.
Oil level correct
Oil level low
Oil level indicator fault
Dipstick
This is indicated by the fl ashing of
"OIL"
, linked with the service warning
lamp, accompanied by an audible sig-
nal and a message in the multifunction
screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine. This is indicated by the fl ashing of
"OIL--"
. Contact a PEUGEOT dealer or
a qualifi ed workshop.
Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:
- A
= max; never exceed
this level (risk of dam-
age to the engine),
- B
= min; top up the lev-
el via the oil fi ller cap,
using the grade of oil
suited to your engine.
Page 33 of 224
1
i
INSTRUMENTS and CONTROLS
31

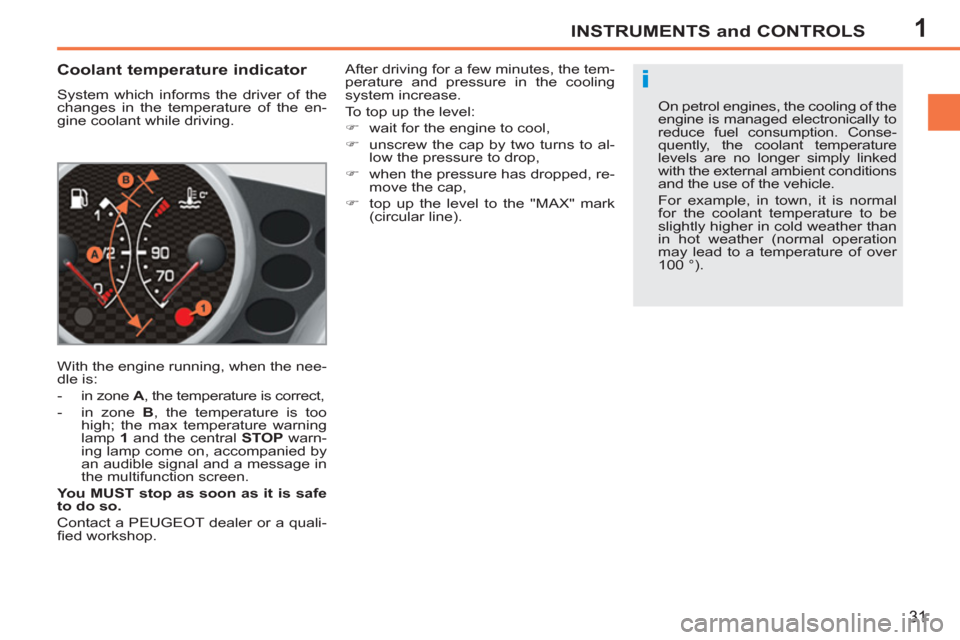

Coolant temperature indicator
System which informs the driver of the
changes in the temperature of the en-
gine coolant while driving.
With the engine running, when the nee-
dle is:
- in zone A
, the temperature is correct,
- in zone B
, the temperature is too
high; the max temperature warning
lamp 1
and the central STOP
warn-
ing lamp come on, accompanied by
an audible signal and a message in
the multifunction screen.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer or a quali-
fi ed workshop. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
)
wait for the engine to cool,
)
unscrew the cap by two turns to al-
low the pressure to drop,
)
when the pressure has dropped, re-
move the cap,
)
top up the level to the "MAX" mark
(circular line). On petrol engines, the cooling of the
engine is managed electronically to
reduce fuel consumption. Conse-
quently, the coolant temperature
levels are no longer simply linked
with the external ambient conditions
and the use of the vehicle.
For example, in town, it is normal
for the coolant temperature to be
slightly higher in cold weather than
in hot weather (normal operation
may lead to a temperature of over
100 °).
Page 34 of 224
1
i
INSTRUMENTS and CONTROLS
32

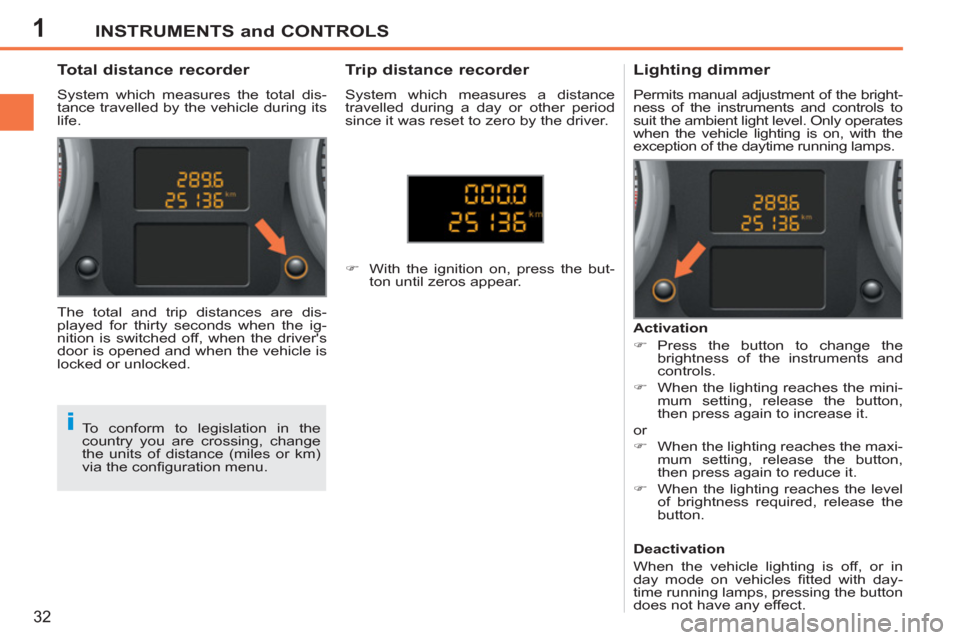

Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
Lighting dimmer
Permits manual adjustment of the bright-
ness of the instruments and controls to
suit the ambient light level. Only operates
when the vehicle lighting is on, with the
exception of the daytime running lamps.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.
Activation
)
Press the button to change the
brightness of the instruments and
controls.
)
When the lighting reaches the mini-
mum setting, release the button,
then press again to increase it.
or
)
When the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it.
)
When the lighting reaches the level
of brightness required, release the
button.
Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.
)
With the ignition on, press the but-
ton until zeros appear.
To conform to legislation in the
country you are crossing, change
the units of distance (miles or km)
via the confi guration menu.
Page 35 of 224
1INSTRUMENTS and CONTROLS
33

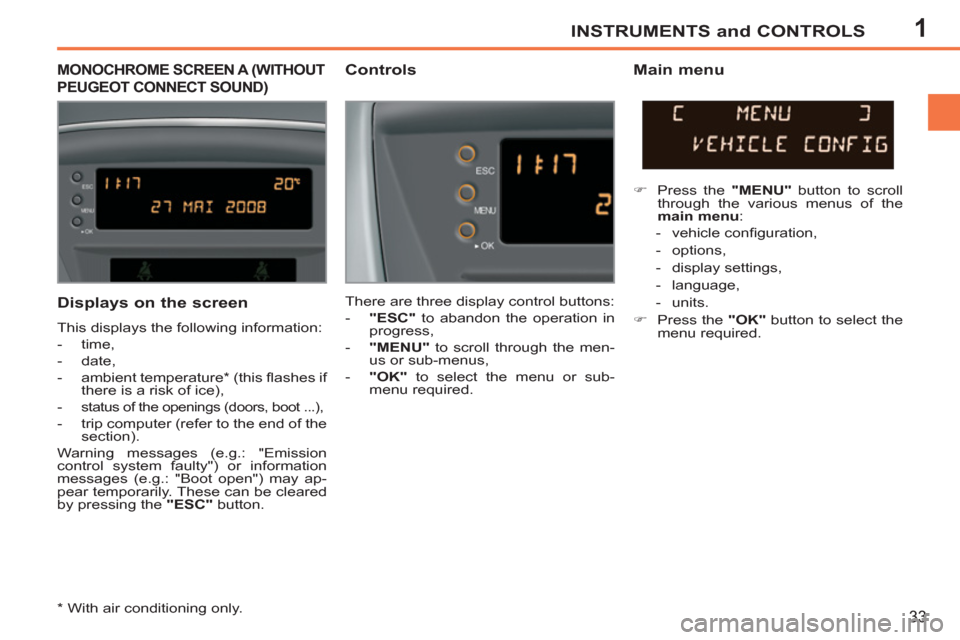

MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND)
Controls
Main menu
There are three display control buttons:
- "ESC"
to abandon the operation in
progress,
- "MENU"
to scroll through the men-
us or sub-menus,
- "OK"
to select the menu or sub-
menu required.
)
Press the "MENU"
button to scroll
through the various menus of the
main menu
:
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
)
Press the "OK"
button to select the
menu required.
*
With air conditioning only.
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if
there is a risk of ice),
-
status of the openings (doors, boot ...),
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.
Page 36 of 224
1
!
INSTRUMENTS and CONTROLS
34

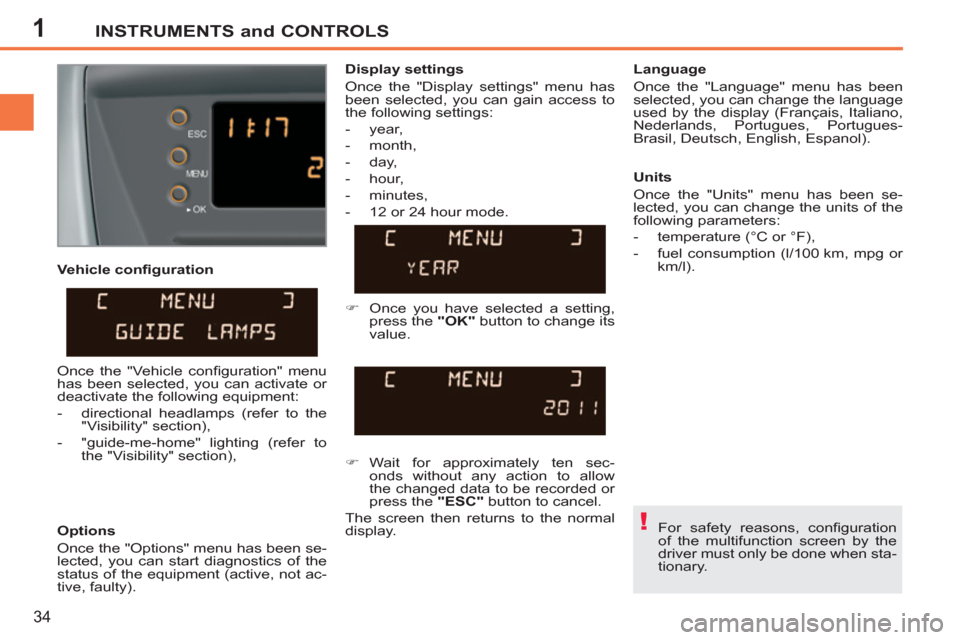

Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty).
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
)
Once you have selected a setting,
press the "OK"
button to change its
value.
)
Wait for approximately ten sec-
onds without any action to allow
the changed data to be recorded or
press the "ESC"
button to cancel.
The screen then returns to the normal
display. Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to
the "Visibility" section),
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Page 37 of 224
1INSTRUMENTS and CONTROLS
35

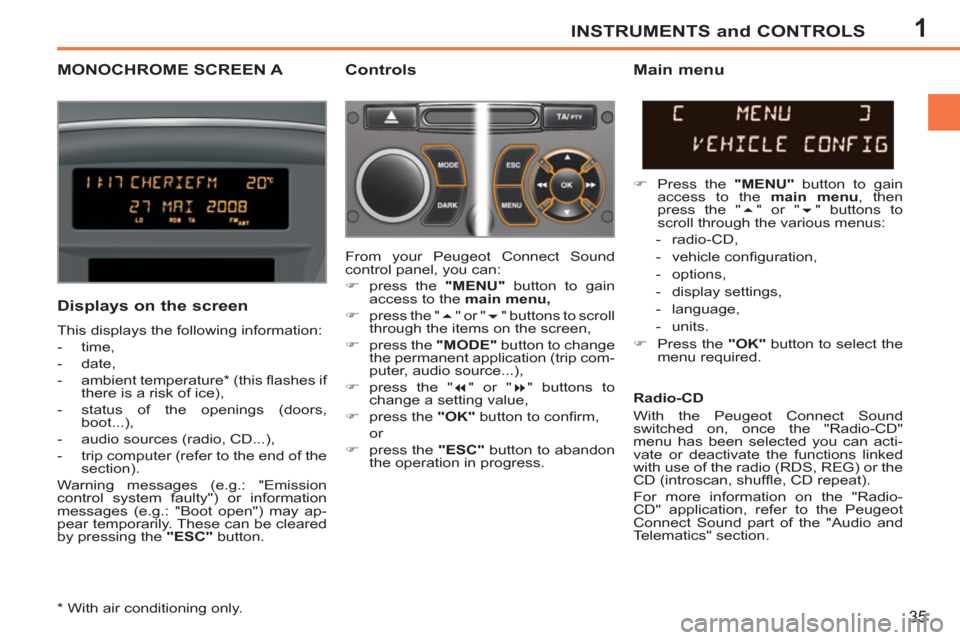

MONOCHROME SCREEN A
Controls
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if
there is a risk of ice),
- status of the openings (doors,
boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "ESC"
button.
Main menu
)
Press the "MENU"
button to gain
access to the main menu
, then
press the "
" or "
" buttons to
scroll through the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
)
Press the "OK"
button to select the
menu required. From your Peugeot Connect Sound
control panel, you can:
)
press the "MENU"
button to gain
access to the main menu,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the "OK"
button to confi rm,
or
)
press the "ESC"
button to abandon
the operation in progress.
Radio-CD
With the Peugeot Connect Sound
switched on, once the "Radio-CD"
menu has been selected you can acti-
vate or deactivate the functions linked
with use of the radio (RDS, REG) or the
CD (introscan, shuffl e, CD repeat).
For more information on the "Radio-
CD" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
*
With air conditioning only.
Page 38 of 224
1
!
INSTRUMENTS and CONTROLS
36

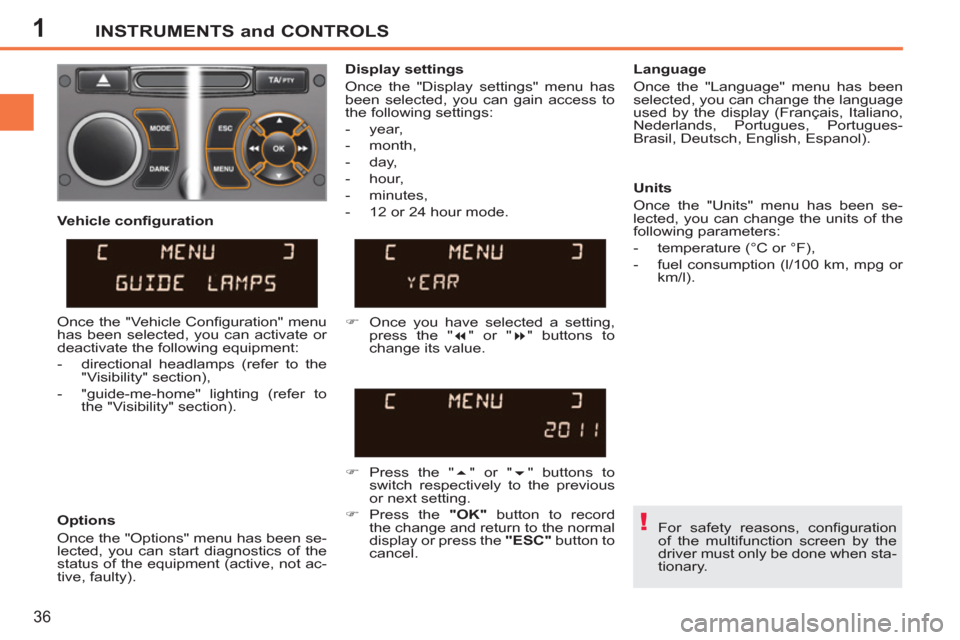

For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
)
Once you have selected a setting,
press the "
" or "
" buttons to
change its value.
)
Press the "
" or "
" buttons to
switch respectively to the previous
or next setting.
)
Press the "OK"
button to record
the change and return to the normal
display or press the "ESC"
button to
cancel.
Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to
the "Visibility" section).
Page 39 of 224
1INSTRUMENTS and CONTROLS
37

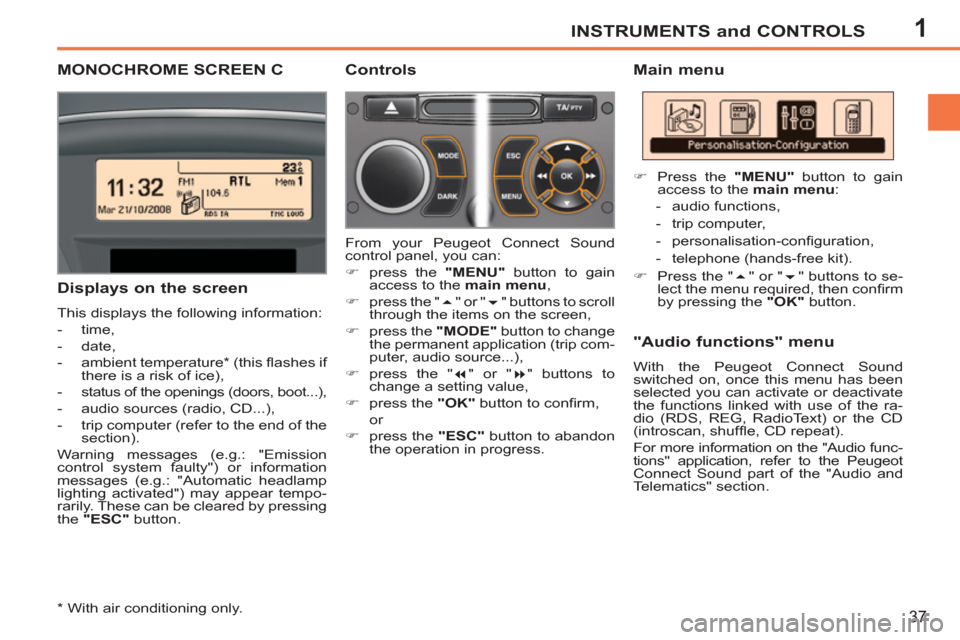

MONOCHROME SCREEN C
Main menu
Displays on the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if
there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "ESC"
button.
"Audio functions" menu
With the Peugeot Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText) or the CD
(introscan, shuffl e, CD repeat).
For more information on the "Audio func-
tions" application, refer to the Peugeot
Connect Sound part of the "Audio and
Telematics" section.
Controls
From your Peugeot Connect Sound
control panel, you can:
)
press the "MENU"
button to gain
access to the main menu
,
)
press the "
" or "
" buttons to scroll
through the items on the screen,
)
press the "MODE"
button to change
the permanent application (trip com-
puter, audio source...),
)
press the "
" or "
" buttons to
change a setting value,
)
press the "OK"
button to confi rm,
or
)
press the "ESC"
button to abandon
the operation in progress.
)
Press the "MENU"
button to gain
access to the main menu
:
- audio functions,
- trip computer,
- personalisation-confi guration,
- telephone (hands-free kit).
)
Press the "
" or "
" buttons to se-
lect the menu required, then confi rm
by pressing the "OK"
button.
*
With air conditioning only.
Page 40 of 224
1INSTRUMENTS and CONTROLS
38

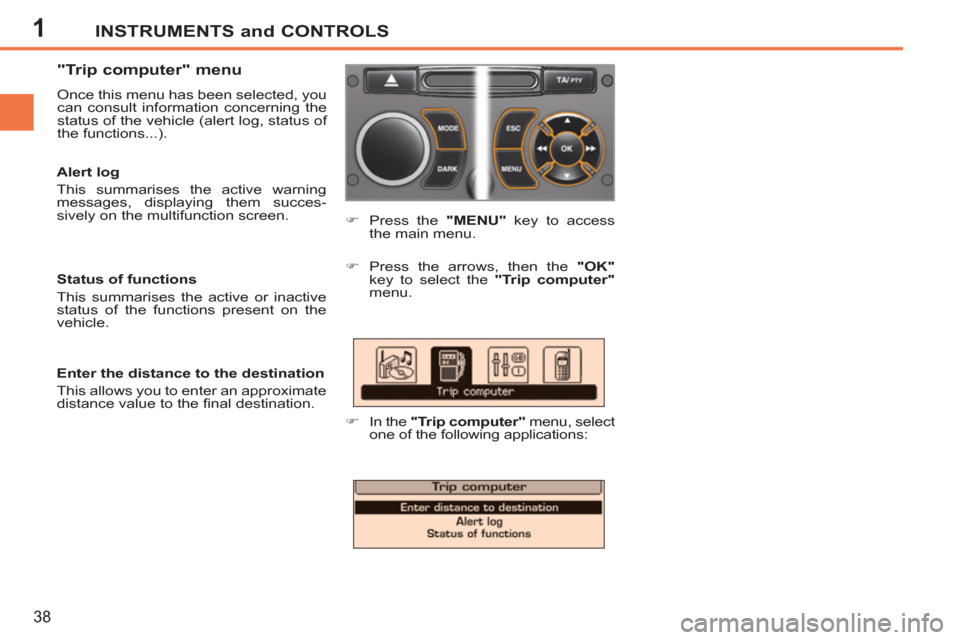

"Trip computer" menu
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).
)
Press the "MENU"
key to access
the main menu.
)
Press the arrows, then the "OK"
key to select the "Trip computer"
menu.
)
In the "Trip computer"
menu, select
one of the following applications:
Alert log
This summarises the active warning
messages, displaying them succes-
sively on the multifunction screen.
Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.
Enter the distance to the destination
This allows you to enter an approximate
distance value to the fi nal destination.
