MISFUEL PREVENTION
(DIESEL) *
Mechanical device which prevents fi ll-
ing the tank of a Diesel vehicle with
petrol. It avoids the risk of engine dam-
age that can result from fi lling with the
wrong fuel.
Located in the fi ller neck, the misfuel
prevention device appears when the
fi ller cap is removed.
Operation
When a petrol fi ller nozzle is introduced
into the fuel fi ller neck of your Diesel
vehicle, it comes into contact with the
fl ap. The system remains closed and
prevents fi lling.
Do not persist but introduce a Diesel
type fi ller nozzle.
It remains possible to use a fuel
can to fi ll the tank.
In order to ensure a good fl ow of
fuel, do not place the nozzle of the
fuel can in direct contact with the
fl ap of the misfuel prevention de-
vice and pour slowly.
*
According to country of sale.
Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impos-
sible.
Before travelling abroad, we recommend
that you check with the PEUGEOT dealer
network, whether your vehicle is suitable
for the fuel pumps in the country in which
you want to travel.
Deactivation
Before refuelling using non-standard
Diesel fuel nozzles (present in some
countries), a tool allows you to tem-
porarily disable the misfuel prevention
device.
Use
)
Introduce the tool into the fi ller neck
as far as the handle will allow.
)
Remove the tool completely.
)
Fill with fuel.
The misfuel prevention device will
be activated the next time a stand-
ard nozzle is used.
Page 82 of 224
4
80
VISIBILITY
LIGHTING CONTROL STALK
System for selection and control of the
various front and rear lamps providing
the vehicle's lighting.
Manual controls
The lighting commands are made di-
rectly by the driver by means of ring A
and stalk B
.
A.
main lighting mode selection ring,
with:
Model without AUTO lighting
Model with AUTO lighting
lighting off,
sidelamps only,
dipped or main beam
headlamps,
B.
stalk for inversion of the beam by
pulling:
dipped/main beam headlamps. automatic illumination of
headlamps.
Displays
The corresponding indicator lamp
comes on on the instrument panel to
confi rm the switching on of the lighting
selected.
Main lighting
The vehicle's various front and rear
lamps are designed to adapt the driv-
er's visibility gradually in relation to the
climatic conditions:
- sidelamps, to be seen,
- dipped beam headlamps to see
without dazzling other drivers,
- main beam headlamps for good
visibility when the road is clear.
Additional lighting
Other lamps are installed to respond to
particular driving conditions:
- rear foglamps to be seen from a dis-
tance,
- front foglamps for even better visibility,
- directional headlamps for improved
visibility around corners.
Programmes
Various automatic lighting control
modes are also available according to
the following options:
- "guide-me-home" lighting,
- automatic illumination of headlamps,
- static directional lighting. In the lighting off and sidelamps modes,
the driver can switch on the main beam
headlamps directly ("headlamp fl ash")
by pulling and holding the stalk.
Page 83 of 224
4
!
i
81
VISIBILITY
Model with front and rear foglamps
front and rear foglamps
C.
foglamps selection ring.
These operate with the dipped and main
beam headlamps.
)
To switch on the foglamps, turn
ring C
forwards.
)
To switch off the rear foglamps, turn
ring C
rearwards twice in succes-
sion.
When the lighting is switched off auto-
matically (on AUTO model) or when the
dipped beam headlamps are switched
off manually, the foglamps and the side-
lamps will remain on.
)
Turn the ring rearwards to switch
off the foglamps, the sidelamps will
then switch off.
Do not forget to switch off the front
foglamps and the rear foglamps
when they are no longer neces-
sary. In normal light levels, the
power of their beams may dazzle
other drivers.
Lighting on reminder
The triggering of an audible signal
when a door is opened warns the
driver that they have forgotten to
switch off the vehicle's lighting, with
the ignition off.
In this case, switching off the light-
ing will stop the audible signal.
When the ignition is switched off,
if the dipped beam headlamps re-
main on, they will be switched off
automatically after thirty minutes to
prevent discharging of the battery.
This indicator lamp comes on
on the instrument panel.
* According to country.
Daytime running lamps *
On vehicles fi tted with daytime running
lamps, the dipped beam headlamps
come on when the vehicle is started.
The instruments and controls (multi-
function screen, air conditioning control
panel, ...) are not lit, unless the auto-
matic lighting mode is activated or the
lighting is switched on manually.
Page 84 of 224
4
!
82
VISIBILITY
In fog or snow, the sunshine sensor
may detect suffi cient light. There-
fore, the lighting will not come on
automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the wind-
screen behind the rear view mirror;
the associated functions would no
longer be controlled.
Coupling with the "Guide-me-home"
lighting
Association with the automatic illumina-
tion of headlamps provides the "guide-
me-home" lighting with the following
additional options:
- selection of the lighting duration to
15, 30 or 60 seconds in the vehi-
cle parameters in the multifunction
screen confi guration menu,
- automatic activation of "guide-me-
home" lighting when automatic illumi-
nation of headlamps is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically, with-
out any action on the part of the driver, when
a low level of external light is detected (sen-
sor behind the rear view mirror) or when the
windscreen wipers are switched on.
As soon as the brightness returns to a suf-
fi cient level or after the windscreen wipers
are switched off, the lighting is switched off
automatically.
"Guide-me-home" lighting
The dipped beam headlamps remain on
temporarily, after switching off the vehi-
cle's ignition, to make the driver's exit
easier in poor light.
Activation
)
With the ignition off, activate a
"headlamp fl ash" using stalk B
.
)
A second "headlamp fl ash" switches
the function off again.
Switching off
The "guide-me-home" lighting is
switched off automatically following the
door locking command, after a given
time.
Activation
)
Turn ring A
to the " AUTO
" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage in the multifunction screen.
Deactivation
)
Turn ring A
to a position other than
" AUTO
". Deactivation is accompa-
nied by a message in the multifunction
screen.
Operating fault
In the event of a malfunction of
the brightness sensor, the light-
ing comes on accompanied by
the service warning lamp, an
audible signal and a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
Page 85 of 224
4
i
VISIBILITY
STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
beam to light the inside of the turn with an
additional angle of approximately 30°.
The use of this lighting is optimum above
all at low and average speed (city driving,
winding roads, ...).
with directional lighting
without directional lighting
Programming
Switching on
The system is switched on from a cer-
tain speed and a certain angle of rota-
tion of the steering wheel.
Operating fault
The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.
In the event of a malfunction,
this warning lamp fl ashes on
the instrument panel, accom-
panied by a message on the
multifunction screen.
Have it checked by a PEUGEOT dealer
or a qualifi ed workshop.
HEADLAMP ADJUSTMENT
The initial setting is position "0"
. To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
4 people.
2.
4 people + maximum authorised load.
3.
Driver + maximum authorised load.
Switching off
The system is switched off below a certain
angle of rotation of the steering wheel.
It is switched off when reverse gear is
engaged.
Page 86 of 224
4
i
i
84
VISIBILITY
WIPER CONTROL STALK
System for the selection and control of
the various windscreen wiping modes
permitting the dispersal of rain and
cleaning.
The vehicle's windscreen wipers are
designed to gradually improve the driv-
er's visibility in relation to the weather
conditions.
Manual controls
The wiping commands are made directly
by the driver using stalk A
.
fast (heavy rain),
normal (moderate rain),
intermittent (in proportion to
the speed of the vehicle),
off,
single wipe (press downwards),
Model with intermittent wiping
Windscreen wipers
A.
wiping speed selection control:
Windscreen and headlamp
wash
)
Pull the windscreen wiper stalk to-
wards you. The screenwash then the
wipers operate for a fi xed period.
The headlamp wash is only activate if
the dipped headlamps are on
.
With daytime running lamps, to
activate the headlamp wash, posi-
tion the lighting stalk in the dipped
beam position.
On vehicles fi tted with digital air
conditioning, any action on the
windscreen wash control results in
temporary closing of the air intake
to avoid odours inside the passen-
ger compartment. Automatic wiping is not available
on the 207CC at present.
Page 87 of 224
4
i
85
VISIBILITY
Special position of the windscreen
wipers
In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers vertically on the wind-
screen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
COURTESY LAMP
A.
Courtesy lamp
B.
Map reading lamps
In this position, the courtesy
lamp comes on gradually:
Map reading lamps
)
With the ignition on, press the cor-
responding switch.
With the "permanent lighting" mode,
the duration of lighting varies, de-
pending on the circumstances:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap-
proximately thirty seconds,
- with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the
ignition,
- when a door is opened,
- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
-
30 seconds after the last door is closed.
Permanently off.
Permanent lighting.
Courtesy lamp
Page 88 of 224
5
i
CHILD SAFETY
86
PEUGEOT
recommends
that chil-
dren should travel in these positions:
- "rearwards-facing"
up to the
age of 2 on the front passen-
ger seat
,
- "forwards-facing"
over the
age of 2 on the rear side seat
.
For further details, see section
"Locations for child seats secured
using a seat belt".

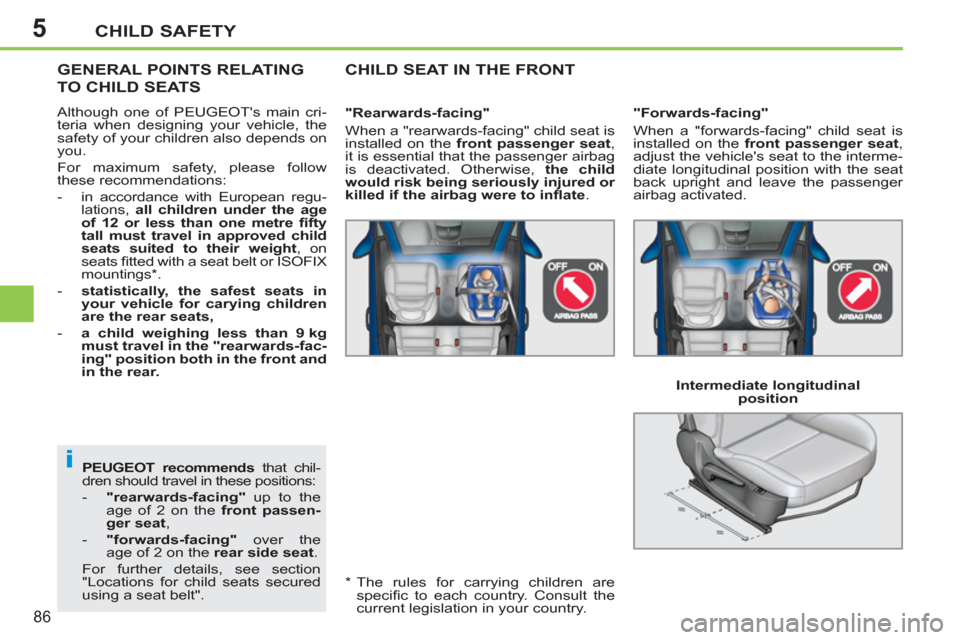

GENERAL POINTS RELATING
TO CHILD SEATS
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these recommendations:
- in accordance with European regu-
lations, all children under the age
of 12 or less than one metre fi fty
tall must travel in approved child
seats suited to their weight
, on
seats fi tted with a seat belt or ISOFIX
mountings * .
- statistically, the safest seats in
your vehicle for carying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-fac-
ing" position both in the front and
in the rear.
CHILD SEAT IN THE FRONT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
.
Intermediate longitudinal
position
*
The rules for carrying children are
specifi c to each country. Consult the
current legislation in your country.
Page 89 of 224
5
!
CHILD SAFETY
87
Passenger airbag OFF

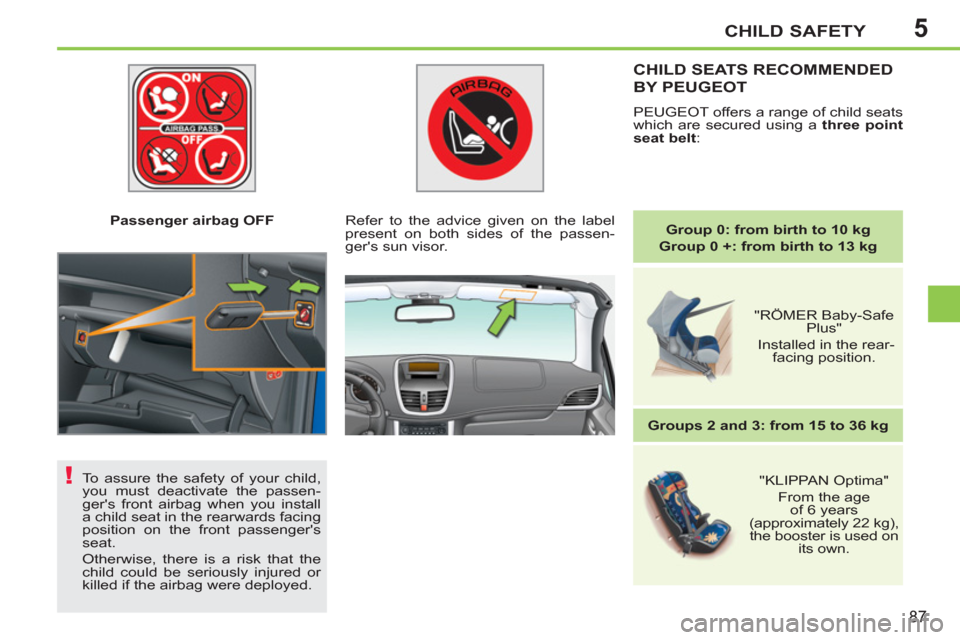

CHILD SEATS RECOMMENDED
BY PEUGEOT
PEUGEOT offers a range of child seats
which are secured using a three point
seat belt
:
Group
0:
from
birth to 10 kg
Group
0
+:
from
birth to 13 kg
"RÖMER Baby-Safe
Plus"
Installed in the rear-
facing position.
Groups 2 and 3: from 15 to 36 kg
"KLIPPAN Optima"
From the age
of 6 years
(approximately 22 kg),
the booster is used on
its own.
Refer to the advice given on the label
present on both sides of the passen-
ger's sun visor.
To assure the safety of your child,
you must deactivate the passen-
ger's front airbag when you install
a child seat in the rearwards facing
position on the front passenger's
seat.
Otherwise, there is a risk that the
child could be seriously injured or
killed if the airbag were deployed.
Page 90 of 224
5CHILD SAFETY
88

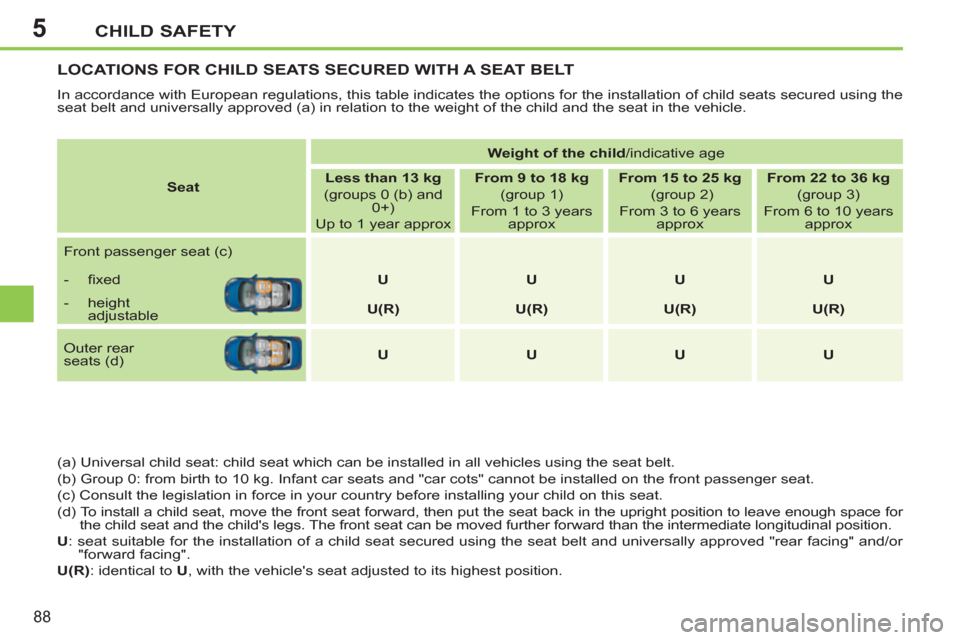

LOCATIONS FOR CHILD SEATS SECURED WITH A SEAT BELT
In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a) in relation to the weight of the child and the seat in the vehicle.
(a) Universal child seat: child seat which can be installed in all vehicles using the seat belt.
(b) Group 0: from birth to 10 kg. Infant car seats and "car cots" cannot be installed on the front passenger seat.
(c) Consult the legislation in force in your country before installing your child on this seat.
(d) To install a child seat, move the front seat forward, then put the seat back in the upright position to leave enough space for
the child seat and the child's legs. The front seat can be moved further forward than the intermediate longitudinal position.
U
: seat suitable for the installation of a child seat secured using the seat belt and universally approved "rear facing" and/or
"forward facing".
U(R)
: identical to U
, with the vehicle's seat adjusted to its highest position.
Seat
Weight of the child
/indicative age
Less than 13 kg
(groups 0 (b) and
0+)
Up to 1 year approx
From 9 to 18 kg
(group 1)
From 1 to 3 years
approx
From 15 to 25 kg
(group 2)
From 3 to 6 years
approx
From 22 to 36 kg
(group 3)
From 6 to 10 years
approx
Front passenger seat (c)
- fi xed
U
U
U
U
- height
adjustable
U(R)
U(R)
U(R)
U(R)
Outer rear
seats (d)
U
U
U
U
