FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Retractable roof control.
Control for the four windows.
9. Bonnet release lever.
10. Door mirror controls.
Electric window controls.
11 . Fusebox.
12. Headlamp height adjustment.
13. Side adjustable air vent.
14. Door window demisting vent.
15. Speaker (medium tweeter).
16. Windscreen demisting vent.
Page 12 of 232
10
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

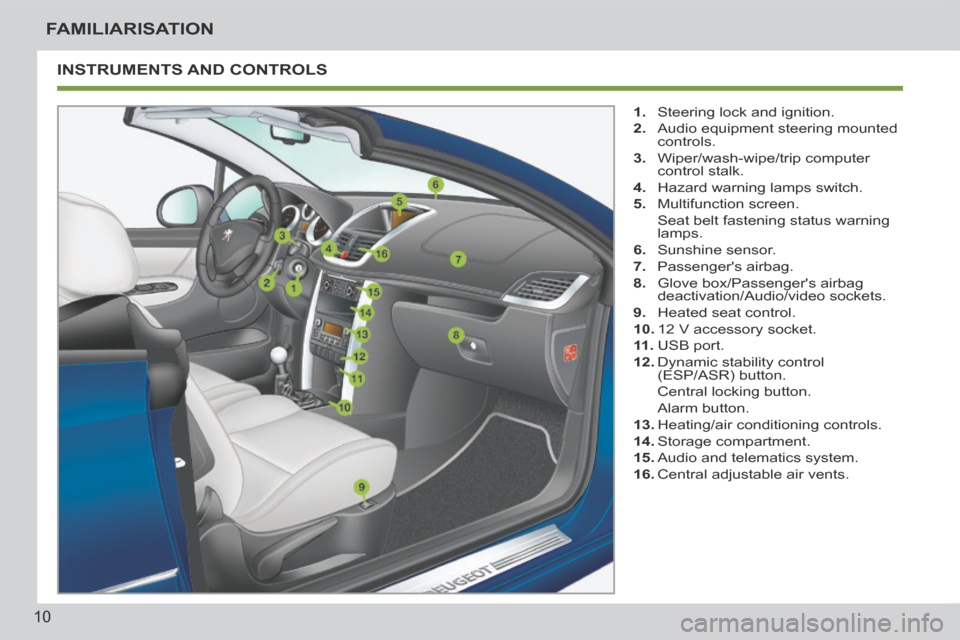

INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio equipment steering mounted controls.
3. Wiper/wash-wipe/trip computer control stalk.
4. Hazard warning lamps switch.
5. Multifunction screen.
Seat belt fastening status warning lamps.
6. Sunshine sensor.
7. Passenger's airbag.
8. Glove box/Passenger's airbag deactivation/Audio/video sockets.
9. Heated seat control.
10. 12 V accessory socket.
11 . USB port.
12. Dynamic stability control (ESP/ASR) button.
Central locking button.
Alarm button.
13. Heating/air conditioning controls.
14. Storage compartment.
15. Audio and telematics system.
16. Central adjustable air vents.
Page 13 of 232
i
!
11
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
SITTING COMFORTABLY
Also...
5. Access to the rear seats.
6. Heated seat.
Front seat adjustment Steering wheel adjustment
1. Forwards-backwards adjustment.
2. Height adjustment.
3. Seat back angle adjustment.
4. Head restraint height adjustment. 1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
As a safety precaution, these op-
erations must only be carried out
while stationary.
52 54
Page 14 of 232
i
12
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
SITTING COMFORTABLY

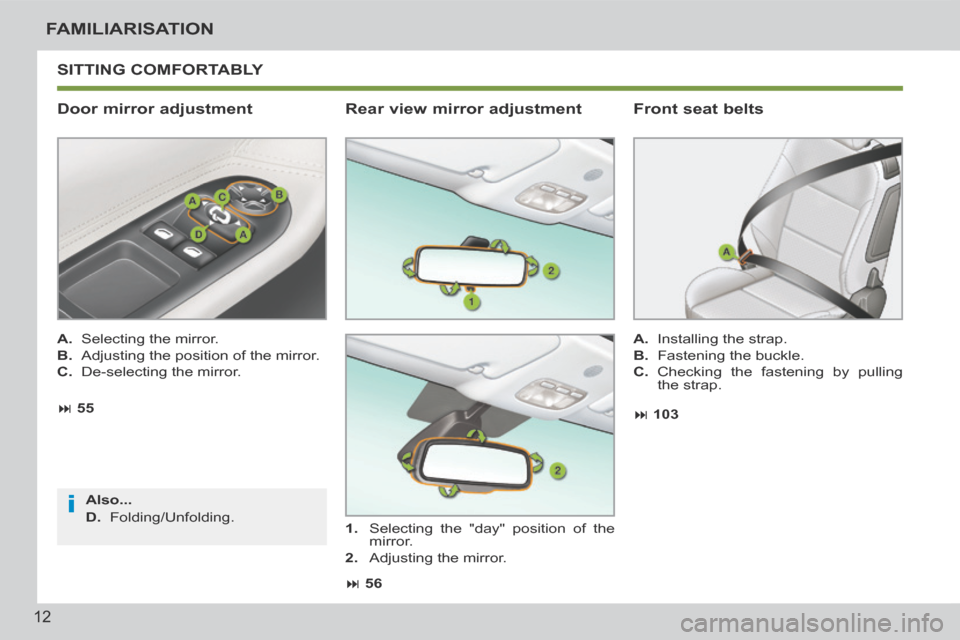

Door mirror adjustment
A. Selecting the mirror.
B. Adjusting the position of the mirror.
C. De-selecting the mirror. Also...
D. Folding/Unfolding.
Rear view mirror adjustment
1. Selecting the "day" position of the mirror.
2. Adjusting the mirror.
Front seat belts
A. Installing the strap.
B. Fastening the buckle.
C. Checking the fastening by pulling the strap.
55
56 103
Page 15 of 232
i
13
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

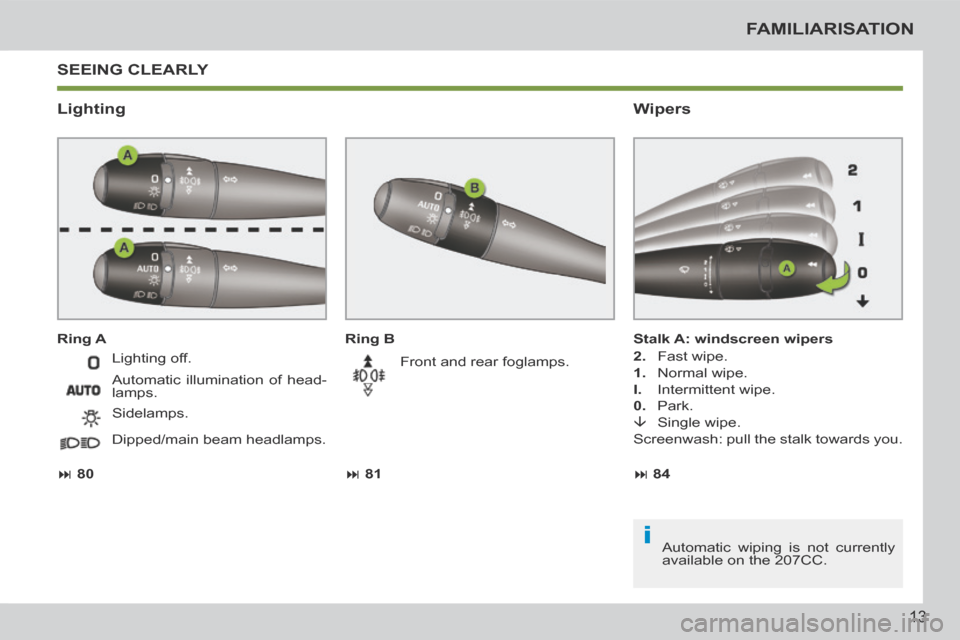

SEEING CLEARLY
Lighting Wipers
Ring B
Front and rear foglamps.
Ring A
Stalk A: windscreen wipers
2. Fast wipe.
1. Normal wipe.
I. Intermittent wipe.
0. Park.
Single wipe.
Screenwash: pull the stalk towards you.
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Automatic wiping is not currently
available on the 207CC.
80
81 84
Page 16 of 232
–
14
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

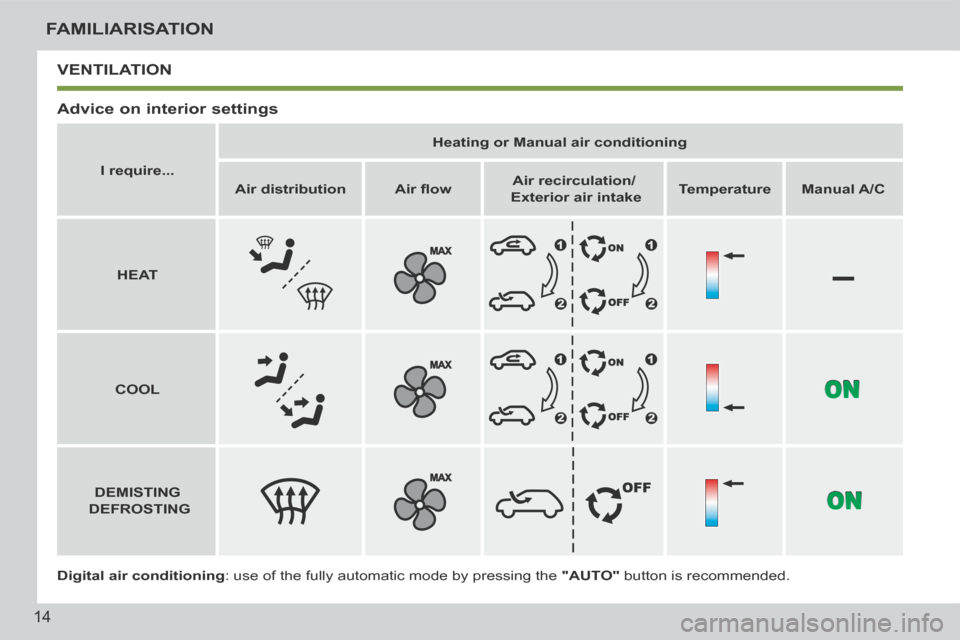

VENTILATION
Advice on interior settings
Digital air conditioning : use of the fully automatic mode by pressing the "AUTO" button is recommended.
I require...
Heating or Manual air conditioning
Air distribution Air fl ow Air recirculation/
Exterior air intake Temperature
Manual A/C
HEAT
COOL
DEMISTING
DEFROSTING
Page 17 of 232
15
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

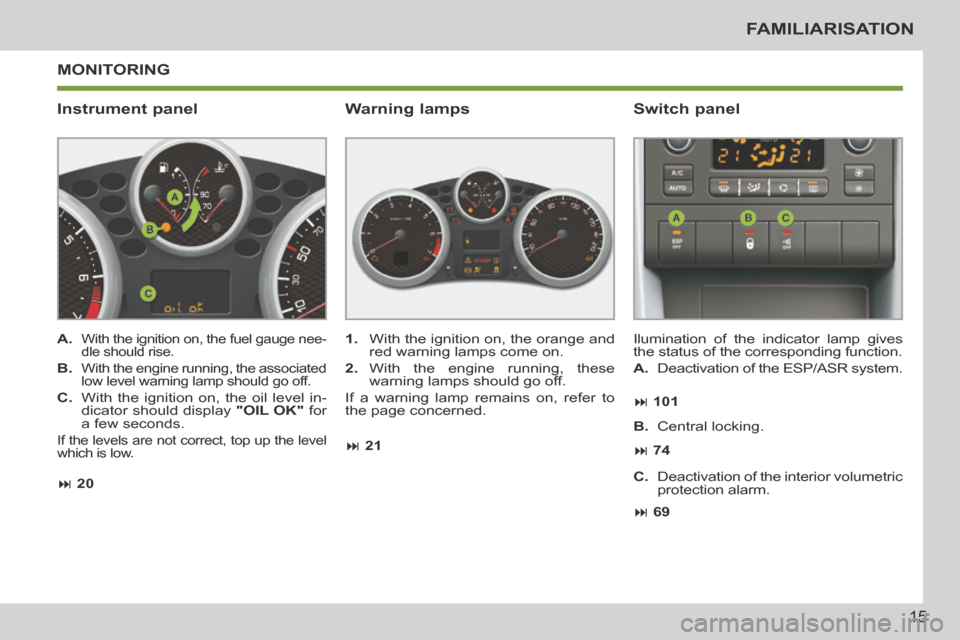

MONITORING
Instrument panel Switch panel
A. With the ignition on, the fuel gauge nee-
dle should rise.
B. With the engine running, the associated
low level warning lamp should go off.
C. With the ignition on, the oil level in-
dicator should display "OIL OK" for
a few seconds.
If the levels are not correct, top up the level
which is low.
Ilumination of the indicator lamp gives
the status of the corresponding function.
A. Deactivation of the ESP/ASR system.
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these warning lamps should go off.
If a warning lamp remains on, refer to
the page concerned.
Warning lamps
B. Central locking.
C. Deactivation of the interior volumetric protection alarm.
20 21 101
74
69
Page 18 of 232
!
16
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

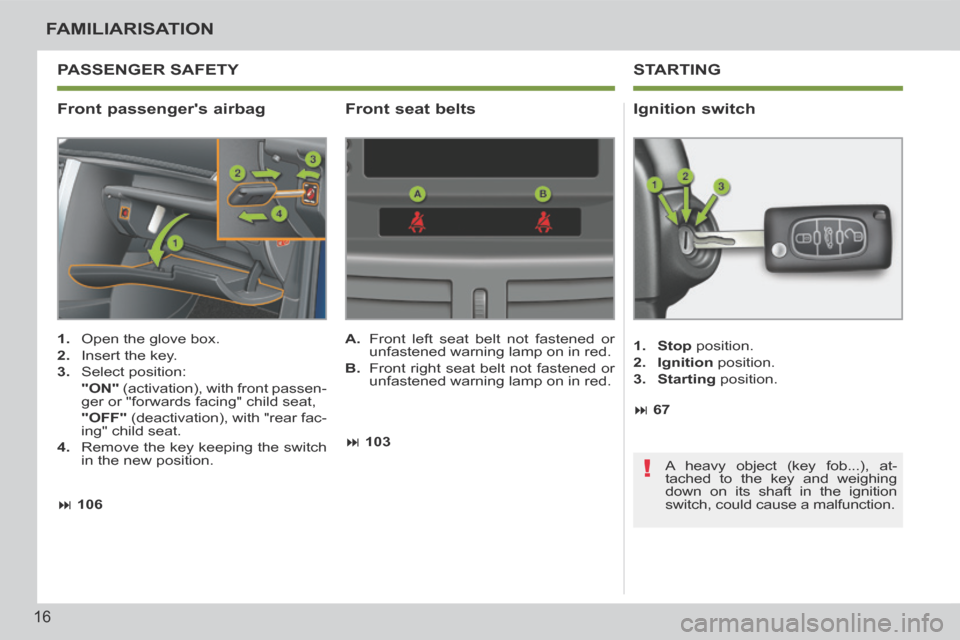

Front passenger's airbag Ignition switch
1. Open the glove box.
2. Insert the key.
3. Select position:
"ON" (activation), with front passen-
ger or "forwards facing" child seat,
"OFF" (deactivation), with "rear fac-
ing" child seat.
4. Remove the key keeping the switch in the new position. 1. Stop position.
2. Ignition position.
3. Starting position.
A. Front left seat belt not fastened or
unfastened warning lamp on in red.
B. Front right seat belt not fastened or unfastened warning lamp on in red.
Front seat belts
A heavy object (key fob...), at-
tached to the key and weighing
down on its shaft in the ignition
switch, could cause a malfunction.
PASSENGER SAFETY STARTING
106 103
67
Page 19 of 232
17
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

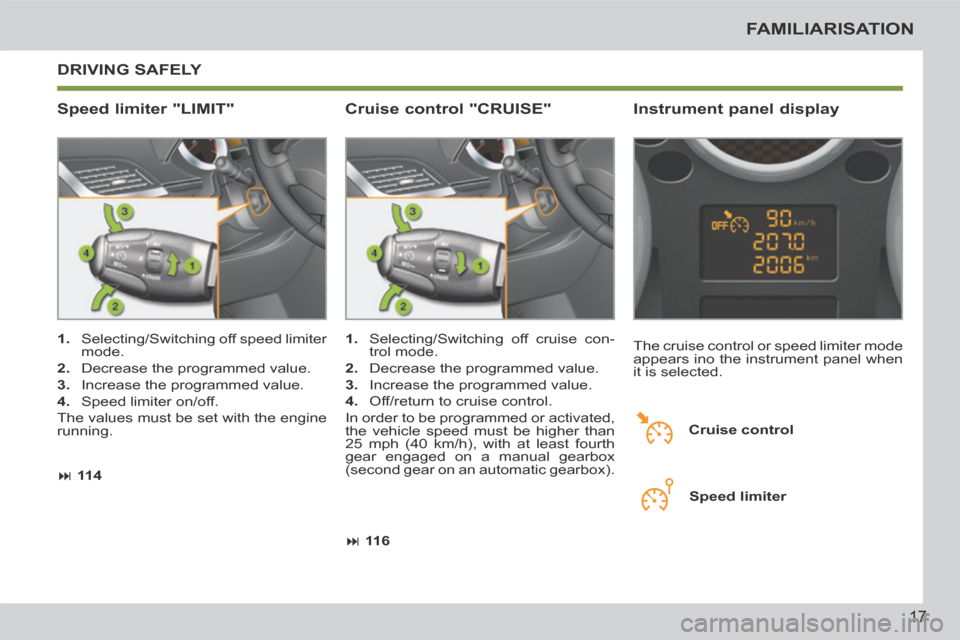

DRIVING SAFELY
Speed limiter "LIMIT" Instrument panel display
1. Selecting/Switching off speed limiter
mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Speed limiter on/off.
The values must be set with the engine
running. The cruise control or speed limiter mode
appears ino the instrument panel when
it is selected.
1. Selecting/Switching off cruise con-
trol mode.
2. Decrease the programmed value.
3. Increase the programmed value.
4. Off/return to cruise control.
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on a manual gearbox
(second gear on an automatic gearbox).
Cruise control "CRUISE"
Cruise control
Speed limiter
11 4
11 6
Page 20 of 232
18
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014

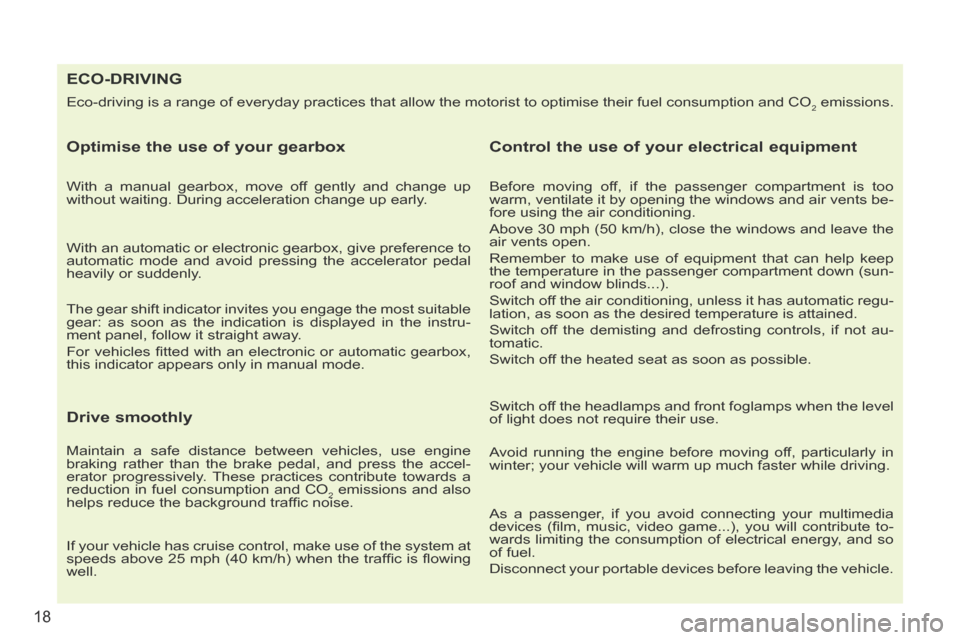

ECO-DRIVING
Eco-driving is a range of everyday practices that allow the motorist to \
optimise their fuel consumption and CO2 emissions.
Optimise the use of your gearbox
With a manual gearbox, move off gently and change up
without waiting. During acceleration change up early.
With an automatic or electronic gearbox, give preference to
automatic mode and avoid pressing the accelerator pedal
heavily or suddenly.
The gear shift indicator invites you engage the most suitable
gear: as soon as the indication is displayed in the instru-
ment panel, follow it straight away.
For vehicles fi tted with an electronic or automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles, use engine
braking rather than the brake pedal, and press the accel-
erator progressively. These practices contribute towards a
reduction in fuel consumption and CO
2 emissions and also
helps reduce the background traffi c noise. Switch off the headlamps and front foglamps when the level
of light does not require their use.
Avoid running the engine before moving off, particularly in
winter; your vehicle will warm up much faster while driving.
As a passenger, if you avoid connecting your multimedia
devices (fi lm, music, video game...), you will contribute to-
wards limiting the consumption of electrical energy, and so
of fuel.
Disconnect your portable devices before leaving the vehicle.
If your vehicle has cruise control, make use of the system at
speeds above 25 mph (40 km/h) when the traffi c is fl owing
well.
Control the use of your electrical equipment
Before moving off, if the passenger compartment is too
warm, ventilate it by opening the windows and air vents be-
fore using the air conditioning.
Above 30 mph (50 km/h), close the windows and leave the
air vents open.
Remember to make use of equipment that can help keep
the temperature in the passenger compartment down (sun-
roof and window blinds...).
Switch off the air conditioning, unless it has automatic regu-
lation, as soon as the desired temperature is attained.
Switch off the demisting and defrosting controls, if not au-
tomatic.
Switch off the heated seat as soon as possible.
