Peugeot 207 CC 2014 Owner's Guide

1
i
i
MONITORING
29
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
Following this operation, if you wish
to disconnect the battery, lock the
vehicle and wait at least fi ve minutes
for the zero reset to be taken into
account.

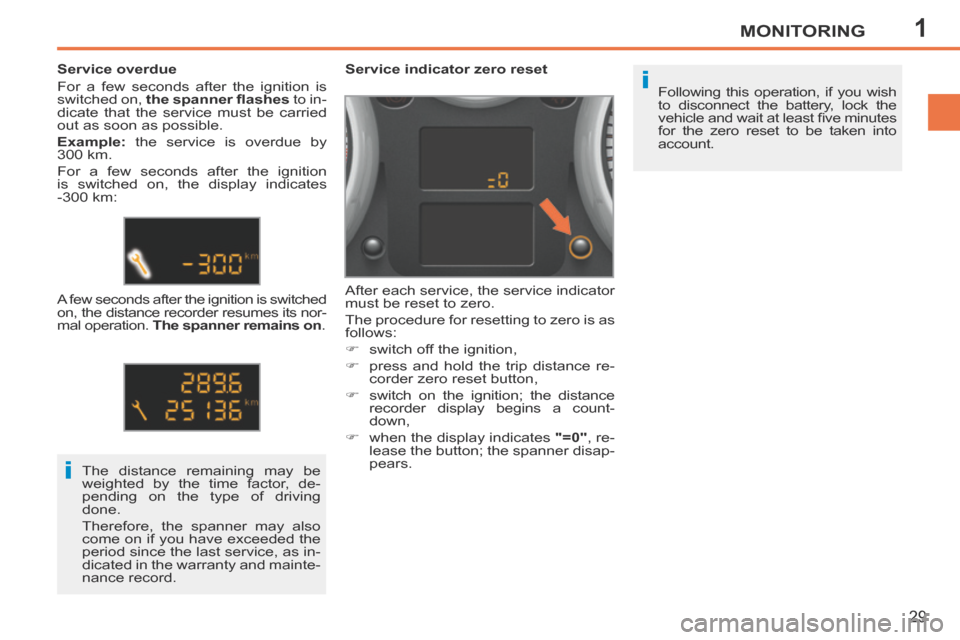

Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:
 switch off the ignition,
 press and hold the trip distance re-
corder zero reset button,
 switch on the ignition; the distance recorder display begins a count-
down,
 when the display indicates "=0" , re-
lease the button; the spanner disap-
pears.
The distance remaining may be
weighted by the time factor, de-
pending on the type of driving
done.
Therefore, the spanner may also
come on if you have exceeded the
period since the last service, as in-
dicated in the warranty and mainte-
nance record.
Service overdue
For a few seconds after the ignition is
switched on,
the spanner fl ashes to in-
dicate that the service must be carried
out as soon as possible.
Example: the service is overdue by
300 km.
For a few seconds after the ignition
is switched on, the display indicates
-300 km:
A few seconds after the ignition is switched
on, the distance recorder resumes its nor-
mal operation. The spanner remains on .

1
i
i
MONITORING
30
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
The level shown will only be correct
if the vehicle is on level ground and
the engine has been off for more
than 30 minutes.
Engine oil level indicator * Oil level correct
Oil level low Oil level indicator fault
This is indicated by the fl ashing of
"OIL" , accompanied by illumination of
the service warning lamp, an audible
signal and a message.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine.
Refer to the "Checking levels" section. This is signaled by the fl ashing of
"OIL--" .
Contact a PEUGEOT dealer or a quali-
fi ed workshop.
On vehicles fi tted with an electric oil level
indicator, information on the oil level is
displayed in the instrument panel for a
few seconds when the ignition is switched
on, after the service information.
* Depending on version. In the event of a fault with the elec-
tric oil level indicator, the engine oil
level is no longer monitored.
While the system is faulty, you
should check the engine oil level
using the manual dipstick located
under the bonnet.
Refer to the "Checking levels" sec-
tion.

1
i
MONITORING
31
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014

Coolant temperature indicator
System which informs the driver of the
changes in the temperature of the en-
gine coolant while driving.
With the engine running, when the nee-
dle is:
- in zone A , the temperature is correct,
- in zone B , the temperature is too high; the max temperature warning
lamp 1 and the central STOP warn-
ing lamp come on, accompanied by
an audible signal and a message in
the multifunction screen.
You MUST stop as soon as it is safe
to do so.
Contact a PEUGEOT dealer or a quali-
fi ed workshop. After driving for a few minutes, the tem-
perature and pressure in the cooling
system increase.
To top up the level:
 wait for the engine to cool,
 unscrew the cap by two turns to al-
low the pressure to drop,
 when the pressure has dropped, re- move the cap,
 top up the level to the "MAX" mark (circular line). On petrol engines, the cooling of the
engine is managed electronically to
reduce fuel consumption. Conse-
quently, the coolant temperature
levels are no longer simply linked
with the external ambient conditions
and the use of the vehicle.
For example, in town, it is normal
for the coolant temperature to be
slightly higher in cold weather than
in hot weather (normal operation
may lead to a temperature of over
100°).

1
i
MONITORING
32
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
Distance recorders Lighting dimmer
Permits manual adjustment of the
brightness of the instruments and con-
trols to suit the ambient light level. Only
operates when the vehicle lighting is on,
with the exception of the daytime run-
ning lamps.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked. Trip distance recorder
System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.
Activation
 Press the button to change the brightness of the instruments and
controls.
 When the lighting reaches the mini- mum setting, release the button,
then press again to increase it.
or
 When the lighting reaches the maxi- mum setting, release the button,
then press again to reduce it.
 When the lighting reaches the level of brightness required, release the
button.
Deactivation
When the vehicle lighting is off, or in
day mode on vehicles fi tted with day-
time running lamps, pressing the button
does not have any effect.
 With the ignition on, press the but-
ton until zeros appear.
To conform to legislation in the
country you are crossing, change
the units of distance (miles or km)
via the confi guration menu.
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle since its
fi rst registration.

1MONITORING
33
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
MONOCHROME SCREEN A (WITHOUT
PEUGEOT CONNECT SOUND)
Controls Main menu
There are three display control buttons:
- "Back" to abandon the operation in
progress,
- "MENU" to scroll through the menus or sub-menus,
- "OK" to select the menu or sub- menu required.  Press the
"MENU" button to scroll
through the various menus of the
main menu :
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
 Press the "OK" button to select the
menu required. Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- trip computer (refer to the corre- sponding section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "Back" button.
* With air conditioning only.

1
!
MONITORING
34
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
 Once you have selected a setting, press the "OK" button to change its
value.
 Wait for approximately ten sec- onds without any action to allow
the changed data to be recorded or
press the "Back" button to cancel.
The screen then returns to the normal
display.
Once the "Vehicle confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section),
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.

1MONITORING
35
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
MONOCHROME SCREEN A Controls
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to the corre- sponding section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Boot open") may ap-
pear temporarily. These can be cleared
by pressing the "Back" button.
Main menu
 Press the "MENU" button to gain
access to the main menu , then
press the "  " or "  " buttons to
scroll through the various menus:
- radio-CD,
- vehicle confi guration,
- options,
- display settings,
- language,
- units.
 Press the "OK" button to select the
menu required.
From your
PEUGEOT Connect Sound
control panel, you can:
 press the "MENU" button to gain
access to the main menu,
 press the "  " or "  " buttons to
scroll through the items on the
screen,
 press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
 press the "  " or "  " buttons to
change a setting value,
 press the "OK" button to confi rm,
or
 press the "Back" button to abandon
the operation in progress. Radio-CD
With the
PEUGEOT Connect Sound
switched on, once the "Radio-CD"
menu has been selected you can acti-
vate or deactivate the functions linked
with use of the radio (RDS, REG) or the
CD (introscan, shuffl e, CD repeat).
For more information on the "Radio-
CD" application, refer to the PEUGEOT
Connect Sound section.
* Only with air conditioning.

1
!
MONITORING
36
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
For safety reasons, confi guration
of the multifunction screen by the
driver must only be done when sta-
tionary.
Display settings
Once the "Display settings" menu has
been selected, you can gain access to
the following settings:
- year,
- month,
- day,
- hour,
- minutes,
- 12 or 24 hour mode.
Language
Once the "Language" menu has been
selected, you can change the language
used by the display (Français, Italiano,
Nederlands, Portugues, Portugues-
Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-
lected, you can change the units of the
following parameters:
- temperature (°C or °F),
- fuel consumption (l/100 km, mpg or
km/l).
 Once you have selected a setting, press the "  " or "  " buttons to
change its value.
 Press the "  " or "  " buttons to
switch respectively to the previous
or next setting.
 Press the "OK" button to record the
change and return to the normal dis-
play or press the "Back" button to
cancel.
Vehicle confi guration
Options
Once the "Options" menu has been se-
lected, you can start diagnostics of the
status of the equipment (active, not ac-
tive, faulty). Once the "Vehicle Confi guration" menu
has been selected, you can activate or
deactivate the following equipment:
- directional headlamps (refer to the
"Visibility" section),
- "guide-me-home" lighting (refer to the "Visibility" section).

1MONITORING
37
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
MONOCHROME SCREEN C
* With air conditioning only.
Displays in the screen
This displays the following information:
- time,
- date,
- ambient temperature * (this fl ashes if there is a risk of ice),
- status of the openings (doors, boot...),
- audio sources (radio, CD...),
- trip computer (refer to correspond- ing section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the "Back" button. From your
PEUGEOT Connect Sound
control panel, you can:
 press the "MENU" button to gain
access to the main menu ,
 press the "  " or "  " buttons to
scroll through the items on the
screen,
 press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
 press the "  " or "  " buttons to
change a setting value,
 press the "OK" button to confi rm,
or
 press the "Back" button to abandon
the operation in progress.  Press the
"MENU" button to gain
access to the main menu :
- audio functions,
- trip computer
- personalisation-confi guration,
- telephone (hands-free kit).
 Press the "  " or "  " buttons to se-
lect the menu required, then confi rm
by pressing the "OK" button.
Controls Main menu

1MONITORING
38
207CC_EN_CHAP01_CONTROLE DE MARCHE_ED01-2014
 Press the "MENU" key to access
the main menu.
 Press the arrows, then the "OK" key
to select the "Trip computer" menu.
 In the "Trip computer" menu, select
one of the following applications:
"Audio functions" menu
With the PEUGEOT Connect Sound
switched on, once this menu has been
selected you can activate or deactivate
the functions linked with use of the ra-
dio (RDS, REG, RadioText) or the CD
(introscan, shuffl e, CD repeat).
For more information on the "Audio func-
tions" application, refer to the PEUGEOT
Connect Sound section.
Enter the distance to the destination
This allows you to enter an approximate
distance value to the fi nal destination.
"Trip computer" menu
Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).
Alert log
This summarises the active warning
messages, displaying them succes-
sively on the multifunction screen.
Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.
