fuse box Peugeot 207 CC 2014 Owner's Manual
[x] Cancel search | Manufacturer: PEUGEOT, Model Year: 2014, Model line: 207 CC, Model: Peugeot 207 CC 2014Pages: 232, PDF Size: 11.11 MB
Page 5 of 232
3
CONTENTS
207CC_EN_CHAP00A_SOMMAIRE_ED01-2014
■ Direction indicators 97
■ Emergency or assistance call 97
■ Warning triangle 97
■ Hazard warning lamps 98
■ Horn 98
■ Tyre under-infl ation detection 99
■ Braking assistance systems 100
■ Trajectory control systems 101
■ Seat belts 102
■ Airbags 105
SAFETY 97 108
■ Parking brake 109
■ Manual gearbox 109
■ Gear shift indicator 110
■ Automatic gearbox 111
■ Speed limiter 114
■ Cruise control 116
■ Parking sensors 118
DRIVING 109 11 9
■ Bonnet 121
■ Running out of fuel (Diesel) 121
■ Petrol engines 122
■ Diesel engine 123
■ Checking levels 124
■ Checks 126
CHECKS
120 127
■ Temporary puncture
repair kit 128
■ Changing a wheel 133
■ Snow chains 137
■ Changing a bulb 138
■ Changing a fuse 142
■ Battery 147
■ Energy economy mode 149
■ Changing a wiper blade 149
■ Towing the vehicle 150
■ Towing a trailer 151
■ Accessories 153
PRACTICAL
INFORMATION 128 153
■ Petrol engines 154
■ Weights (petrol) 155
■ Diesel engine 156
■ Weights (Diesel) 157
■ Dimensions 158
■ Identifi cation markings 159
TECHNICAL DATA 154 160
AUDIO EQUIPMENT and
TELEMATICS 161 214
■ Emergency or assistance 161
■ PEUGEOT Connect Navigation
(RNEG) 163
■ PEUGEOT Connect Sound (RD5) 195
ALPHABETICAL
INDEX 219 223
7
86
9
10
VISUAL
SEARCH 215 218
Page 11 of 232
9
FAMILIARISATION
207CC_EN_CHAP00B_PRISE EN MAIN_ED01-2014
INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Retractable roof control.
Control for the four windows.
9. Bonnet release lever.
10. Door mirror controls.
Electric window controls.
11 . Fusebox.
12. Headlamp height adjustment.
13. Side adjustable air vent.
14. Door window demisting vent.
15. Speaker (medium tweeter).
16. Windscreen demisting vent.
Page 124 of 232
8CHECKS
122
207CC_EN_CHAP08_VERIFICATIONS_ED01-2014
PETROL ENGINES
The caps and covers provide access for checking the levels of the various fl uids and to replace certain components.
1. Coolant reservoir.
2. Passenger compartment fi lter.
3. Screenwash and headlamp wash reservoir. 4. Air fi lter.
5. Brake fl uid reservoir.
6. Fusebox.
7. Battery.
8. Engine oil dipstick.
9. Engine oil fi ller cap.
Page 125 of 232
8CHECKS
123
207CC_EN_CHAP08_VERIFICATIONS_ED01-2014
DIESEL ENGINE
The caps and covers provide access for checking the levels of the various fl uids, to replace certain components and to prime
the fuel system.
1. Coolant reservoir.
2. Passenger compartment fi lter.
3. Screenwash and headlamp wash reservoir. 4. Priming pump.
5. Brake fl uid reservoir.
6. Fusebox.
7. Battery. 8. Engine oil dipstick.
9. Engine oil fi ller cap.
10. Air fi lter.
Page 144 of 232
9
!
i
PRACTICAL INFORMATION
142
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all of
the additional equipment connect-
ed exceeds 10 milliamperes. Installation of electrical acces-
sories
Your vehicle's electrical circuit
is designed to operate with the
standard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT dealer
or a qualifi ed workshop.

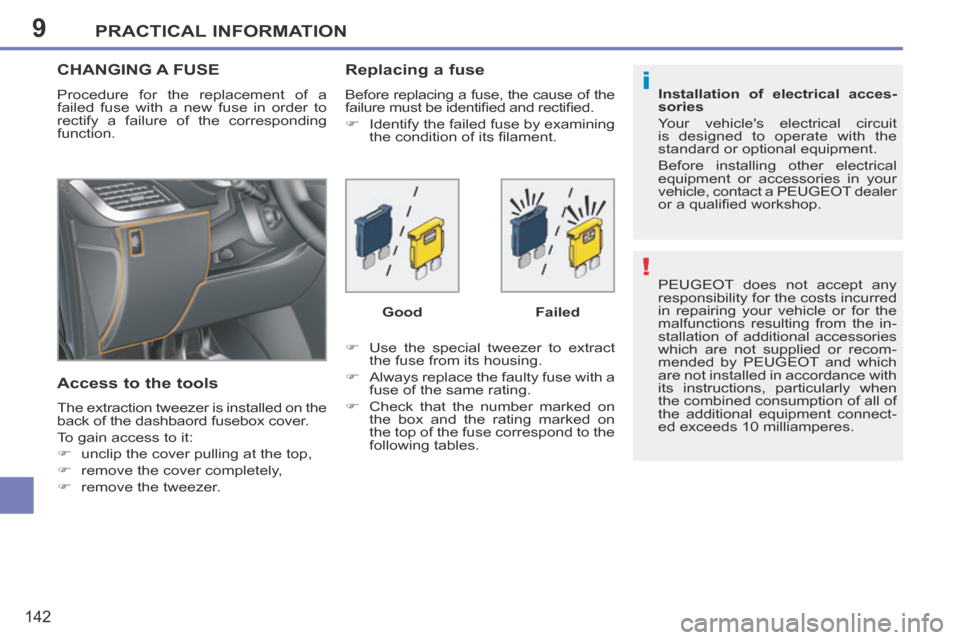

CHANGING A FUSE
Procedure for the replacement of a
failed fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction tweezer is installed on the
back of the dashbaord fusebox cover.
To gain access to it:
unclip the cover pulling at the top,
remove the cover completely,
remove the tweezer.
Replacing a fuse
Before replacing a fuse, the cause of the
failure must be identifi ed and rectifi ed.
Identify the failed fuse by examining the condition of its fi lament.
Use the special tweezer to extract the fuse from its housing.
Always replace the faulty fuse with a fuse of the same rating.
Check that the number marked on the box and the rating marked on
the top of the fuse correspond to the
following tables. Good
Failed
Page 145 of 232
9PRACTICAL INFORMATION
143
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Dashboard fuses
The fusebox is placed in the lower
dashboard (left-hand side).
Access to the fuses
refer to the "Access to the tools" paragraph. Fuse table
Fuse N° Rating Functions
G37 30 A Retractable roof unit supply.
G38 20 A Hi-Fi amplifi er.
G39 20 A Driver and passenger heated seats.
G40 40 A Trailer fusebox supply.
Fuse N° Rating Functions
F1 - Not used.
F2 - Not used.
F3 5 A Airbags and pre-tensioners control
unit.
F4 10 A Clutch pedal switch, diagnostic socket,
electrochromatic rear view mirror, air conditioning,
steering wheel angle sensor, particle emission fi lter
pump (Diesel).
F5 30 A Rear electric windows, retractable roof.
F6 30 A Front electric windows, folding mirrors
supply.
F7 5 A Front courtesy lamp, map reading reading lamps,
sun visor lighting, glove box lighting.
Page 146 of 232
9PRACTICAL INFORMATION
144
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Fuse N° Rating Functions
F8 20 A Audio/telephone, multifunction screen, steering
mounted controls, tyre under-infl ation detection,
trailer fusebox, alarm (accessory).
F9 30 A Front 12 V socket, front courtesy lamp, map
reading lamps, sun visor lighting, glove box lighting.
F10 15 A Alarm siren, alarm control unit, directional
headlamps.
F 11 15 A Diagnostic socket, low current ignition switch,
automatic gearbox control unit.
F12 15 A Sunshine sensor, trailer fusebox,
retractable roof.
F13 5 A Engine fusebox, ABS relay, dual-function brake
switch.
F14 15 A
Instrument panel, seat belt warning lamps panel,
headlamp adjustment, air conditioning, audio equipment,
Bluetooth system, rear parking sensors control unit.
F15 30 A Locking and deadlocking.
F17 40 A Heated rear screen and door mirrors.
SH - PARC shunt.
Page 147 of 232
9PRACTICAL INFORMATION
145
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Engine compartment fuses
The fusebox is placed in the engine
compartment, near the battery (left-
hand side).
Access to the fuses
Unclip the cover.
Replace the fuse (refer to the cor-responding paragraph).
When you have fi nished, close the cover carefully to ensure correct
sealing of the fuse box. Fuse table
Fuse N° Rating Functions
F1 20 A Engine control unit and fan assembly control relay
supply, timing and canister electrovalves (1.6 l 16V THP),
air fl ow sensor (Diesel), injection pump
(Diesel), water in Diesel sensor (Diesel), EGR
electrovalves, air heating (Diesel).
F2 15 A Horn.
F3 10 A Front wash-wipe.
F4 20 A Headlamp wash.
F5 15 A Fuel pump (petrol), Turbo electrovalves
(1.6 l 16V THP).
F6 10 A Vehicle speed sensor, automatic gearbox.
F7 10 A Electric power steering, directional headlamps,
directional headlamps control relay, switching and
protection unit (Diesel).
F8 20 A Starter motor control.
F9 10 A ABS/ESP control unit, brake pedal switch.
F10 30 A Engine control unit actuators (petrol: ignition coils,
electrovalves, oxygen sensors, injectors, heaters,
electronic thermostat) (Diesel: electrovalves,
heaters).
F 11 40 A Air conditioning blower.
F12 30 A Windscreen wipers Low/High speed.
F13 40 A Built-in systems interface supply (ignition positive).
Page 148 of 232
9PRACTICAL INFORMATION
146
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
Fuse N° Rating Functions
F14 30 A Diesel heater (Diesel).
F15 10 A Left main beam headlamp.
F16 10 A Right main beam headlamp.
F17 15 A Left dipped beam headlamp.
F18 15 A Right dipped beam headlamp.
Maxi-fuse table
* The maxi-fuses provide additional pro- tection for the electrical systems. All
work on the maxi-fuses must be car-
ried out by a PEUGEOT dealer or a
qualifi ed workshop.
Fuse N° Rating Functions
Box 1
MF1 * 70 A Fan assembly.
MF2 * 20 A/30 A ABS/ESP pump.
MF3 * 20 A/30 A ABS/ESP electrovalves.
MF4 * 60 A Built-in systems interface supply.
MF5 * 60 A Built-in systems interface supply.
MF6 * 30 A Additional fan assembly (1.6 l 16V THP).
MF7 * 80 A Dashboard fusebox.
MF8 * - Not used.
Box 2
MF9 * 80 A Heating unit (Diesel).
MF10 * 80 A Electric power steering.
MF11 * 40 A Valvetronic electric motor (1.6 l 16V THP).
Page 155 of 232
9
i
!
i
PRACTICAL INFORMATION
153
207CC_EN_CHAP09_INFO PRATIQUES_ED01-2014
ACCESSORIES
A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have
been tested and approved for reliability
and safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommen-
dation and warranty. Depending on the legislation in
force in the country, certain safety
equipment may be compulsory:
high visibility safety vests, warn-
ing triangles, breathalyzers, spare
bulbs, spare fuses, a fi re extin-
guisher, a fi rst aid kit, mud fl aps at
the rear of the vehicle.
The fi tting of electrical equipment
or accessories which are not rec-
ommended by PEUGEOT may
result in a failure of your vehicle's
electronic system and excessive
electrical consumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range of
recommended equipment and ac-
cessories.
"Comfort":
door defl ectors, side blinds and rear
blind, coat hanger fi xed to head re-
straint, front centre armrest, under shelf
storage, front and rear parking sen-
sors...
Installation of radio
communication transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibil-
ity Directive (2004/104/EC).
"Transport solutions":
boot liner, luggage net, cigarette lighter,
roof bars, bicycle carrier on roof bars,
ski carrier, roof box...
Towbar, which must be fi tted by PEUGEOT
dealer or a qualifi ed workshop.
"Styling":
aluminium gear lever knob, spoiler, styling
strips, alloy wheels, trims, chromed mirror
shells, body kit... * To avoid any risk of jamming of the pedals:
- ensure that the mat is positioned and secured correctly,
- never fi t one mat on top of another.
"Security":
anti-theft alarm, window engraving,
wheel security bolts, child seats and
booster cushions, breathalyzer, fi rst aid
kit, warning triangle, high visibility jacket,
stolen vehicle tracking system, tempo-
rary puncture repair kit, snow chains,
non-slip covers, front foglamps kit...
"Protection":
mats * , seat covers compatible with lateral
airbags, aluminium or PVC door aperture
fi nishers...
"Multimedia":
audio systems, satellite navigation
systems, hands-free kit, CD changer,
speakers, DVD player, connection kit
for MP3 or CD player, USB Box...
You can also obtain products for clean-
ing and maintenance (exterior and in-
terior), topping up (screenwash...), and
refi lls (cartridge for the temporary punc-
ture repair kit...) by visiting a PEUGEOT
dealer.
