Peugeot 207 Dag 2007.5 Owner's Manual

10TECHNICAL DATA
155

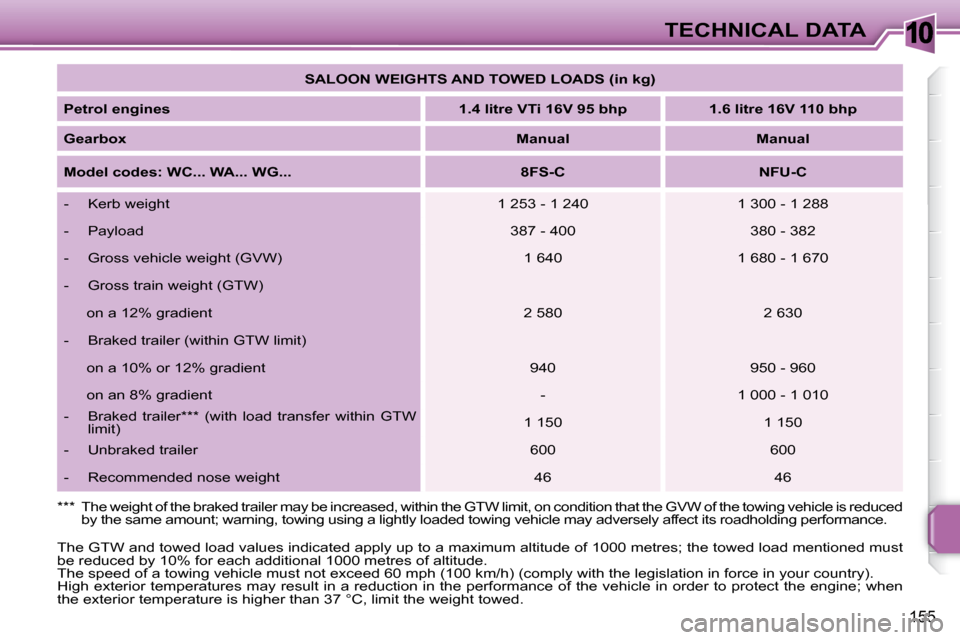

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre VTi 16V 95 bhp 1.6 litre 16V 110 bhp

Gearbox
Manual Manual

Model codes: WC... WA... WG... 8FS-C NFU-C
- Kerb weight 1 253 - 1 240 1 300 - 1 288
- Payload 387 - 400 380 - 382
- Gross vehicle weight (GVW) 1 640 1 680 - 1 670
- Gross train weight (GTW)
on a 12% gradient 2 580 2 630
- Braked trailer (within GTW limit) on a 10% or 12% gradient 940 950 - 960
on an 8% gradient - 1 000 - 1 010
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
156
TECHNICAL DATA

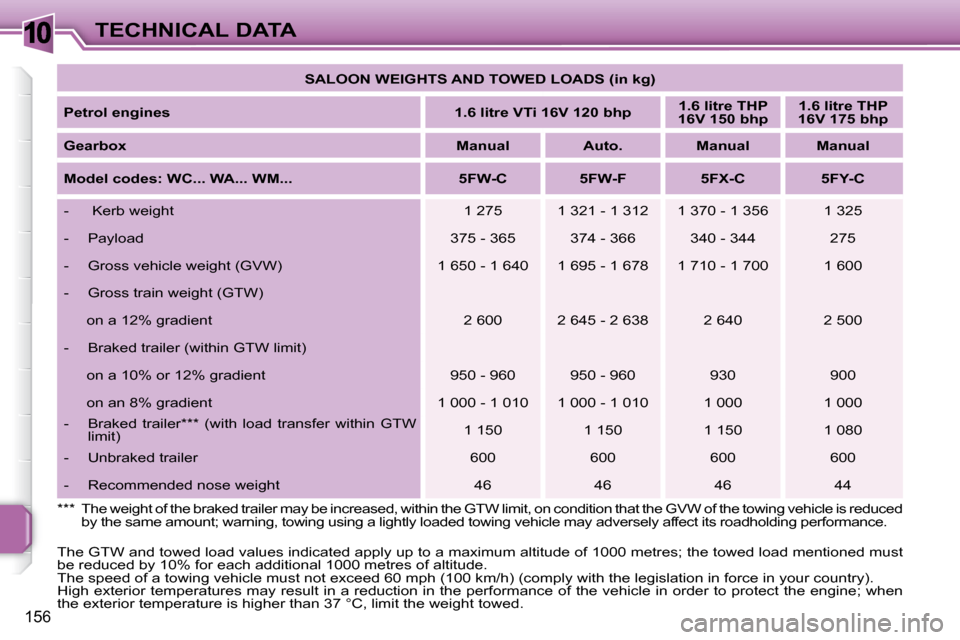

SALOON WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp
1.6 litre THP
16V 175 bhp

Gearbox
Manual Auto. Manual Manual

Model codes: WC... WA... WM... 5FW-C 5FW-F 5FX-C 5FY-C
- Kerb weight 1 275 1 321 - 1 312 1 370 - 1 356 1 325
- Payload 375 - 365 374 - 366 340 - 344 275
- Gross vehicle weight (GVW) 1 650 - 1 640 1 695 - 1 678 1 710 - 1 700 1 600
- Gross train weight (GTW)
on a 12% gradient 2 600 2 645 - 2 638 2 640 2 500
- Braked trailer (within GTW limit) on a 10% or 12% gradient 950 - 960 950 - 960 9 30 900
on an 8% gradient 1 000 - 1 010 1 000 - 1 010 1 000 1 000
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150 1 080
- Unbraked trailer 600 600 600 600
- Recommended nose weight 46 46 46 44
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10TECHNICAL DATA
163
** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

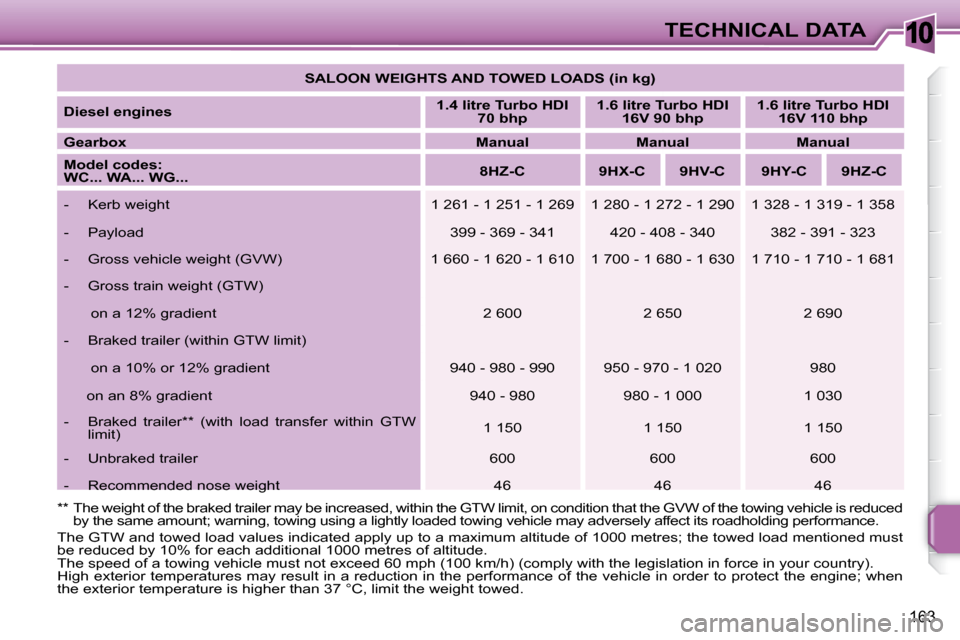

SALOON WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.4 litre Turbo HDI
70 bhp
1.6 litre Turbo HDI
16V 90 bhp
1.6 litre Turbo HDI
16V 110 bhp

Gearbox
Manual Manual Manual

Model codes:
WC... WA... WG...
8HZ-C 9HX-C 9HV-C 9HY-C 9HZ-C
- Kerb weight 1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290 1 328 - 1 319 - 1 358
- Payload 399 - 369 - 341 420 - 408 - 340 382 - 391 - 323

- Gross vehicle weight (GVW) 1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630 1 710 - 1 710 - 1 681

- Gross train weight (GTW)
on a 12% gradient 2 600 2 650 2 690
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 940 - 980 - 990 950 - 97 0 - 1 020 980
on an 8% gradient 940 - 980 980 - 1 000 1 030
- Braked trailer ** (with load transfer within GTW
limit) 1 150 1 150 1 150
- Unbraked trailer
600 600 600

- - Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

10TECHNICAL DATA
157

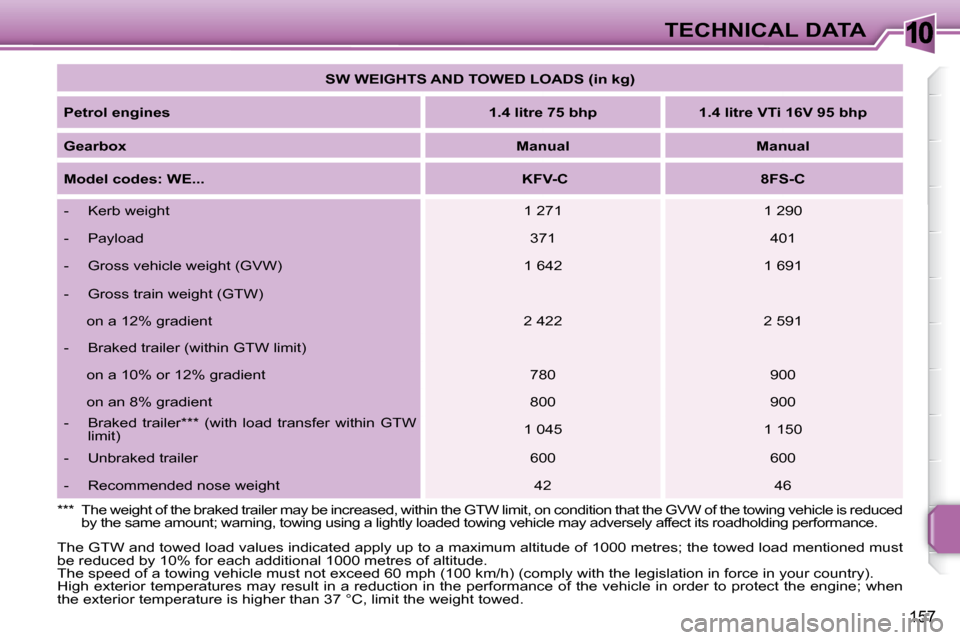

SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.4 litre 75 bhp 1.4 litre VTi 16V 95 bhp

Gearbox
Manual Manual

Model codes: WE...
KFV-C 8FS-C
- Kerb weight 1 271 1 290
- Payload 371 401
- Gross vehicle weight (GVW) 1 642 1 691
- Gross train weight (GTW) on a 12% gradient 2 422 2 591
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 780 900
on an 8% gradient 800 900
- Braked trailer *** (with load transfer within GTW limit) 1 045 1 150
- Unbraked trailer 600 600
- Recommended nose weight 42 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
158
TECHNICAL DATA

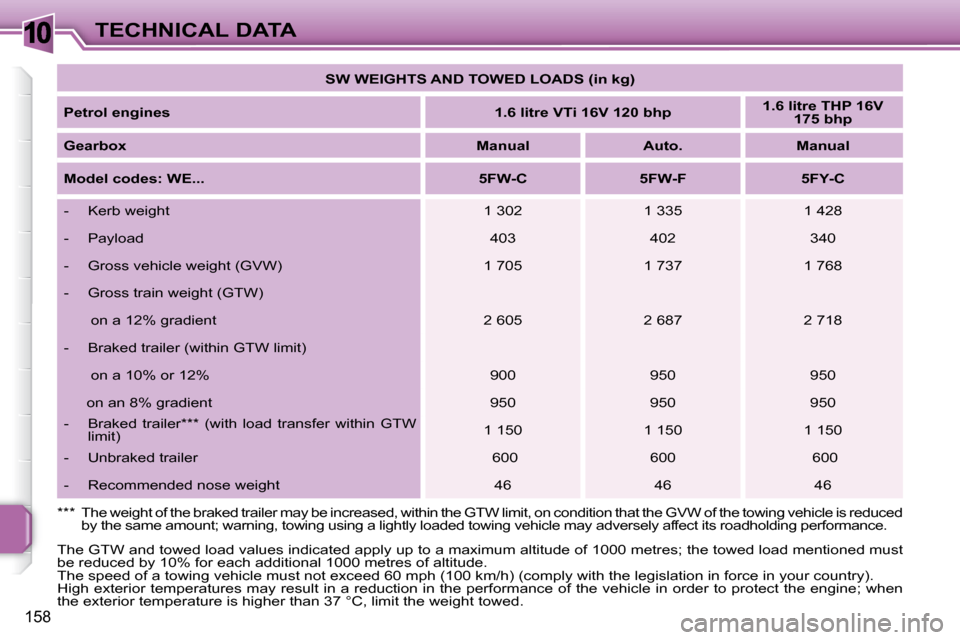

SW WEIGHTS AND TOWED LOADS (in kg)

Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP 16V
175 bhp

Gearbox
Manual Auto. Manual

Model codes: WE...
5FW-C 5FW-F 5FY-C
- Kerb weight 1 302 1 335 1 428
- Payload 403 402 340
- Gross vehicle weight (GVW) 1 705 1 737 1 768
- Gross train weight (GTW)
on a 12% gradient 2 605 2 687 2 718
- Braked trailer (within GTW limit) on a 10% or 12% 900 950 950
on an 8% gradient 950 950 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10TECHNICAL DATA
159

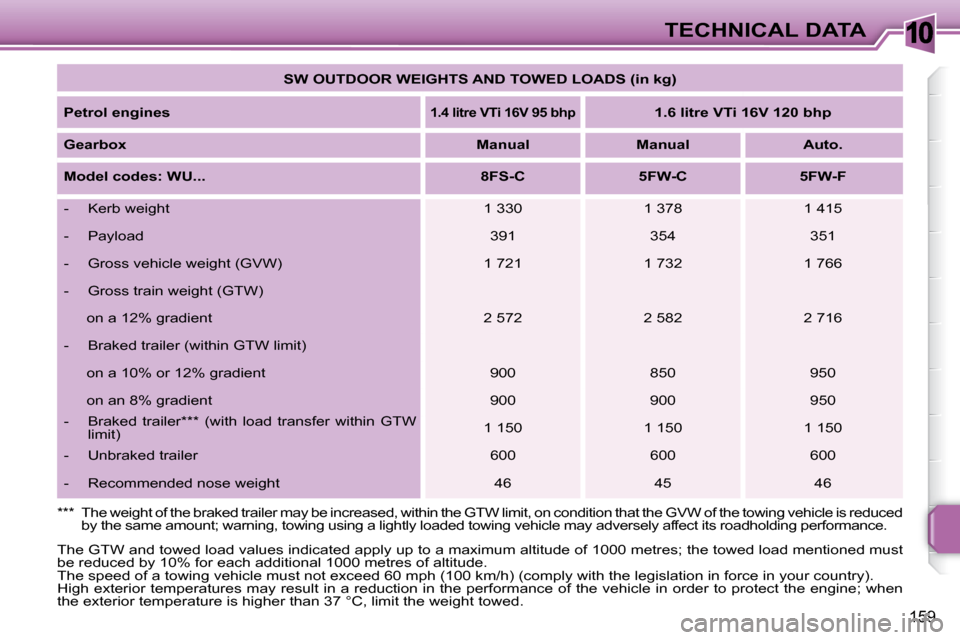

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Petrol engines

1.4 litre VTi 16V 95 bhp
1.6 litre VTi 16V 120 bhp

Gearbox
Manual Manual Auto.

Model codes: WU...
8FS-C 5FW-C 5FW-F
- Kerb weight 1 330 1 378 1 415
- Payload 391 354 351
- Gross vehicle weight (GVW) 1 721 1 732 1 766
- Gross train weight (GTW) on a 12% gradient 2 572 2 582 2 716
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 900 850 950
on an 8% gradient 900 900 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 45 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be increased, with in the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a light ly loaded towing vehicle may adversely affect its roadholding performance.

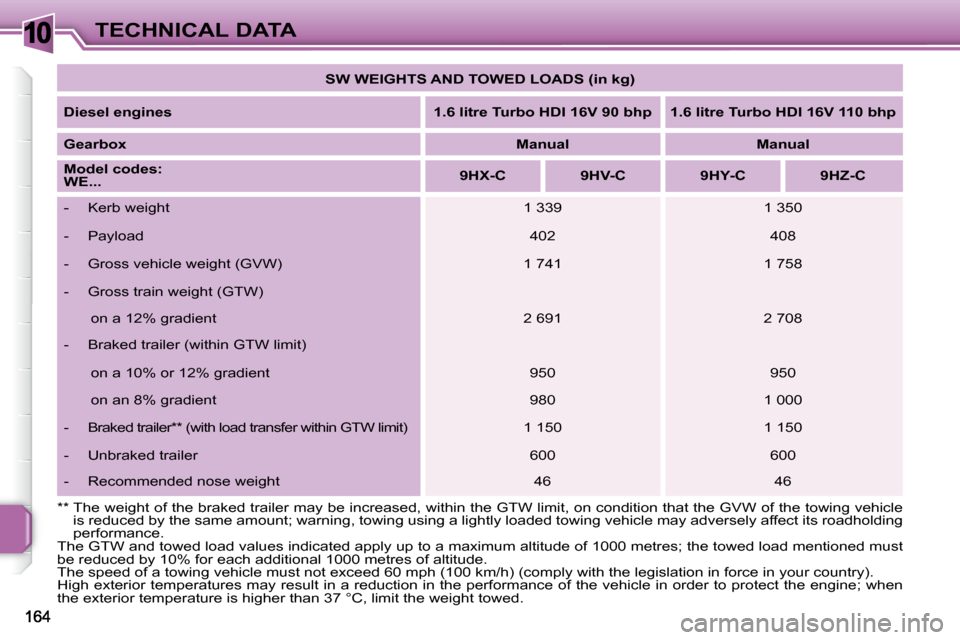

SW WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp

Gearbox
Manual Manual

Model codes:
WE...
9HX-C 9HV-C 9HY-C 9HZ-C

Kerb weight 1 339 1 350
- Payload 402 408

- Gross vehicle weight (GVW) 1 741 1 758

- Gross train weight (GTW)
on a 12% gradient 2 691 2 708
- Braked trailer (within GTW limit)
on a 10% or 12% gradient 950 950
on an 8% gradient 980 1 000

- Braked trailer ** (with load transfer within GTW l imit) 1 150 1 150

- Unbraked trailer 600 600
- Recommended nose weight 46 46

10TECHNICAL DATA
165

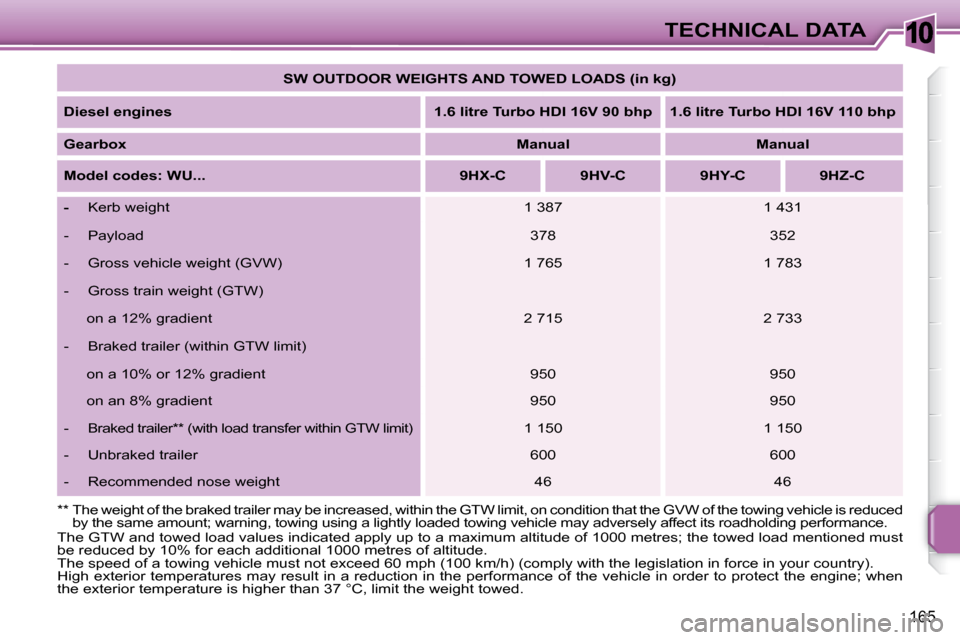

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)

Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp

Gearbox
Manual Manual

Model codes: WU... 9HX-C 9HV-C 9HY-C 9HZ-C

Kerb weight 1 387 1 431
- Payload 378 352

- Gross vehicle weight (GVW) 1 765 1 783

- Gross train weight (GTW)
on a 12% gradient 2 715 2 733

- Braked trailer (within GTW limit)
on a 10% or 12% gradient 950 950
on an 8% gradient 950 950
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be incre
ased, within the GTW limit, on condition that the G VW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.

10
166
TECHNICAL DATA

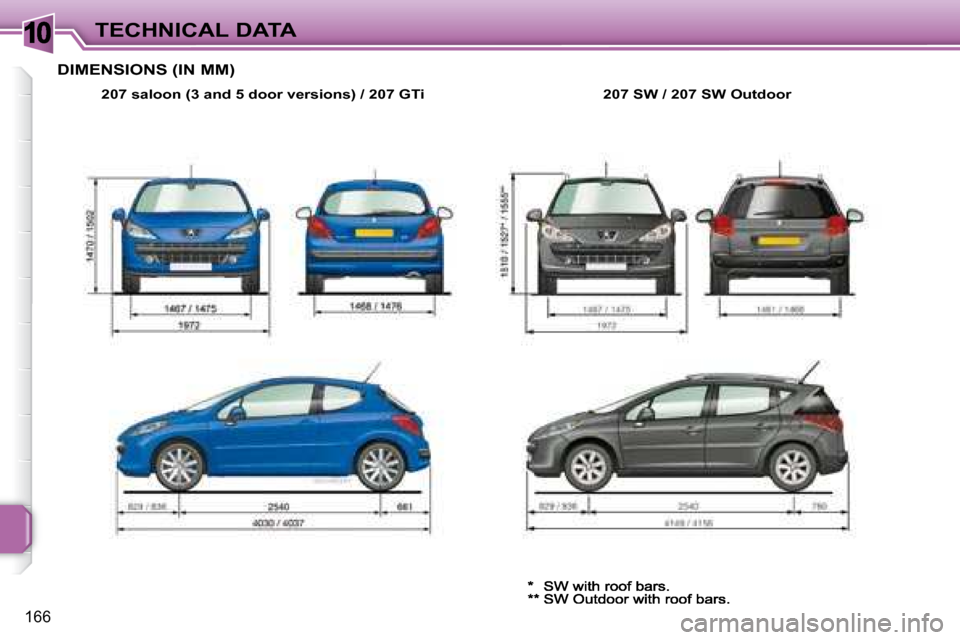

DIMENSIONS (IN MM)

207 saloon (3 and 5 door versions) / 207 GTi 207 SW / 207 SW Outdoor
** SW Outdoor with roof bars.

10
!
i
TECHNICAL DATA
167

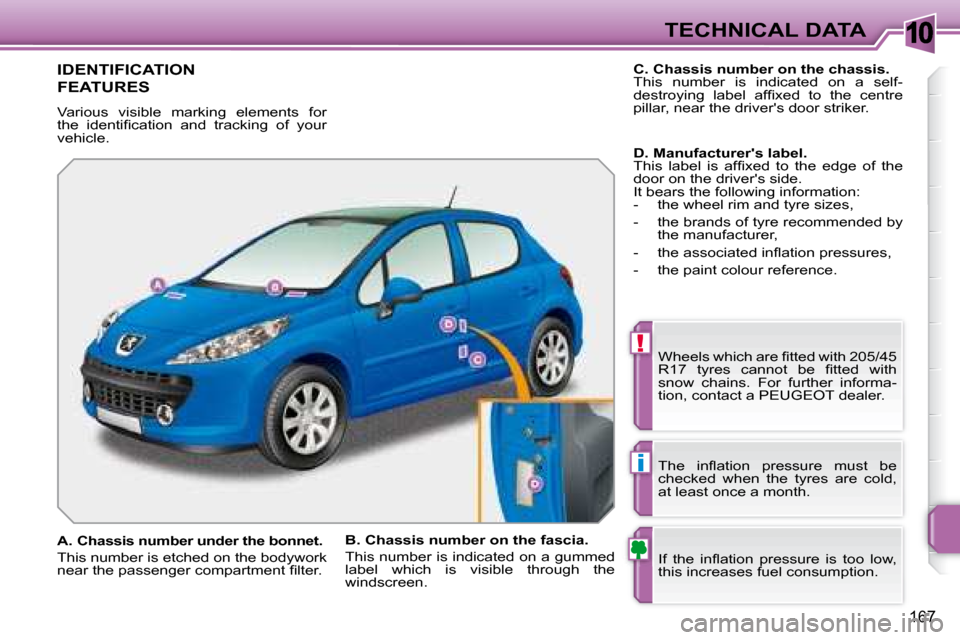

IDENTIFICATION
FEATURES
Various visible marking elements for
the identii cation and tracking of your
vehicle. Wheels which are i tted with 205/45
R17 tyres cannot be i tted with
snow chains. For further informa-
tion, contact a PEUGEOT dealer.
If the inl ation pressure is too low,
this increases fuel consumption.
The inl ation pressure must be
checked when the tyres are cold,
at least once a month.

A. Chassis number under the bonnet.
This number is etched on the bodywork
near the passenger compartment i lter.
B. Chassis number on the fascia.
This number is indicated on a gummed
label which is visible through the
windscreen.
C. Chassis number on the chassis.
This number is indicated on a self-
destroying label afi xed to the centre
pillar, near the driver's door striker.

D. Manufacturer's label.
This label is afi xed to the edge of the
door on the driver's side.
It bears the following information:
- the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- the associated inl ation pressures,
- the paint colour reference.
