Peugeot 207 Dag 2007.5 Owner's Manual

i
i
129
Fixing the steel or "space-
saving" type spare wheel
If your vehicle is i tted with al-
loy wheels, it is normal to notice,
when tightening the bolts on i tting,
that the washers do not come into
contact with the steel or "space-
saving" type spare wheel. The
wheel is secured by the conical
contact of each bolt.

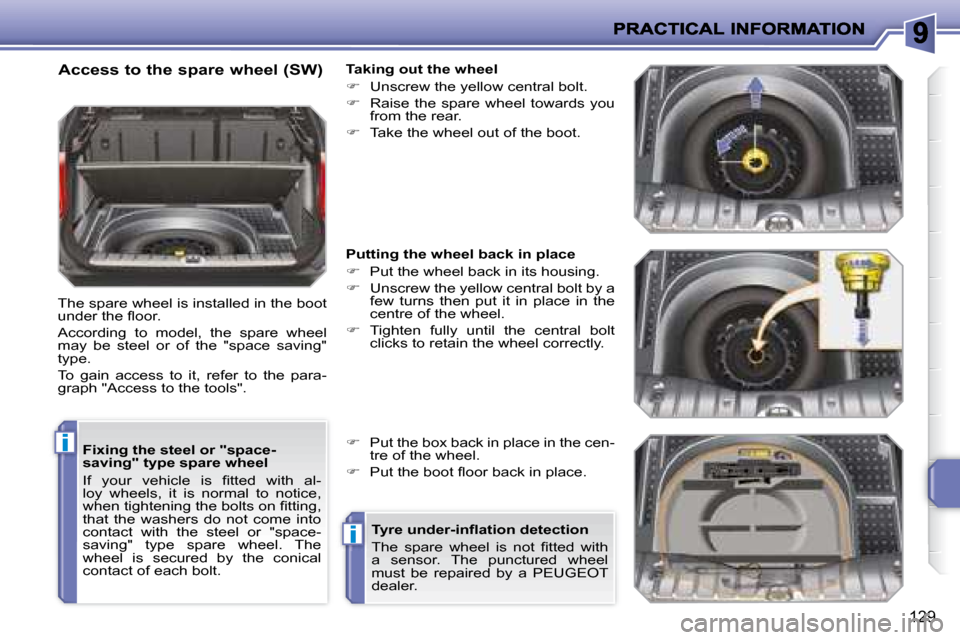

Access to the spare wheel (SW)
The spare wheel is installed in the boot
under the l oor.
According to model, the spare wheel
may be steel or of the "space saving"
type.
To gain access to it, refer to the para-
graph "Access to the tools". Taking out the wheel

 Unscrew the yellow central bolt.

 Raise the spare wheel towards you
from the rear.

 Take the wheel out of the boot.
Putting the wheel back in place

 Put the wheel back in its housing.

 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.

 Tighten fully until the central bolt
clicks to retain the wheel correctly.

 Put the box back in place in the cen-
tre of the wheel.

 Put the boot l oor back in place.
Tyre under-inl ation detection
The spare wheel is not i tted with
a sensor. The punctured wheel
must be repaired by a PEUGEOT
dealer.

i
130
Parking the vehicle
Immobilise the vehicle where it does
not block trafi c: if possible, park the
vehicle on level, stable and non-
slippery ground.
Apply the handbrake, switch off the
ignition and engage i rst gear * to
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
Never go underneath a vehicle raised
using a jack; use an axle stand.

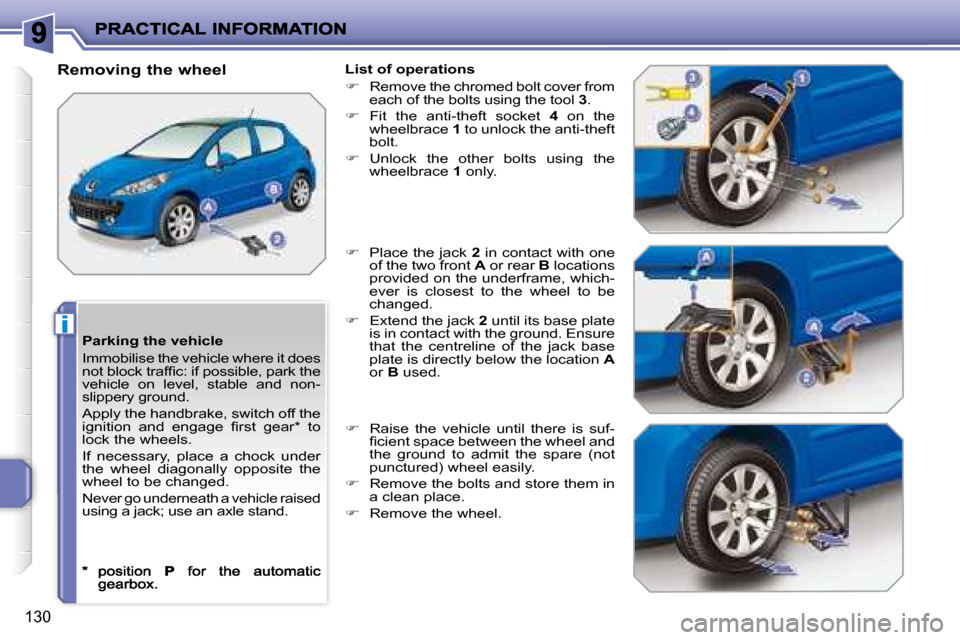

Removing the wheel
List of operations

 Remove the chromed bolt cover from
each of the bolts using the tool 3 .

 Fit the anti-theft socket 4 on the
wheelbrace 1 to unlock the anti-theft
bolt.

 Unlock the other bolts using the
wheelbrace 1 only.

 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.

 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.

 Raise the vehicle until there is suf-
i cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

 Remove the bolts and store them in
a clean place.

 Remove the wheel.

i
131
After changing a wheel
To store the punctured wheel in the
boot correctly, i rst remove the cen-
tral cover.
When using the "space-saving" type
spare wheel, do not exceed 50 mph
(80 km/h).
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer with-
out delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.

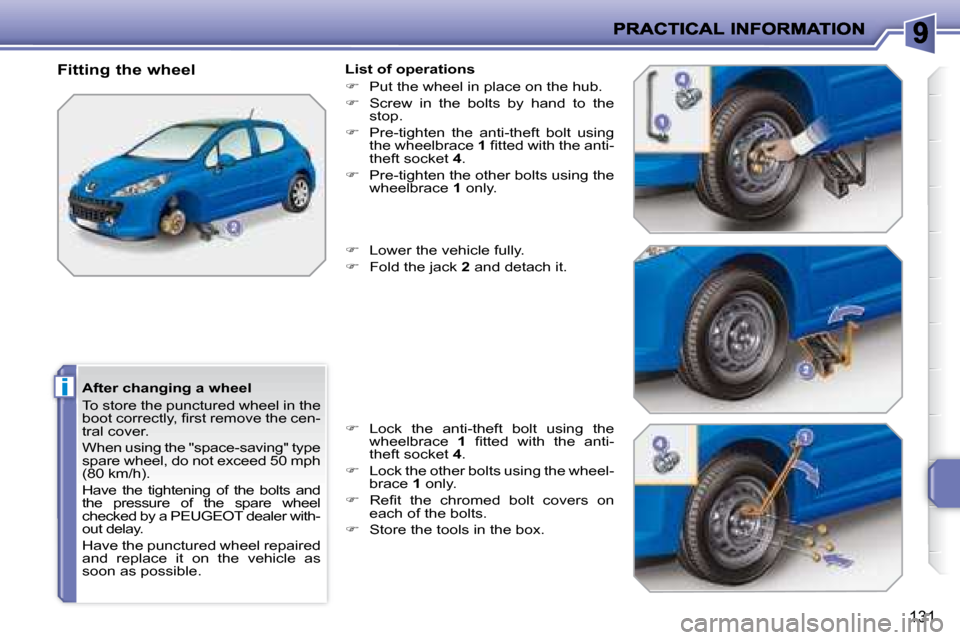

Fitting the wheel
List of operations

 Put the wheel in place on the hub.

 Screw in the bolts by hand to the
stop.

 Pre-tighten the anti-theft bolt using
the wheelbrace 1 i tted with the anti-
theft socket 4 .

 Pre-tighten the other bolts using the
wheelbrace 1 only.

 Lower the vehicle fully.

 Fold the jack 2 and detach it.

 Lock the anti-theft bolt using the
wheelbrace 1 i tted with the anti-
theft socket 4 .

 Lock the other bolts using the wheel-
brace 1 only.

 Rei t the chromed bolt covers on
each of the bolts.

 Store the tools in the box.

!
i
i
132
CHANGING A
BULB
Procedure for the replacement of a
faulty bulb with a new bulb without the
use of tools.
1. Direction indicators
(PY 21 W amber).

2. Side lights (W 5 W).

3. Dipped headlamps (H7-55 W).

4. Main beam headlamps (H1-55 W).

5. Directional headlamps
(H7-55 W).

6. Fog lamps (H11-55 W). Changing the direction indicators

 Handle the bulbs with a dry
cloth.
The headlamps are i tted with poly-
carbonate glass with a protective
coating:

 do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,

 use a sponge and soapy water. In certain climatic conditions (low
temperature, humidity),
conden-
sation on the internal surface of
the headlamp glass is normal ; it
disappears a few minutes after the
lights are switched on .
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
i cation and colour.

 Turn the bulb holder one quarter of
a turn and remove it.

 Pull the bulb then change it.
To rei t, carry out these operations in re-
verse order.
Front lights
Blown bulb
A message appears on the multifunc-
tion display to indicate the bulb to be
changed.
Refer to the appropriate procedure to
change the corresponding bulb.
Model with conventional lights

133
Changing the side lights

 Disconnect the main headlamp con-
nector.

 Remove the plastic protective cover
by pulling on the tab.

 Turn the bulb holder one quarter of
a turn and remove it.

 Pull the bulb and change it.
To rei t, carry out these operations in re-
verse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps

 Disconnect the main headlamp con-
nector.

 Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters

 Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

 Tilt the screwdriver to extract the re-
peater and remove the repeater.

 Disconnect the repeater connector.
To rei t, carry out these operations in re-
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.

 Disconnect the connector of the cor-
responding light.

 Move aside the spring to release the
bulb and remove the bulb.
To rei t, carry out these operations in re-
verse order. Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.

ii
134

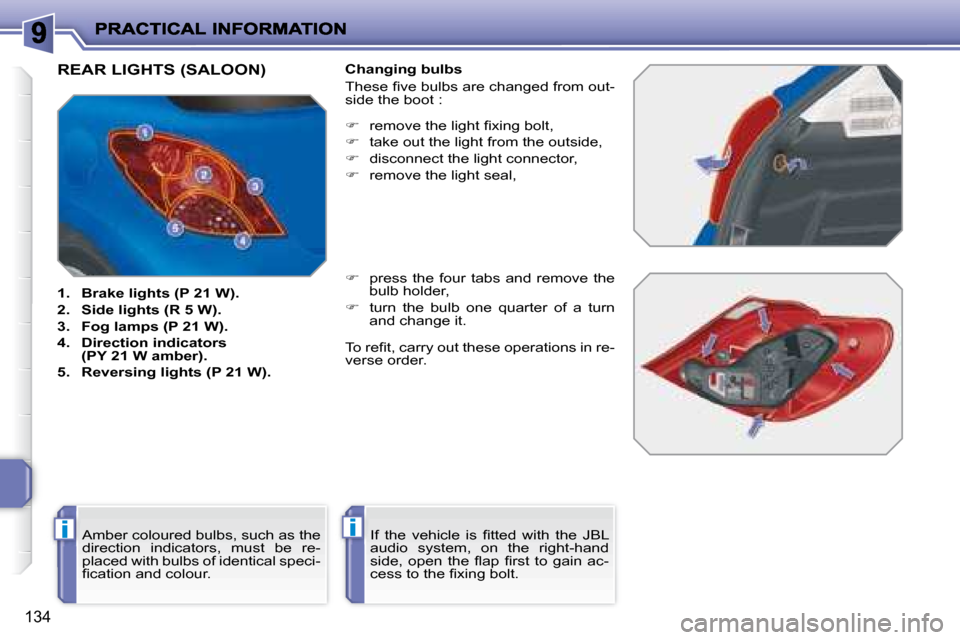

REAR LIGHTS (SALOON)

1. Brake lights (P 21 W).

2. Side lights (R 5 W).

3. Fog lamps (P 21 W).

4. Direction indicators
(PY 21 W amber).

5. Reversing lights (P 21 W). Changing bulbs
These i ve bulbs are changed from out-
side the boot :

 remove the light i xing bolt,

 take out the light from the outside,

 disconnect the light connector,

 remove the light seal,

 press the four tabs and remove the
bulb holder,

 turn the bulb one quarter of a turn
and change it.
If the vehicle is i tted with the JBL
audio system, on the right-hand
side, open the l ap i rst to gain ac-
cess to the i xing bolt.
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
i cation and colour. To rei t, carry out these operations in re-
verse order.

!
135
Changing the third brake
light bulbs (4 bulbs W 5 W)

 Press on the i xing pins on each side
of the light.

 Take out the light from the outside.

 Turn the bulb holder which corre-
sponds to the faulty bulb one quar-
ter of a turn and remove it.

 Pull the bulb and change it. Changing the number plate light
bulbs (W 5 W)

 Insert a thin screwdriver in one of
the exterior holes of the lens.

 Push it towards the outside to unclip it.

 Remove the lens.

 Pull the bulb and change it.
To rei t, carry out these operations in re-
verse order.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.

i
136

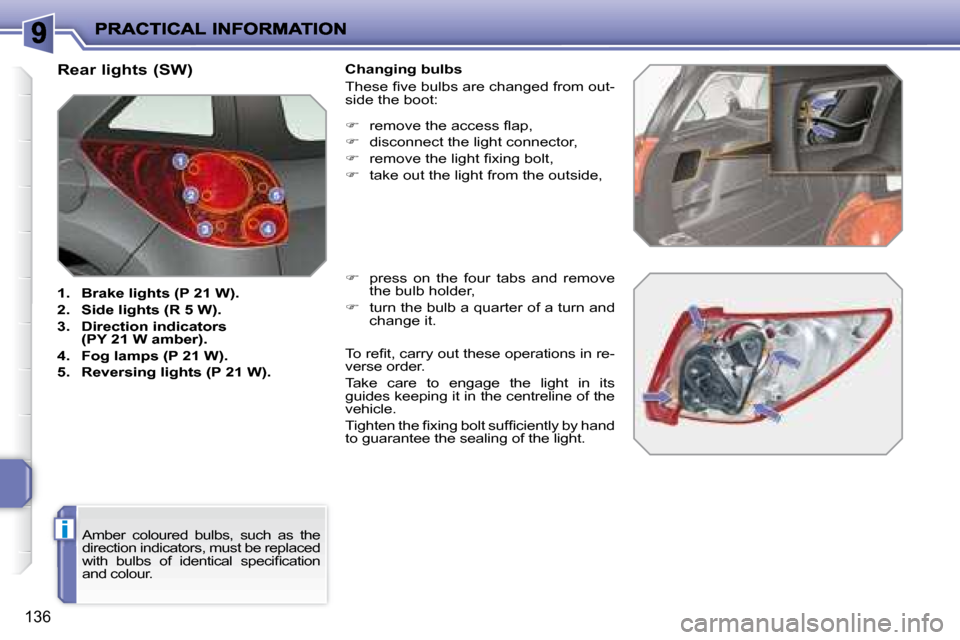

Rear lights (SW)
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Direction indicators (PY 21 W amber).
4. Fog lamps (P 21 W).
5. Reversing lights (P 21 W). Changing bulbs
These i ve bulbs are changed from out-
side the boot:

 remove the access l ap,

 disconnect the light connector,

 remove the light i xing bolt,

 take out the light from the outside,

 press on the four tabs and remove
the bulb holder,

 turn the bulb a quarter of a turn and
change it.
To rei t, carry out these operations in re-
verse order.
Take care to engage the light in its
guides keeping it in the centreline of the
vehicle.
Tighten the i xing bolt sufi ciently by hand
to guarantee the sealing of the light.
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specii cation
and colour.
1. Brake lights (P 21 W).
2. Side lights (R 5 W).
3. Direction indicators
(PY 21 W amber).
4. Fog lamps (P 21 W).
5. Reversing lights (P 21 W).

!
137
Changing the third brake light
bulbs (4 bulbs W 5 W)

 Remove the two light i xing nuts.

 Take out the light from the outside.

 Press on the two tabs and remove
the bulb holder.

 Pull the bulb and change it.
To rei t, carry out these operations in re-
verse order.
Tighten the i xing bolt sufi ciently by hand
to guarantee the sealing of the light. Changing the number plate
bulbs (W 5 W)

 Insert a thin screwdriver into one of
the exterior holes of the lens.

 Push it towards the outside to unclip it.

 Remove the lens.

 Pull the bulb and change it.
High pressure washing
When using this type of washing
on stubborn dirt, do not persist on
the headlamps, the lights and their
surrounds to avoid damaging their
varnish and their seal.

!
i
138
PEUGEOT does not accept any
responsibility for the costs incurred
in repairing your vehicle or for the
malfunctions resulting from the in-
stallation of additional accessories
which are not supplied or recom-
mended by PEUGEOT and which
are not installed in accordance with
its instructions, particularly when
the combined consumption of all
additional equipment connected
exceeds 10 milliamperes.
Installation of electrical
accessories
Your vehicle's electrical circuit is
designed to operate with the stand-
ard or optional equipment.
Before installing other electrical
equipment or accessories in your
vehicle, contact a PEUGEOT deal-
er.
CHANGING A FUSE
Procedure for the replacement of a
faulty fuse with a new fuse in order to
rectify a failure of the corresponding
function.
Access to the tools
The extraction pliers are installed on the
back of the fascia fuse box cover.
To gain access to them:

 unclip the cover pulling at the top,

 remove the cover completely,

 remove the pliers. Replacing a fuse
Before replacing a fuse, the cause of the
failure must be identii ed and rectii ed.

 Identify the faulty fuse by examining
the condition of its i lament.

 Use the special pliers to extract the
fuse from its housing.

 Always replace the faulty fuse with a
fuse of the same rating.

 Check that the number engraved
on the box and the rating engraved
on the top correspond to the tables
which follow.
Correct

Incorrect
