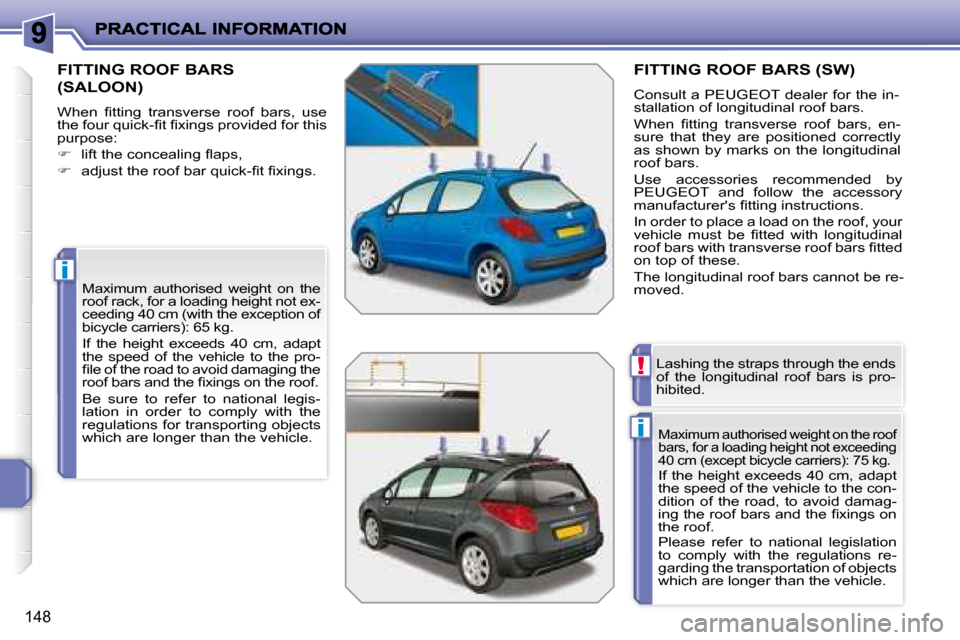

FITTING ROOF BARS
(SALOON)
W h e n i t t i n g t r a n s v e r s e r o o f b a r s , u s e
t h e f o u r q u i c k - i t i x i n g s p r o v i d e d f o r t h i s
purpose:
l i f t t h e c o n c e a l i n g l a p s ,
a d j u s t t h e r o o f b a r q u i c k - i t i x i n g s .
Maximum authorised weight on the
roof rack, for a loading height not ex-
ceeding 40 cm (with the exception of
bicycle carriers): 65 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
i l e o f t h e r o a d t o a v o i d d a m a g i n g t h e
r o o f b a r s a n d t h e i x i n g s o n t h e r o o f .
Be sure to refer to national legis-
lation in order to comply with the
regulations for transporting objects
which are longer than the vehicle.
FITTING ROOF BARS (SW)
Consult a PEUGEOT dealer for the in-
stallation of longitudinal roof bars.
W h e n i t t i n g t r a n s v e r s e r o o f b a r s , e n -
sure that they are positioned correctly
as shown by marks on the longitudinal
roof bars.
Use accessories recommended by
PEUGEOT and follow the accessory
m a n u f a c t u r e r ' s i t t i n g i n s t r u c t i o n s .
In order to place a load on the roof, your
v e h i c l e m u s t b e i t t e d w i t h l o n g i t u d i n a l
r o o f b a r s w i t h t r a n s v e r s e r o o f b a r s i t t e d
on top of these.
The longitudinal roof bars cannot be re-
moved.
Maximum authorised weight on the roof
bars, for a loading height not exceeding
40 cm (except bicycle carriers): 75 kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the con-
dition of the road, to avoid damag-
i n g t h e r o o f b a r s a n d t h e i x i n g s o n
the roof.
Please refer to national legislation
to comply with the regulations re-
garding the transportation of objects
which are longer than the vehicle.
Lashing the straps through the ends
of the longitudinal roof bars is pro-
hibited.
Page 162 of 223
!
i
149
T h e i t t i n g o f e l e c t r i c a l e q u i p m e n t
or accessories which are not re-
commended by PEUGEOT may
result in a failure of your vehicle's
electronic system.
P l e a s e n o t e t h i s s p e c i i c w a r n i n g .
You are advised to contact a rep-
resentative of the Marque to be
shown the range of recommended
equipment and accessories.

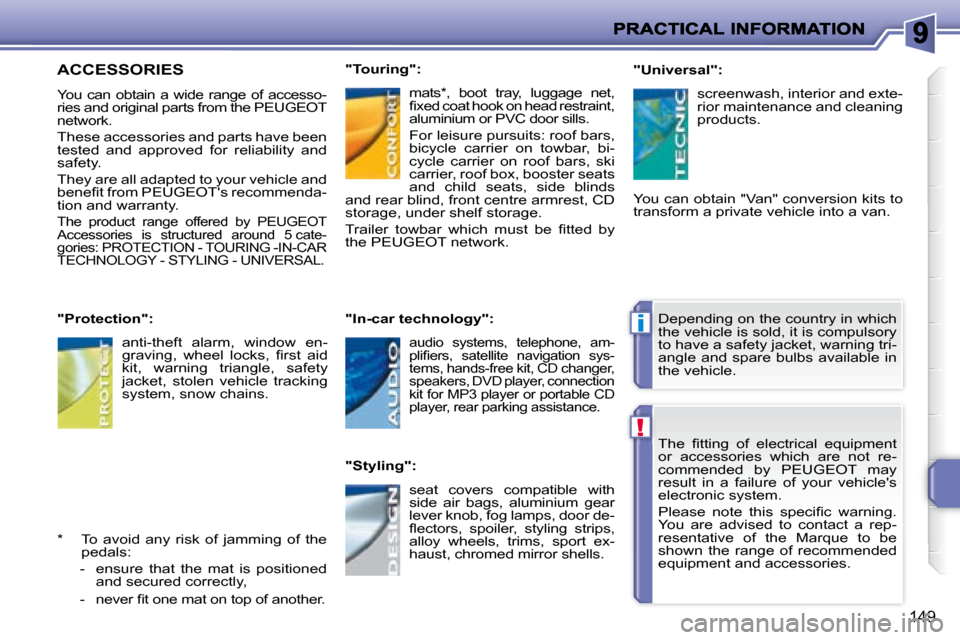

ACCESSORIES
You can obtain a wide range of accesso-
ries and original parts from the PEUGEOT
network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
b e n e i t f r o m P E U G E O T ' s r e c o m m e n d a -
tion and warranty.
The product range offered by PEUGEOT
Accessories is structured around 5 cate-
gories: PROTECTION - TOURING -IN-CAR
TECHNOLOGY - STYLING - UNIVERSAL.
"Protection": "Touring":
"In-car technology":
"Styling":
"Universal":
You can obtain "Van" conversion kits to
transform a private vehicle into a van.
* T o a v o i d a n y r i s k o f j a m m i n g o f t h e pedals:
- ensure that the mat is positioned and secured correctly,
- n e v e r i t o n e m a t o n t o p o f a n o t h e r . Depending on the country in which
the vehicle is sold, it is compulsory
to have a safety jacket, warning tri-
angle and spare bulbs available in
the vehicle.
anti-theft alarm, window en-
g r a v i n g , w h e e l l o c k s , i r s t a i d
kit, warning triangle, safety
jacket, stolen vehicle tracking
system, snow chains.
m a t s * , b o o t t r a y , l u g g a g e n e t ,
i x e d c o a t h o o k o n h e a d r e s t r a i n t ,
aluminium or PVC door sills.
For leisure pursuits: roof bars,
bicycle carrier on towbar, bi-
cycle carrier on roof bars, ski
carrier, roof box, booster seats
and child seats, side blinds
and rear blind, front centre armrest, CD
storage, under shelf storage.
T r a i l e r t o w b a r w h i c h m u s t b e i t t e d b y
the PEUGEOT network.
audio systems, telephone, am-
p l i i e r s , s a t e l l i t e n a v i g a t i o n s y s -
tems, hands-free kit, CD changer,
speakers, DVD player, connection
kit for MP3 player or portable CD
player, rear parking assistance.
seat covers compatible with
side air bags, aluminium gear
lever knob, fog lamps, door de-
l e c t o r s , s p o i l e r , s t y l i n g s t r i p s ,
alloy wheels, trims, sport ex-
haust, chromed mirror shells. screenwash, interior and exte-
rior maintenance and cleaning
products.
Page 163 of 223
10
150

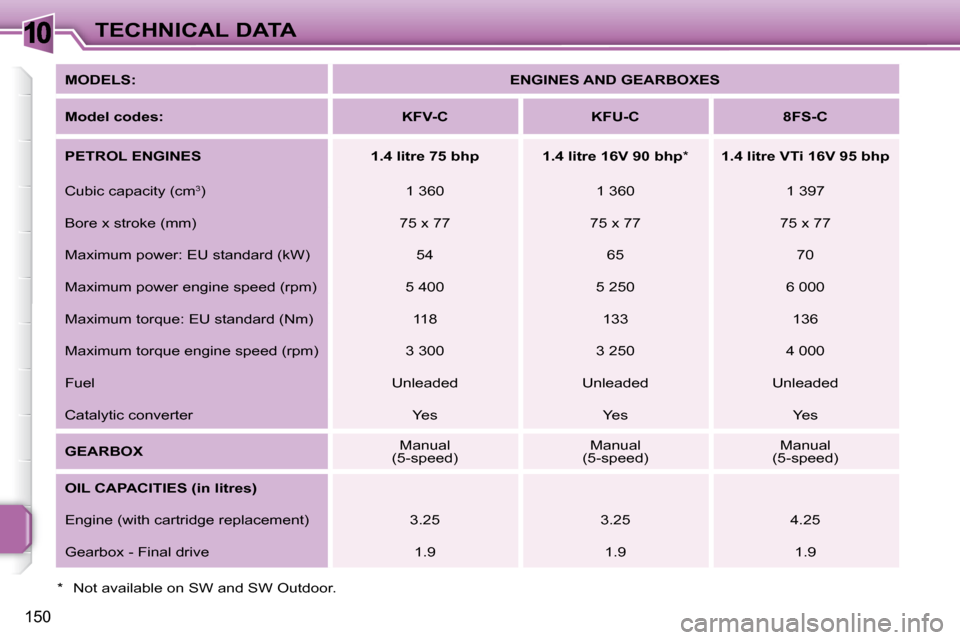

TECHNICAL DATA
MODELS: ENGINES AND GEARBOXES
Model codes: KFV-C KFU-C 8FS-C
PETROL ENGINES 1.4 litre 75 bhp 1.4 litre 16V
90 bhp * 1.4 litre VTi 16V 95 bhp
Cubic capacity (cm 3
) 1 360 1 360 1 397
Bore x stroke (mm) 75 x 77 75 x 77 75 x 77
Maximum power: EU standard (kW) 54 65 70
Maximum power engine speed (rpm) 5 400 5 250 6 000
Maximum torque: EU standard (Nm) 118 133 136
Maximum torque engine speed (rpm) 3 300 3 250 4 000
Fuel Unleaded Unleaded Unleaded
Catalytic converter Yes Yes Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.25 3.25 4.25
Gearbox - Final drive 1.9 1.9 1.9
* Not available on SW and SW Outdoor.
Page 164 of 223
10TECHNICAL DATA
151

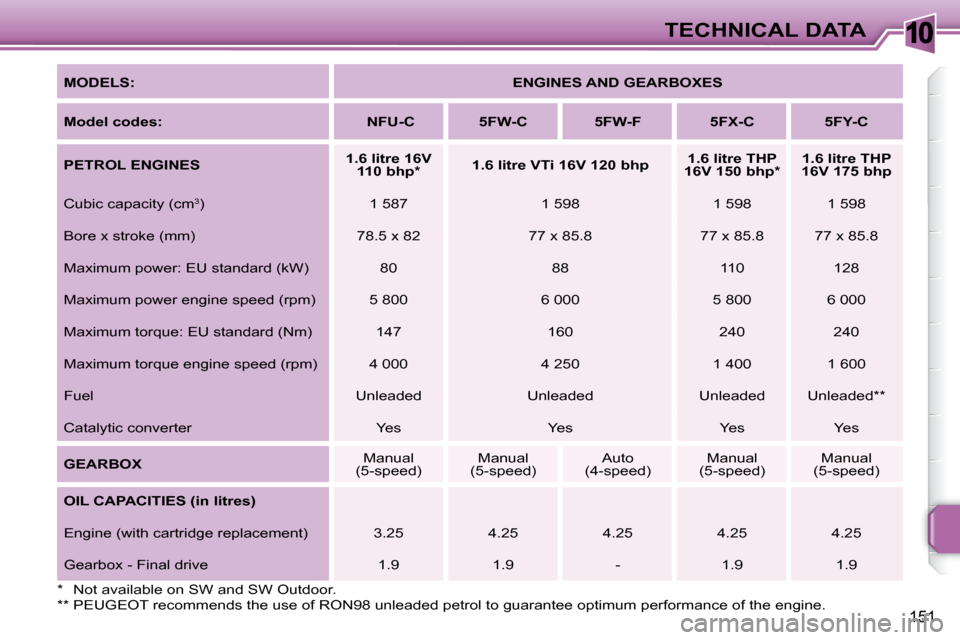

MODELS:
ENGINES AND GEARBOXES
Model codes: NFU-C 5FW-C 5FW-F 5FX-C 5FY-C
PETROL ENGINES
1.6 litre 16V
110 bhp *
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp *
1.6 litre THP
16V 175 bhp
Cubic capacity (cm 3
) 1 587 1 598 1 598 1 598
Bore x stroke (mm) 78.5 x 82 77 x 85.8 77 x 85.8 77 x 85.8
Maximum power: EU standard (kW) 80 88 110 128
Maximum power engine speed (rpm) 5 800 6 000 5 800 6 000
Maximum torque: EU standard (Nm) 147 160 240 240
Maximum torque engine speed (rpm) 4 000 4 250 1 400 1 600
Fuel Unleaded Unleaded Unleaded Unleaded **
Catalytic converter Yes Yes Yes Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Auto
(4-speed) Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES
(in litres)
Engine (with cartridge replacement) 3.25 4.25 4.25 4.25 4.25
Gearbox - Final drive 1.9 1.9 - 1.9 1.9
** PEUGEOT recommends the use of RON98 unleaded petrol to guarantee optimum performance of the engine. * Not available on SW and SW Outdoor.
Page 165 of 223
10
160
TECHNICAL DATA
MODELS:
ENGINES AND GEARBOXES
Model codes: 8HZ-C 9HX-C 9HV-C 9HY-C 9HZ-C

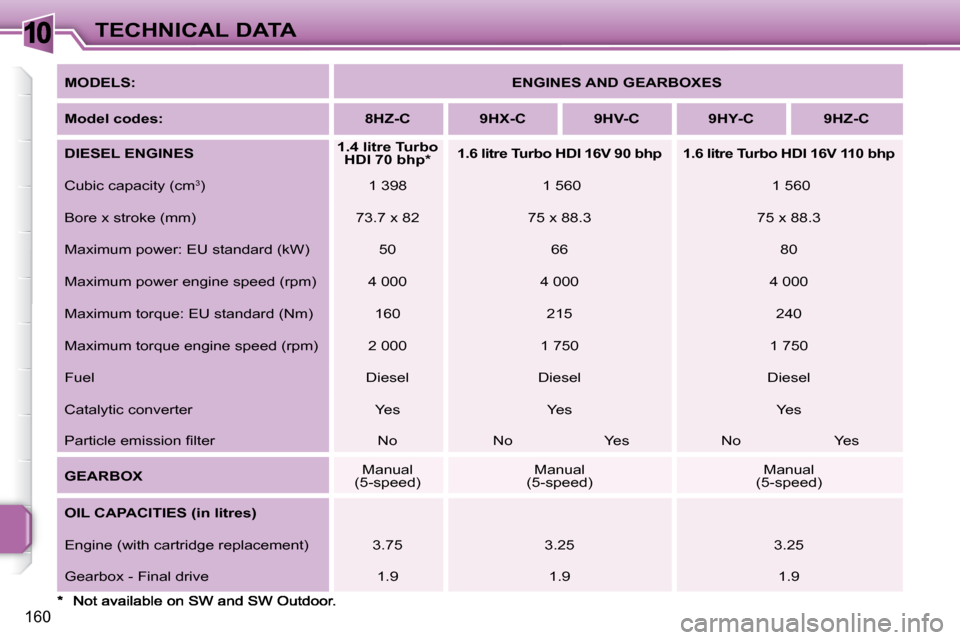

DIESEL ENGINES
1.4 litre Turbo
HDI 70 bhp *
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Cubic capacity (cm 3
) 1 398 1 560 1 560
Bore x stroke (mm) 73.7 x 82 75 x 88.3 75 x 88.3
Maximum power: EU standard (kW) 50 66 80
Maximum power engine speed (rpm) 4 000 4 000 4 000
Maximum torque: EU standard (Nm) 160 215 240
Maximum torque engine speed (rpm) 2 000 1 750 1 750
Fuel Diesel Diesel Diesel
Catalytic converter Yes Yes Yes
P a r t i c l e e m i s s i o n i l t e r No No Yes No Yes
GEARBOX Manual
(5-speed) Manual
(5-speed) Manual
(5-speed)
OIL CAPACITIES (in litres)
Engine (with cartridge replacement) 3.75 3.25 3.25
Gearbox - Final drive 1.9 1.9 1.9
Page 166 of 223
10
152
TECHNICAL DATA
SALOON

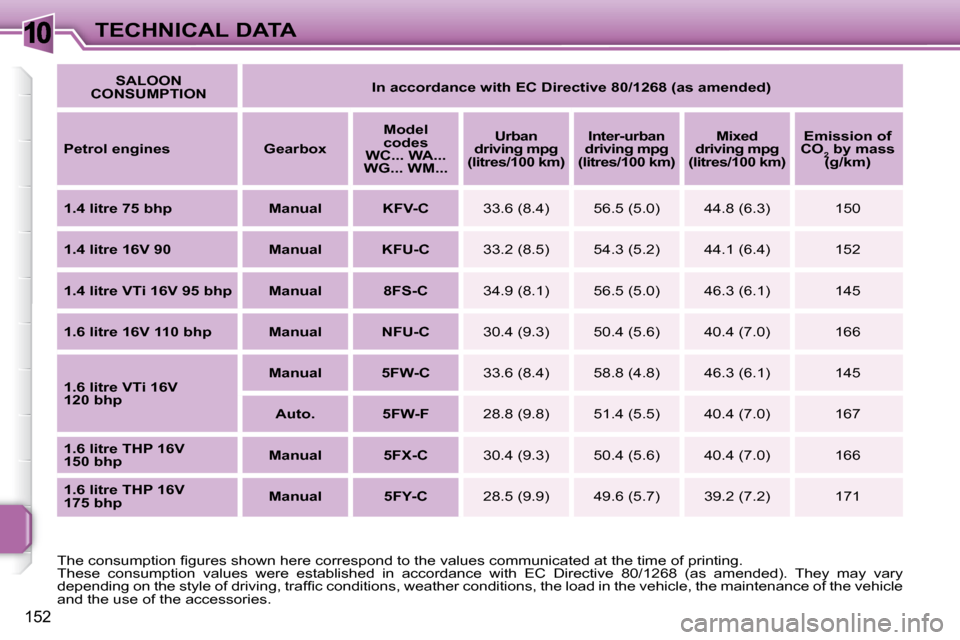

CONSUMPTION
In accordance with EC Directive 80/1268 (as amended)
Petrol engines Gearbox
Model
codes
WC... WA...
WG... WM...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre 75 bhp Manual KFV-C 33.6 (8.4) 56.5 (5.0) 44.8 (6.3) 150
1.4 litre 16V 90 Manual KFU-C 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 152
1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.9 (8.1) 56.5 (5.0) 46.3 (6.1) 145
1.6 litre 16V 110 bhp Manual NFU-C 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166
1.6 litre VTi 16V
120 bhp
Manual 5FW-C 33.6 (8.4) 58.8 (4.8) 46.3 (6.1) 145
Auto. 5FW-F 28.8 (9.8) 51.4 (5.5) 40.4 (7.0) 167
1.6 litre THP 16V
150 bhp
Manual 5FX-C 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166
1.6 litre THP 16V
175 bhp
Manual 5FY-C 28.5 (9.9) 49.6 (5.7) 39.2 (7.2) 171
T h e c o n s u m p t i o n i g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f i c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
Page 167 of 223
10TECHNICAL DATA
T h e c o n s u m p t i o n i g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f i c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.

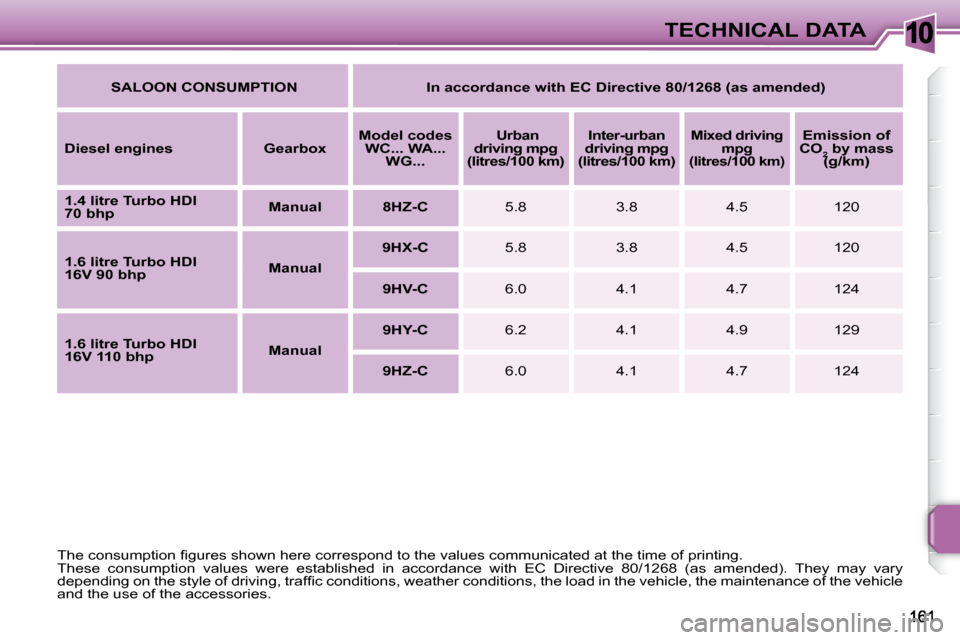

SALOON CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Diesel engines Gearbox
Model codes
WC... WA... WG...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed driving
mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre Turbo HDI
70 bhp
Manual 8HZ-C 5.8 3.8 4.5 120
1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 3.8 4.5 120
9HV-C 6.0 4.1 4.7 124
1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C 6.2 4.1 4.9 129
9HZ-C 6.0 4.1 4.7 124
Page 168 of 223
10TECHNICAL DATA
153

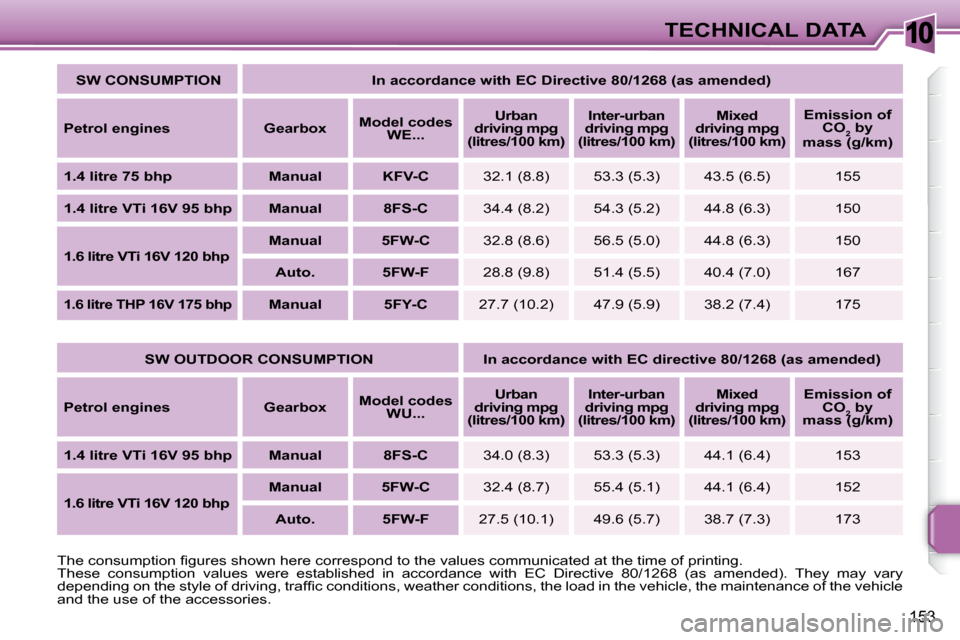

SW CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Petrol engines Gearbox
Model codes
WE...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by
mass (g/km)
1.4 litre 75 bhp Manual KFV-C 32.1 (8.8) 53.3 (5.3) 43.5 (6.5) 155
1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.4 (8.2) 54.3 (5.2) 44.8 (6.3) 150
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 32.8 (8.6) 56.5 (5.0) 44.8 (6.3) 150
Auto. 5FW-F 28.8 (9.8) 51.4 (5.5) 40.4 (7.0) 167
1.6 litre THP 16V 175 bhp
Manual 5FY-C 27.7 (10.2) 47.9 (5.9) 38.2 (7.4) 175
SW OUTDOOR CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearbox
Model codes
WU...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by
mass (g/km)
1.4 litre VTi 16V 95 bhp Manual 8FS-C 34.0 (8.3) 53.3 (5.3) 44.1 (6.4) 153
1.6 litre VTi 16V 120 bhp
Manual 5FW-C 32.4 (8.7) 55.4 (5.1) 44.1 (6.4) 152
Auto. 5FW-F 27.5 (10.1) 49.6 (5.7) 38.7 (7.3) 173
T h e c o n s u m p t i o n i g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f i c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
Page 169 of 223
10
162
TECHNICAL DATA

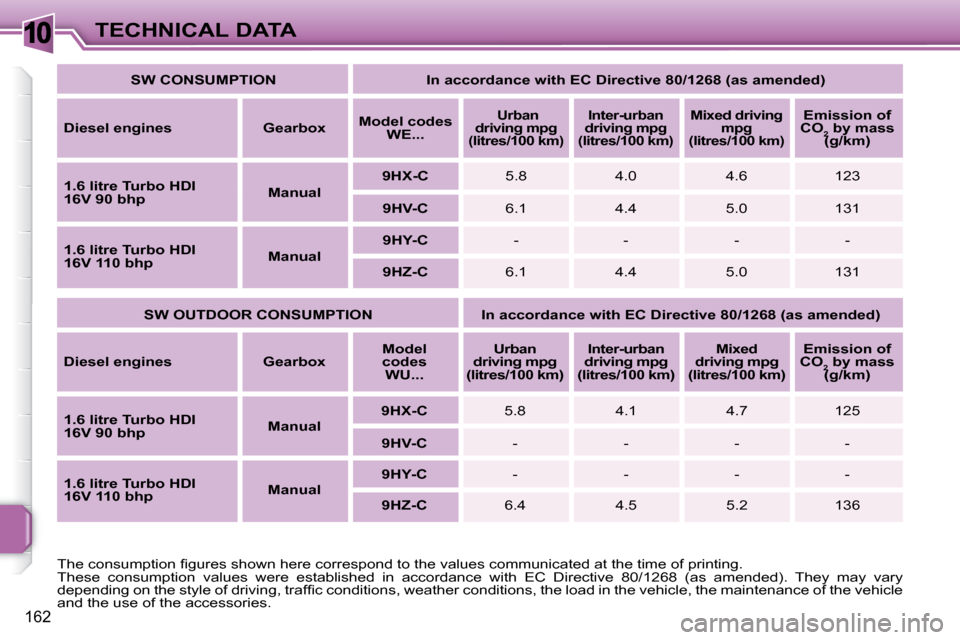

SW CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Diesel engines Gearbox
Model codes
WE...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed driving
mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 4.0 4.6 123
9HV-C 6.1 4.4 5.0 131
1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C - - - -
9HZ-C 6.1 4.4 5.0 131
SW OUTDOOR CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Diesel engines Gearbox
Model
codes WU...
Urban
driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed
driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.6 litre Turbo HDI
16V 90 bhp
Manual
9HX-C 5.8 4.1 4.7 125
9HV-C - - - -
1.6 litre Turbo HDI
16V 110 bhp
Manual
9HY-C - - - -
9HZ-C 6.4 4.5 5.2 136
T h e c o n s u m p t i o n i g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC D irective 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f i c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the accessories.
Page 170 of 223
10
154
TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1000 metres; the towed load mentioned mu st
be reduced by 10% for each additional 1000 metres of altitu de.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

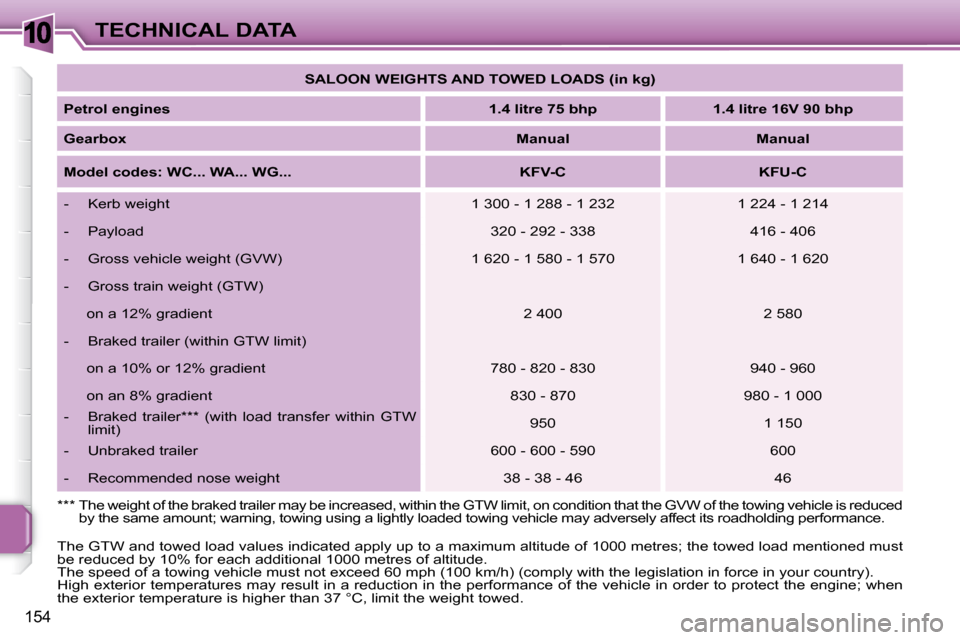

SALOON WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre 75 bhp 1.4 litre 16V 90 bhp
Gearbox
Manual Manual
Model codes: WC... WA... WG... KFV-C KFU-C
- Kerb weight 1 300 - 1 288 - 1 232 1 224 - 1 214
- Payload 320 - 292 - 338 416 - 406
- Gross vehicle weight (GVW) 1 620 - 1 580 - 1 570 1 640 - 1 620
- Gross train weight (GTW)
on a 12% gradient 2 400 2 580
- Braked trailer (within GTW limit) on a 10% or 12% gradient 780 - 820 - 830 940 - 960
on an 8% gradient 830 - 870 980 - 1 000
- Braked trailer *** (with load transfer within GTW limit) 950 1 150
- Unbraked trailer 600 - 600 - 590 600
- Recommended nose weight 38 - 38 - 46 46
*** The weight of the braked trailer may be incr eased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
