check engine Peugeot 207 Dag 2007.5 User Guide

!
!
i
144
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals i rst.
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger

 Disconnect the battery from the vehicle.

 Follow the instructions for use pro-
vided by the manufacturer of the
charger.

 Reconnect starting with the nega-
tive terminal (-).

 Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them and
clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually. System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off the
ignition before disconnecting the bat-
tery.
Close the windows, the sunroof and
the doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
However, if slight difi culties are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric windows,
- the sunroof,
- the GPS satellite navigation
system.

!
!
i
144
Do not disconnect the terminals
while the engine is running.
Do not charge the batteries without
disconnecting the terminals i rst.
The batteries contain harmful sub-
stances such as sulphuric acid and
lead. They must be disposed of in
accordance with regulations and
must not, in any circumstances, be
discarded with household waste.
Take used remote control batteries
and vehicle batteries to a special
collection point.
Charging the battery using a
battery charger

 Disconnect the battery from the vehicle.

 Follow the instructions for use pro-
vided by the manufacturer of the
charger.

 Reconnect starting with the nega-
tive terminal (-).

 Check that the terminals and
connectors are clean. If they are
covered with sulphate (whitish or
greenish deposit), remove them and
clean them.
At the risk of discharging the bat-
tery, the deactivated functions can
be reactivated manually. System which manages the use of cer-
tain functions in relation to the level of
charge remaining in the battery.
When the vehicle is being driven, the
load reduction function temporarily deac-
tivates certain functions, such as the air
conditioning, the rear screen de-icing...
The deactivated functions are reactivat-
ed automatically as soon as conditions
permit.
It is advisable to disconnect the
battery if the vehicle is to be left un-
used for more than one month. Before disconnecting the
battery
Wait 2 minutes after switching off the
ignition before disconnecting the bat-
tery.
Close the windows, the sunroof and
the doors before disconnecting the
battery.
Following reconnection of the
battery
Following reconnection of the bat-
tery, switch on the ignition and wait
1 minute before starting to permit in-
itialisation of the electronic systems.
However, if slight difi culties are en-
countered following this operation,
contact a PEUGEOT dealer.
Referring to the corresponding sec-
tion, you must yourself reinitialise:
- the remote control key,
- the one-touch electric windows,
- the sunroof,
- the GPS satellite navigation
system.

!
i
145
A l at battery prevents the engine
from starting (refer to the corre-
sponding paragraph).
If the telephone is being used at
this time:
- it will be maintained for 5 minutes with the RD4 audio equipment
hands-free kit,
- it will still be possible to i nish the call with the RT4 GPS au-
dio/telephone.

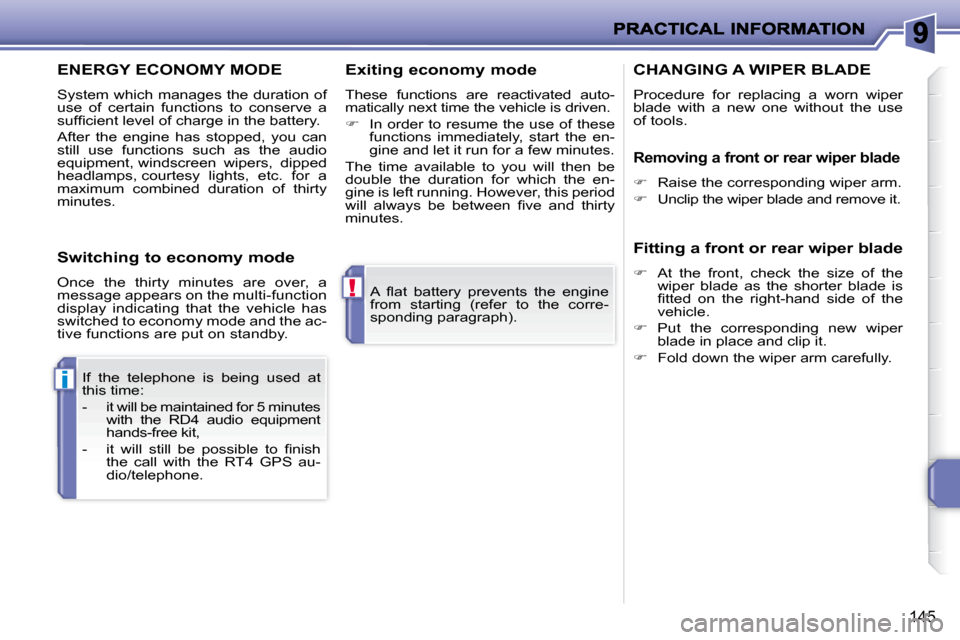

ENERGY ECONOMY MODE
System which manages the duration of
use of certain functions to conserve a
sufi cient level of charge in the battery.
After the engine has stopped, you can
still use functions such as the audio
equipment, windscreen wipers, dipped
headlamps, courtesy lights, etc. for a
maximum combined duration of thirty
minutes. Exiting economy mode
These functions are reactivated auto-
matically next time the vehicle is driven.

 In order to resume the use of these
functions immediately, start the en-
gine and let it run for a few minutes.
The time available to you will then be
double the duration for which the en-
gine is left running. However, this period
will always be between i ve and thirty
minutes.
Switching to economy mode
Once the thirty minutes are over, a
message appears on the multi-function
display indicating that the vehicle has
switched to economy mode and the ac-
tive functions are put on standby.
CHANGING A WIPER BLADE
Procedure for replacing a worn wiper
blade with a new one without the use
of tools.

Removing a front or rear wiper blade

 Raise the corresponding wiper arm.

 Unclip the wiper blade and remove it.
Fitting a front or rear wiper blade

 At the front, check the size of the
wiper blade as the shorter blade is
i tted on the right-hand side of the
vehicle.

 Put the corresponding new wiper
blade in place and clip it.

 Fold down the wiper arm carefully.

i
i
147
TOWING A TRAILER,
A CARAVAN, ETC.
Your vehicle is primarily designed for
transporting people and luggage, but it
may also be used for towing a trailer. Driving advice
The maximum towing load on a long
slope depends on the gradient and the
outside temperature.
In all cases, pay attention to the coolant
temperature.
Distribution of loads

 Distribute the load in the trailer so
that the heaviest items are as close
as possible to the axle and the nose
weight approaches the maximum
permitted without exceeding it.
Air density decreases with altitude, thus
reducing engine performance. Above
1 000 metres, the maximum towing load
must be reduced by 10 % and so on for
every 1 000 metres of altitude.
Refer to the "Technical Data" section for
details of the weights and towing loads
which apply to your vehicle.
Side wind

 Take into account the increased
sensitivity to side wind. Braking
Towing a trailer increases the braking
distance.
Tyres

 Check the tyre pressures of the tow-
ing vehicle and of the trailer, observ-
ing the recommended pressures.
Lights

 Check the electrical signalling on
the trailer.
The rear parking assistance will be
deactivated automatically if a gen-
uine PEUGEOT towbar is used.
 If the warning light and the

STOP warning light come
on, stop the vehicle and
switch off the engine as
soon as possible.
Towbar suited to the attachment of a
trailer or caravan with additional signal-
ling and lighting.
Cooling
Towing a trailer on a slope increases
the temperature of the coolant.
As the fan is electrically controlled, its
cooling capacity is not dependent on
the engine speed.

 To lower the engine speed, reduce
your speed.
We recommend the use of original
PEUGEOT towbars and their har-
nesses that have been tested and ap-
proved from the design stage of your
vehicle and that the i tting of the towbar
is entrusted to a PEUGEOT dealer.
If the trailer is not i tted by a
PEUGEOT dealer, it is imperative
that it is i tted using the electrical
pre-equipment installed at the rear of
the vehicle, in accordance with the
manufacturer's instructions. Driving with a trailer subjects the towing
vehicle to more signii cant stress and its
driver must be particularly careful.

209
QUESTIONSOLUTION
RESPONSE
The stored stations do
not function (no sound,
87.5 Mhz is displayed...). An incorrect waveband is selected.
Press the BAND AST button to return to the
waveband (AM, FM1, FM2, FMAST) on which the
stations are stored.
The trafic announcement
(TA) is displayed. I do
not receive any trafic
information. Tune to a radio station which broadcasts trafic
information.
The radio station is not part of the regional trafi
c information network.
The quality of reception
of the radio station
listened to gradually
deteriorates or the
stored stations do
not function (no
sound, 87.5 Mhz is
displayed...). The vehicle is too far from the transmitter used by
the station listened to or
there is no transmitter in the geographical area th rough which the vehicle
is travelling.
The environment (hills, buildings, tunnels, basemen t car parks...) block
reception, including in RDS mode.
The aerial is absent or has been damaged (for examp le when going
through a car wash or into an underground car park) .Activate the RDS function to enable the system
to check whether there is a more powerful
transmitter in the geographical area.
This phenomenon is normal and does not
indicate a failure of the audio equipment.
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1
to 2 seconds in radio
mode. During this brief sound cut-out, the RDS searches f
or any frequency
permitting better reception of the station. Deactivate the RDS function if the phenomenon
is too frequent and always on the same route.
With the engine off,
the audio equipment
switches off after a few
minutes of use. When the engine is switched off, the audio equipmen
t operating time
depends on the battery charge.
The switch-off is normal: the audio equipment switc hes to economy mode
and switches off to prevent discharging of the vehi cle’s battery.Start the vehicle’s engine to increase the battery
charge.
The message "the audio
system is overheated"
appears on the display. Switch the audio system off for a few minutes to
allow the system to cool.
In order to protect the installation if the surroun
ding temperature is too
high, the audio equipment switches to an automatic thermal protection
mode leading to a reduction of the volume or stoppi ng of the playing of the
CD.
