58

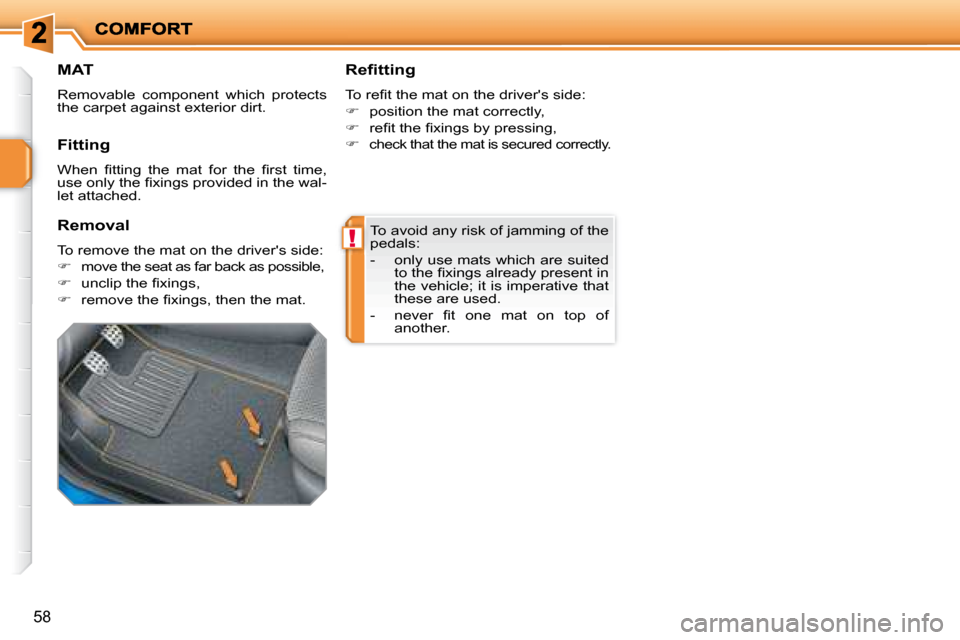

To avoid any risk of jamming of the
pedals:
- only use mats which are suited to the fi xings already present in
the vehicle; it is imperative that
these are used.
- never fi t one mat on top of another.
MAT
Removable component which protects
the carpet against exterior dirt. Refitting
To refi t the mat on the driver's side:

 position the mat correctly,

 refi t the fi xings by pressing,


check that the mat is secured correctly. Fitting
When fi tting the mat for the fi rst time,
use only the fi xings provided in the wal-
let attached.
Removal
To remove the mat on the driver's side:

 move the seat as far back as possible,

 unclip the fi xings,

 remove the fi xings, then the mat.

59

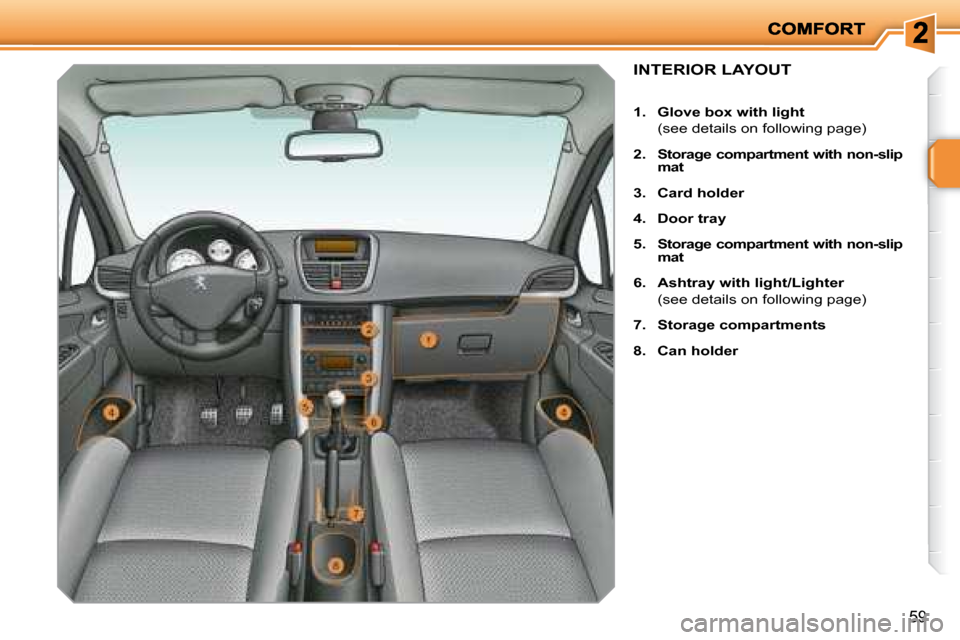

INTERIOR LAYOUT

1. Glove box with light
(see details on following page)

2. Storage compartment with non-slip
mat

3. Card holder

4. Door tray

5. Storage compartment with non-slip
mat

6. Ashtray with light/Lighter
(see details on following page)

7. Storage compartments

8. Can holder

60

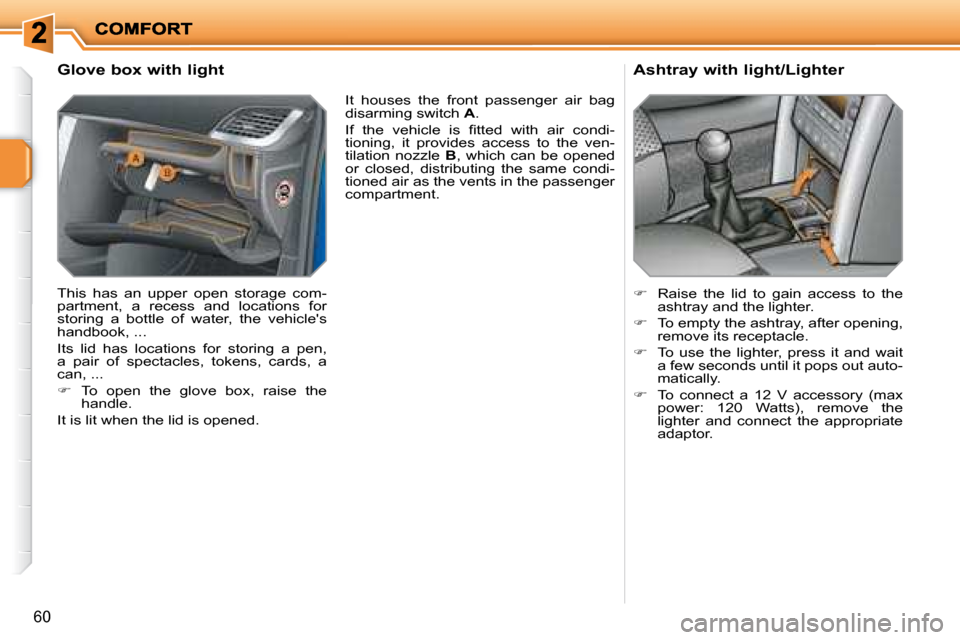

Glove box with light
This has an upper open storage com-
partment, a recess and locations for
storing a bottle of water, the vehicle's
handbook, ...
Its lid has locations for storing a pen,
a pair of spectacles, tokens, cards, a
can, ...

 To open the glove box, raise the
handle.
It is lit when the lid is opened.
 Raise the lid to gain access to the
ashtray and the lighter.

 To empty the ashtray, after opening,
remove its receptacle.

 To use the lighter, press it and wait
a few seconds until it pops out auto-
matically.

 To connect a 12 V accessory (max
power: 120 Watts), remove the
lighter and connect the appropriate
adaptor.
It houses the front passenger air bag
disarming switch
A .
If the vehicle is fi tted with air condi-
tioning, it provides access to the ven-
tilation nozzle B , which can be opened
or closed, distributing the same condi-
tioned air as the vents in the passenger
compartment. Ashtray with light/Lighter

61

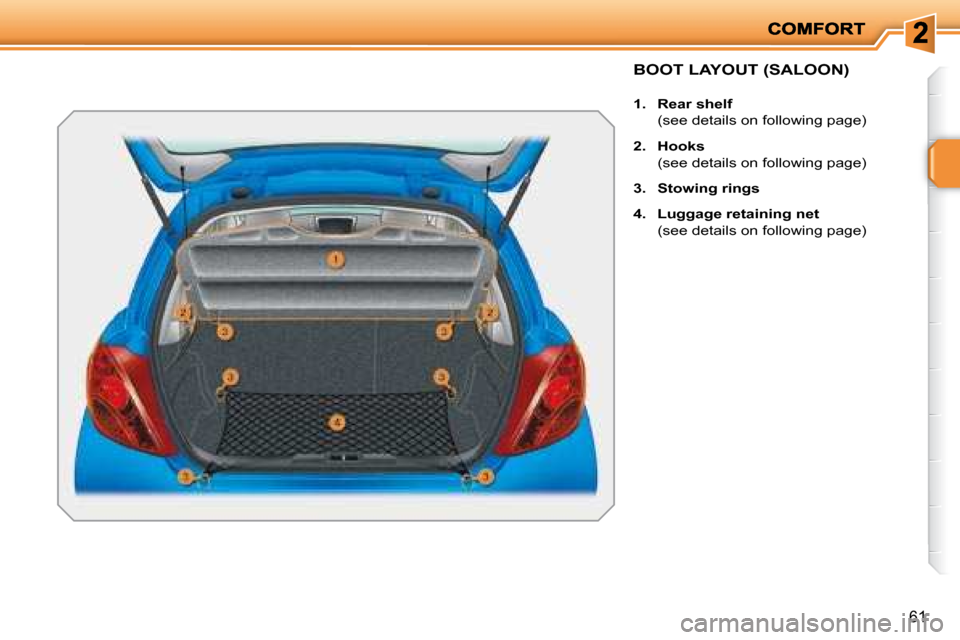

BOOT LAYOUT (SALOON)

1. Rear shelf
(see details on following page)

2. Hooks
(see details on following page)

3. Stowing rings

4. Luggage retaining net
(see details on following page)

i
62

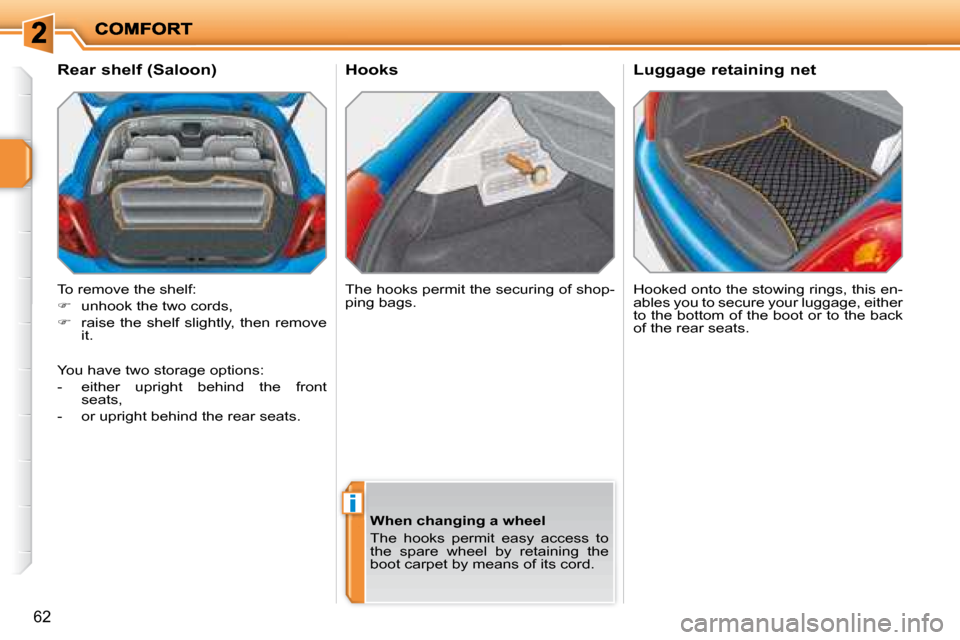

Hooks Hooked onto the stowing rings, this en-
ables you to secure your luggage, either
to the bottom of the boot or to the back
of the rear seats.
Rear shelf (Saloon)
To remove the shelf:

 unhook the two cords,

 raise the shelf slightly, then remove
it. The hooks permit the securing of shop-
ping bags. Luggage retaining net
When changing a wheel
The hooks permit easy access to
the spare wheel by retaining the
boot carpet by means of its cord.
You have two storage options:
- either upright behind the front
seats,
- or upright behind the rear seats.

63

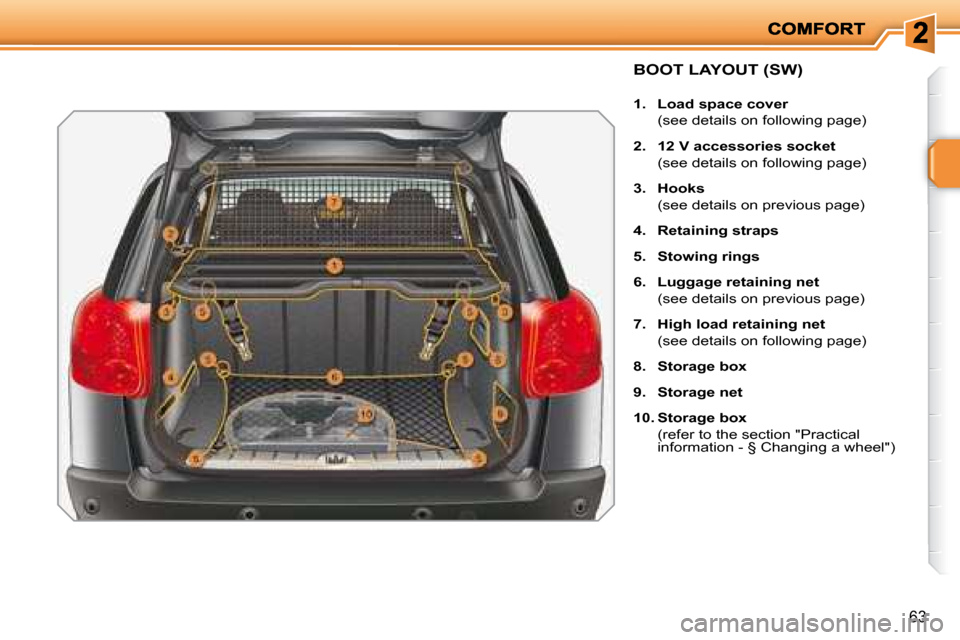

BOOT LAYOUT (SW)

1. Load space cover
(see details on following page)

2. 12 V accessories socket
(see details on following page)

3. Hooks
(see details on previous page)

4. Retaining straps

5. Stowing rings

6. Luggage retaining net
(see details on previous page)

7. High load retaining net
(see details on following page)

8. Storage box

9. Storage net

10. Storage box
(refer to the section "Practical information - § Changing a wheel")

i
64

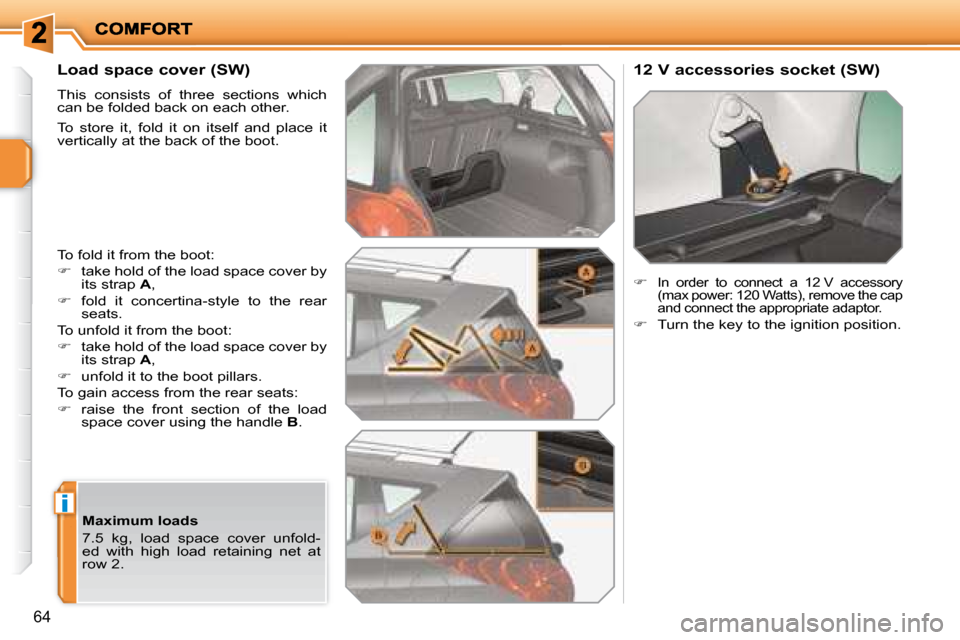

Load space cover (SW)
This consists of three sections which
can be folded back on each other.
To store it, fold it on itself and place it
vertically at the back of the boot.
To fold it from the boot:

 take hold of the load space cover by
its strap A ,

 fold it concertina-style to the rear
seats.
To unfold it from the boot:

 take hold of the load space cover by
its strap A ,

 unfold it to the boot pillars.
To gain access from the rear seats:

 raise the front section of the load
space cover using the handle B . 12 V accessories socket (SW)


In order to connect a 12 V accessory
(max power: 120 Watts), remove the cap
and connect the appropriate adaptor.

 Turn the key to the ignition position.
Maximum loads
7.5 kg, load space cover unfold-
ed with high load retaining net at
row 2.

i
65

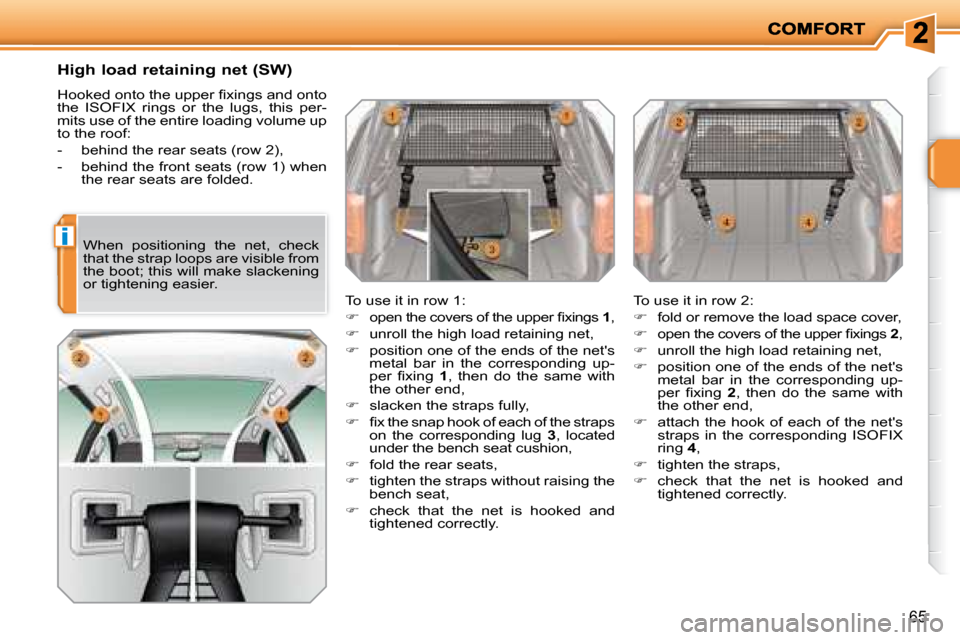

High load retaining net (SW)
Hooked onto the upper fi xings and onto
the ISOFIX rings or the lugs, this per-
mits use of the entire loading volume up
to the roof:
- behind the rear seats (row 2),
- behind the front seats (row 1) when the rear seats are folded.
To use it in row 1:

 open the covers of the upper fi xings 1 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 1 , then do the same with
the other end,

 slacken the straps fully,

 fi x the snap hook of each of the straps
on the corresponding lug 3 , located
under the bench seat cushion,

 fold the rear seats,

 tighten the straps without raising the
bench seat,

 check that the net is hooked and
tightened correctly. To use it in row 2:

 fold or remove the load space cover,

 open the covers of the upper fi xings 2 ,

 unroll the high load retaining net,

 position one of the ends of the net's
metal bar in the corresponding up-
per fi xing 2 , then do the same with
the other end,

 attach the hook of each of the net's
straps in the corresponding ISOFIX
ring 4 ,

 tighten the straps,

 check that the net is hooked and
tightened correctly.
When positioning the net, check
that the strap loops are visible from
the boot; this will make slackening
or tightening easier.

!
i
ACCESS
66

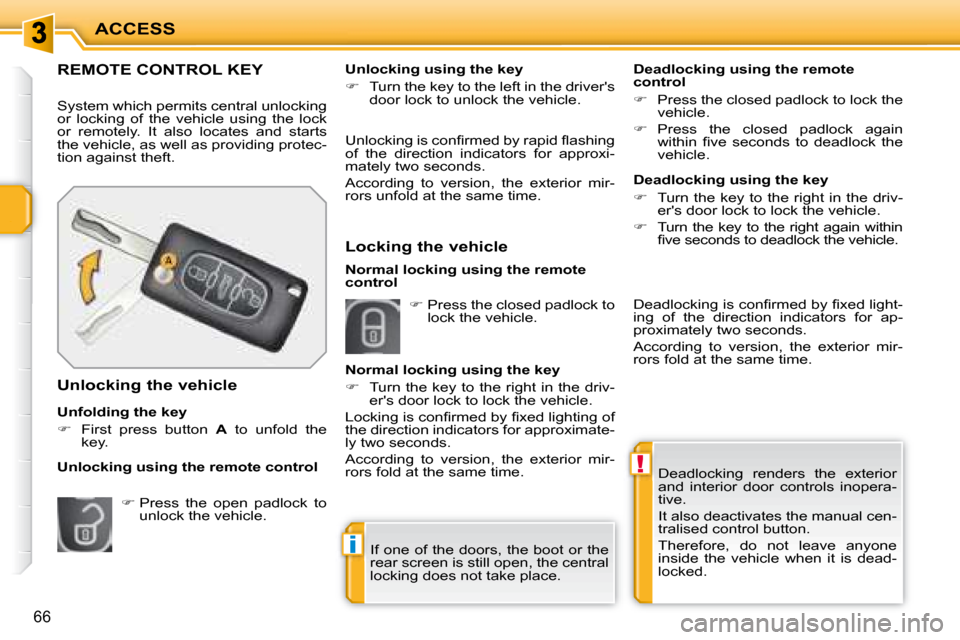

Deadlocking renders the exterior
and interior door controls inopera-
tive.
It also deactivates the manual cen-
tralised control button.
Therefore, do not leave anyone
inside the vehicle when it is dead-
locked.
REMOTE CONTROL KEY
System which permits central unlocking
or locking of the vehicle using the lock
or remotely. It also locates and starts
the vehicle, as well as providing protec-
tion against theft.
Unfolding the key

 First press button A to unfold the
key.
Unlocking the vehicle Unlocking is confi rmed by rapid fl ashing
of the direction indicators for approxi-
mately two seconds.
According to version, the exterior mir-
rors unfold at the same time.
Locking the vehicle
Deadlocking using the remote
control

 Press the closed padlock to lock the
vehicle.

 Press the closed padlock again
within fi ve seconds to deadlock the
vehicle.

 Press the open padlock to
unlock the vehicle. Unlocking using the key

 Turn the key to the left in the driver's
door lock to unlock the vehicle.
Normal locking using the key

 Turn the key to the right in the driv-
er's door lock to lock the vehicle.
Locking is confi rmed by fi xed lighting of
the direction indicators for approximate-
ly two seconds.
According to version, the exterior mir-
rors fold at the same time.
Unlocking using the remote control Deadlocking using the key

 Turn the key to the right in the driv-
er's door lock to lock the vehicle.

 Turn the key to the right again within
fi ve seconds to deadlock the vehicle.

 Press the closed padlock to
lock the vehicle.
If one of the doors, the boot or the
rear screen is still open, the central
locking does not take place.
Normal locking using the remote
control
Deadlocking is confi rmed by fi xed light-
ing of the direction indicators for ap-
proximately two seconds.
According to version, the exterior mir-
rors fold at the same time.

i
i
67

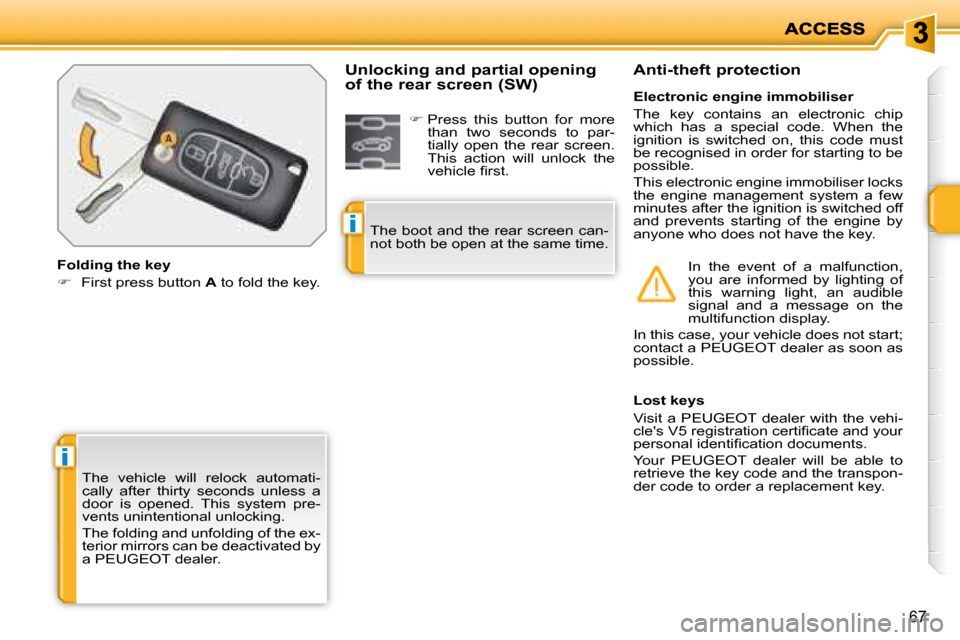

The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the ex-
terior mirrors can be deactivated by
a PEUGEOT dealer.
Folding the key

 First press button A to fold the key.
Lost keys
Visit a PEUGEOT dealer with the vehi-
cle's V5 registration certifi cate and your
personal identifi cation documents.
Your PEUGEOT dealer will be able to
retrieve the key code and the transpon-
der code to order a replacement key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Unlocking and partial opening
of the rear screen (SW)

 Press this button for more
than two seconds to par-
tially open the rear screen.
This action will unlock the
vehicle fi rst.
The boot and the rear screen can-
not both be open at the same time.
