Peugeot 207 Dag 2008 Owners Manual

81

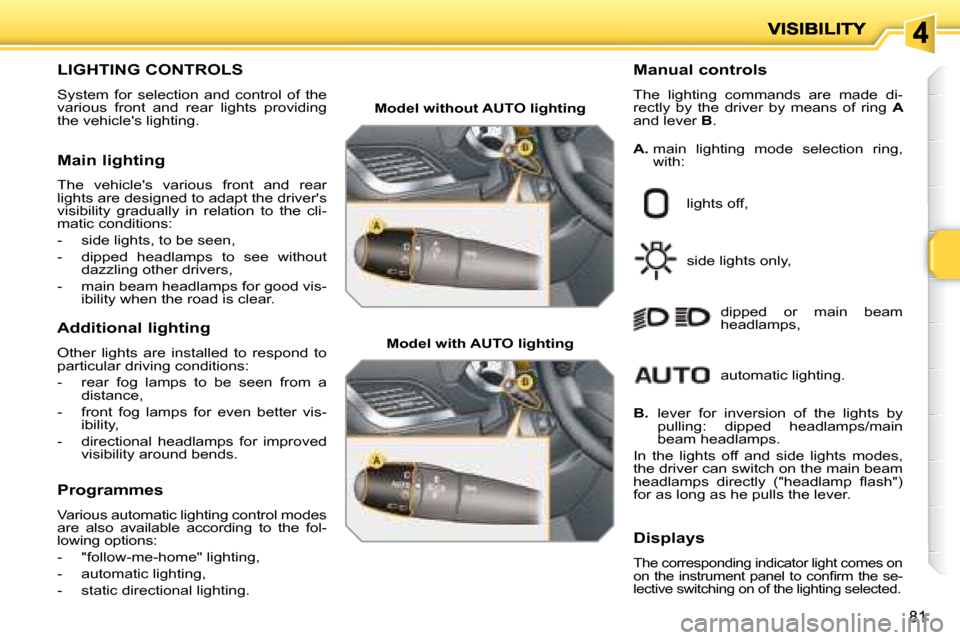

LIGHTING CONTROLS
System for selection and control of the
various front and rear lights providing
the vehicle's lighting. Manual controls
The lighting commands are made di-
rectly by the driver by means of ring
A
and lever B .
lights off,
side lights only, dipped or main beam
headlamps,

B. lever for inversion of the lights by
pulling: dipped headlamps/main
beam headlamps.
In the lights off and side lights modes,
the driver can switch on the main beam
headlamps directly ("headlamp fl ash")
for as long as he pulls the lever.
Displays
The corresponding indicator light comes on
on the instrument panel to confi rm the se-
lective switching on of the lighting selected.
Main lighting
The vehicle's various front and rear
lights are designed to adapt the driver's
visibility gradually in relation to the cli-
matic conditions:
- side lights, to be seen,
- dipped headlamps to see without dazzling other drivers,
- main beam headlamps for good vis- ibility when the road is clear.
Additional lighting
Other lights are installed to respond to
particular driving conditions:
- rear fog lamps to be seen from a distance,
- front fog lamps for even better vis- ibility,
- directional headlamps for improved visibility around bends.
Programmes
Various automatic lighting control modes
are also available according to the fol-
lowing options:
- "follow-me-home" lighting,
- automatic lighting,
- static directional lighting.
A. main lighting mode selection ring,
with:
Model without AUTO lighting
Model with AUTO lighting automatic lighting.

!
i
82

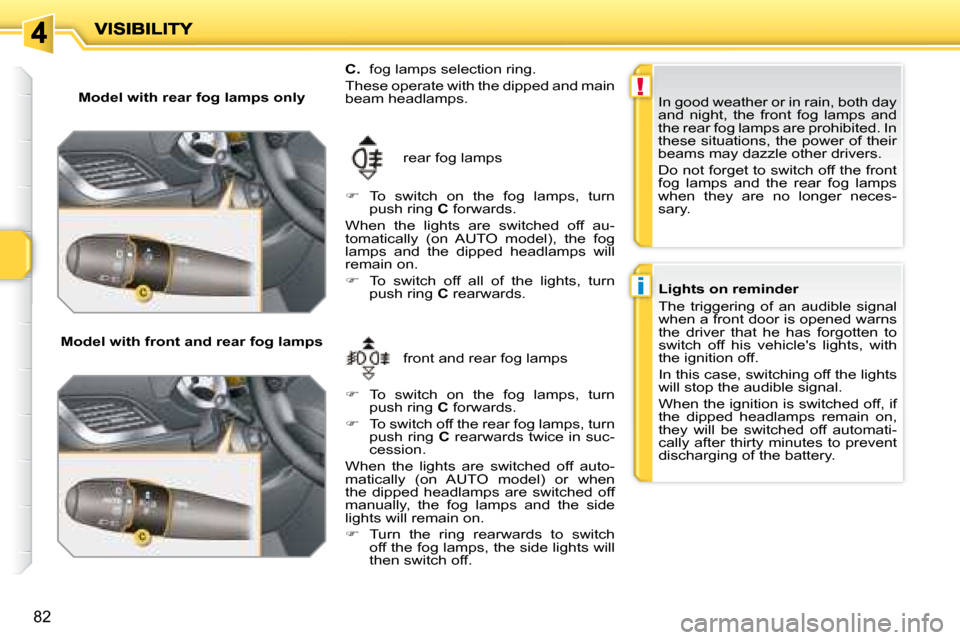

Model with rear fog lamps only
Model with front and rear fog lamps front and rear fog lamps
rear fog lamps

C. fog lamps selection ring.
These operate with the dipped and main
beam headlamps.

 To switch on the fog lamps, turn
push ring C forwards.
When the lights are switched off au-
tomatically (on AUTO model), the fog
lamps and the dipped headlamps will
remain on.

 To switch off all of the lights, turn
push ring C rearwards.

 To switch on the fog lamps, turn
push ring C forwards.

 To switch off the rear fog lamps, turn
push ring C rearwards twice in suc-
cession.
When the lights are switched off auto-
matically (on AUTO model) or when
the dipped headlamps are switched off
manually, the fog lamps and the side
lights will remain on.

 Turn the ring rearwards to switch
off the fog lamps, the side lights will
then switch off. In good weather or in rain, both day
and night, the front fog lamps and
the rear fog lamps are prohibited. In
these situations, the power of their
beams may dazzle other drivers.
Do not forget to switch off the front
fog lamps and the rear fog lamps
when they are no longer neces-
sary.
Lights on reminder
The triggering of an audible signal
when a front door is opened warns
the driver that he has forgotten to
switch off his vehicle's lights, with
the ignition off.
In this case, switching off the lights
will stop the audible signal.
When the ignition is switched off, if
the dipped headlamps remain on,
they will be switched off automati-
cally after thirty minutes to prevent
discharging of the battery.

!
83
In fog or snow, the brightness
sensor may detect suffi cient light.
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
confi guration menu,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
ror) or when the windscreen wipers are
switched on.
As soon as the brightness returns to a
suffi cient level or the windscreen wipers
are switched off, the lights are switched
off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation

 With the ignition off, activate a
"headlamp fl ash" using lever B .

 A second "headlamp fl ash" switches
the function off again.
Switching off
The "follow-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation

 Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
Have it checked by a PEUGEOT dealer.
Daytime lights *
On vehicles fi tted with daytime lights,
the dipped headlamps come on when
the vehicle is started.
This indicator light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are not
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.
Deactivation

 Turn ring A to a position other than

"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.

!
83
In fog or snow, the brightness
sensor may detect suffi cient light.
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, coupled with the rain sensor
and located in the centre of the
windscreen behind the interior mir-
ror; the associated functions would
no longer be controlled.
Coupling with the "Follow-me-
home" lighting
Association with the automatic lighting
provides the "follow-me-home" lighting
with the following additional options:
- selection of the duration of main-
taining of the lighting for 15, 30 or
60 seconds in the vehicle param-
eters on the multifunction display
confi guration menu,
- automatic activation of "follow-me- home" lighting when automatic light-
ing is in operation.
Automatic lighting
The side lights and dipped headlamps
are switched on automatically, without
any action on the part of the driver,
when a low level of external light is de-
tected (sensor behind the interior mir-
ror) or when the windscreen wipers are
switched on.
As soon as the brightness returns to a
suffi cient level or the windscreen wipers
are switched off, the lights are switched
off automatically.
"Follow-me-home" lighting
The dipped headlamps remain on tem-
porarily, after switching off the vehicle's
ignition, to make the driver's exit easier
in poor light.
Activation

 With the ignition off, activate a
"headlamp fl ash" using lever B .

 A second "headlamp fl ash" switches
the function off again.
Switching off
The "follow-me-home" lighting is
switched off automatically following the
door locking command, after a given
time. Activation

 Turn ring A to the "AUTO" position.
The automatic lighting is accompa-
nied by a message on the multifunc-
tion display. Operating fault
In the event of a malfunction of
the brightness sensor, the lights
come on accompanied by the
service warning light, an audi-
ble signal and a message on the multi-
function display.
Have it checked by a PEUGEOT dealer.
Daytime lights *
On vehicles fi tted with daytime lights,
the dipped headlamps come on when
the vehicle is started.
This indicator light comes on
on the instrument panel.
The instruments and controls (instru-
ment panel, multifunction display, air
conditioning control panel, ...) are not
lit, unless the automatic switching on of
the lights mode is activated or the lights
are switched on manually.
Deactivation

 Turn ring A to a position other than

"AUTO" . Deactivation is accompa-
nied by a message on the multifunc-
tion display.
* According to country.

i
84

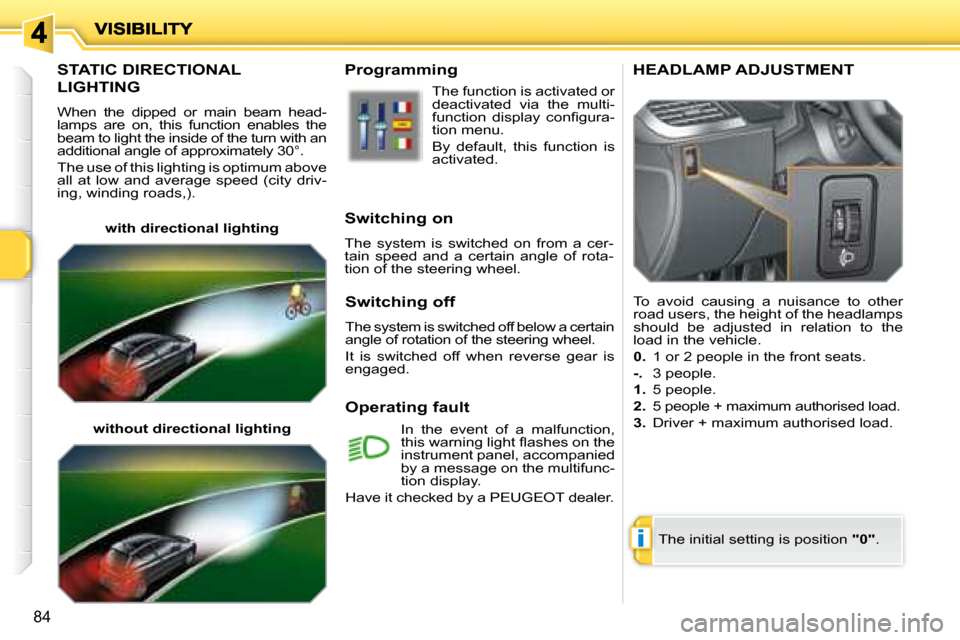

STATIC DIRECTIONAL
LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
beam to light the inside of the turn with an
additional angle of approximately 30°.
The use of this lighting is optimum above
all at low and average speed (city driv-
ing, winding roads,).
with directional lighting Programming
Switching on
The system is switched on from a cer-
tain speed and a certain angle of rota-
tion of the steering wheel.
Operating fault The function is activated or
deactivated via the multi-
function display confi gura-
tion menu.
By default, this function is
activated.
In the event of a malfunction,
this warning light fl ashes on the
instrument panel, accompanied
by a message on the multifunc-
tion display.
Have it checked by a PEUGEOT dealer.
Switching off
The system is switched off below a certain
angle of rotation of the steering wheel.
It is switched off when reverse gear is
engaged.
HEADLAMP ADJUSTMENT
The initial setting is position
"0" .
To avoid causing a nuisance to other
road users, the height of the headlamps
should be adjusted in relation to the
load in the vehicle.

0. 1 or 2 people in the front seats.

-. 3 people.

1. 5 people.

2. 5 people + maximum authorised load.

3. Driver + maximum authorised load.

without directional lighting

85

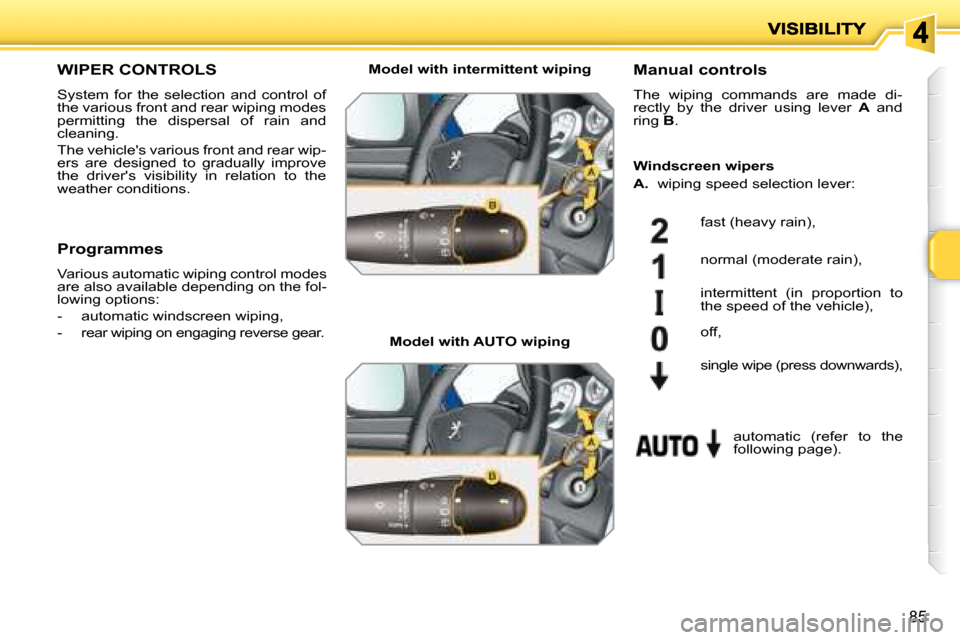

WIPER CONTROLS
System for the selection and control of
the various front and rear wiping modes
permitting the dispersal of rain and
cleaning.
The vehicle's various front and rear wip-
ers are designed to gradually improve
the driver's visibility in relation to the
weather conditions. Manual controls
The wiping commands are made di-
rectly by the driver using lever
A and
ring B .
Model with intermittent wiping
Model with AUTO wiping fast (heavy rain),
normal (moderate rain),
intermittent (in proportion to
the speed of the vehicle),
automatic (refer to the
following page).
off,
single wipe (press downwards),
Programmes
Various automatic wiping control modes
are also available depending on the fol-
lowing options:
- automatic windscreen wiping,
- rear wiping on engaging reverse gear. Windscreen wipers

A. wiping speed selection lever:

!i
86

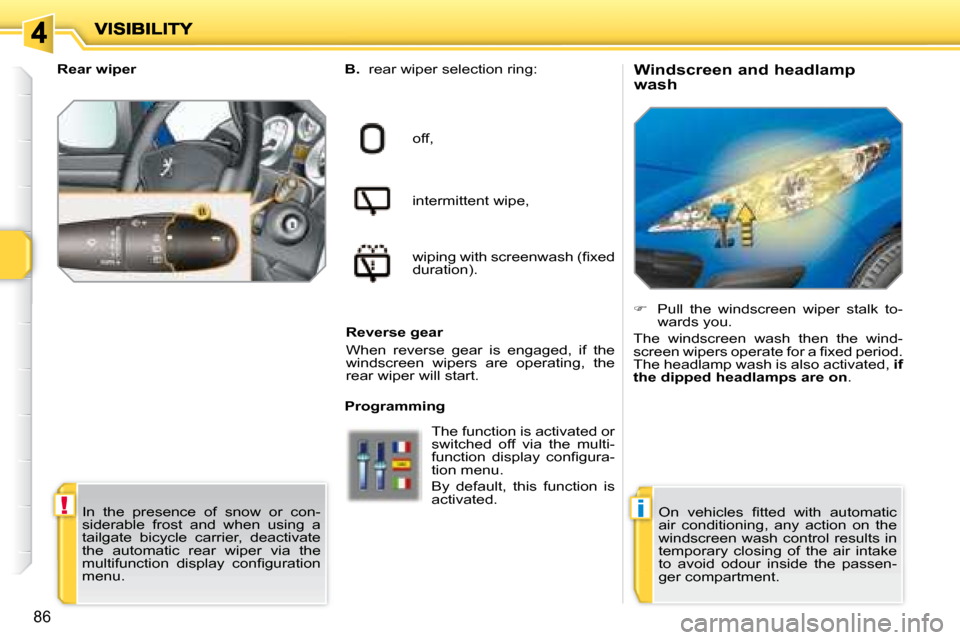

Windscreen and headlamp
wash

B. rear wiper selection ring:
off,
intermittent wipe,
wiping with screenwash (fi xed
duration).
Reverse gear
When reverse gear is engaged, if the
windscreen wipers are operating, the
rear wiper will start.
Programming
 Pull the windscreen wiper stalk to-
wards you.
The windscreen wash then the wind-
screen wipers operate for a fi xed period.
The headlamp wash is also activated, if
the dipped headlamps are on .
Rear wiper
In the presence of snow or con-
siderable frost and when using a
tailgate bicycle carrier, deactivate
the automatic rear wiper via the
multifunction display confi guration
menu. The function is activated or
switched off via the multi-
function display confi gura-
tion menu.
By default, this function is
activated.
On vehicles fi tted with automatic
air conditioning, any action on the
windscreen wash control results in
temporary closing of the air intake
to avoid odour inside the passen-
ger compartment.

!
i
87
Special position of the windscreen
wipers
Automatic windscreen wiping
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
behind the interior mirror), adapting their
speed to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk
A to the "AUTO"
position.
It is accompanied by a message on the
multifunction display. In the minute following switching off of
the ignition, any action on the stalk po-
sitions the wipers in the centre of the
windscreen.
This action enables you to position the
wiper blades for winter parking.
To park the wipers after this has been
done, switch on the ignition and operate
the stalk.
Do not cover the rain sensor, cou-
pled with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the ignition when using
an automatic car wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping. The automatic wiping must be re-
activated if the ignition has been off
for more than one minute, by push-
ing the stalk
A downwards.
Switching off
This is controlled manually by the driver
by moving the stalk A to another posi-
tion and returning it to position "0" .
It is accompanied by a message on the
multifunction display. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.

i
88

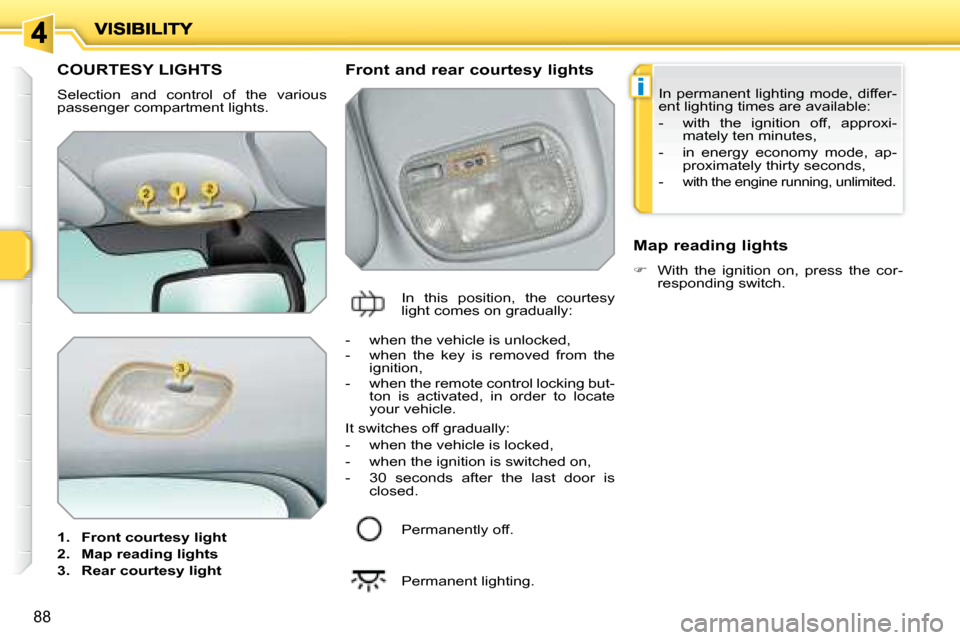

COURTESY LIGHTS
Selection and control of the various
passenger compartment lights.

1. Front courtesy light

2. Map reading lights

3. Rear courtesy light Front and rear courtesy lights
In this position, the courtesy
light comes on gradually: Map reading lights

 With the ignition on, press the cor-
responding switch. In permanent lighting mode, differ-
ent lighting times are available:
- with the ignition off, approxi-
mately ten minutes,
- in energy economy mode, ap- proximately thirty seconds,
-
with the engine running, unlimited.
- when the vehicle is unlocked,
- when the key is removed from the ignition,
- when the remote control locking but- ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting.
It switches off gradually:
- when the vehicle is locked,
- when the ignition is switched on,
- 30 seconds after the last door is
closed.

!

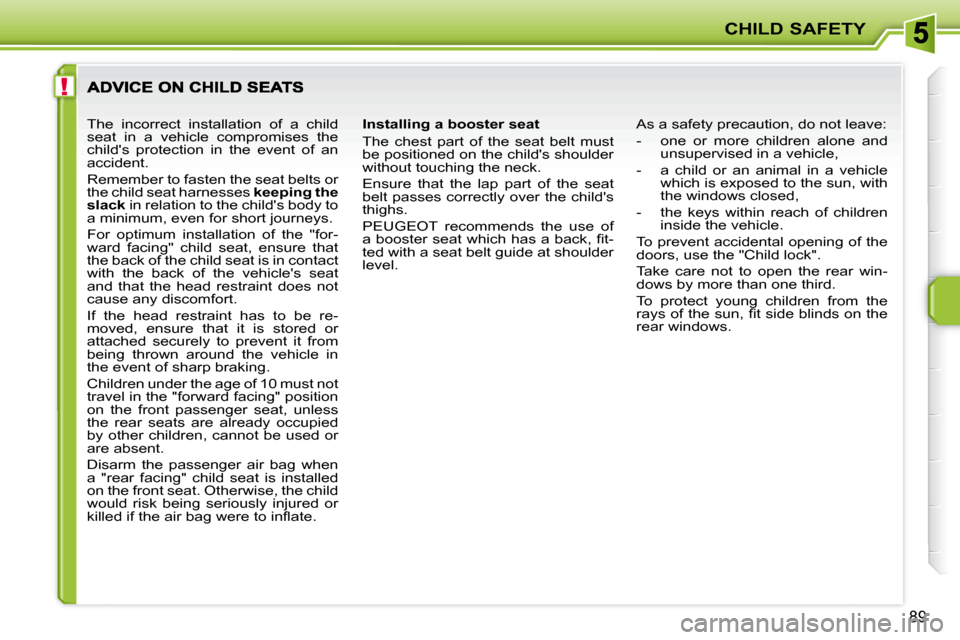

CHILD SAFETY
89
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses
keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Disarm the passenger air bag when
a "rear facing" child seat is installed
on the front seat. Otherwise, the child
would risk being seriously injured or
killed if the air bag were to infl ate. As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle.
To prevent accidental opening of the
doors, use the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
