Page 81 of 255
!
73

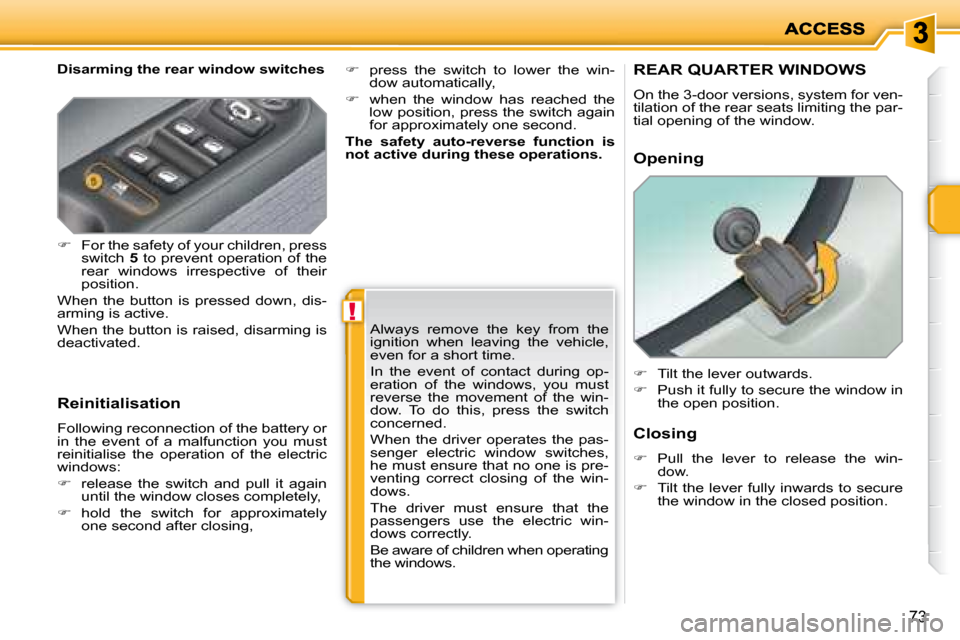

Disarming the rear window switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
he must ensure that no one is pre-
venting correct closing of the win-
dows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows. REAR QUARTER WINDOWS
On the 3-door versions, system for ven-
tilation of the rear seats limiting the par-
tial opening of the window.
Opening
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
Closing
Pull the lever to release the win-
dow.
Tilt the lever fully inwards to secure
the window in the closed position.
Tilt the lever outwards.
Push it fully to secure the window in
the open position.
press the switch to lower the win-
dow automatically,
when the window has reached the
low position, press the switch again
for approximately one second.
The safety auto-reverse function is
not active during these operations.
Page 82 of 255
!
73
Disarming the rear window switches
Reinitialisation
Following reconnection of the battery or
in the event of a malfunction you must
reinitialise the operation of the electric
windows:
release the switch and pull it again
until the window closes completely,
hold the switch for approximately
one second after closing, Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during op-
eration of the windows, you must
reverse the movement of the win-
dow. To do this, press the switch
concerned.
When the driver operates the pas-
senger electric window switches,
he must ensure that no one is pre-
venting correct closing of the win-
dows.
The driver must ensure that the
passengers use the electric win-
dows correctly.
Be aware of children when operating
the windows. REAR QUARTER WINDOWS
On the 3-door versions, system for ven-
tilation of the rear seats limiting the par-
tial opening of the window.
Opening
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down, dis-
arming is active.
When the button is raised, disarming is
deactivated.
Closing
Pull the lever to release the win-
dow.
Tilt the lever fully inwards to secure
the window in the closed position.
Tilt the lever outwards.
Push it fully to secure the window in
the open position.
press the switch to lower the win-
dow automatically,
when the window has reached the
low position, press the switch again
for approximately one second.
The safety auto-reverse function is
not active during these operations.
Page 83 of 255
!
ACCESS
74

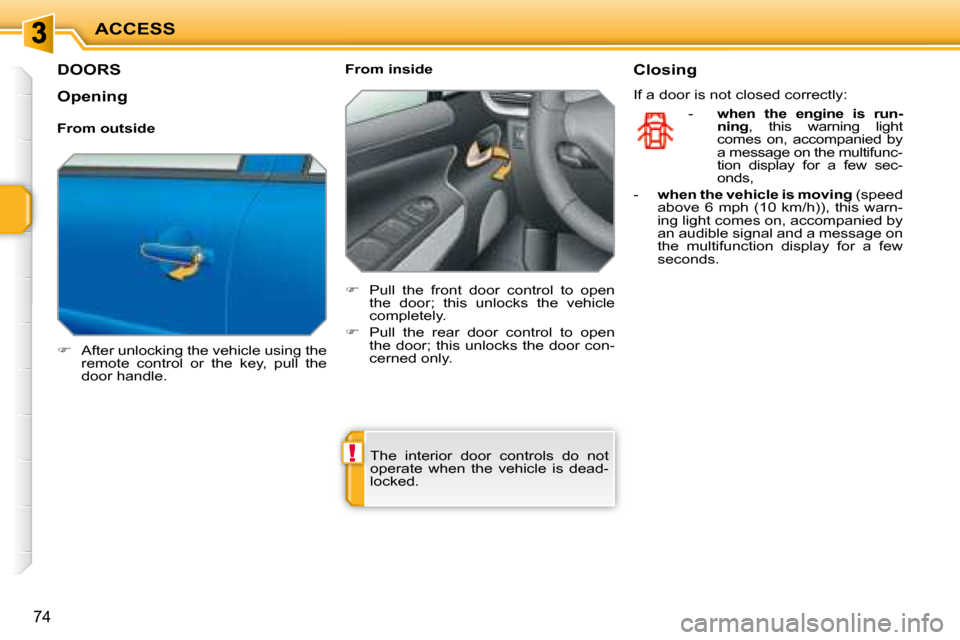

DOORS
After unlocking the vehicle using the
remote control or the key, pull the
door handle. From inside
Pull the front door control to open
the door; this unlocks the vehicle
completely.
Pull the rear door control to open
the door; this unlocks the door con-
cerned only.
The interior door controls do not
operate when the vehicle is dead-
locked. Closing
If a door is not closed correctly:
- when the engine is run-
ning , this warning light
comes on, accompanied by
a message on the multifunc-
tion display for a few sec-
onds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds.
Opening
From outside
Page 84 of 255
i
!i
75
If the vehicle is locked or dead-
locked from the outside, the red
i n d i c a t o r l i g h t fl a s h e s a n d b u t t o n A
is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors or the boot or
rear screen is open, the automatic
central locking does not take place.

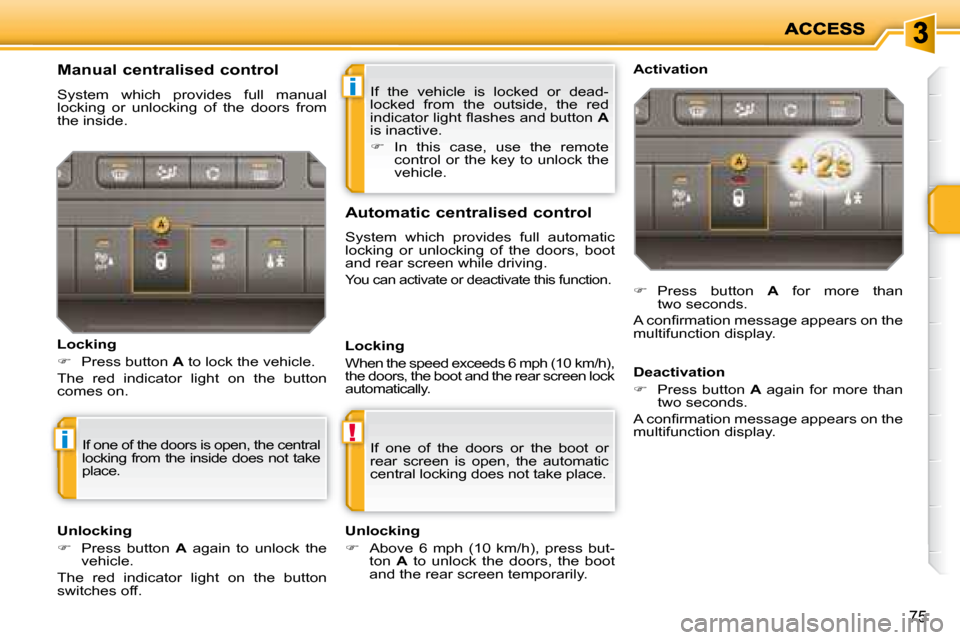

Manual centralised control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
Press button A to lock the vehicle.
The red indicator light on the button
comes on. Automatic centralised control
System which provides full automatic
locking or unlocking of the doors, boot
and rear screen while driving.
You can activate or deactivate this function.
Activation
Press button A for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display.
Unlocking
Above 6 mph (10 km/h), press but-
ton A to unlock the doors, the boot
and the rear screen temporarily.
If one of the doors is open, the central
locking from the inside does not take
place.
Unlocking
Press button A again to unlock the
vehicle.
The red indicator light on the button
switches off. Locking
When the speed exceeds 6 mph (10 km/h),
the doors, the boot and the rear screen lock
automatically. Deactivation
Press button A again for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display.
Page 85 of 255
ACCESS

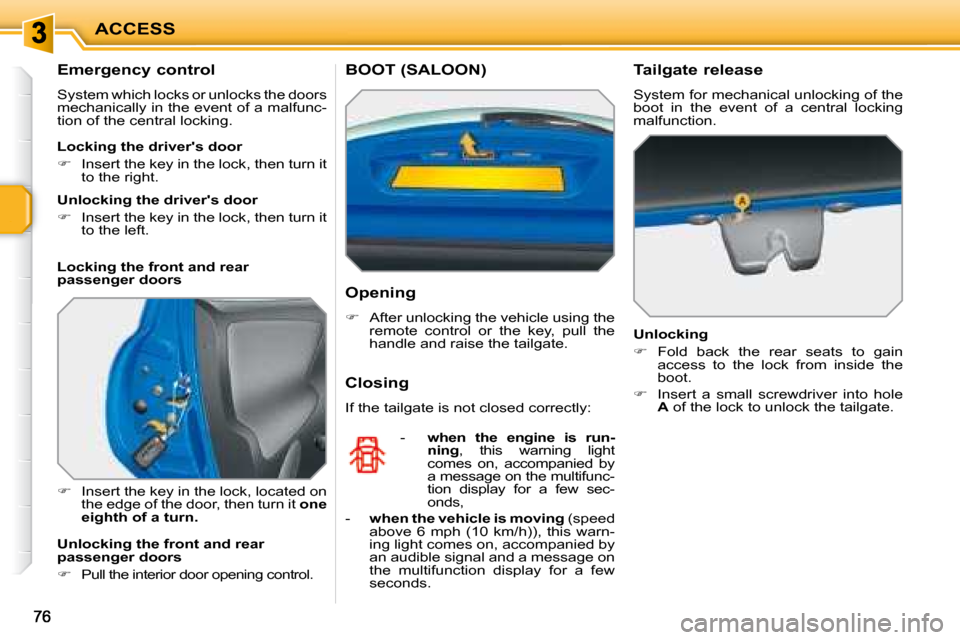

Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunc-
tion of the central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. -
when the engine is run-
ning , this warning light
comes on, accompanied by
a message on the multifunc-
tion display for a few sec-
onds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole
A of the lock to unlock the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate. BOOT (SALOON)
Closing
If the tailgate is not closed correctly:
Page 86 of 255
ACCESS
Emergency control
System which locks or unlocks the doors
mechanically in the event of a malfunc-
tion of the central locking.
Insert the key in the lock, located on
the edge of the door, then turn it one
eighth of a turn.
Locking the driver's door
Insert the key in the lock, then turn it
to the right.
Unlocking the driver's door
Insert the key in the lock, then turn it
to the left.
Locking the front and rear
passenger doors
Unlocking the front and rear
passenger doors
Pull the interior door opening control. -
when the engine is run-
ning , this warning light
comes on, accompanied by
a message on the multifunc-
tion display for a few sec-
onds,
- when the vehicle is moving (speed
above 6 mph (10 km/h)), this warn-
ing light comes on, accompanied by
an audible signal and a message on
the multifunction display for a few
seconds. Tailgate release
System for mechanical unlocking of the
boot in the event of a central locking
malfunction.
Unlocking
Fold back the rear seats to gain
access to the lock from inside the
boot.
Insert a small screwdriver into hole
A of the lock to unlock the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, pull the
handle and raise the tailgate. BOOT (SALOON)
Closing
If the tailgate is not closed correctly:
Page 87 of 255
i
i
77

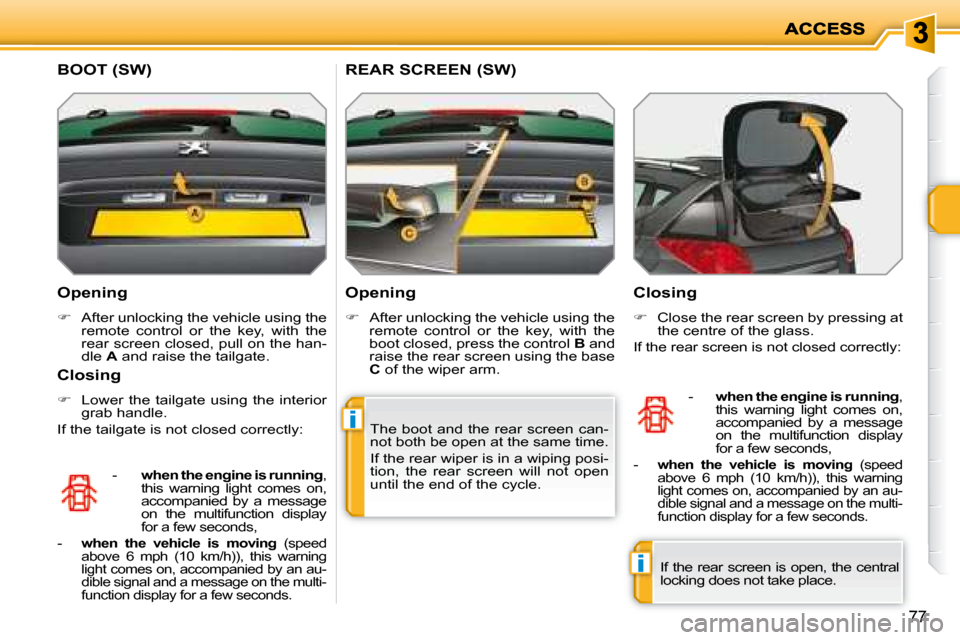

Opening
After unlocking the vehicle using the
remote control or the key, with the
rear screen closed, pull on the han-
dle A and raise the tailgate.
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an au-
dible signal and a message on the multi-
function display for a few seconds.
Closing
Lower the tailgate using the interior
grab handle.
If the tailgate is not closed correctly:
REAR SCREEN (SW)
Opening
After unlocking the vehicle using the
remote control or the key, with the
boot closed, press the control B and
raise the rear screen using the base
C of the wiper arm.
The boot and the rear screen can-
not both be open at the same time.
If the rear wiper is in a wiping posi-
tion, the rear screen will not open
until the end of the cycle. Closing
Close the rear screen by pressing at
the centre of the glass.
If the rear screen is not closed correctly:
- when the engine is running ,
this warning light comes on,
accompanied by a message
on the multifunction display
for a few seconds,
-
when the vehicle is moving (speed
above 6 mph (10 km/h)), this warning
light comes on, accompanied by an au-
dible signal and a message on the multi-
function display for a few seconds.
BOOT (SW)
If the rear screen is open, the central
locking does not take place.
Page 88 of 255
i
!
ACCESS
78

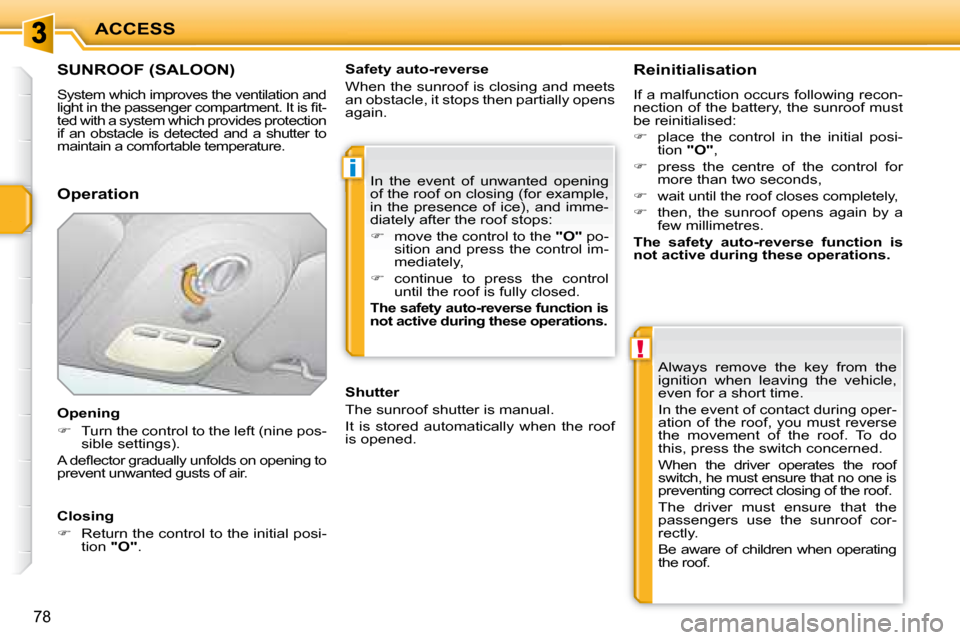

SUNROOF (SALOON)
System which improves the ventilation and
l i g h t i n t h e p a s s e n g e r c o m p a r t m e n t . I t i s fi t -
ted with a system which provides protection
if an obstacle is detected and a shutter to
maintain a comfortable temperature.
Opening
Turn the control to the left (nine pos-
sible settings).
A d e fl e c t o r g r a d u a l l y u n f o l d s o n o p e n i n g t o
prevent unwanted gusts of air. Safety auto-reverse
When the sunroof is closing and meets
an obstacle, it stops then partially opens
again.
Reinitialisation
If a malfunction occurs following recon-
nection of the battery, the sunroof must
be reinitialised:
place the control in the initial posi-
tion "O" ,
press the centre of the control for
more than two seconds,
wait until the roof closes completely,
then, the sunroof opens again by a
few millimetres.
The safety auto-reverse function is
not active during these operations.
Always remove the key from the
ignition when leaving the vehicle,
even for a short time.
In the event of contact during oper-
ation of the roof, you must reverse
the movement of the roof. To do
this, press the switch concerned.
When the driver operates the roof
switch, he must ensure that no one is
preventing correct closing of the roof.
The driver must ensure that the
passengers use the sunroof cor-
rectly.
Be aware of children when operating
the roof.
In the event of unwanted opening
of the roof on closing (for example,
in the presence of ice), and imme-
diately after the roof stops:
move the control to the "O" po-
sition and press the control im-
mediately,
continue to press the control
until the roof is fully closed.
The safety auto-reverse function is
not active during these operations.
Shutter
The sunroof shutter is manual.
It is stored automatically when the roof
is opened.
Operation
Closing
Return the control to the initial posi-
tion "O" .
Page 89 of 255
!
79

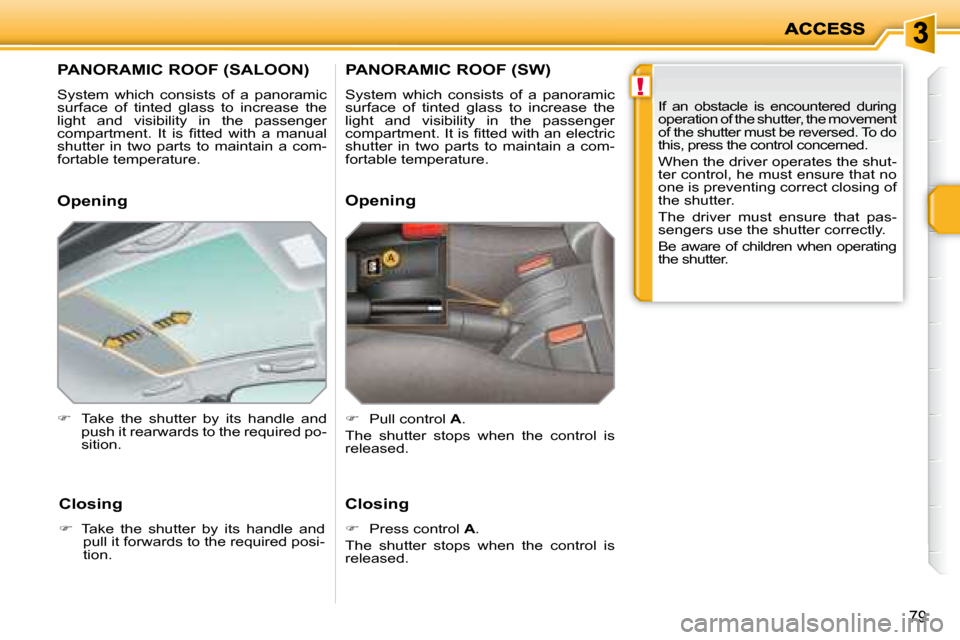

PANORAMIC ROOF (SALOON)
System which consists of a panoramic
surface of tinted glass to increase the
light and visibility in the passenger
c o m p a r t m e n t . I t i s fi t t e d w i t h a m a n u a l
shutter in two parts to maintain a com-
fortable temperature.
Take the shutter by its handle and
push it rearwards to the required po-
sition.
Opening
Closing
Take the shutter by its handle and
pull it forwards to the required posi-
tion. If an obstacle is encountered during
operation of the shutter, the movement
of the shutter must be reversed. To do
this, press the control concerned.
When the driver operates the shut-
ter control, he must ensure that no
one is preventing correct closing of
the shutter.
The driver must ensure that pas-
sengers use the shutter correctly.
Be aware of children when operating
the shutter.
PANORAMIC ROOF (SW)
System which consists of a panoramic
surface of tinted glass to increase the
light and visibility in the passenger
c o m p a r t m e n t . I t i s fi t t e d w i t h a n e l e c t r i c
shutter in two parts to maintain a com-
fortable temperature.
Opening
Pull control A .
The shutter stops when the control is
released.
Closing
Press control A .
The shutter stops when the control is
released.
Page 90 of 255
i
ACCESS
80
The key cannot be removed from
the lock until the cap is put back on
the tank.

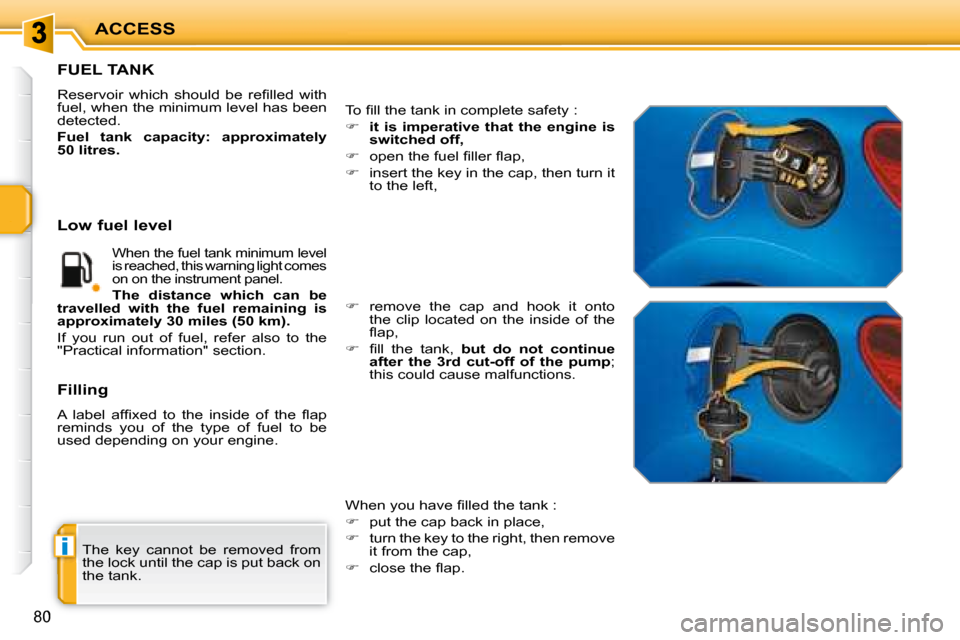

FUEL TANK
R e s e r v o i r w h i c h s h o u l d b e r e fi l l e d w i t h
fuel, when the minimum level has been
detected.
Fuel tank capacity: approximately
50 litres. T o fi l l t h e t a n k i n c o m p l e t e s a f e t y :
it is imperative that the engine is
switched off,
o p e n t h e f u e l fi l l e r fl a p ,
insert the key in the cap, then turn it
to the left,
W h e n y o u h a v e fi l l e d t h e t a n k :
put the cap back in place,
turn the key to the right, then remove
it from the cap,
c l o s e t h e fl a p .
remove the cap and hook it onto
the clip located on the inside of the
fl a p ,
fi l l t h e t a n k , but do not continue
after the 3rd cut-off of the pump ;
this could cause malfunctions.
Low fuel level
Filling
A l a b e l a f fi x e d t o t h e i n s i d e o f t h e fl a p
reminds you of the type of fuel to be
used depending on your engine.
When the fuel tank minimum level
is reached, this warning light comes
on on the instrument panel.
The distance which can be
travelled with the fuel remaining is
approximately 30 miles (50 km).
If you run out of fuel, refer also to the
"Practical information" section.
