Page 71 of 255

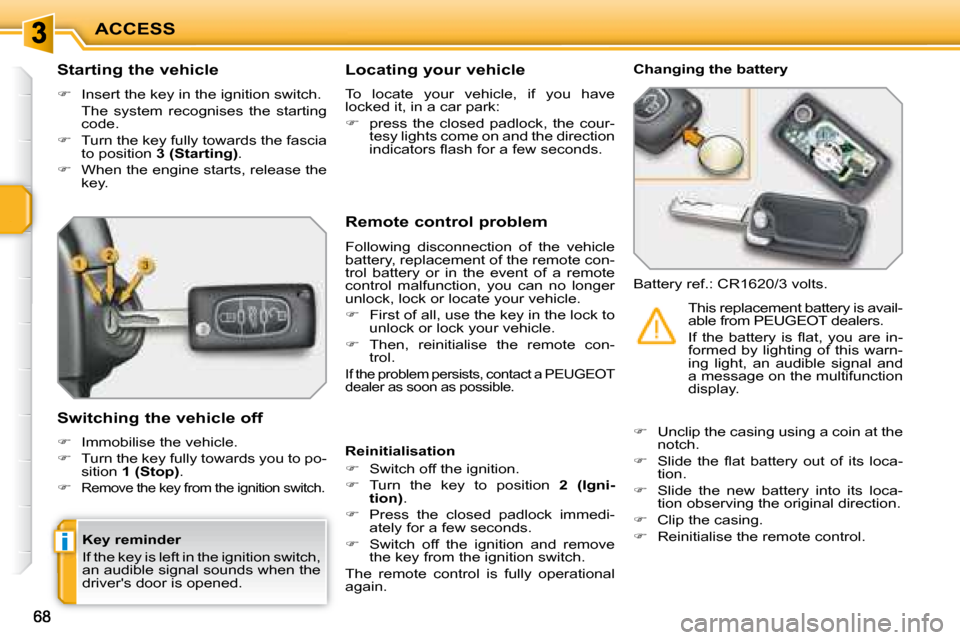

i
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition switch.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote con-
trol.
If the problem persists, contact a PEUGEOT
dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing light, an audible signal and
a message on the multifunction
display.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press the closed padlock, the cour-
tesy lights come on and the direction
i n d i c a t o r s fl a s h f o r a f e w s e c o n d s .
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.
Page 72 of 255
!
69

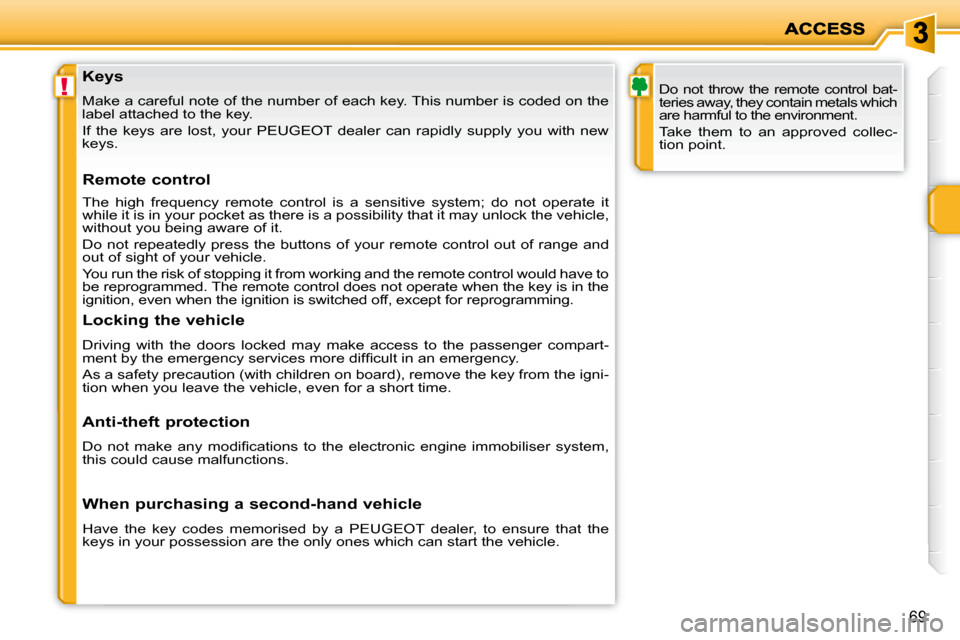

Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to
be reprogrammed. The remote control does not operat e when the key is in the
ignition, even when the ignition is switched off, e xcept for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure t hat the
keys in your possession are the only ones which can start the vehicle .
Page 73 of 255
i
i
67

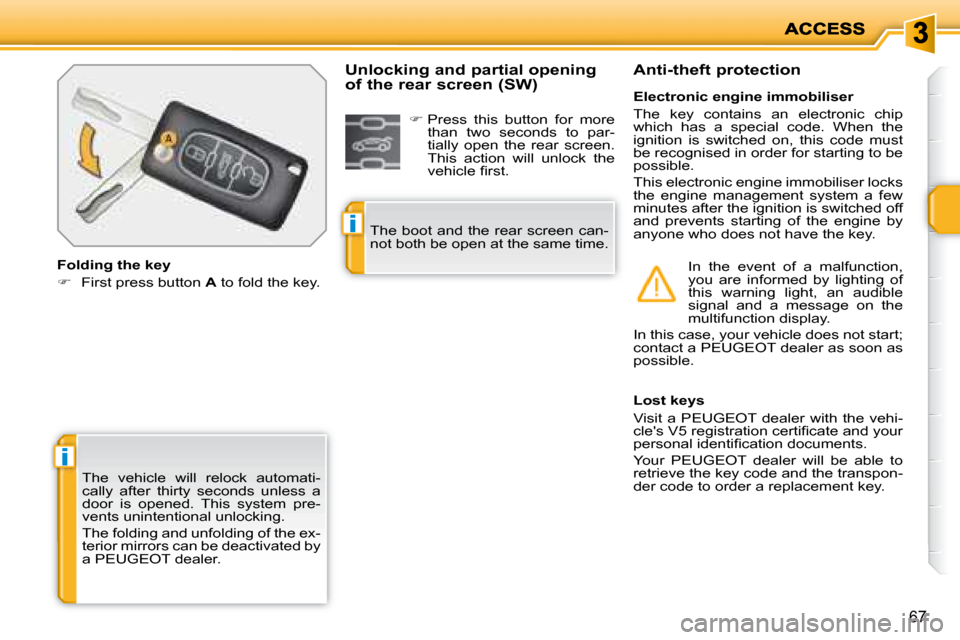

The vehicle will relock automati-
cally after thirty seconds unless a
door is opened. This system pre-
vents unintentional unlocking.
The folding and unfolding of the ex-
terior mirrors can be deactivated by
a PEUGEOT dealer.
Folding the key
First press button A to fold the key.
Lost keys
Visit a PEUGEOT dealer with the vehi-
c l e ' s V 5 r e g i s t r a t i o n c e r t i fi c a t e a n d y o u r
p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
Your PEUGEOT dealer will be able to
retrieve the key code and the transpon-
der code to order a replacement key.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
Unlocking and partial opening
of the rear screen (SW)
Press this button for more
than two seconds to par-
tially open the rear screen.
This action will unlock the
v e h i c l e fi r s t .
The boot and the rear screen can-
not both be open at the same time.
Page 74 of 255
i
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition switch.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote con-
trol.
If the problem persists, contact a PEUGEOT
dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing light, an audible signal and
a message on the multifunction
display.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press the closed padlock, the cour-
tesy lights come on and the direction
i n d i c a t o r s fl a s h f o r a f e w s e c o n d s .
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.
Page 75 of 255
!
69
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to
be reprogrammed. The remote control does not operat e when the key is in the
ignition, even when the ignition is switched off, e xcept for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure t hat the
keys in your possession are the only ones which can start the vehicle .
Page 76 of 255
i
ACCESS
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the fascia
to position 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
Immobilise the vehicle.
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition switch.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote con-
trol battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote con-
trol.
If the problem persists, contact a PEUGEOT
dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Igni-
tion) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
Slide the new battery into its loca-
tion observing the original direction.
Clip the casing.
Reinitialise the remote control. This replacement battery is avail-
able from PEUGEOT dealers.
I f t h e b a t t e r y i s fl a t , y o u a r e i n -
formed by lighting of this warn-
ing light, an audible signal and
a message on the multifunction
display.
Locating your vehicle
To locate your vehicle, if you have
locked it, in a car park:
press the closed padlock, the cour-
tesy lights come on and the direction
i n d i c a t o r s fl a s h f o r a f e w s e c o n d s .
Key reminder
If the key is left in the ignition switch,
an audible signal sounds when the
driver's door is opened.
Page 77 of 255
!
69
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you with new
keys. Do not throw the remote control bat-
teries away, they contain metals which
are harmful to the environment.
Take them to an approved collec-
tion point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle.
You run the risk of stopping it from working and t he remote control would have to
be reprogrammed. The remote control does not operat e when the key is in the
ignition, even when the ignition is switched off, e xcept for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart -
m e n t b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
As a safety precaution (with children on board), remove the key fro m the igni-
tion when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ,
this could cause malfunctions.
When purchasing a second-hand vehicle
Have the key codes memorised by a PEUGEOT dealer, to ensure t hat the
keys in your possession are the only ones which can start the vehicle .
Page 78 of 255
!
i
ACCESS
70

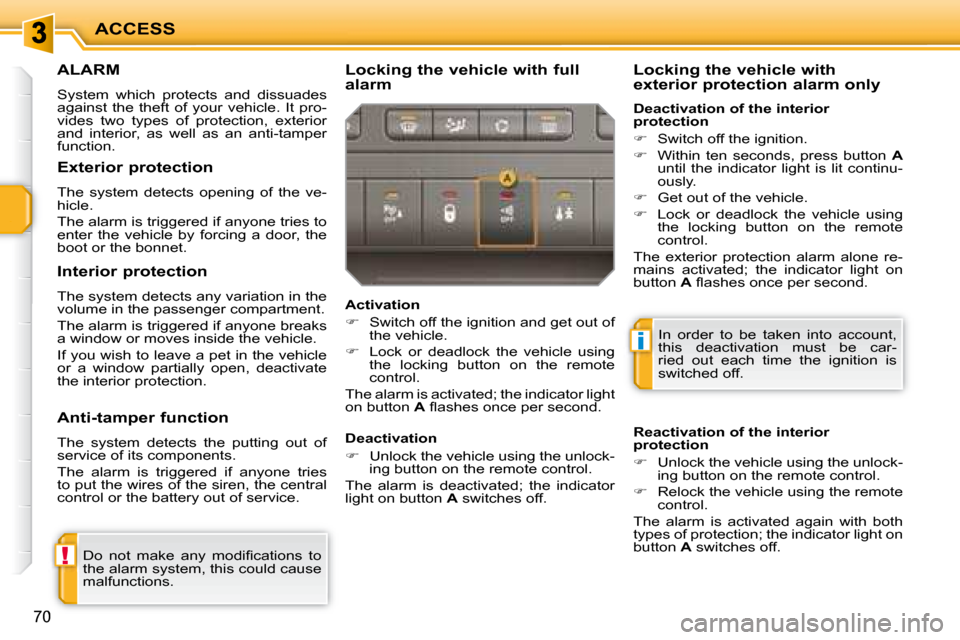

ALARM
System which protects and dissuades
against the theft of your vehicle. It pro-
vides two types of protection, exterior
and interior, as well as an anti-tamper
function. Locking the vehicle with full
alarm
D o n o t m a k e a n y m o d i fi c a t i o n s t o
the alarm system, this could cause
malfunctions. In order to be taken into account,
this deactivation must be car-
ried out each time the ignition is
switched off.
Reactivation of the interior
protection
Unlock the vehicle using the unlock-
ing button on the remote control.
Relock the vehicle using the remote
control.
The alarm is activated again with both
types of protection; the indicator light on
button A switches off.
Locking the vehicle with
exterior protection alarm only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A fl a s h e s o n c e p e r s e c o n d .
Exterior protection
The system detects opening of the ve-
hicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service.
Deactivation
Unlock the vehicle using the unlock-
ing button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off. Deactivation of the interior
protection
Switch off the ignition.
Within ten seconds, press button A
until the indicator light is lit continu-
ously.
Get out of the vehicle.
Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone re-
mains activated; the indicator light on
button A fl a s h e s o n c e p e r s e c o n d .
Page 79 of 255
!
71

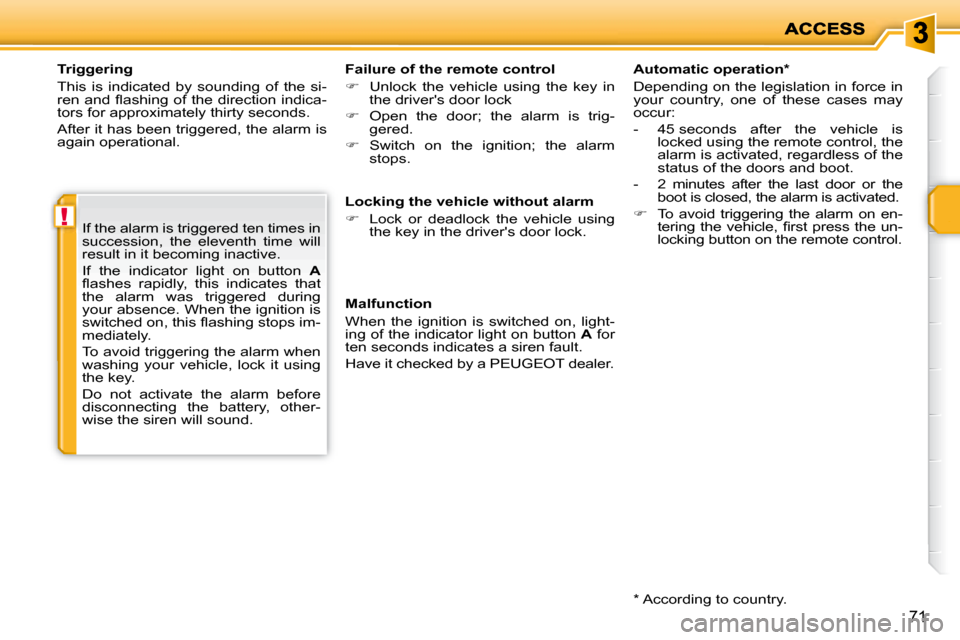

Triggering
This is indicated by sounding of the si-
r e n a n d fl a s h i n g o f t h e d i r e c t i o n i n d i c a -
tors for approximately thirty seconds.
After it has been triggered, the alarm is
again operational. If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator light on button A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t
the alarm was triggered during
your absence. When the ignition is
s w i t c h e d o n , t h i s fl a s h i n g s t o p s i m -
mediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, other-
wise the siren will sound. Failure of the remote control
Unlock the vehicle using the key in
the driver's door lock
Open the door; the alarm is trig-
gered.
Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, light-
ing of the indicator light on button
A for
ten seconds indicates a siren fault.
Have it checked by a PEUGEOT dealer.
Locking the vehicle without alarm
Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
status of the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.
To avoid triggering the alarm on en-
t e r i n g t h e v e h i c l e , fi r s t p r e s s t h e u n -
locking button on the remote control.
Page 80 of 255
i
i
i
ACCESS
72

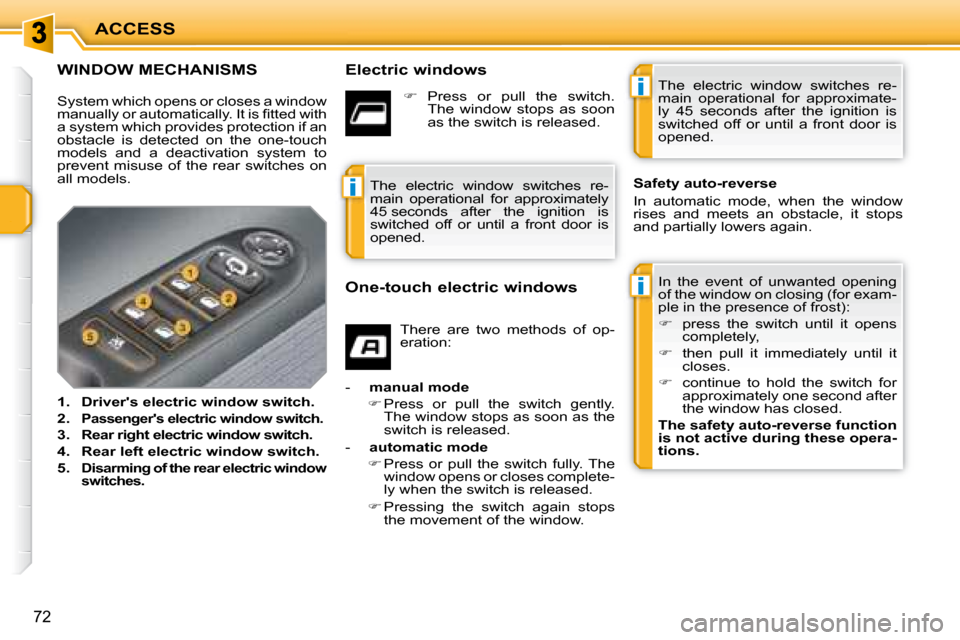

WINDOW MECHANISMS Electric windows In the event of unwanted opening
of the window on closing (for exam-
ple in the presence of frost):
press the switch until it opens
completely,
then pull it immediately until it
closes.
continue to hold the switch for
approximately one second after
the window has closed.
The safety auto-reverse function
is not active during these opera-
tions.
One-touch electric windows
There are two methods of op-
eration:
- manual mode
Press or pull the switch gently.
The window stops as soon as the
switch is released.
- automatic mode
Press or pull the switch fully. The
window opens or closes complete-
ly when the switch is released.
Pressing the switch again stops
the movement of the window.
Press or pull the switch.
The window stops as soon
as the switch is released.
The electric window switches re-
main operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.
System which opens or closes a window
m a n u a l l y o r a u t o m a t i c a l l y . I t i s fi t t e d w i t h
a system which provides protection if an
obstacle is detected on the one-touch
models and a deactivation system to
prevent misuse of the rear switches on
all models.
1. Driver's electric window switch.
2.
Passenger's electric window switch.
3. Rear right electric window switch.
4. Rear left electric window switch.
5.
Disarming of the rear electric window
switches.
The electric window switches re-
main operational for approximate-
ly 45 seconds after the ignition is
switched off or until a front door is
opened.
Safety auto-reverse
In automatic mode, when the window
rises and meets an obstacle, it stops
and partially lowers again.
