Peugeot 207 Dag 2009 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 207 Dag, Model: Peugeot 207 Dag 2009Pages: 267, PDF Size: 20.02 MB
Page 161 of 267
10
165

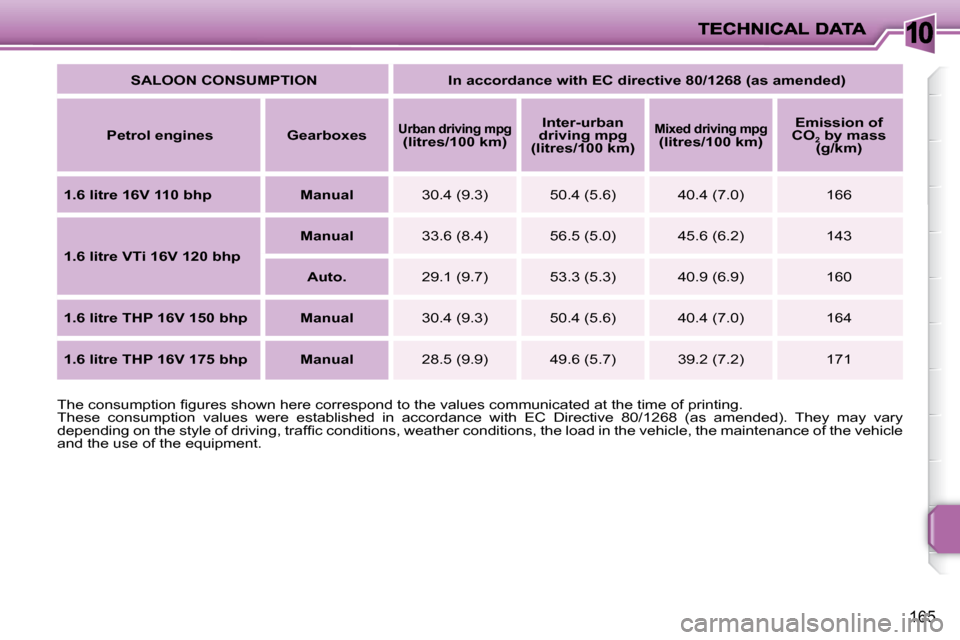

SALOON CONSUMPTION In accordance with EC directive 80/1268 (as amended )
Petrol engines Gearboxes
Urban driving mpg (litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.6 litre 16V 110 bhp Manual 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 166
1.6 litre VTi 16V 120 bhp
Manual 33.6 (8.4) 56.5 (5.0) 45.6 (6.2) 143
Auto. 29.1 (9.7) 53.3 (5.3) 40.9 (6.9) 160
1.6 litre THP 16V 150 bhp Manual 30.4 (9.3) 50.4 (5.6) 40.4 (7.0) 164
1.6 litre THP 16V 175 bhp Manual 28.5 (9.9) 49.6 (5.7) 39.2 (7.2) 171
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.
Page 162 of 267
10
175
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.

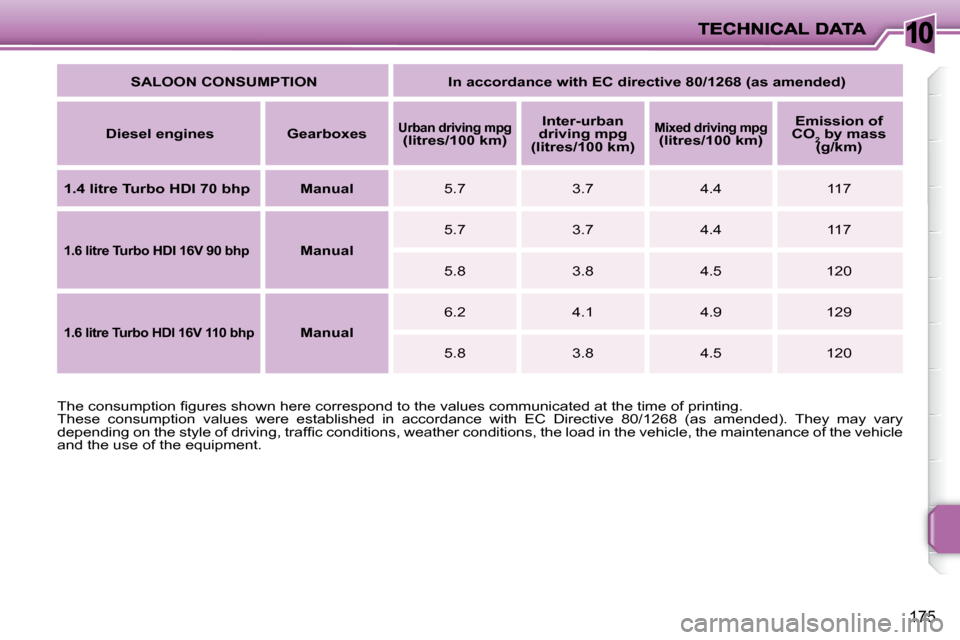

SALOON CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Diesel engines Gearboxes
Urban driving mpg (litres/100 km)
Inter-urban
driving mpg
(litres/100 km) Mixed driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre Turbo HDI 70 bhp Manual 5.7 3.7 4.4 117
1.6 litre Turbo HDI 16V 90 bhp
Manual 5.7 3.7 4.4 117
5.8 3.8 4.5 120
1.6 litre Turbo HDI 16V 110 bhp
Manual 6.2 4.1 4.9 129
5.8 3.8 4.5 120
Page 163 of 267
10
166
TECHNICAL DATA
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.

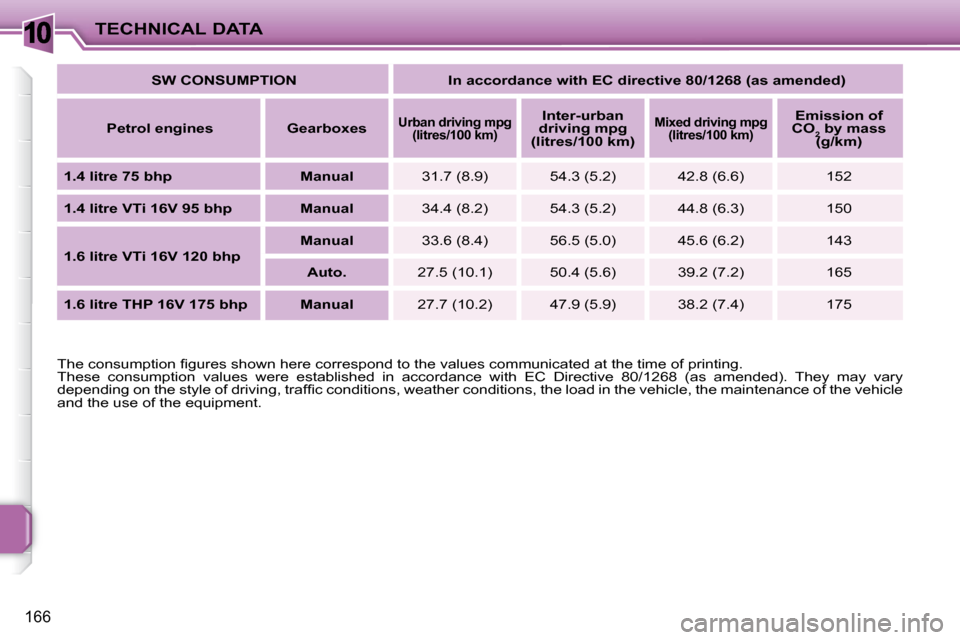

SW CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearboxes
Urban driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre 75 bhp Manual 31.7 (8.9) 54.3 (5.2) 42.8 (6.6) 152
1.4 litre VTi 16V 95 bhp Manual 34.4 (8.2) 54.3 (5.2) 44.8 (6.3) 150
1.6 litre VTi 16V 120 bhp
Manual 33.6 (8.4) 56.5 (5.0) 45.6 (6.2) 143
Auto. 27.5 (10.1) 50.4 (5.6) 39.2 (7.2) 165
1.6 litre THP 16V 175 bhp Manual 27.7 (10.2) 47.9 (5.9) 38.2 (7.4) 175
Page 164 of 267
10
176
TECHNICAL DATA
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.

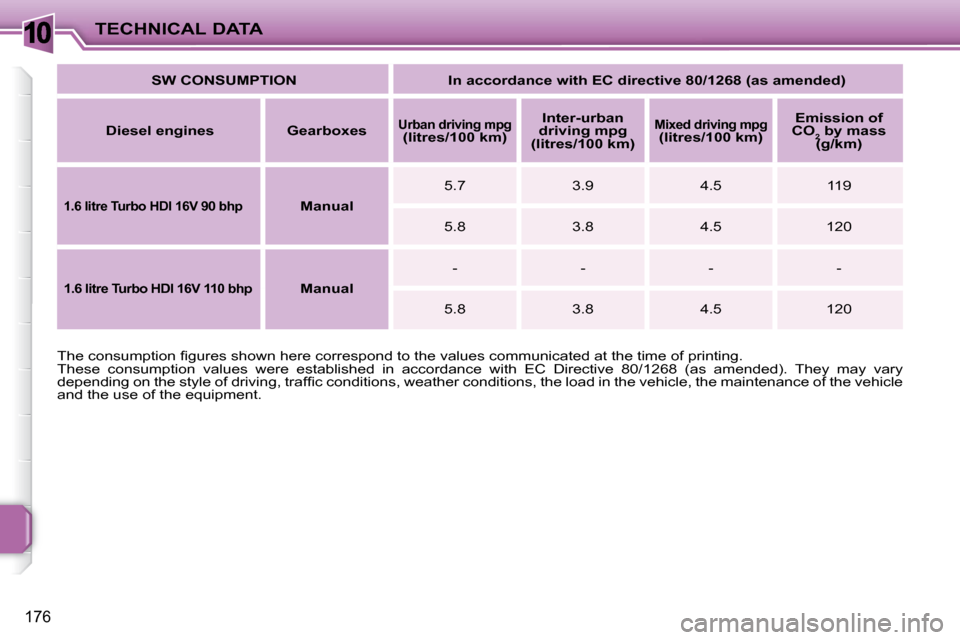

SW CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Diesel engines Gearboxes
Urban driving mpg (litres/100 km)
Inter-urban
driving mpg
(litres/100 km) Mixed driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.6 litre Turbo HDI 16V 90 bhp
Manual 5.7 3.9 4.5 119
5.8 3.8 4.5 120
1.6 litre Turbo HDI 16V 110 bhp
Manual - - - -
5.8 3.8 4.5 120
Page 165 of 267
10
167

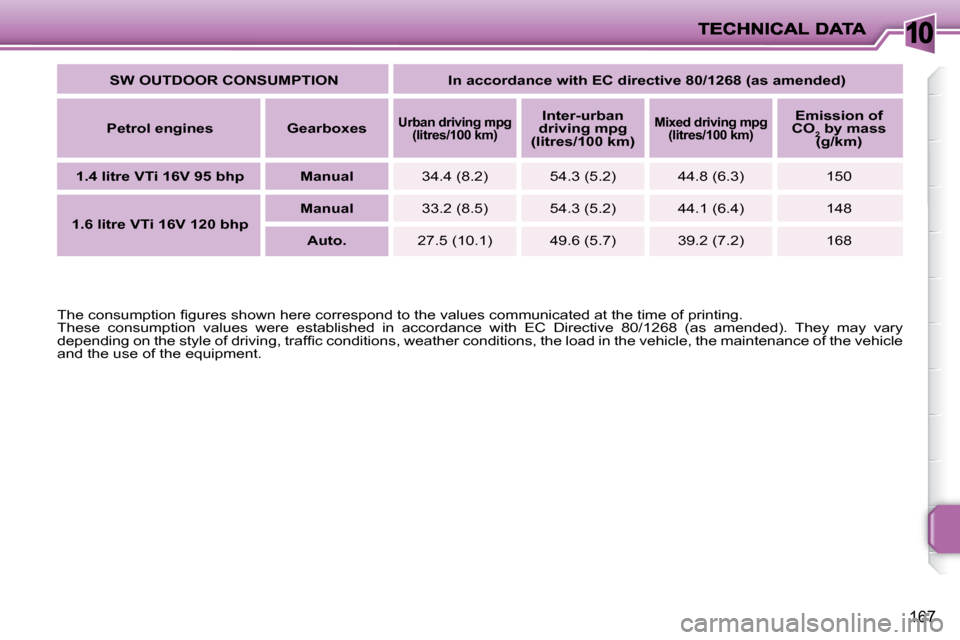

SW OUTDOOR CONSUMPTION In accordance with EC directive 80/1268 (as amended)
Petrol engines Gearboxes
Urban driving mpg
(litres/100 km)
Inter-urban
driving mpg
(litres/100 km)
Mixed driving mpg
(litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.4 litre VTi 16V 95 bhp Manual 34.4 (8.2) 54.3 (5.2) 44.8 (6.3) 150
1.6 litre VTi 16V 120 bhp
Manual 33.2 (8.5) 54.3 (5.2) 44.1 (6.4) 148
Auto. 27.5 (10.1) 49.6 (5.7) 39.2 (7.2) 168
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.
Page 166 of 267
10
177

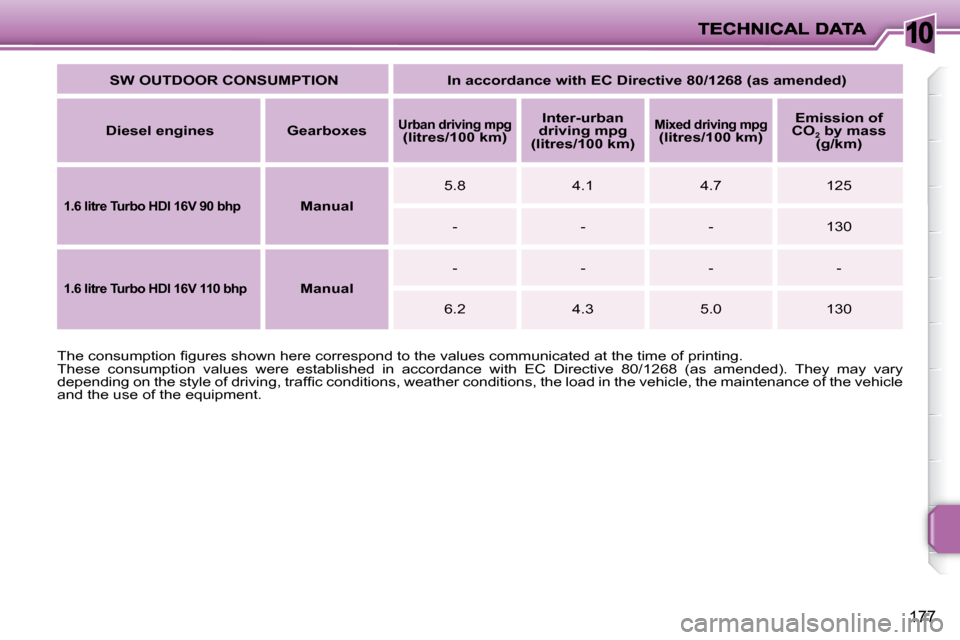

SW OUTDOOR CONSUMPTION In accordance with EC Directive 80/1268 (as amended)
Diesel engines Gearboxes
Urban driving mpg (litres/100 km)
Inter-urban
driving mpg
(litres/100 km) Mixed driving mpg (litres/100 km)
Emission of
CO 2 by mass
(g/km)
1.6 litre Turbo HDI 16V 90 bhp
Manual 5.8 4.1 4.7 125
- - - 130
1.6 litre Turbo HDI 16V 110 bhp
Manual - - - -
6.2 4.3 5.0 130
T h e c o n s u m p t i o n fi g u r e s s h o w n h e r e c o r r e s p o n d t o t h e v a l u e s c o m m u n i c a t e d a t t h e t i m e o f p r i n t i n g .
These consumption values were established in accordance with EC Directive 80/1268 (as amended). They may vary
d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e v e h i c l e , t h e m a i n t e n a n c e o f t h e v e h i c l e
and the use of the equipment.
Page 167 of 267
10TECHNICAL DATA
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

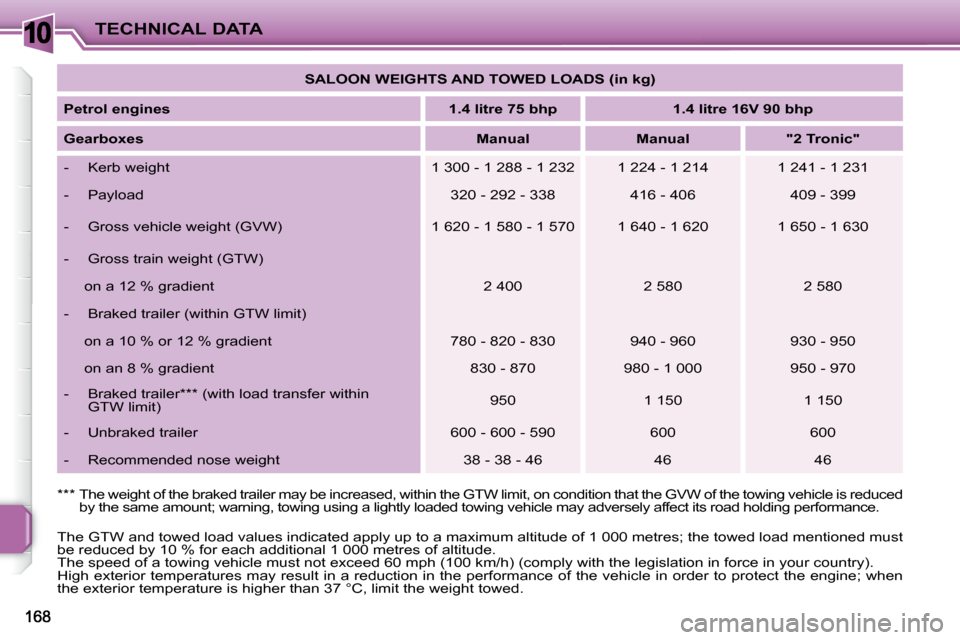

SALOON WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre 75 bhp 1.4 litre 16V 90 bhp
Gearboxes
Manual Manual "2 Tronic"
- Kerb weight 1 300 - 1 288 - 1 232 1 224 - 1 214 1 241 - 1 2 31
- Payload 320 - 292 - 338 416 - 406 409 - 399
- Gross vehicle weight (GVW) 1 620 - 1 580 - 1 570 1 640 - 1 620 1 650 - 1 630
- Gross train weight (GTW) on a 12 % gradient 2 400 2 580 2 580
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 780 - 820 - 830 940 - 9 60 930 - 950
on an 8 % gradient 830 - 870 980 - 1 000 950 - 970
- Braked trailer *** (with load transfer within GTW limit) 950 1 150 1 150
- Unbraked trailer 600 - 600 - 590 600 600
- Recommended nose weight 38 - 38 - 46 46 46
*** The weight of the braked trailer may be in creased, within the GTW limit, on condition that th e GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 168 of 267
10
169

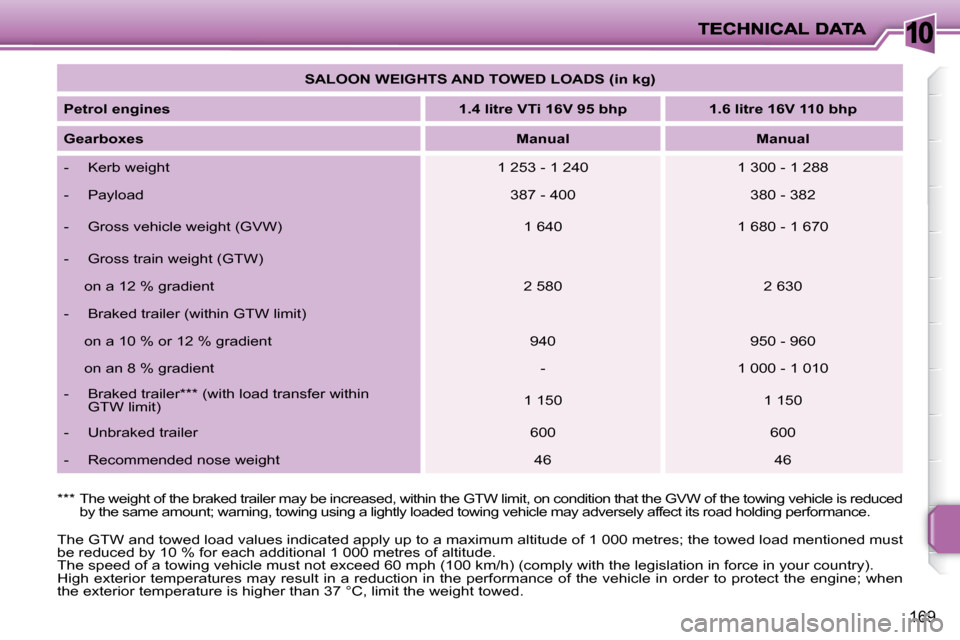

SALOON WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre VTi 16V 95 bhp 1.6 litre 16V 110 bhp
Gearboxes
Manual Manual
- Kerb weight 1 253 - 1 240 1 300 - 1 288
- Payload 387 - 400 380 - 382
- Gross vehicle weight (GVW) 1 640 1 680 - 1 670
- Gross train weight (GTW) on a 12 % gradient 2 580 2 630
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 940 950 - 960
on an 8 % gradient - 1 000 - 1 010
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 169 of 267
10
170
TECHNICAL DATA

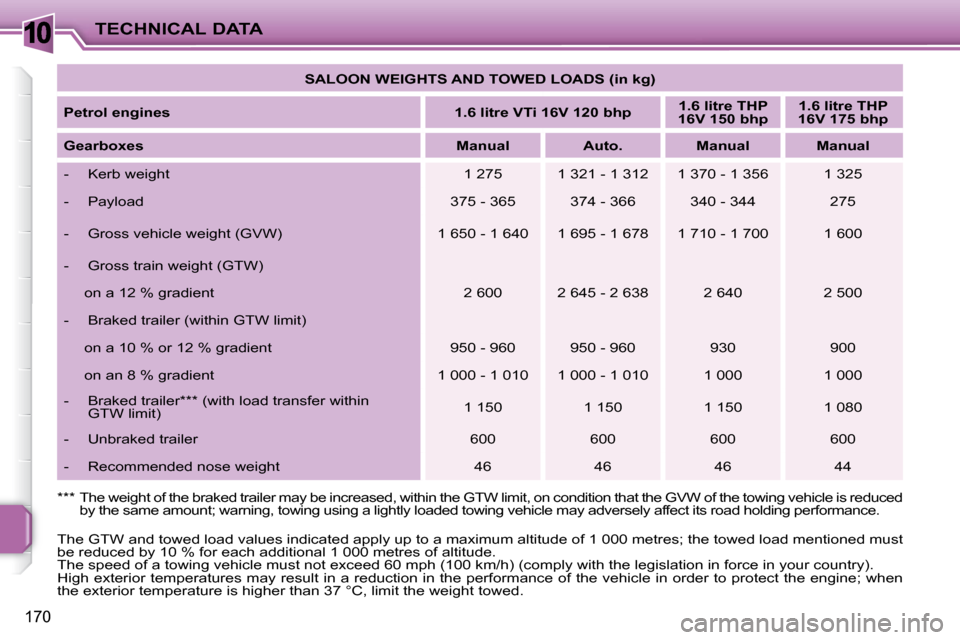

SALOON WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP
16V 150 bhp
1.6 litre THP
16V 175 bhp
Gearboxes
Manual Auto. Manual Manual
- Kerb weight 1 275 1 321 - 1 312 1 370 - 1 356 1 325
- Payload 375 - 365 374 - 366 340 - 344 275
- Gross vehicle weight (GVW) 1 650 - 1 640 1 695 - 1 678 1 710 - 1 700 1 600
- Gross train weight (GTW) on a 12 % gradient 2 600 2 645 - 2 638 2 640 2 500
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 950 - 960 950 - 960 930 900
on an 8 % gradient 1 000 - 1 010 1 000 - 1 010 1 000 1 000
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150 1 080
- Unbraked trailer 600 600 600 600
- Recommended nose weight 46 46 46 44
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 170 of 267
10TECHNICAL DATA

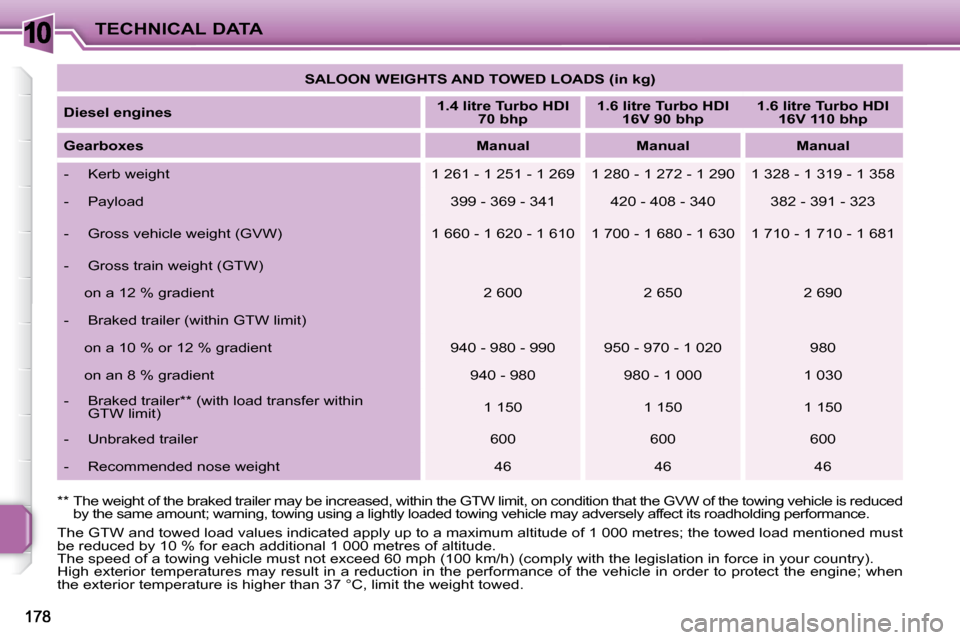

SALOON WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.4 litre Turbo HDI
70 bhp
1.6 litre Turbo HDI
16V 90 bhp
1.6 litre Turbo HDI
16V 110 bhp
Gearboxes
Manual Manual Manual
- Kerb weight 1 261 - 1 251 - 1 269 1 280 - 1 272 - 1 290 1 328 - 1 319 - 1 358
- Payload 399 - 369 - 341 420 - 408 - 340 382 - 391 - 323
- Gross vehicle weight (GVW) 1 660 - 1 620 - 1 610 1 700 - 1 680 - 1 630 1 710 - 1 710 - 1 681
- Gross train weight (GTW) on a 12 % gradient 2 600 2 650 2 690
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 940 - 980 - 990 950 - 9 70 - 1 020 980
on an 8 % gradient 940 - 980 980 - 1 000 1 03 0
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be inc
reased, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
