Peugeot 207 Dag 2009 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009, Model line: 207 Dag, Model: Peugeot 207 Dag 2009Pages: 267, PDF Size: 20.02 MB
Page 171 of 267
10
171
SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre 75 bhp 1.4 litre VTi 16V 95 bhp
Gearboxes
Manual Manual
- Kerb weight 1 271 1 290
- Payload 371 401
- Gross vehicle weight (GVW) 1 642 1 691
- Gross train weight (GTW) on a 12 % gradient 2 422 2 591
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 780 900
on an 8 % gradient 800 900
- Braked trailer *** (with load transfer within GTW limit) 1 045 1 150
- Unbraked trailer 600 600
- Recommended nose weight 42 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 172 of 267
10TECHNICAL DATA

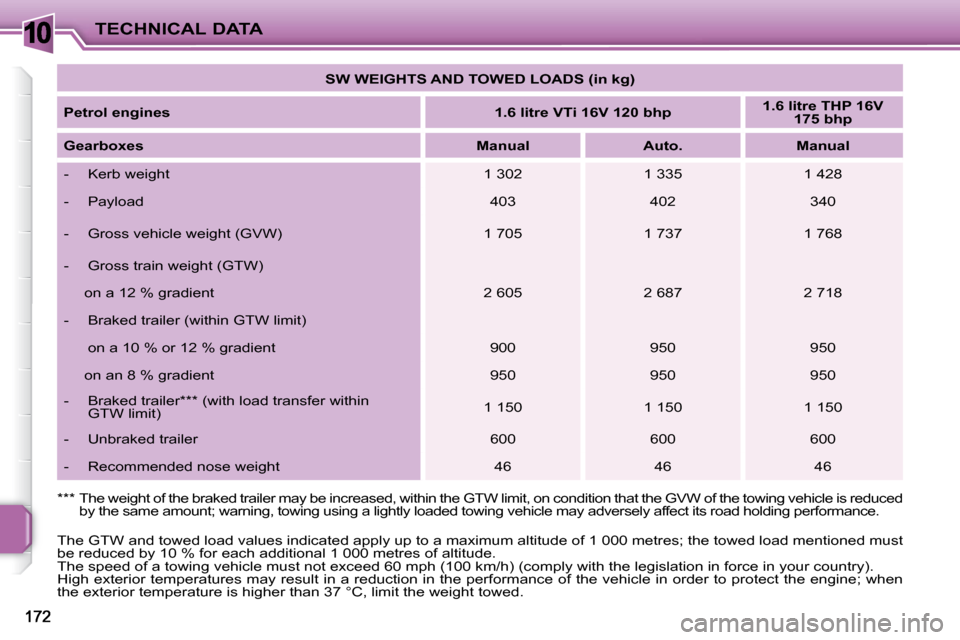

SW WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.6 litre VTi 16V 120 bhp
1.6 litre THP 16V
175 bhp
Gearboxes
Manual Auto. Manual
- Kerb weight 1 302 1 335 1 428
- Payload 403 402 340
- Gross vehicle weight (GVW) 1 705 1 737 1 768
- Gross train weight (GTW) on a 12 % gradient 2 605 2 687 2 718
- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient 900 950 950 on an 8 % gradient 950 950 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 173 of 267
10
179
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.

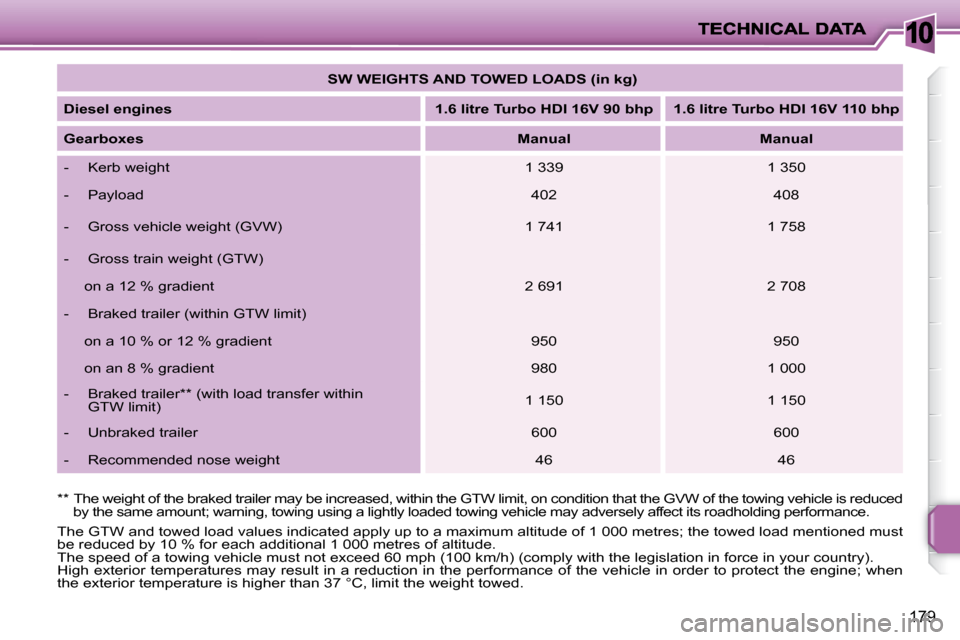

SW WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Gearboxes
Manual Manual
- Kerb weight 1 339 1 350
- Payload 402 408
- Gross vehicle weight (GVW) 1 741 1 758
- Gross train weight (GTW) on a 12 % gradient 2 691 2 708
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 950 950
on an 8 % gradient 980 1 000
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
** The weight of the braked trailer may be increase d, within the GTW limit, on condition that the GVW of the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
Page 174 of 267
10
173

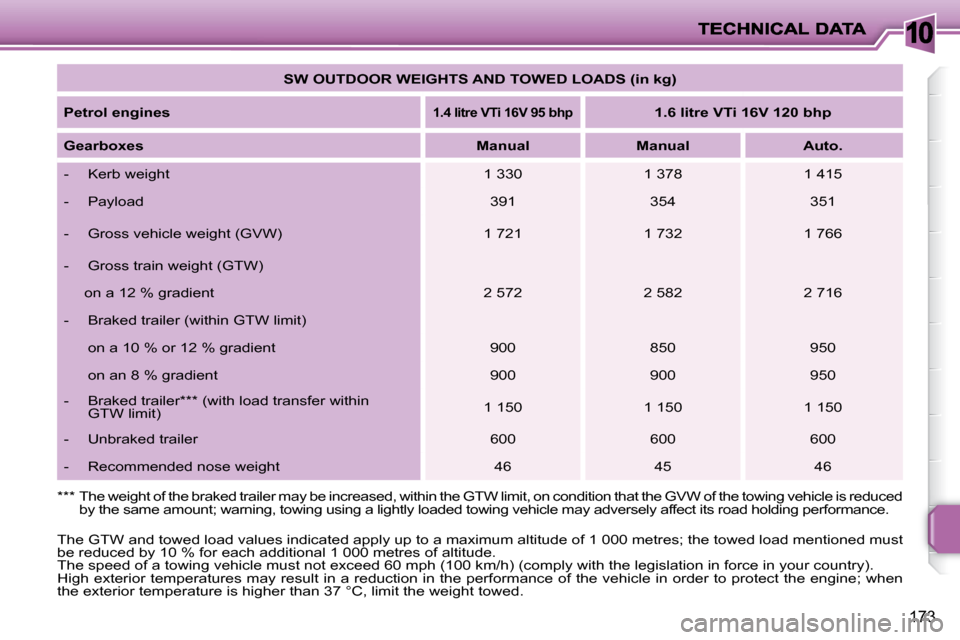

SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)
Petrol engines
1.4 litre VTi 16V 95 bhp
1.6 litre VTi 16V 120 bhp
Gearboxes
Manual Manual Auto.
- Kerb weight 1 330 1 378 1 415
- Payload 391 354 351
- Gross vehicle weight (GVW) 1 721 1 732 1 766
- Gross train weight (GTW) on a 12 % gradient 2 572 2 582 2 716
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 900 850 950
on an 8 % gradient 900 900 950
- Braked trailer *** (with load transfer within GTW limit) 1 150 1 150 1 150
- Unbraked trailer 600 600 600
- Recommended nose weight 46 45 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
*** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its road holding performance.
Page 175 of 267
10
180
TECHNICAL DATA
SW OUTDOOR WEIGHTS AND TOWED LOADS (in kg)
Diesel engines
1.6 litre Turbo HDI 16V 90 bhp 1.6 litre Turbo HDI 16V 110 bhp
Gearboxes
Manual Manual
- Kerb weight 1 387 1 431
- Payload 378 352
- Gross vehicle weight (GVW) 1 765 1 783
- Gross train weight (GTW) on a 12 % gradient 2 715 2 733
- Braked trailer (within GTW limit) on a 10 % or 12 % gradient 950 950
on an 8 % gradient 950 950
- Braked trailer ** (with load transfer within GTW limit) 1 150 1 150
- Unbraked trailer 600 600
- Recommended nose weight 46 46
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must
be reduced by 10 % for each additional 1 000 metres of alti tude.
The speed of a towing vehicle must not exceed 60 mph (100 k m/h) (comply with the legislation in force in your country).
High exterior temperatures may result in a reduction in the perf ormance of the vehicle in order to protect the engine; when
the exterior temperature is higher than 37 °C, limit the wei ght towed.
** The weight of the braked trailer may be increased, within the GTW limit, on condition that the GVW o f the towing vehicle is reduced
by the same amount; warning, towing using a lightly loaded towing vehicle may adversely affect its roadholding performance.
Page 176 of 267
10
181

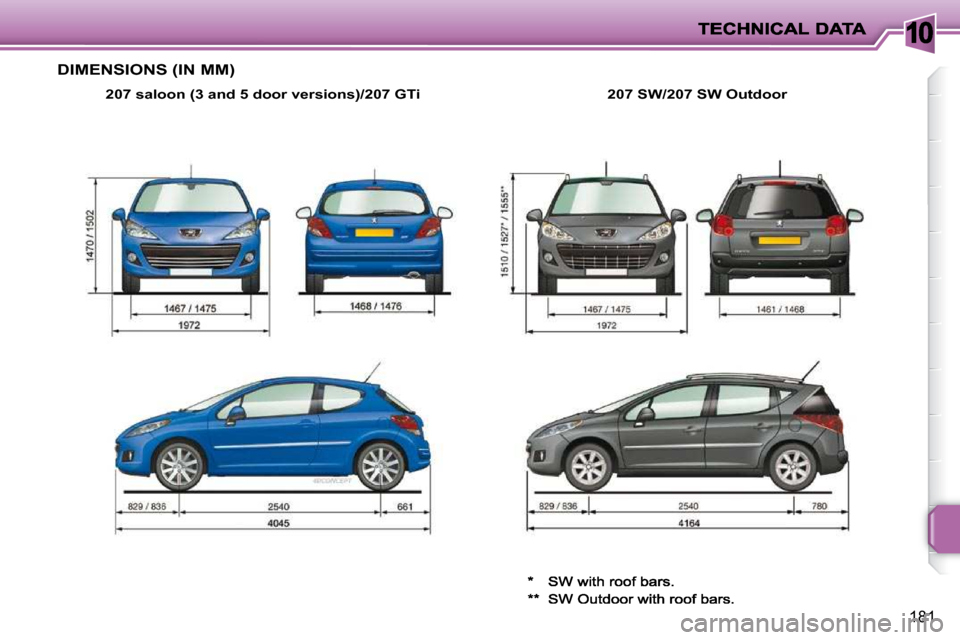

DIMENSIONS (IN MM)
207 saloon (3 and 5 door versions)/207 GTi207 SW/207 SW Outdoor
** SW Outdoor with roof bars.
Page 177 of 267
10
!
i
182
TECHNICAL DATA

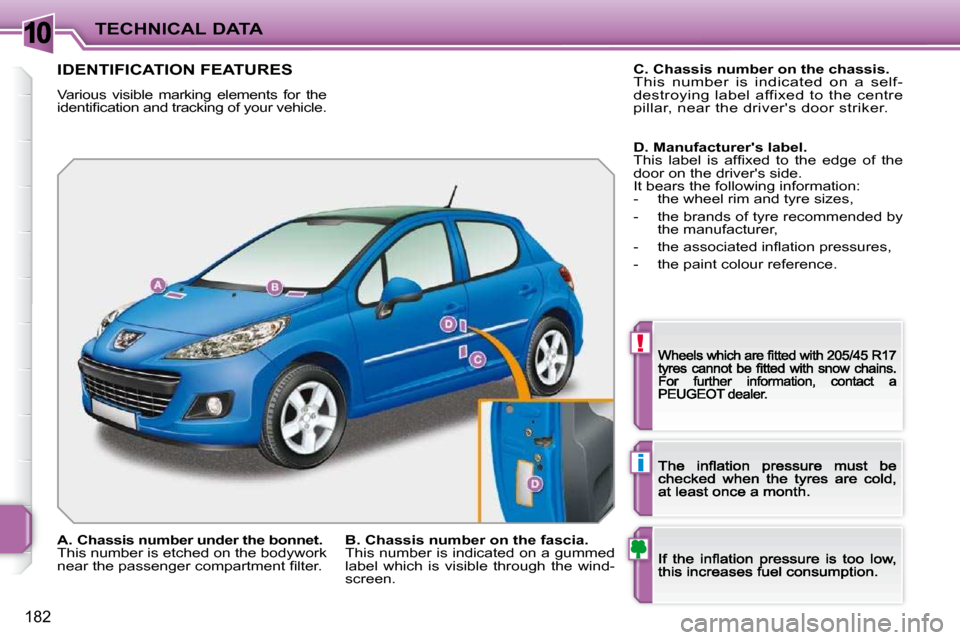

IDENTIFICATION FEATURES
Various visible marking elements for the i d e n t i fi c a t i o n a n d t r a c k i n g o f y o u r v e h i c l e .
A. Chassis number under the bonnet. This number is etched on the bodywork n e a r t h e p a s s e n g e r c o m p a r t m e n t fi l t e r .
B. Chassis number on the fascia. This number is indicated on a gummed label which is visible through the wind-screen.
C. Chassis number on the chassis. This number is indicated on a self-destroying label affixed to the centre pillar, near the driver's door striker.
D. Manufacturer's label. T h i s l a b e l i s a f fi x e d t o t h e e d g e o f t h e door on the driver's side. It bears the following information: - the wheel rim and tyre sizes,
- the brands of tyre recommended by the manufacturer,
- t h e a s s o c i a t e d i n fl a t i o n p r e s s u r e s ,
- the paint colour reference.
Page 178 of 267
183

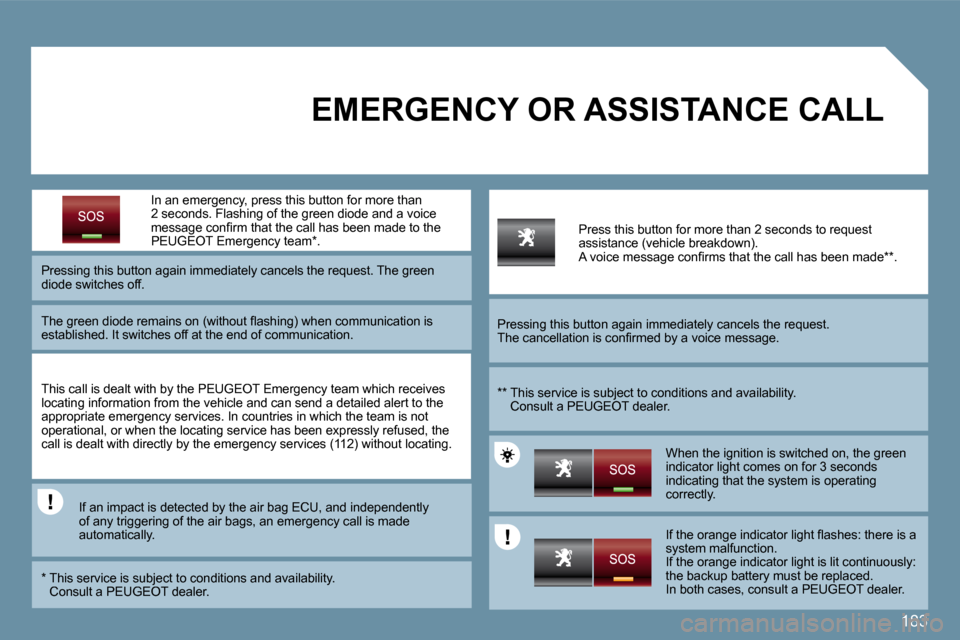

In an emergency , press this button for more than 2 seconds. Flashing of the green diode and a voice m e s s a g e c o n fi r m t h a t t h e c a l l h a s b e e n m a d e t o t h e PEUGEOT Emergency team * .
Pressing this button again immediately cancels the request. The green diode switches off.
T h e g r e e n d i o d e r e m a i n s o n ( w i t h o u t fl a s h i n g ) w h e n c o m m u n i c a t i o n i s established. It switches off at the end of communication.
This call is dealt with by the PEUGEOT Emergency t eam which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in whi ch the team is not operational, or when the locating service has been expressly refused, the c a l l i s d e a l t w i t h d i r e c t l y b y t h e e m e r g e n c y s e r v i c e s ( 1 1 2 ) w i t h o u t l o c a t i n g .
If an impact is detected by the air bag ECU, and i ndependently of any triggering of the air bags, an emergency cal l is made automatically.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
Press this button for more than 2 seconds to reque st a s s i s t a n c e ( v e h i c l e b r e a k d o w n ) . A v o i c e m e s s a g e c o n fi r m s t h a t t h e c a l l h a s b e e n m a d e * * .
Pressing this button again immediately cancels the request. T h e c a n c e l l a t i o n i s c o n fi r m e d b y a v o i c e m e s s a g e .
** This service is subject to conditions and availability. Consult a PEUGEOT dealer.
When the ignition is switched on, the green indicator light comes on for 3 seconds indicating that the system is operating correctly.
I f t h e o r a n g e i n d i c a t o r l i g h t fl a s h e s : t h e r e i s a system malfunction. I f t h e o r a n g e i n d i c a t o r l i g h t i s l i t c o n t i n u o u s l y : the backup battery must be replaced. In both cases, consult a PEUGEOT dealer.
EMERGENCY OR ASSISTANCE CALL
Page 179 of 267
184

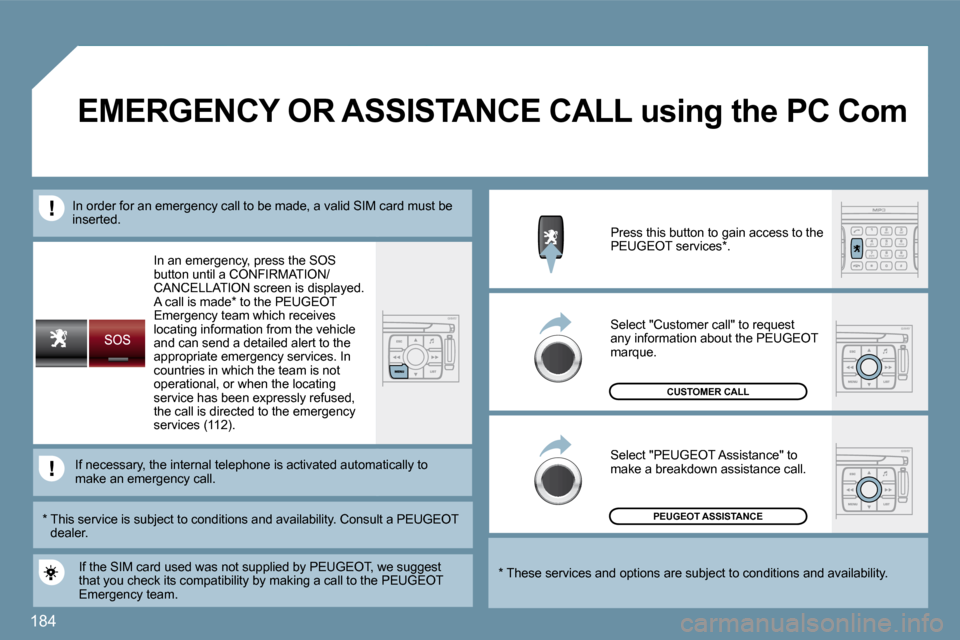

In an emergency, press the SOS button until a CONFIRMATION/CANCELLATION screen is displayed. A call is made * to the PEUGEOTEmergency team which receives locating information from the vehicle and can send a detailed alert to the appropriate emergency services. In countries in which the team is not operational, or when the locating service has been expressly refused, the call is directed to the emergency s e r v i c e s ( 1 1 2 ) .
PEUGEOT ASSISTANCE
CUSTOMER CALL
If the SIM card used was not supplied by PEUGEOT, we suggest that you check its compatibility by making a call to the PEUGEOTEmergency team.
Press this button to gain access to the PEUGEOT services * .
Select "Customer call" to request any information about the PEUGEOT marque.
Select "PEUGEOT Assistance" to make a breakdown assistance call.
* These services and options are subject to conditions and availability.
* This service is subject to conditions and availability. Consult a PEUGEOT dealer.
If necessary, the internal telephone is activated automattomatically to make an emergency call.
In order for an emergency call to be made, a vali d SIM cSIM card must be inserted.
EMERGENCY OR ASSISTANCE CALL using the PC Co m
Page 180 of 267
185

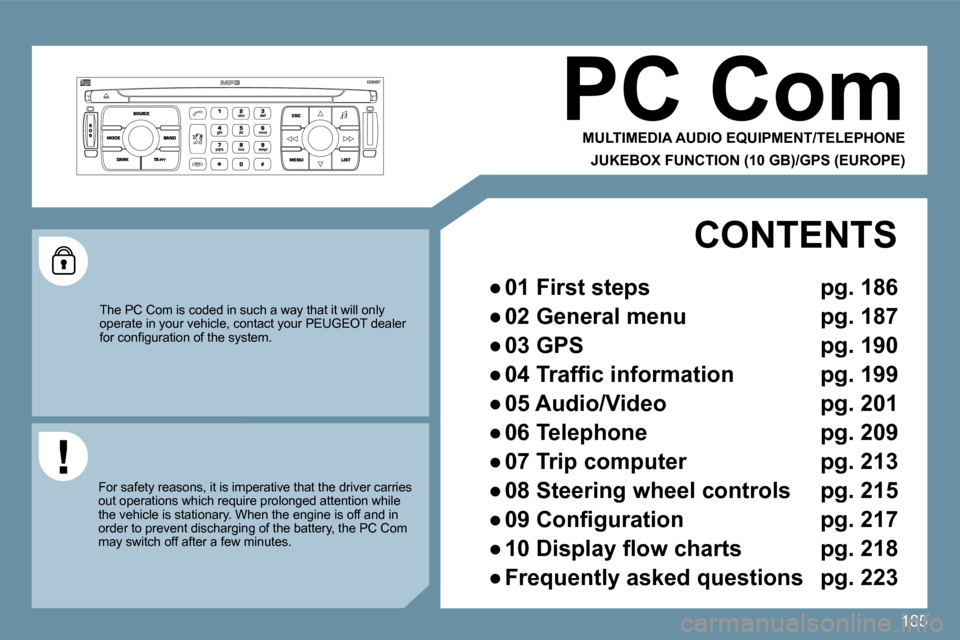

PC Com
MULTIMEDIA AUDIO EQUIPMENT/TELEPHONE
JUKEBOX FUNCTION (10 GB)/GPS (EUROPE)
The PC Com is coded in such a way that it will only operate in your vehicle, contact your PEUGEOT deale r f o r c o n fi g u r a t i o n o f t h e s y s t e m .
For safety reasons, it is imperative that the driver carries out operations which require prolonged attention wh ile the vehicle is stationary. When the engine is off and in order to prevent discharging of the battery, the PC Com may switch off after a few minutes.
CONTENTS
