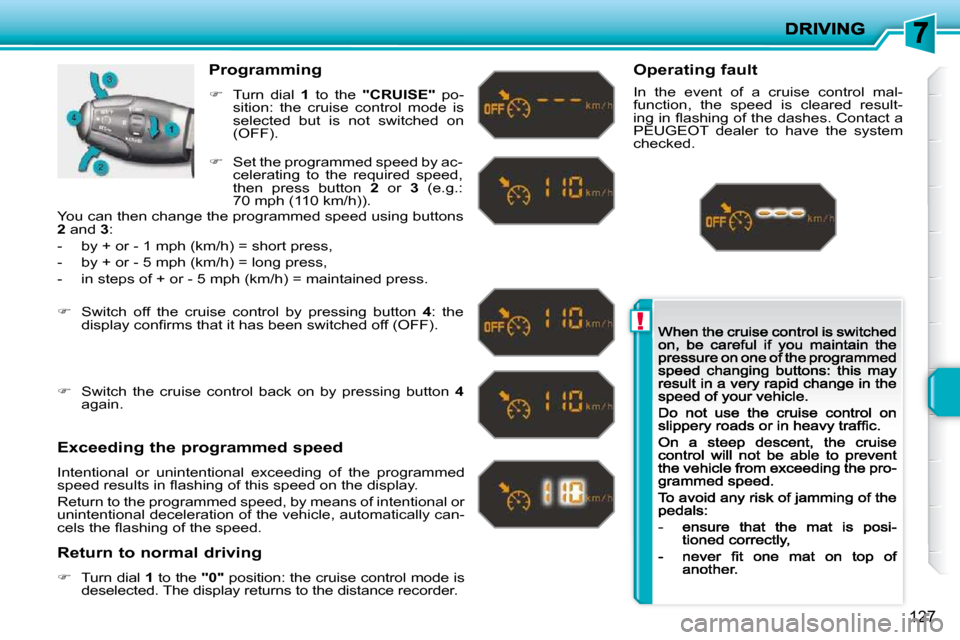

Programming
Turn dial 1 to the "CRUISE" po-sition: the cruise control mode is selected but is not switched on (OFF).
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional or unintentional deceleration of the vehicle, automatically can- c e l s t h e fl a s h i n g o f t h e s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the cruise control mode is deselected. The display returns to the distance recorder.
Operating fault
In the event of a cruise control mal-function, the speed is cleared result- i n g i n fl a s h i n g o f t h e d a s h e s . C o n t a c t a PEUGEOT dealer to have the system checked.
Set the programmed speed by ac-celerating to the required speed, then press button 2 or 3 (e.g.: 70 mph (110 km/h)).
Switch off the cruise control by pressing button 4 : the d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the cruise control back on by pressing button 4again.
You can then change the programmed speed using buttons 2 and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Page 122 of 267
i
i
i
128
VISUAL AND AUDIBLE REAR
PARKING ASSISTANCE
System consisting of four proximity sen-
sors, installed in the rear bumper.
It detects any obstacle (person, vehicle,
tree, barrier...) located behind the vehi-
cle, however, it will not be able to detect
obstacles located immediately below
the bumper. The parking assistance is
switched on
by engaging reverse gear.
This is accompanied by an audible signal.
* According to version.
An object, such as a stake, a road-
works cone or any other similar
object may be detected at the start
of the manoeuvre but may no lon-
ger be detected when the vehicle
moves nearer to it. When the distance between the rear of
the vehicle and the obstacle is less than
approximately thirty centimetres, the au-
dible signal becomes continuous and the
"Danger" symbol appears, depending on
the multifunction display version.
The parking assistance is
switched off
by moving the gear lever to neutral.
The parking assistance system
cannot, in any circumstances, re-
place the need for vigilance and
responsibility on the part of the
driver.
The proximity information is indicated
by:
- an audible signal which becomes more rapid as the vehicle approach-
es the obstacle,
- a diagram on the multifunction dis- play * , with blocks which move clos-
er to the vehicle. Operating fault
In bad weather or in winter, ensure
that the sensors are not covered
with mud, ice or snow. When re-
verse gear is engaged, an audible
signal (long beep) indicates that
the sensors may be dirty. If an operating fault occurs, this
warning light comes on, when
reverse gear is engaged, ac-
companied by an audible signal
(short beep) and a message on the mul-
tifunction display.
Have it checked by a PEUGEOT dealer.
Page 123 of 267
i
130

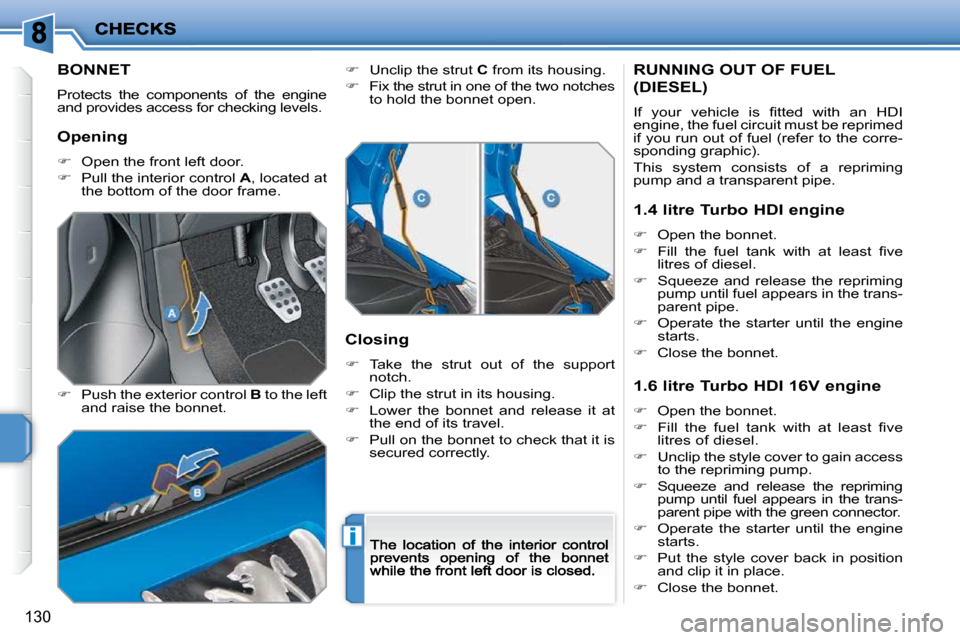

BONNET
Protects the components of the engine and provides access for checking levels.
Push the exterior control B to the left and raise the bonnet.
Unclip the strut C from its housing.
Fix the strut in one of the two notchesto hold the bonnet open.
Closing
Take the strut out of the support notch.
Clip the strut in its housing.
Lower the bonnet and release it at the end of its travel.
Pull on the bonnet to check that it is secured correctly.
RUNNING OUT OF FUEL
(DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I engine, the fuel circuit must be reprimed if you run out of fuel (refer to the corre-sponding graphic).
This system consists of a repriming pump and a transparent pipe.
Opening
Open the front left door.
Pull the interior control A , located at the bottom of the door frame.
1.4 litre Turbo HDI engine
Open the bonnet.
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel.
Squeeze and release the repriming pump until fuel appears in the trans-parent pipe.
Operate the starter until the engine starts.
Close the bonnet.
1.6 litre Turbo HDI 16V engine
Open the bonnet.
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e litres of diesel.
Unclip the style cover to gain access to the repriming pump.
Squeeze and release the repriming pump until fuel appears in the trans-parent pipe with the green connector.
Operate the starter until the engine starts.
Put the style cover back in position and clip it in place.
Close the bonnet.
Page 124 of 267
131

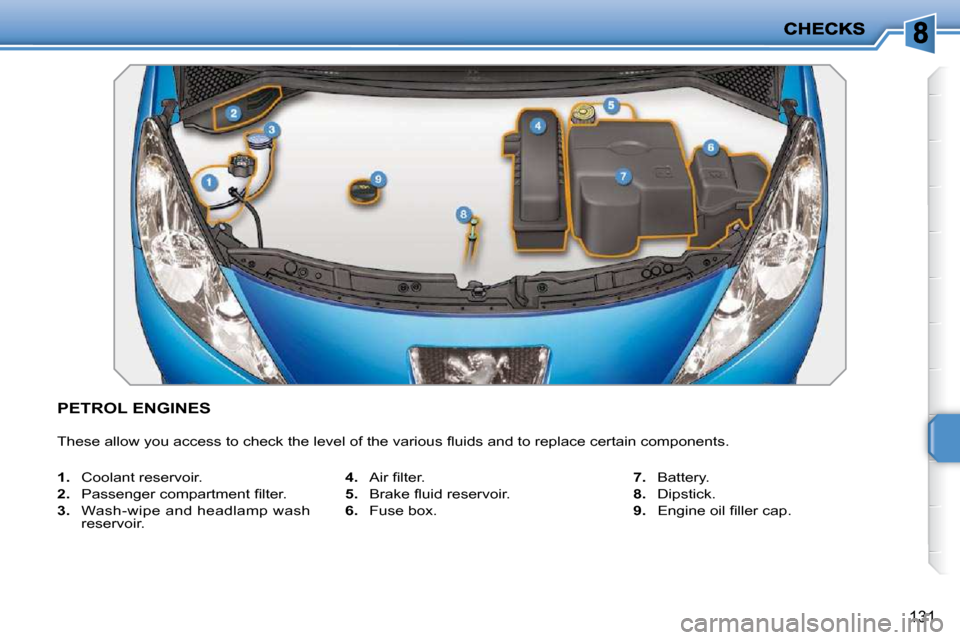

PETROL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s a n d t o r e p l a c e c e r t a i n c o m p o n e n t s .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3.Wash-wipe and headlamp washreservoir.
4. A i r fi l t e r .
5. B r a k e fl u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
Page 125 of 267
132

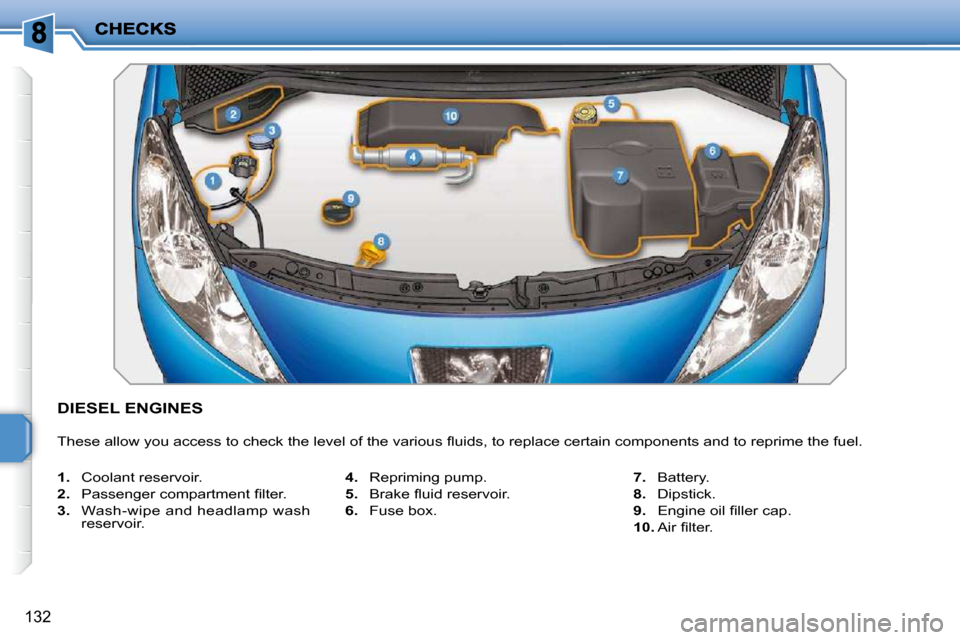

DIESEL ENGINES
T h e s e a l l o w y o u a c c e s s t o c h e c k t h e l e v e l o f t h e v a r i o u s fl u i d s , t o r e p l a c e c e r t a i n c o m p o n e n t s a n d t o r e p r i m e t h e f u e l .
1. Coolant reservoir.
2. P a s s e n g e r c o m p a r t m e n t fi l t e r .
3.Wash-wipe and headlamp washreservoir.
4. Repriming pump.
5. B r a k e fl u i d r e s e r v o i r .
6. Fuse box.
7. Battery.
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. A i r fi l t e r .
Page 126 of 267
133

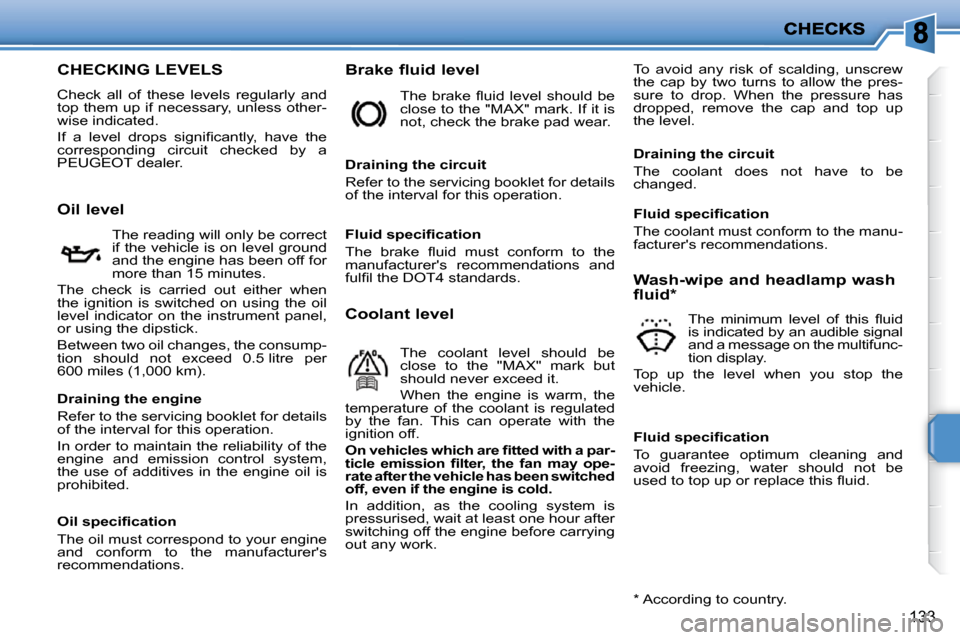

CHECKING LEVELS
Check all of these levels regularly and top them up if necessary, unless other-wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e corresponding circuit checked by a PEUGEOT dealer.
Brake fluid level To avoid any risk of scalding, unscrew the cap by two turns to allow the pres-sure to drop. When the pressure has dropped, remove the cap and top up the level.
Oil level
The reading will only be correct if the vehicle is on level ground and the engine has been off for more than 15 minutes.
The check is carried out either when the ignition is switched on using the oil level indicator on the instrument panel, or using the dipstick.
Between two oil changes, the consump-tion should not exceed 0.5 litre per 600 miles (1,000 km).
T h e b r a k e fl u i d l e v e l s h o u l d b e close to the "MAX" mark. If it is not, check the brake pad wear.
Draining the circuit
Refer to the servicing booklet for details of the interval for this operation.
Coolant level
The coolant level should be close to the "MAX" mark but should never exceed it.
When the engine is warm, the temperature of the coolant is regulated by the fan. This can operate with the ignition off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a p a r - t i c l e e m i s s i o n fi l t e r , t h e f a n m a y o p e -rate after the vehicle has been switched o f f , e v e n i f t h e e n g i n e i s c o l d .
In addition, as the cooling system is pressurised, wait at least one hour after switching off the engine before carrying out any work.
W a s h - w i p e a n d h e a d l a m p w a s h
fluid*
T h e m i n i m u m l e v e l o f t h i s fl u i d is indicated by an audible signal and a message on the multifunc-tion display.
Top up the level when you stop the vehicle.
* According to country.
Draining the engine
Refer to the servicing booklet for details of the interval for this operation.
In order to maintain the reliability of the engine and emission control system, the use of additives in the engine oil is prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your engine and conform to the manufacturer's recommendations.
F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e manufacturer's recommendations and f u l fi l t h e D O T 4 s t a n d a r d s .
Draining the circuit
The coolant does not have to be changed.
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-facturer's recommendations.
F l u i d s p e c i fi c a t i o n
To guarantee optimum cleaning and avoid freezing, water should not be u s e d t o t o p u p o r r e p l a c e t h i s fl u i d .
Page 127 of 267
!
i
1 3 4
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-dicated by lighting of the service warn-ing light, accompanied by an audible signal and a message on the multifunc-tion display.
Used products
CHECKS
Unless otherwise indicated, check these components in accordance with the servicing booklet and in relation to your engine.
Otherwise, have them checked by a PEUGEOT dealer.
B a t t e r y
The battery does not require any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -minals are clean and correctly tightened, particularly in sum-mer and winter.
When carrying out work on the battery, refer to the "Practical information" sec-tion for details of the precautions to be taken before disconnecting the battery and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet for details of the replacement intervals for these compo-nents.
Depending on the environ-ment (dusty atmosphere...) and the use of the vehicle (city driving...), replace t h e m t w i c e a s o f t e n i f n e c e s s a r y(refer to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r may have an adverse effect on the per-formance of the air conditioning system and generate undesirable odours.
Particle emission filter (Diesel)
It is imperative that the maintenance of t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e the engine oil is changed.
Refer to the servicing booklet for details of the replacement interval for this component.
Topping up
It is imperative that this additive is topped up by a PEUGEOT dealer with-out delay.
Page 128 of 267
!
i
1 3 4
Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-dicated by lighting of the service warn-ing light, accompanied by an audible signal and a message on the multifunc-tion display.
Used products
CHECKS
Unless otherwise indicated, check these components in accordance with the servicing booklet and in relation to your engine.
Otherwise, have them checked by a PEUGEOT dealer.
B a t t e r y
The battery does not require any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -minals are clean and correctly tightened, particularly in sum-mer and winter.
When carrying out work on the battery, refer to the "Practical information" sec-tion for details of the precautions to be taken before disconnecting the battery and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet for details of the replacement intervals for these compo-nents.
Depending on the environ-ment (dusty atmosphere...) and the use of the vehicle (city driving...), replace t h e m t w i c e a s o f t e n i f n e c e s s a r y(refer to the "Engines" paragraph).
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r may have an adverse effect on the per-formance of the air conditioning system and generate undesirable odours.
Particle emission filter (Diesel)
It is imperative that the maintenance of t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t by a PEUGEOT dealer.
Oil filter
R e p l a c e t h e o i l fi l t e r e a c h t i m e the engine oil is changed.
Refer to the servicing booklet for details of the replacement interval for this component.
Topping up
It is imperative that this additive is topped up by a PEUGEOT dealer with-out delay.
Page 129 of 267
!
135

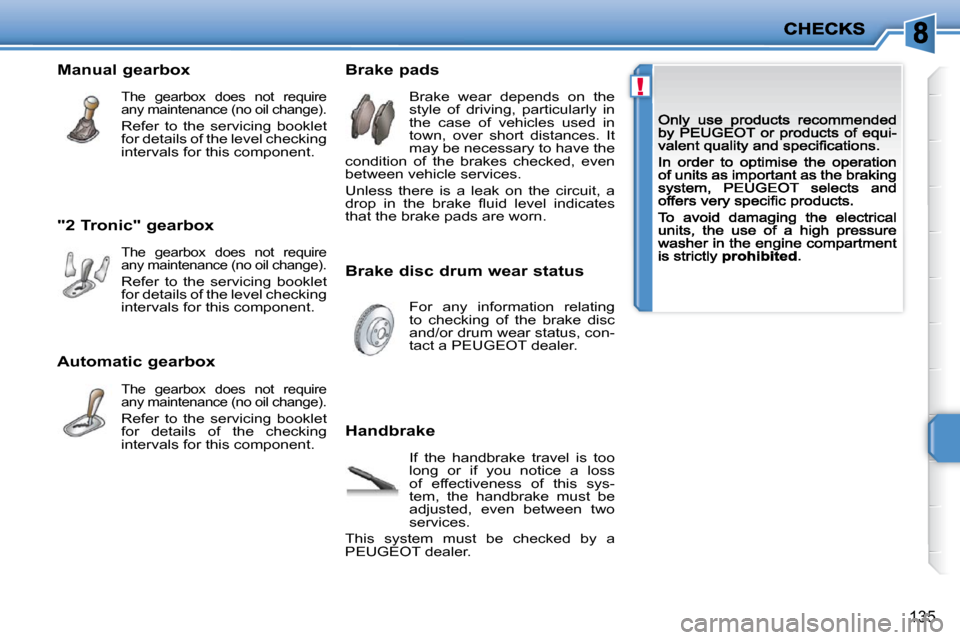

"2 Tronic" gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the servicing booklet for details of the level checking intervals for this component.
Brake disc drum wear status
For any information relating to checking of the brake disc and/or drum wear status, con-tact a PEUGEOT dealer.
Manual gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the servicing booklet for details of the level checking intervals for this component.
Brake pads
Brake wear depends on the style of driving, particularly in the case of vehicles used in town, over short distances. It may be necessary to have the condition of the brakes checked, even between vehicle services.
Unless there is a leak on the circuit, a d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s that the brake pads are worn.
Handbrake
If the handbrake travel is too long or if you notice a loss of effectiveness of this sys-tem, the handbrake must be adjusted, even between two services.
This system must be checked by a PEUGEOT dealer.
Automatic gearbox
The gearbox does not require any maintenance (no oil change).
Refer to the servicing booklet for details of the checking intervals for this component.
Page 130 of 267
i
136
This repair kit is available from
PEUGEOT dealers.
It is designed to repair most punc-
tures which could affect the tyre, lo-
cated on the tyre tread or shoulder.
Avoid removing any foreign bodies
which have penetrated the tyre.

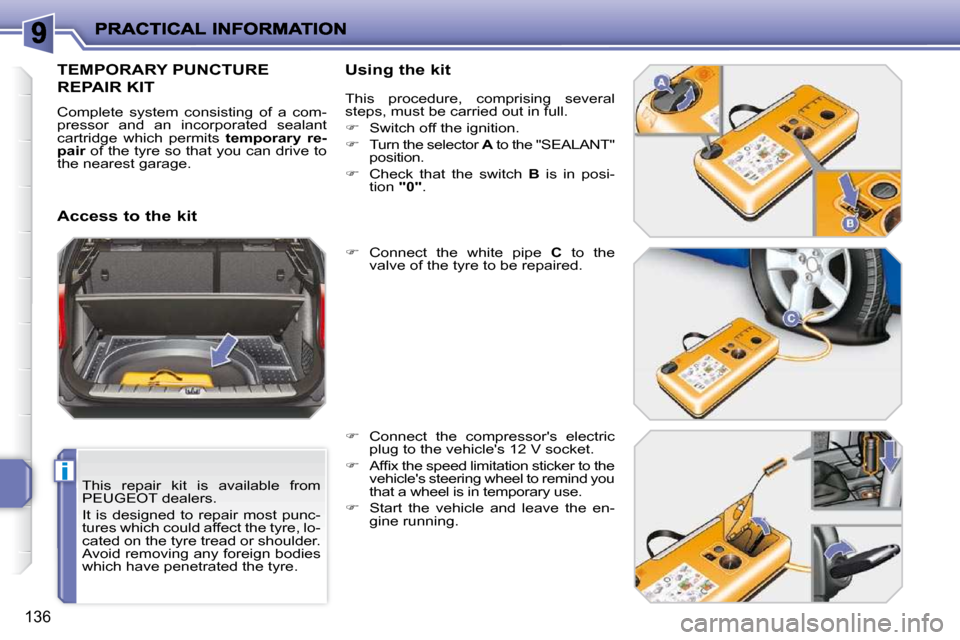

TEMPORARY PUNCTURE
REPAIR KIT
Complete system consisting of a com-
pressor and an incorporated sealant
cartridge which permits temporary re-
pair of the tyre so that you can drive to
the nearest garage. Using the kit
This procedure, comprising several
steps, must be carried out in full.
Switch off the ignition.
Turn the selector A to the "SEALANT"
position.
Check that the switch B is in posi-
tion "0" .
Connect the white pipe C to the
valve of the tyre to be repaired.
Connect the compressor's electric
plug to the vehicle's 12 V socket.
A f fi x t h e s p e e d l i m i t a t i o n s t i c k e r t o t h e
vehicle's steering wheel to remind you
that a wheel is in temporary use.
Start the vehicle and leave the en-
gine running.
Access to the kit
