PEUGEOT 3008 2013 Owners Manual

169
CHECKS
PETROL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids and for replacing certain components.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery / Fuses.

6.
Fusebox.
7.
Air fi lter.

8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

170
CHECKS
DIESEL ENGINES
The various caps and covers allow access for checking the levels of the various fl uids, for replacing certain components and
for priming the fuel system.


1.
Power steering reservoir.

2.
Screenwash and headlamp wash
reservoir.

3.
Coolant reservoir.
4.
Brake fl uid reservoir.

5.
Battery / Fuses.

6.
Fusebox.

7.
Air fi lter.
8.
Engine oil dipstick.

9.
Engine oil fi ller cap.

10.
Priming pump * .

11 .
Bleed screw * .

*
According to engine.

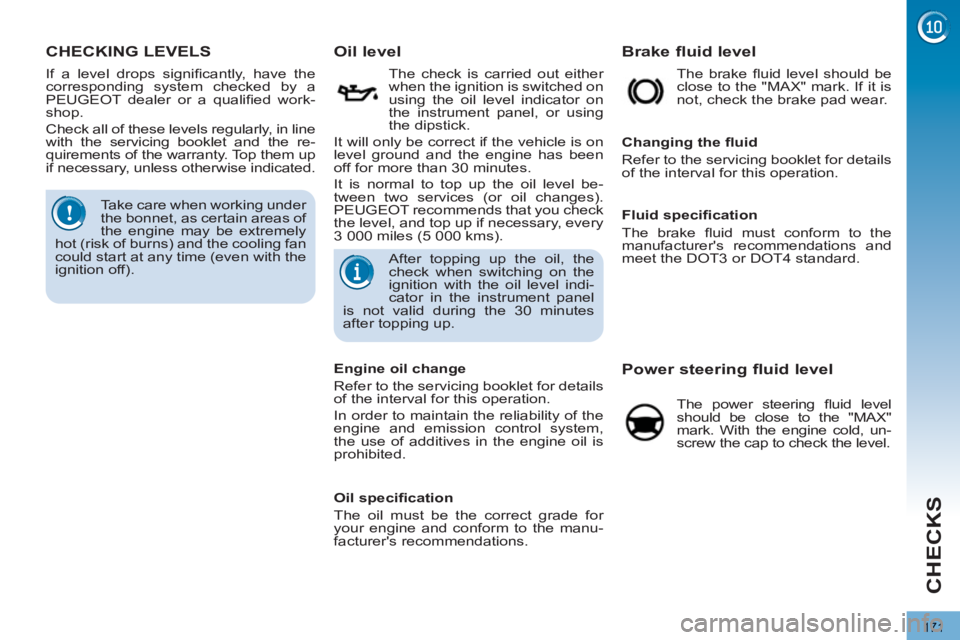

171
CHECKS
CHECKING LEVELS
















Oil level



The check is carried out either
when the ignition is switched on
using the oil level indicator on
the instrument panel, or using
the dipstick.
It will only be correct if the vehicle is on
level ground and the engine has been
off for more than 30 minutes.
It is normal to top up the oil level be-
tween two services (or oil changes).
PEUGEOT recommends that you check
the level, and top up if necessary, every
3 000 miles (5 000 kms).
Take care when working under
the bonnet, as certain areas of
the engine may be extremely
hot (risk of burns) and the cooling fan
could start at any time (even with the
ignition off).

If a level drops signifi cantly, have the
corresponding system checked by a
PEUGEOT dealer or a qualifi ed work-
shop.
Check all of these levels regularly, in line
with the servicing booklet and the re-
quirements of the warranty. Top them up
if necessary, unless otherwise indicated.
After topping up the oil, the
check when switching on the
ignition with the oil level indi-
cator in the instrument panel
is not valid during the 30 minutes
after topping up.

Engine oil change
Refer to the servicing booklet for details
of the interval for this operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.











Power steering fluid level

The power steering fl uid level
should be close to the "MAX"
mark. With the engine cold, un-
screw the cap to check the level.
Fluid specifi cation
The brake fl uid must conform to the
manufacturer's recommendations and
meet the DOT3 or DOT4 standard.

Changing the fl uid
Refer to the servicing booklet for details
of the interval for this operation. The brake fl uid level should be
close to the "MAX" mark. If it is
not, check the brake pad wear.










Brake fluid level


Oil specifi cation
The oil must be the correct grade for
your engine and conform to the manu-
facturer's recommendations.

172
CHECKS
Avoid prolonged contact of
used oil or fl uids with the skin.
Most of these fl uids are harmful to
health or indeed very corrosive.
Do not discard used oil or fl u-
ids into sewers or onto the
ground.
Take used oil to a PEUGEOT dealer
or a qualifi ed workshop (France) or
to an authorised waste disposal site.










Diesel additive level (Diesel engine
with particle emission filter)







Used products


Topping up
This additive must be topped up by a
PEUGEOT dealer or a qualifi ed work-
shop without delay.

Fluid specifi cation
For optimum cleaning and to avoid
freezing, this fl uid must not be topped
up with or replaced with plain water.

In the case of vehicles fi tted
with headlamp washers, the
low fl uid level is indicated by an
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you next stop
the vehicle.





















Screenwash and headlamp
wash fluid






The cooling fan may start after
switching off the engine: take care
with articles and clothing that might
become caught by the fan blades.



Fluid specifi cation
The coolant must conform to the manu-
facturer's recommendations.

Changing the coolant
The coolant does not have to be
changed.
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the
temperature of the coolant is regulated
by the fan.
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.











Coolant level

A low additive level is indi-
cated by illumination of the
service warning lamp, accom-
panied by an audible warning
and a message in the instrument panel
screen.

173
CHECKS
CHECKS


Unless otherwise indicated, check
these components in accordance with
the servicing booklet and according to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer or a qualifi ed workshop.








The presence of this label, in
particular with the Stop & Start
system, indicates the use of a
specifi c 12 V lead-acid battery with
special technology and specifi cation.
The involvement of a PEUGEOT deal-
er or a qualifi ed workshop is essential
when replacing or disconnecting the
battery. Replace the oil fi lter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.














Oil filter


Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary
.
A clogged passenger compartment fi lter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.





















Air filter and passenger compartment filter













12 V battery


The battery does not require any
maintenance.
However, check that the terminals
are clean and correctly tightened,
particularly in summer and winter.
When carrying out work on the battery, refer
to the "12 V battery" section for details of the
precautions to be taken before disconnecting
the battery and following its reconnection.











Particle emission filter (Diesel)

The start of saturation of the particle
fi lter is indicated by the temporary illu-
mination of this warning lamp accompa-
nied by a message in the multi-function
screen.
As soon as the traffi c conditions per-
mit, regenerate the fi lter by driving at a
speed of at least 40 mph (60 km/h) until
the warning lamp goes off.
If the warning lamp stays on, this indi-
cates a low additive level.

On a new vehicle, the fi rst par-
ticle fi lter regeneration opera-
tions may be accompanied by
a "burning" smell, which is perfectly
normal.
Following prolonged operation of the
vehicle at very low speed or at idle,
you may, in exceptional circumstanc-
es, notice the emission of water va-
pour at the exhaust on acceleration.
This does not affect the behaviour of
the vehicle or the environment.

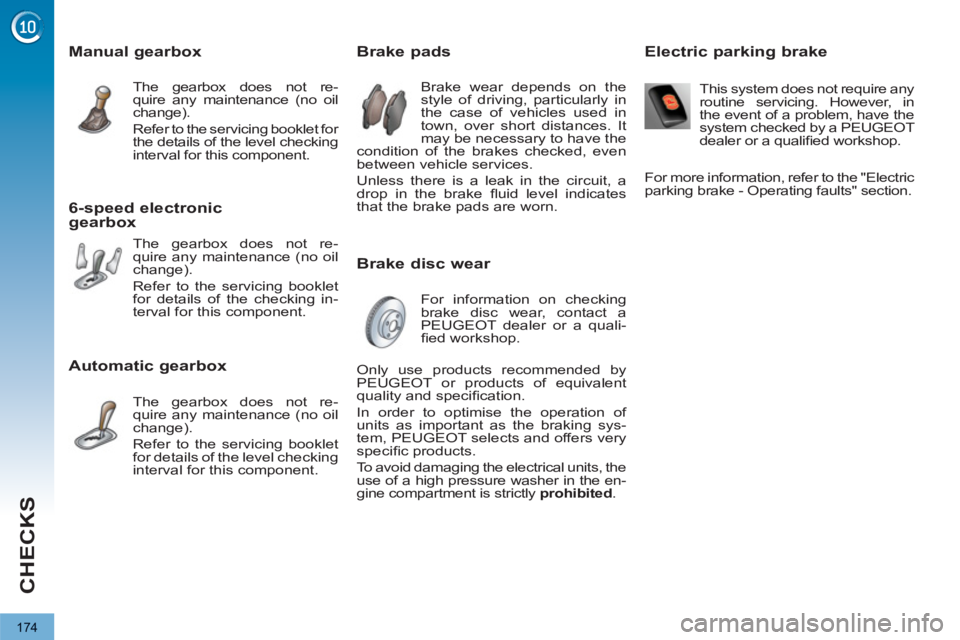

174
CHECKS

Brake disc wear














Brake pads

Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.
For information on checking
brake disc wear, contact a
PEUGEOT dealer or a quali-
fi ed workshop.







Manual gearbox

The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet for
the details of the level checking
interval for this component.







6-speed electronic
gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the checking in-
terval for this component.







Automatic gearbox

The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
interval for this component. This system does not require any
routine servicing. However, in
the event of a problem, have the
system checked by a PEUGEOT
dealer or a qualifi ed workshop.
















Electric parking brake


For more information, refer to the "Electric
parking brake - Operating faults" section.























Only use products recommended by
PEUGEOT or products of equivalent
quality and specifi cation.
In order to optimise the operation of
units as important as the braking sys-
tem, PEUGEOT selects and offers very
specifi c products.
To avoid damaging the electrical units, the
use of a high pressure washer in the en-
gine compartment is strictly prohibited
.

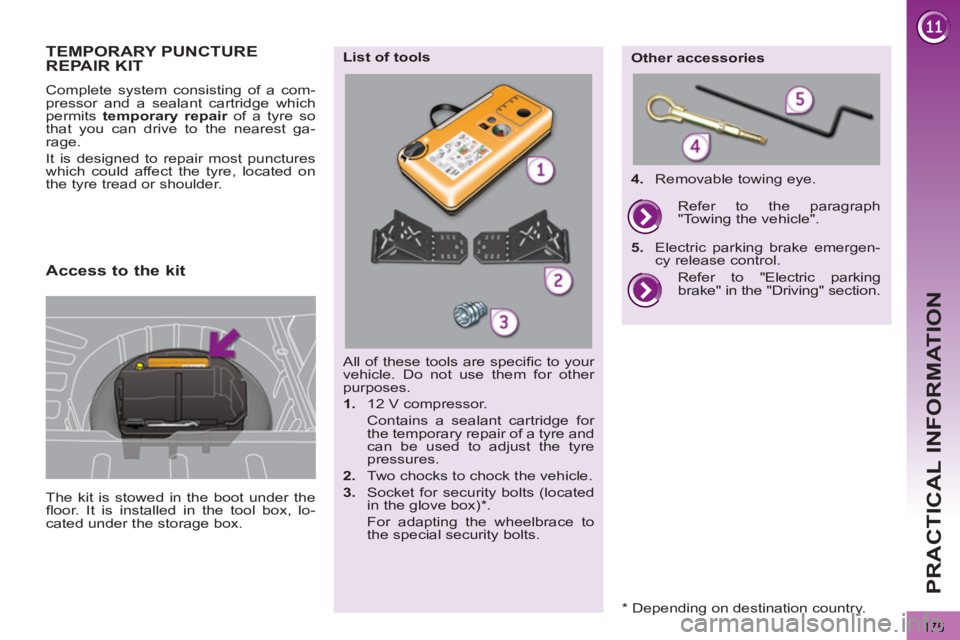

175
PRACTICAL INFORMATION
TEMPORARY PUNCTURE REPAIR KIT
The kit is stowed in the boot under the
fl oor. It is installed in the tool box, lo-
cated under the storage box.
Complete system consisting of a com-
pressor and a sealant cartridge which
permits temporary repair
of a tyre so
that you can drive to the nearest ga-
rage.
It is designed to repair most punctures
which could affect the tyre, located on
the tyre tread or shoulder.


All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
12 V compressor.
Contains a sealant cartridge for
the temporary repair of a tyre and
can be used to adjust the tyre
pressures.

2.
Two chocks to chock the vehicle.

3.
Socket for security bolts (located
in the glove box) * .
For adapting the wheelbrace to
the special security bolts.


List of tools

Other accessories

4.
Removable towing eye.
Refer to "Electric parking
brake" in the "Driving" section.
Refer to the paragraph
"Towing the vehicle".

5.
Electric parking brake emergen-
cy release control.

Access to the kit


* Depending on destination country.

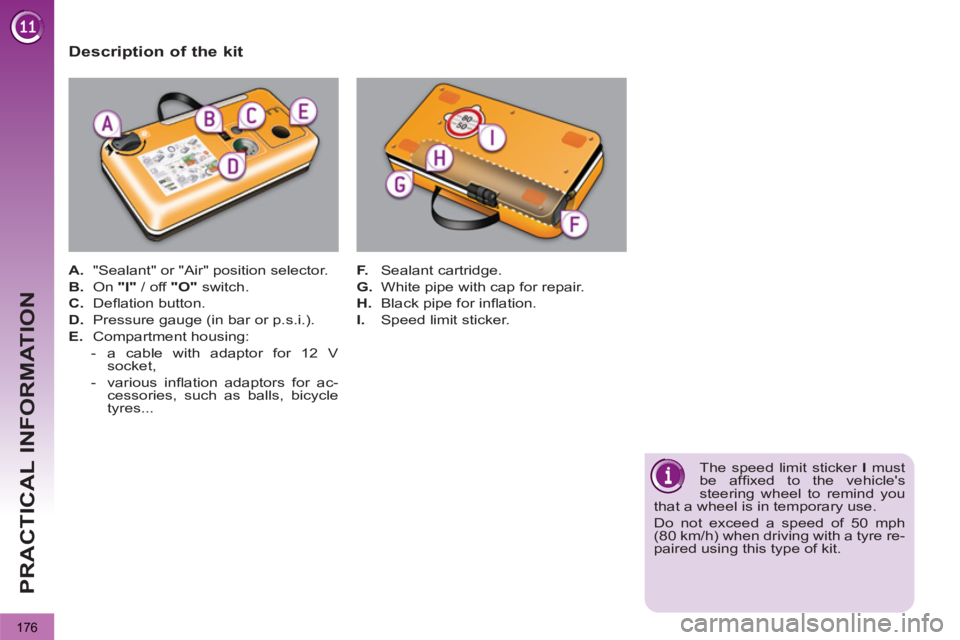

176
PRACTICAL INFORMATION

Description of the kit



A.
"Sealant" or "Air" position selector.

B.
On "I"
/ off "O"
switch.

C.
Defl ation button.

D.
Pressure gauge (in bar or p.s.i.).

E.
Compartment housing:


- a cable with adaptor for 12 V
socket,

- various infl ation adaptors for ac-
cessories, such as balls, bicycle
tyres...
F.
Sealant cartridge.

G.
White pipe with cap for repair.

H.
Black pipe for infl ation.

I.
Speed limit sticker.

The speed limit sticker I
must
be affi xed to the vehicle's
steering wheel to remind you
that a wheel is in temporary use.
Do not exceed a speed of 50 mph
(80 km/h) when driving with a tyre re-
paired using this type of kit.

177
PRACTICAL INFORMATION

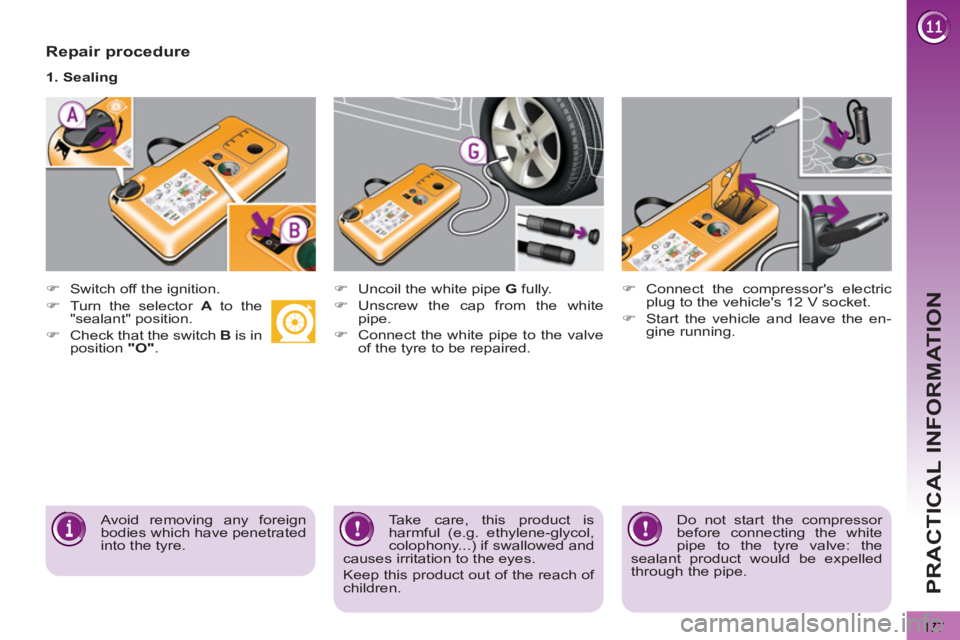

Repair procedure




)
Switch off the ignition.

1. Sealing



)
Uncoil the white pipe G
fully.

)
Unscrew the cap from the white
pipe.

)
Connect the white pipe to the valve
of the tyre to be repaired.



)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle and leave the en-
gine running.


Avoid removing any foreign
bodies which have penetrated
into the tyre.
Take care, this product is
harmful (e.g. ethylene-glycol,
colophony...) if swallowed and
causes irritation to the eyes.
Keep this product out of the reach of
children.
Do not start the compressor
before connecting the white
pipe to the tyre valve: the
sealant product would be expelled
through the pipe.


)
Turn the selector A
to the
"sealant" position.

)
Check that the switch B
is in
position "O"
.

178
PRACTICAL INFORMATION



)

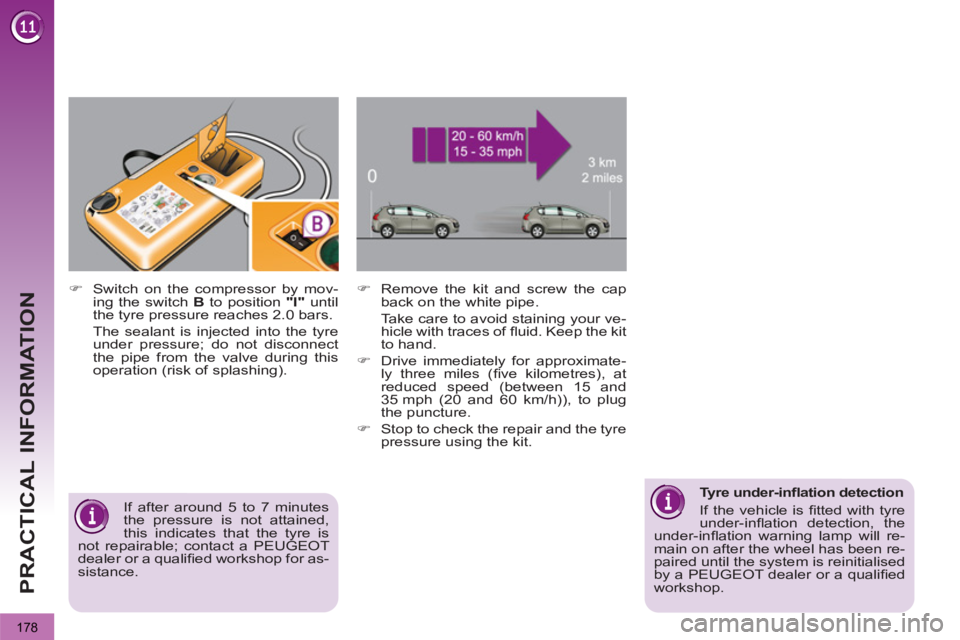

Remove the kit and screw the cap
back on the white pipe.
Take care to avoid staining your ve-
hicle with traces of fl uid. Keep the kit
to hand.

)
Drive immediately for approximate-
ly three miles (fi ve kilometres), at
reduced speed (between 15 and
35 mph (20 and 60 km/h)), to plug
the puncture.

)
Stop to check the repair and the tyre
pressure using the kit.



)
Switch on the compressor by mov-
ing the switch B
to position "I"
until
the tyre pressure reaches 2.0 bars.
The sealant is injected into the tyre
under pressure; do not disconnect
the pipe from the valve during this
operation (risk of splashing).


If after around 5 to 7 minutes
the pressure is not attained,
this indicates that the tyre is
not repairable; contact a PEUGEOT
dealer or a qualifi ed workshop for as-
sistance.



Tyre under-infl ation detection
If the vehicle is fi tted with tyre
under-infl ation detection, the
under-infl ation warning lamp will re-
main on after the wheel has been re-
paired until the system is reinitialised
by a PEUGEOT dealer or a qualifi ed
workshop.
