PEUGEOT 3008 2017 Owners Manual

99
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

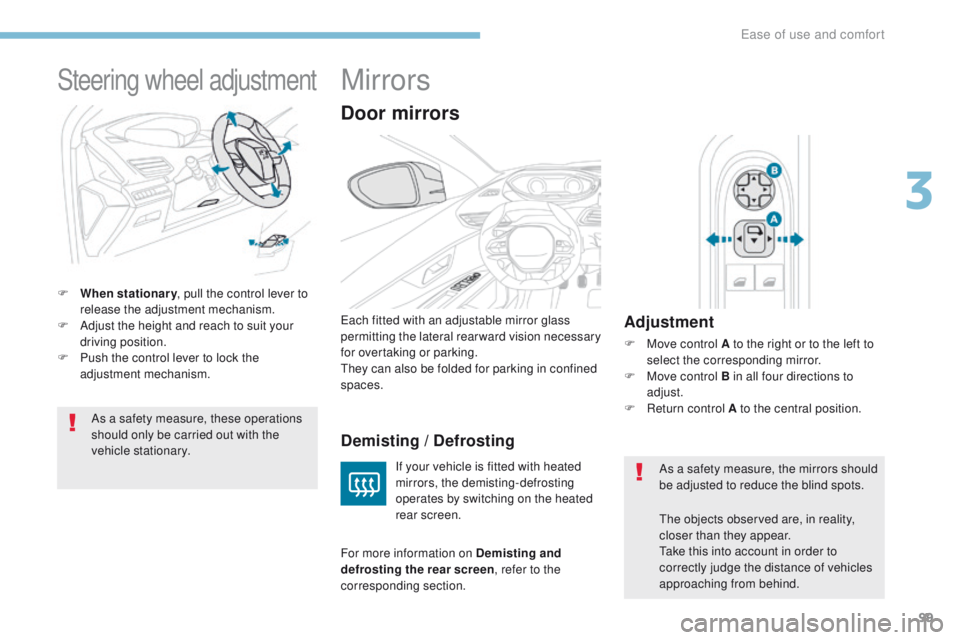

Steering wheel adjustment
F When stationary, pull the control lever to
release the adjustment mechanism.
F

A
djust the height and reach to suit your
driving position.
F

P
ush the control lever to lock the
adjustment mechanism.
As a safety measure, these operations
should only be carried out with the
vehicle stationary.
Mirrors
Each fitted with an adjustable mirror glass
permitting the lateral rearward vision necessary
for overtaking or parking.
They can also be folded for parking in confined
spaces.
Door mirrors
Demisting / Defrosting
If your vehicle is fitted with heated
mirrors, the demisting-defrosting
operates by switching on the heated
rear screen.
For more information on Demisting and
defrosting the rear screen , refer to the
corresponding section.
Adjustment
F Move control A to the right or to the left to select the corresponding mirror.
F

M
ove control B in all four directions to
adjust.
F

R
eturn control A to the central position.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind. As a safety measure, the mirrors should
be adjusted to reduce the blind spots.
3
Ease of use and comfort

100
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

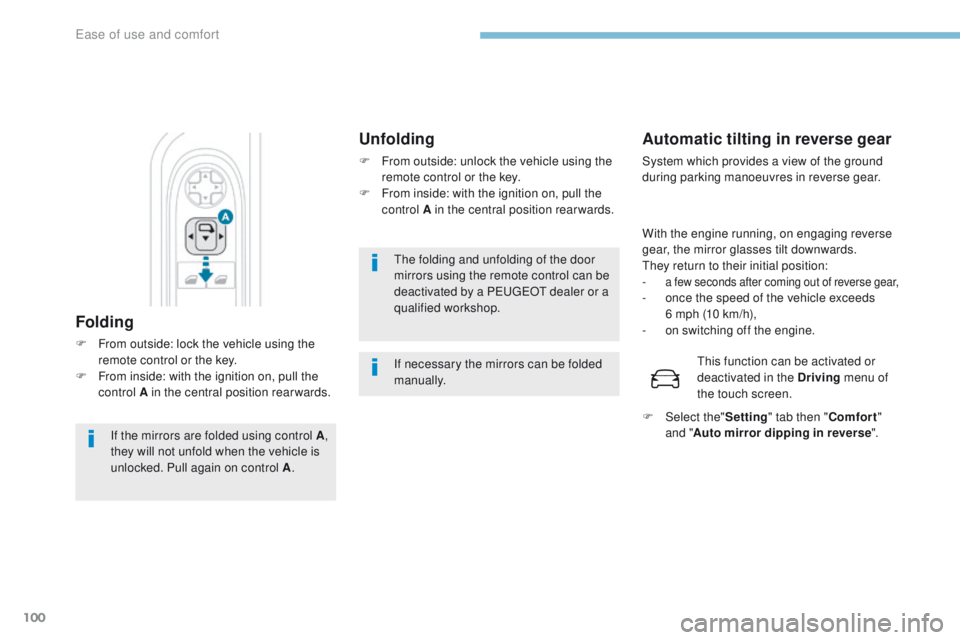

The folding and unfolding of the door
mirrors using the remote control can be
deactivated by a PEUGEOT dealer or a
qualified workshop.
If necessary the mirrors can be folded
manually.
Unfolding
F From outside: unlock the vehicle using the remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
Automatic tilting in reverse gear
System which provides a view of the ground
during parking manoeuvres in reverse gear.
With the engine running, on engaging reverse
gear, the mirror glasses tilt downwards.
They return to their initial position:
-

a few seconds after coming out of reverse gear,- once the speed of the vehicle exceeds 6 mph (10 km/h),
-

o
n switching off the engine.This function can be activated or
deactivated in the Driving menu of
the touch screen.
If the mirrors are folded using control A ,
they will not unfold when the vehicle is
unlocked. Pull again on control A .
Folding
F From outside: lock the vehicle using the
remote control or the key.
F

F
rom inside: with the ignition on, pull the
control A in the central position rearwards.
F

Sel
ect the"Setting " tab then " Comfort"
and " Auto mirror dipping in reverse ".
Ease of use and comfort

101
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

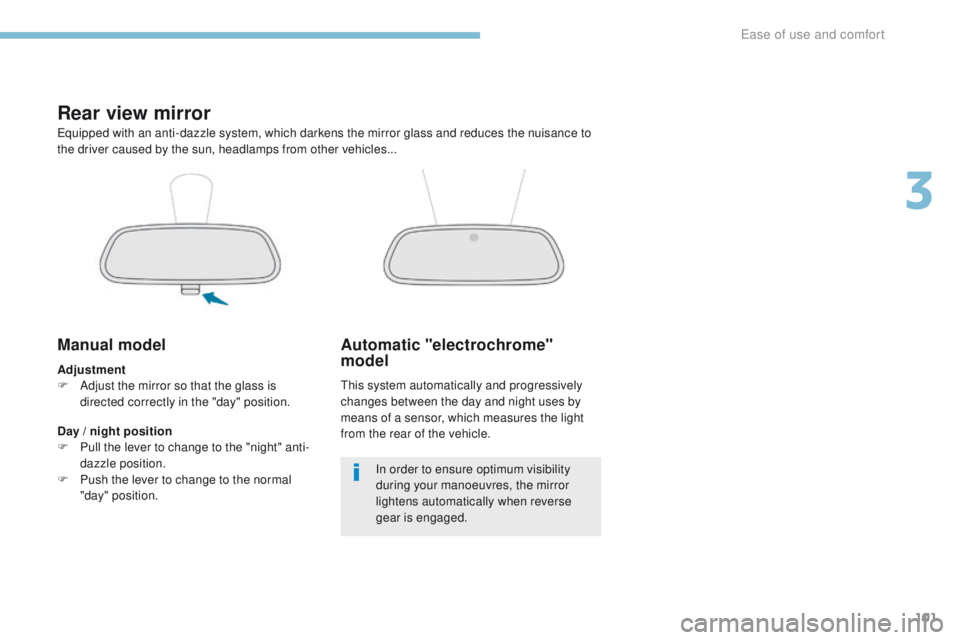

Rear view mirror
Equipped with an anti-dazzle system, which darkens the mirror glass and reduces the nuisance to
the driver caused by the sun, headlamps from other vehicles...
Manual model
Adjustment
F A djust the mirror so that the glass is
directed correctly in the "day" position.
Day / night position
F

P
ull the lever to change to the "night" anti-
dazzle position.
F

P
ush the lever to change to the normal
"day" position.
Automatic "electrochrome"
model
This system automatically and progressively
changes between the day and night uses by
means of a sensor, which measures the light
from the rear of the vehicle.
In order to ensure optimum visibility
during your manoeuvres, the mirror
lightens automatically when reverse
gear is engaged.
3
Ease of use and comfort

102
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

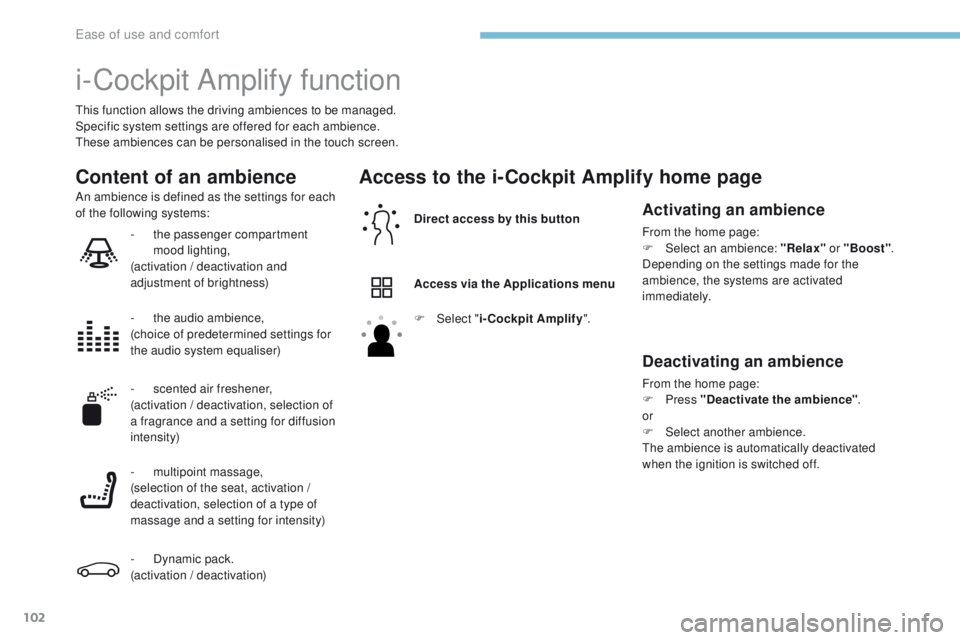

i-Cockpit Amplify function
This function allows the driving ambiences to be managed.
Specific system settings are offered for each ambience.
These ambiences can be personalised in the touch screen.
Content of an ambienceAccess to the i-Cockpit Amplify home page
Direct access by this button
Access via the Applications menu
An ambience is defined as the settings for each
of the following systems:Activating an ambience
From the home page:
F
Sel ect an ambience: "Relax" or "Boost".
Depending on the settings made for the
ambience, the systems are activated
immediately.
Deactivating an ambience
From the home page:
F Press "Deactivate the ambience" .
or
F

Sel
ect another ambience.
The ambience is automatically deactivated
when the ignition is switched off.
F

Sel

ect "
i-Cockpit Amplify ".
-
t

he passenger compartment
mood lighting,
(activation / deactivation and
adjustment of brightness)
-

t

he audio ambience,
(choice of predetermined settings for
the audio system equaliser)
- s
cented air freshener,
(activation / deactivation, selection of
a fragrance and a setting for diffusion
intensity)
-
m

ultipoint massage,
(selection of the seat, activation /
deactivation, selection of a type of
massage and a setting for intensity)
-
D

ynamic pack.
(activation / deactivation)
Ease of use and comfort

103
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

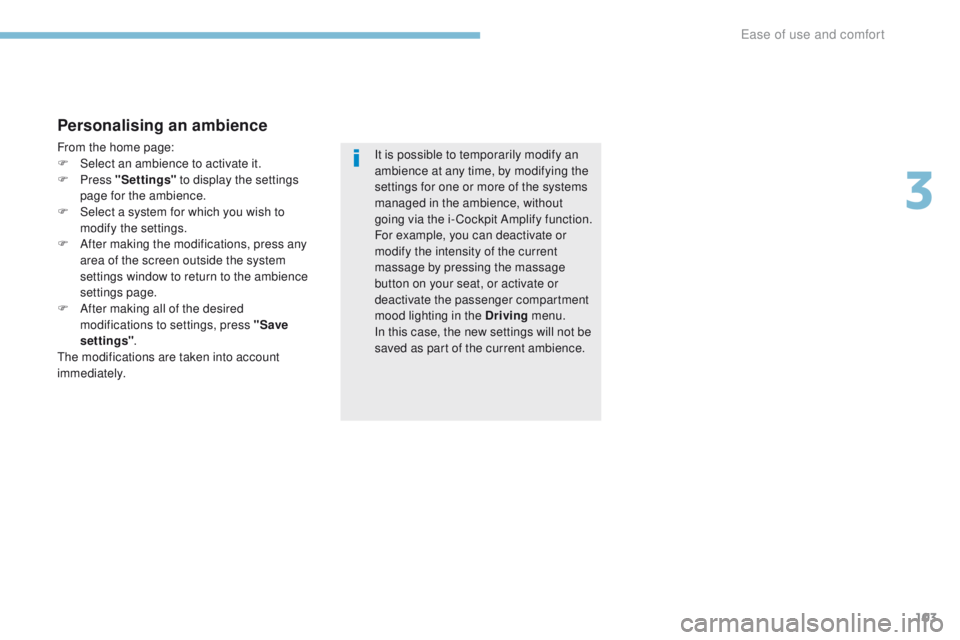

Personalising an ambience
From the home page:
F S elect an ambience to activate it.
F
Press "Settings" to display the settings
page for the ambience.
F

S
elect a system for which you wish to
modify the settings.
F

A
fter making the modifications, press any
area of the screen outside the system
settings window to return to the ambience
settings page.
F

A
fter making all of the desired
modifications to settings, press "Save
settings" .
The modifications are taken into account
immediately. It is possible to temporarily modify an
ambience at any time, by modifying the
settings for one or more of the systems
managed in the ambience, without
going via the i- Cockpit Amplify function.
For example, you can deactivate or
modify the intensity of the current
massage by pressing the massage
button on your seat, or activate or
deactivate the passenger compartment
mood lighting in the Driving
menu.
In this case, the new settings will not be
saved as part of the current ambience.
3
Ease of use and comfort

104
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

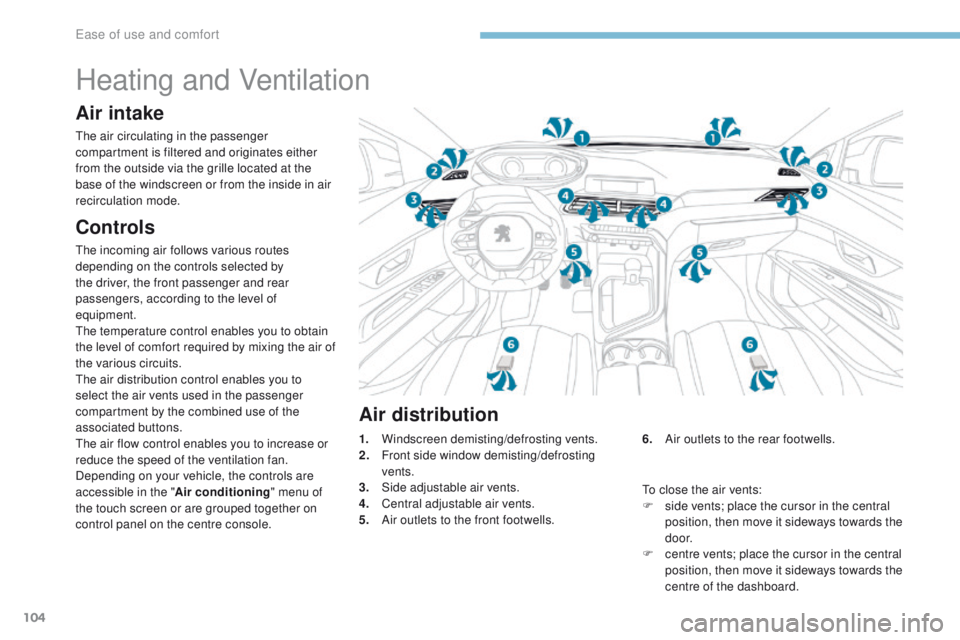

Heating and Ventilation
Air intake
The air circulating in the passenger
compartment is filtered and originates either
from the outside via the grille located at the
base of the windscreen or from the inside in air
recirculation mode.
Controls
The incoming air follows various routes
depending on the controls selected by
the driver, the front passenger and rear
passengers, according to the level of
equipment.
The temperature control enables you to obtain
the level of comfort required by mixing the air of
the various circuits.
The air distribution control enables you to
select the air vents used in the passenger
compartment by the combined use of the
associated buttons.
The air flow control enables you to increase or
reduce the speed of the ventilation fan.
Depending on your vehicle, the controls are
accessible in the "Air conditioning" menu of
the touch screen or are grouped together on
control panel on the centre console.
Air distribution
1. Windscreen demisting/defrosting vents.
2. F ront side window demisting/defrosting
vents.
3.
S

ide adjustable air vents.
4.
C

entral adjustable air vents.
5.
A

ir outlets to the front footwells. 6. A
ir outlets to the rear footwells.
To close the air vents:
F

s
ide vents; place the cursor in the central
position, then move it sideways towards the
d o o r.
F

c
entre vents; place the cursor in the central
position, then move it sideways towards the
centre of the dashboard.
Ease of use and comfort

105
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Stop & Start
The heating and air conditioning
systems only work when the engine is
running.
To maintain a comfortable temperature
in the passenger compartment, you can
temporarily deactivate the Stop & Start
system.
For more information on Stop & Star t,
refer to the corresponding section.
In order for these systems to be fully effective, follow the operation and maintenance
guidelines below:
F

T

o obtain an even air distribution, take care not to obstruct the exterior air intake grilles
located at the base of the windscreen, the nozzles, the vents and the air outlets, as well
as the air extractor located in the boot.
F

D

o not cover the sunshine sensor, located on the dashboard; this is used for regulation
of the air conditioning system.
F

O

perate the air conditioning system for at least 5 to 10 minutes, once or twice a month
to keep it in per fect working order.
F

E

nsure that the passenger compartment filter is in good condition and have the filter
elements replaced regularly.
W

e recommend the use of a combined passenger compartment filter. Thanks to
its special active additive, it contributes to the purification of the air breathed by the
occupants and the cleanliness of the passenger compartment (reduction of allergic
symptoms, bad odours and greasy deposits).
F

T

o ensure correct operation of the air conditioning system, you are also advised to have
it checked regularly as recommended in the warranty and maintenance record.
F

I

f the system does not produce cold air, switch it off and contact a PEUGEOT dealer or
a qualified workshop.
When towing the maximum load on a steep gradient in high temperatures, switching off the
air conditioning increases the available engine power and so improves the towing ability. The condensation created by the air
conditioning results in a discharge
of water under the vehicle which is
perfectly normal.
If after an extended stop in sunshine,
the interior temperature is very
high, first ventilate the passenger
compartment for a few moments.
Put the air flow control at a setting high
enough to quickly change the air in the
passenger compartment.
The air conditioning system does not
contain chlorine and does not present
any danger to the ozone layer.

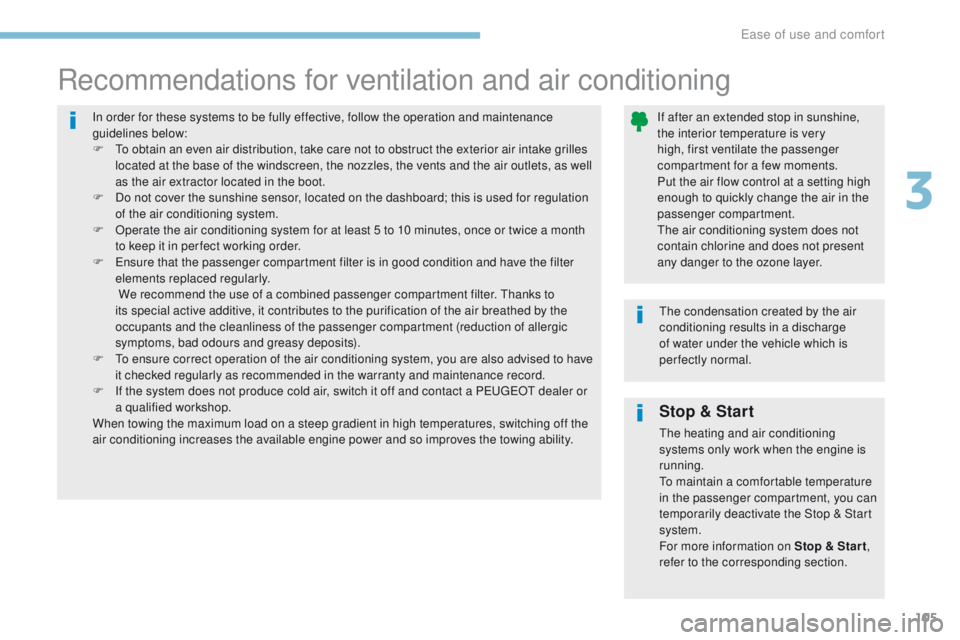

Recommendations for ventilation and air conditioning
3
Ease of use and comfort

106
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

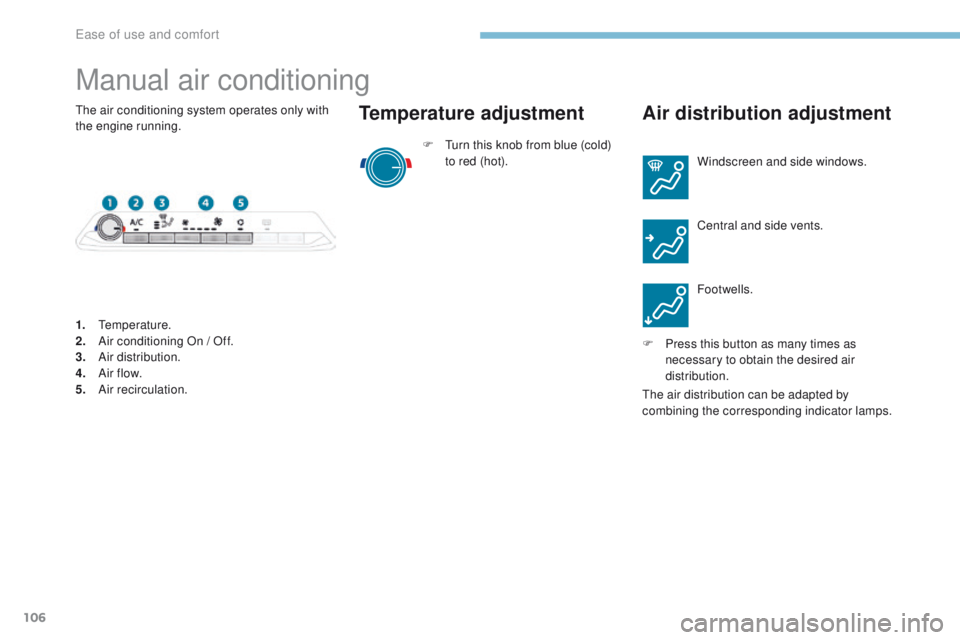

Manual air conditioning
F Turn this knob from blue (cold) to red (hot).
Temperature adjustment Air distribution adjustment
Windscreen and side windows.
Central and side vents.
Footwells.
F

P

ress this button as many times as
necessary to obtain the desired air
distribution.
1.


Temperature.
2.
A

ir conditioning On / Off.
3.
A

ir distribution.
4.
A

ir f low.
5.
A

ir recirculation.
The air conditioning system operates only with
the engine running.
The air distribution can be adapted by
combining the corresponding indicator lamps.
Ease of use and comfort

107
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

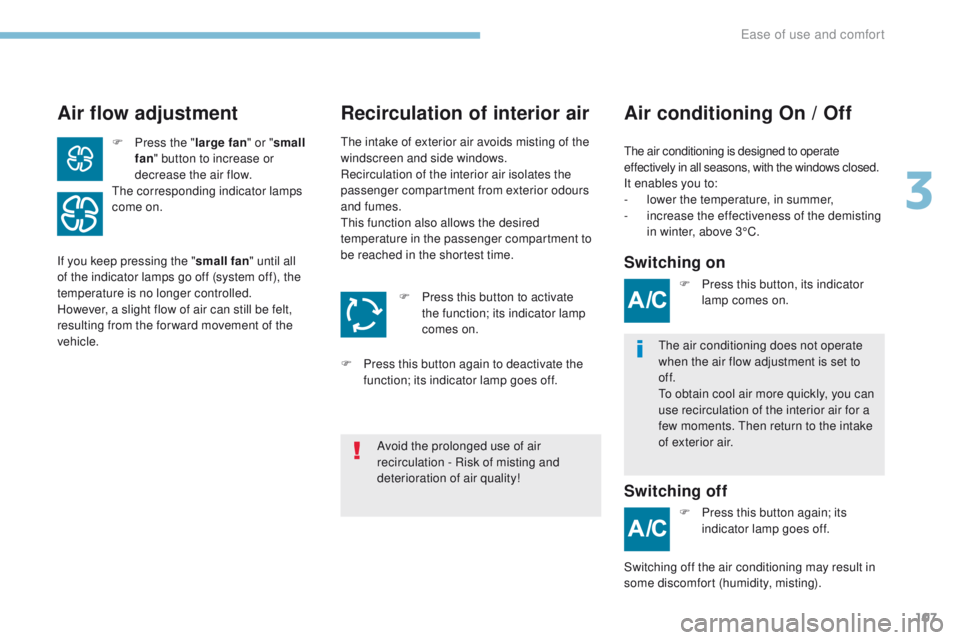

Air flow adjustmentAir conditioning On / Off
Recirculation of interior air
The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
-

l
ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
F

P

ress this button to activate
the function; its indicator lamp
comes on.
F
P
ress the "
large fan " or "small
fan " button to increase or
decrease the air flow.
The corresponding indicator lamps
come on.
Switching on
Switching off
The air conditioning does not operate
when the air flow adjustment is set to
of f.
To obtain cool air more quickly, you can
use recirculation of the interior air for a
few moments. Then return to the intake
of exterior air.
If you keep pressing the "
small fan" until all
of the indicator lamps go off

(system off), the
temperature is no longer controlled.
However, a slight flow of air can still be felt,
resulting from the for ward movement of the
vehicle.
Avoid the prolonged use of air
recirculation - Risk of misting and
deterioration of air quality!
The intake of exterior air avoids misting of the
windscreen and side windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.
F

P

ress this button again to deactivate the
function; its indicator lamp goes off.
Switching off the air conditioning may result in
some discomfort (humidity, misting).F

P
ress this button again; its
indicator lamp goes off.
F

P
ress this button, its indicator
lamp comes on.
3
Ease of use and comfort

108
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

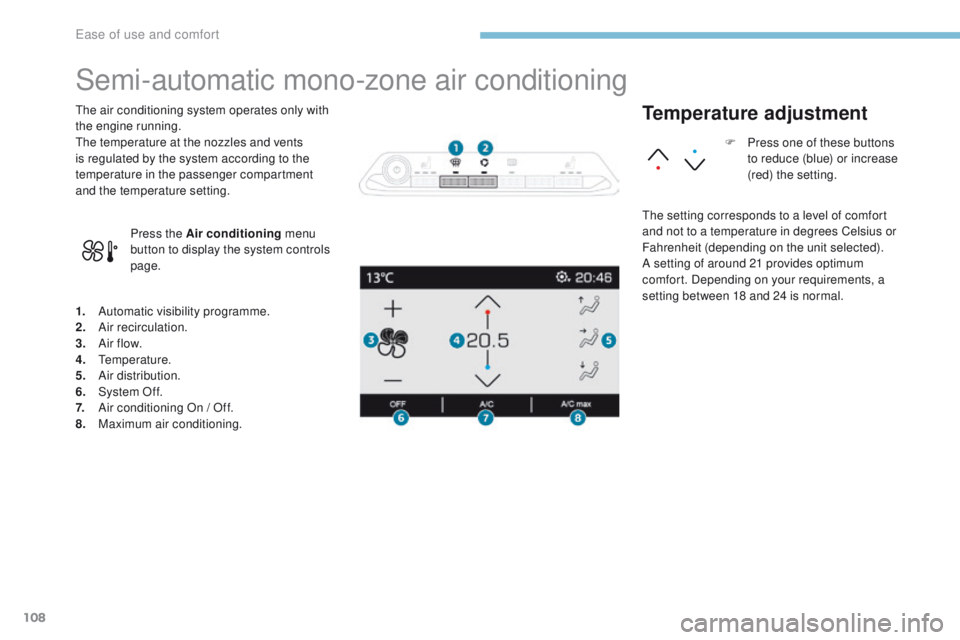

Semi-automatic mono-zone air conditioning
1. Automatic visibility programme.
2. Air recirculation.
3.
A

ir f low.
4.
T

emperature.
5.
A

ir distribution.
6.
S

ystem Of f.
7.
A

ir conditioning On / Off.
8.
M

aximum air conditioning.
The air conditioning system operates only with
the engine running.
The temperature at the nozzles and vents
is regulated by the system according to the
temperature in the passenger compartment
and the temperature setting.
Press the Air conditioning menu
button to display the system controls
page.
Temperature adjustment
The setting corresponds to a level of comfort
and not to a temperature in degrees Celsius or
Fahrenheit (depending on the unit selected).
A setting of around 21 provides optimum
comfort. Depending on your requirements, a
setting between 18 and 24 is normal. F

P
ress one of these buttons
to reduce (blue) or increase
(red) the setting.
Ease of use and comfort
