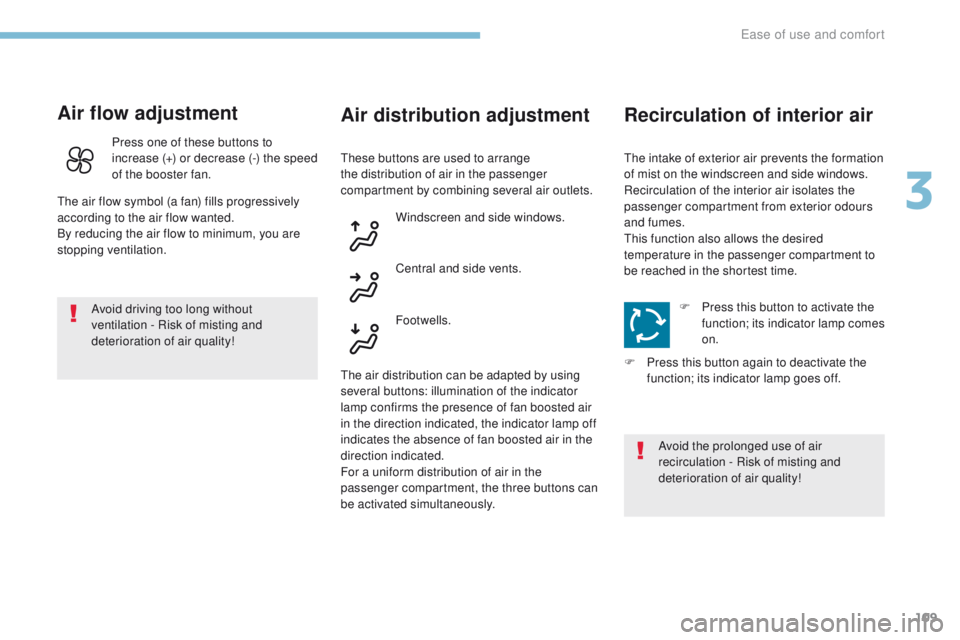

Air flow adjustment
Avoid driving too long without
ventilation - Risk of misting and
deterioration of air quality!
Air distribution adjustment Recirculation of interior air
Press one of these buttons to
increase (+) or decrease (-) the speed
of the booster fan.
The air flow symbol (a fan) fills progressively
according to the air flow wanted.
By reducing the air flow to minimum, you are
stopping ventilation. Windscreen and side windows.
Central and side vents.
Footwells.
The air distribution can be adapted by using
several buttons: illumination of the indicator
lamp confirms the presence of fan boosted air
in the direction indicated, the indicator lamp off
indicates the absence of fan boosted air in the
direction indicated.
For a uniform distribution of air in the
passenger compartment, the three buttons can
be activated simultaneously. These buttons are used to arrange
the distribution of air in the passenger
compartment by combining several air outlets.
F

P
ress this button to activate the
function; its indicator lamp comes
on.
F

P
ress this button again to deactivate the
function; its indicator lamp goes off.
Avoid the prolonged use of air
recirculation - Risk of misting and
deterioration of air quality!
The intake of exterior air prevents the formation
of mist on the windscreen and side windows.
Recirculation of the interior air isolates the
passenger compartment from exterior odours
and fumes.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.
3
Ease of use and comfort

110
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

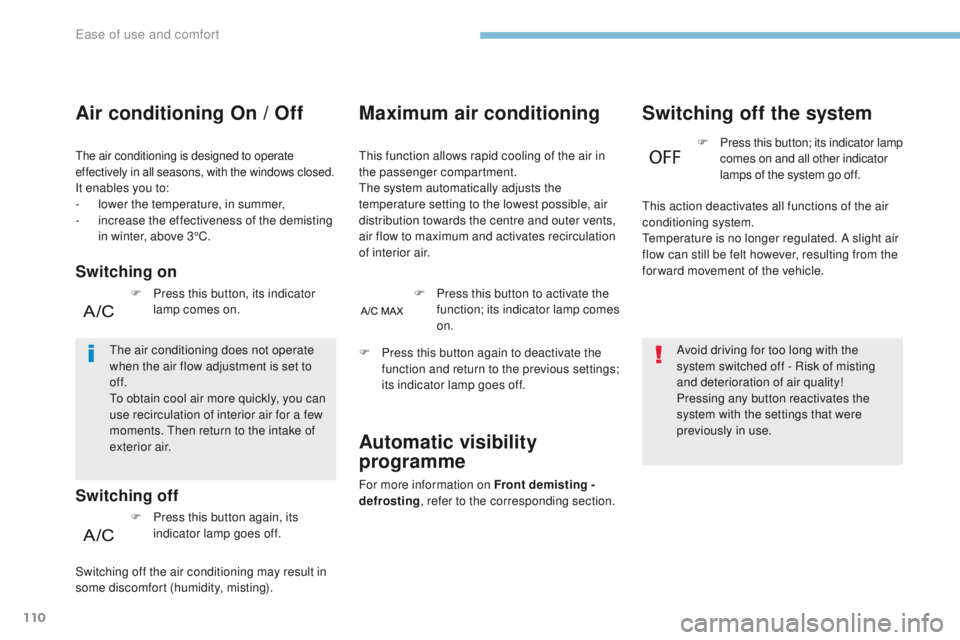

Maximum air conditioning
This function allows rapid cooling of the air in
the passenger compartment.
The system automatically adjusts the
temperature setting to the lowest possible, air
distribution towards the centre and outer vents,
air flow to maximum and activates recirculation
of interior air.F

P
ress this button to activate the
function; its indicator lamp comes
on.
Automatic visibility
programme
For more information on Front demisting -
defrosting , refer to the corresponding section.
Air conditioning On / Off
The air conditioning is designed to operate
effectively in all seasons, with the windows closed.
It enables you to:
-
l ower the temperature, in summer,
-
i

ncrease the effectiveness of the demisting
in winter, above 3°C.
Switching on
The air conditioning does not operate
when the air flow adjustment is set to
of f.
To obtain cool air more quickly, you can
use recirculation of interior air for a few
moments. Then return to the intake of
exterior air.
Switching off
Switching off the air conditioning may result in
some discomfort (humidity, misting). F

P
ress this button, its indicator
lamp comes on.
F
P
ress this button again, its
indicator lamp goes off.
Switching off the system
This action deactivates all functions of the air
conditioning system.
Temperature is no longer regulated. A slight air
flow can still be felt however, resulting from the
for ward movement of the vehicle. F

P
ress this button; its indicator lamp
comes on and all other indicator
lamps of the system go off.
Avoid driving for too long with the
system switched off - Risk of misting
and deterioration of air quality!
Pressing any button reactivates the
system with the settings that were
previously in use.
F

P

ress this button again to deactivate the
function and return to the previous settings;
its indicator lamp goes off.
Ease of use and comfort

111
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

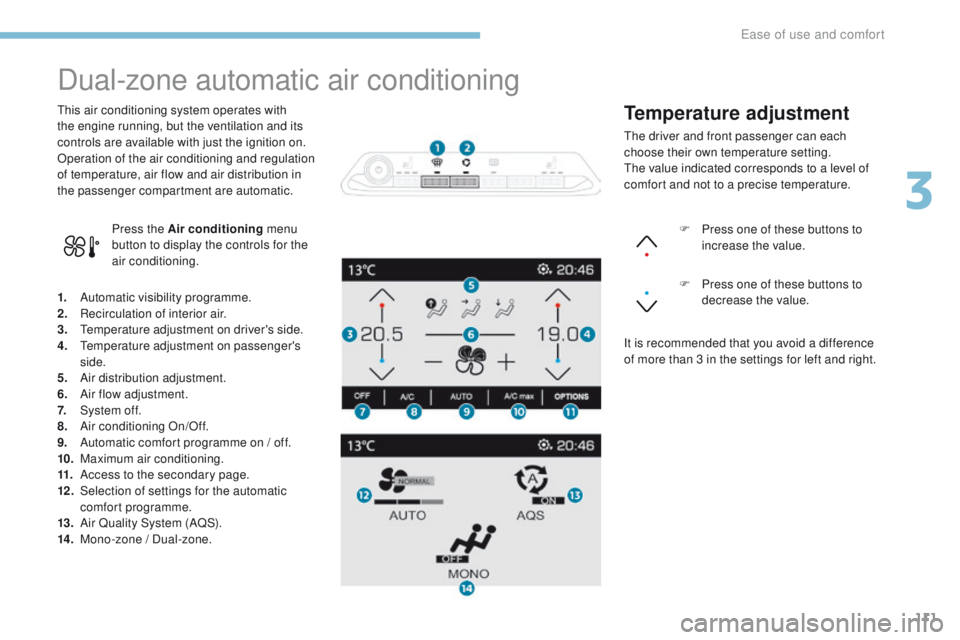

Dual-zone automatic air conditioning
1. Automatic visibility programme.
2. Recirculation of interior air.
3.
T

emperature adjustment on driver's side.
4.
T

emperature adjustment on passenger's
side.
5.
A

ir distribution adjustment.
6.
A

ir flow adjustment.
7.
S

ystem of f.
8.
A

ir conditioning On/Off.
9.
A

utomatic comfort programme on / off.
10.
M

aximum air conditioning.
11.
A

ccess to the secondary page.
12 .
S

election of settings for the automatic
comfort programme.
13.
A

ir Quality System (AQS).
14 .
M

ono-zone / Dual-zone.
This air conditioning system operates with
the engine running, but the ventilation and its
controls are available with just the ignition on.
Operation of the air conditioning and regulation
of temperature, air flow and air distribution in
the passenger compartment are automatic.
Press the Air conditioning menu
button to display the controls for the
air conditioning. F
P
ress one of these buttons to
increase the value.
F P ress one of these buttons to
decrease the value.
It is recommended that you avoid a difference
of more than 3 in the settings for left and right.
Temperature adjustment
The driver and front passenger can each
choose their own temperature setting.
The value indicated corresponds to a level of
comfort and not to a precise temperature.
3
Ease of use and comfort

62)7
$872
$872
1250$/
$872
)$67
112
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

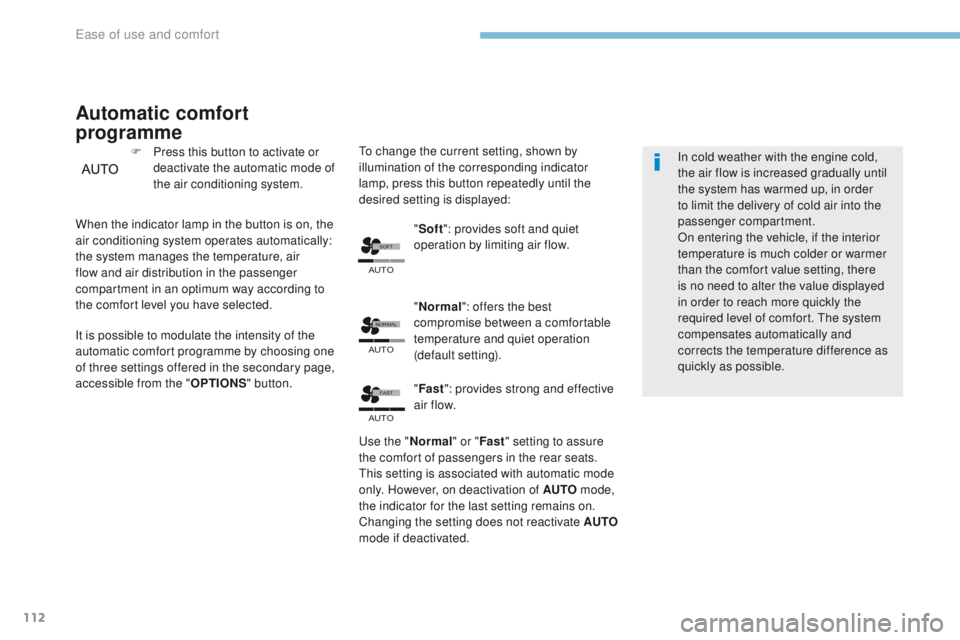

Automatic comfort
programme
F Press this button to activate or deactivate the automatic mode of
the air conditioning system.
When the indicator lamp in the button is on, the
air conditioning system operates automatically:
the system manages the temperature, air
flow and air distribution in the passenger
compartment in an optimum way according to
the comfort level you have selected.
It is possible to modulate the intensity of the
automatic comfort programme by choosing one
of three settings offered in the secondary page,
accessible from the " OPTIONS" button. To change the current setting, shown by
illumination of the corresponding indicator
lamp, press this button repeatedly until the
desired setting is displayed:
"Soft ": provides soft and quiet
operation by limiting air flow.
" Normal ": offers the best
compromise between a comfortable
temperature and quiet operation
(default setting).
" Fast ": provides strong and effective
air f low.
Use the " Normal" or "Fast" setting to assure
the comfort of passengers in the rear seats.
This setting is associated with automatic mode
only. However, on deactivation of AUTO mode,
the indicator for the last setting remains on.
Changing the setting does not reactivate AUTO
mode if deactivated. In cold weather with the engine cold,
the air flow is increased gradually until
the system has warmed up, in order
to limit the delivery of cold air into the
passenger compartment.
On entering the vehicle, if the interior
temperature is much colder or warmer
than the comfort value setting, there
is no need to alter the value displayed
in order to reach more quickly the
required level of comfort. The system
compensates automatically and
corrects the temperature difference as
quickly as possible.
Ease of use and comfort

113
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

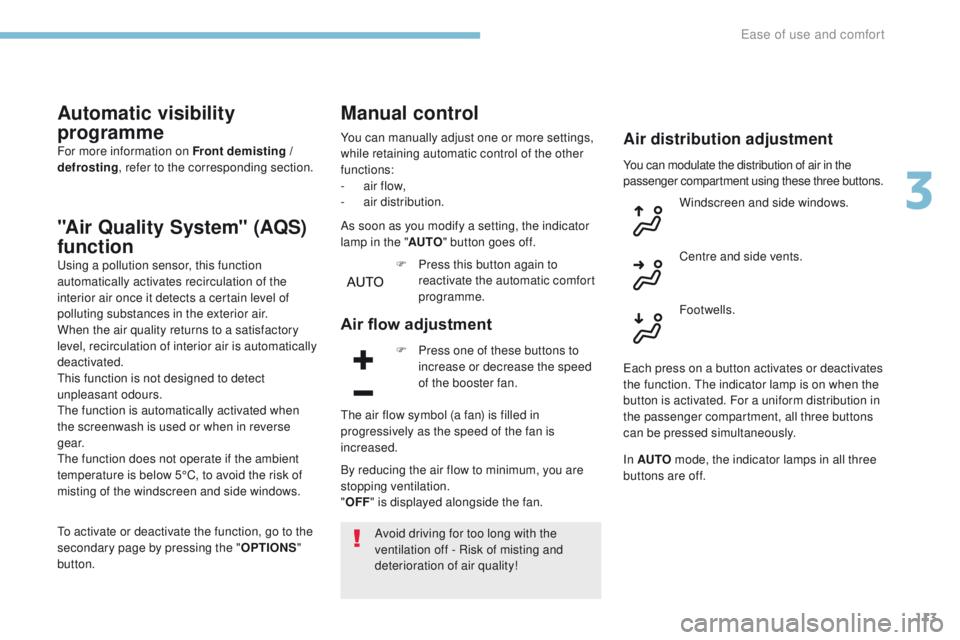

Automatic visibility
programme
For more information on Front demisting /
defrosting, refer to the corresponding section.
"Air Quality System" (AQS)
function
Using a pollution sensor, this function
automatically activates recirculation of the
interior air once it detects a certain level of
polluting substances in the exterior air.
When the air quality returns to a satisfactory
level, recirculation of interior air is automatically
deactivated.
This function is not designed to detect
unpleasant odours.
The function is automatically activated when
the screenwash is used or when in reverse
g e a r.
The function does not operate if the ambient
temperature is below 5°C, to avoid the risk of
misting of the windscreen and side windows.
To activate or deactivate the function, go to the
secondary page by pressing the " OPTIONS"
button. Windscreen and side windows.
Centre and side vents.
Footwells.
Manual control
You can manually adjust one or more settings,
while retaining automatic control of the other
functions:
-

a
ir flow,
-
a

ir distribution.
As soon as you modify a setting, the indicator
lamp in the " AUTO" button goes off.
F

P
ress this button again to
reactivate the automatic comfort
programme.
Air flow adjustment
F Press one of these buttons to increase or decrease the speed
of the booster fan.
The air flow symbol (a fan) is filled in
progressively as the speed of the fan is
increased.
By reducing the air flow to minimum, you are
stopping ventilation.
" OFF " is displayed alongside the fan.
Avoid driving for too long with the
ventilation off - Risk of misting and
deterioration of air quality!
Air distribution adjustment
You can modulate the distribution of air in the
passenger compartment using these three buttons.
Each press on a button activates or deactivates
the function. The indicator lamp is on when the
button is activated. For a uniform distribution in
the passenger compartment, all three buttons
can be pressed simultaneously.
In AUTO mode, the indicator lamps in all three
buttons are off.
3
Ease of use and comfort

114
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

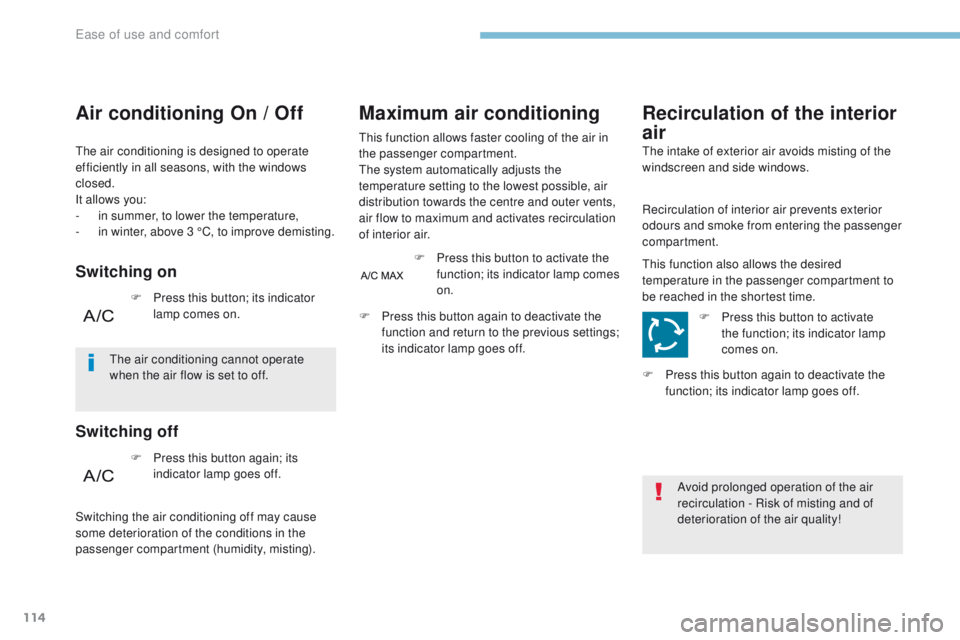

The air conditioning is designed to operate
efficiently in all seasons, with the windows
closed.
It allows you:
-
i
n summer, to lower the temperature,
-

i
n winter, above 3 °C, to improve demisting.
Air conditioning On / Off
Switching on
Switching off
Maximum air conditioning
F Press this button to activate the function; its indicator lamp comes
on.
F

P

ress this button again to deactivate the
function and return to the previous settings;
its indicator lamp goes off.
This function allows faster cooling of the air in
the passenger compartment.
The system automatically adjusts the
temperature setting to the lowest possible, air
distribution towards the centre and outer vents,
air flow to maximum and activates recirculation
of interior air.
Avoid prolonged operation of the air
recirculation - Risk of misting and of
deterioration of the air quality!
The intake of exterior air avoids misting of the
windscreen and side windows.
Recirculation of the interior
air
Recirculation of interior air prevents exterior
odours and smoke from entering the passenger
compartment.
This function also allows the desired
temperature in the passenger compartment to
be reached in the shortest time.
F

P
ress this button to activate
the function; its indicator lamp
comes on.
F

P
ress this button again to deactivate the
function; its indicator lamp goes off.
F

P

ress this button; its indicator
lamp comes on.
The air conditioning cannot operate
when the air flow is set to off.
F

P

ress this button again; its
indicator lamp goes off.
Switching the air conditioning off may cause
some deterioration of the conditions in the
passenger compartment (humidity, misting).
Ease of use and comfort

115
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

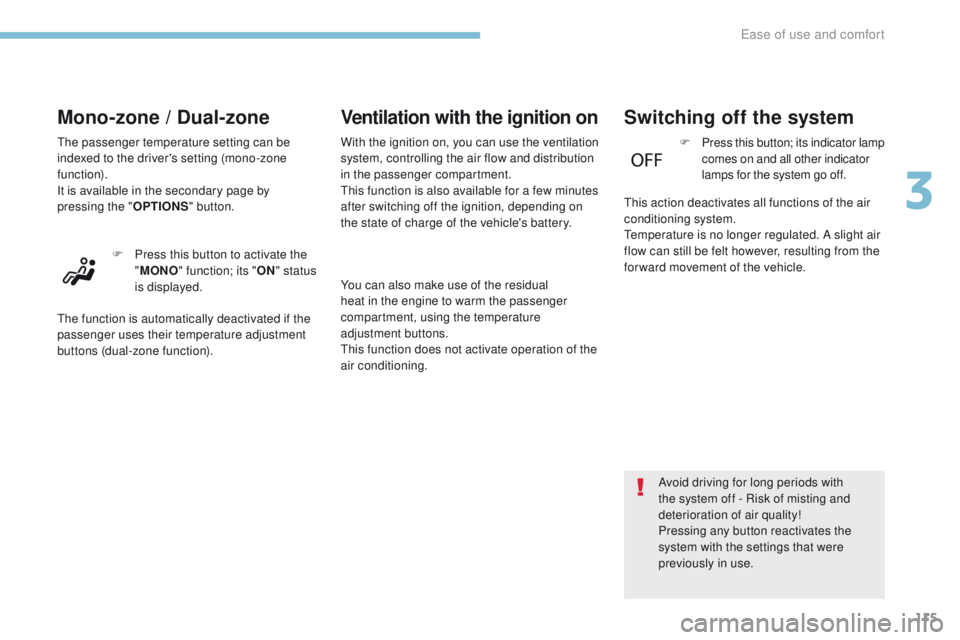

Mono-zone / Dual-zone
The passenger temperature setting can be
indexed to the driver's setting (mono-zone
function).
It is available in the secondary page by
pressing the "OPTIONS" button.
F

P
ress this button to activate the
" MONO " function; its " ON" status
is displayed.
The function is automatically deactivated if the
passenger uses their temperature adjustment
buttons (dual-zone function).
Ventilation with the ignition on
With the ignition on, you can use the ventilation
system, controlling the air flow and distribution
in the passenger compartment.
This function is also available for a few minutes
after switching off the ignition, depending on
the state of charge of the vehicle's battery.
You can also make use of the residual
heat in the engine to warm the passenger
compartment, using the temperature
adjustment buttons.
This function does not activate operation of the
air conditioning.
Switching off the system
F Press this button; its indicator lamp comes on and all other indicator
lamps for the system go off.
This action deactivates all functions of the air
conditioning system.
Temperature is no longer regulated. A slight air
flow can still be felt however, resulting from the
for ward movement of the vehicle.
Avoid driving for long periods with
the system off - Risk of misting and
deterioration of air quality!
Pressing any button reactivates the
system with the settings that were
previously in use.
3
Ease of use and comfort

116
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016
Front demist - defrost
With semi-automatic and
automatic air conditioning
With Stop & Start, when the demisting,
air conditioning and air flow functions
are activated, STOP mode is not
available.
Automatic visibility programme
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
The system automatically manages the air
conditioning (depending on version), air
flow and air intake, and provides optimum
distribution towards the windscreen and side
windows.
F

T

o switch it off, press this button; its
indicator lamp goes off.
With manual air
conditioning
F Adjust the temperature to maximum (red).
F A djust the air flow to maximum; all the
indicator lamps come on.
F

A
djust the air distribution to the
" Windscreen" position; its associated
indicator lamp comes on.
F

C
heck that recirculation of interior air is
deactivated; its indicator lamp must be off.
F

S
witch on the air conditioning by pressing
the " A/C" button; its indicator lamp comes
on. F

P
ress this button to demist or
defrost the windscreen and side
windows as quickly as possible;
its indicator lamp comes on.
The system allows the manual modification of
air flow without causing automatic deactivation
of the automatic visibility programme.
Ease of use and comfort

117
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

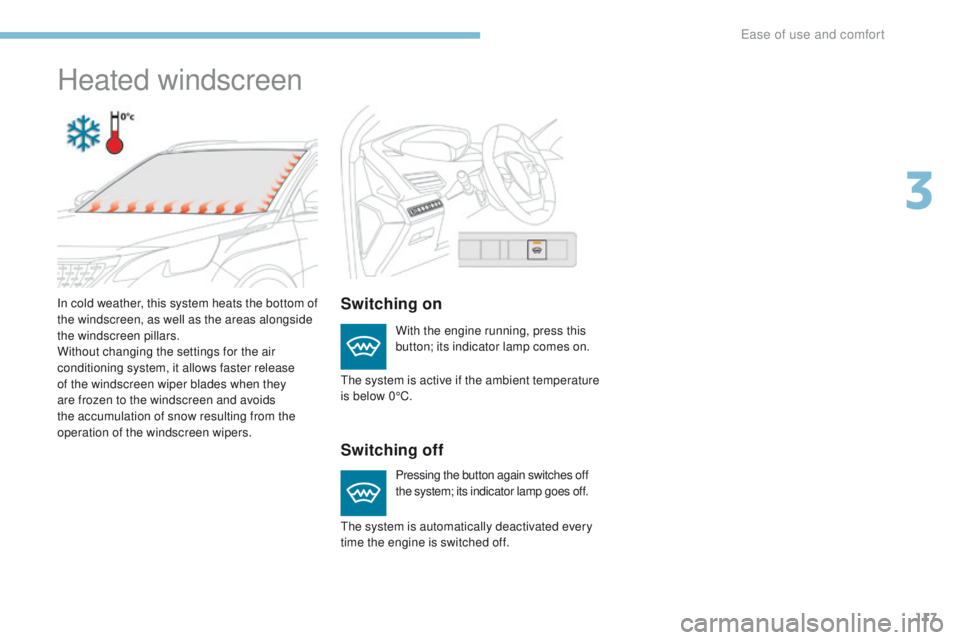

Heated windscreen
Switching on
Switching off
With the engine running, press this
button; its indicator lamp comes on.
Pressing the button again switches off
the system; its indicator lamp goes off.
The system is automatically deactivated every
time the engine is switched off. The system is active if the ambient temperature
is below 0°C.
In cold weather, this system heats the bottom of
the windscreen, as well as the areas alongside
the windscreen pillars.
Without changing the settings for the air
conditioning system, it allows faster release
of the windscreen wiper blades when they
are frozen to the windscreen and avoids
the accumulation of snow resulting from the
operation of the windscreen wipers.
3
Ease of use and comfort

118
3008-2_en_Chap03_ergonomie-et-confort_ed01-2016

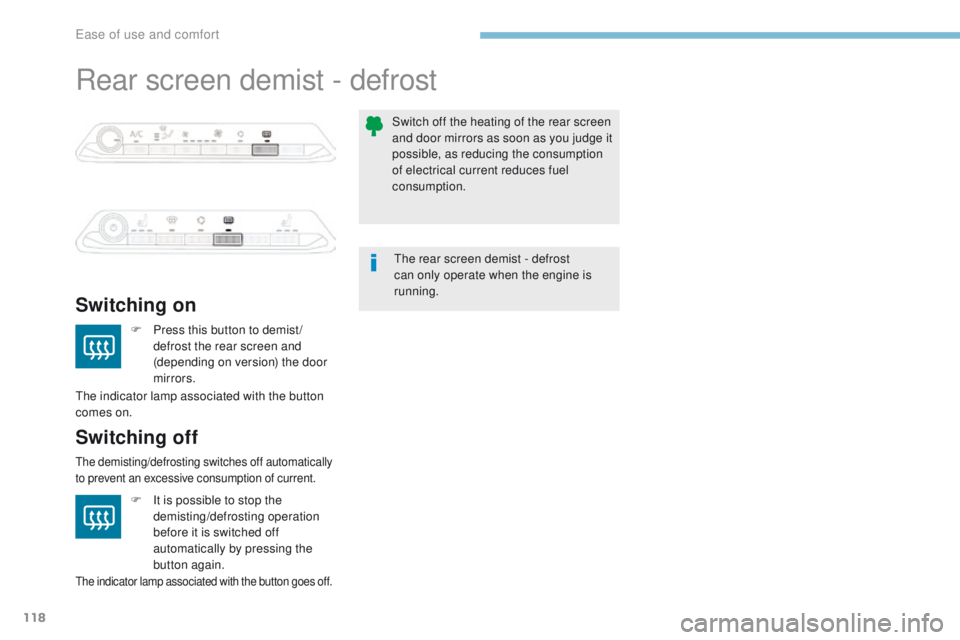

Rear screen demist - defrost
Switching on
Switching off
F Press this button to demist /defrost the rear screen and
(depending on version) the door
mirrors.
The demisting/defrosting switches off automatically
to prevent an excessive consumption of current.
The rear screen demist - defrost
can only operate when the engine is
running.
Switch off the heating of the rear screen
and door mirrors as soon as you judge it
possible, as reducing the consumption
of electrical current reduces fuel
consumption.
F

I

t is possible to stop the
demisting/defrosting operation
before it is switched off
automatically by pressing the
button again.
The indicator lamp associated with the button goes off.
The indicator lamp associated with the button
comes on.
Ease of use and comfort
