Page 91 of 290
LAYOUT
101

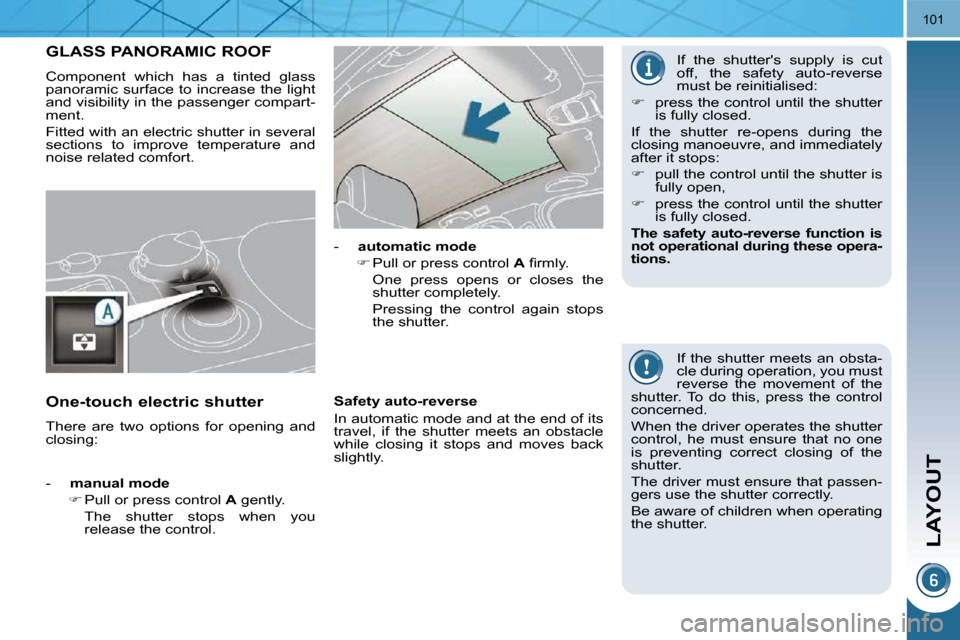

GLASS PANORAMIC ROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric shutter in several
sections to improve temperature and
noise related comfort. If the shutter meets an obsta-
cle during operation, you must
reverse the movement of the
shutter. To do this, press the control
concerned.
When the driver operates the shutter
control, he must ensure that no one
is preventing correct closing of the
shutter.
The driver must ensure that passen-
gers use the shutter correctly.
Be aware of children when operating
the shutter.
-
manual mode
Pull or press control A gently.
The shutter stops when you release the control. -
automatic mode
Pull or press control A fi r m l y .
One press opens or closes the shutter completely.
Pressing the control again stops the shutter.
Safety auto-reverse
In automatic mode and at the end of its
travel, if the shutter meets an obstacle
while closing it stops and moves back
slightly.
One-touch electric shutter
There are two options for opening and
closing: If the shutter's supply is cut
off, the safety auto-reverse
must be reinitialised:
press the control until the shutter
is fully closed.
If the shutter re-opens during the
closing manoeuvre, and immediately
after it stops:
pull the control until the shutter is
fully open,
press the control until the shutter
is fully closed.
The safety auto-reverse function is
not operational during these opera-
tions.
Page 92 of 290
LAYOUT
102

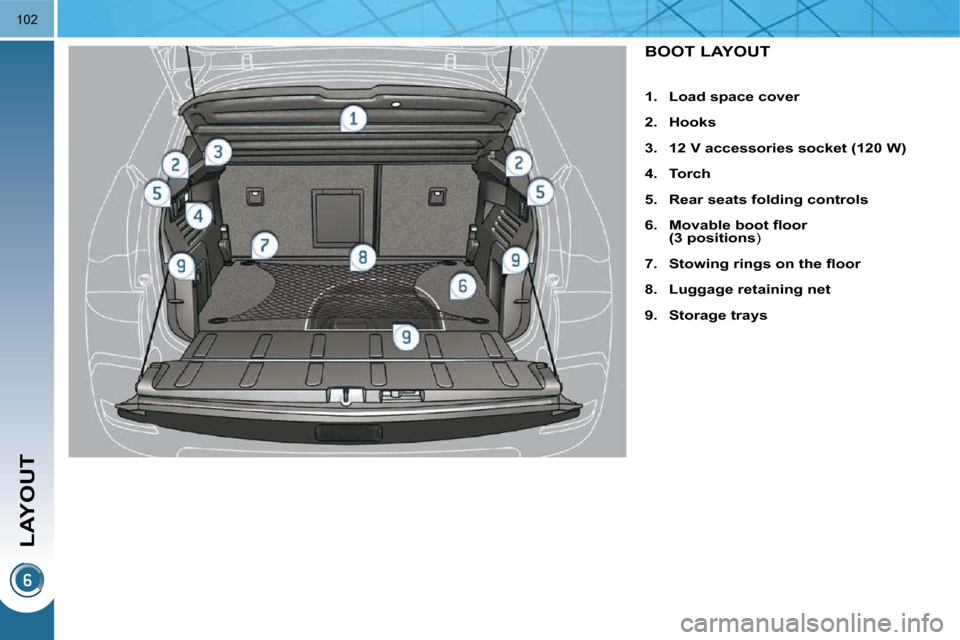

BOOT LAYOUT
1. Load space cover
2. Hooks
3. 12 V accessories socket (120 W)
4. Torch
5. Rear seats folding controls
6. M o v a b l e b o o t fl o o r
(3 positions )
7. S t o w i n g r i n g s o n t h e fl o o r
8. Luggage retaining net
9. Storage trays
Page 93 of 290
LAYOUT
103

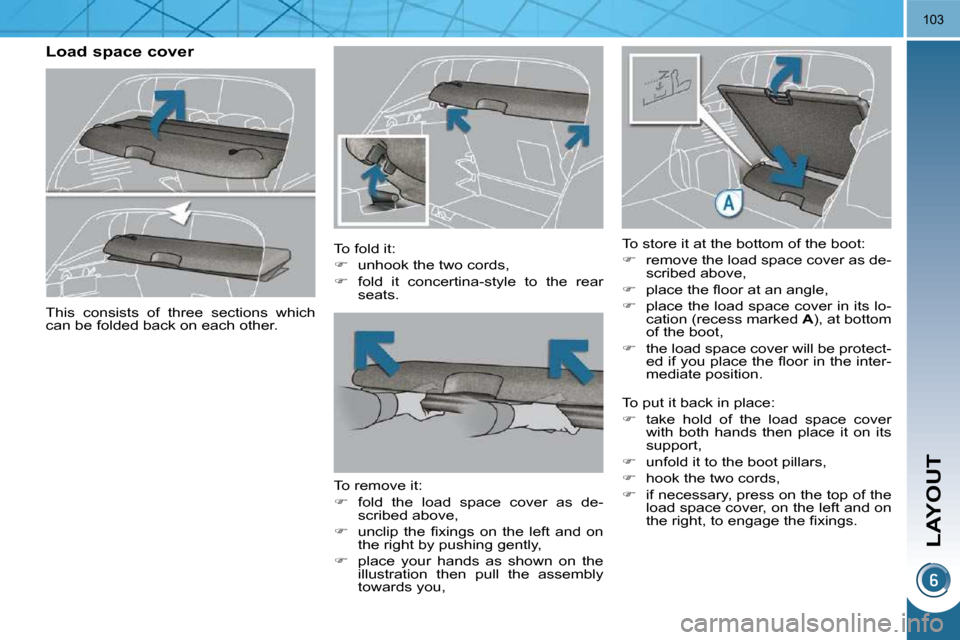

Load space cover To fold it:
unhook the two cords,
fold it concertina-style to the rear
seats.
To remove it:
fold the load space cover as de-
scribed above,
u n c l i p t h e fi x i n g s o n t h e l e f t a n d o n
the right by pushing gently,
place your hands as shown on the
illustration then pull the assembly
towards you, To store it at the bottom of the boot:
remove the load space cover as de-
scribed above,
p l a c e t h e fl o o r a t a n a n g l e ,
place the load space cover in its lo-
cation (recess marked A ), at bottom
of the boot,
the load space cover will be protect-
e d i f y o u p l a c e t h e fl o o r i n t h e i n t e r -
mediate position.
This consists of three sections which
can be folded back on each other.
To put it back in place:
take hold of the load space cover
with both hands then place it on its
support,
unfold it to the boot pillars,
hook the two cords,
if necessary, press on the top of the
load space cover, on the left and on
t h e r i g h t , t o e n g a g e t h e fi x i n g s .
Page 94 of 290
LAYOUT
104

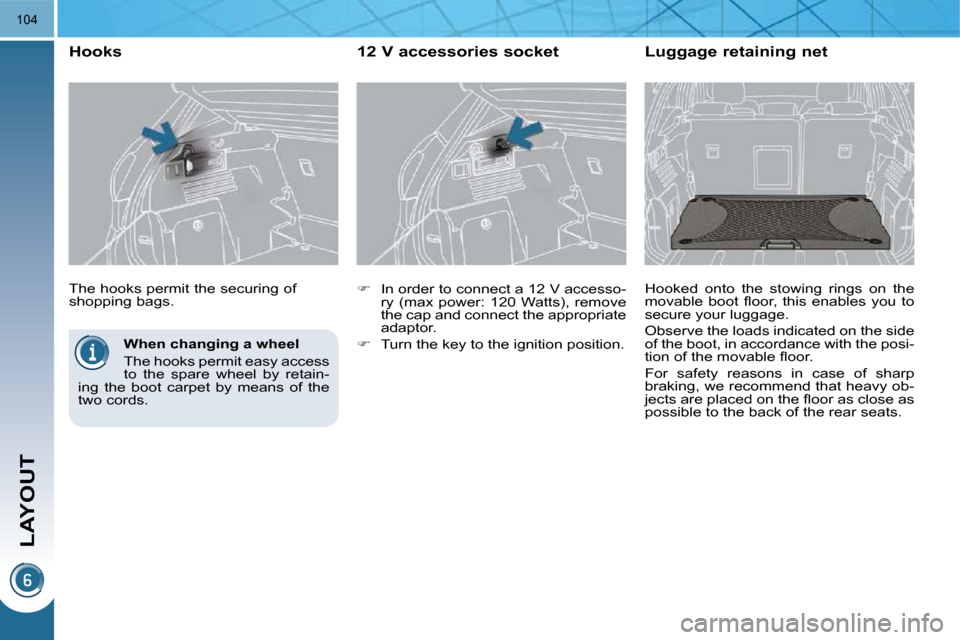

When changing a wheel
The hooks permit easy access
to the spare wheel by retain-
ing the boot carpet by means of the
two cords.
The hooks permit the securing of
shopping bags.
Hooks
In order to connect a 12 V accesso-
ry (max power: 120 Watts), remove
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
12 V accessories socket Luggage retaining net
Hooked onto the stowing rings on the
m o v a b l e b o o t fl o o r , t h i s e n a b l e s y o u t o
secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
t i o n o f t h e m o v a b l e fl o o r .
For safety reasons in case of sharp
braking, we recommend that heavy ob-
j e c t s a r e p l a c e d o n t h e fl o o r a s c l o s e a s
possible to the back of the rear seats.
Page 95 of 290
LAYOUT
105

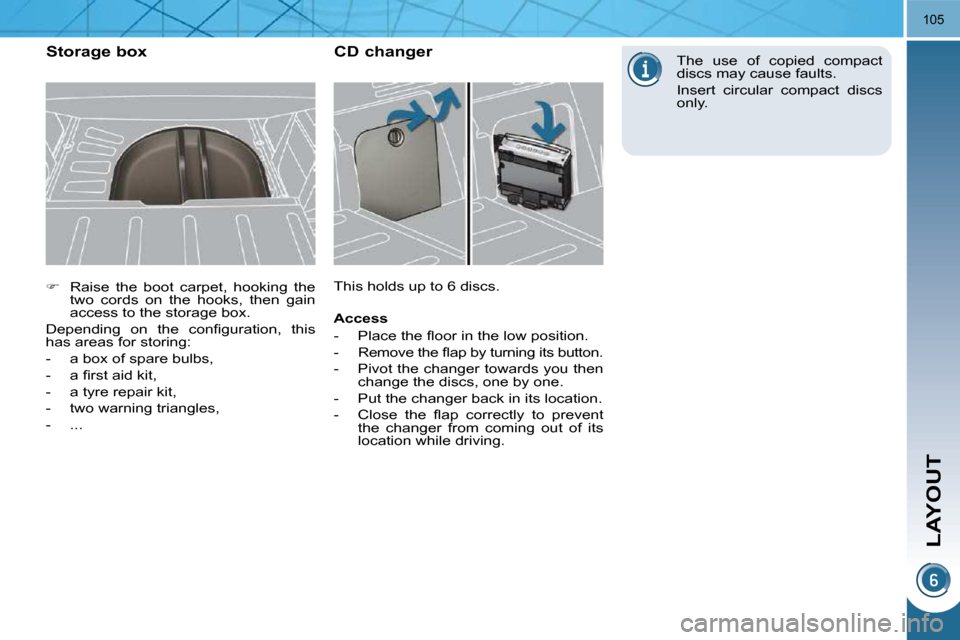

Raise the boot carpet, hooking the
two cords on the hooks, then gain
access to the storage box.
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h i s
has areas for storing:
- a box of spare bulbs,
- a fi r s t a i d k i t ,
- a tyre repair kit,
- two warning triangles,
- ... Storage box CD changer
This holds up to 6 discs.
Access
- P l a c e t h e fl o o r i n t h e l o w p o s i t i o n .
- R e m o v e t h e fl a p b y t u r n i n g i t s b u t t o n .
- Pivot the changer towards you then change the discs, one by one.
- Put the changer back in its location.
- C l o s e t h e fl a p c o r r e c t l y t o p r e v e n t the changer from coming out of its
location while driving. The use of copied compact
discs may cause faults.
Insert circular compact discs
only.
Page 96 of 290
LAYOUT
106

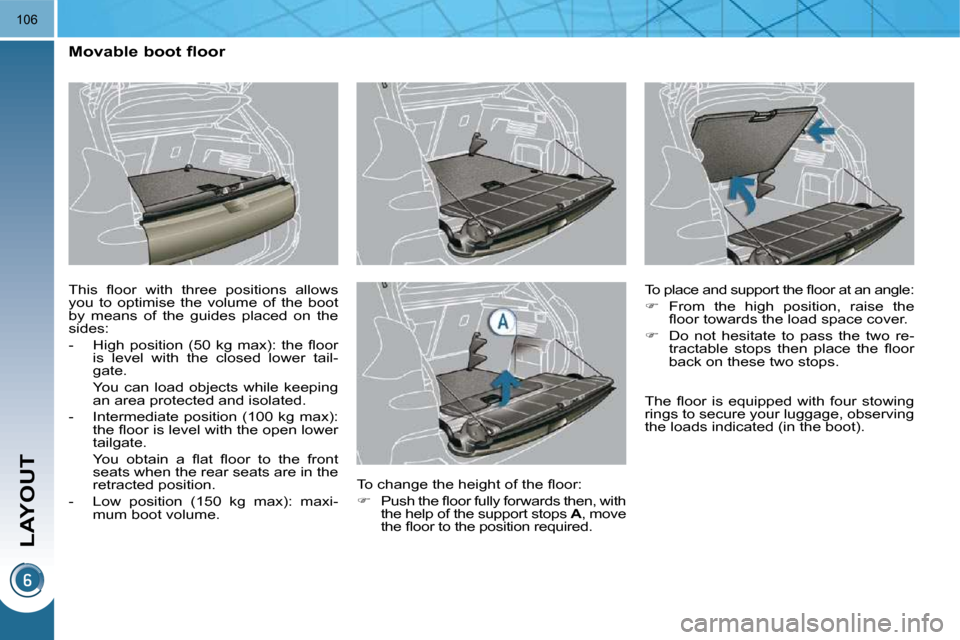

Movable boot floor
T h i s fl o o r w i t h t h r e e p o s i t i o n s a l l o w s
you to optimise the volume of the boot
by means of the guides placed on the
sides:
- H i g h p o s i t i o n ( 5 0 k g m a x ) : t h e fl o o r is level with the closed lower tail-
gate.
You can load objects while keeping an area protected and isolated.
- Intermediate position (100 kg max): t h e fl o o r i s l e v e l w i t h t h e o p e n l o w e r
tailgate.
Y o u o b t a i n a fl a t fl o o r t o t h e f r o n t seats when the rear seats are in the
retracted position.
- Low position (150 kg max): maxi- mum boot volume. T o p l a c e a n d s u p p o r t t h e fl o o r a t a n a n g l e :
From the high position, raise the
fl o o r t o w a r d s t h e l o a d s p a c e c o v e r .
Do not hesitate to pass the two re-
t r a c t a b l e s t o p s t h e n p l a c e t h e fl o o r
back on these two stops.
T o c h a n g e t h e h e i g h t o f t h e fl o o r :
P u s h t h e fl o o r f u l l y f o r w a r d s t h e n , w i t h
the help of the support stops A , move
t h e fl o o r t o t h e p o s i t i o n r e q u i r e d . T h e fl o o r i s e q u i p p e d w i t h f o u r s t o w i n g
rings to secure your luggage, observing
the loads indicated (in the boot).
Page 97 of 290
LAYOUT
107

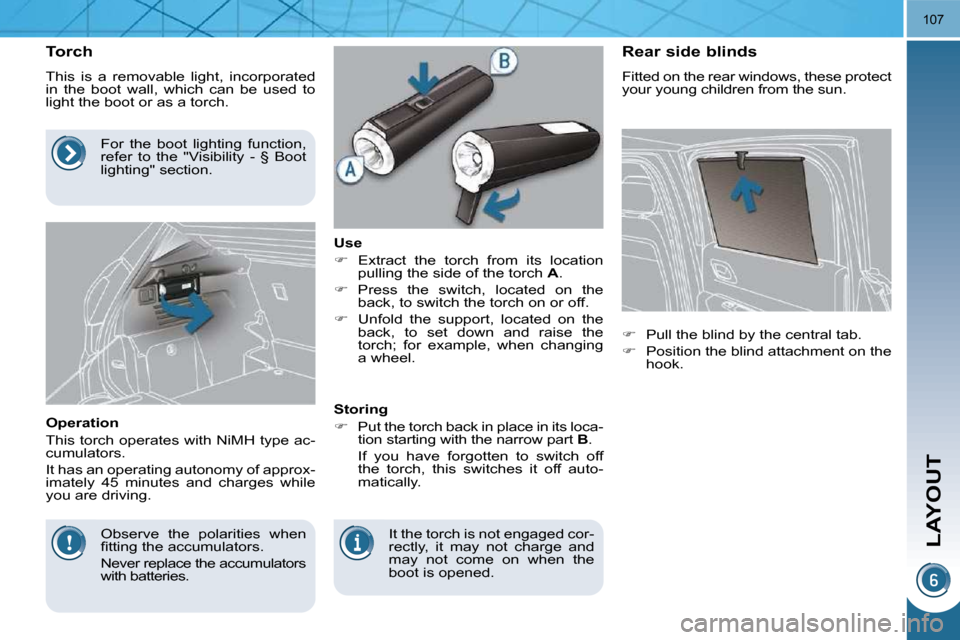

Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
Operation
This torch operates with NiMH type ac-
cumulators.
It has an operating autonomy of approx-
imately 45 minutes and charges while
you are driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
t o r c h ; f o r e x a m p l e , w h e n c h a n g i n g
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e a c c u m u l a t o r s .
Never replace the accumulators
with batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lighting" section.
Page 98 of 290
LAYOUT
103
Load space cover To fold it:
unhook the two cords,
fold it concertina-style to the rear
seats.
To remove it:
fold the load space cover as de-
scribed above,
u n c l i p t h e fi x i n g s o n t h e l e f t a n d o n
the right by pushing gently,
place your hands as shown on the
illustration then pull the assembly
towards you, To store it at the bottom of the boot:
remove the load space cover as de-
scribed above,
p l a c e t h e fl o o r a t a n a n g l e ,
place the load space cover in its lo-
cation (recess marked A ), at bottom
of the boot,
the load space cover will be protect-
e d i f y o u p l a c e t h e fl o o r i n t h e i n t e r -
mediate position.
This consists of three sections which
can be folded back on each other.
To put it back in place:
take hold of the load space cover
with both hands then place it on its
support,
unfold it to the boot pillars,
hook the two cords,
if necessary, press on the top of the
load space cover, on the left and on
t h e r i g h t , t o e n g a g e t h e fi x i n g s .
Page 99 of 290
LAYOUT
104
When changing a wheel
The hooks permit easy access
to the spare wheel by retain-
ing the boot carpet by means of the
two cords.
The hooks permit the securing of
shopping bags.
Hooks
In order to connect a 12 V accesso-
ry (max power: 120 Watts), remove
the cap and connect the appropriate
adaptor.
Turn the key to the ignition position.
12 V accessories socket Luggage retaining net
Hooked onto the stowing rings on the
m o v a b l e b o o t fl o o r , t h i s e n a b l e s y o u t o
secure your luggage.
Observe the loads indicated on the side
of the boot, in accordance with the posi-
t i o n o f t h e m o v a b l e fl o o r .
For safety reasons in case of sharp
braking, we recommend that heavy ob-
j e c t s a r e p l a c e d o n t h e fl o o r a s c l o s e a s
possible to the back of the rear seats.
Page 100 of 290
LAYOUT
105
Raise the boot carpet, hooking the
two cords on the hooks, then gain
access to the storage box.
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h i s
has areas for storing:
- a box of spare bulbs,
- a fi r s t a i d k i t ,
- a tyre repair kit,
- two warning triangles,
- ... Storage box CD changer
This holds up to 6 discs.
Access
- P l a c e t h e fl o o r i n t h e l o w p o s i t i o n .
- R e m o v e t h e fl a p b y t u r n i n g i t s b u t t o n .
- Pivot the changer towards you then change the discs, one by one.
- Put the changer back in its location.
- C l o s e t h e fl a p c o r r e c t l y t o p r e v e n t the changer from coming out of its
location while driving. The use of copied compact
discs may cause faults.
Insert circular compact discs
only.
