Peugeot 3008 Dag 2009.5 Manual Online
Manufacturer: PEUGEOT, Model Year: 2009.5, Model line: 3008 Dag, Model: Peugeot 3008 Dag 2009.5Pages: 290, PDF Size: 20.63 MB
Page 81 of 290
LAYOUT
107
Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
Operation
This torch operates with NiMH type ac-
cumulators.
It has an operating autonomy of approx-
imately 45 minutes and charges while
you are driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
t o r c h ; f o r e x a m p l e , w h e n c h a n g i n g
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e a c c u m u l a t o r s .
Never replace the accumulators
with batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lighting" section.
Page 82 of 290
LAYOUT
96
INTERIOR LAYOUT
1. Spectacles storage
2. Sun visor
3. Grab handle with coat hook
4. Storage compartment
5. Storage compartment under the
steering wheel
6. Storage compartment
7. Console handle
8. Storage compartment with net
9. Glove box with light
10. Door trays
11. Front 12 V accessories socket
(120 W)
12. Can holder, removable ashtray
13. Front armrest with storage
compartment
14. Storage compartment
15. Rear 12 V accessories socket
(120 W)
Page 83 of 290
LAYOUT
97
DRIVER'S STORAGE COMPARTMENTS
Storage box
This has storage areas dedicated to the
handbook pack, ...
To open, pull the handle then tilt the
box.
GLOVE BOX WITH LIGHT
This has storage areas, audio sockets
for a portable player, a location for the
SIM card (with PC Com 3D), ...
To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t i -
cally.
This sun visor is also equipped with a
ticket holder. Card holder
This permits the storing of a toll payment
ticket or parking card, for example.
Coin storage
Storage To connect a portable player
or a SIM card, refer to the
"Audio and telematics" section.
Page 84 of 290
LAYOUT
98

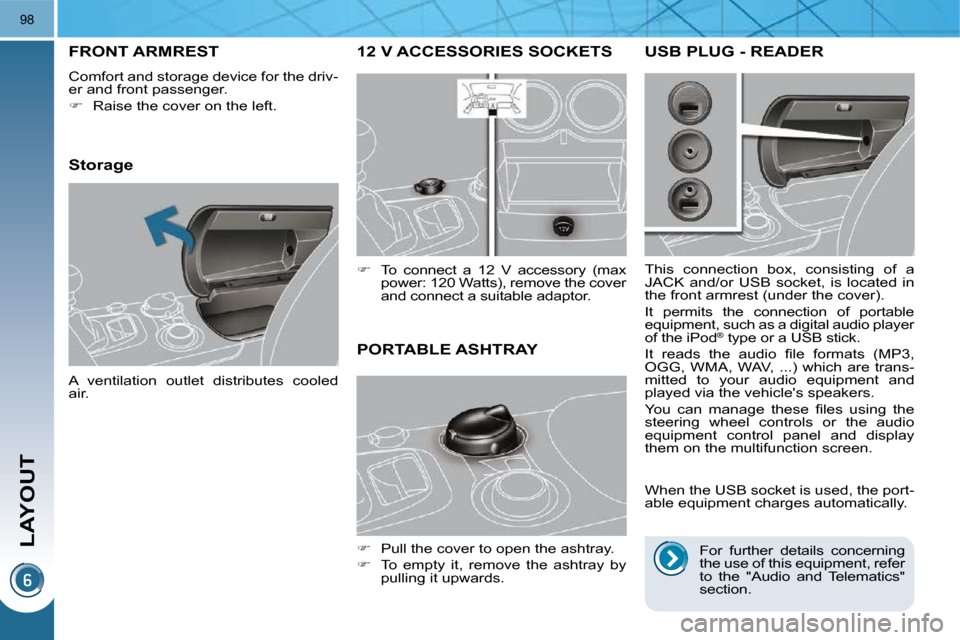

12 V ACCESSORIES SOCKETS
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.
Raise the cover on the left.
Storage
A ventilation outlet distributes cooled
air.
PORTABLE ASHTRAY
Pull the cover to open the ashtray.
To empty it, remove the ashtray by
pulling it upwards.
USB PLUG - READER
This connection box, consisting of a
JACK and/or USB socket, is located in
the front armrest (under the cover).
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type or a USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( M P 3 ,
OGG, WMA, WAV, ...) which are trans-
mitted to your audio equipment and
played via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When the USB socket is used, the port-
able equipment charges automatically.
For further details concerning
the use of this equipment, refer
to the "Audio and Telematics"
section.
Page 85 of 290
LAYOUT
99

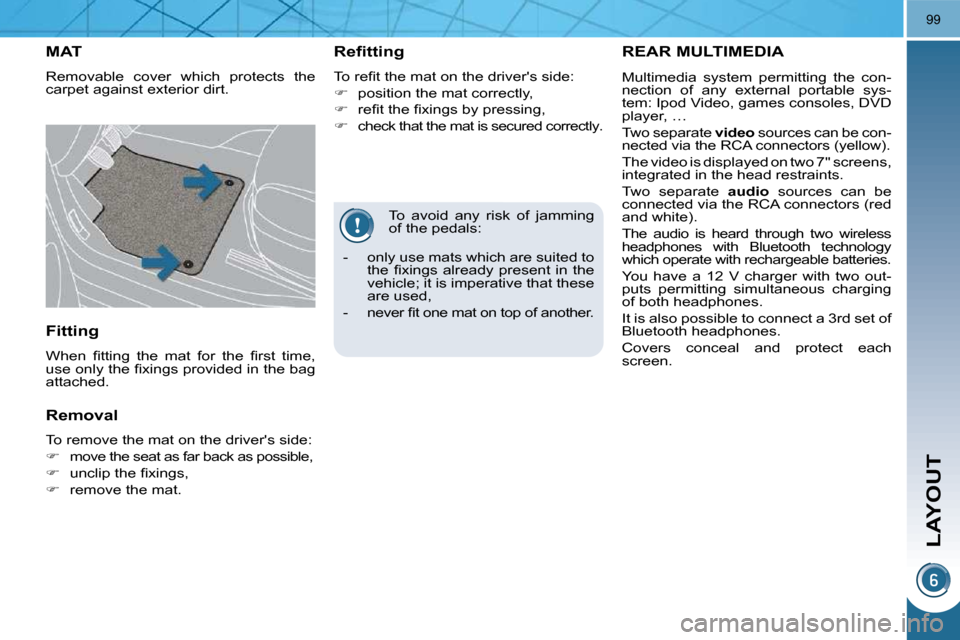

To avoid any risk of jamming
of the pedals:
- only use mats which are suited to t h e fi x i n g s a l r e a d y p r e s e n t i n t h e
v e h i c l e ; i t i s i m p e r a t i v e t h a t t h e s e
are used,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
MAT
Removable cover which protects the
carpet against exterior dirt. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured correctly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
u s e o n l y t h e fi x i n g s p r o v i d e d i n t h e b a g
attached.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
REAR MULTIMEDIA
Multimedia system permitting the con-
nection of any external portable sys-
tem: Ipod Video, games consoles, DVD
player, …
Two separate video sources can be con-
nected via the RCA connectors (yellow).
The video is displayed on two 7'' screens,
integrated in the head restraints.
Two separate audio sources can be
connected via the RCA connectors (red
and white).
The audio is heard through two wireless
headphones with Bluetooth technology
which operate with rechargeable batteries.
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3
rd
set of
Bluetooth headphones.
Covers conceal and protect each
screen.
Page 86 of 290
LAYOUT
100

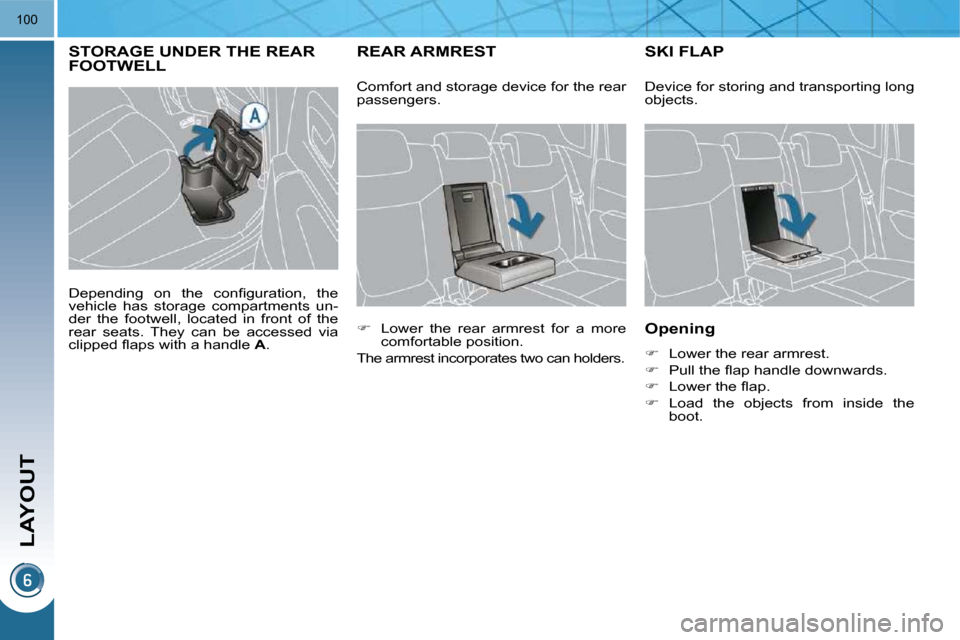

REAR ARMREST SKI FLAP
Opening
Lower the rear armrest.
P u l l t h e fl a p h a n d l e d o w n w a r d s .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two can holders.
Comfort and storage device for the rear
passengers.
Device for storing and transporting long
objects.
STORAGE UNDER THE REAR FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has storage compartments un-
der the footwell, located in front of the
rear seats. They can be accessed via
c l i p p e d fl a p s w i t h a h a n d l e
A .
Page 87 of 290
LAYOUT
97
DRIVER'S STORAGE COMPARTMENTS
Storage box
This has storage areas dedicated to the
handbook pack, ...
To open, pull the handle then tilt the
box.
GLOVE BOX WITH LIGHT
This has storage areas, audio sockets
for a portable player, a location for the
SIM card (with PC Com 3D), ...
To open the glove box, raise the
handle.
The light comes on when the lid is
opened.
SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t i -
cally.
This sun visor is also equipped with a
ticket holder. Card holder
This permits the storing of a toll payment
ticket or parking card, for example.
Coin storage
Storage To connect a portable player
or a SIM card, refer to the
"Audio and telematics" section.
Page 88 of 290
LAYOUT
98
12 V ACCESSORIES SOCKETS
To connect a 12 V accessory (max
power: 120 Watts), remove the cover
and connect a suitable adaptor.
FRONT ARMREST
Comfort and storage device for the driv-
er and front passenger.
Raise the cover on the left.
Storage
A ventilation outlet distributes cooled
air.
PORTABLE ASHTRAY
Pull the cover to open the ashtray.
To empty it, remove the ashtray by
pulling it upwards.
USB PLUG - READER
This connection box, consisting of a
JACK and/or USB socket, is located in
the front armrest (under the cover).
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type or a USB stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( M P 3 ,
OGG, WMA, WAV, ...) which are trans-
mitted to your audio equipment and
played via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.
When the USB socket is used, the port-
able equipment charges automatically.
For further details concerning
the use of this equipment, refer
to the "Audio and Telematics"
section.
Page 89 of 290
LAYOUT
99
To avoid any risk of jamming
of the pedals:
- only use mats which are suited to t h e fi x i n g s a l r e a d y p r e s e n t i n t h e
v e h i c l e ; i t i s i m p e r a t i v e t h a t t h e s e
are used,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
MAT
Removable cover which protects the
carpet against exterior dirt. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured correctly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
u s e o n l y t h e fi x i n g s p r o v i d e d i n t h e b a g
attached.
Removal
To remove the mat on the driver's side:
move the seat as far back as possible,
u n c l i p t h e fi x i n g s ,
remove the mat.
REAR MULTIMEDIA
Multimedia system permitting the con-
nection of any external portable sys-
tem: Ipod Video, games consoles, DVD
player, …
Two separate video sources can be con-
nected via the RCA connectors (yellow).
The video is displayed on two 7'' screens,
integrated in the head restraints.
Two separate audio sources can be
connected via the RCA connectors (red
and white).
The audio is heard through two wireless
headphones with Bluetooth technology
which operate with rechargeable batteries.
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3
rd
set of
Bluetooth headphones.
Covers conceal and protect each
screen.
Page 90 of 290
LAYOUT
100
REAR ARMREST SKI FLAP
Opening
Lower the rear armrest.
P u l l t h e fl a p h a n d l e d o w n w a r d s .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two can holders.
Comfort and storage device for the rear
passengers.
Device for storing and transporting long
objects.
STORAGE UNDER THE REAR FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has storage compartments un-
der the footwell, located in front of the
rear seats. They can be accessed via
c l i p p e d fl a p s w i t h a h a n d l e
A .
