LAYOUT
106
Movable boot floor
T h i s fl o o r w i t h t h r e e p o s i t i o n s a l l o w s
you to optimise the volume of the boot
by means of the guides placed on the
sides:
- H i g h p o s i t i o n ( 5 0 k g m a x ) : t h e fl o o r is level with the closed lower tail-
gate.
You can load objects while keeping an area protected and isolated.
- Intermediate position (100 kg max): t h e fl o o r i s l e v e l w i t h t h e o p e n l o w e r
tailgate.
Y o u o b t a i n a fl a t fl o o r t o t h e f r o n t seats when the rear seats are in the
retracted position.
- Low position (150 kg max): maxi- mum boot volume. T o p l a c e a n d s u p p o r t t h e fl o o r a t a n a n g l e :
From the high position, raise the
fl o o r t o w a r d s t h e l o a d s p a c e c o v e r .
Do not hesitate to pass the two re-
t r a c t a b l e s t o p s t h e n p l a c e t h e fl o o r
back on these two stops.
T o c h a n g e t h e h e i g h t o f t h e fl o o r :
P u s h t h e fl o o r f u l l y f o r w a r d s t h e n , w i t h
the help of the support stops A , move
t h e fl o o r t o t h e p o s i t i o n r e q u i r e d . T h e fl o o r i s e q u i p p e d w i t h f o u r s t o w i n g
rings to secure your luggage, observing
the loads indicated (in the boot).
Page 102 of 290
LAYOUT
107
Torch
This is a removable light, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
Operation
This torch operates with NiMH type ac-
cumulators.
It has an operating autonomy of approx-
imately 45 minutes and charges while
you are driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
t o r c h ; f o r e x a m p l e , w h e n c h a n g i n g
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e a c c u m u l a t o r s .
Never replace the accumulators
with batteries. It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lighting" section.
Page 103 of 290
95
Different lighting times are
available:
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
- when the engine is running, no limit.
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LIGHTING TORCH
Removable light, incorporated in the
boot wall, which can be used to light the
boot or as a torch. Operation
O n c e e n g a g e d fi r m l y i n i t s l o c a t i o n , i t
comes on automatically when the boot
is opened and switches off automatic-
ally when the boot is closed.
It operates with NiMH type storage bat-
teries.
It has an operating autonomy of approxi-
mately 45 minutes and recharges while
you are driving.
Observe the polarities when
fi t t i n g t h e s t o r a g e b a t t e r i e s .
Never replace the storage batteries
with batteries.
For the torch function, refer to
the "Layout - § Torch" section.
Page 104 of 290
CHILD SAFETY
108
PEUGEOT
recommends that
children should travel in the
rear seats of your vehicle:
- "rearwards-facing" up to the
age of 2,
- "forwards-facing" over the age
of 2.
TO CHILD SEATS INSTALLING A CHILD SEAT
USING A THREE POINT SEAT
BELT
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
Intermediate longitudinal position
* The rules for transporting children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please follow
these precautions:
- in accordance with European regula-
tions, all children under the age of
12 or less than one and a half me-
tres tall must travel in approved
child seats suited to their weight ,
o n s e a t s fi t t e d w i t h a s e a t b e l t o r
ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for the transportation
of children are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
Page 105 of 290
CHILD SAFETY
109
Passenger air bag OFF

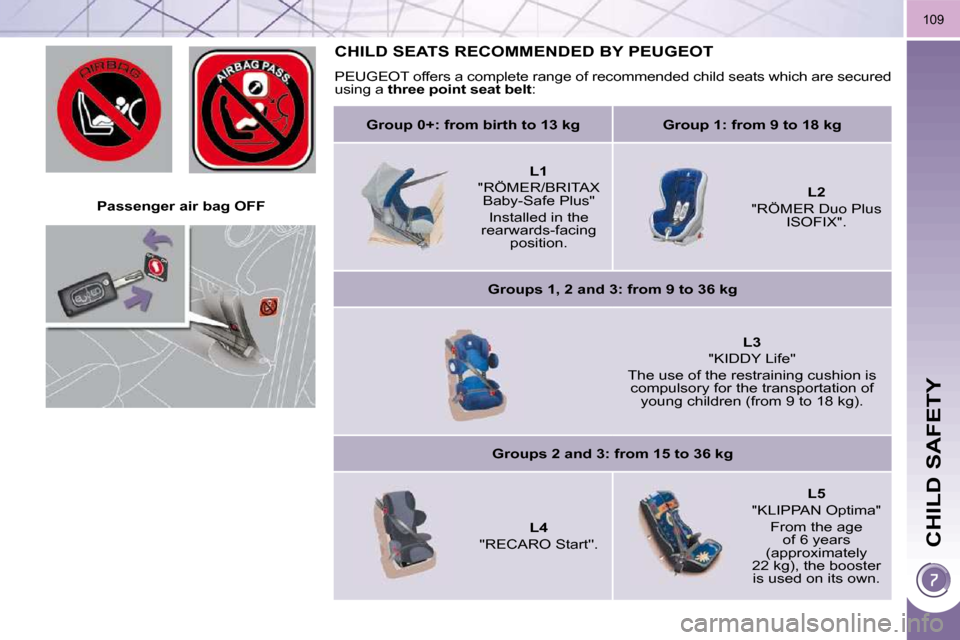

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg
L1
" R Ö M E R / B R I T A X B a b y - S a f e P l u s "
Installed in the
rearwards-facing position.
L2
" R Ö M E R D u o P l u s ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
" K I D D Y L i f e "
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
" R E C A R O S t a r t ' ' .
L5
" K L I P P A N O p t i m a "
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Page 106 of 290
CHILD SAFETY
109
Passenger air bag OFF
CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured
using a three point seat belt :
Group 0+: from birth to 13 kg Group 1: from 9 to 18 kg
L1
" R Ö M E R / B R I T A X B a b y - S a f e P l u s "
Installed in the
rearwards-facing position.
L2
" R Ö M E R D u o P l u s ISOFIX".
Groups 1, 2 and 3: from 9 to 36 kg
L3
" K I D D Y L i f e "
The use of the restraining cushion is compulsory for the transportation of young children (from 9 to 18 kg).
Groups 2 and 3: from 15 to 36 kg
L4
" R E C A R O S t a r t ' ' .
L5
" K L I P P A N O p t i m a "
From the age of 6 years
(approximately
22 kg), the booster is used on its own.
Page 107 of 290
CHILD SAFETY
110
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT

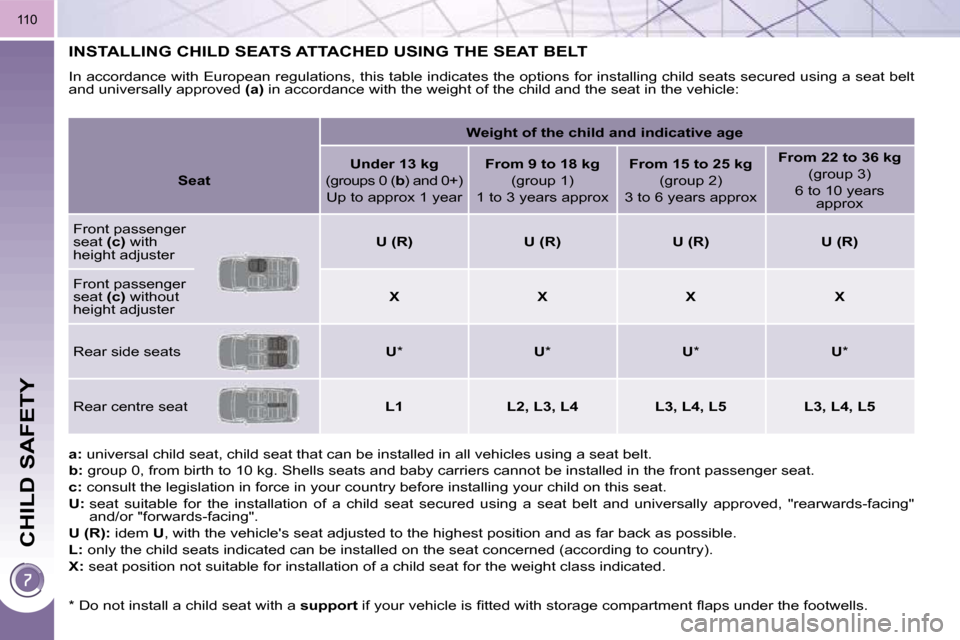

In accordance with European regulations, this table indicates the options for installing child seats secured using a seat b elt
and universally approved (a) in accordance with the weight of the child and the seat in the vehicle:
a: universal child seat, child seat that can be installed in all vehicles using a seat belt.
b: group 0, from birth to 10 kg. Shells seats and baby carriers cann ot be installed in the front passenger seat.
c: consult the legislation in force in your country before insta lling your child on this seat.
U: seat suitable for the installation of a child seat secure d using a seat belt and universally approved, "rearwards-facing"
a n d / o r " f o r w a r d s - f a c i n g " .
U (R): idem U , with the vehicle's seat adjusted to the highest positio n and as far back as possible.
L: only the child seats indicated can be installed on the se at concerned (according to country).
X: seat position not suitable for installation of a child seat for the weight class indicated.
Weight of the child and indicative age
Seat
Under 13 kg
(groups 0 ( b ) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Front passenger
seat ( c ) with
height adjuster
U (R) U (R) U (R) U (R)
Front passenger
seat (c) without
height adjuster
X X X X
R e a r s i d e s e a t s
U * U * U * U *
R e a r c e n t r e s e a t
L1 L2, L3, L4 L3, L4, L5 L3, L4, L5
* D o n o t i n s t a l l a c h i l d s e a t w i t h a support i f y o u r v e h i c l e i s fi t t e d w i t h s t o r a g e c o m p a r t m e n t fl a p s u n d e r t h e f o o t w e l l s .
Page 108 of 290
CHILD SAFETY
111

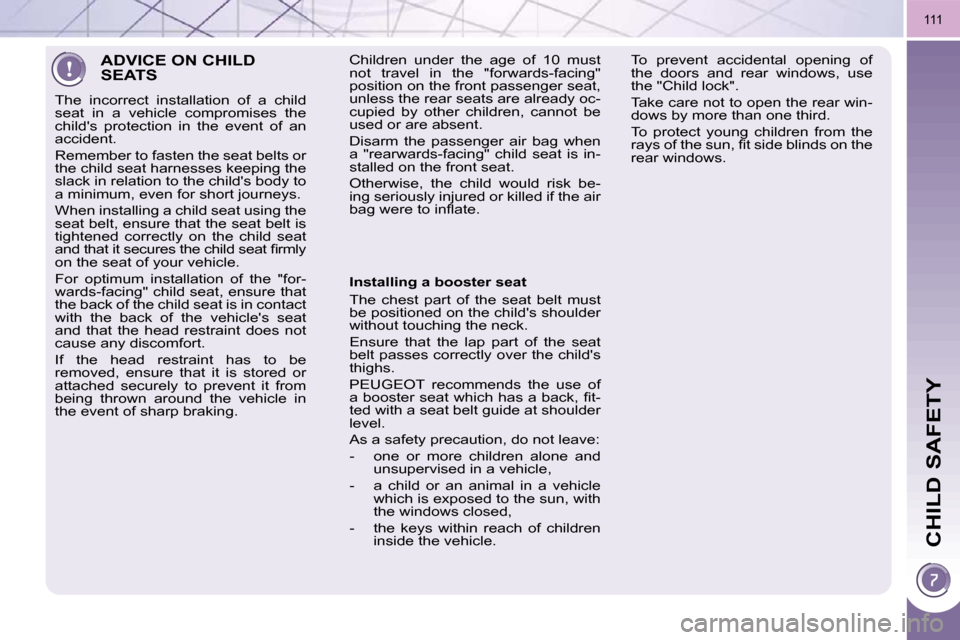

ADVICE ON CHILD SEATS
The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
R e m e m b e r t o f a s t e n t h e s e a t b e l t s o r
the child seat harnesses keeping the
slack in relation to the child's body to
a minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
a n d t h a t i t s e c u r e s t h e c h i l d s e a t fi r m l y
on the seat of your vehicle.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be
removed, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking. Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a b o o s t e r s e a t w h i c h h a s a b a c k , fi t -
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:
- one or more children alone and
unsupervised in a vehicle,
- a child or an animal in a vehicle which is exposed to the sun, with
the windows closed,
- the keys within reach of children inside the vehicle. To prevent accidental opening of
the doors and rear windows, use
t h e " C h i l d l o c k " .
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
r a y s o f t h e s u n , fi t s i d e b l i n d s o n t h e
rear windows.
C h i l d r e n u n d e r t h e a g e o f 1 0 m u s t
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
D i s a r m t h e p a s s e n g e r a i r b a g w h e n
a "rearwards-facing" child seat is in-
stalled on the front seat.
Otherwise, the child would risk be-
ing seriously injured or killed if the air
b a g w e r e t o i n fl a t e .
Page 109 of 290
CHILD SAFETY
"ISOFIX" MOUNTINGS
Y o u r v e h i c l e h a s b e e n a p p r o v e d i n a c c o r d -
ance with the new ISOFIX regulation .
T h e s e a t s , r e p r e s e n t e d b e l o w , a r e fi t t e d
with regulation ISOFIX mountings: These are three rings for each seat:
- two rings
A , located between the
vehicle seat back and cushion, indi-
cated by a label,
- a ring B , behind the seat, referred to
as the TOP TETHER f o r fi x i n g t h e
upper strap. This ISOFIX mounting system guaran-
t e e s y o u f a s t , r e l i a b l e a n d s a f e fi t t i n g o f
the child seat in your vehicle.

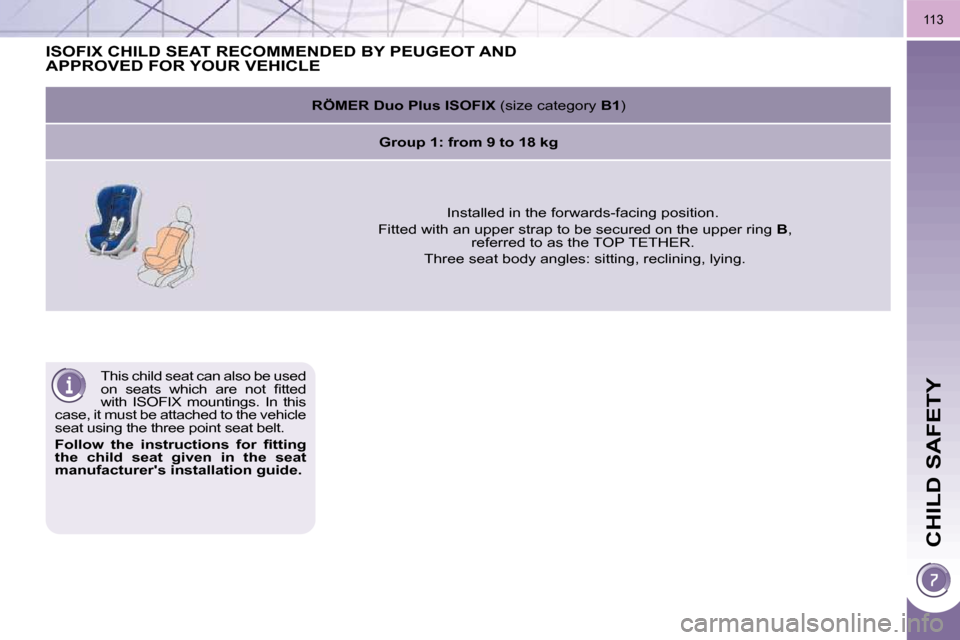

The
ISOFIX child seats a r e fi t t e d w i t h
two locks which are secured easily on
the two rings A .
Some also have an upper strap which
is attached to ring B .
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
b e t w e e n i t s r o d s . T h e n fi x t h e h o o k o n
ring B and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in your
vehicle, consult the summary table for
the location of the ISOFIX child seats.
Page 110 of 290
CHILD SAFETY
113
This child seat can also be used
o n s e a t s w h i c h a r e n o t fi t t e d
with ISOFIX mountings. In this
case, it must be attached to the vehicle
seat using the three point seat belt.
F o l l o w t h e i n s t r u c t i o n s f o r fi t t i n g
the child seat given in the seat
manufacturer's installation guide.
ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT AND APPROVED FOR YOUR VEHICLE
RÖMER Duo Plus ISOFIX (size category B1 )
Group 1: from 9 to 18 kg
Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B ,
r e f e r r e d t o a s t h e T O P T E T H E R .
Three seat body angles: sitting, reclining, lying.
