Peugeot 3008 Dag 2009.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2009.5, Model line: 3008 Dag, Model: Peugeot 3008 Dag 2009.5Pages: 290, PDF Size: 20.63 MB
Page 121 of 290
1 2 3
1. Front and/or rear seat belts not fas-
tened/unfastened warning light.
2. Front left seat belt warning light.
3. Front right seat belt warning light.
4. Rear right seat belt warning light.
5. Rear centre seat belt warning light.
6. Rear left seat belt warning light.
Seat belt not fastened/unfastened
warning lights display
Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
force limiter (with the exception of the
rear centre seat).
Seat belt unfastened warning light
This warning light comes on on
the seat belt and passenger's
front air bag warning lights dis-
play, when one or more rear
passengers unfasten their seat
belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l i g h t fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning light remains on until the one or
more rear passengers fasten their seat
belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it rolls up.
The corresponding warning light 2 or 3
comes on in red on the seat belt and
passenger's front air bag warning lights
display if the seat belt is not fastened or
is unfastened. Seat belt unfastened warning lights
display
When the ignition is switched on, with
the engine running or when the vehicle is
moving at less than 12 mph (20 km/h), the
corresponding warning lights
4 , 5 and 6
c o m e o n i n r e d f o r a p p r o x i m a t e l y 3 0 s e c -
onds, if the seat belt is not fastened.
When the vehicle is moving at more
than 12 mph (20 km/h), the correspond-
ing warning light 4 , 5 or 6 comes on in
red, accompanied by an audible signal
and a message on the multifunction dis-
play, if a rear passenger has unfastened
his seat belt.
Page 122 of 290
124

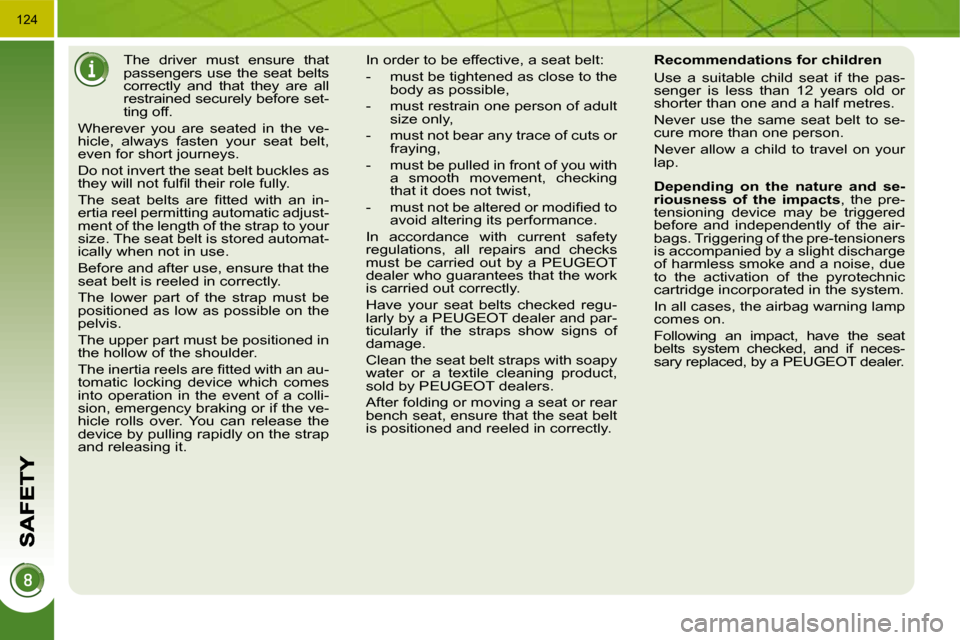

The driver must ensure that
passengers use the seat belts
correctly and that they are all
restrained securely before set-
ting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
e v e n f o r s h o r t j o u r n e y s .
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
e r t i a r e e l p e r m i t t i n g a u t o m a t i c a d j u s t -
ment of the length of the strap to your
s i z e . T h e s e a t b e l t i s s t o r e d a u t o m a t -
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n a u -
tomatic locking device which comes
into operation in the event of a colli-
sion, emergency braking or if the ve-
hicle rolls over. You can release the
device by pulling rapidly on the strap
and releasing it. In order to be effective, a seat belt:
- must be tightened as close to the
body as possible,
- must restrain one person of adult s i z e o n l y ,
- must not bear any trace of cuts or fraying,
- must be pulled in front of you with a smooth movement, checking
that it does not twist,
- m u s t n o t b e a l t e r e d o r m o d i fi e d t o avoid altering its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to se-
cure more than one person.
Never allow a child to travel on your
lap.
Depending on the nature and se-
riousness of the impacts , the pre-
tensioning device may be triggered
before and independently of the air-
bags. Triggering of the pre-tensioners
is accompanied by a slight discharge
of harmless smoke and a noise, due
to the activation of the pyrotechnic
cartridge incorporated in the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 123 of 290
1 2 5
AIRBAGS
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
d e t e c t i o n z o n e s :
- in the case of a serious impact, the airbags are triggered instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be triggered; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations. Triggering of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
Front air bags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
o f i n j u r y t o t h e h e a d a n d c h e s t .
The driver's air bag is incorporated in
the centre of the steering wheel; the
front passenger's air bag is incorporat-
ed in the fascia above the glove box.
Activation
The air bags are triggered simultane-
ously, unless the passenger's front air
bag is disarmed, in the event of a seri-
ous front impact applied to all or part of
t h e f r o n t i m p a c t z o n e A , in the longitu-
dinal centreline of the vehicle on a hori-
z o n t a l p l a n e a n d d i r e c t e d f r o m t h e f r o n t
to the rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the fas-
cia to cushion his forward movement.
Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e .
The airbags do not operate
when the ignition is switched
off.
This equipment will only operate once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not operate.
Page 124 of 290
126
If at least one of the two air
bag warning lights come on
continuously, do not install
a child seat on the front passenger
seat.
Have the system checked by a PEUGEOT
dealer.
Operating fault
If this warning light comes
on on the instrument panel,
accompanied by an audible
warning and a message on
the multifunction display, con-
tact a PEUGEOT dealer to have the
system checked. The air bags may no
longer be triggered in the event of a se-
rious impact.
Reactivation
When you remove the child seat, turn
switch
1 to the "ON" position to re-arm
the air bag and so guarantee the safety
of your front passenger in the event of
an impact.
With the ignition on, this warn-
ing light comes on on the seat
belt and passenger's front air
bag warning lights display for
approximately one minute, if
the passenger's front air bag
is activated.
To guarantee the safety of
your child, it is imperative that
the passenger's front air bag
is disarmed when you install a "rear
facing" child seat on the front pas-
senger seat.
Otherwise, the child would risk be-
i n g s e r i o u s l y i n j u r e d o r k i l l e d i f t h e a i r
bag were triggered.
According to version, this
warning light comes on either
on the instrument panel or on
the seat belt and passenger's
front air bag warning lights
display when the ignition is on and until
the air bag is re-armed. I f t h i s w a r n i n g l i g h t fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front air bag
may no longer be triggered in
the event of a serious impact.
Deactivation
Only the passenger's front air bag can
be disarmed:
with the ignition off , insert the key
in the passenger air bag disarming
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in this position.
Page 125 of 290
128

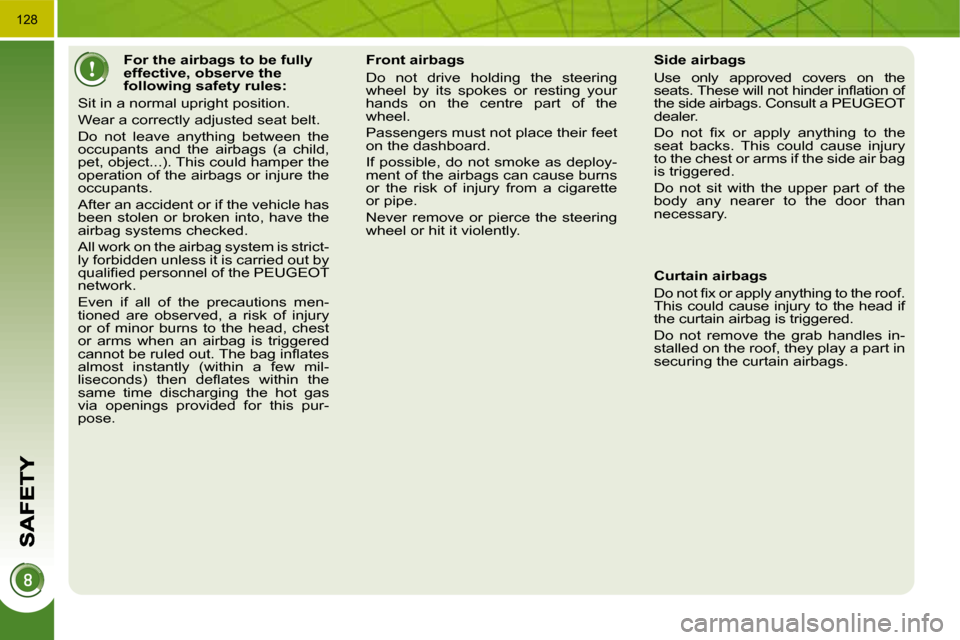

For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side airbags. Consult a PEUGEOT
dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air bag
is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e r o o f .
T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
Do not remove the grab handles in-
stalled on the roof, they play a part in
securing the curtain airbags.
Page 126 of 290
127
Side air bags
System which protects the driver and
front passenger in the event of a seri-
ous side impact in order to limit the risk
o f i n j u r y t o t h e c h e s t .
Each side air bag is incorporated in the
front, in the seat back frame, on the
door side.
Activation
The side air bags are triggered unilater-
ally in the event of a serious side impact
applied to all or part of the side impact
z o n e B , perpendicular to the longitudinal
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l
plane and directed from the outside to-
wards the inside of the vehicle.
Curtain airbags
System which protects the driver and
passengers (with the exception of the
rear centre passenger) in the event of a
serious side impact in order to limit the
r i s k o f i n j u r y t o t h e h e a d .
Each curtain airbag is built into the pil-
lars and the upper the passenger com-
partment area. Operating fault
Activation
The curtain airbag is triggered at the
same time as the corresponding side air-
bag in the event of a serious side impact
applied to all or part of the side impact
z o n e
B , perpendicular to the longitudinal
c e n t r e l i n e o f t h e v e h i c l e o n a h o r i z o n t a l
plane and directed from the outside to-
wards the inside of the vehicle.
T h e c u r t a i n a i r b a g i n fl a t e s b e t w e e n t h e
front or rear occupant of the vehicle and
the windows.
In the event of a minor impact
or bump on the side of the
vehicle or if the vehicle rolls
over, the airbag may not be
triggered.
In the event of a rear or front collision,
the airbag is not triggered.
Impact detection zones
A. F r o n t i m p a c t z o n e .
B. S i d e i m p a c t z o n e . If this warning lamp comes on
on the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen, contact a PEUGEOT
dealer to have the system checked. The
airbags may no longer be triggered in the
event of a serious impact.
T h e s i d e a i r b a g i n fl a t e s b e t w e e n t h e
front occupant of the vehicle and the
corresponding door trim pad.
Page 127 of 290
128
For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
W e a r a c o r r e c t l y a d j u s t e d s e a t b e l t .
Do not leave anything between the
occupants and the airbags (a child,
p e t , o b j e c t . . . ) . T h i s c o u l d h a m p e r t h e
o p e r a t i o n o f t h e a i r b a g s o r i n j u r e t h e
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
network.
Even if all of the precautions men-
t i o n e d a r e o b s e r v e d , a r i s k o f i n j u r y
or of minor burns to the head, chest
or arms when an airbag is triggered
c a n n o t b e r u l e d o u t . T h e b a g i n fl a t e s
almost instantly (within a few mil-
l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas
via openings provided for this pur-
pose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
o r t h e r i s k o f i n j u r y f r o m a c i g a r e t t e
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Side airbags
Use only approved covers on the
s e a t s . T h e s e w i l l n o t h i n d e r i n fl a t i o n o f
the side airbags. Consult a PEUGEOT
dealer.
D o n o t fi x o r a p p l y a n y t h i n g t o t h e
s e a t b a c k s . T h i s c o u l d c a u s e i n j u r y
to the chest or arms if the side air bag
is triggered.
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Curtain airbags
D o n o t fi x o r a p p l y a n y t h i n g t o t h e r o o f .
T h i s c o u l d c a u s e i n j u r y t o t h e h e a d i f
the curtain airbag is triggered.
Do not remove the grab handles in-
stalled on the roof, they play a part in
securing the curtain airbags.
Page 128 of 290
129

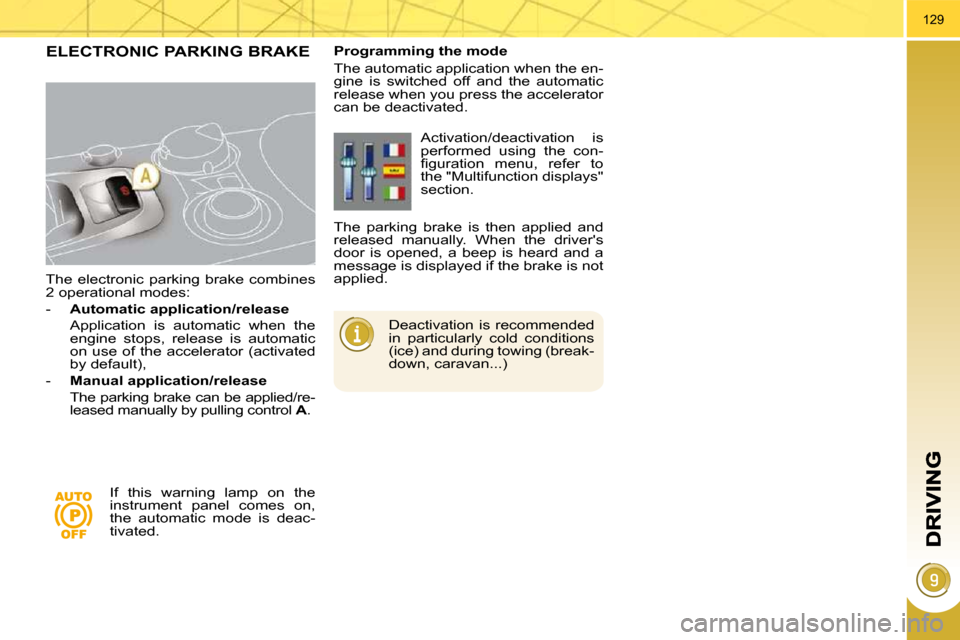

The electronic parking brake combines
2 operational modes:
- Automatic application/release
Application is automatic when the engine stops, release is automatic
on use of the accelerator (activated
by default),
- Manual application/release
The parking brake can be applied/re- leased manually by pulling control A .
ELECTRONIC PARKING BRAKE
Deactivation is recommended
in particularly cold conditions
(ice) and during towing (break-
down, caravan...)
Programming the mode
The automatic application when the en-
gine is switched off and the automatic
release when you press the accelerator
can be deactivated.
If this warning lamp on the
instrument panel comes on,
the automatic mode is deac-
tivated. Activation/deactivation is
performed using the con-
fi g u r a t i o n m e n u , r e f e r t o
the "Multifunction displays"
section.
The parking brake is then applied and
released manually. When the driver's
door is opened, a beep is heard and a
message is displayed if the brake is not
applied.
Page 129 of 290
130

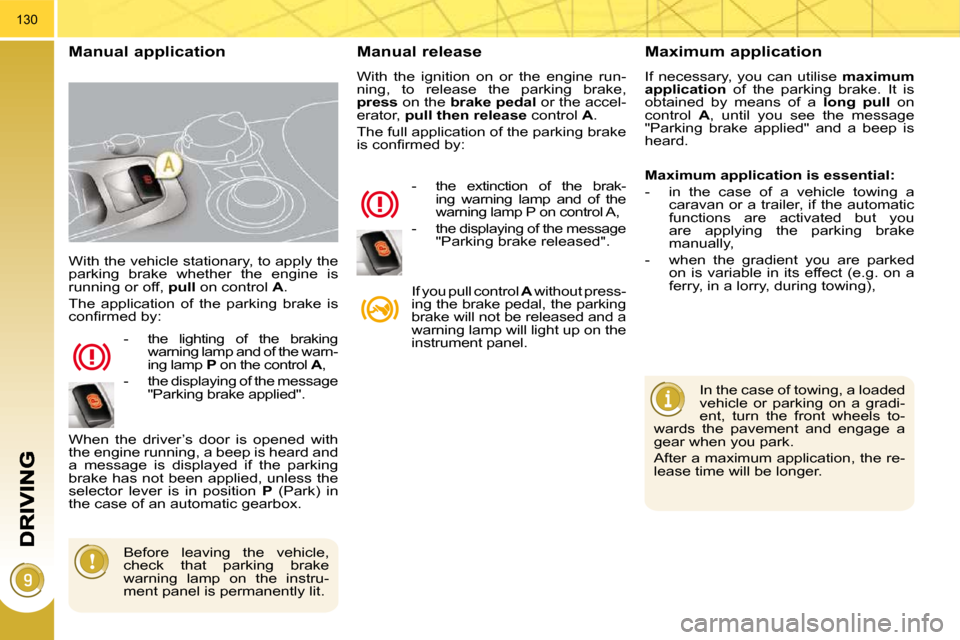

With the vehicle stationary, to apply the
parking brake whether the engine is
running or off, pull on control A .
The application of the parking brake is
c o n fi r m e d b y :
- the lighting of the braking warning lamp and of the warn-
ing lamp P on the control A ,
- the displaying of the message "Parking brake applied".
When the driver’s door is opened with
the engine running, a beep is heard and
a message is displayed if the parking
brake has not been applied, unless the
selector lever is in position P (Park) in
the case of an automatic gearbox.
Manual release
With the ignition on or the engine run-
ning, to release the parking brake,
press on the brake pedal or the accel-
erator, pull then release control A .
The full application of the parking brake
i s c o n fi r m e d b y :
- the extinction of the brak-ing warning lamp and of the
warning lamp P on control A ,
- the displaying of the message "Parking brake released".
If you pull control A without press-
ing the brake pedal, the parking
brake will not be released and a
warning lamp will light up on the
instrument panel.
Manual application Maximum application
If necessary, you can utilise maximum
application of the parking brake. It is
obtained by means of a long pull on
control A , until you see the message
"Parking brake applied" and a beep is
heard.
In the case of towing, a loaded
vehicle or parking on a gradi-
ent, turn the front wheels to-
wards the pavement and engage a
gear when you park.
After a maximum application, the re-
lease time will be longer.
Before leaving the vehicle,
check that parking brake
warning lamp on the instru-
ment panel is permanently lit.
Maximum application is essential:
- in the case of a vehicle towing a caravan or a trailer, if the automatic
functions are activated but you
are applying the parking brake
manually,
- when the gradient you are parked on is variable in its effect (e.g. on a
ferry, in a lorry, during towing),
Page 130 of 290
131

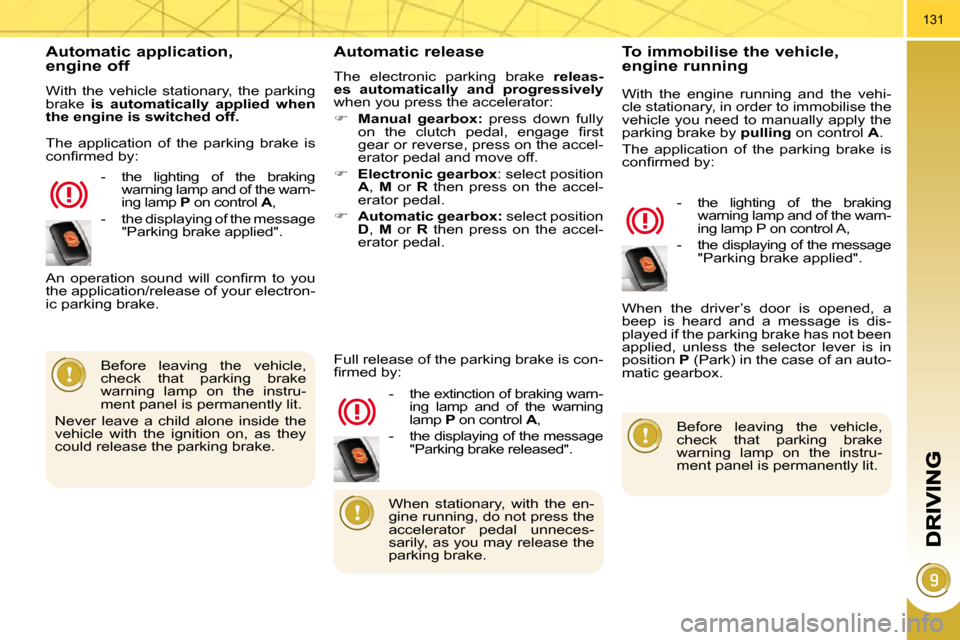

Automatic application, engine off
With the vehicle stationary, the parking
brake is automatically applied when
the engine is switched off.
- the lighting of the braking warning lamp and of the warn-
ing lamp P on control A ,
- the displaying of the message "Parking brake applied".
Automatic release
The electronic parking brake releas-
es automatically and progressively
when you press the accelerator:
Manual gearbox: press down fully
o n t h e c l u t c h p e d a l , e n g a g e fi r s t
gear or reverse, press on the accel-
erator pedal and move off.
Electronic gearbox : select position
A , M or R then press on the accel-
erator pedal.
Automatic gearbox: select position
D , M or R then press on the accel-
erator pedal.
Before leaving the vehicle,
check that parking brake
warning lamp on the instru-
ment panel is permanently lit.
Never leave a child alone inside the
vehicle with the ignition on, as they
could release the parking brake. - the extinction of braking warn-
ing lamp and of the warning
lamp P on control A ,
- the displaying of the message "Parking brake released".
A n o p e r a t i o n s o u n d w i l l c o n fi r m t o y o u
the application/release of your electron-
ic parking brake.
Full release of the parking brake is con-
fi r m e d b y :
To immobilise the vehicle, engine running
With the engine running and the vehi-
cle stationary, in order to immobilise the
vehicle you need to manually apply the
parking brake by pulling on control A .
The application of the parking brake is
c o n fi r m e d b y :
- the lighting of the braking warning lamp and of the warn-
ing lamp P on control A ,
- the displaying of the message "Parking brake applied".
When the driver’s door is opened, a
beep is heard and a message is dis-
played if the parking brake has not been
applied, unless the selector lever is in
position P (Park) in the case of an auto-
matic gearbox.
Before leaving the vehicle,
check that parking brake
warning lamp on the instru-
ment panel is permanently lit.
When stationary, with the en-
gine running, do not press the
accelerator pedal unneces-
sarily, as you may release the
parking brake.
The application of the parking brake is
c o n fi r m e d b y :
