Peugeot 3008 Dag 2010.5 Owners Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 3008 Dag, Model: Peugeot 3008 Dag 2010.5Pages: 324, PDF Size: 22.01 MB
Page 91 of 324
87

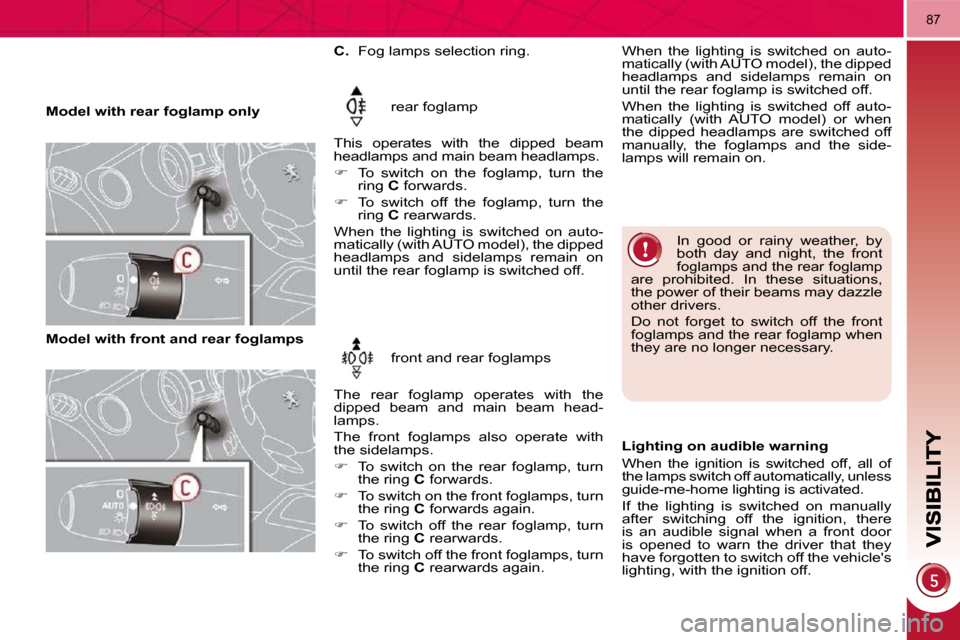

Model with rear foglamp only rear foglamp
This operates with the dipped beam
headlamps and main beam headlamps.
To switch on the foglamp, turn the
ring C forwards.
To switch off the foglamp, turn the
ring C rearwards.
When the lighting is switched on auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e d i p p e d
headlamps and sidelamps remain on
until the rear foglamp is switched off. In good or rainy weather, by
both day and night, the front
foglamps and the rear foglamp are prohibited. In these situations,
the power of their beams may dazzle
other drivers.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.
Model with front and rear foglamps
front and rear foglamps
The rear foglamp operates with the
dipped beam and main beam head-
lamps.
The front foglamps also operate with
the sidelamps.
To switch on the rear foglamp, turn
the ring C forwards.
To switch on the front foglamps, turn
the ring C forwards again.
To switch off the rear foglamp, turn
the ring C rearwards.
To switch off the front foglamps, turn
the ring C rearwards again.
C.
Fog lamps selection ring.
Lighting on audible warning
When the ignition is switched off, all of
the lamps switch off automatically, unless
guide-me-home lighting is activated.
If the lighting is switched on manually
after switching off the ignition, there
is an audible signal when a front door
is opened to warn the driver that they
have forgotten to switch off the vehicle's
lighting, with the ignition off.
When the lighting is switched on auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) , t h e d i p p e d
headlamps and sidelamps remain on
until the rear foglamp is switched off.
When the lighting is switched off auto-
m a t i c a l l y ( w i t h A U T O m o d e l ) o r w h e n
the dipped headlamps are switched off
manually, the foglamps and the side-
lamps will remain on.
Page 92 of 324
88

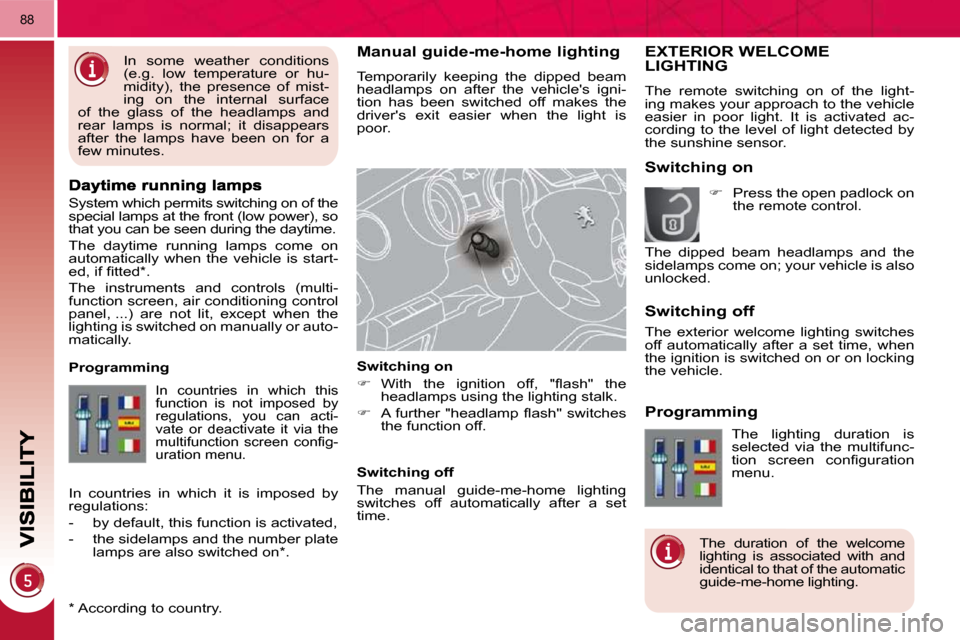

Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
System which permits switching on of the
s p e c i a l l a m p s a t t h e f r o n t ( l o w p o w e r ) , s o
that you can be seen during the daytime.
The daytime running lamps come on
automatically when the vehicle is start-
e d , i f fi t t e d * .
The instruments and controls (multi-
function screen, air conditioning control
p a n e l , . . . ) a r e n o t l i t , e x c e p t w h e n t h e
lighting is switched on manually or auto-
matically.
* A c c o r d i n g t o c o u n t r y .
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.
Switching on
Switching off
Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
m u l t i f u n c t i o n s c r e e n c o n fi g -
uration menu.
Programming
The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.
In countries in which it is imposed by
regulations:
- by default, this function is activated,
- the sidelamps and the number plate
l a m p s a r e a l s o s w i t c h e d o n * .
Press the open padlock on
the remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
In some weather conditions
(e.g. low temperature or hu-
m i d i t y ) , t h e p r e s e n c e o f m i s t -
ing on the internal surface
of the glass of the headlamps and
rear lamps is normal; it disappears
after the lamps have been on for a
few minutes.
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 93 of 324
89

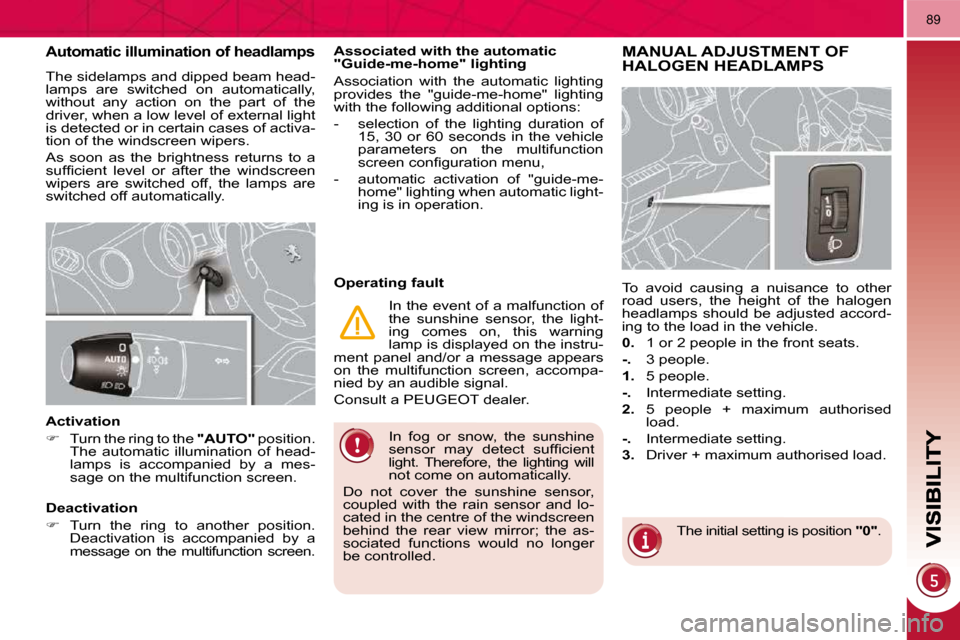

In fog or snow, the sunshine
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror; the as-
sociated functions would no longer
be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn the ring to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.
Deactivation
Turn the ring to another position.
Deactivation is accompanied by a
message on the multifunction screen. Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Page 94 of 324
88
Manual guide-me-home lighting
Temporarily keeping the dipped beam
headlamps on after the vehicle's igni-
tion has been switched off makes the
driver's exit easier when the light is
poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting stalk.
A f u r t h e r " h e a d l a m p fl a s h " s w i t c h e s
the function off.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time.
System which permits switching on of the
s p e c i a l l a m p s a t t h e f r o n t ( l o w p o w e r ) , s o
that you can be seen during the daytime.
The daytime running lamps come on
automatically when the vehicle is start-
e d , i f fi t t e d * .
The instruments and controls (multi-
function screen, air conditioning control
p a n e l , . . . ) a r e n o t l i t , e x c e p t w h e n t h e
lighting is switched on manually or auto-
matically.
* A c c o r d i n g t o c o u n t r y .
EXTERIOR WELCOME LIGHTING
The remote switching on of the light-
ing makes your approach to the vehicle
easier in poor light. It is activated ac-
cording to the level of light detected by
the sunshine sensor.
Switching on
Switching off
Programming
In countries in which this
function is not imposed by
regulations, you can acti-
vate or deactivate it via the
m u l t i f u n c t i o n s c r e e n c o n fi g -
uration menu.
Programming
The lighting duration is
selected via the multifunc-
t i o n s c r e e n c o n fi g u r a t i o n
menu.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.
In countries in which it is imposed by
regulations:
- by default, this function is activated,
- the sidelamps and the number plate
l a m p s a r e a l s o s w i t c h e d o n * .
Press the open padlock on
the remote control.
The dipped beam headlamps and the
sidelamps come on; your vehicle is also
unlocked.
In some weather conditions
(e.g. low temperature or hu-
m i d i t y ) , t h e p r e s e n c e o f m i s t -
ing on the internal surface
of the glass of the headlamps and
rear lamps is normal; it disappears
after the lamps have been on for a
few minutes.
The exterior welcome lighting switches
off automatically after a set time, when
the ignition is switched on or on locking
the vehicle.
Page 95 of 324
89
In fog or snow, the sunshine
s e n s o r m a y d e t e c t s u f fi c i e n t
light. Therefore, the lighting will
not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror; the as-
sociated functions would no longer
be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
s c r e e n c o n fi g u r a t i o n m e n u ,
- automatic activation of "guide-me- home" lighting when automatic light-
ing is in operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
s u f fi c i e n t l e v e l o r a f t e r t h e w i n d s c r e e n
wipers are switched off, the lamps are
switched off automatically.
Activation
Turn the ring to the "AUTO" position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.
Deactivation
Turn the ring to another position.
Deactivation is accompanied by a
message on the multifunction screen. Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF HALOGEN HEADLAMPS
The initial setting is position "0" .
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.
0. 1 or 2 people in the front seats.
-. 3 people.
1. 5 people.
-. Intermediate setting.
2. 5 people + maximum authorised
load.
-. Intermediate setting.
3. Driver + maximum authorised load.
Page 96 of 324
90

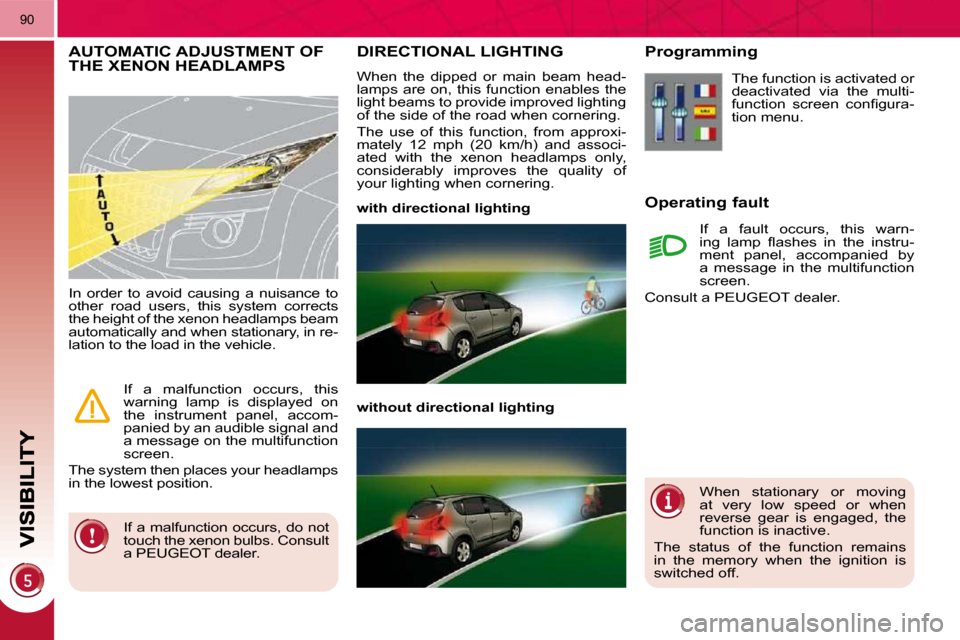

DIRECTIONAL LIGHTING
When the dipped or main beam head-
lamps are on, this function enables the
light beams to provide improved lighting
of the side of the road when cornering.
The use of this function, from approxi-
m a t e l y 1 2 m p h ( 2 0 k m / h ) a n d a s s o c i -
ated with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting
Programming
Operating fault
The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
If a fault occurs, this warn-
i n g l a m p fl a s h e s i n t h e i n s t r u -
ment panel, accompanied by
a message in the multifunction
screen.
Consult a PEUGEOT dealer.
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
If a malfunction occurs, do not
touch the xenon bulbs. Consult
a PEUGEOT dealer.
In order to avoid causing a nuisance to
other road users, this system corrects
the height of the xenon headlamps beam
automatically and when stationary, in re-
lation to the load in the vehicle.
If a malfunction occurs, this
warning lamp is displayed on
the instrument panel, accom-
panied by an audible signal and
a message on the multifunction
screen.
The system then places your headlamps
in the lowest position. When stationary or moving
at very low speed or when
reverse gear is engaged, the
function is inactive.
The status of the function remains
in the memory when the ignition is
switched off.
Page 97 of 324
91

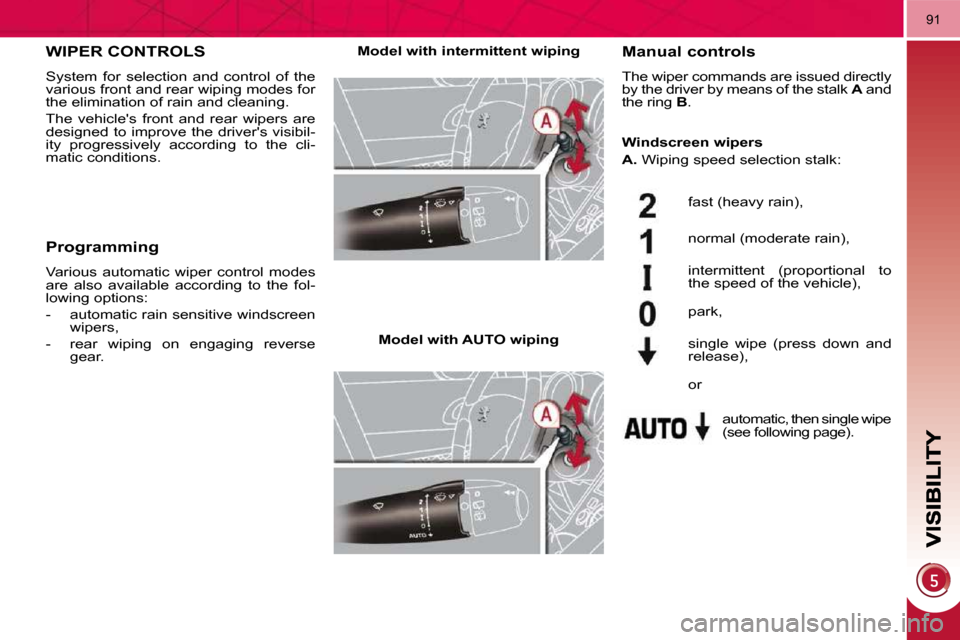

WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibil-
ity progressively according to the cli-
matic conditions.
Manual controls
The wiper commands are issued directly
by the driver by means of the stalk A and
the ring B .
Model with intermittent wiping
Model with AUTO wiping f a s t ( h e a v y r a i n ) ,
n o r m a l ( m o d e r a t e r a i n ) ,
intermittent (proportional to
t h e s p e e d o f t h e v e h i c l e ) ,
automatic, then single wipe
( s e e f o l l o w i n g p a g e ) .
park,
single wipe (press down and
r e l e a s e ) ,
Windscreen wipers
A. Wiping speed selection stalk:
or
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen wipers,
- rear wiping on engaging reverse gear.
Page 98 of 324
92

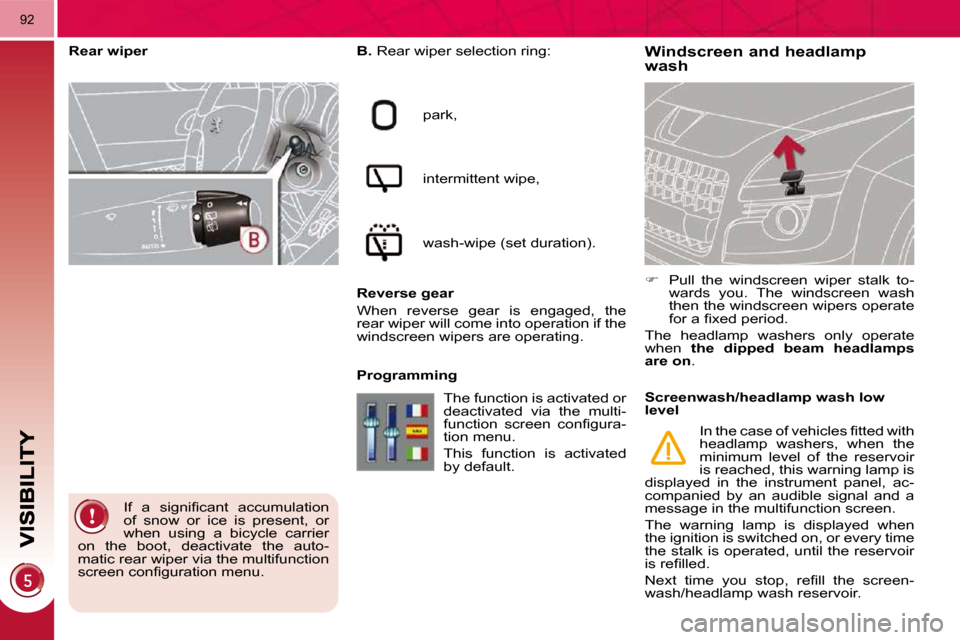

Windscreen and headlamp wash
B. Rear wiper selection ring:
park,
intermittent wipe,
w a s h - w i p e ( s e t d u r a t i o n ) .
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
f o r a fi x e d p e r i o d .
The headlamp washers only operate
when the dipped
beam
headlamps
are on .
Rear wiper
I f a s i g n i fi c a n t a c c u m u l a t i o n
of snow or ice is present, or
when using a bicycle carrier
on the boot, deactivate the auto-
matic rear wiper via the multifunction
s c r e e n c o n fi g u r a t i o n m e n u . The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.
This function is activated
by default.
Screenwash/headlamp wash low
level
I n t h e c a s e o f v e h i c l e s fi t t e d w i t h
headlamp washers, when the
minimum level of the reservoir
is reached, this warning lamp is
displayed in the instrument panel, ac-
companied by an audible signal and a
message in the multifunction screen.
The warning lamp is displayed when
the ignition is switched on, or every time
the stalk is operated, until the reservoir
i s r e fi l l e d .
N e x t t i m e y o u s t o p , r e fi l l t h e s c r e e n -
wash/headlamp wash reservoir.
Page 99 of 324
93

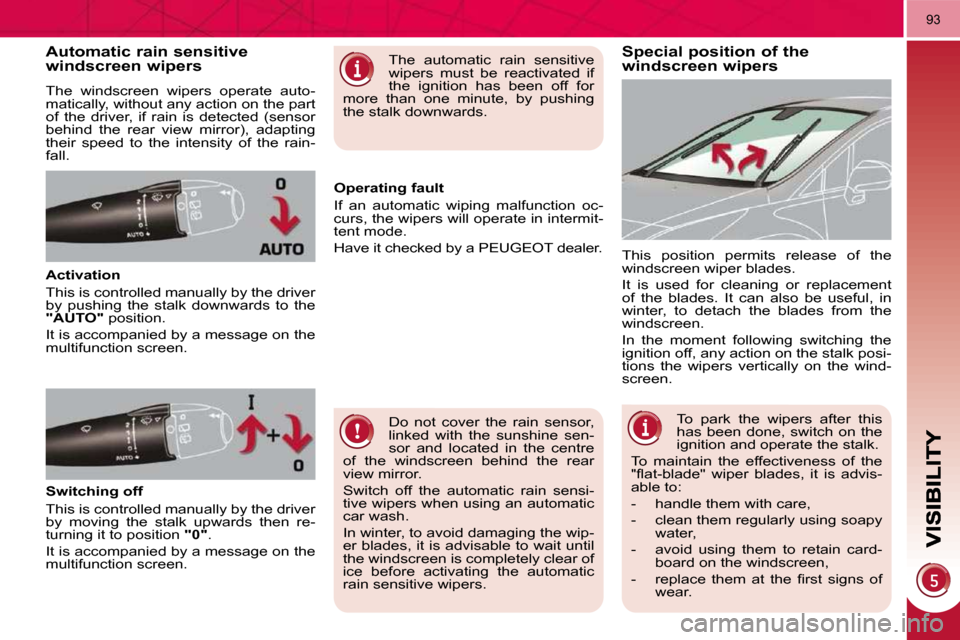

Special position of the windscreen wipers Automatic rain sensitive windscreen wipers
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e r e a r v i e w m i r r o r ) , a d a p t i n g
their speed to the intensity of the rain-
fall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO" position.
It is accompanied by a message on the
multifunction screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
Do not cover the rain sensor,
linked with the sunshine sen-
sor and located in the centre
of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the wip-
er blades, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic
rain sensitive wipers. The automatic rain sensitive
wipers must be reactivated if
the ignition has been off for
more than one minute, by pushing
the stalk downwards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
To park the wipers after this
has been done, switch on the
ignition and operate the stalk.
To maintain the effectiveness of the
" fl a t - b l a d e " w i p e r b l a d e s , i t i s a d v i s -
able to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen,
- r e p l a c e t h e m a t t h e fi r s t s i g n s o f wear.
Page 100 of 324
93
Special position of the windscreen wipers Automatic rain sensitive windscreen wipers
The windscreen wipers operate auto-
matically, without any action on the part
of the driver, if rain is detected (sensor
b e h i n d t h e r e a r v i e w m i r r o r ) , a d a p t i n g
their speed to the intensity of the rain-
fall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO" position.
It is accompanied by a message on the
multifunction screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
Do not cover the rain sensor,
linked with the sunshine sen-
sor and located in the centre
of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the wip-
er blades, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic
rain sensitive wipers. The automatic rain sensitive
wipers must be reactivated if
the ignition has been off for
more than one minute, by pushing
the stalk downwards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0" .
It is accompanied by a message on the
multifunction screen. Operating fault
If an automatic wiping malfunction oc-
curs, the wipers will operate in intermit-
tent mode.
Have it checked by a PEUGEOT dealer.
To park the wipers after this
has been done, switch on the
ignition and operate the stalk.
To maintain the effectiveness of the
" fl a t - b l a d e " w i p e r b l a d e s , i t i s a d v i s -
able to:
- handle them with care,
- clean them regularly using soapy water,
- avoid using them to retain card- board on the windscreen,
- r e p l a c e t h e m a t t h e fi r s t s i g n s o f wear.
