FITTINGS
107
Raise the boot carpet, hooking the
two cords on the hooks, then gain
access to the storage box.
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h i s
has areas for storing:
- a box of spare bulbs,
- a fi r s t a i d k i t ,
- a tyre repair kit,
- two warning triangles,
- ... Storage box
Page 122 of 324
FITTINGS
108
Adjustable boot floor
T h i s t h r e e p o s i t i o n fl o o r a l l o w s y o u t o o p -
timise the volume of the boot by means
of the guides placed on the sides:
- H i g h p o s i t i o n ( 5 0 k g m a x ) : t h e fl o o r is level with the closed lower tail-
gate.
You can load objects while keeping an area protected and isolated.
- Intermediate position (100 kg max): t h e fl o o r i s l e v e l w i t h t h e o p e n l o w e r
tailgate.
Y o u o b t a i n a fl a t fl o o r t o t h e f r o n t seats when the rear seats are in the
retracted position.
- Low position (150 kg max): maxi- mum boot volume. T o p l a c e a n d s u p p o r t t h e fl o o r a t a n a n g l e :
From the high position, raise the
fl o o r t o w a r d s t h e l o a d s p a c e c o v e r .
Do not hesitate to pass the two re-
t r a c t a b l e s t o p s t h e n p l a c e t h e fl o o r
back on these two stops.
T o c h a n g e t h e h e i g h t o f t h e fl o o r :
P u s h t h e fl o o r f u l l y f o r w a r d s t h e n , w i t h
the help of the support stops A , move
t h e fl o o r t o t h e p o s i t i o n r e q u i r e d . T h e fl o o r i s e q u i p p e d w i t h f o u r s t o w i n g
rings to secure your luggage, observing
the loads indicated (in the boot).
Page 123 of 324
FITTINGS
109
Torch
T h i s i s a r e m o v a b l e l a m p , fi t t e d i n t h e
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
t o r c h ; f o r e x a m p l e , w h e n c h a n g i n g
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e b a t t e r i e s .
Never replace the rechargeable batter-
ies with normal single-use batteries.
It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
Page 124 of 324
FITTINGS
105
Rear parcel shelf To fold it:
unhook the two cords,
fold it concertina-style to the rear
seats.
To remove it:
fold the rear parcel shelf as de-
scribed above,
u n c l i p t h e fi x i n g s o n t h e l e f t a n d o n
the right by pushing gently,
place your hands as shown on the
illustration then pull the assembly
towards you, To store it at the bottom of the boot:
remove the rear parcel shelf as de-
scribed above,
p l a c e t h e fl o o r a t a n a n g l e ,
place the rear parcel shelf in its lo-
cation (recess marked A ), at bottom
of the boot,
the rear parcel shelf will be protected if
y o u p l a c e t h e fl o o r i n t h e i n t e r m e d i a t e
position.
This consists of three sections which
can be folded back on each other.
To put it back in place:
take hold of the rear parcel shelf
with both hands then place it on its
support,
unfold it to the boot pillars,
hook the two cords,
if necessary, press on the top of the
rear parcel shelf, on the left and on
t h e r i g h t , t o e n g a g e t h e fi x i n g s .
Page 125 of 324
FITTINGS
108
Adjustable boot floor
T h i s t h r e e p o s i t i o n fl o o r a l l o w s y o u t o o p -
timise the volume of the boot by means
of the guides placed on the sides:
- H i g h p o s i t i o n ( 5 0 k g m a x ) : t h e fl o o r is level with the closed lower tail-
gate.
You can load objects while keeping an area protected and isolated.
- Intermediate position (100 kg max): t h e fl o o r i s l e v e l w i t h t h e o p e n l o w e r
tailgate.
Y o u o b t a i n a fl a t fl o o r t o t h e f r o n t seats when the rear seats are in the
retracted position.
- Low position (150 kg max): maxi- mum boot volume. T o p l a c e a n d s u p p o r t t h e fl o o r a t a n a n g l e :
From the high position, raise the
fl o o r t o w a r d s t h e l o a d s p a c e c o v e r .
Do not hesitate to pass the two re-
t r a c t a b l e s t o p s t h e n p l a c e t h e fl o o r
back on these two stops.
T o c h a n g e t h e h e i g h t o f t h e fl o o r :
P u s h t h e fl o o r f u l l y f o r w a r d s t h e n , w i t h
the help of the support stops A , move
t h e fl o o r t o t h e p o s i t i o n r e q u i r e d . T h e fl o o r i s e q u i p p e d w i t h f o u r s t o w i n g
rings to secure your luggage, observing
the loads indicated (in the boot).
Page 126 of 324
FITTINGS
109
Torch
T h i s i s a r e m o v a b l e l a m p , fi t t e d i n t h e
boot wall, which can be used to illumi-
nate the boot or as a torch.
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
t o r c h ; f o r e x a m p l e , w h e n c h a n g i n g
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e b a t t e r i e s .
Never replace the rechargeable batter-
ies with normal single-use batteries.
It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lamp" section.
Page 127 of 324
CHILD SAFETY
PEUGEOT recommends that
children should travel in the
rear seats of your vehicle:
-
"rearwards-facing" up to the age of 2,
-
"forwards-facing" over the age of 2.
GENERAL POINTS RELATING TO CHILD SEATS
"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat ,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.
Intermediate longitudinal position
* The rules for carrying children are s p e c i fi c t o e a c h c o u n t r y . R e f e r t o t h e
current legislation in your country.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the
front passenger seat ,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
k i l l e d i f t h e a i r b a g w e r e t o i n fl a t e .
Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:
- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight , o n s e a t s fi t t e d w i t h a s e a t
belt or ISOFIX mountings * ,
- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,
- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.
CHILD SEAT IN THE FRONT
Page 128 of 324
CHILD SAFETY
111
Passenger airbag OFF

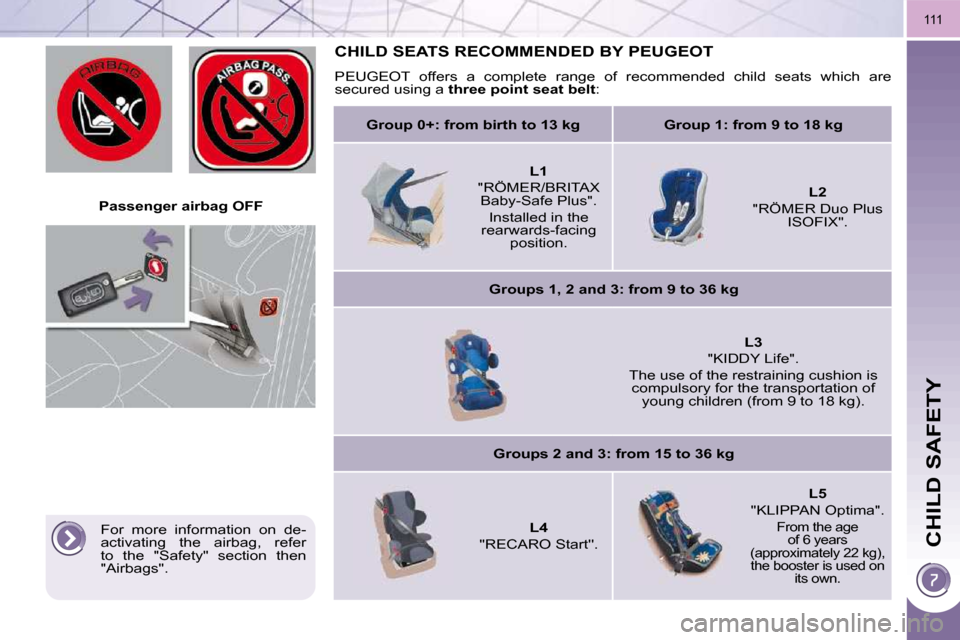

CHILD SEATS RECOMMENDED BY PEUGEOT
