Peugeot 3008 Dag 2010.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 3008 Dag, Model: Peugeot 3008 Dag 2010.5Pages: 324, PDF Size: 22.01 MB
Page 141 of 324
121
ELECTRONIC STABILITY PROGRAMME (ESP)
Electronic stability programme (ESP)
incorporating the following systems:
- the anti-lock braking system (ABS) and the electronic brake force distri-
bution system (EBFD),
- the emergency braking assistance,
- the traction control (ASR),
- the dynamic stability control (DSC).
Definitions Anti-skid regulation (ASR)
The ASR system (also known as Trac-
tion Control) optimises traction in order
to avoid wheel slip by acting on the
brakes of the driving wheels and on the
engine. It also improves the directional
stability of the vehicle on acceleration.
Dynamic stability control (DSC)
If there is a difference between the path
followed by the vehicle and that re-
quired by the driver, the DSC monitors
each wheel and automatically acts on
the brake of one or more wheels and
on the engine to return the vehicle to
the required path, within the limits of the
laws of physics.
Emergency braking assistance
In an emergency, this system enables
you to reach the optimum braking pres-
sure more quickly and therefore reduce
the stopping distance.
It is triggered in relation to the speed at
which the brake pedal is pressed. This
is felt by a reduction in the resistance of
the pedal and an increase in the effec-
tiveness of the braking.
Anti-lock braking system (ABS) and
electronic brake force distribution
system (EBFD)
This system improves the stability and
manoeuvrability of your vehicle when
braking and offers improved control, in
particular on poor or slippery road sur-
faces.
The ABS prevents wheel lock in the
event of emergency braking.
The electronic brake force distribution
system manages the braking pressure
wheel by wheel.
When this warning lamp comes
on, accompanied by an audible
signal and a message, it indi-
cates that there is a fault with the
ABS, which could cause loss of control of
the vehicle when braking.
When this warning lamp comes
on, coupled with the STOP
warning lamp, accompanied by
an audible signal and a mes-
sage, it indicates that there is a fault with
the electronic brake force distribution
(EBFD), which could cause loss of control
of the vehicle when braking.
You must stop as soon as it is safe
to do so.
In both cases, contact a PEUGEOT
d e a l e r o r a q u a l i fi e d w o r k s h o p .
When changing wheels (tyres
and rims), make sure that
these are approved for your
vehicle.
Normal operation of the ABS may
make itself felt by slight vibrations of
the brake pedal.
In emergency braking, press
v e r y fi r m l y w i t h o u t r e l e a s -
ing the pressure.
Anti-lock braking system (ABS) and
electronic brake force distribution
(EBFD)
Page 142 of 324
122
Dynamic stability control
(DSC) The DSC system offers excep-
tional safety in normal driving,
but this should not encourage
the driver to take extra risks or drive
at high speed.
The correct functioning of the system
depends on observation of the ma-
nufacturer's recommendations re-
garding the wheels (tyres and rims),
the braking components, the electron-
ic components and the assembly and
repair procedures used by PEUGEOT
dealers.
After an impact, have the system
checked by a PEUGEOT dealer.
Deactivation
In exceptional conditions (starting a ve-
hicle which is bogged down, stuck in
snow, on soft ground...), it may be ad-
visable to deactivate the DSC system,
so that the wheels can move freely and
regain grip.
Press the "ESP OFF"
button or, according to
version, turn the dial to
this position.
This warning lamp and the in-
dicator lamp on the button or
on the dial come on: the DSC
system no longer acts on the
operation of the engine.
Reactivation
The system is reactivated automatically
each time the ignition is switched back
o n o r f r o m 3 0 m p h ( 5 0 k m / h ) . Operating fault
If this warning lamp comes on,
accompanied by an audible sig-
nal and a message on the mul-
tifunction screen, this indicates
a malfunction of the system.
Contact a PEUGEOT dealer to have the
system checked.
T h i s i s i n d i c a t e d b y fl a s h i n g o f
this warning lamp in the instru-
ment panel.
Activation
This system is activated automatically
each time the vehicle is started.
It comes into operation in the event of a
grip or trajectory problem.
Press the "ESP OFF" but-
ton again or, according to
version, turn the dial to this
position, to reactivate it
manually.
Page 143 of 324
1 2 3
GRIP CONTROL
ESP mode
Place the dial in this position. Snow mode
Special patented traction control sys-
tem which improves traction on snow,
mud and sand.
This system is combined with all-sea-
s o n M + S ( M u d a n d S n o w : 2 1 5 / 6 0 R 1 6 )
tyres which offer an excellent compro-
mise between safety, grip and traction.
This system, the operation of which
has been optimised for each situation,
allows you to manoeuvre in most condi-
tions of poor grip (encountered during
touring use).
The accelerator pedal should be pressed
s u f fi c i e n t l y t o a l l o w t h e s y s t e m t o u s e
the power of the engine. The electronics
will ensure optimum management of the
various parameters. Operation at high
engine speeds is completely normal.
Each time the ignition is switched off,
the system returns to standard mode
(ESP).
Standard mode which is calibrated for
a low level of wheel spin, based on the
different levels of grip normally encoun-
tered on the road.
Mode which adapts its strategy to the
conditions of grip encountered for each
of the two front wheels on moving off.
When moving, the system optimises
wheel spin to provide the best accelera-
tion possible for the grip available.
Place the dial in this position.
Page 144 of 324
124
All-terrain mode (mud, wet grass, ...)
Mode which, when moving off allows
considerable spin on the wheel with the
least grip to optimise clearing of the mud
and regain grip. At the same time, the
wheel with the most grip is controlled in
such a way as to pass as much torque
as possible.
When moving, the system optimises
wheel spin to respond to the driver's re-
quirements as fully as possible. Sand mode
Mode which allows little spin on the two
driving wheels at the same time to allow
the vehicle to move forward and limit
the risks of getting stuck in the sand.
Driving advice
Your vehicle is designed princi-
pally to drive on tarmac roads
but it allows you to drive on other less
passable terrain occasionally.
However, it does not permit all-
terrain activities such as:
- crossing and driving on terrain which could damage the under-
frame or strip away components
(fuel pipe, fuel cooler, ...) due to
obstacles or stones in particular,
- driving on terrain with steep gra- dients and poor grip,
- crossing a stream.
Place the dial in this position.
Place the dial in this position. ESP OFF mode
Place the dial in this po-
sition.
Do not use the other modes on sand as
the vehicle may become stuck.
T h i s m o d e i s a c t i v e u p t o 3 0 m p h ( 5 0 k m / h ) .
Page 145 of 324
1 2 5
Height adjustment
Front seat belt not fastened/
unfastened warning lamp
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
To adjust the anchorage point,
squeeze the control A and slide it
u n t i l y o u fi n d a n o t c h .
When the ignition is switched
on, this warning lamp comes
on on the seat belt and pas-
senger's front airbag warning
lamps display, if the driver and/or the
front passenger has not fastened their
seat belt.
From approximately 12 mph (20 km/h)
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the driver
and/or the front passenger fastens their
seat belt.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in. SEAT BELTS
Front seat belts
T h e f r o n t s e a t b e l t s a r e fi t t e d w i t h a p r e -
tensioning and force limiting system.
This system improves safety in the front
seats in the event of a front or side im-
pact. Depending on the severity of the
impact, the pretensioning system in-
stantly tightens the seat belts against
the body of the occupants.
The pretensioning seat belts are active
when the ignition is on.
The force limiter reduces the pressure
of the seat belt on the chest of the occu-
pant, so improving their protection.
Page 146 of 324
126
1. Front and/or rear seat belts not fas-
tened/unfastened warning lamp.
2. Front left seat belt warning lamp.
3. Front right seat belt warning lamp.
4. Rear right seat belt warning lamp.
5. Rear centre seat belt warning lamp.
6. Rear left seat belt warning lamp.
Seat belt not fastened/unfastened
warning lamps display
Rear seat belts
T h e r e a r s e a t s a r e e a c h fi t t e d w i t h a
three-point inertia reel seat belt with
force limiter (with the exception of the
centre rear seat).
Seat belt unfastened warning lamp
This warning lamp comes on on
the seat belt and passenger's
front airbag warning lamps dis-
play, when one or more rear pas-
sengers unfasten their seat belt.
From approximately 12 mph (20 km/h),
t h i s w a r n i n g l a m p fl a s h e s f o r t w o m i n u t e s
accompanied by an audible signal. Once
these two minutes have elapsed, this
warning lamp remains on until the one or
more rear passengers fasten their seat
belt.
Fastening
Pull the strap, then insert the tongue
in the buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
The corresponding warning lamp 2 or 3
comes on in red on the seat belt and
passenger's front airbag warning lamps
display if the seat belt is not fastened or
is unfastened. When the ignition is switched on, with
the engine running or when the vehicle
is moving at less than 12 mph (20 km/h),
the corresponding warning lamps
4 , 5
and 6 come on in red for approximately
3 0 s e c o n d s , i f t h e s e a t b e l t i s n o t f a s -
tened.
When the vehicle is moving at more than
12 mph (20 km/h), the corresponding
warning lamp 4 , 5 or 6 comes on in red,
accompanied by an audible signal and
a message on the multifunction screen,
if a rear passenger has unfastened their
seat belt.
Seat belt unfastened warning lamps
display
Page 147 of 324
127

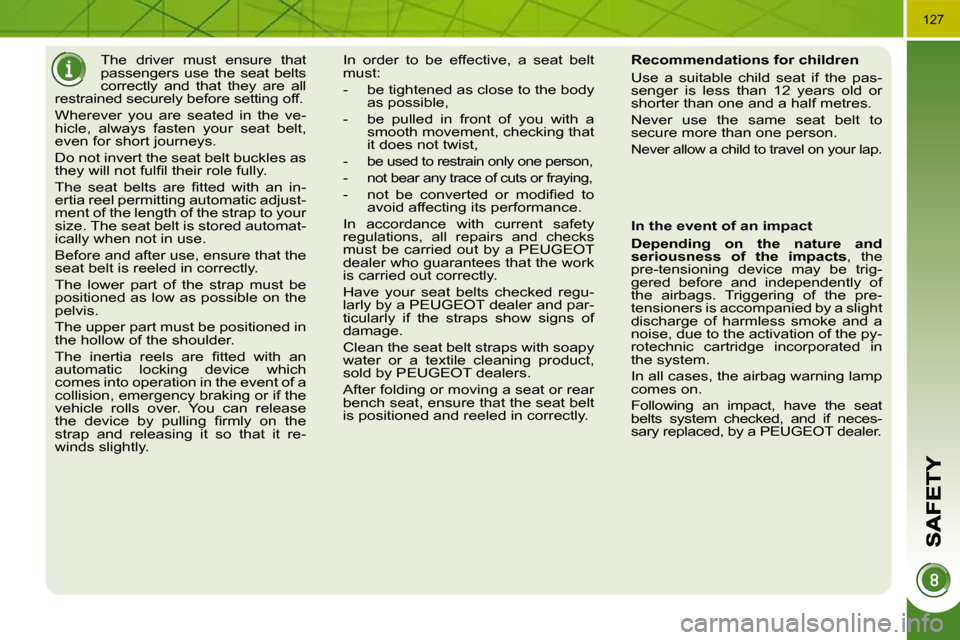

The driver must ensure that
passengers use the seat belts
correctly and that they are all
restrained securely before setting off.
Wherever you are seated in the ve-
hicle, always fasten your seat belt,
even for short journeys.
Do not invert the seat belt buckles as
t h e y w i l l n o t f u l fi l t h e i r r o l e f u l l y .
T h e s e a t b e l t s a r e fi t t e d w i t h a n i n -
ertia reel permitting automatic adjust-
ment of the length of the strap to your
size. The seat belt is stored automat-
ically when not in use.
Before and after use, ensure that the
seat belt is reeled in correctly.
The lower part of the strap must be
positioned as low as possible on the
pelvis.
The upper part must be positioned in
the hollow of the shoulder.
T h e i n e r t i a r e e l s a r e fi t t e d w i t h a n
automatic locking device which
comes into operation in the event of a
collision, emergency braking or if the
vehicle rolls over. You can release
t h e d e v i c e b y p u l l i n g fi r m l y o n t h e
strap and releasing it so that it re-
winds slightly. In order to be effective, a seat belt
must:
- be tightened as close to the body
as possible,
- be pulled in front of you with a smooth movement, checking that
it does not twist,
-
be used to restrain only one person,
-
not bear any trace of cuts or fraying,
- n o t b e c o n v e r t e d o r m o d i fi e d t o avoid affecting its performance.
In accordance with current safety
regulations, all repairs and checks
must be carried out by a PEUGEOT
dealer who guarantees that the work
is carried out correctly.
Have your seat belts checked regu-
larly by a PEUGEOT dealer and par-
ticularly if the straps show signs of
damage.
Clean the seat belt straps with soapy
water or a textile cleaning product,
sold by PEUGEOT dealers.
After folding or moving a seat or rear
bench seat, ensure that the seat belt
is positioned and reeled in correctly. Recommendations for children
Use a suitable child seat if the pas-
senger is less than 12 years old or
shorter than one and a half metres.
Never use the same seat belt to
secure more than one person.
Never allow a child to travel on your lap.
In the event of an impact
Depending on the nature and
seriousness of the impacts , the
pre-tensioning device may be trig-
gered before and independently of
the airbags. Triggering of the pre-
tensioners is accompanied by a slight
discharge of harmless smoke and a
noise, due to the activation of the py-
rotechnic cartridge incorporated in
the system.
In all cases, the airbag warning lamp
comes on.
Following an impact, have the seat
belts system checked, and if neces-
sary replaced, by a PEUGEOT dealer.
Page 148 of 324
128
AIRBAGS
Deployment of the airbag(s) is
accompanied by a slight emis-
sion of harmless smoke and
a noise, due to the activation of the
pyrotechnic cartridge incorporated in
the system.
This smoke is not harmful, but sensi-
tive individuals may experience slight
irritation.
The noise of the detonation may re-
sult in a slight loss of hearing for a
short time.
Front airbags
System which protects the driver and
front passenger in the event of a seri-
ous front impact in order to limit the risk
of injury to the head and chest.
T h e d r i v e r ' s a i r b a g i s fi t t e d i n t h e c e n t r e
of the steering wheel; the front passen-
g e r ' s a i r b a g i s fi t t e d i n t h e d a s h b o a r d
above the glove box.
Deployment
The airbags are deployed simultane-
ously, unless the passenger's front
airbag is deactivated, in the event of a
serious front impact to all or part of the
front impact zone A , in the longitudinal
centreline of the vehicle on a horizontal
plane and directed from the front to the
rear of the vehicle.
T h e f r o n t a i r b a g i n fl a t e s b e t w e e n t h e f r o n t occupant of the vehicle and the dash-
board to cushion his forward movement.
Impact detection zones
A. Front impact zone.
B. Side impact zone.
The airbags do not oper-
ate when the ignition is
switched off.
This equipment will only deploy once.
If a second impact occurs (during the
same or a subsequent accident), the
airbag will not be deployed again.
System designed to maximise the safety
of the occupants (with the exception of
the rear centre passenger) in the event
of violent collisions. It supplements the
action of the force-limiting seat belts
(with the exception of the rear centre
passenger).
If a collision occurs, the electronic de-
tectors record and analyse the front and
side impacts sustained in the impact
detection zones:
- in the case of a serious impact, the
airbags are deployed instantly and
protect the occupants of the vehicle
(with the exception of the rear centre
passenger); immediately after the
i m p a c t , t h e a i r b a g s d e fl a t e r a p i d l y
so that they do not hinder visibility
or the exit of the occupants,
- in the case of a minor or rear impact or in certain roll-over conditions, the
airbags will not be deployed; the
s e a t b e l t a l o n e i s s u f fi c i e n t t o p r o -
vide optimum protection in these
situations.
Page 149 of 324
129
If at least one of the two airbag
warning lamps come on contin-
uously, do not install a child seat
on the front passenger seat.
Have the system checked by a
PEUGEOT dealer.
Operating fault If this warning lamp comes
on in the instrument panel,
accompanied by an audible
warning and a message in the
multifunction screen, contact
a PEUGEOT dealer to have the system
checked. The airbags may no longer be
deployed in the event of a serious im-
pact.
Reactivation
When you remove the child seat, turn
the switch
1 to the "ON" position to re-
activate the airbag and so assure the
safety of your front passenger in the
event of an impact.
With the ignition on, this warn-
ing lamp comes on in the seat
belt and passenger's front air-
bag warning lamps display for
approximately one minute, if
the passenger's front airbag is
activated.
To assure the safety of your
child, it is imperative that the
passenger's front airbag is
deactivated when you install a "rear
facing" child seat on the front pas-
senger seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were deployed.
According to version, this
warning lamp comes on either
in the instrument panel or in
the seat belt and passenger's
front airbag warning lamps
display when the ignition is on and until
the airbag is reactivated. I f t h i s w a r n i n g l a m p fl a s h e s ,
contact a PEUGEOT dealer.
The passenger's front airbag
may no longer be deployed in
the event of a serious impact.
Deactivation
Only the passenger's front airbag can
be deactivated:
with the ignition off , insert the key
in the passenger airbag deactivation
switch 1 ,
turn it to the "OFF" position,
then, remove the key keeping the
switch in the new position.
Page 150 of 324
1 3 1

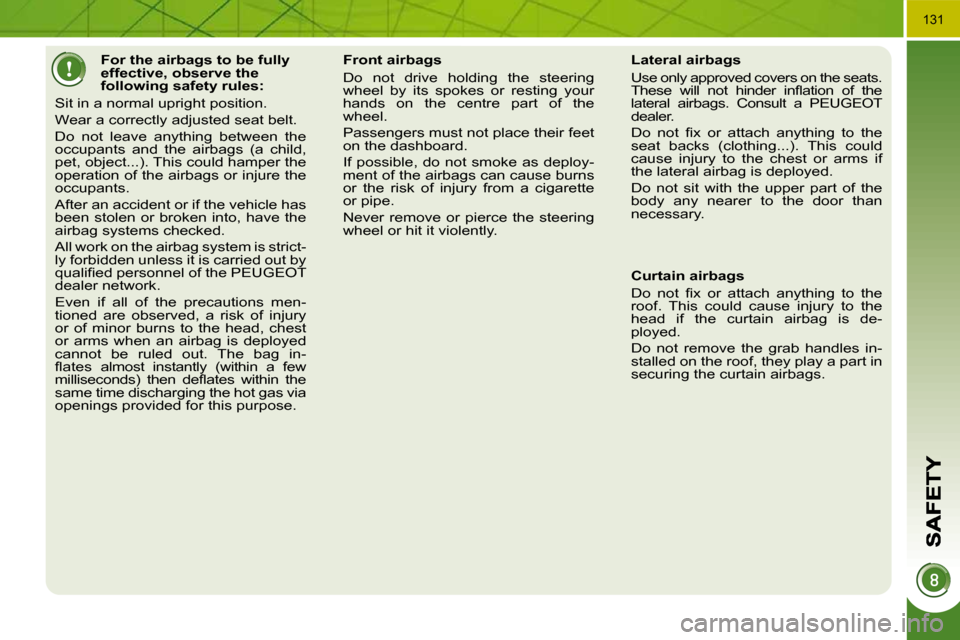

For the airbags to be fully
effective, observe the
following safety rules:
Sit in a normal upright position.
Wear a correctly adjusted seat belt.
Do not leave anything between the
occupants and the airbags (a child,
pet, object...). This could hamper the
operation of the airbags or injure the
occupants.
After an accident or if the vehicle has
been stolen or broken into, have the
airbag systems checked.
All work on the airbag system is strict-
ly forbidden unless it is carried out by
q u a l i fi e d p e r s o n n e l o f t h e P E U G E O T
dealer network.
Even if all of the precautions men-
tioned are observed, a risk of injury
or of minor burns to the head, chest
or arms when an airbag is deployed
cannot be ruled out. The bag in-
fl a t e s a l m o s t i n s t a n t l y ( w i t h i n a f e w
m i l l i s e c o n d s ) t h e n d e fl a t e s w i t h i n t h e
same time discharging the hot gas via
openings provided for this purpose. Front airbags
Do not drive holding the steering
wheel by its spokes or resting your
hands on the centre part of the
wheel.
Passengers must not place their feet
on the dashboard.
If possible, do not smoke as deploy-
ment of the airbags can cause burns
or the risk of injury from a cigarette
or pipe.
Never remove or pierce the steering
wheel or hit it violently.
Lateral airbags
Use only approved covers on the seats.
T h e s e w i l l n o t h i n d e r i n fl a t i o n o f t h e
lateral airbags. Consult a PEUGEOT
dealer.
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
seat backs (clothing...). This could
cause injury to the chest or arms if
the lateral airbag is deployed.
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Curtain airbags
D o n o t fi x o r a t t a c h a n y t h i n g t o t h e
roof. This could cause injury to the
head if the curtain airbag is de-
ployed.
Do not remove the grab handles in-
stalled on the roof, they play a part in
securing the curtain airbags.
