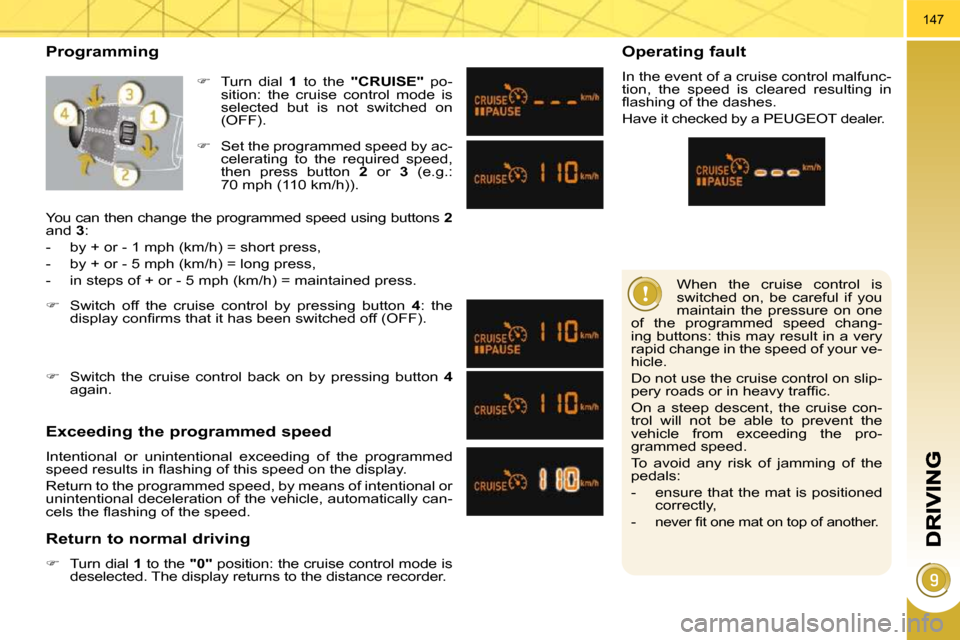

When the cruise control is
switched on, be careful if you
maintain the pressure on one
of the programmed speed chang-
ing buttons: this may result in a very
rapid change in the speed of your ve-
hicle.
Do not use the cruise control on slip-
p e r y r o a d s o r i n h e a v y t r a f fi c .
On a steep descent, the cruise con-
trol will not be able to prevent the
vehicle from exceeding the pro-
grammed speed.
To avoid any risk of jamming of the
pedals:
- ensure that the mat is positioned correctly,
-
n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
Programming
Exceeding the programmed speed
Intentional or unintentional exceeding of the programmed
s p e e d r e s u l t s i n fl a s h i n g o f t h i s s p e e d o n t h e d i s p l a y .
Return to the programmed speed, by means of intentional or
unintentional deceleration of the vehicle, automatically ca n-
c e l s t h e fl a s h i n g o f t h e s p e e d .
Return to normal driving
Turn dial 1 to the "0" position: the cruise control mode is
deselected. The display returns to the distance rec order.
Operating fault
In the event of a cruise control malfunc-
tion, the speed is cleared resulting in
fl a s h i n g o f t h e d a s h e s .
Have it checked by a PEUGEOT dealer.
Set the programmed speed by ac-
celerating to the required speed,
then press button 2 or 3 (e.g.:
70 mph (110 km/h)).
Switch off the cruise control by pressing button 4 : the
d i s p l a y c o n fi r m s t h a t i t h a s b e e n s w i t c h e d o f f ( O F F ) .
Switch the cruise control back on by pressing button 4
again.
You can then change the programmed speed using but
tons 2
and 3 :
- by + or - 1 mph (km/h) = short press,
- by + or - 5 mph (km/h) = long press,
- in steps of + or - 5 mph (km/h) = maintained press.
Turn dial 1 to the "CRUISE" po-
sition: the cruise control mode is
selected but is not switched on
(OFF).
Page 172 of 324
148

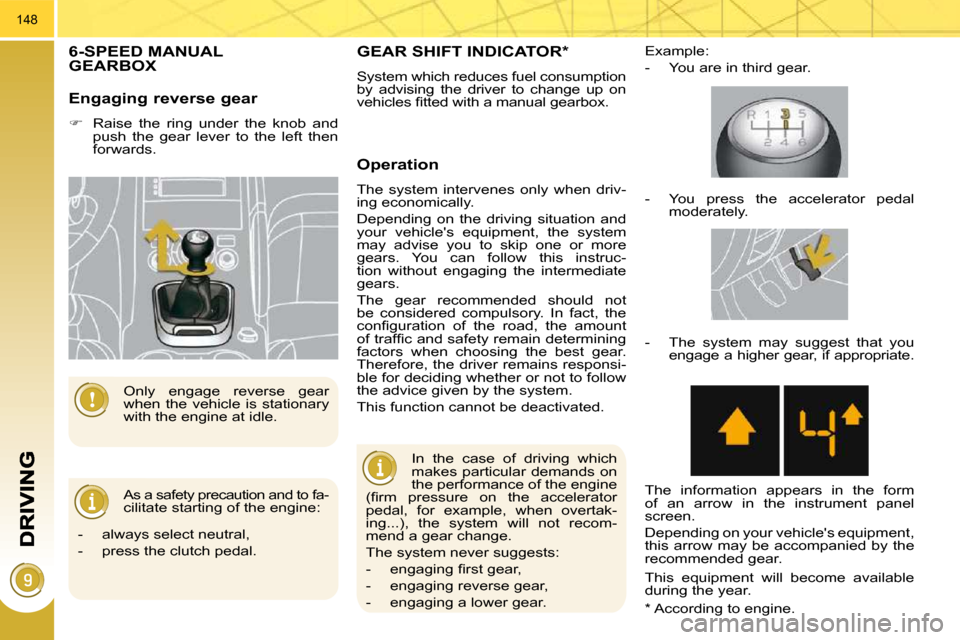

6-SPEED MANUAL GEARBOX
As a safety precaution and to fa-
cilitate starting of the engine:
Only engage reverse gear
when the vehicle is stationary
with the engine at idle.
Engaging reverse gear
Raise the ring under the knob and
push the gear lever to the left then
forwards.
* According to engine.
GEAR SHIFT INDICATOR *
System which reduces fuel consumption
by advising the driver to change up on
v e h i c l e s fi t t e d w i t h a m a n u a l g e a r b o x .
Operation
The system intervenes only when driv-
ing economically.
Depending on the driving situation and
your vehicle's equipment, the system
may advise you to skip one or more
gears. You can follow this instruc-
tion without engaging the intermediate
gears.
The gear recommended should not
be considered compulsory. In fact, the
c o n fi g u r a t i o n o f t h e r o a d , t h e a m o u n t
o f t r a f fi c a n d s a f e t y r e m a i n d e t e r m i n i n g
factors when choosing the best gear.
Therefore, the driver remains responsi-
ble for deciding whether or not to follow
the advice given by the system.
This function cannot be deactivated. Example:
- You are in third gear.
In the case of driving which
makes particular demands on
the performance of the engine
( fi r m p r e s s u r e o n t h e a c c e l e r a t o r
pedal, for example, when overtak-
ing...), the system will not recom-
mend a gear change.
The system never suggests:
- e n g a g i n g fi r s t g e a r ,
- engaging reverse gear,
- engaging a lower gear. - You press the accelerator pedal
moderately.
- The system may suggest that you engage a higher gear, if appropriate.
The information appears in the form
of an arrow in the instrument panel
screen.
Depending on your vehicle's equipment,
this arrow may be accompanied by the
recommended gear.
This equipment will become available
during the year.
- always select neutral,
- press the clutch pedal.
Page 173 of 324
149
6-SPEED ELECTRONIC GEAR CONTROL GEARBOX Gear lever
R. Reverse
With your foot on the brake, move
the lever upwards to select this posi-
tion.
N. Neutral.
With your foot on the brake, select
this position to start.
A. Automatic mode.
Move the lever downwards to select
this mode.
M. +/- Sequential mode with manual
changing of the gears.
Move the lever downwards then to
the left to select this mode, then:
- push the lever forwards to change up a gear,
- or pull the lever rearwards to change down a gear.
S. Sport function.
Press this button to activate or de-
activate this function.
Steering mounted controls
+. Change up paddle to the right of the
steering wheel.
Press the back of the "+" steering
mounted paddle to change up a
gear.
-. Change down paddle to the left of the
steering wheel.
Press the back of the "-" steering
mounted paddle to change down a
gear.
The steering mounted paddles
do not permit the selection of
neutral or the engaging or dis-
engaging of reverse gear.
Six-speed electronic gear control gear-
box which offers a choice between the
comfort of fully automatic operation or
the pleasure of manual gear changing.
Three driving modes are offered:
-
automatic mode for automatic con-
trol of the gears by the gearbox,
- sequential mode for manual chang-
ing of the gears by the driver,
- auto sequential mode to overtake,
for example, remaining in automatic
mode while using the functions of
the sequential mode.
A Sport function is available in auto-
matic or sequential mode for a more dy-
namic style of driving.
Page 174 of 324
150

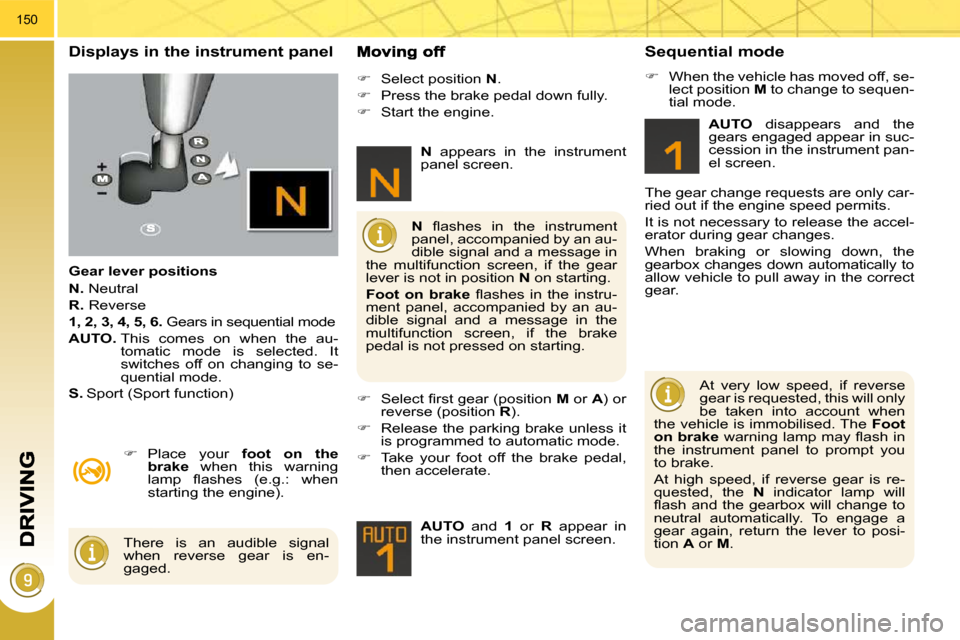

Displays in the instrument panel
Gear lever positions
N. Neutral
R. Reverse
1, 2, 3, 4, 5, 6. Gears in sequential mode
AUTO. This comes on when the au-
tomatic mode is selected. It
switches off on changing to se-
quential mode.
S. Sport (Sport function)
Place your foot on the
brake when this warning
l a m p fl a s h e s ( e . g . : w h e n
starting the engine).
Select position N .
Press the brake pedal down fully.
Start the engine.
S e l e c t fi r s t g e a r ( p o s i t i o n M or A ) or
reverse (position R ).
Release the parking brake unless it
is programmed to automatic mode.
Take your foot off the brake pedal,
then accelerate.
AUTO and 1 or R appear in
the instrument panel screen.
N fl a s h e s i n t h e i n s t r u m e n t
panel, accompanied by an au-
dible signal and a message in
the multifunction screen, if the gear
lever is not in position N on starting.
Foot on brake fl a s h e s i n t h e i n s t r u -
ment panel, accompanied by an au-
dible signal and a message in the
multifunction screen, if the brake
pedal is not pressed on starting.
There is an audible signal
when reverse gear is en-
gaged.
N appears in the instrument
panel screen.
Sequential mode
When the vehicle has moved off, se-
lect position M to change to sequen-
tial mode.
AUTO disappears and the
gears engaged appear in suc-
cession in the instrument pan-
el screen.
The gear change requests are only car-
ried out if the engine speed permits.
It is not necessary to release the accel-
erator during gear changes.
When braking or slowing down, the
gearbox changes down automatically to
allow vehicle to pull away in the correct
gear.
At very low speed, if reverse
gear is requested, this will only
be taken into account when
the vehicle is immobilised. The Foot
on brake w a r n i n g l a m p m a y fl a s h i n
the instrument panel to prompt you
to brake.
At high speed, if reverse gear is re-
quested, the N indicator lamp will
fl a s h a n d t h e g e a r b o x w i l l c h a n g e t o
neutral automatically. To engage a
gear again, return the lever to posi-
tion A or M .
Page 175 of 324
151
The gearbox is then operating in auto-
active mode, without any action on the
part of the driver. It continuously selects
the most suitable gear in relation to the
following parameters:
- style of driving,
- p r o fi l e o f t h e r o a d .
AUTO and the gear engaged
appear in the instrument panel
screen.
Automatic mode
Following use of the sequential
mode, select position A to return to
the automatic mode.
"Auto sequential mode"
This mode enables you to overtake, for
example, remaining in automatic mode
while using the functions of the sequen-
tial mode.
Operate the + or - steering mounted
paddle.
The gearbox engages the gear request-
ed if the engine speed permits. AUTO is
still displayed in the instrument panel.
After a few moments without any action
on the controls, the gearbox resumes
automatic control of the gears.
On sharp acceleration, the
gearbox will not change up
unless the driver acts on the
gear lever or the steering mounted
paddles.
Never select neutral N while the ve-
hicle is moving.
Only engage reverse gear R when
the vehicle is immobilised with the
brake pedal pressed.
For optimum acceleration, for
example when overtaking an-
other vehicle, press the accel-
e r a t o r p e d a l fi r m l y p a s t t h e p o i n t o f
resistance.
Page 176 of 324
152

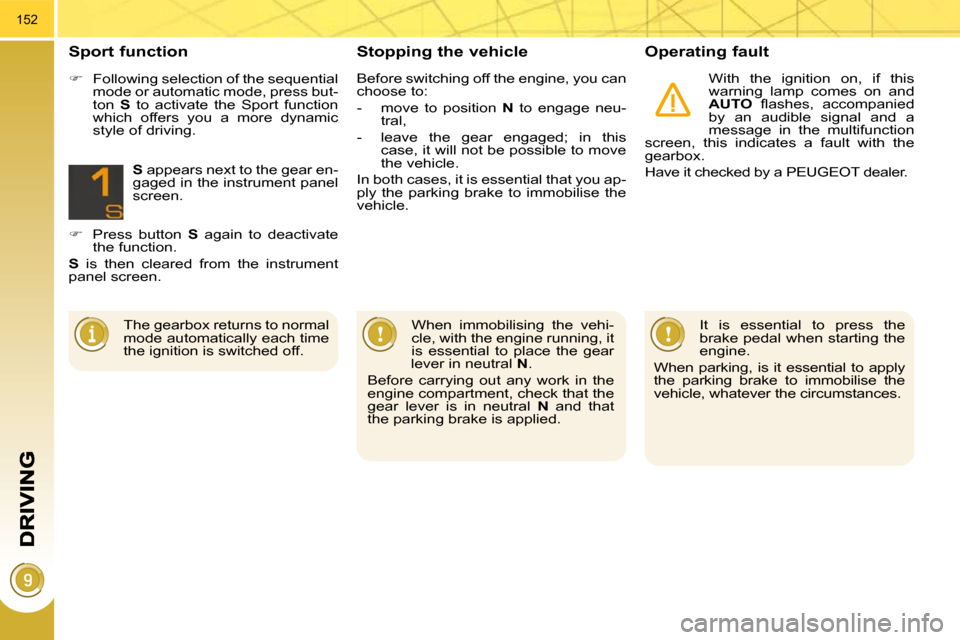

Stopping the vehicle Operating fault
With the ignition on, if this
warning lamp comes on and
AUTO fl a s h e s , a c c o m p a n i e d
by an audible signal and a
message in the multifunction
screen, this indicates a fault with the
gearbox.
Have it checked by a PEUGEOT dealer.
It is essential to press the
brake pedal when starting the
engine.
When parking, is it essential to apply
the parking brake to immobilise the
vehicle, whatever the circumstances.
When immobilising the vehi-
cle, with the engine running, it
is essential to place the gear
lever in neutral N .
Before carrying out any work in the
engine compartment, check that the
gear lever is in neutral N and that
the parking brake is applied.
Sport function
Following selection of the sequential
mode or automatic mode, press but-
ton S to activate the Sport function
which offers you a more dynamic
style of driving.
S appears next to the gear en-
gaged in the instrument panel
screen.
Press button S again to deactivate
the function.
S is then cleared from the instrument
panel screen.
The gearbox returns to normal
mode automatically each time
the ignition is switched off. Before switching off the engine, you can
choose to:
- move to position
N to engage neu-
tral,
- leave the gear engaged; in this case, it will not be possible to move
the vehicle.
In both cases, it is essential that you ap-
ply the parking brake to immobilise the
vehicle.
Page 177 of 324
153
"PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
Six speed automatic gearbox which of-
fers a choice between the comfort of
fully automatic operation, enhanced by
sport and snow programmes, or manual
gear changing.
Four driving modes are offered:
- automatic operation for electronic
management of the gears by the
gearbox,
- sport programme for a more dy-
namic style of driving,
- snow programme to improve driv-
ing when traction is poor,
- manual operation for sequential
changing of the gears by the driver.
Gear lever
P. Park.
- Immobilisation of the vehicle, park- ing brake on or off.
- Starting the engine.
R. Reverse.
- Reversing manoeuvres, vehicle sta- tionary, engine at idle.
N. Neutral.
- Immobilisation of the vehicle, park- ing brake on.
- Starting the engine.
D. Automatic operation.
M.+/- Manual operation with sequential
changing of the six gears.
Press forwards to change up through
the gears.
or
Press rearwards to change down
through the gears.
Displays in the instrument panel
When you move the lever in the gate
to select a position, the corresponding
indicator lamp is displayed in the instru-
ment panel.
P. Park
R. Reverse
N. Neutral
D. Drive (Automatic driving)
S. Sport programme
. Snow programme
1 to 6. Gear engaged during manual
operation
-. Invalid value during manual opera-
tion
Gear selection gate
1. Gear lever.
2. Button "S" (sport) .
3. Button " " (snow) .
Page 178 of 324
154
Moving off
With your foot on the brake, select
position P or N .
Start the engine.
If this procedure is not followed, an au-
dible signal is heard, accompanied by a
message on the multifunction screen.
With the engine running, press the
brake pedal.
Release the parking brake, unless it
is programmed to automatic mode.
Select position R , D or M.
Gradually release the brake pedal.
The vehicle moves off immediately.
If position N is engaged inad-
vertently while driving, allow the
engine to return to idle then en-
gage position D to accelerate. The gearbox then operates in auto-
adaptive mode, without any intervention
on the part of the driver. It continuously
selects the most suitable gear accord-
i n g t o t h e s t y l e o f d r i v i n g , t h e p r o fi l e o f
the road and the load in the vehicle.
For maximum acceleration without
touching the lever, press the accelera-
tor pedal down fully (kick down). The
gearbox changes down automatically
or maintains the gear selected until the
maximum engine speed is reached.
On braking, the gearbox changes down
a u t o m a t i c a l l y t o p r o v i d e e f fi c i e n t e n g i n e
braking.
If you release the accelerator sharply,
the gearbox will not change to a higher
gear for safety reasons.
Select position D for automatic
changing of the six gears.
appears on the instrument
panel.
Snow programme "
"
Press button " ", after starting the
engine.
The gearbox adapts to driving on slip-
pery roads.
This programme improves starting and
drive when traction is poor.
S appears on the instrument
panel.
Sport programme "S"
Press button "S" , after starting the
engine.
The gearbox automatically favours a
dynamic style of driving.

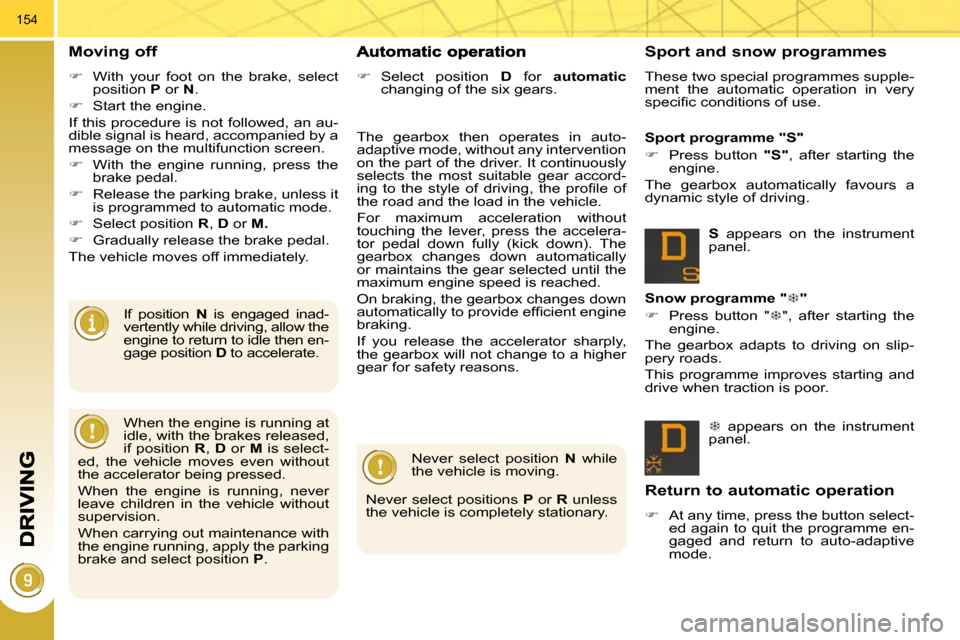

Never select position N while
the vehicle is moving.
Never select positions P or R unless
the vehicle is completely stationary.
When the engine is running at
idle, with the brakes released,
if position
R , D or M is select-
ed, the vehicle moves even without
the accelerator being pressed.
When the engine is running, never
leave children in the vehicle without
supervision.
When carrying out maintenance with
the engine running, apply the parking
brake and select position P .
Sport and snow programmes
These two special programmes supple-
ment the automatic operation in very
s p e c i fi c c o n d i t i o n s o f u s e .
Return to automatic operation
At any time, press the button select-
ed again to quit the programme en-
gaged and return to auto-adaptive
mode.
Page 179 of 324
155
Stopping the vehicle
Before switching off the engine, you
can engage position P or N to place the
gearbox in neutral.
In both cases, apply the parking brake
to immobilise the vehicle, unless it is
programmed to automatic mode.
Operating fault
When the ignition is on, the
lighting of this warning lamp,
accompanied by an audible
signal and a message in the
multifunction screen, indicates
a gearbox malfunction.
In this case, the gearbox switches to
back-up mode and is locked in 3rd gear.
You may feel a substantial knock when
changing from P to R and from N to R .
This will not cause any damage to the
gearbox.
Do not exceed 60 mph (100 km/h), local
speed restrictions permitting.
Have it checked by a PEUGEOT dealer.
This warning lamp may also come on if
a door is opened.
You risk damaging the gearbox:
Manual operation
Select position M for sequential
changing of the six gears.
Push the lever towards the + sign to
change up a gear.
Pull the lever towards the - sign to
change down a gear.

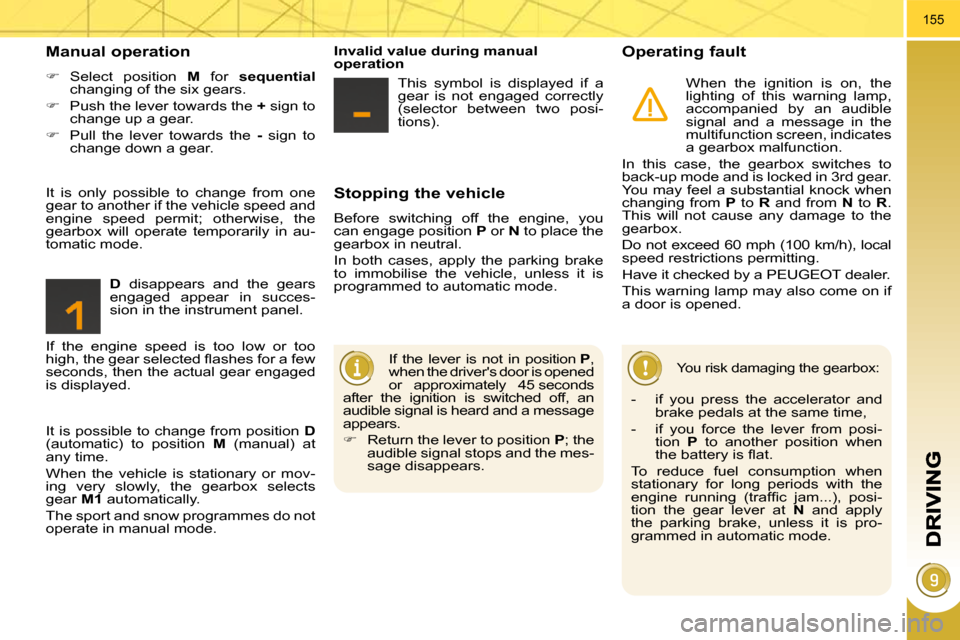

D disappears and the gears
engaged appear in succes-
sion in the instrument panel.
If the lever is not in position P ,
when the driver's door is opened
or approximately 45 seconds
after the ignition is switched off, an
audible signal is heard and a message
appears.
Return the lever to position P ; the
audible signal stops and the mes-
sage disappears.
It is only possible to change from one
gear to another if the vehicle speed and
engine speed permit; otherwise, the
gearbox will operate temporarily in au-
tomatic mode.
Invalid value during manual
operation
This symbol is displayed if a
gear is not engaged correctly
(selector between two posi-
tions).
It is possible to change from position D
(automatic) to position M (manual) at
any time.
When the vehicle is stationary or mov-
ing very slowly, the gearbox selects
gear M1 automatically.
The sport and snow programmes do not
operate in manual mode.
If the engine speed is too low or too
h i g h , t h e g e a r s e l e c t e d fl a s h e s f o r a f e w
seconds, then the actual gear engaged
is displayed.
- if you press the accelerator and brake pedals at the same time,
- if you force the lever from posi- tion P to another position when
t h e b a t t e r y i s fl a t .
To reduce fuel consumption when
stationary for long periods with the
e n g i n e r u n n i n g ( t r a f fi c j a m . . . ) , p o s i -
tion the gear lever at N and apply
the parking brake, unless it is pro-
grammed in automatic mode.
Page 180 of 324
156
VISUAL AND AUDIBLE FRONT AND/OR REAR PARKING SENSORS

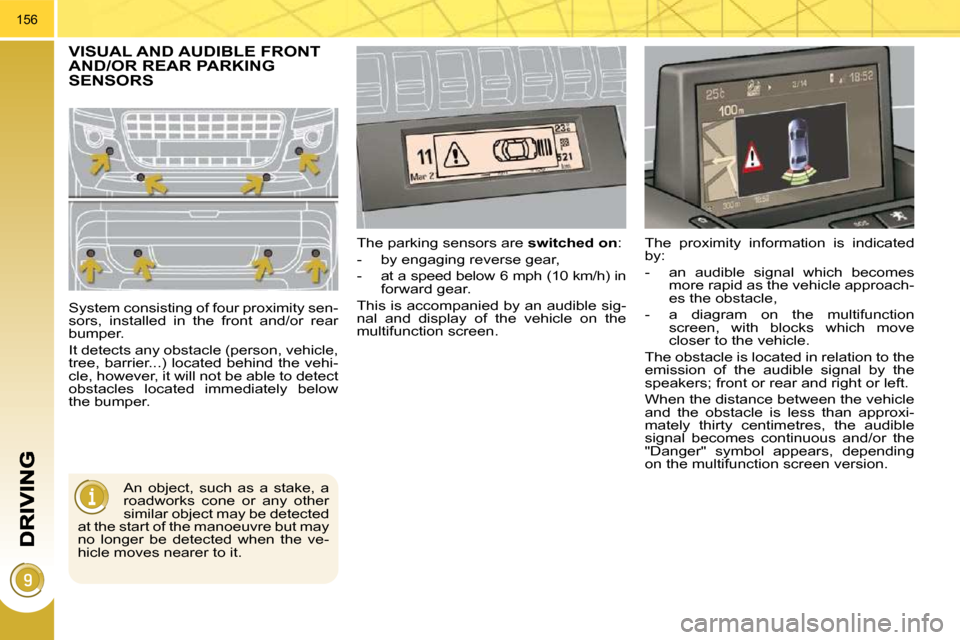

System consisting of four proximity sen-
sors, installed in the front and/or rear
bumper.
It detects any obstacle (person, vehicle,
tree, barrier...) located behind the vehi-
cle, however, it will not be able to detect
obstacles located immediately below
the bumper. The parking sensors are
switched on :
- by engaging reverse gear,
- at a speed below 6 mph (10 km/h) in forward gear.
This is accompanied by an audible sig-
nal and display of the vehicle on the
multifunction screen.
An object, such as a stake, a
roadworks cone or any other
similar object may be detected
at the start of the manoeuvre but may
no longer be detected when the ve-
hicle moves nearer to it. The proximity information is indicated
by:
- an audible signal which becomes
more rapid as the vehicle approach-
es the obstacle,
- a diagram on the multifunction screen, with blocks which move
closer to the vehicle.
The obstacle is located in relation to the
emission of the audible signal by the
speakers; front or rear and right or left.
When the distance between the vehicle
and the obstacle is less than approxi-
mately thirty centimetres, the audible
signal becomes continuous and/or the
"Danger" symbol appears, depending
on the multifunction screen version.
