Peugeot 3008 Dag 2010.5 Owner's Manual
Manufacturer: PEUGEOT, Model Year: 2010.5, Model line: 3008 Dag, Model: Peugeot 3008 Dag 2010.5Pages: 324, PDF Size: 22.01 MB
Page 181 of 324
157
The parking sensor system
cannot, in any circumstances,
replace the need for vigilance
and responsibility on the part
of the driver.
The parking sensors are
switched off :
- when you exit reverse gear,
- when the speed is higher than 6 mph (10 km/h) in forward gear,
- when the vehicle has been station- ary for more than three seconds in
forward gear. Deactivation Operating fault
The system will be deacti-
vated automatically when a
trailer is being towed or when
a b i c y c l e c a r r i e r i s fi t t e d ( v e h i c l e fi t -
ted with a towbar or bicycle carrier
recommended by PEUGEOT).
Reactivation
Press button A again, the warning
lamp switches off, the system is re-
activated.
Press button A , the warning lamp
comes on, the system is fully deacti-
vated. In bad weather or in winter, en-
sure that the sensors are not
covered with mud, ice or snow.
When reverse gear is engaged, an
audible signal (long beep) indicates
that the sensors may be dirty.
When the vehicle is being driven at
a speed below approximately 6 mph
(10 km/h), certain sources of noise
(motorcycles, lorries, pneumatic
drills, ...) may trigger the parking sen-
sor audible signals. If an operating fault occurs,
this warning lamp is displayed
on the instrument panel and/
or a message appears on
the multifunction screen, ac-
companied by an audible signal (short
beep), when reverse gear is engaged.
Consult a PEUGEOT dealer.
Page 182 of 324
CHECKS
159
BONNET
Push the exterior safety catch B to
the left and raise the bonnet.
Unclip the stay C from its housing.
Fix the stay in the notch to hold the
bonnet open. Closing
Take the stay out of the support
notch.
Clip the stay in its housing.
Lower the bonnet and release it at
the end of its travel.
Pull on the bonnet to check that it is
secured correctly.
Opening
Open the front left door.
Pull the interior bonnet release lever A , lo-
cated at the bottom of the door aperture.
The location of the interior
bonnet release lever prevents
opening of the bonnet while
the front left door is closed.
When the engine is hot, handle the
exterior safety catch and the bonnet
stay with care (risk of burns).
Page 183 of 324
CHECKS
160
RUNNING OUT OF FUEL (DIESEL)
I f y o u r v e h i c l e i s fi t t e d w i t h a n H D I e n -
gine, the fuel system must be primed if
you run out of fuel; refer to the engine
compartment view on the "Diesel en-
gine" page.
I f t h e e n g i n e d o e s n o t s t a r t fi r s t t i m e ,
don't keep trying.
Operate the priming pump again, then
the starter motor. 1.6 litre Turbo HDI engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i -
tres of diesel.
Open the bonnet.
If necessary, unclip the styling cover
for access to the priming pump.
Squeeze and release the priming
pump repeatedly until resistance is
felt (there may be resistance at the
fi r s t p r e s s ) .
Operate the starter until the engine
starts (if the engine does not start at
t h e fi r s t a t t e m p t , w a i t a r o u n d 1 5 s e c -
onds before trying again).
If the engine does not start after a
few attempts, operate the priming
pump again then start the engine.
Clip the styling cover back in place.
Close the bonnet. 2 litre Turbo HDI engine
F i l l t h e f u e l t a n k w i t h a t l e a s t fi v e l i t r e s
of Diesel.
Open the bonnet.
Unclip the style cover for access to
the priming pump.
Slacken the bleed screw.
Squeeze and release the priming
pump repeatedly until fuel appears
in the transparent pipe with the
green connector.
Retighten the bleed screw.
Operate the starter until the engine
starts.
Put the style cover back in position
and clip it in place.
Close the bonnet.
Page 184 of 324
CHECKS
161
PETROL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
Page 185 of 324
CHECKS
162
DIESEL ENGINES
T h e v a r i o u s c a p s a n d c o v e r s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d
for priming the fuel system.
1. Power steering reservoir.
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery/Fuses.
6. Fusebox.
7. A i r fi l t e r .
8. Engine oil dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. Priming pump * .
11. Bleed screw * .
* According to engine.
Page 186 of 324
CHECKS
163
CHECKING LEVELS
Check all of these levels regularly and
top them up if necessary, unless other-
wise indicated.
I f a l e v e l d r o p s s i g n i fi c a n t l y , h a v e t h e
corresponding system checked by a
PEUGEOT dealer. Brake fluid level
In addition, as the cooling system is
pressurised, wait at least one hour after
switching off the engine before carrying
out any work.
To avoid any risk of scalding, unscrew
the cap by two turns to allow the pres-
sure to drop. When the pressure has
dropped, remove the cap and top up
the level.
Oil level
The check is carried out either when
the ignition is switched on using the
oil level indicator on the instrument
panel, or using the dipstick.
This manual check will only be correct
if the vehicle is on level ground and
the engine has been off for more than
30 minutes.
After topping up the oil, the check when
switching on the ignition with the oil level
indicator in the instrument panel will only
be valid 30 minutes after topping up. T h e b r a k e fl u i d l e v e l s h o u l d b e
close to the "MAX" mark. If it is
not, check the brake pad wear.
C h a n g i n g t h e fl u i d
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
Power steering fluid level T h e p o w e r s t e e r i n g fl u i d l e v e l
should be close to the "MAX"
mark. Unscrew the cap, with the
engine cold, to check the level. Screenwash and headlamp
wash fluid
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
l o w fl u i d l e v e l i s i n d i c a t e d b y a n
audible signal and a message
in the instrument panel screen.
Top up the reservoir when you stop the
vehicle.
Engine oil change
Refer to the Warranty and Maintenance
Record for details of the interval for this
operation.
In order to maintain the reliability of the
engine and emission control system,
the use of additives in the engine oil is
prohibited.
O i l s p e c i fi c a t i o n
The oil must correspond to your en-
gine and conform to the manufacturer's
recommendations. F l u i d s p e c i fi c a t i o n
T h e b r a k e fl u i d m u s t c o n f o r m t o t h e
manufacturer's recommendations and
f u l fi l t h e D O T 4 s t a n d a r d s .
Changing the coolant
The coolant does not have to be
changed.
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up with or replaced with plain water.
Coolant level
The coolant level should be
close to the "MAX" mark but
should never exceed it.
When the engine is warm, the tempera-
ture of the coolant is regulated by the
fan. This can operate with the ignition
off.
O n v e h i c l e s w h i c h a r e fi t t e d w i t h a p a r -
t i c l e e m i s s i o n fi l t e r , t h e f a n m a y o p e r -
ate after the vehicle has been switched
o f f , e v e n i f t h e e n g i n e i s c o l d .
F l u i d s p e c i fi c a t i o n
The coolant must conform to the manu-
facturer's recommendations.
When working under the bon-
net, take care, as certain areas
of the engine may be extremely
hot (risk of burns).
Page 187 of 324
CHECKS
1 6 4
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m -
ful to health or indeed very
corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u -
ids into sewers or onto the
ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Battery
The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (re-
fer to the "Engines" paragraph). Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for details
of the replacement interval for
this component. Following prolonged opera-
tion of the vehicle at very low
speed or at idle, you may, in
exceptional circumstances, notice the
emission of water vapour at the ex-
haust on acceleration. This does not
affect the behaviour of the vehicle or
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
D u s t f i l t e r / A n t i - o d o u r f i l t e r
(activated carbon)
Y o u r v e h i c l e i s fi t t e d w i t h a fi l t e r w h i c h
traps certain dust and limits odours in
the ventilation and air conditioning.
Refer to the Warranty and Maintenance
Record for its replacement interval.
Do not hesitate to change it if you notice
unpleasant odours, contact a PEUGEOT
dealer.
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r may reduce the performance of the air
conditioning system and produce un-
pleasant odours.
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Page 188 of 324
CHECKS
1 6 4
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e s k i n .
M o s t o f t h e s e fl u i d s a r e h a r m -
ful to health or indeed very
corrosive.
D o n o t d i s c a r d u s e d o i l o r fl u -
ids into sewers or onto the
ground.
Take used oil to a PEUGEOT dealer
(France) or an authorised waste dis-
posal site.
Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by light-
ing of the service warning lamp, accom-
panied by an audible warning and a
message on the multifunction screen.
Used products
CHECKS
Battery
The battery does not require
any maintenance.
H o w e v e r , c h e c k t h a t t h e t e r -
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter
Refer to the Warranty and
Maintenance Record for de-
tails of the replacement inter-
vals for these components.
Depending on the environment
(e.g. dusty atmosphere) and the use of
the vehicle (e.g. city driving), replace
them twice as often if necessary (re-
fer to the "Engines" paragraph). Particle emission filter (Diesel)
It is imperative that the maintenance of
t h e p a r t i c l e e m i s s i o n fi l t e r i s c a r r i e d o u t
by a PEUGEOT dealer.
Oil filter R e p l a c e t h e o i l fi l t e r e a c h t i m e
the engine oil is changed.
Refer to the Warranty and
Maintenance Record for details
of the replacement interval for
this component. Following prolonged opera-
tion of the vehicle at very low
speed or at idle, you may, in
exceptional circumstances, notice the
emission of water vapour at the ex-
haust on acceleration. This does not
affect the behaviour of the vehicle or
the environment.
Topping up
This additive must be topped up by a
PEUGEOT dealer without delay.
D u s t f i l t e r / A n t i - o d o u r f i l t e r
(activated carbon)
Y o u r v e h i c l e i s fi t t e d w i t h a fi l t e r w h i c h
traps certain dust and limits odours in
the ventilation and air conditioning.
Refer to the Warranty and Maintenance
Record for its replacement interval.
Do not hesitate to change it if you notice
unpleasant odours, contact a PEUGEOT
dealer.
A c l o g g e d p a s s e n g e r c o m p a r t m e n t fi l t e r may reduce the performance of the air
conditioning system and produce un-
pleasant odours.
Unless otherwise indicated, check
these components in accordance with
the Warranty and Maintenance Record
and according to your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Page 189 of 324
CHECKS
165
Only use products recom-
mended by PEUGEOT or
products of equivalent quality
a n d s p e c i fi c a t i o n s .
In order to optimise the operation of
units as important as the braking sys-
tem, PEUGEOT selects and offers
v e r y s p e c i fi c p r o d u c t s .
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment is
strictly prohibited .
Brake disc wear
Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak in the circuit, a
d r o p i n t h e b r a k e fl u i d l e v e l i n d i c a t e s
that the brake pads are worn.
For information on checking
brake disc wear, contact a
PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for the
details of the level checking
interval for this component.
6 - s p e e d e l e c t r o n i c g e a r c o n t r o l
gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the checking interval
for this component.
Automatic gearbox The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the Warranty and
Maintenance Record for de-
tails of the level checking in-
terval for this component. This system does not require
a n y r o u t i n e s e r v i c i n g . H o w -
ever, in the event of a problem,
have the system checked by a
PEUGEOT dealer.
For more information, see "Driving -
Electric parking brake - § Operating
faults".
Electric parking brake
Page 190 of 324

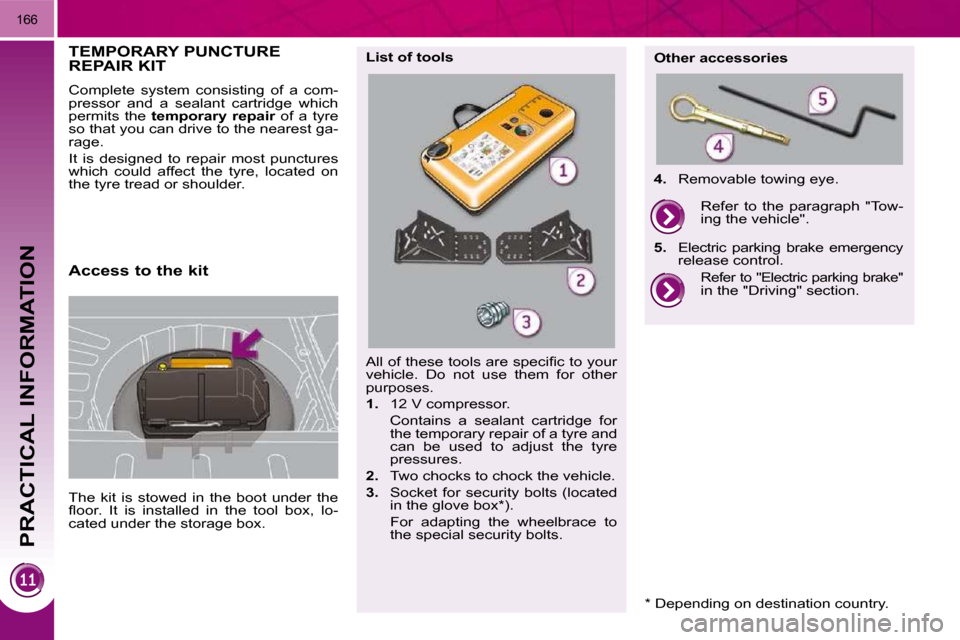

PRACTICAL INFORMATION
166
TEMPORARY PUNCTURE REPAIR KIT
The kit is stowed in the boot under the
fl o o r . I t i s i n s t a l l e d i n t h e t o o l b o x , l o -
c a t e d u n d e r t h e s t o r a g e b o x .
C o m p l e t e s y s t e m c o n s i s t i n g o f a c o m -
p r e s s o r a n d a s e a l a n t c a r t r i d g e w h i c h
permits the
temporary repair o f a t y r e
s o t h a t y o u c a n d r i v e t o t h e n e a r e s t g a -
r a g e .
I t i s d e s i g n e d t o r e p a i r m o s t p u n c t u r e s
w h i c h c o u l d a f f e c t t h e t y r e , l o c a t e d o n
t h e t y r e t r e a d o r s h o u l d e r .
A l l o f t h e s e t o o l s a r e s p e c i fi c t o y o u r
v e h i c l e . D o n o t u s e t h e m f o r o t h e r
p u r p o s e s .
1. 1 2 V c o m p r e s s o r .
C o n t a i n s a s e a l a n t c a r t r i d g e f o r t h e t e m p o r a r y r e p a i r o f a t y r e a n d
c a n b e u s e d t o a d j u s t t h e t y r e
p r e s s u r e s .
2. T w o c h o c k s t o c h o c k t h e v e h i c l e .
3. S o c k e t f o r s e c u r i t y b o l t s ( l o c a t e d
i n t h e g l o v e b o x * ) .
F o r a d a p t i n g t h e w h e e l b r a c e t o t h e s p e c i a l s e c u r i t y b o l t s .
List of tools
Other accessories
4. R e m o v a b l e t o w i n g e y e .
R e f e r t o " E l e c t r i c p a r k i n g b r a k e " i n t h e " D r i v i n g " s e c t i o n .
R e f e r t o t h e p a r a g r a p h " T o w -
i n g t h e v e h i c l e " .
5. E l e c t r i c p a r k i n g b r a k e e m e r g e n c y
r e l e a s e c o n t r o l .
Access to the kit
* D e p e n d i n g o n d e s t i n a t i o n c o u n t r y .
