INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
INTERIOR WELCOME LIGHTING
The remote switching on of the pas-
senger compartment lighting makes
your approach to the vehicle easier in
poor light. It operates with the automatic
lighting.
Switching on
Press the open padlock on the re-
mote control.
The courtesy lamps come on; your ve-
hicle is also unlocked.
Switching off
The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming
Switching on
At night, the front courtesy lamp mood
lamp A comes on automatically when
the sidelamps are switched on.
Switching off
The interior mood lighting switches off
automatically when the sidelamps are
switched off.
The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting. The function is activated or
deactivated via the multi-
f u n c t i o n s c r e e n c o n fi g u r a -
tion menu.

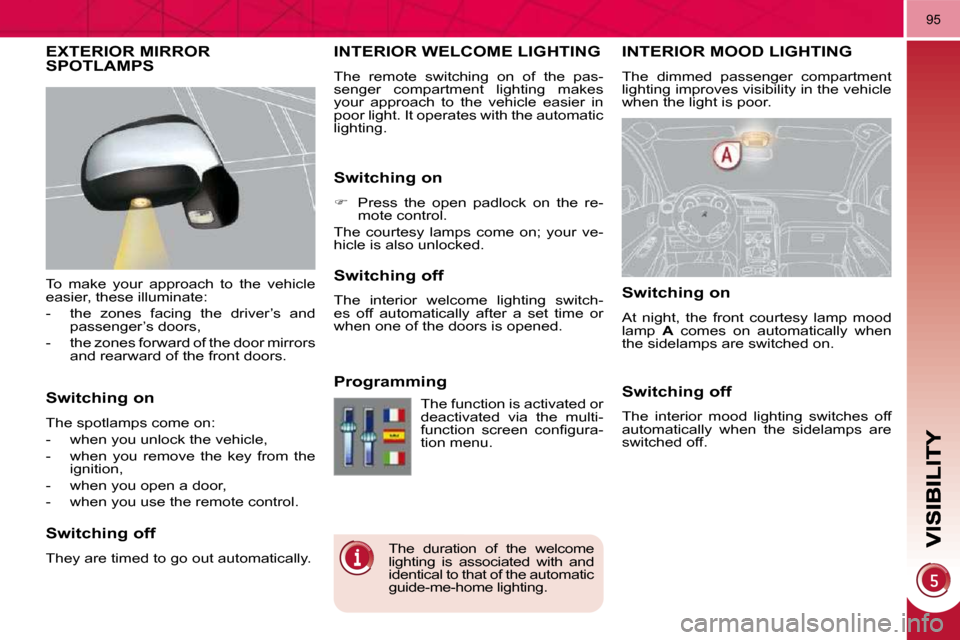

EXTERIOR MIRROR SPOTLAMPS
To make your approach to the vehicle
easier, these illuminate:
- the zones facing the driver’s and
passenger’s doors,
- the zones forward of the door mirrors and rearward of the front doors.
Switching on
The spotlamps come on:
- when you unlock the vehicle,
- when you remove the key from the ignition,
- when you open a door,
- when you use the remote control.
Switching off
They are timed to go out automatically.
Page 102 of 315
96
Different lighting times are
available:
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.

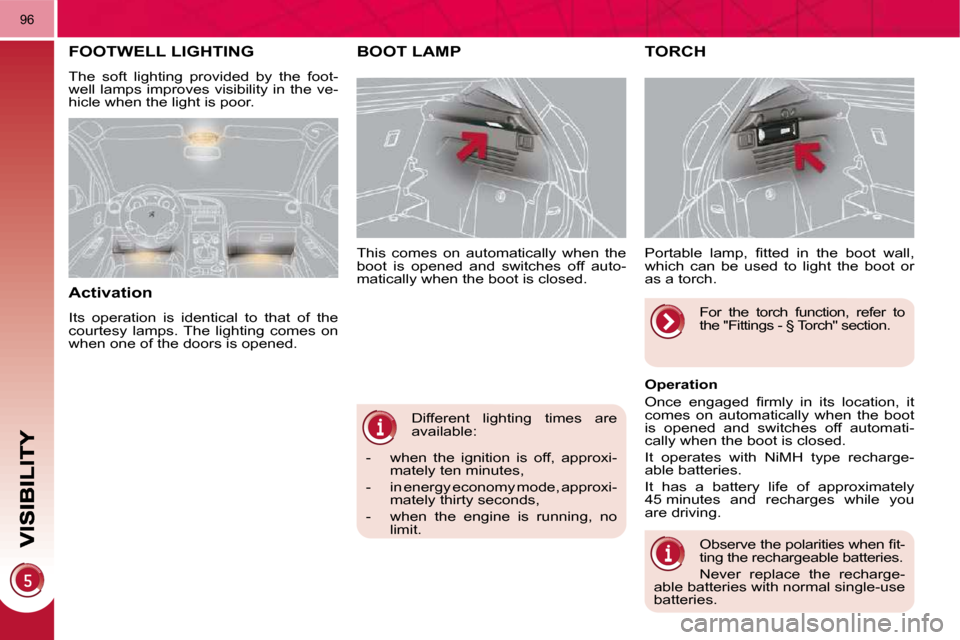

BOOT LAMP TORCH
P o r t a b l e l a m p , fi t t e d i n t h e b o o t w a l l ,
which can be used to light the boot or
as a torch.
Operation
O n c e e n g a g e d fi r m l y i n i t s l o c a t i o n , i t
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
O b s e r v e t h e p o l a r i t i e s w h e n fi t -
ting the rechargeable batteries.
Never replace the recharge-
able batteries with normal single-use
batteries. For the torch function, refer to
the "Fittings - § Torch" section.
FOOTWELL LIGHTING
The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.
Activation
Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened.
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
- when the engine is running, no limit.
Page 103 of 315
96
Different lighting times are
available:
This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP TORCH
P o r t a b l e l a m p , fi t t e d i n t h e b o o t w a l l ,
which can be used to light the boot or
as a torch.
Operation
O n c e e n g a g e d fi r m l y i n i t s l o c a t i o n , i t
comes on automatically when the boot
is opened and switches off automati-
cally when the boot is closed.
It operates with NiMH type recharge-
able batteries.
It has a battery life of approximately
45 minutes and recharges while you
are driving.
O b s e r v e t h e p o l a r i t i e s w h e n fi t -
ting the rechargeable batteries.
Never replace the recharge-
able batteries with normal single-use
batteries. For the torch function, refer to
the "Fittings - § Torch" section.
FOOTWELL LIGHTING
The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.
Activation
Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened.
- when the ignition is off, approxi-mately ten minutes,
- in energy economy mode, approxi- mately thirty seconds,
- when the engine is running, no limit.
Page 104 of 315
FITTINGS
109

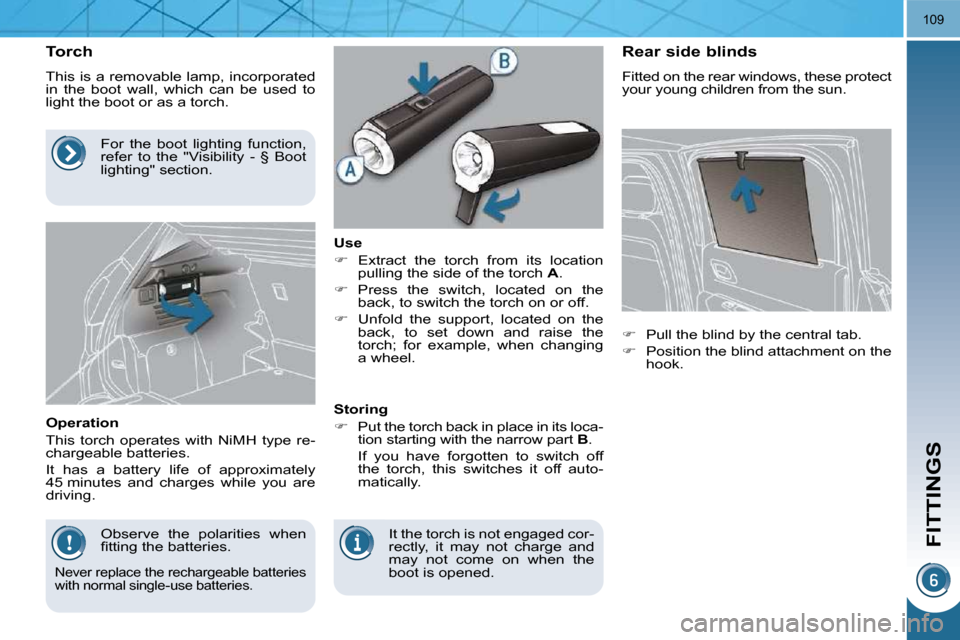

Torch
This is a removable lamp, incorporated
in the boot wall, which can be used to
light the boot or as a torch.
Operation
This torch operates with NiMH type re-
chargeable batteries.
It has a battery life of approximately
45 minutes and charges while you are
driving. Use
Extract the torch from its location
pulling the side of the torch A .
Press the switch, located on the
back, to switch the torch on or off.
Unfold the support, located on the
back, to set down and raise the
t o r c h ; f o r e x a m p l e , w h e n c h a n g i n g
a wheel.
Storing
Put the torch back in place in its loca-
tion starting with the narrow part B .
If you have forgotten to switch off the torch, this switches it off auto-
matically. Rear side blinds
Fitted on the rear windows, these protect
your young children from the sun.
Pull the blind by the central tab.
Position the blind attachment on the
hook.
Observe the polarities when
fi t t i n g t h e b a t t e r i e s .
Never replace the rechargeable batteries
with normal single-use batteries.
It the torch is not engaged cor-
rectly, it may not charge and
may not come on when the
boot is opened.
For the boot lighting function,
refer to the "Visibility - § Boot
lighting" section.
Page 105 of 315
FITTINGS
97
INTERIOR FITTINGS

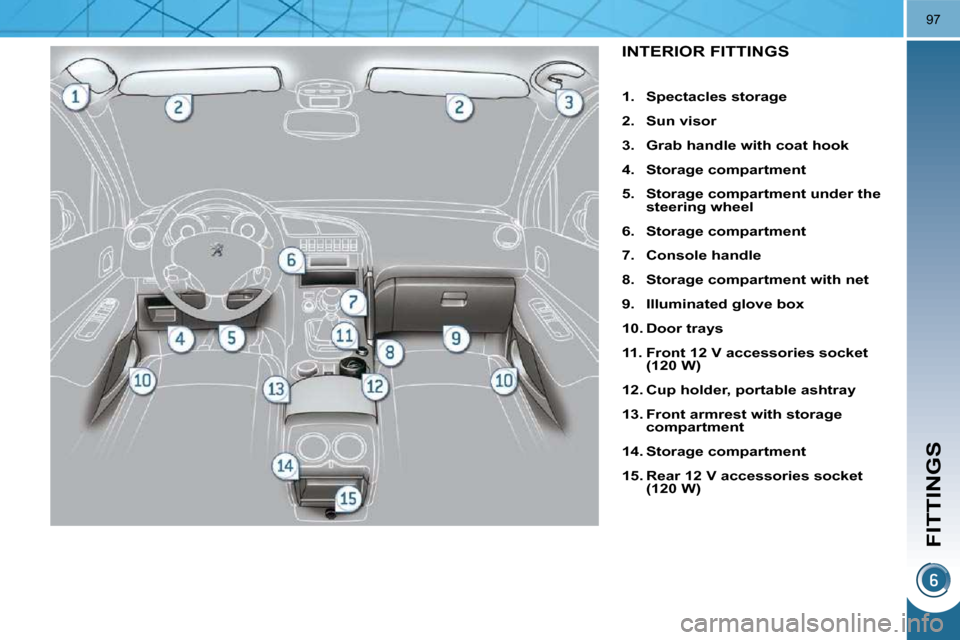

1. Spectacles storage
2. Sun visor
3. Grab handle with coat hook
4. Storage compartment
5. Storage compartment under the
steering wheel
6. Storage compartment
7. Console handle
8. Storage compartment with net
9. Illuminated glove
box
10. Door trays
11. Front 12 V accessories socket
(120 W)
12. Cup
holder,
portable
ashtray
13. Front armrest with storage
compartment
14. Storage compartment
15. Rear 12 V accessories socket
(120 W)
Page 106 of 315
FITTINGS
DRIVER'S STORAGE COMPARTMENTS
Storage box
This has storage areas dedicated to the
handbook pack, ...
To open, pull the handle then tilt the
box.
ILLUMINATED GLOVE BOX
This has storage areas, audio sockets
for a portable player and a location
for the SIM card (only with Peugeot
Connect Media), ...
To open the glove box, raise the
handle.
The lamp comes on when the lid is
opened.

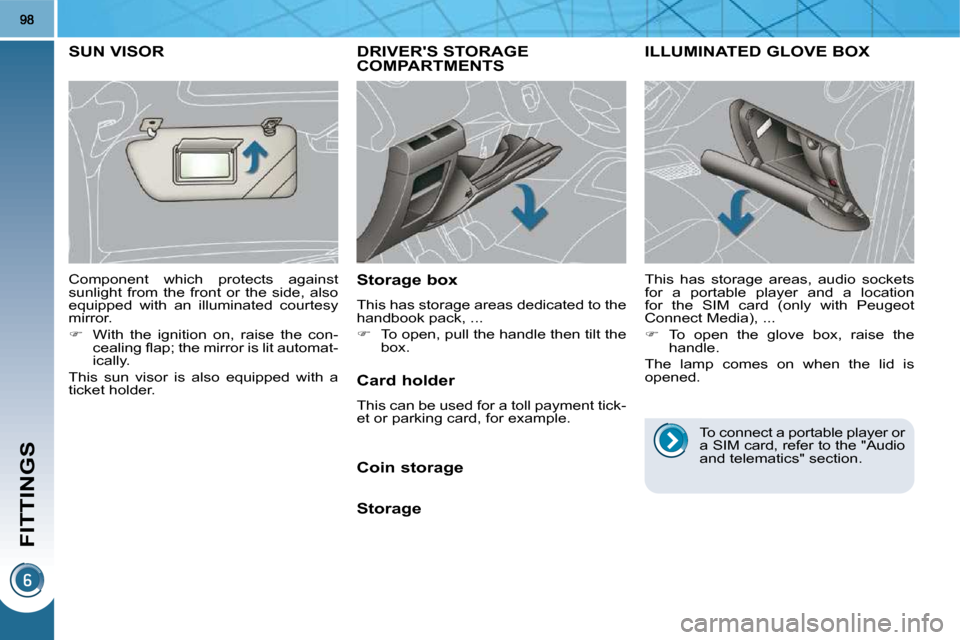

SUN VISOR
Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.
With the ignition on, raise the con-
c e a l i n g fl a p ; t h e m i r r o r i s l i t a u t o m a t -
ically.
This sun visor is also equipped with a
ticket holder. Card holder
This can be used for a toll payment tick-
et or parking card, for example.
Coin storage
Storage To connect a portable player or
a SIM card, refer to the "Audio
and telematics" section.
Page 107 of 315
FITTINGS
99

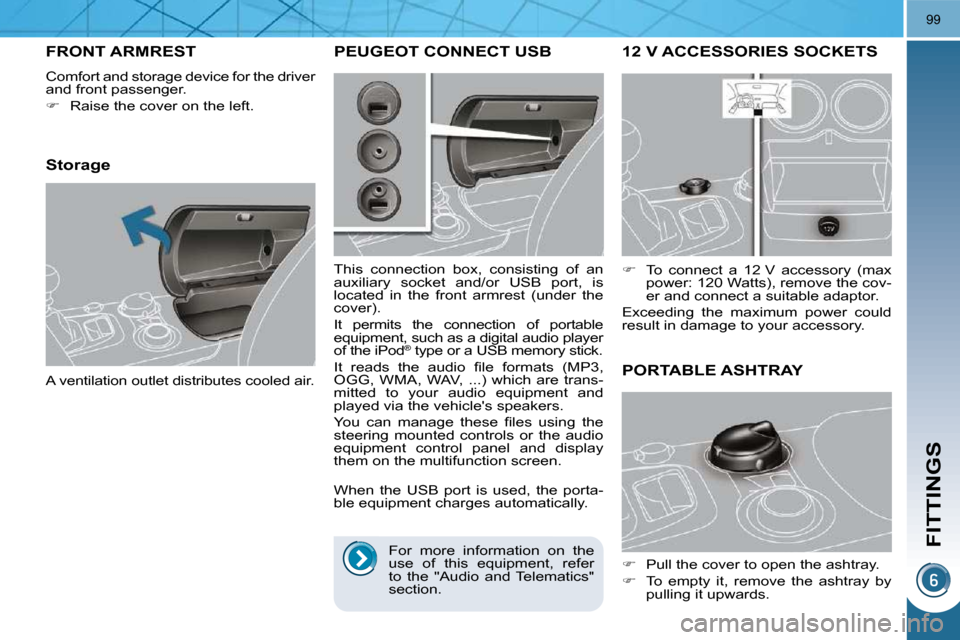

12 V ACCESSORIES SOCKETS
To connect a 12 V accessory (max
power: 120 Watts), remove the cov-
er and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
FRONT ARMREST
Comfort and storage device for the driver
and front passenger.
Raise the cover on the left.
Storage
A ventilation outlet distributes cooled air.
PORTABLE ASHTRAY
Pull the cover to open the ashtray.
To empty it, remove the ashtray by
pulling it upwards.
PEUGEOT CONNECT USB
This connection box, consisting of an
auxiliary socket and/or USB port, is
located in the front armrest (under the
cover).
It permits the connection of portable
equipment, such as a digital audio player
of the iPod ®
type or a USB memory stick.
I t r e a d s t h e a u d i o fi l e f o r m a t s ( M P 3 ,
OGG, WMA, WAV, ...) which are trans-
mitted to your audio equipment and
played via the vehicle's speakers.
Y o u c a n m a n a g e t h e s e fi l e s u s i n g t h e
steering mounted controls or the audio
equipment control panel and display
them on the multifunction screen.
When the USB port is used, the porta-
ble equipment charges automatically.
For more information on the
use of this equipment, refer
to the "Audio and Telematics"
section.
Page 108 of 315
FITTINGS
100
To avoid any risk of jamming
of the pedals:

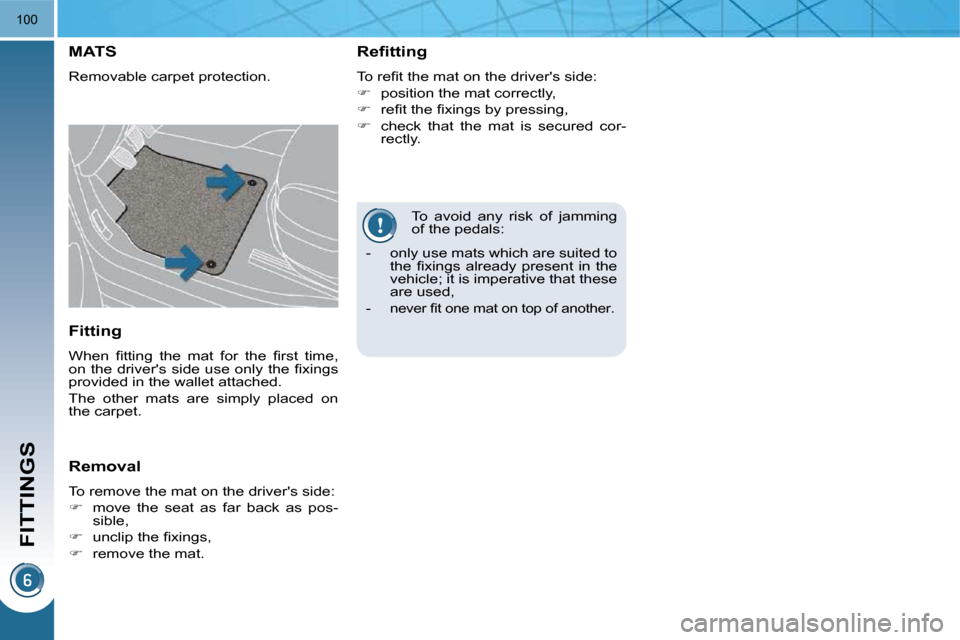

MATS
Removable carpet protection. Refitting
T o r e fi t t h e m a t o n t h e d r i v e r ' s s i d e :
position the mat correctly,
r e fi t t h e fi x i n g s b y p r e s s i n g ,
check that the mat is secured cor-
rectly.
Fitting
W h e n fi t t i n g t h e m a t f o r t h e fi r s t t i m e ,
o n t h e d r i v e r ' s s i d e u s e o n l y t h e fi x i n g s
provided in the wallet attached.
The other mats are simply placed on
the carpet.
Removal
To remove the mat on the driver's side:
move the seat as far back as pos-
sible,
u n c l i p t h e fi x i n g s ,
remove the mat. - only use mats which are suited to
t h e fi x i n g s a l r e a d y p r e s e n t i n t h e
v e h i c l e ; i t i s i m p e r a t i v e t h a t t h e s e
are used,
-
n e v e r fi t o n e m a t o n t o p o f a n o t h e r.
Page 109 of 315
FITTINGS
101
REAR MULTIMEDIA
Multimedia system permitting the con-
nection of any external portable sys-
tem: Ipod Video, games consoles, DVD
player, … Two separate video sources
can be connected via the RCA
connectors (yellow).
The video is displayed on two
7’’ screens, integrated in the
head restraints. Two separate
audio sources
can be connected via the RCA
connectors (red and white).
The audio is heard through two
wireless headphones with Blue-
tooth technology which operate
with rechargeable batteries.
The A/B button allows you to
pair the headphones with the screen:
A left-hand side, B right-hand side.
You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
I t i s a l s o p o s s i b l e t o c o n n e c t a 3 rd
set of
Bluetooth headphones.
Set-up
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.
Press and hold the ON/OFF button on
the headphones, the indicator lamp
o n t h e h e a d p h o n e s fl a s h e s i n b l u e .
Press and hold the system's ON/OFF
button, the pairing with the head-
phones is complete when the blue
indicator lamps on the headphones
and on the system (in the shape of
headphones) are lit continuously.
Press the ON/OFF buttons on the
screens if you have a video source.
Start playing your portable system. If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.
Page 110 of 315
FITTINGS
102

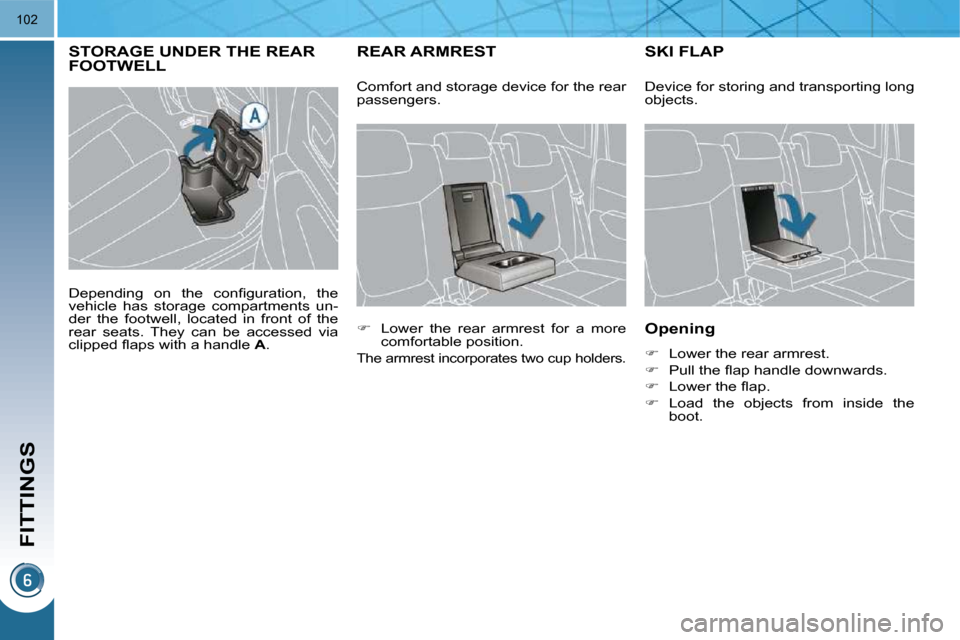

REAR ARMREST SKI FLAP
Opening
Lower the rear armrest.
P u l l t h e fl a p h a n d l e d o w n w a r d s .
L o w e r t h e fl a p .
Load the objects from inside the
boot.
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.
Comfort and storage device for the rear
passengers. Device for storing and transporting long
objects.
STORAGE UNDER THE REAR FOOTWELL
D e p e n d i n g o n t h e c o n fi g u r a t i o n , t h e
vehicle has storage compartments un-
der the footwell, located in front of the
rear seats. They can be accessed via
c l i p p e d fl a p s w i t h a h a n d l e
A .
