STEERING WHEEL ADJUSTMENT
W h e n s t a t i o n a r y , pull the control
lever to release the steering wheel.
Adjust the height and reach to suit
your driving position.
Push the control lever to lock the
steering wheel.
As a safety precaution, these
o p e r a t i o n s s h o u l d o n l y b e c a r -
ried out while the vehicle is
stationary.
Page 72 of 315
71
Unfolding the key
Unlocking the vehicle
Press the open padlock to
unlock the vehicle.
Complete unlocking using the
remote control
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft. Complete unlocking using the key
Turn the key to the left in the driver's
door lock to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the door mirrors
unfold at the same time.
Selective unlocking using the
remote control
Selective unlocking using the key
Turn the key to the left in the driver's
door lock once to unlock the driver's
door only.
Turn the key to the left in the driver's
door lock again to unlock the other
d o o r s a n d t h e b o o t .
Press the open padlock
once to unlock the driver's
door only.
Press the open padlock again to un-
l o c k t h e o t h e r d o o r s a n d t h e b o o t . E a c h u n l o c k i n g i s c o n fi r m e d b y r a p i d
fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s f o r
approximately two seconds.
According to version, the door mirrors
u n f o l d a t t h e s a m e t i m e a s t h e fi r s t
unlocking action.
T h e s e l e c t i v e u n l o c k i n g i s o n l y a v a i l a b l e
o n v e r s i o n s fi t t e d w i t h d e a d l o c k i n g .
The complete or selective
unlocking parameter is set
via the multifunction screen
c o n fi g u r a t i o n m e n u .
C o m p l e t e u n l o c k i n g i s a c t i v a t e d b y d e -
fault.
F i r s t p r e s s t h i s b u t t o n t o
unfold the key.
Page 73 of 315
72
Locating your vehicle
Press the closed padlock to locate
your locked vehicle in a car park.
T h i s i s i n d i c a t e d b y l i g h t i n g o f t h e d i r e c -
tion indicators for a few seconds. Deadlocking renders the exte-
rior and interior door controls
inoperative.
It also deactivates the manual central
c o n t r o l b u t t o n .
Therefore, never leave anyone inside
the vehicle when it is deadlocked.
Deadlocking using the remote
control
Deadlocking using the key
Folding the key
Press the closed padlock
to lock the vehicle com-
pletely or press the closed
padlock for more than two
seconds to close the win-
dows automatically in ad-
dition to locking (according
to version).
Press the closed padlock again
w i t h i n fi v e s e c o n d s t o d e a d l o c k t h e
vehicle.
I f o n e o f t h e d o o r s o r t h e b o o t
is still open, the central locking
does not take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds un-
less a door is opened.
Normal locking using the key
Turn the key to the right in the driver's
door lock to lock the vehicle completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the door mirrors
fold at the same time.
The folding and unfolding of
the door mirrors using the
r e m o t e c o n t r o l c a n b e d e a c t i -
v a t e d b y a P E U G E O T d e a l e r .
Locking the vehicle
Press the closed padlock
to lock the vehicle com-
pletely.
Press the closed padlock for more
than two seconds to close the win-
dows automatically in addition to
locking (according to version).
Normal locking using the remote
control
Turn the key to the right in the
driver's door lock to lock the vehicle
completely and hold it in this posi-
tion for more than two seconds to
close the windows automatically in
addition to locking (according to ver-
sion).
Turn the key to the right again within
fi v e s e c o n d s t o d e a d l o c k t h e v e h i c l e .
D e a d l o c k i n g i s c o n fi r m e d b y fi x e d l i g h t -
ing of the direction indicators for ap-
proximately two seconds.
According to version, the door mirrors
fold at the same time.
F i r s t p r e s s t h i s b u t t o n t o
fold the key.
Page 74 of 315
73
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
b e r e c o g n i s e d i n o r d e r f o r s t a r t i n g t o b e
p o s s i b l e .
T h i s e l e c t r o n i c e n g i n e i m m o b i l i s e r l o c k s
the engine management system a few
minutes after the ignition is switched off
a n d p r e v e n t s s t a r t i n g o f t h e e n g i n e b y
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
y o u a r e i n f o r m e d b y l i g h t i n g o f
t h i s w a r n i n g l a m p , a n a u d i b l e
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
c o n t a c t a P E U G E O T d e a l e r a s s o o n a s
p o s s i b l e . For further details, refer to the
"Practical information - § Energy
economy mode" section.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
b o a r d t o p o s i t i o n 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
I m m o b i l i s e t h e v e h i c l e .
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Energy economy mode
After switching off the engine (posi-
tion
1-Stop ), you can still use functions
such as the audio and telematics sys-
tem, the wipers, the dipped headlamps,
the courtesy lamps, etc. for a maximum
c o m b i n e d d u r a t i o n o f t h i r t y m i n u t e s .
A h e a v y o b j e c t ( k e y f o b . . . ) , a t -
tached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Page 75 of 315
74
Remote control problem
Following disconnection of the vehicle
b a t t e r y , r e p l a c e m e n t o f t h e r e m o t e c o n -
t r o l b a t t e r y o r i n t h e e v e n t o f a r e m o t e
control malfunction, you can no longer
unlock, lock or locate your vehicle.
First of all, use the key in the lock to
unlock or lock your vehicle.
Then, reinitialise the remote control.
I f t h e p r o b l e m p e r s i s t s , c o n t a c t a
P E U G E O T d e a l e r a s s o o n a s p o s s i b l e . Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
Switch off the ignition.
Turn the key to position 2 (Ignition) .
Press the closed padlock immedi-
ately for a few seconds.
Switch off the ignition and remove
the key from the ignition switch.
The remote control is fully operational
again. I f t h e b a t t e r y i s fl a t , y o u a r e i n -
f o r m e d b y l i g h t i n g o f t h i s w a r n -
i n g l a m p , a n a u d i b l e s i g n a l a n d
a message on the multifunction
screen.
Unclip the casing using a coin at the
notch.
S l i d e t h e fl a t b a t t e r y o u t o f i t s l o c a -
tion.
S l i d e t h e n e w b a t t e r y i n t o i t s l o c a -
t i o n o b s e r v i n g t h e o r i g i n a l d i r e c t i o n .
Clip the casing.
Reinitialise the remote control.
T h i s r e p l a c e m e n t b a t t e r y i s a v a i l a b l e
f r o m P E U G E O T d e a l e r s .
Page 76 of 315
75

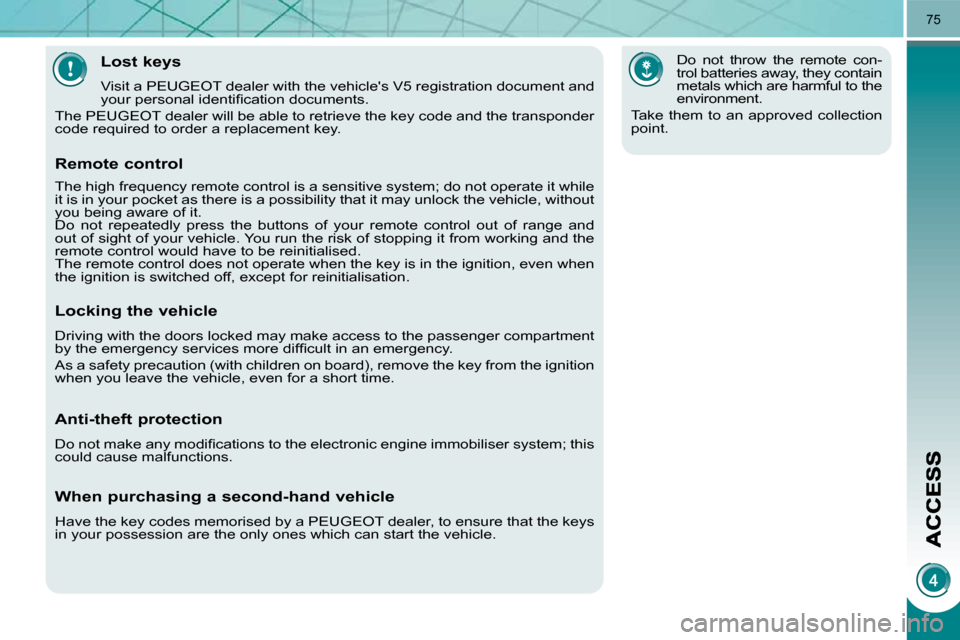

Lost keys
V i s i t a P E U G E O T d e a l e r w i t h t h e v e h i c l e ' s V 5 r e g i s t r a t i o n d o c u m e n t a n d
y o u r p e r s o n a l i d e n t i fi c a t i o n d o c u m e n t s .
T h e P E U G E O T d e a l e r w i l l b e a b l e t o r e t r i e v e t h e k e y c o d e a n d t h e t r a n s p o n d e r
code required to order a replacement key. Do not throw the remote con-
t r o l b a t t e r i e s a w a y , t h e y c o n t a i n
metals which are harmful to the
environment.
Take them to an approved collection
point.
Remote control
The high frequency remote control is a sensitive system; do not o perate it while
i t i s i n y o u r p o c k e t a s t h e r e i s a p o s s i b i l i t y t h a t i t m a y u n l o c k t h e v e h i c l e , w i t h o u t
y o u b e i n g a w a r e o f i t .
D o n o t r e p e a t e d l y p r e s s t h e b u t t o n s o f y o u r r e m o t e c o n t r o l o u t o f r a n g e a n d
out of sight of your vehicle. You run the risk of stopping it from working and the
r e m o t e c o n t r o l w o u l d h a v e t o b e r e i n i t i a l i s e d .
The remote control does not operate when the key is in the ignition, even when
the ignition is switched off, except for reinitialisation.
Locking the vehicle
Driving with the doors locked may make access to the passenger compart ment
b y t h e e m e r g e n c y s e r v i c e s m o r e d i f fi c u l t i n a n e m e r g e n c y .
A s a s a f e t y p r e c a u t i o n ( w i t h c h i l d r e n o n b o a r d ) , r e m o v e t h e k e y f r o m t h e i g n i t i o n
when you leave the vehicle, even for a short time.
Anti-theft protection
D o n o t m a k e a n y m o d i fi c a t i o n s t o t h e e l e c t r o n i c e n g i n e i m m o b i l i s e r s y s t e m ; t h i s
could cause malfunctions.
When purchasing a second-hand vehicle
H a v e t h e k e y c o d e s m e m o r i s e d b y a P E U G E O T d e a l e r , t o e n s u r e t h a t t h e k e y s
in your possession are the only ones which can start the vehicle.
Page 77 of 315
73
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
b e r e c o g n i s e d i n o r d e r f o r s t a r t i n g t o b e
p o s s i b l e .
T h i s e l e c t r o n i c e n g i n e i m m o b i l i s e r l o c k s
the engine management system a few
minutes after the ignition is switched off
a n d p r e v e n t s s t a r t i n g o f t h e e n g i n e b y
anyone who does not have the key.
Anti-theft protection
In the event of a malfunction,
y o u a r e i n f o r m e d b y l i g h t i n g o f
t h i s w a r n i n g l a m p , a n a u d i b l e
signal and a message on the
multifunction screen.
In this case, your vehicle does not start;
c o n t a c t a P E U G E O T d e a l e r a s s o o n a s
p o s s i b l e . For further details, refer to the
"Practical information - § Energy
economy mode" section.
Starting the vehicle
Insert the key in the ignition switch.
The system recognises the starting code.
Turn the key fully towards the dash-
b o a r d t o p o s i t i o n 3 (Starting) .
When the engine starts, release the
key.
Switching the vehicle off
I m m o b i l i s e t h e v e h i c l e .
Turn the key fully towards you to po-
sition 1 (Stop) .
Remove the key from the ignition
switch. Energy economy mode
After switching off the engine (posi-
tion
1-Stop ), you can still use functions
such as the audio and telematics sys-
tem, the wipers, the dipped headlamps,
the courtesy lamps, etc. for a maximum
c o m b i n e d d u r a t i o n o f t h i r t y m i n u t e s .
A h e a v y o b j e c t ( k e y f o b . . . ) , a t -
tached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Page 78 of 315
76
ALARM
System which protects and provides a
deterrent against the theft of your vehi-
cle. It provides two types of protection,
exterior and interior, as well as an anti-
tamper function.
Locking the vehicle with full alarm
D o n o t m a k e a n y m o d i fi c a -
tions to the alarm system, this
could cause malfunctions. T o b e e f f e c t i v e , t h i s d e a c t i v a t i o n
m u s t b e c a r r i e d o u t e a c h t i m e
the ignition is switched off.
Reactivation of the interior
volumetric protection
Unlock the vehicle using the unlock-
i n g b u t t o n o n t h e r e m o t e c o n t r o l .
Relock the vehicle using the remote
control.
T h e a l a r m i s a c t i v a t e d a g a i n w i t h b o t h
types of protection; the indicator lamp
o n b u t t o n A switches off.
Locking the vehicle with exterior protection alarm only
Activation
Switch off the ignition and get out of
the vehicle.
Lock or deadlock the vehicle using
t h e l o c k i n g b u t t o n o n t h e r e m o t e
control.
The alarm is activated; the indicator lamp
o n b u t t o n A fl a s h e s o n c e p e r s e c o n d .
Exterior perimiter protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
e n t e r t h e v e h i c l e b y f o r c i n g a d o o r , t h e
b o o t o r t h e b o n n e t .
Interior volumetric protection
The system detects any variation in the
volume in the passenger compartment.
T h e a l a r m i s t r i g g e r e d i f a n y o n e b r e a k s
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior volumetric protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
c o n t r o l o r t h e b a t t e r y o u t o f s e r v i c e . Deactivation
Unlock the vehicle using the unlock-
i n g b u t t o n o n t h e r e m o t e c o n t r o l .
The alarm is deactivated; the indicator
l a m p o n b u t t o n A switches off. Deactivation of the interior
volumetric protection
Switch off the ignition.
W i t h i n t e n s e c o n d s , p r e s s b u t t o n A
until the indicator lamp is lit continu-
ously.
G e t o u t o f t h e v e h i c l e .
Lock or deadlock the vehicle using
t h e l o c k i n g b u t t o n o n t h e r e m o t e
control.
The exterior protection alarm alone re-
mains activated; the indicator lamp on
b u t t o n A fl a s h e s o n c e p e r s e c o n d .
Page 79 of 315
77
Triggering
T h i s i s i n d i c a t e d b y s o u n d i n g o f t h e s i r e n
a n d fl a s h i n g o f t h e d i r e c t i o n i n d i c a t o r s
for approximately thirty seconds.
A f t e r i t h a s b e e n t r i g g e r e d , t h e a l a r m i s
again operational. If the alarm is triggered ten
times in succession, the elev-
e n t h t i m e w i l l r e s u l t i n i t b e -
coming inactive.
I f t h e i n d i c a t o r l a m p o n b u t t o n A
fl a s h e s r a p i d l y , t h i s i n d i c a t e s t h a t t h e
a l a r m w a s t r i g g e r e d d u r i n g y o u r a b -
sence. When the ignition is switched
o n , t h i s fl a s h i n g s t o p s i m m e d i a t e l y .
To avoid triggering the alarm when
washing your vehicle, lock it using
the key in the driver's door lock.
D o n o t a c t i v a t e t h e a l a r m b e f o r e d i s -
c o n n e c t i n g t h e b a t t e r y , o t h e r w i s e t h e
siren will sound. Failure of the remote control
Unlock the vehicle using the key in
the driver's door lock.
O p e n t h e d o o r ; t h e a l a r m i s t r i g -
gered.
Switch on the ignition; the alarm
stops.
Malfunction
When the ignition is switched on, light-
i n g o f t h e i n d i c a t o r l a m p o n b u t t o n A for
ten seconds indicates a siren fault.
H a v e i t c h e c k e d b y a P E U G E O T d e a l e r .
Locking the vehicle without
activating the alarm
Lock or deadlock the vehicle using
the key in the driver's door lock. Automatic operation *
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is
locked using the remote control, the
alarm is activated, regardless of the
s t a t u s o f t h e d o o r s a n d b o o t .
- 2 minutes after the last door or the b o o t i s c l o s e d , t h e a l a r m i s a c t i v a t e d .
To avoid triggering the alarm on
e n t e r i n g t h e v e h i c l e , fi r s t p r e s s
t h e u n l o c k i n g b u t t o n o n t h e r e -
mote control.
* According to country.
Page 80 of 315
78
The electric window controls
remain operational for ap-
proximately 45 seconds after
the ignition is switched off or until the
vehicle is locked after a front door is
opened.
If one of the passenger windows can-
n o t b e o p e r a t e d f r o m t h e d r i v e r ' s d o o r
control pad, carry out the operation
from the control pad of the passen-
ger door concerned, and vice versa.
ELECTRIC WINDOWS
System intended to open or close a
window manually or automatically. Fit-
ted with a safety anti-pinch system and
a system for deactivation in the event of
misuse of the rear controls.
1. Driver's electric window control.
2. Passenger's electric window
control.
3. Rear right electric window
control.
4. Rear left electric window control.
5. Deactivation of the rear electric
window and door controls. I f t h e w i n d o w c a n n o t b e c l o s e d
(for example, in the presence
of ice), immediately after the
movement is reversed:
press and hold the control until
the window opens fully,
then pull the control immediately
and hold it until the window closes,
continue to hold the control for
approximately one second after
the window has closed.
The safety anti-pinch function is not
operational during these operations.
Safety anti-pinch
When the window rises and meets an
o b s t a c l e , i t s t o p s a n d p a r t i a l l y l o w e r s
again.
-
automatic mode
P r e s s o r p u l l t h e c o n t r o l fi r m l y .
The window opens or closes fully
when the control is released.
Pressing the control again stops
the movement of the window.
One-touch electric windows
There are two options:
- manual mode
Press or pull the control gently.
The window stops when the con-
trol is released. After approximately ten con-
secutive complete opening/
closing movements of the win-
dow, a protection function is activated
to prevent damage to the electric win-
dow motor.
After this, you have approximately
one minute within which to close the
window.
O n c e t h e w i n d o w i s c l o s e d , t h e c o n -
t r o l s w i l l b e c o m e a v a i l a b l e a g a i n a f -
ter approximately 40 minutes.
