rear view mirror Peugeot 3008 Hybrid 4 2011 Owner's Manual

[x] Cancel search | Manufacturer: PEUGEOT, Model Year: 2011, Model line: 3008 Hybrid 4, Model: Peugeot 3008 Hybrid 4 2011
Pages: 280, PDF Size: 16.5 MB

Page 19 of 280

Peugeot 3008 Hybrid 4 2011 Owners Manual 17
SITTING COMFORTABLY
Door mirrors

Adjustment

A.
Selection of the mirror to be adjusted.

B.
Adjustment of the position of the
mirror in the four directions.
79

Rear vi

Page 82 of 280

Peugeot 3008 Hybrid 4 2011 Owners Manual 80

Adjustment

�)
Adjust the mirror so that the glass is
directed correctly in the "day" posi-
tion.

As a safety measure, the mir-
rors should be adjusted to re-
duce the "blind

Page 101 of 280

Peugeot 3008 Hybrid 4 2011 Owners Manual 99
In fog or snow, the sunshine
sensor may detect sufﬁ cient
light. Therefore, the lighting
will not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor an

99
In fog or snow, the sunshine
sensor may detect sufﬁ cient
light. Therefore, the lighting
will not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror; the as-
sociated functions would no longer
be controlled.

Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:

- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
screen conﬁ guration menu,

-
automatic activation of "guide-me-home"
lighting when automatic lighting is in
operation.

Automatic illumination of headlamps

The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
sufﬁ cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.

Activation

)
Turn the ring to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.

Deactivation

)
Turn the ring to another position.
Deactivation is accompanied by
a message on the multifunction
screen.

Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
The initial setting is position "0"
.

To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.

0.
1 or 2 people in the front seats.

-.
3 people.

1.
5 people.

-.
Intermediate setting.

2.
5 people + maximum authorised
load.

-.
Intermediate setting.

3.
Driver + maximum authorised load.

Page 104 of 280

Peugeot 3008 Hybrid 4 2011 Owners Manual 102
Special position of the
windscreen wipersAutomatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is dete

102
Special position of the
windscreen wipersAutomatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.

Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message on the
multifunction screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
Do not cover the rain sensor,
linked with the sunshine sen-
sor and located in the centre
of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the wip-
er blades, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic
rain sensitive wipers.
The automatic rain sensitive
wipers must be reactivated if
the ignition has been off for
more than one minute, by pushing
the stalk downwards.

Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message on the
multifunction screen.
Operating fault

If an automatic wiping malfunction occurs,
the wipers will operate in intermittent mode.
Have it checked by a PEUGEOT dealer.

To park the wipers after this
has been done, switch on the
ignition and operate the stalk.
To maintain the effectiveness of the
"ﬂ at-blade" wiper blades, it is advis-
able to:

- handle them with care,

- clean them regularly using soapy
water,

- avoid using them to retain card-
board on the windscreen,

- replace them at the ﬁ rst signs of
wear.

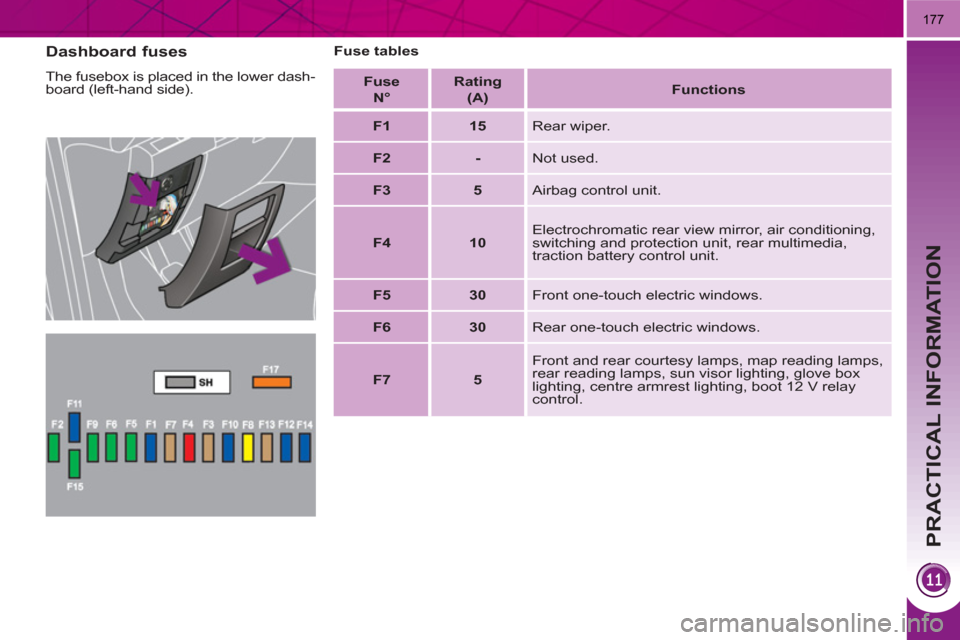

Page 179 of 280

Peugeot 3008 Hybrid 4 2011 Owners Manual PRACTICAL INFORMATION
177

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).
Fuse tables

Fuse
N°

Rating
(A)

Functions

Page 270 of 280

Peugeot 3008 Hybrid 4 2011 Owners Manual ALPHABETICAL INDEX
268
Main beam ....................................96
Manufacturers
identiﬁ cation plates ..................197
Map reading lamps .....................103
Markings, identiﬁ cat

ALPHABETICAL INDEX
268
Main beam ....................................96
Manufacturer's
identiﬁ cation plates ..................197
Map reading lamps .....................103
Markings, identiﬁ cation ...............197
Mat..............................................109
Menu, main .................................250
Mini fuel level ..........................51, 94
Misfuel prevention ........................95
Monochrome screen ...........250, 261
Motorway function
(direction indicators) ................126
Mountings for ISOFIX seats .......122
MP3 CD ..............................227, 253
Multifunction screen (with
audio equipment) ...........58, 61, 63
Music media players ...........226, 254Paint colour code ........................197
Panoramic sunroof ..................... 112
Parking brake .....................136, 162
Particle emission ﬁ lter.........161, 162
Passenger compartment ﬁ lter.....161
PEUGEOT call button .........200, 201
Peugeot Connect Assistance ...200, 201
Peugeot Connect Media ........44, 61,
64, 203-245
Peugeot Connect SOS .......200, 201
Peugeot Connect
Sound ........................ 58, 247-265
PEUGEOT services ............200, 201
PIN code .....................................233
M
P
Oil ﬁ lter .......................................161
Oil level .................................56, 160
Opening the bonnet ....................157
Opening the boot ..............81, 92, 93
Opening the doors ..................81, 90
Opening the panoramic
sunroof blind ............................ 112
Opening the retractable screen ....63
Opening the tailgate .........81, 92, 93
Operation
indicator lamps .................... 45-52
O
Player, CD MP3 ..................227, 253
Priming the fuel system ..............158
Protecting
children .....117-125, 131, 133, 135
Puncture .....................................163 Level, brake ﬂ uid ........................160
Level, headlamp wash ........101, 160
Level, power steering ﬂ uid ..........160
Levels and checks .............. 160-162
Lighting, guide-me home ........98, 99
Lighting, interior ..................103, 104
Lighting bulbs
(replacement) .................. 172-175
Lighting DIMMER .........................57
Lighting stalk.................................96
Loading .......................................190
Load reduction mode ..................186
Locating your vehicle ....................82
Locking from the inside.................91
Long objects, transporting .... 75, 111Navigation...................................214
Number plate lamps ...................175
N
Radio ..................................225, 251
Rear armrest............................... 111
Rear foglamps ............. 97, 174, 175
Rear head restraints .....................76
Rear multimedia ......................... 110
Rear parcel shelf ........................ 115
Rear parking sensors .................154
Rear reading lamps ....................103
Rear screen (demisting) ...............68
Rear seats ....................................76
Rear view mirror ...........................80
Rear wash-wipe ..........................101
Rear wiper ..................................101
Recharging the battery ...............184
Reduction of electrical load ........186
Reﬁ tting a wheel .........................171
Reinitialising
the electric windows ..................89
Reinitialising
the remote control ......................84
Remote control ....................... 81-85
Removable screen
(snow shield) ...........................190
Removing a wheel ......................170
Removing the mat ......................109
Repair kit, puncture ....................163
Replacing bulbs .................. 172-175
Replacing fuses .................. 176-182
Replacing the air ﬁ lter .................161
Replacing the oil ﬁ lter .................161
Replacing the particle
emission ﬁ lter ...........................162
R
