Page 4 of 280
FAMILIARISATION4-25
INSTRUMENTS and CONTROLS 43-57
CHILD SAFETY 117-125
MULTIFUNCTION SCREENS58-66
SAFETY 126-135
COMFORT 67-80
ACCESS 81-95
VISIBILITY 96-105
FITTINGS 106-116
Instrument panels .............43Indicator and warning lamps....45Indicators..........................53Adjustment buttons...........57
Child seats.......................117ISOFIX child seats..........122Child lock........................125
Screen C (Peugeot Connect Sound)...5816/9 high definition retractablecolour screen (PeugeotConnect Media) ................61
Direction indicators.........126Hazard warning lamps....126Horn................................126
ESP system....................127Front seat belts...............129Airbags ...........................132
Ventilation .........................67Rear screen demist/defrost.................68Dual-zone digital air conditioning....................69
Front seats.......................72Rear seats........................76Steering wheel adjustment...........78Mirrors ..............................79
Remote control key..........81Alarm................................86Electric windows...............88Doors ................................90
Boot..................................92Lower tailgate ...................93Fuel tank ...........................94Misfuel prevention ............95
Lighting controls...............96Automatic illumination of headlamps ..................99Headlamp adjustment......99Wiper controls................100
Automatic rainsensitive wipers ............102Courtesy lamps ..............103Interior mood lighting......104Boot lamp.......................105
Interior fittings.................106Front armrest..................108Rear multimedia..............110
Panoramic sunroof..........f112Boot fittings......................113
HYBRID SYSTEM 26-42

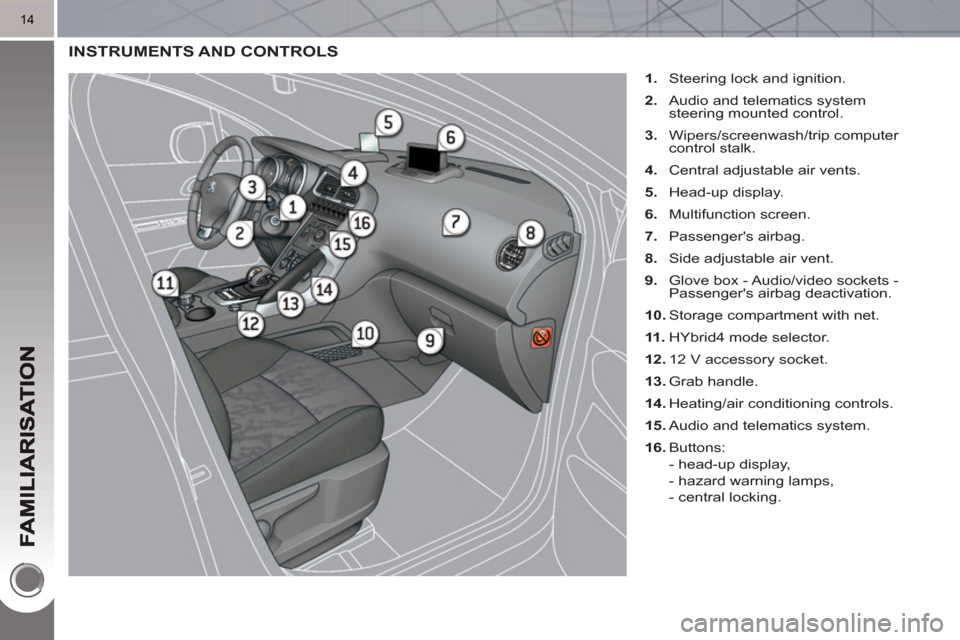

Page 16 of 280
14
INSTRUMENTS AND CONTROLS
1.
Steering lock and ignition.
2.
Audio and telematics system
steering mounted control.
3.
Wipers/screenwash/trip computer
control stalk.
4.
Central adjustable air vents.
5.
Head-up display.
6.
Multifunction screen.
7.
Passenger's airbag.
8.
Side adjustable air vent.
9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.
10.
Storage compartment with net.
11 .
HYbrid4 mode selector.
12.
12 V accessory socket.
13.
Grab handle.
14.
Heating/air conditioning controls.
15.
Audio and telematics system.
16.
Buttons:
- head-up display,
- hazard warning lamps,
- central locking.
Page 20 of 280
18
SEEING CLEARLY
Li
ghting
Ring A
Lighting off.
Ring B Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Automatic illumination of head-
lamps.
96, 97
Direction indicators
Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will fl ash for as long
as the stalk remains in this position.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators will
fl ash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
126
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"
)
Press the stalk down and release it.
Switching off "AUTO"
)
Push the stalk up and return it to
position "0"
.
100
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
101

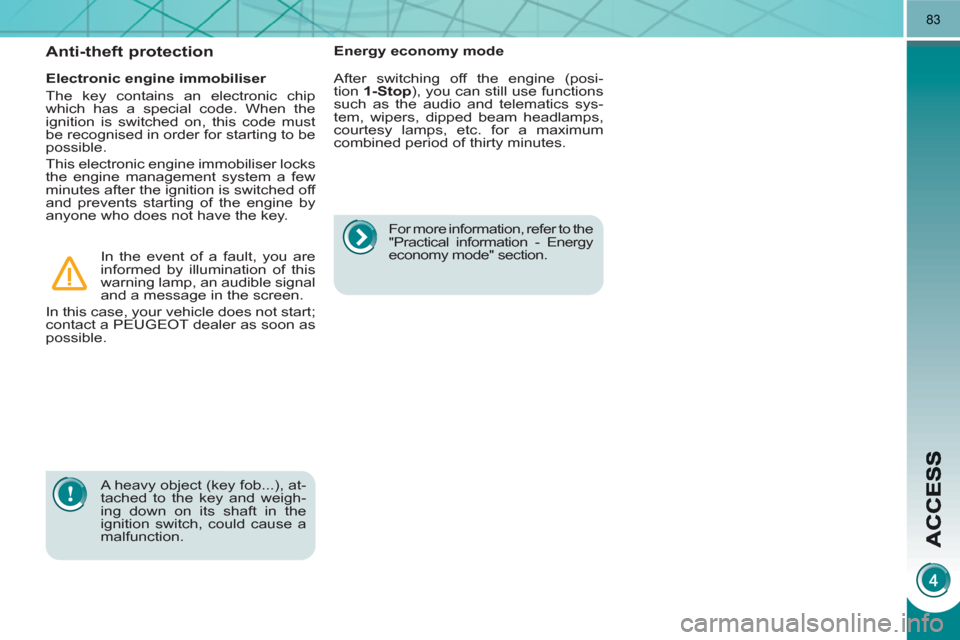

Page 85 of 280
83
A heavy object (key fob...), at-
tached to the key and weigh-
ing down on its shaft in the
ignition switch, could cause a
malfunction.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
In the event of a fault, you are
informed by illumination of this
warning lamp, an audible signal
and a message in the screen.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.
For more information, refer to the
"Practical information - Energy
economy mode" section.
Energy economy mode
After switching off the engine (posi-
tion 1-Stop
), you can still use functions
such as the audio and telematics sys-
tem, wipers, dipped beam headlamps,
courtesy lamps, etc. for a maximum
combined period of thirty minutes.
Page 101 of 280
99
In fog or snow, the sunshine
sensor may detect suffi cient
light. Therefore, the lighting
will not come on automatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and lo-
cated in the centre of the windscreen
behind the rear view mirror; the as-
sociated functions would no longer
be controlled.
Associated with the automatic
"Guide-me-home" lighting
Association with the automatic lighting
provides the "guide-me-home" lighting
with the following additional options:
- selection of the lighting duration of
15, 30 or 60 seconds in the vehicle
parameters on the multifunction
screen confi guration menu,
-
automatic activation of "guide-me-home"
lighting when automatic lighting is in
operation.
Automatic illumination of headlamps
The sidelamps and dipped beam head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external light
is detected or in certain cases of activa-
tion of the windscreen wipers.
As soon as the brightness returns to a
suffi cient level or after the windscreen
wipers are switched off, the lamps are
switched off automatically.
Activation
)
Turn the ring to the "AUTO"
position.
The automatic illumination of head-
lamps is accompanied by a mes-
sage on the multifunction screen.
Deactivation
)
Turn the ring to another position.
Deactivation is accompanied by
a message on the multifunction
screen.
Operating fault
In the event of a malfunction of
the sunshine sensor, the light-
ing comes on, this warning
lamp is displayed on the instru-
ment panel and/or a message appears
on the multifunction screen, accompa-
nied by an audible signal.
Consult a PEUGEOT dealer.
MANUAL ADJUSTMENT OF
HALOGEN HEADLAMPS
The initial setting is position "0"
.
To avoid causing a nuisance to other
road users, the height of the halogen
headlamps should be adjusted accord-
ing to the load in the vehicle.
0.
1 or 2 people in the front seats.
-.
3 people.
1.
5 people.
-.
Intermediate setting.
2.
5 people + maximum authorised
load.
-.
Intermediate setting.
3.
Driver + maximum authorised load.

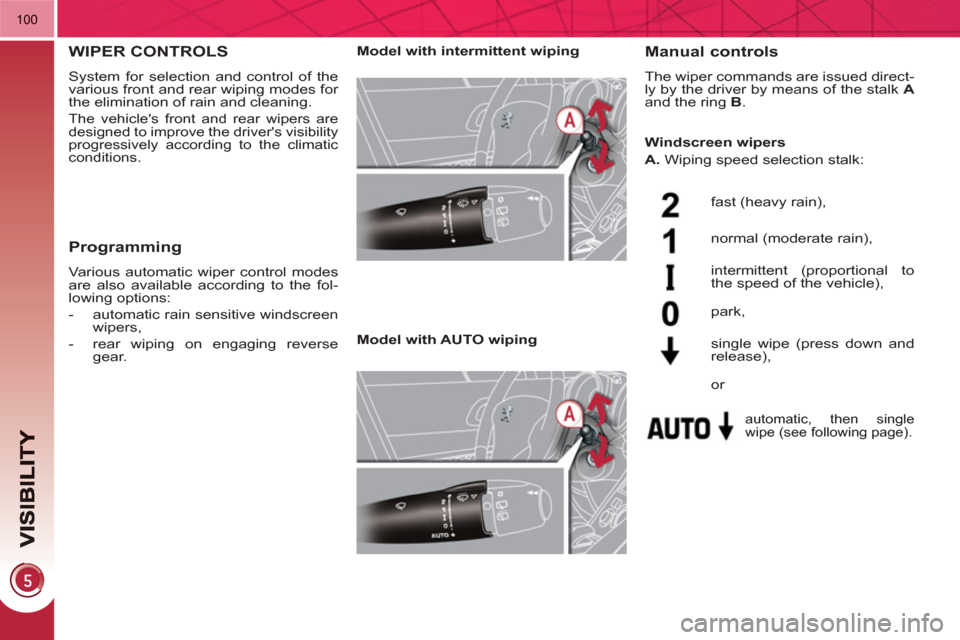

Page 102 of 280
100
WIPER CONTROLS
System for selection and control of the
various front and rear wiping modes for
the elimination of rain and cleaning.
The vehicle's front and rear wipers are
designed to improve the driver's visibility
progressively according to the climatic
conditions.
Manual controls
The wiper commands are issued direct-
ly by the driver by means of the stalk A
and the ring B
.
Model with intermittent wiping
Model with AUTO wiping
fast (heavy rain),
normal (moderate rain),
intermittent (proportional to
the speed of the vehicle),
automatic, then single
wipe (see following page).
park,
single wipe (press down and
release),
Windscreen wipers
A.
Wiping speed selection stalk:
or
Programming
Various automatic wiper control modes
are also available according to the fol-
lowing options:
- automatic rain sensitive windscreen
wipers,
- rear wiping on engaging reverse
gear.

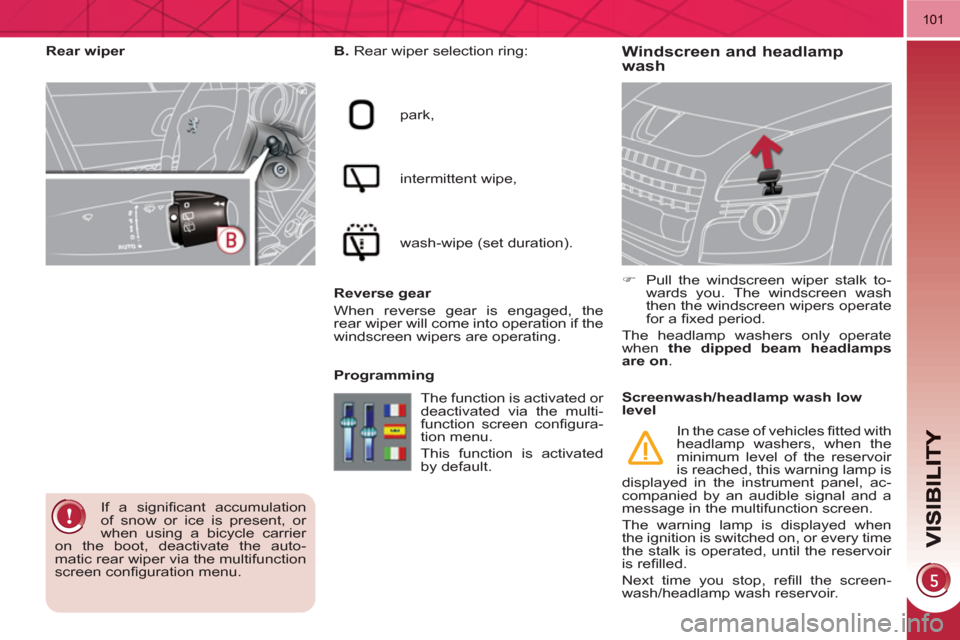

Page 103 of 280
101
Windscreen and headlamp
wash
B.
Rear wiper selection ring:
park,
intermittent wipe,
wash-wipe (set duration).
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if the
windscreen wipers are operating.
Programming
)
Pull the windscreen wiper stalk to-
wards you. The windscreen wash
then the windscreen wipers operate
for a fi xed period.
The headlamp washers only operate
when the dipped beam headlamps
are on
.
Rear wiper
If a signifi cant accumulation
of snow or ice is present, or
when using a bicycle carrier
on the boot, deactivate the auto-
matic rear wiper via the multifunction
screen confi guration menu. The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
This function is activated
by default.
Screenwash/headlamp wash low
level
In the case of vehicles fi tted with
headlamp washers, when the
minimum level of the reservoir
is reached, this warning lamp is
displayed in the instrument panel, ac-
companied by an audible signal and a
message in the multifunction screen.
The warning lamp is displayed when
the ignition is switched on, or every time
the stalk is operated, until the reservoir
is refi lled.
Next time you stop, refi ll the screen-
wash/headlamp wash reservoir.
Page 104 of 280
102
Special position of the
windscreen wipersAutomatic rain sensitive
windscreen wipers
The windscreen wipers operate automati-
cally, without any action on the part of the
driver, if rain is detected (sensor behind
the rear view mirror), adapting their speed
to the intensity of the rainfall.
Activation
This is controlled manually by the driver
by pushing the stalk downwards to the
"AUTO"
position.
It is accompanied by a message on the
multifunction screen. This position permits release of the
windscreen wiper blades.
It is used for cleaning or replacement
of the blades. It can also be useful, in
winter, to detach the blades from the
windscreen.
In the moment following switching the
ignition off, any action on the stalk posi-
tions the wipers vertically on the wind-
screen.
Do not cover the rain sensor,
linked with the sunshine sen-
sor and located in the centre
of the windscreen behind the rear
view mirror.
Switch off the automatic rain sensi-
tive wipers when using an automatic
car wash.
In winter, to avoid damaging the wip-
er blades, it is advisable to wait until
the windscreen is completely clear of
ice before activating the automatic
rain sensitive wipers.
The automatic rain sensitive
wipers must be reactivated if
the ignition has been off for
more than one minute, by pushing
the stalk downwards.
Switching off
This is controlled manually by the driver
by moving the stalk upwards then re-
turning it to position "0"
.
It is accompanied by a message on the
multifunction screen.
Operating fault
If an automatic wiping malfunction occurs,
the wipers will operate in intermittent mode.
Have it checked by a PEUGEOT dealer.
To park the wipers after this
has been done, switch on the
ignition and operate the stalk.
To maintain the effectiveness of the
"fl at-blade" wiper blades, it is advis-
able to:
- handle them with care,
- clean them regularly using soapy
water,
- avoid using them to retain card-
board on the windscreen,
- replace them at the fi rst signs of
wear.

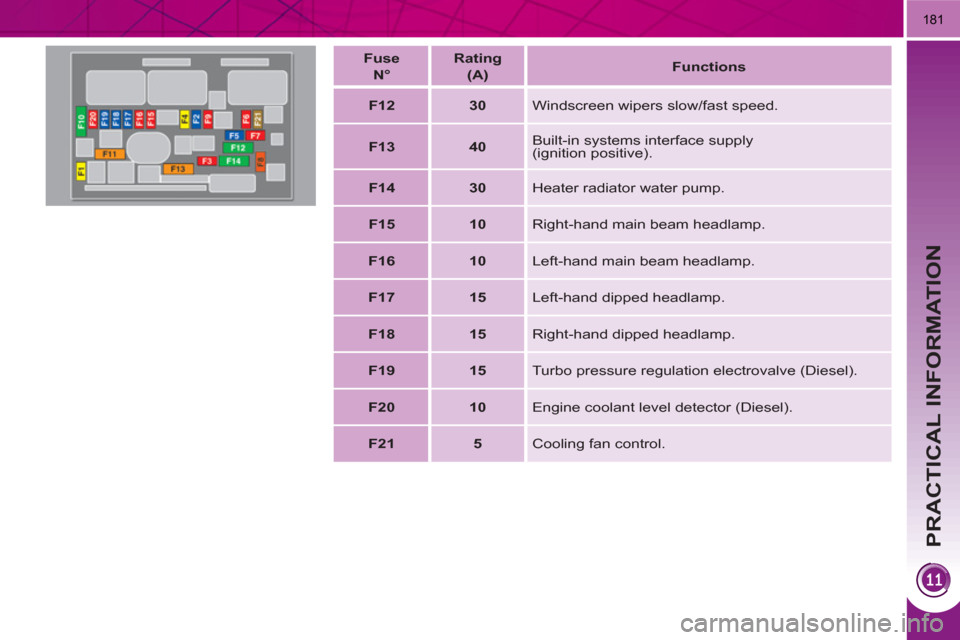

Page 183 of 280
PRACTICAL INFORMATION
181
Fuse
N°
Rating
(A)
Functions
F12
30
Windscreen wipers slow/fast speed.
F13
40
Built-in systems interface supply
(ignition positive).
F14
30
Heater radiator water pump.
F15
10
Right-hand main beam headlamp.
F16
10
Left-hand main beam headlamp.
F17
15
Left-hand dipped headlamp.
F18
15
Right-hand dipped headlamp.
F19
15
Turbo pressure regulation electrovalve (Diesel).
F20
10
Engine coolant level detector (Diesel).
F21
5
Cooling fan control.
Page 268 of 280
ALPHABETICAL INDEX
266
Accessories ........................191, 192
Accessories socket,
12 volt ...................... 106, 108, 114
Adjustable boot fl oor ................... 114
Adjusting headlamps ....................99
Adjusting head restraints ..............74
Adjusting seat belt height ...........129
Adjusting the steering wheel.........78
Air conditioning (digital) ..........68, 69
Air fi lter .......................................161
Air vents........................................67
Alarm ............................................86
Anti-pinch.............................. 88, 112
Anti-theft steering lock ..................83
Armrest .......................................106
Assistance call ....................200, 201
Audible warning ..........................126
Audio/video sockets....................230
Audio streaming
(Bluetooth) ...............................258
Audio systems ....................203, 247
Automatic illumination
of headlamps .......................96, 99
Automatic operation of hazard
warning lamps .........................126
Automatic rain sensitive
windscreen wipers ...........100, 102
Auxiliary sockets .................230, 256Bluetooth (telephone) .........231, 257
Bonnet ........................................157
Bonnet stay.................................157
Boot lamp ...................................105
Boot lid..........................................92
Brake discs .................................162
Brake lamps................................174
Brake pads .................................162
Brakes ........................................162
Capacity, fuel tank ........................94
CD MP3 ..............................227, 253
Central locking ........................82, 91
Changing a bulb ................. 172-175
Changing a fuse ................. 176-182
Changing a wheel ............... 169-171
Changing a wiper blade ......102, 187
Changing the date ..............235, 259
Changing the remote
control battery ............................84
Changing the time ..............235, 259
Checking levels ..................160, 161
Checking the engine oil level ........56
Checking tyre pressures
(using the kit) ...........................168
Checks................................ 157-162
Child lock ....................................125
Children .......117-125, 131, 133, 135
Child seats ................................. 117
Child seats, conventional.... 118, 120
Child seats, Isofi x ...............123, 124
Closing the boot................82, 92, 93
Closing the doors....................82, 90
Cold climate screen ....................190
Connectors,
audio ....... 107, 108, 230, 254, 256Control for panoramic
sunroof blind ............................ 112
Control stalk, wipers ........... 100-102
Coolant level .........................53, 160
Coolant temperature .....................53
Coolant temperature indicator ......53
Courtesy lamps...........................103
Courtesy mirror ...........................107
Cruise control .............................148
Cup holder ..................................106
Curtain airbags ...................134, 135
A
C
Battery ......................... 39, 161, 183
Battery, remote control ...........84, 85
Battery recharge .........................184
Blind for panoramic sunroof........ 112
Blinds .......................................... 116
Bluetooth (hands-free) ........231, 257
B
Dashboard fusebox ....................177
Date (display) .....................235, 259
Daytime running lamps .........98, 172
Deactivating ESP ........................128
Deactivating
the passenger airbag ...............133
Deadlocking ..................................82
Defrosting .....................................68
Dials and gauges ..........................43
Diesel............................................95
Diesel additive level ....................161
Diesel engine ................ 36, 95, 158,
159, 194, 195
Dimensions .................................196
Dipped beam ........................96, 172
Dipstick .................................56, 160
Direction indicators .... 126, 173, 174
Door mirrors ..................................79
Doors ............................................90
Doors emergency control .............92
Door POCKETS..........................106
Dynamic emergency braking ......139
D
