Peugeot 3008 Hybrid 4 2013 Owner's Manual - RHD (UK. Australia)

FITTINGS

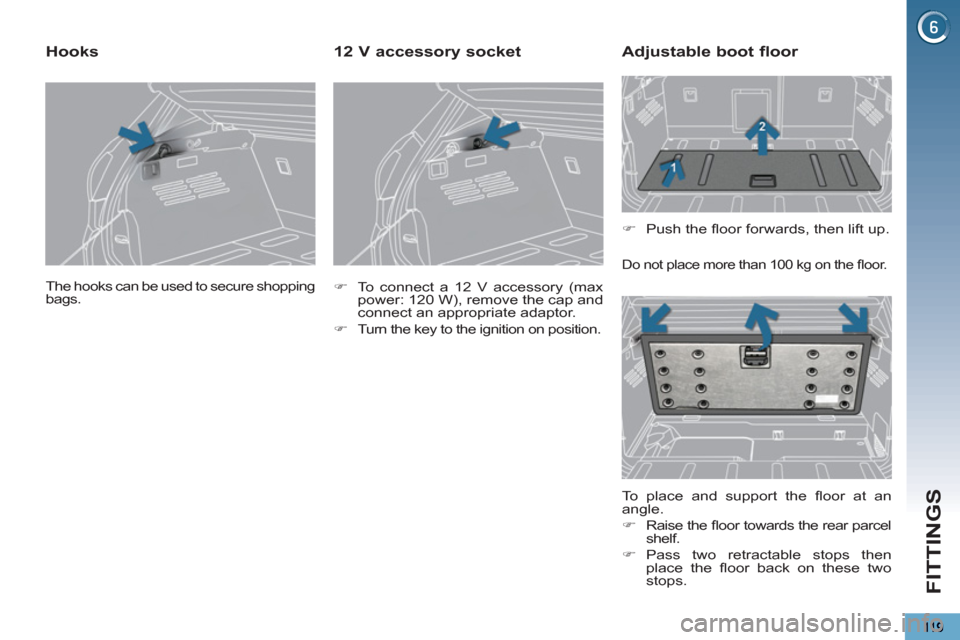

The hooks can be used to secure shopping
bags.







Hooks



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)
Turn the key to the ignition on position.








12 V accessory socket





Adjustable boot floor




)
Push the fl oor forwards, then lift up.


To place and support the fl oor at an
angle.


)
Raise the fl oor towards the rear parcel
shelf.

)
Pass two retractable stops then
place the fl oor back on these two
stops.


Do not place more than 100 kg on the fl oor.

FITTINGS

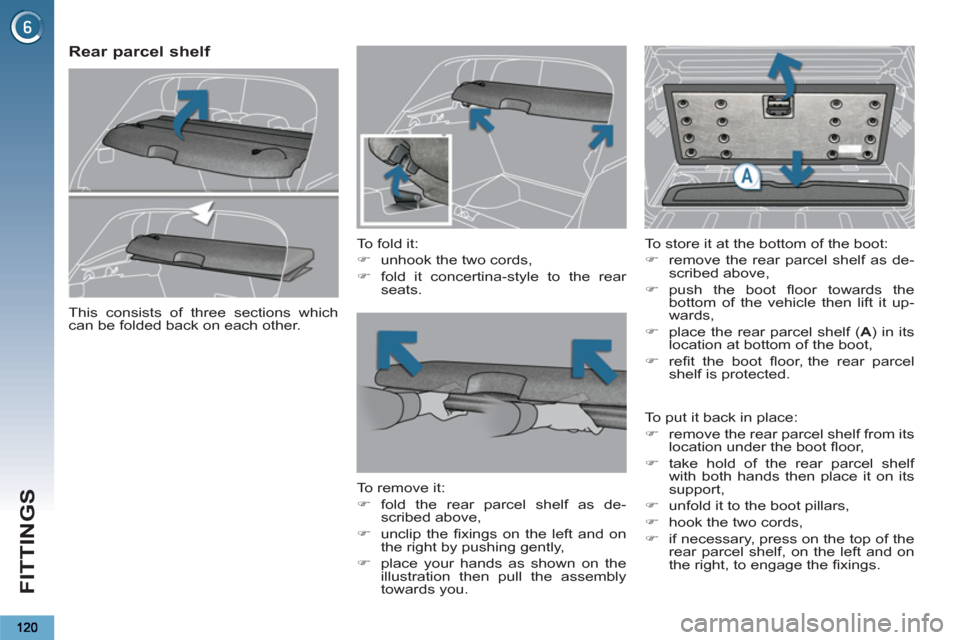

Rear parcel shelf


To fold it:


)
unhook the two cords,

)
fold it concertina-style to the rear
seats.


To remove it:


)
fold the rear parcel shelf as de-
scribed above,

)
unclip the fi xings on the left and on
the right by pushing gently,

)
place your hands as shown on the
illustration then pull the assembly
towards you.
To store it at the bottom of the boot:


)
remove the rear parcel shelf as de-
scribed above,

)
push the boot fl oor towards the
bottom of the vehicle then lift it up-
wards,

)
place the rear parcel shelf ( A
) in its
location at bottom of the boot,

)
refi t the boot fl oor, the rear parcel
shelf is protected.
This consists of three sections which
can be folded back on each other.

To put it back in place:


)
remove the rear parcel shelf from its
location under the boot fl oor,

)
take hold of the rear parcel shelf
with both hands then place it on its
support,

)
unfold it to the boot pillars,

)
hook the two cords,

)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.

FITTINGS
121


)

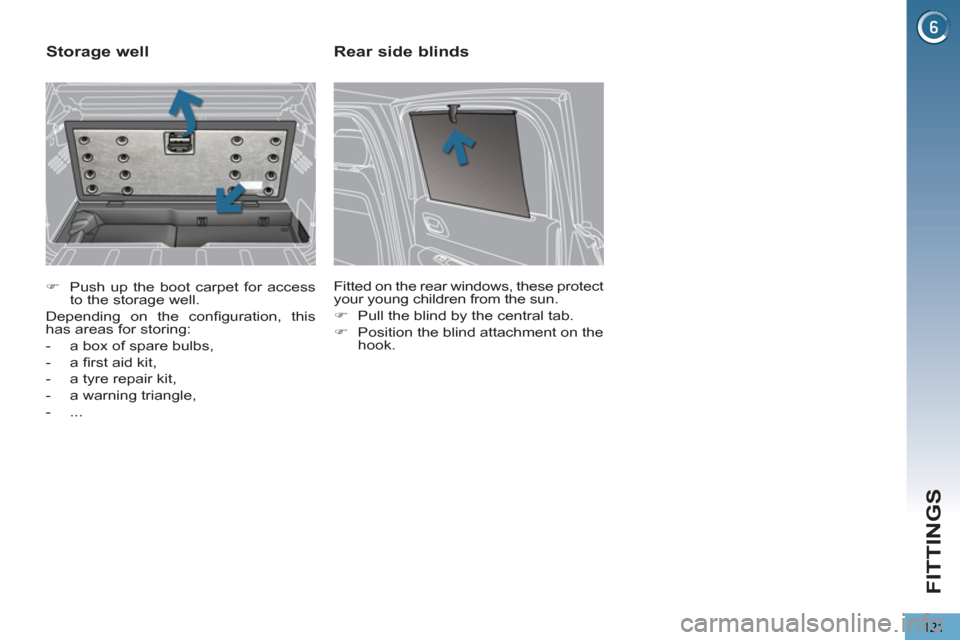

Push up the boot carpet for access
to the storage well.
Depending on the confi guration, this
has areas for storing:


- a box of spare bulbs,

- a fi rst aid kit,

- a tyre repair kit,

- a warning triangle,

- ...








Storage well








Rear side blinds

Fitted on the rear windows, these protect
your young children from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachment on the
hook.

CHILD SAFETY
122














PEUGEOT recommends
that
children should travel in the
outer
rear seats
of your ve-
hicle:


-
"rearwards-facing"
up to the age of 2,

-
"forwards-facing"
over the age of 2.

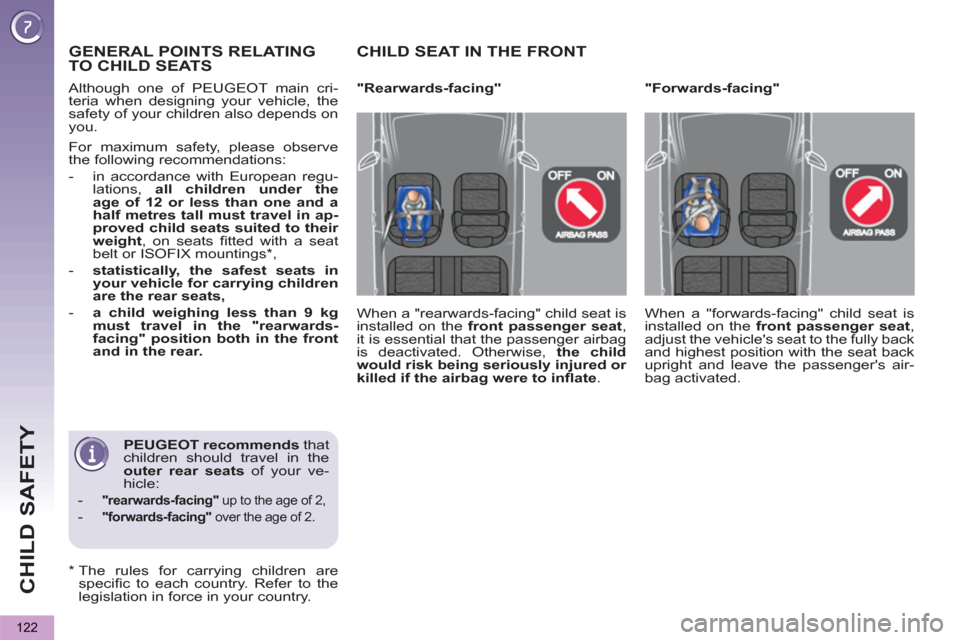

GENERAL POINTS RELATING TO CHILD SEATS


"Forwards-facing"

"Rearwards-facing"

Although one of PEUGEOT main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
CHILD SEAT IN THE FRONT

When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
. When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the fully back
and highest position with the seat back
upright and leave the passenger's air-
bag activated.
For maximum safety, please observe
the following recommendations:


- in accordance with European regu-
lations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.







*
The rules for carrying children are
specifi c to each country. Refer to the
legislation in force in your country.

CHILD SAFETY
123

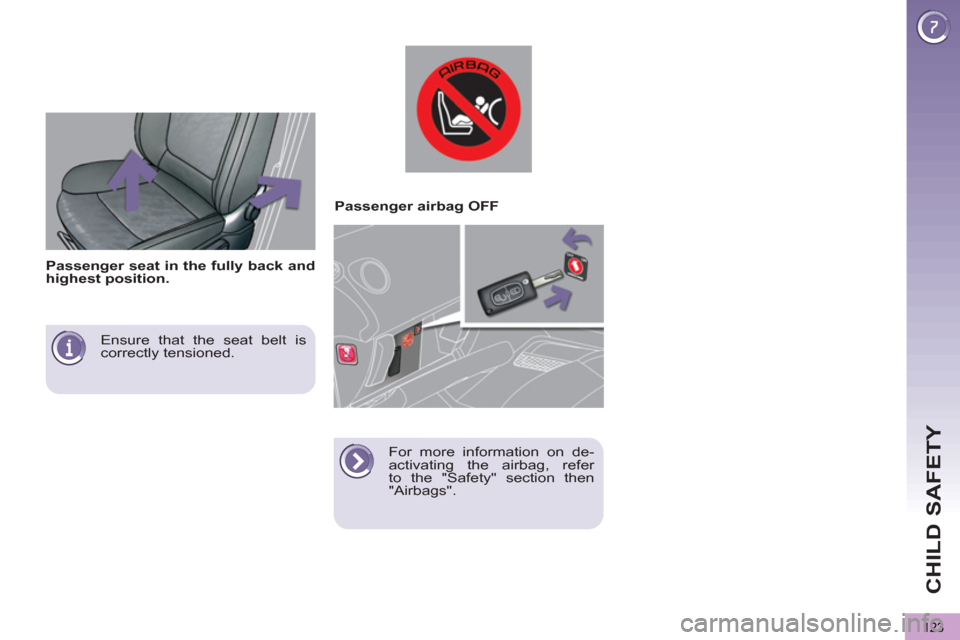

Ensure that the seat belt is
correctly tensioned.














Passenger seat in the fully back and
highest position.









Passenger airbag OFF

For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".

AR
BG
НИКОГА НЕ инсталирайте детско столче на седалка с АКТИВИРАНА предна ВЪЗДУШНА ВЪЗГЛАВНИЦА. То в а можеда причини СМЪРТ
или СЕРИОЗНО НАРАНЯВАНЕ на детето.
CSNIKDY neumisťujte dětské zádržné zařízení orientované směrem dozadu na sedadlo chráněné AKTIVOVANÝM čelním AIRBAGEM. Hrozí
nebezpečí SMRTI DÍTĚTE nebo VÁŽNÉHO ZRANĚNÍ.
DABrug aldrig en bagudvendt barnestol på et sæde der er beskyttet af en aktiv airbag. Død eller alvorlig skade på barnet kan forekomme.
DEVerwenden Sie NIEMALS einen Kindersitz oder Babyschale gegen die Fahrtrichtung bei AKTIVIERTEM Airbag, TOD oder ERNSTHAFTE
VERLETZUNGEN können die Folge sein.
ELΜη χρησιμοποιείτε ΠΟΤΕ παιδικό κάθισμα με την πλάτη του προς το εμπρός μέρος του αυτοκινήτου, σε μια θέση που προστατεύεται από ΜΕΤΩΠΙΚΟ
αερόσακο που είναι ΕΝΕΡΓΟΣ. Αυτό μπορεί να έχει σαν συνέπεια το ΘΑΝΑΤΟ ή το ΣΟΒΑΡΟ ΤΡΑΥΜΑΤΙΣΜΟ του ΠΑΙΔΙΟΥ
ENNEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front of it, DEATH or SERIOUS INJURY to the CHILD
can occur
ESNO INSTALAR NUNCA EL SISTEMA DE RETENCIÓN PARA NIÑOS DE ESPALDAS AL SENTIDO DE LA CIRCULACIÓN SOBRE UN ASIENTO
PROTEGIDO CON UN COJÍN INFLABLE FRONTAL ( AIRBAG ) ACTIVADO. ESTO PUEDE CAUSAR LA MUERTE DEL BEBE O HERIRLO
GRAVEMENTE.
ETÄrge kasutage kunagi lapse turvatooli seljaga sõidusuunas sõiduki istmel mis on kaitstud AKTIVEERITUD TURVAPADJAGA. See võib põhjustada
lapsele RASKEID VIGASTUSI või SURMA.
FIÄLÄ KOSKAAN aseta lapsen turvaistuinta selkä ajosuuntaan istuimelle, jonka edessä suojana on käyttöön aktivoitu TURVATYYNY. Sen laukeam-
inen voi aiheuttaa LAPSEN KUOLEMAN tai VAKAVAN LOUKKAANTUMISEN.
FRNE JAMAIS installer de système de retenue pour enfants faisant face vers l’arrière sur un siège protégé par un COUSSIN GONFLABLE frontal
ACTIVÉ.
Cela peut provoquer la MORT de l’ENFANT ou le BLESSER GRAVEMENT
HRNIKADA ne postavljati dječju sjedalicu leđima u smjeru vožnje na sjedalo zaštićeno UKLJUČENIM prednjim ZRAČNIM JASTUKOM. To bi moglo
uzrokovati SMRT ili TEŠKU OZLJEDU djeteta.CHILD SAFETY
124

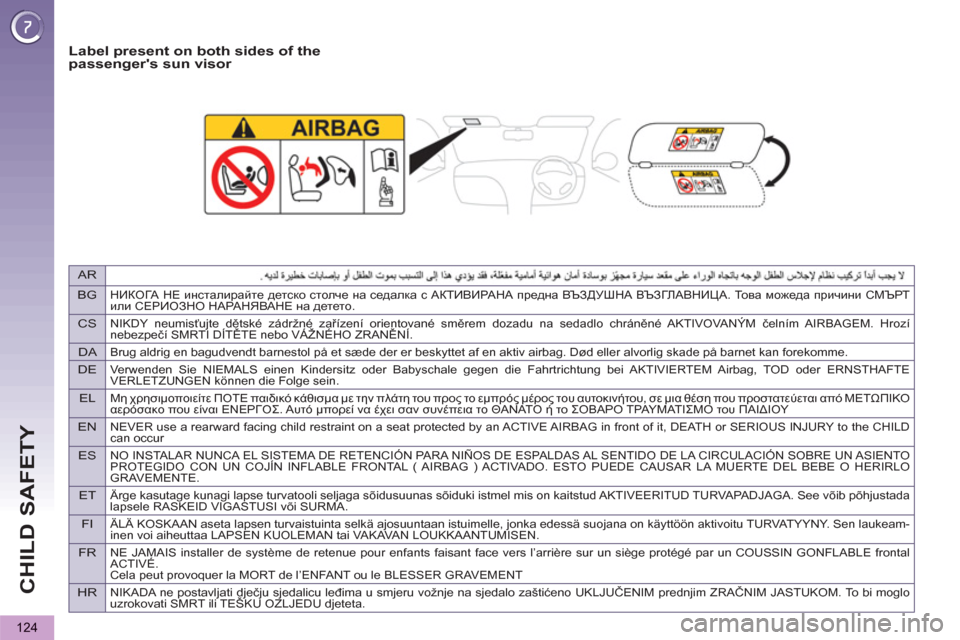

Label present on both sides of the
passenger's sun visor

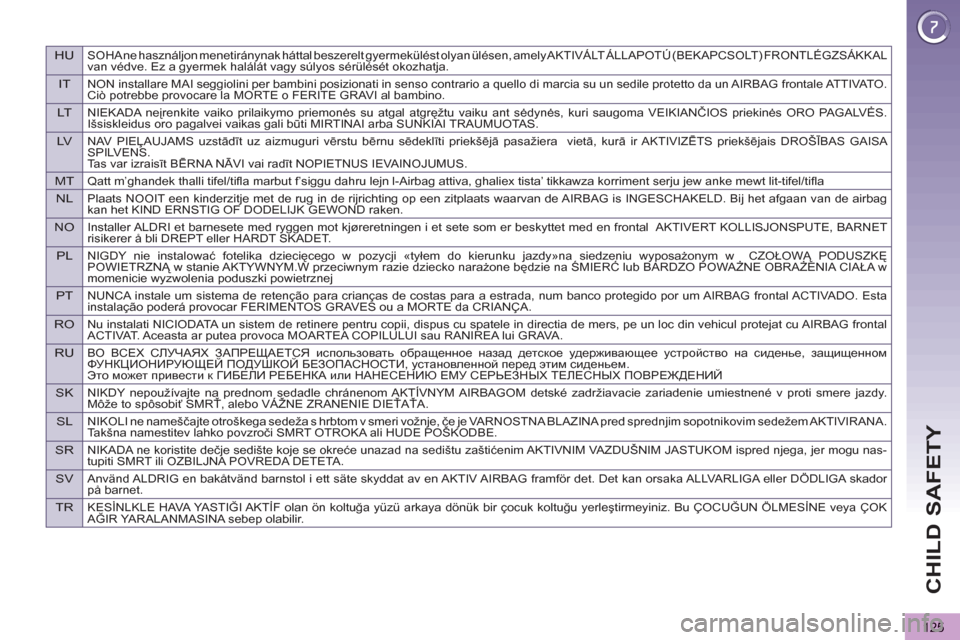

HUSOHA ne használjon menetiránynak háttal beszerelt gyermekülést olyan ülésen, amely AKTIVÁLT ÁLLAPOTÚ (BEKAPCSOLT) FRONTLÉGZSÁKKAL
van védve. Ez a gyermek halálát vagy súlyos sérülését okozhatja.
ITNON installare MAI seggiolini per bambini posizionati in senso contrario a quello di marcia su un sedile protetto da un AIRBAG frontale ATTIVATO.
Ciò potrebbe provocare la MORTE o FERITE GRAVI al bambino.
LTNIEKADA neįrenkite vaiko prilaikymo priemonės su atgal atgręžtu vaiku ant sėdynės, kuri saugoma VEIKIANČIOS priekinės ORO PAGALVĖS.
Išsiskleidus oro pagalvei vaikas gali būti MIRTINAI arba SUNKIAI TRAUMUOTAS.
LVNAV PIEĻAUJAMS uzstādīt uz aizmuguri vērstu bērnu sēdeklīti priekšējā pasažiera vietā, kurā ir AKTIVIZĒTS priekšējais DROŠĪBAS GAISA
SPILVENS.
Tas var izraisīt BĒRNA NĀVI vai radīt NOPIETNUS IEVAINOJUMUS.
MTQatt m’ghandek thalli tifel/tifl a marbut f’siggu dahru lejn l-Airbag attiva, ghaliex tista’ tikkawza korriment serju jew anke mewt lit-tifel/tifl a
NLPlaats NOOIT een kinderzitje met de rug in de rijrichting op een zitplaats waarvan de AIRBAG is INGESCHAKELD. Bij het afgaan van de airbag
kan het KIND ERNSTIG OF DODELIJK GEWOND raken.
NOInstaller ALDRI et barnesete med ryggen mot kjøreretningen i et sete som er beskyttet med en frontal AKTIVERT KOLLISJONSPUTE, BARNET
risikerer å bli DREPT eller HARDT SKADET.
PLNIGDY nie instalować fotelika dziecięcego w pozycji «tyłem do kierunku jazdy»na siedzeniu wyposażonym w CZOŁOWĄ PODUSZKĘ
POWIETRZNĄ w stanie AKTYWNYM.W przeciwnym razie dziecko narażone będzie na ŚMIERĆ lub BARDZO POWAŻNE OBRAŻENIA CIAŁA w
momenicie wyzwolenia poduszki powietrznej
PTNUNCA instale um sistema de retenção para crianças de costas para a estrada, num banco protegido por um AIRBAG frontal ACTIVADO. Esta
instalação poderá provocar FERIMENTOS GRAVES ou a MORTE da CRIANÇA.
RONu instalati NICIODATA un sistem de retinere pentru copii, dispus cu spatele in directia de mers, pe un loc din vehicul protejat cu AIRBAG frontal
ACTIVAT. Aceasta ar putea provoca MOARTEA COPILULUI sau RANIREA lui GRAVA.
RUВО ВСЕХ СЛУЧАЯХ ЗАПРЕЩАЕТСЯ использовать обращенное назад детское удерживающее устройство на сиденье, защищенном
ФУНКЦИОНИРУЮЩЕЙ ПОДУШКОЙ БЕЗОПАСНОСТИ, установленной перед этим сиденьем.
Это может привести к ГИБЕЛИ РЕБЕНКА или НАНЕСЕНИЮ ЕМУ СЕРЬЕЗНЫХ ТЕЛЕСНЫХ ПОВРЕЖДЕНИЙ
SKNIKDY nepoužívajte na prednom sedadle chránenom AKTÍVNYM AIRBAGOM detské zadržiavacie zariadenie umiestnené v proti smere jazdy.
Môže to spôsobiť SMRŤ, alebo VÁŽNE ZRANENIE DIEŤAŤA.
SLNIKOLI ne nameščajte otroškega sedeža s hrbtom v smeri vožnje, če je VARNOSTNA BLAZINA pred sprednjim sopotnikovim sedežem AKTIVIRANA.
Takšna namestitev lahko povzroči SMRT OTROKA ali HUDE POŠKODBE.
SRNIKADA ne koristite dečje sedište koje se okreće unazad na sedištu zaštićenim AKTIVNIM VAZDUŠNIM JASTUKOM ispred njega, jer mogu nas-
tupiti SMRT ili OZBILJNA POVREDA DETETA.
SVAnvänd ALDRIG en bakåtvänd barnstol i ett säte skyddat av en AKTIV AIRBAG framför det. Det kan orsaka ALLVARLIGA eller DÖDLIGA skador
på barnet.
TRKESİNLKLE HAVA YASTIĞI AKTİF olan ön koltuğa yüzü arkaya dönük bir çocuk koltuğu yerleştirmeyiniz. Bu ÇOCUĞUN ÖLMESİNE veya ÇOK
AĞIR YARALANMASINA sebep olabilir.
CHILD SAFETY
125

CHILD SAFETY
126

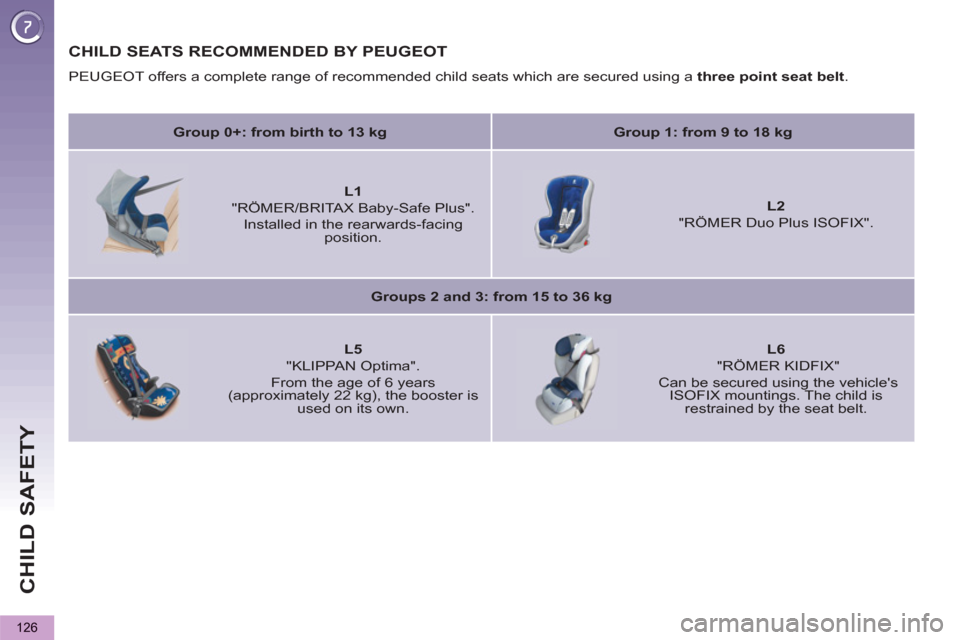

CHILD SEATS RECOMMENDED BY PEUGEOT
PEUGEOT offers a complete range of recommended child seats which are secured using a three point seat belt
.


Group 0+: from birth to 13 kg



Group 1: from 9 to 18 kg






L1

"RÖMER/BRITAX Baby-Safe Plus".
Installed in the rearwards-facing
position.



L2

"RÖMER Duo Plus ISOFIX".


Groups 2 and 3: from 15 to 36 kg






L5

"KLIPPAN Optima".
From the age of 6 years
(approximately 22 kg), the booster is
used on its own.



L6

"RÖMER KIDFIX"
Can be secured using the vehicle's
ISOFIX mountings. The child is
restrained by the seat belt.

CHILD SAFETY
127

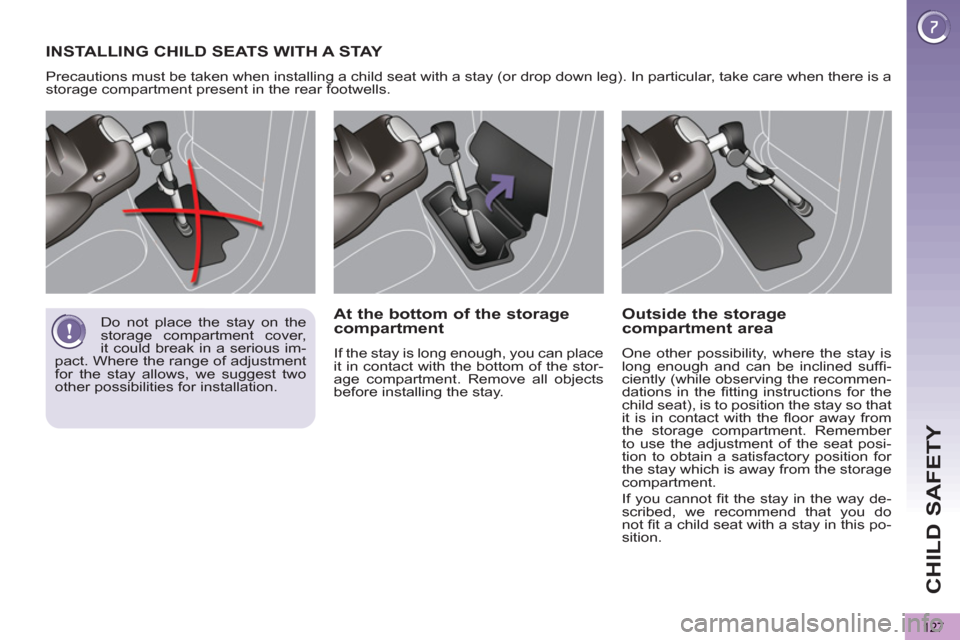

INSTALLING CHILD SEATS WITH A STAY
Precautions must be taken when installing a child seat with a stay (or drop down leg). In particular, take care when there is a
storage compartment present in the rear footwells.

At the bottom of the storage
compartment
If the stay is long enough, you can place
it in contact with the bottom of the stor-
age compartment. Remove all objects
before installing the stay.


Outside the storage
compartment area
One other possibility, where the stay is
long enough and can be inclined suffi -
ciently (while observing the recommen-
dations in the fi tting instructions for the
child seat), is to position the stay so that
it is in contact with the fl oor away from
the storage compartment. Remember
to use the adjustment of the seat posi-
tion to obtain a satisfactory position for
the stay which is away from the storage
compartment.
If you cannot fi t the stay in the way de-
scribed, we recommend that you do
not fi t a child seat with a stay in this po-
sition. Do not place the stay on the
storage compartment cover,
it could break in a serious im-
pact. Where the range of adjustment
for the stay allows, we suggest two
other possibilities for installation.

CHILD SAFETY
128

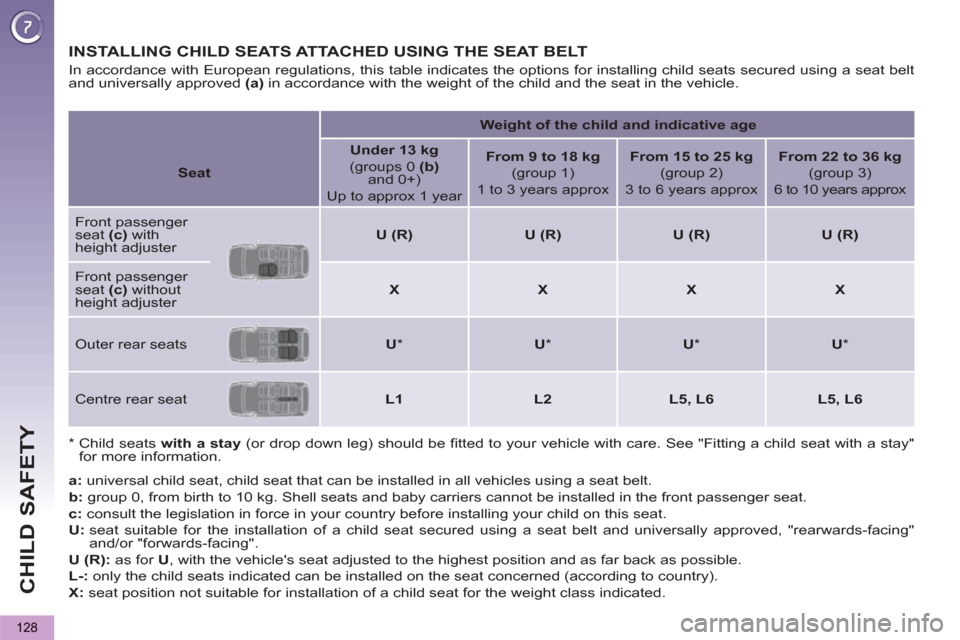

INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT


*
Child seats with a
stay
(or drop down leg) should be fi tted to your vehicle with care. See "Fitting a child seat with a stay"
for more information.
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.


Weight of the child and indicative age




Seat



Under 13 kg

(groups 0 (b)

and 0+)
Up to approx 1 year

From 9 to 18 kg

(group 1)
1 to 3 years approx

From 15 to 25 kg

(group 2)
3 to 6 years approx

From 22 to 36 kg

(group 3)
6 to 10 years approx
Front passenger
seat (c)
with
height adjuster




U (R)



U (R)



U (R)



U (R)


Front passenger
seat (c)
without
height adjuster

X



X



X



X


Outer rear seats



U

*


U

*


U

*


U

*

Centre rear seat



L1



L2



L5, L6



L5, L6




a:
universal child seat, child seat that can be installed in all vehicles using a seat belt.

b:
group 0, from birth to 10 kg. Shell seats and baby carriers cannot be installed in the front passenger seat.

c:
consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".

U (R):
as for U
, with the vehicle's seat adjusted to the highest position and as far back as possible.

L-:
only the child seats indicated can be installed on the seat concerned (according to country).

X:
seat position not suitable for installation of a child seat for the weight class indicated.
