VERY COLD CLIMATE SCREEN
Removable protective screen which
prevents the accumulation of snow at
the radiator cooling fan.
Before fi tting or removing the screen,
ensure that the engine is off and the
cooling fan has stopped. It is recom-
mended that the screen be fi tted and
removed by a PEUGEOT dealer or a
qualifi ed workshop.

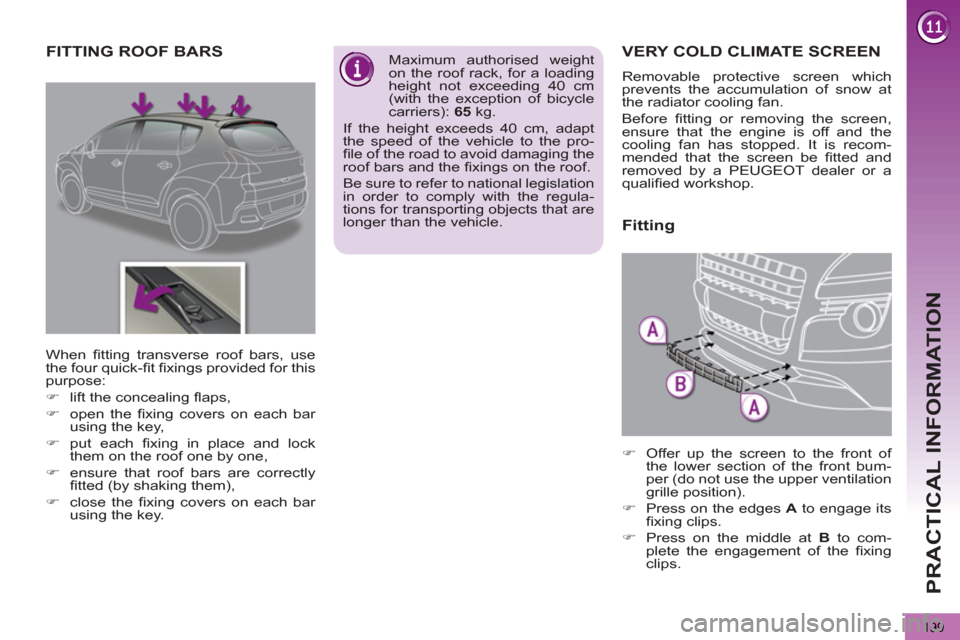

FITTING ROOF BARS

Maximum authorised weight
on the roof rack, for a loading
height not exceeding 40 cm
(with the exception of bicycle
carriers): 65
kg.
If the height exceeds 40 cm, adapt
the speed of the vehicle to the pro-
fi le of the road to avoid damaging the
roof bars and the fi xings on the roof.
Be sure to refer to national legislation
in order to comply with the regula-
tions for transporting objects that are
longer than the vehicle.


When fi tting transverse roof bars, use
the four quick-fi t fi xings provided for this
purpose:


)
lift the concealing fl aps,

)
open the fi xing covers on each bar
using the key,

)
put each fi xing in place and lock
them on the roof one by one,

)
ensure that roof bars are correctly
fi tted (by shaking them),

)
close the fi xing covers on each bar
using the key.


Fitting



)
Offer up the screen to the front of
the lower section of the front bum-
per (do not use the upper ventilation
grille position).

)
Press on the edges A
to engage its
fi xing clips.

)
Press on the middle at B
to com-
plete the engagement of the fi xing
clips.

PRACTICAL INFORMATION
200

Removal



)
Pull on the very cold climate screen
using the cut-outs 1
then 2
at the
edges of the screen.
Do not forget to remove the very cold
climate screen:


- when the ambient temperature ex-
ceeds 10° C,

- when towing,

- at speeds above 75 mph (120 km/h).

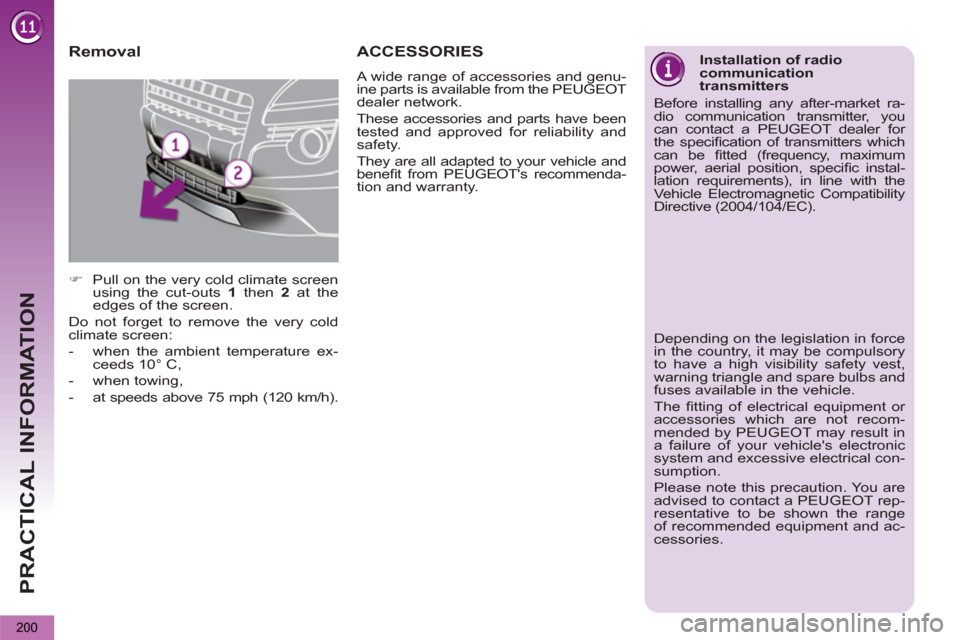

ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).



Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equipment or
accessories which are not recom-
mended by PEUGEOT may result in
a failure of your vehicle's electronic
system and excessive electrical con-
sumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.

PRACTICAL INFORMATION
201

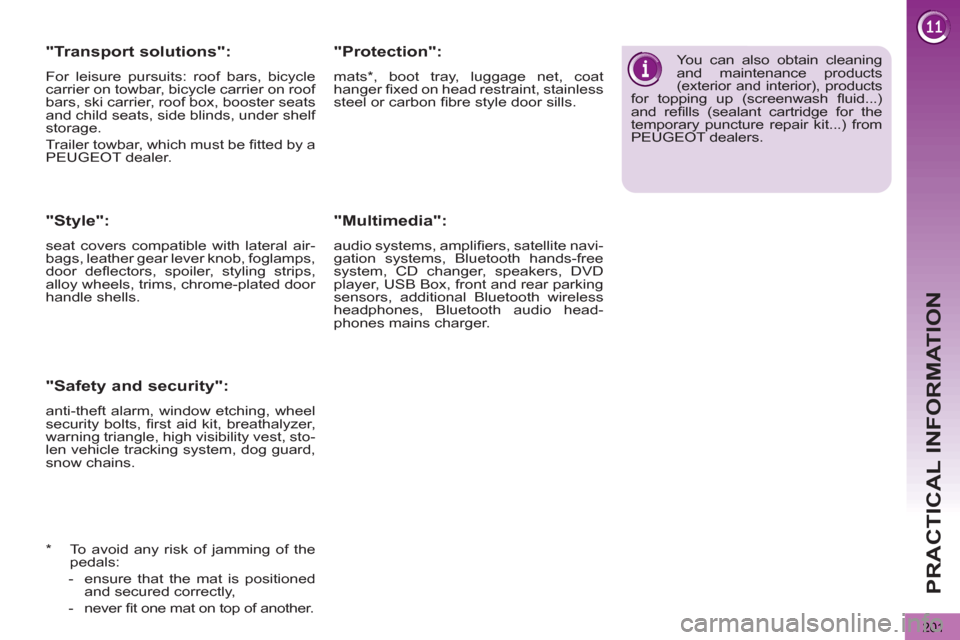

"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.
You can also obtain cleaning
and maintenance products
(exterior and interior), products for topping up (screenwash fl uid...)
and refi lls (sealant cartridge for the
temporary puncture repair kit...) from
PEUGEOT dealers.



*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.



"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.


"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.


"Multimedia":

audio systems, amplifi ers, satellite navi-
gation systems, Bluetooth hands-free
system, CD changer, speakers, DVD
player, USB Box, front and rear parking
sensors, additional Bluetooth wireless
headphones, Bluetooth audio head-
phones mains charger.

TECHNICAL DATA
202

Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and
ageing of the battery.

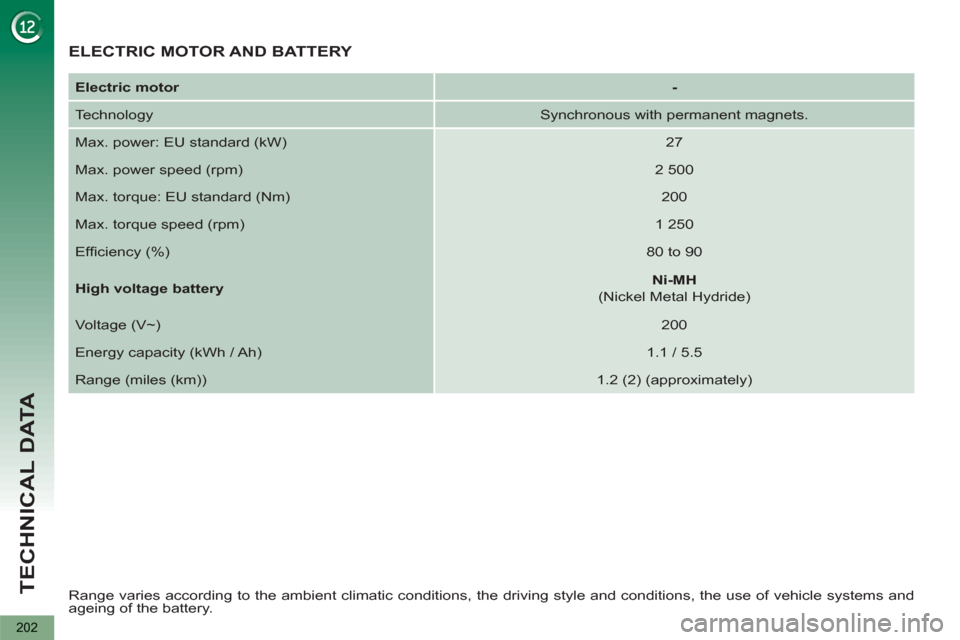

ELECTRIC MOTOR AND BATTERY


Electric motor


-


Technology
Synchronous with permanent magnets.
Max. power: EU standard (kW)
27
Max. power speed (rpm)
2 500
Max. torque: EU standard (Nm)
200
Max. torque speed (rpm)
1 250
Effi ciency (%)
80 to 90

High voltage battery


Ni-MH

(Nickel Metal Hydride)
Voltage (V~)

200
Energy capacity (kWh / Ah)
1.1 / 5.5
Range (miles (km))
1.2 (2) (approximately)

TECHNICAL DATA
203

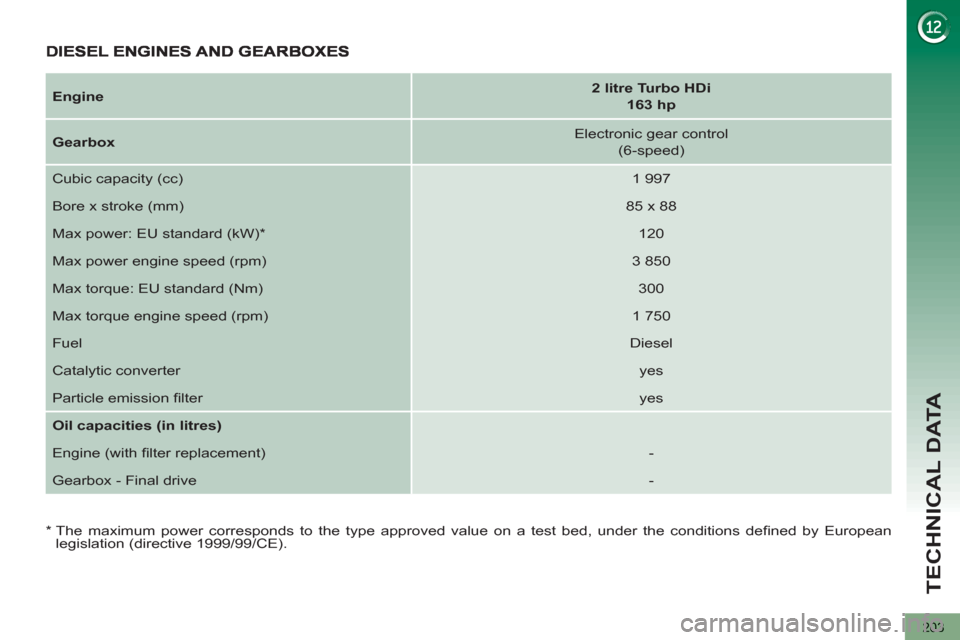

Engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)
Cubic capacity (cc)
1 997
Bore x stroke (mm)
85 x 88
Max power: EU standard (kW) *
120
Max power engine speed (rpm)
3 850
Max torque: EU standard (Nm)
300
Max torque engine speed (rpm)
1 750
Fuel

Diesel
Catalytic converter
yes
Particle emission fi lter
yes

Oil capacities (in litres)



Engine (with fi lter replacement)
-
Gearbox - Final drive
-


*
The maximum power corresponds to the type approved value on a test bed, under the conditions defi ned by European
legislation (directive 1999/99/CE).

TECHNICAL DATA
204

The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

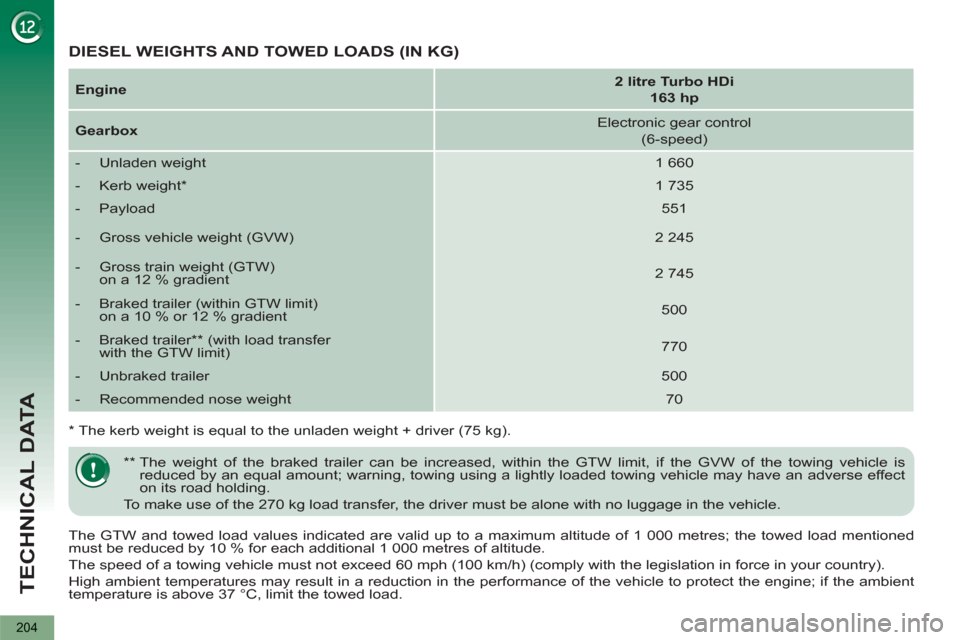

DIESEL WEIGHTS AND TOWED LOADS (IN KG)


*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is
reduced by an equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect
on its road holding.
To make use of the 270 kg load transfer, the driver must be alone with no luggage in the vehicle.
Engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)


- Unladen weight
1 660


- Kerb weight *

1 735


- Payload

551


- Gross vehicle weight (GVW)
2 245


- Gross train weight (GTW)
on a 12 % gradient
2 745


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
500


- Braked trailer ** (with load transfer
with the GTW limit)
770


- Unbraked trailer
500


- Recommended nose weight
70

TECHNICAL DATA
205
DIMENSIONS (IN MM)

TECHNICAL DATA
206

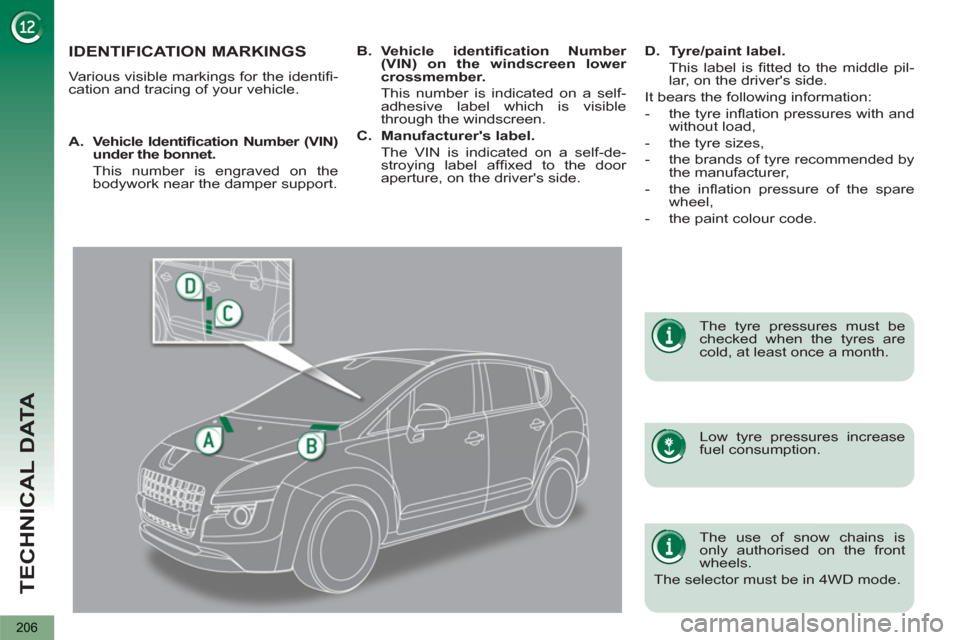

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracing of your vehicle.

Low tyre pressures increase
fuel consumption.

The tyre pressures must be
checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number (VIN)
under the bonnet.
This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number
(VIN) on the windscreen lower
crossmember.

This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.

The VIN is indicated on a self-de-
stroying label affi xed to the door
aperture, on the driver's side.
D.
Tyre/paint label.

This label is fi tted to the middle pil-
lar, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.







The use of snow chains is
only authorised on the front
wheels.
The selector must be in 4WD mode.

207
EMERGENCY OR ASSISTANCE CALL

208

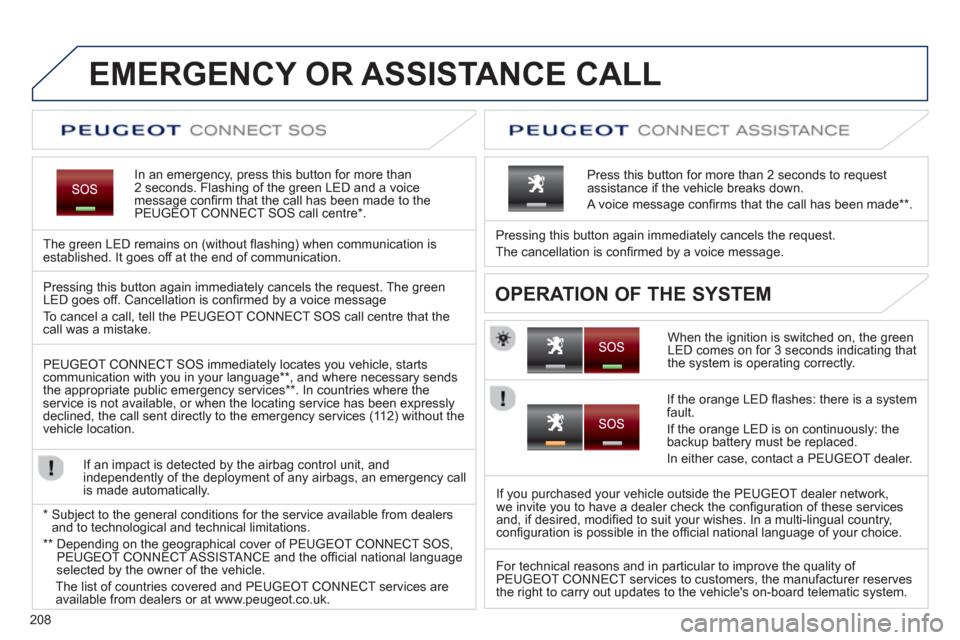

EMERGENCY OR ASSISTANCE CALL
In an emergency, press this button for more than2 seconds. Flashing of the green LED and a voice
message confi rm that the call has been made to the
PEUGEOT CONNECT SOS call centre * .
The
green LED remains on (without fl ashing) when communication is established. It goes off at the end of communication.

When the ignition is switched on, the green
LED comes on for 3 seconds indicating that
the system is operating correctly. Pressin
g this button again immediately cancels the request.
The cancellation is confi rmed b
y a voice message.
Press this button for more than 2 seconds to request
assistance if the vehicle breaks down.
A voice message confi rms that the call has been made **
.


OPERATION OF THE SYSTEM Pressing this button again immediately cancels the request. The green LED goes off. Cancellation is confi rmed by a voice message
To cancel a call, tell the PEUGE
OT CONNECT SOS call centre that thecall was a mistake.
PEUGE
OT CONNECT SOS immediately locates you vehicle, starts communication with you in your language ** , and where necessary sends
the appropriate public emergency services ** . In countries where theservice is not available, or when the locating service has been expresslydeclined, the call sent directly to the emergency services (11 2) without the
vehicle location.

If an impact is detected b
y the airbag control unit, and
independently of the deployment of any airbags, an emergency call
is made automatically.
*
Sub
ject to the general conditions for the service available from dealersand to technological and technical limitations.
**


Depending on the geographical cover of PEUGEOT CONNECT SOS,
PEUGEOT CONNECT ASSISTA NCE and the offi cial national languageselected by the owner of the vehicle.
Th
e list of countries covered and PEUGEOT CONNECT services are
available from dealers or at www.peugeot.co.uk.
If the oran
ge LED fl ashes: there is a system
fault.
If the oran
ge LED is on continuously: the backup battery must be replaced.
In either case, contact a PEU
GEOT dealer.

I
f you purchased your vehicle outside the PEUGEOT dealer network,
we invite you to have a dealer check the confi guration of these services
and, if desired, modifi ed to suit your wishes. In a multi-lingual country,confi guration is possible in the offi cial national language of your choice.

For technical reasons and in particular to improve the qualit
y of PEUGEOT CONNECT services to customers, the manufacturer reserves
the right to carry out updates to the vehicle's on-board telematic system.
