Peugeot 3008 Hybrid 4 2013 Owner's Manual - RHD (UK. Australia)

269

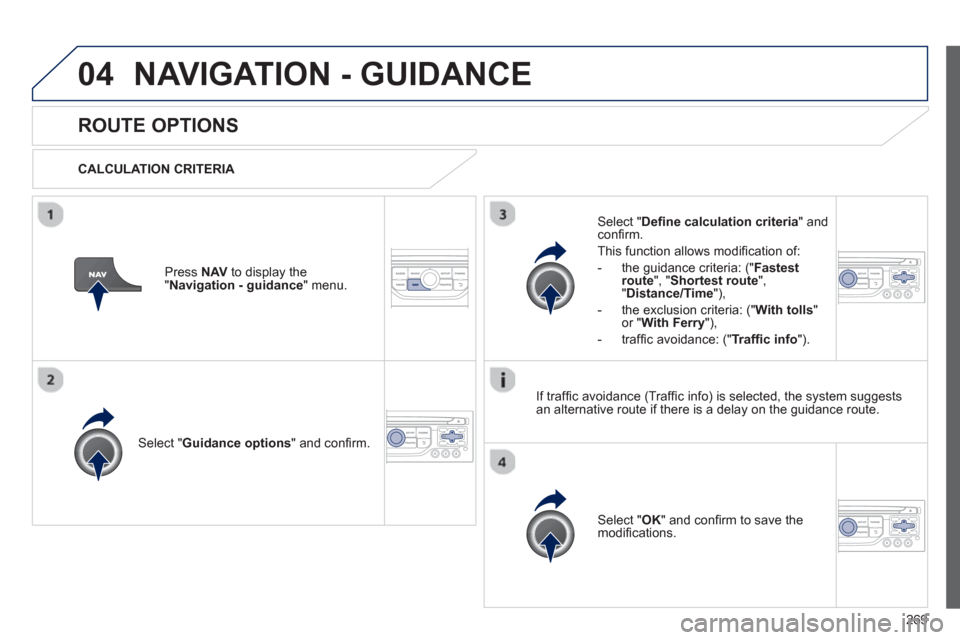

04NAVIGATION - GUIDANCE
ROUTE OPTIONS

CALCULATION CRITERIA
Select " Guidance options
" and confi rm.
Select " OK
" and confi rm to save themodifi cations.
Select " Defi ne calculation criteria" andconfi rm.
Thi
s function allows modifi cation of:

- the
guidance criteria: (" Fastest
route", " Shortest route", "Distance/Time "),

- the exclusion criteria:
(" With tolls"or "With Ferry
"),

- traffi c avoidance:
(" Traffi c info
").

Press NAV
to display the"Navigation - guidance" menu.
I
f traffi c avoidance (Traffi c info) is selected, the system suggests
an alternative route if there is a delay on the guidance route.

270

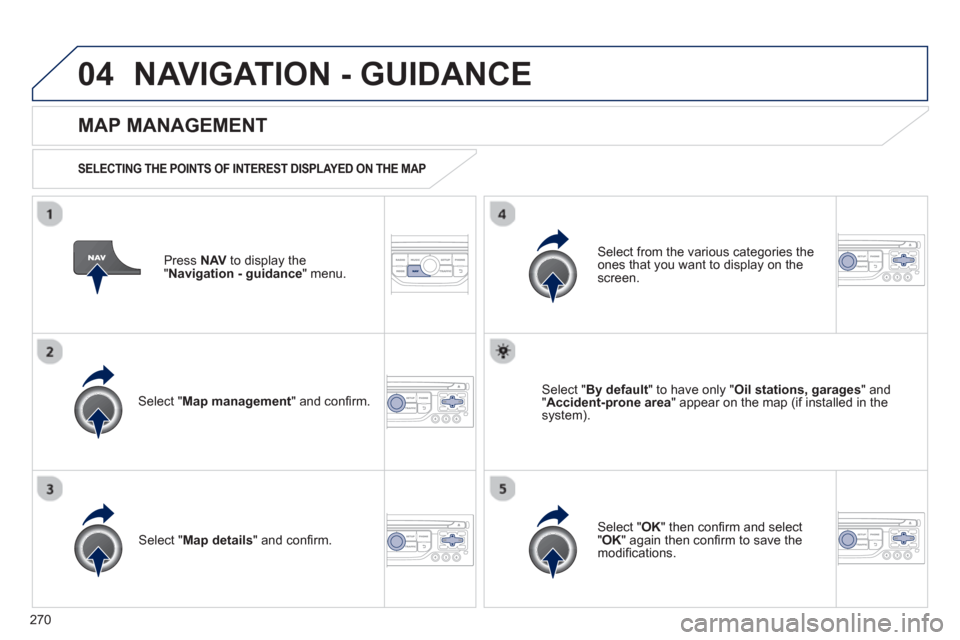

04NAVIGATION - GUIDANCE
Press NAV
to display the
"Navigation - guidance" menu.


MAP MANAGEMENT


SELECTING THE POINTS OF INTEREST DISPLAYED ON THE MAP
Select " Map management
" and confi rm.
Select from the various categories the
ones that you want to display on thescreen.

Select "Map details" and confi rm.
Select " By default" to have only "Oil stations, garages" and"Accident-prone area
" appear on the map (if installed in the
system).
Select " OK
" then confi rm and select "OK" again then confi rm to save the
modifi cations.

271
04
Select " Map management " and confi rm.
Select:


-
"Vehicle direction" to have the map follow the direction of travel,

- "North direction" to keep the map
alwa
ys North up,

- "Perspective view
" to displa
y aperspective view.


Select "Map orientation
" and confi rm. The colour o
f the map, different from the day and night mode, is confi gured in the " SETUP" menu.

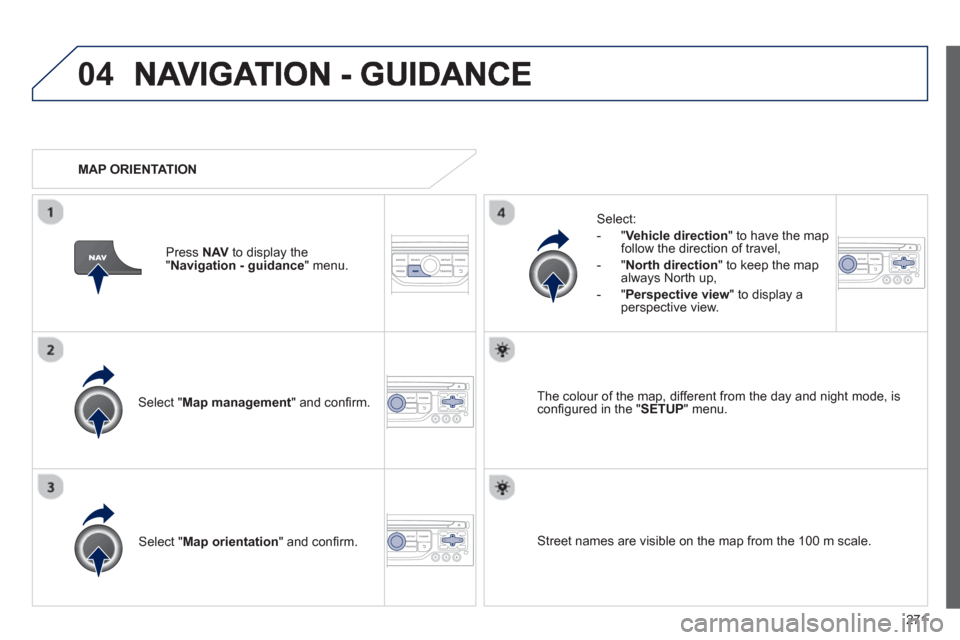

MAP ORIENTATION

Pr
ess NAV
to display the
" Navigation - guidance" menu.
Street names are visible on the map from the 100 m scale.

272
04NAVIGATION - GUIDANCE
Press NAV to display the"Navigation - guidance" menu.

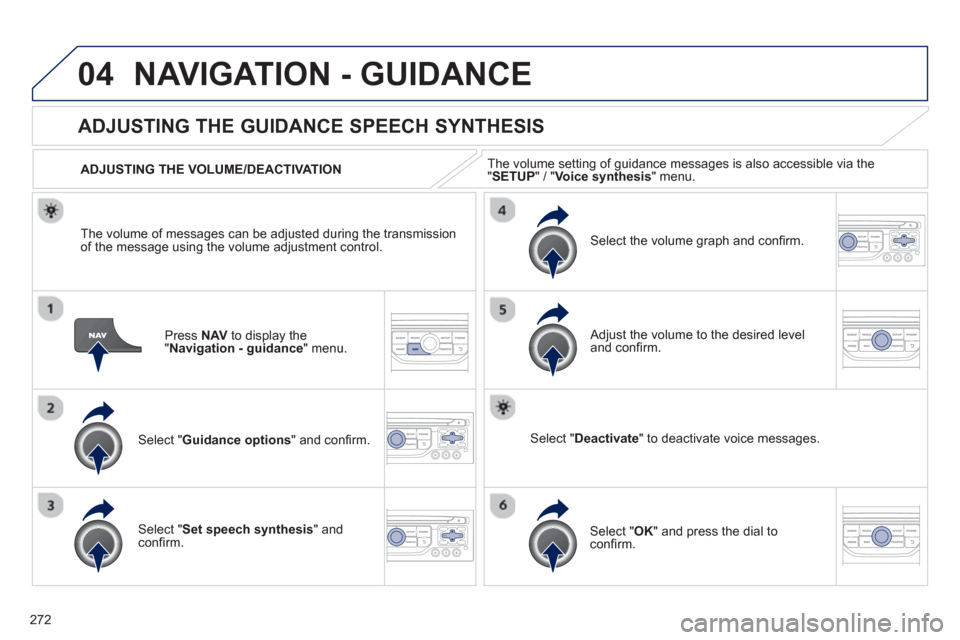

ADJUSTING THE GUIDANCE SPEECH SYNTHESIS
Select " Guidance options
" and confi rm.
ADJUSTING THE VOLUME/DEACTIVATION
Select " Set speech synthesis" andconfi rm.
Select the volume graph and confi rm.

Select "Deactivate " to deactivate voice messages.
Select " OK " and press the dial to confi rm.

Adjust the volume to the desired level and confi rm.
The volume o
f messages can be adjusted during the transmissionof the message using the volume adjustment control.The volume settin
g of guidance messages is also accessible via the "SETUP" / " Voice synthesis " menu.

273
04

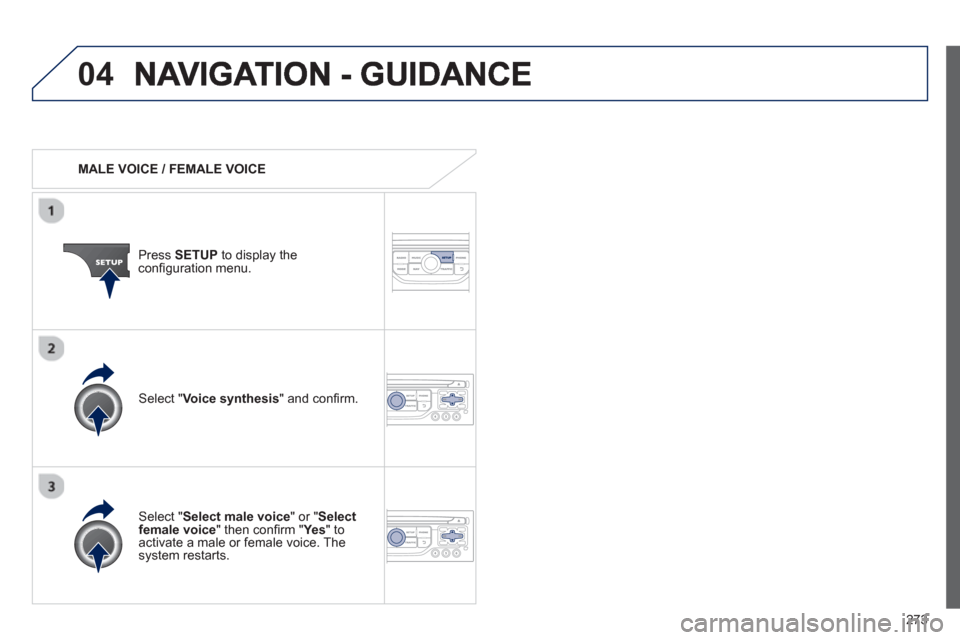

MALE VOICE / FEMALE VOICE
Press SETUP
to display theconfi guration menu.

Select "Select male voice
" or "Selectfemale voice" then confi rm " Ye s
" to activate a male or female voice. Thesystem restarts.

Select "Voice synthesis
" and confi rm.

274

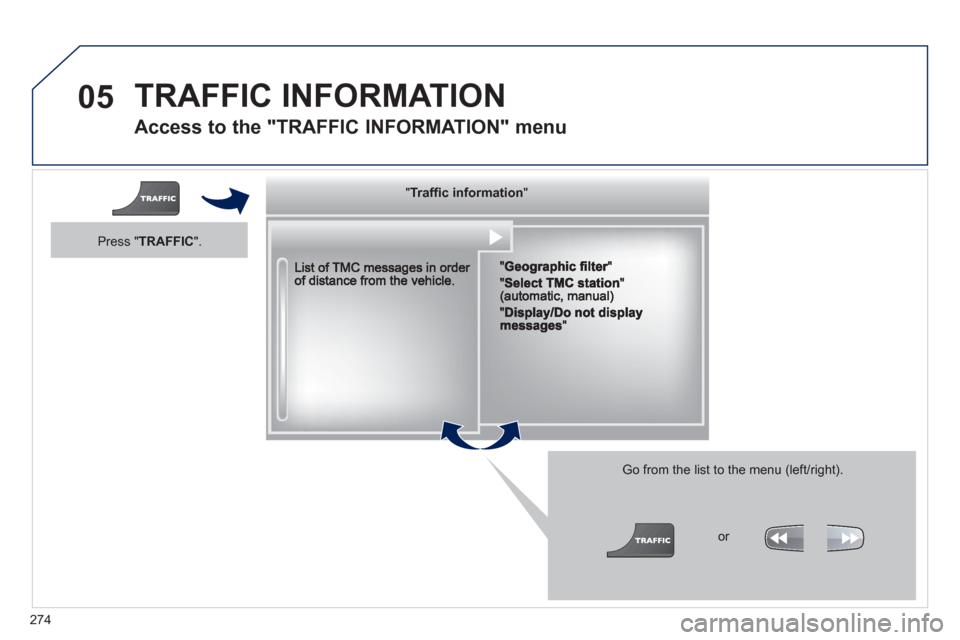

05 TRAFFIC INFORMATION


Access to the "TRAFFIC INFORMATION" menu

Go from the list to the menu (left/right).
"""""""ac o at oTraffi c informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTraffic informationTffiif tiTffiif tiTffiif tiTffiif ti """""""
or

Press "TRAFFIC".

275
05TRAFFIC INFORMATION

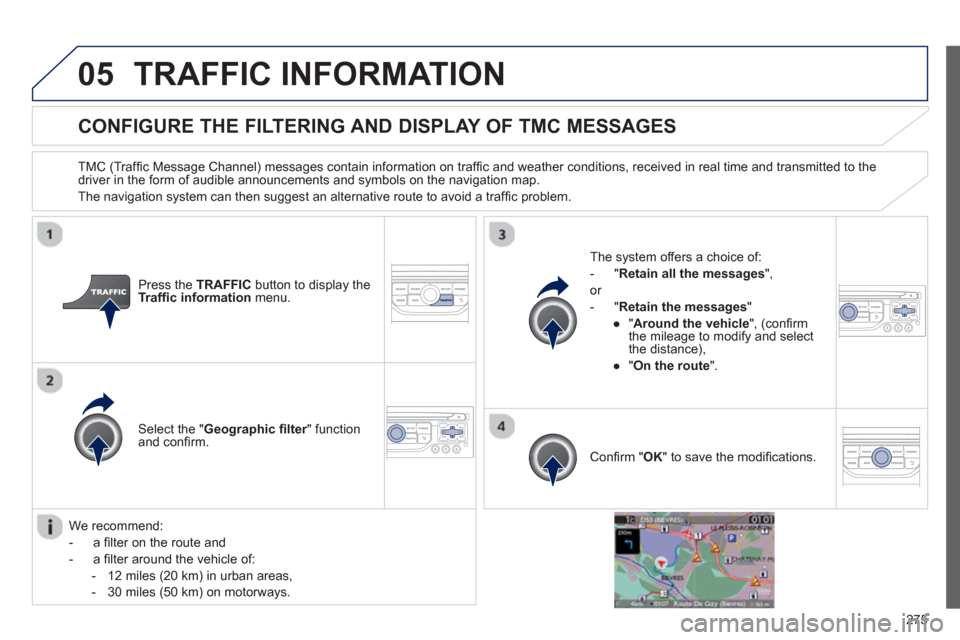

CONFIGURE THE FILTERING AND DISPLAY OF TMC MESSAGES

TMC (Traffi c Message Channel) messages contain information on traffi c and weather conditions, received in real time and transmitted to the
driver in the form of audible announcements and symbols on the navigation map.
The navi
gation system can then suggest an alternative route to avoid a traffi c problem.
Pr
ess the TRAFFICbutton to display the Traffi c informationmenu.
Select the "Geographic fi lter" function rand confi rm. The s
ystem offers a choice of:
- " Retain all the messa
ges",
or
-"Retain the messa
ges"
●
"Around the vehicle ", (confi rm
the mileage to modify and select
the distance),

●
" On the rout
e".
Confi rm " OK
" to save the modifi cations.


We recommend:


-
a fi lter on the route and

-
a fi lter around the vehicle of:
- 12 miles
(20 km) in urban areas,
- 30 miles
(50 km) on motorways.

276
05TRAFFIC INFORMATION

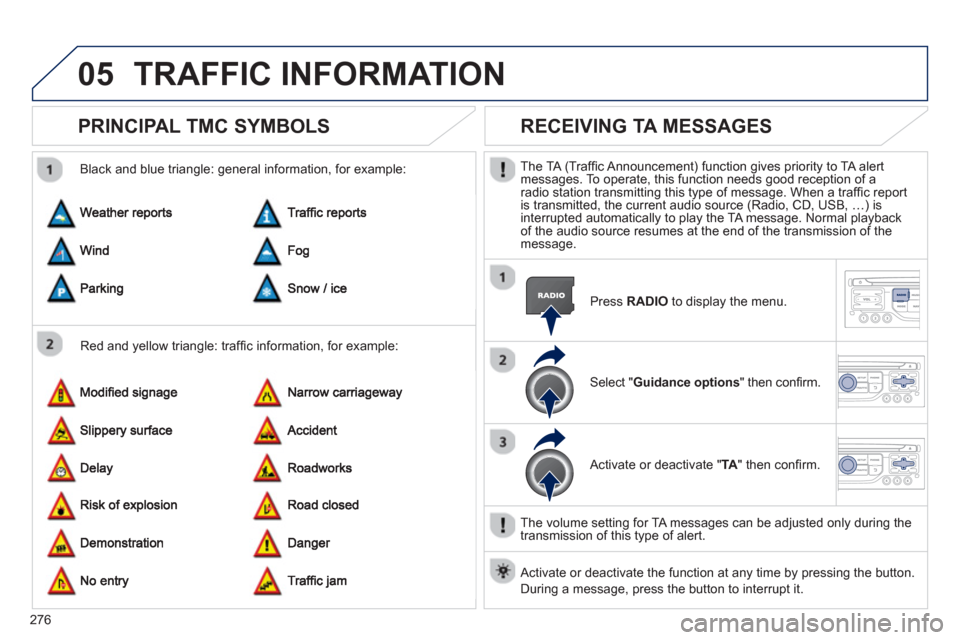

PRINCIPAL TMC SYMBOLS

Red and yellow triangle: traffi c information, for example:
Black and blue trian
gle: general information, for example:
RECEIVING TA MESSAGES


The TA (Traffi c Announcement) function gives priority to TA alert messages. To operate, this function needs good reception of a radio station transmitting this type of message. When a traffi c report
is transmitted, the current audio source (Radio, CD, USB, …) isinterrupted automatically to play the TA message. Normal playbackof the audio source resumes at the end of the transmission of themessage.
Pr
ess RADIO
to display the menu.
Select " Guidance options
" then confi rm.

A
ctivate or deactivate " TA
" then confi rm.

The volume settin
g for TA messages can be adjusted only during the
transmission of this type of alert.

Activate or deactivate the function at any time by pressing the button.
Durin
g a message, press the button to interrupt it.

277

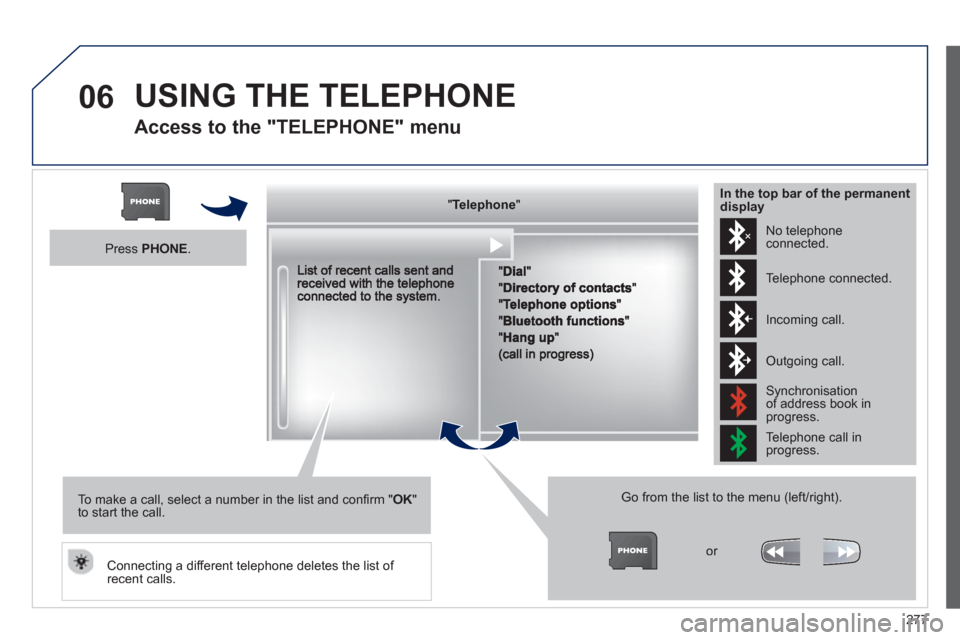

06 USING THE TELEPHONE


Access to the "TELEPHONE" menu
"""""""ppppeepoeTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTelephoneTl hTl hTl hTl h"""""""
Go from the list to the menu (left/right).
or



Press PHONE .


To make a call, select a number in the list and confi rm "OK"to start the call.

Connecting a different telephone deletes the list of recent calls.
No telephoneconnected.
Telephone connected.
Incoming call.
Outgoing call.
Synchronisation of address book in progress.
Telephone call in progress.


In the top bar of the permanentdisplay

278
06

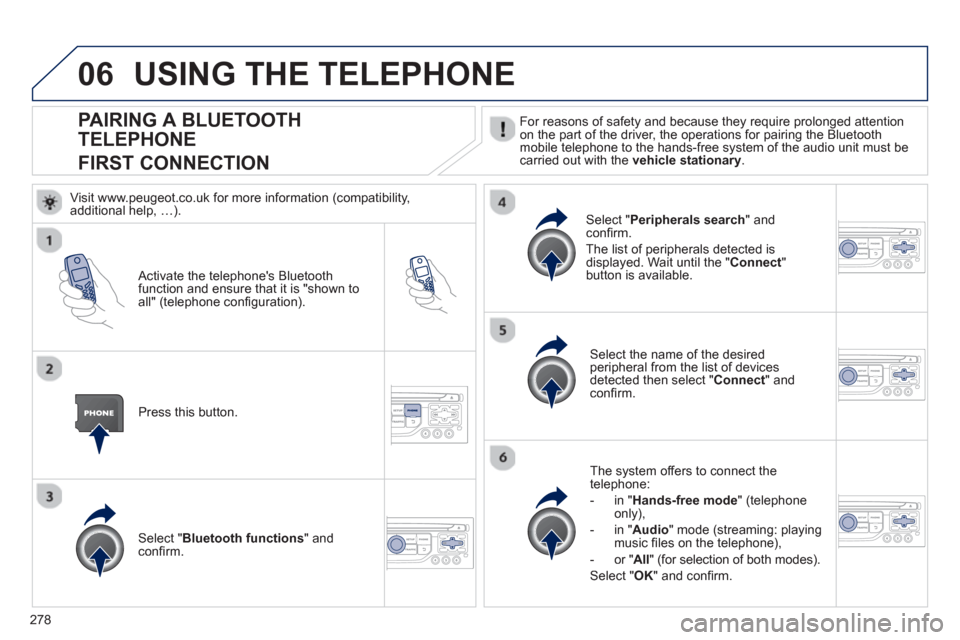

PAIRING A BLUETOOTH
TELEPHONE
FIRST CONNECTION
For reasons of safety and because they require prolonged attention
on the part of the driver, the operations for pairing the Bluetoothmobile telephone to the hands-free system of the audio unit must be carried out with the vehicle stationary.
Activate the telephone's Bluetoothfunction and ensure that it is "shown to all" (telephone confi guration).
Pr
ess this button.
Select the name of the desired
peripheral from the list of devices detected then select "Connect
" and confi rm.
The s
ystem offers to connect the
telephone:
- in "
Hands-free mode" (telephoneonly),
- in "
Audio" mode (streaming: playingmusic fi les on the telephone),
-
or " All
" (for selection of both modes).
Select " OK
" and confi rm.
Select " Bluetooth functions " and confi rm.
Select "Peripherals search" andconfi rm.
The list of peripherals detected is
displayed. Wait until the " Connect"button is available.
USING THE TELEPHONE

Visit www.peugeot.co.uk for more information (compatibility,
additional help, …).
