Engine
autodiagnosis
systemflashing.
The engine management system has
a fault. Risk of destruction of the catalytic converter.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
fixed. The emission control system has a
fault.
The warning lamp should go off when the engine is started.
If it does not go off, contact a PEUGEOT dealer or qualified
workshop without delay.

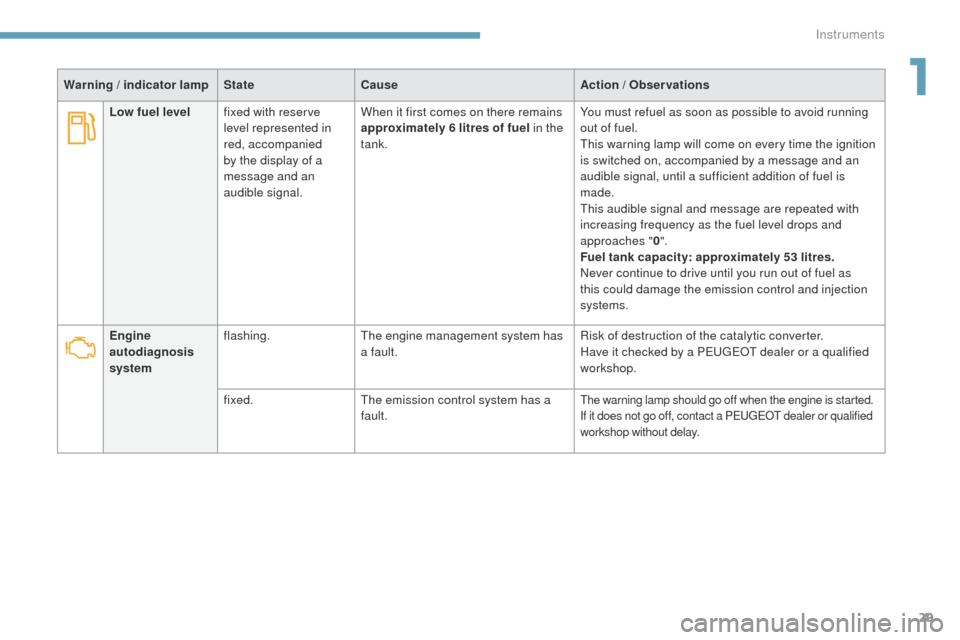

Warning / indicator lamp StateCause Action / Observations
Low fuel level fixed with reserve
level represented in
red, accompanied
by the display of a
message and an
audible signal. When it first comes on there remains
approximately 6 litres of fuel
in the
tank. You must refuel as soon as possible to avoid running
out of fuel.
This warning lamp will come on every time the ignition
is switched on, accompanied by a message and an
audible signal, until a sufficient addition of fuel is
made.
This audible signal and message are repeated with
increasing frequency as the fuel level drops and
approaches "
0".
Fuel tank capacity: approximately 53 litres.
Never continue to drive until you run out of fuel as
this could damage the emission control and injection
systems.
1
Instruments

30
3008-2_en_Chap01_instruments-de-bord_ed01-2016
Warning / indicator lampStateCause Action / Observations
AdBlue
®
(BlueHDi Diesel) fixed, on switching
on the ignition,
accompanied by an
audible signal and a
message indicating the
remaining driving range. The remaining driving range is
between 350 miles (600 km) and
1500 miles (2400 km).
Have the AdBlue® topped-up as soon as possible: go
to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue
® to its tank.
flashing, accompanied
by an audible signal
and a message
indicating the
remaining driving
range. The remaining driving range is
between 0 and 350 miles (600 km).
You must top-up the AdBlue
® to avoid a breakdown

or go to a PEUGEOT dealer or a qualified workshop.
You can add up to 10 litres of AdBlue
® to its tank.
flashing, accompanied
by an audible signal
and a message
indicating that starting
is prevented. The AdBlue
® tank is empty: the
starting inhibition system required
by legislation prevents starting of the
engine. To be able to start the engine, you must top-up the
AdBlue® or go to a PEUGEOT dealer or a qualified
workshop.
It is essential to add at least 4 litres of AdBlue
® to its
tank.
For topping-up or for more information on AdBlue
® and the SCR system, refer to the corresponding section.
Instruments

31
3008-2_en_Chap01_instruments-de-bord_ed01-2016

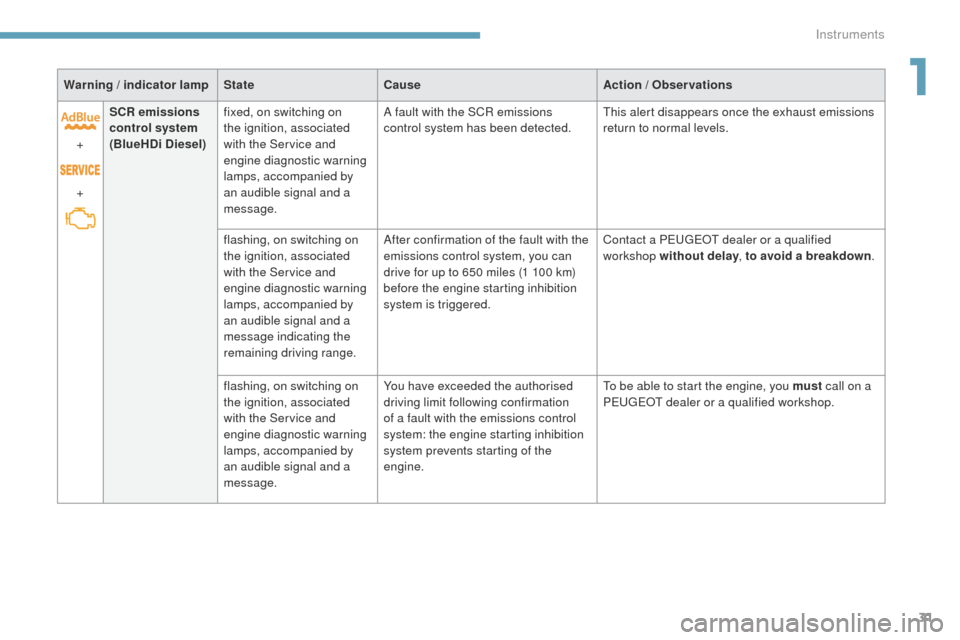

Warning / indicator lampStateCause Action / Observations
+
+ SCR emissions
control system
(BlueHDi Diesel)
fixed, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. A fault with the SCR emissions
control system has been detected.
This alert disappears once the exhaust emissions
return to normal levels.
flashing, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message indicating the
remaining driving range. After confirmation of the fault with the
emissions control system, you can
drive for up to 650 miles (1 100 km)
before the engine starting inhibition
system is triggered.
Contact a PEUGEOT dealer or a qualified
workshop without delay
, to avoid a breakdown.
flashing, on switching on
the ignition, associated
with the Service and
engine diagnostic warning
lamps, accompanied by
an audible signal and a
message. You have exceeded the authorised
driving limit following confirmation
of a fault with the emissions control
system: the engine starting inhibition
system prevents starting of the
engine.
To be able to start the engine, you must
call on a
PEUGEOT dealer or a qualified workshop.
1
Instruments

32
3008-2_en_Chap01_instruments-de-bord_ed01-2016

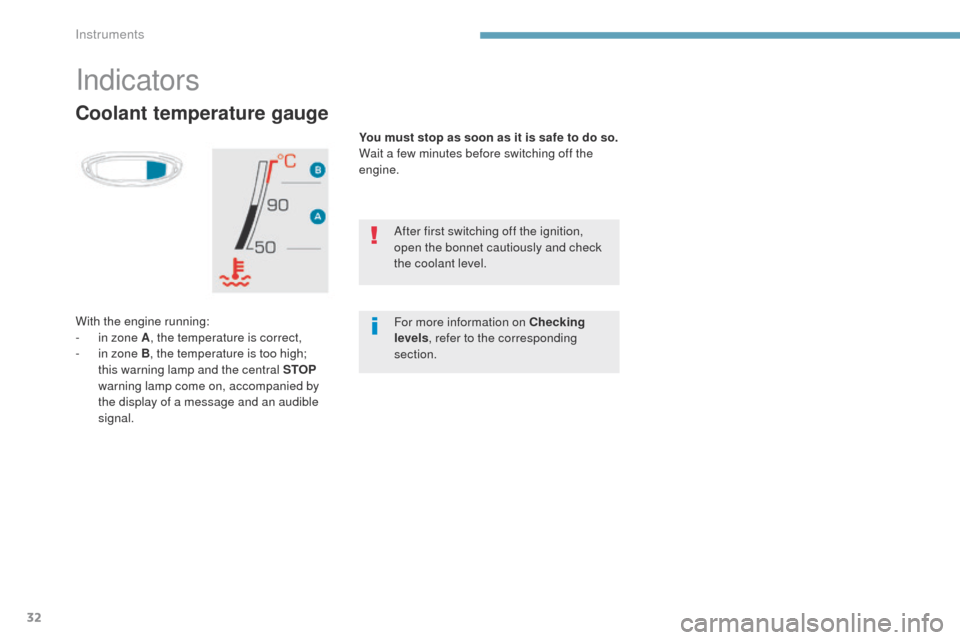

Coolant temperature gauge
You must stop as soon as it is safe to do so.
Wait a few minutes before switching off the
engine.
With the engine running:
-

i

n zone A , the temperature is correct,
-

i

n zone B, the temperature is too high;
this warning lamp and the central STOP
warning lamp come on, accompanied by
the display of a message and an audible
signal. For more information on Checking
levels
, refer to the corresponding
section.
Indicators
After first switching off the ignition,
open the bonnet cautiously and check
the coolant level.
Instruments

33
3008-2_en_Chap01_instruments-de-bord_ed01-2016

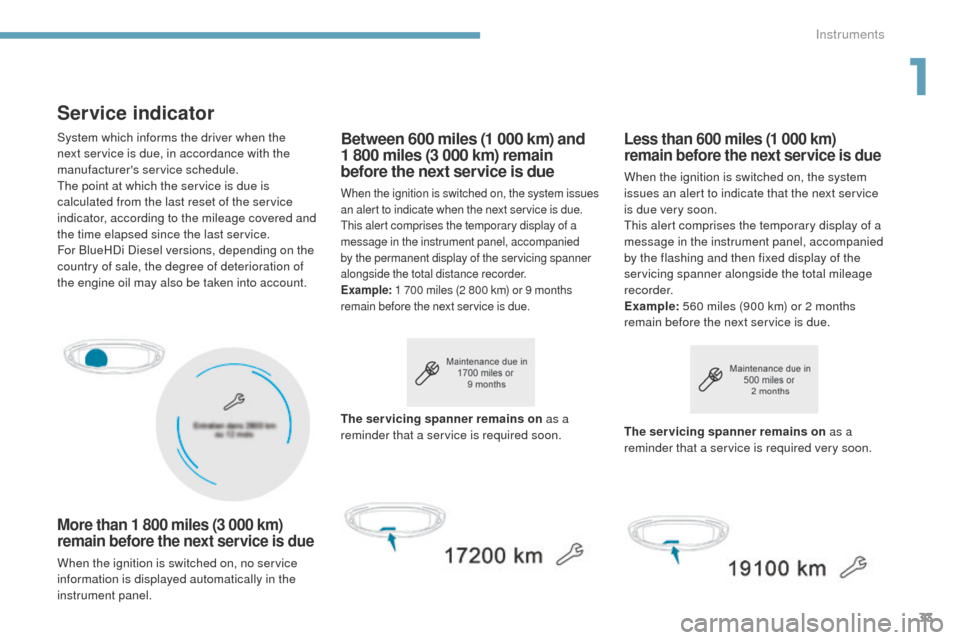

Service indicator
More than 1 800 miles (3 000 km)
remain before the next service is due
When the ignition is switched on, no service
information is displayed automatically in the
instrument panel.
Between 600 miles (1 000 km) and
1 800 miles (3 000 km) remain
before the next service is due
When the ignition is switched on, the system issues
an alert to indicate when the next service is due.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the permanent display of the servicing spanner
alongside the total distance recorder.
Example: 1 700 miles (2 800 km) or 9 months
remain before the next service is due.
Less than 600 miles (1 000 km)
remain before the next service is due
When the ignition is switched on, the system
issues an alert to indicate that the next service
is due very soon.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the flashing and then fixed display of the
servicing spanner alongside the total mileage
recorder.
Example: 560 miles (900 km) or 2 months
remain before the next service is due.
The servicing spanner remains on as a
reminder that a service is required soon. The servicing spanner remains on
as a
reminder that a service is required very soon.
System which informs the driver when the
next service is due, in accordance with the
manufacturer's service schedule.
The point at which the service is due is
calculated from the last reset of the service
indicator, according to the mileage covered and
the time elapsed since the last service.
For BlueHDi Diesel versions, depending on the
country of sale, the degree of deterioration of
the engine oil may also be taken into account.
1
Instruments

34
3008-2_en_Chap01_instruments-de-bord_ed01-2016

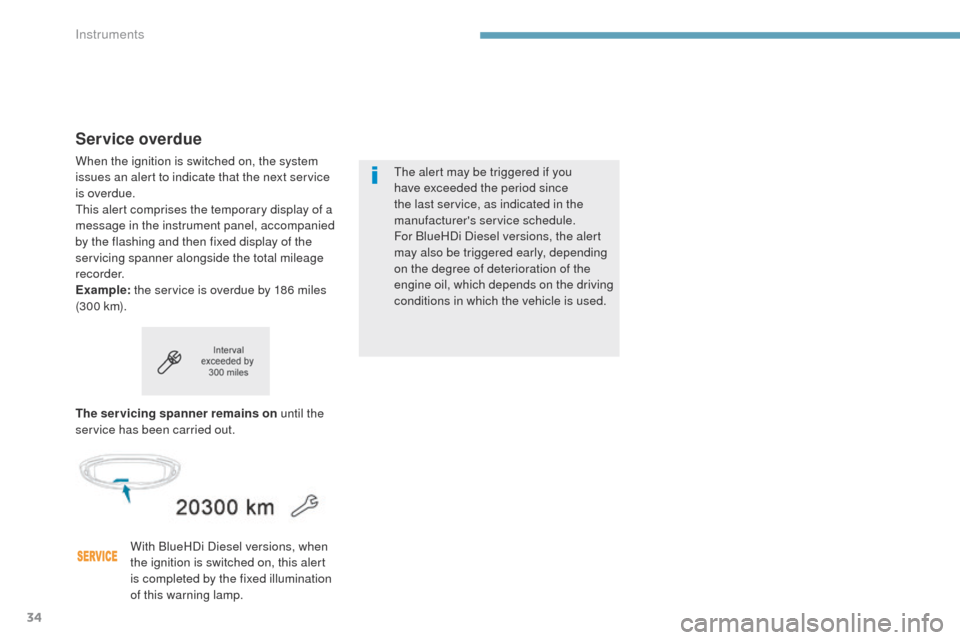

Service overdue
When the ignition is switched on, the system
issues an alert to indicate that the next service
is overdue.
This alert comprises the temporary display of a
message in the instrument panel, accompanied
by the flashing and then fixed display of the
servicing spanner alongside the total mileage
recorder.
Example: the service is overdue by 186 miles
(3 0 0 k m).
The servicing spanner remains on until the
service has been carried out.
With BlueHDi Diesel versions, when
the ignition is switched on, this alert
is completed by the fixed illumination
of this warning lamp. The alert may be triggered if you
have exceeded the period since
the last service, as indicated in the
manufacturer's service schedule.
For BlueHDi Diesel versions, the alert
may also be triggered early, depending
on the degree of deterioration of the
engine oil, which depends on the driving
conditions in which the vehicle is used.
Instruments

35
3008-2_en_Chap01_instruments-de-bord_ed01-2016

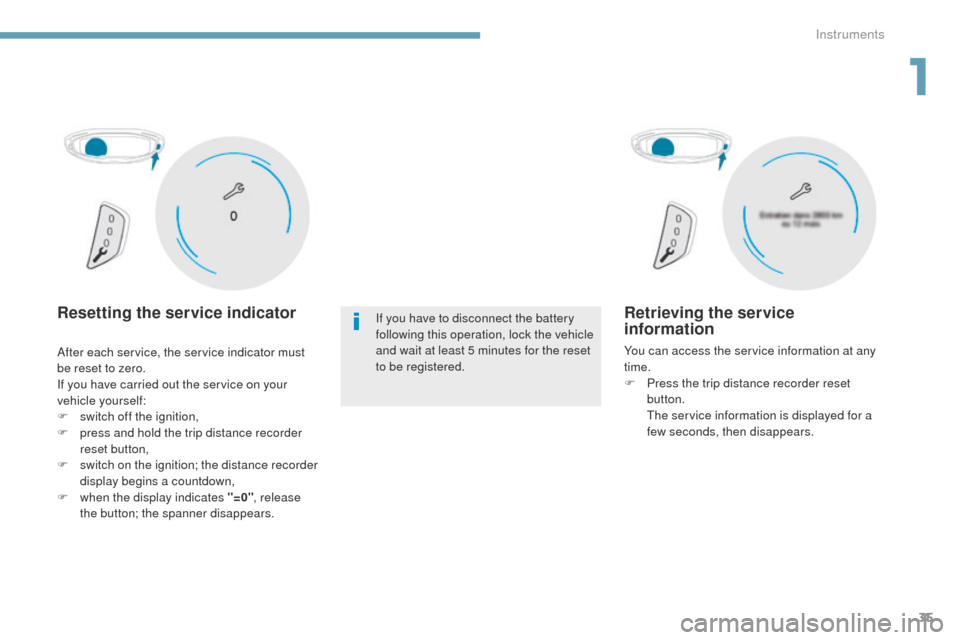

Resetting the service indicatorIf you have to disconnect the battery
following this operation, lock the vehicle
and wait at least 5 minutes for the reset
to be registered.
After each service, the service indicator must
be reset to zero.
If you have carried out the service on your
vehicle yourself:
F

s

witch off the ignition,
F

p

ress and hold the trip distance recorder
reset button,
F

s

witch on the ignition; the distance recorder
display begins a countdown,
F

w

hen the display indicates "=0" , release
the button; the spanner disappears.Retrieving the service
information
You can access the service information at any
time.
F

P
ress the trip distance recorder reset
button.
T

he service information is displayed for a
few seconds, then disappears.
1
Instruments

36
3008-2_en_Chap01_instruments-de-bord_ed01-2016

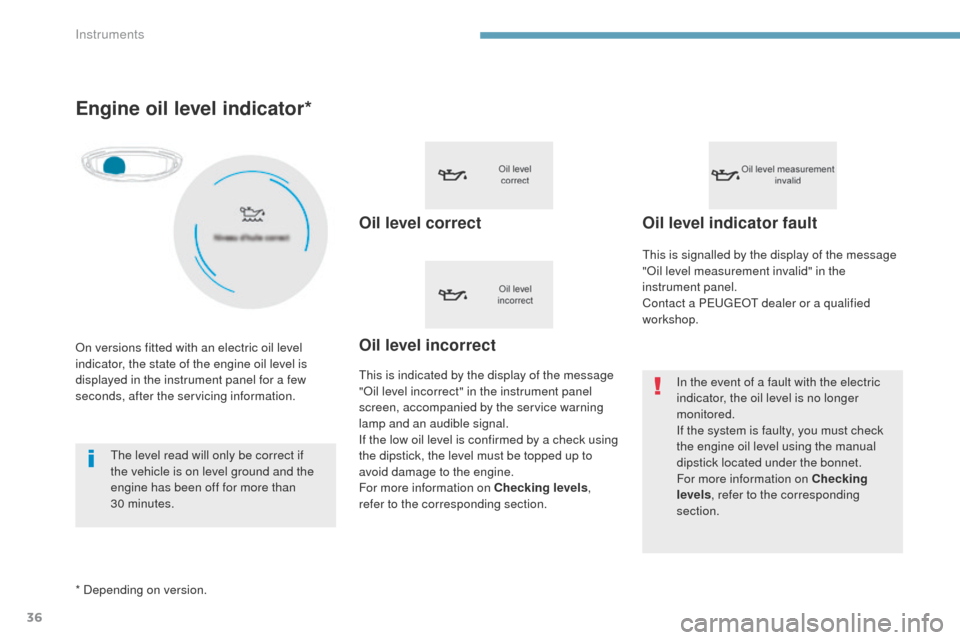

Engine oil level indicator*
Oil level correct
This is indicated by the display of the message
"Oil level incorrect" in the instrument panel
screen, accompanied by the service warning
lamp and an audible signal.
If the low oil level is confirmed by a check using
the dipstick, the level must be topped up to
avoid damage to the engine.
For more information on Checking levels,
refer to the corresponding section.
Oil level indicator fault
In the event of a fault with the electric
indicator, the oil level is no longer
monitored.
If the system is faulty, you must check
the engine oil level using the manual
dipstick located under the bonnet.
For more information on Checking
levels , refer to the corresponding
section.
Oil level incorrect
This is signalled by the display of the message
"Oil level measurement invalid" in the
instrument panel.
Contact a PEUGEOT dealer or a qualified
workshop.
On versions fitted with an electric oil level
indicator, the state of the engine oil level is
displayed in the instrument panel for a few
seconds, after the servicing information.
* Depending on version. The level read will only be correct if
the vehicle is on level ground and the
engine has been off for more than
30


minutes.
Instruments

37
3008-2_en_Chap01_instruments-de-bord_ed01-2016

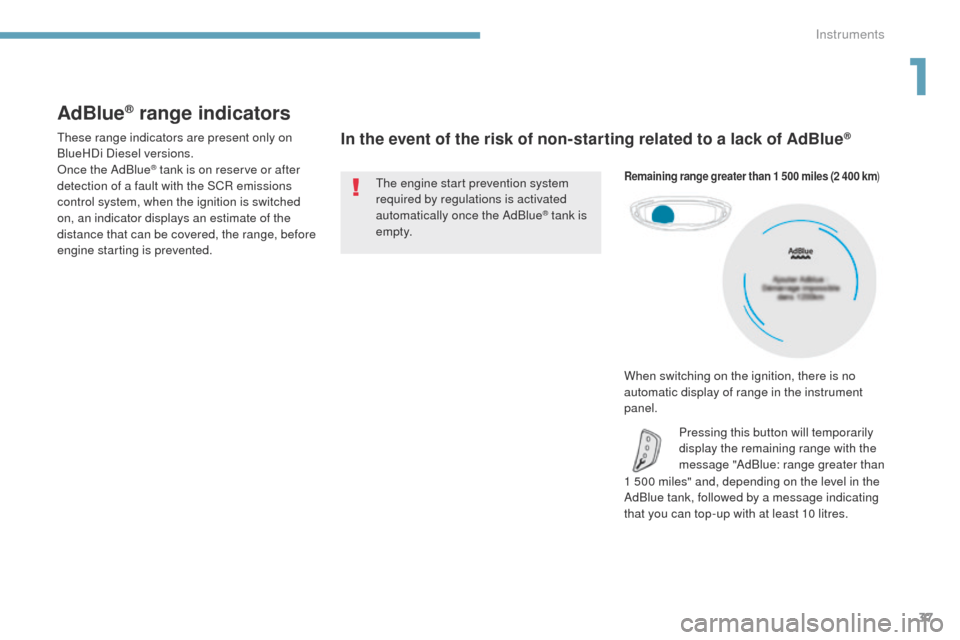

AdBlue® range indicators
These range indicators are present only on
BlueHDi Diesel versions.
Once the AdBlue
® tank is on reserve or after
detection of a fault with the SCR emissions
control system, when the ignition is switched
on, an indicator displays an estimate of the
distance that can be covered, the range, before
engine starting is prevented.
In the event of the risk of non-starting related to a lack of AdBlue®
1 500 miles" and, depending on the level in the
AdBlue tank, followed by a message indicating
that you can top-up with at least 10 litres.
Remaining range greater than 1 500 miles (2 400 km )
Pressing this button will temporarily
display the remaining range with the
message "AdBlue: range greater than
The engine start prevention system
required by regulations is activated
automatically once the AdBlue
® tank is
e m pt y.
When switching on the ignition, there is no
automatic display of range in the instrument
panel.
1
Instruments

38
3008-2_en_Chap01_instruments-de-bord_ed01-2016

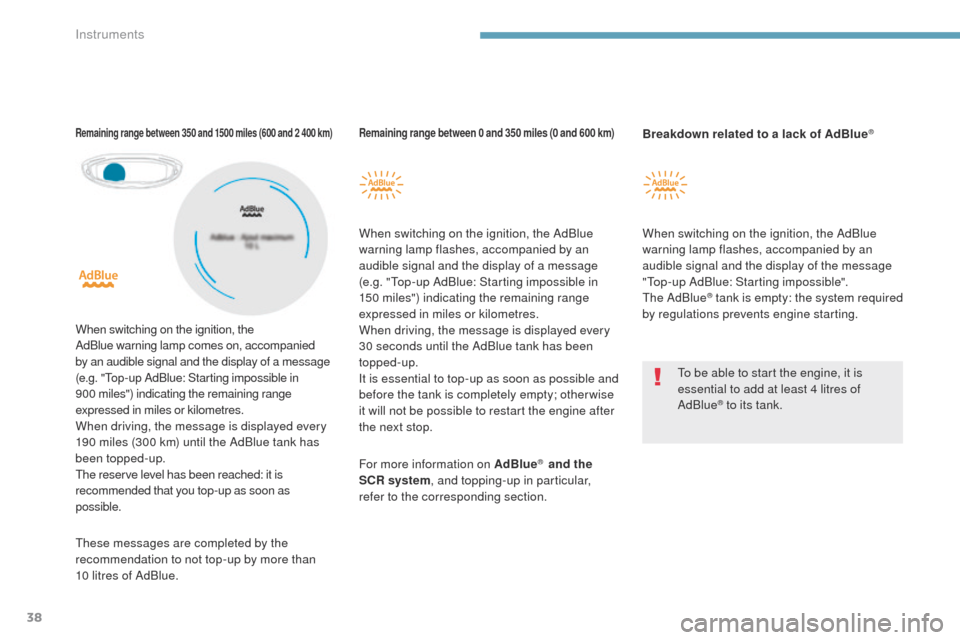

Remaining range between 0 and 350 miles (0 and 600 km)
When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
150 miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
30 seconds until the AdBlue tank has been
topped-up.
It is essential to top-up as soon as possible and
before the tank is completely empty; other wise
it will not be possible to restart the engine after
the next stop.
Remaining range between 350 and 1500 miles (600 and 2 400 km)
When switching on the ignition, the
AdBlue warning lamp comes on, accompanied
by an audible signal and the display of a message
(e.g. "Top-up AdBlue: Starting impossible in
900


miles") indicating the remaining range
expressed in miles or kilometres.
When driving, the message is displayed every
190 miles (300 km) until the AdBlue tank has
been topped-up.
The reserve level has been reached: it is
recommended that you top-up as soon as
possible. To be able to start the engine, it is
essential to add at least 4 litres of
AdBlue
® to its tank.
For more information on AdBlue
® and the
SCR system , and topping-up in particular,
refer to the corresponding section. When switching on the ignition, the AdBlue
warning lamp flashes, accompanied by an
audible signal and the display of the message
"Top-up AdBlue: Starting impossible".
The AdBlue
® tank is empty: the system required
by regulations prevents engine starting. Breakdown related to a lack of AdBlue
®
These messages are completed by the
recommendation to not top-up by more than
10 litres of AdBlue.
Instruments
