Peugeot 301 2015 Owner's Manual

02
179
301_en_Chap12a_RD5(RD45)_ed01-2014

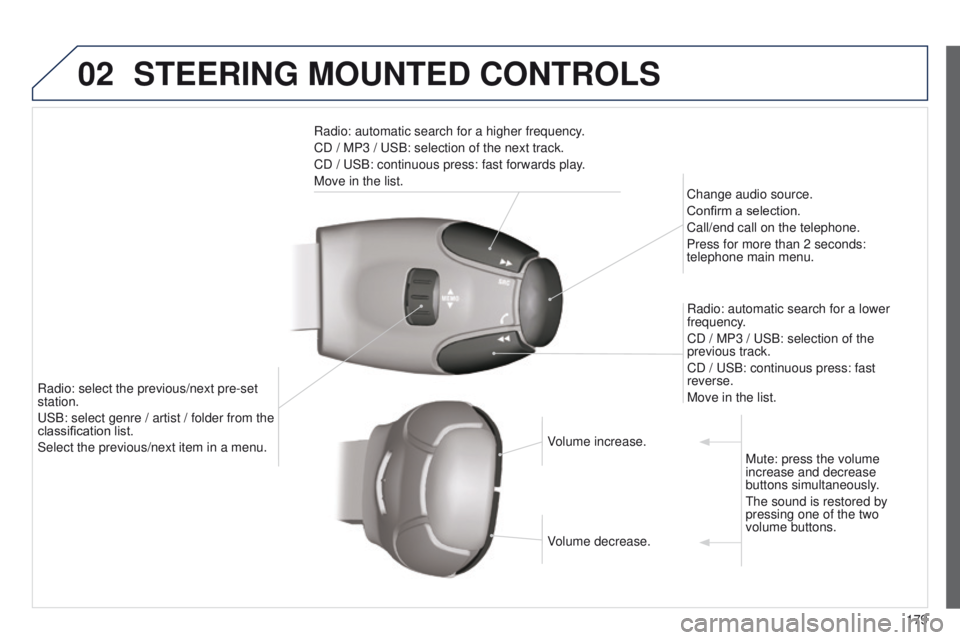

STEERING MOUNTED CONTROLS
Radio: automatic search for a higher frequency.
CD / MP3 / USB: selection of the next track.
CD / USB: continuous press: fast forwards play.
Move in the list. Change audio source.
Confirm a selection.
Call/end call on the telephone.
Press for more than 2
seconds:
telephone main menu.
Radio: automatic search for a lower
frequency.
CD / MP3
/ USB: selection of the
previous track.
CD / USB: continuous press: fast
reverse.
Move in the list.
Radio: select the previous/next pre-set
station.
USB: select genre / artist / folder from the
classification list.
Select the previous/next item in a menu.
Volume increase.
Volume decrease.Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.

03
180
301_en_Chap12a_RD5(RD45)_ed01-2014

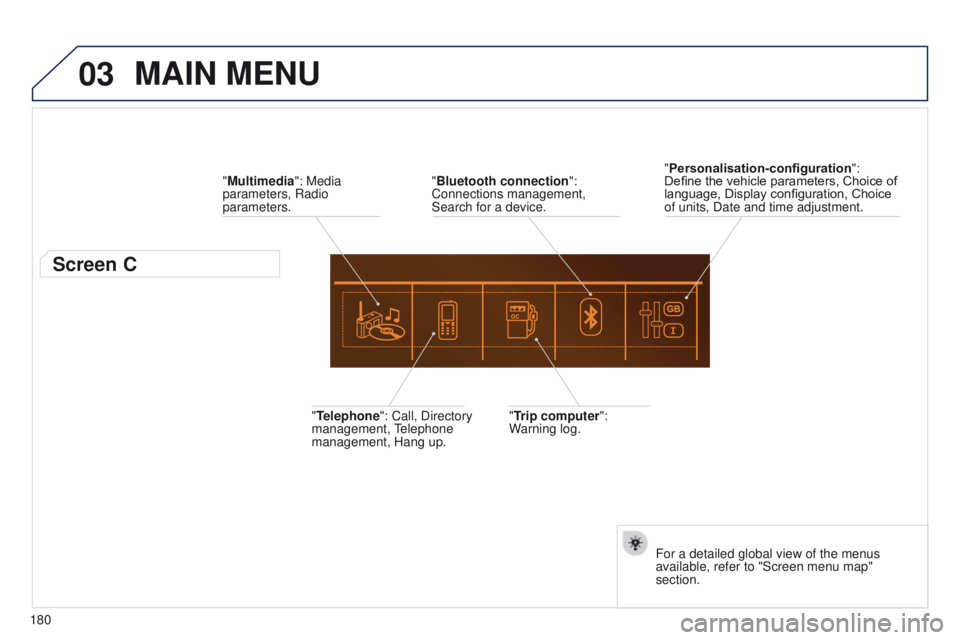

MAIN MENU
"Multimedia": Media
parameters, Radio
parameters.
Screen C
"Trip computer":
Warning log.
"Telephone": Call, Directory
management, Telephone
management, Hang up. "Personalisation-configuration
":
Define the vehicle parameters, Choice of
language, Display configuration, Choice
of units, Date and time adjustment.
For a detailed global view of the menus
available, refer to "Screen menu map"
section.
"Bluetooth connection
":
Connections management,
Search for a device.

04
181
301_en_Chap12a_RD5(RD45)_ed01-2014
AUDIO
Press SRC/TEL several times in
succession and select radio.
Press BAND to select a waveband. Press LIST
to display the list of stations
received in alphabetical order.
A press changes to the next or previous
letter (e.g. A, B, D, F, G, J, K, ...).

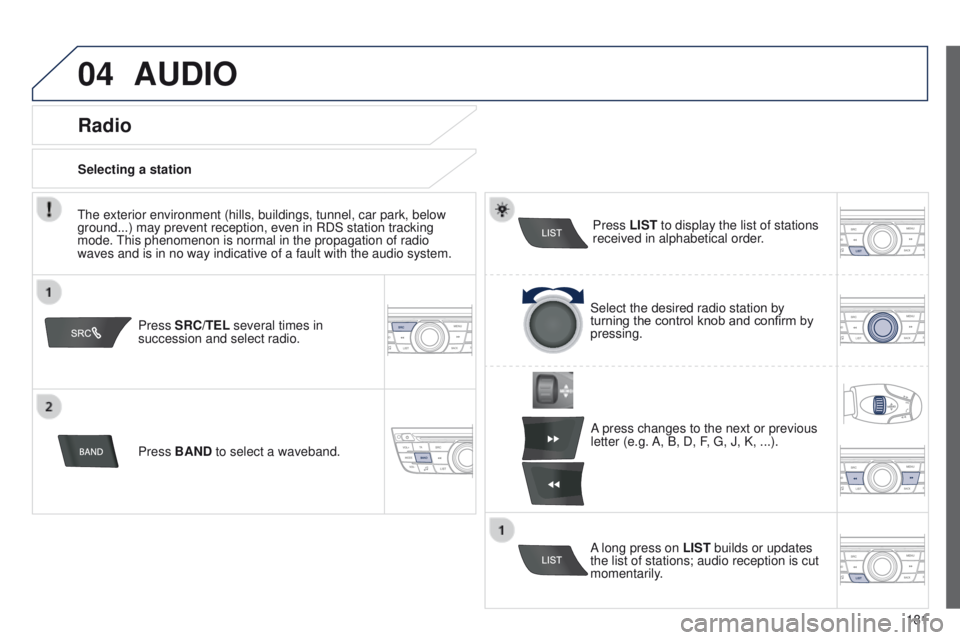

Radio
Select the desired radio station by
turning the control knob and confirm by
pressing.
Selecting a station
A long press on LIST builds or updates
the list of stations; audio reception is cut
momentarily.
The exterior environment (hills, buildings, tunnel, car park, below
ground...) may prevent reception, even in RDS station tracking
mode. This phenomenon is normal in the propagation of radio
waves and is in no way indicative of a fault with the audio system.

04
TA
182
301_en_Chap12a_RD5(RD45)_ed01-2014

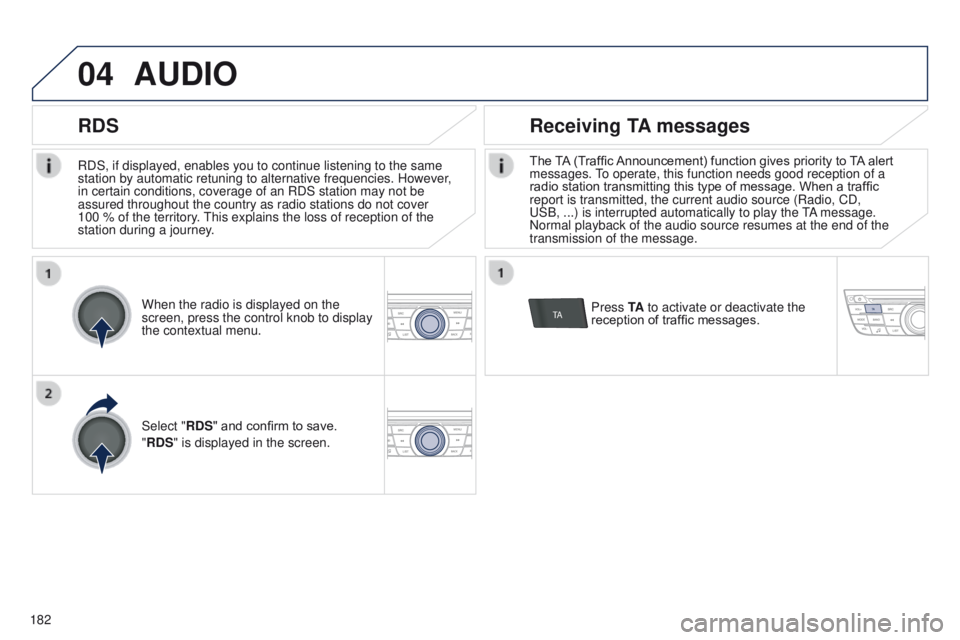

RDS, if displayed, enables you to continue listening to the same
station by automatic retuning to alternative frequencies. However,
in certain conditions, coverage of an RDS station may not be
assured throughout the country as radio stations do not cover
100 % of the territory. This explains the loss of reception of the
station during a journey.
AUDIO
RDS Receiving TA messages
The TA (Traffic Announcement) function gives priority to TA alert
messages. To operate, this function needs good reception of a
radio station transmitting this type of message. When a traffic
report is transmitted, the current audio source (Radio, CD,
USB, ...) is interrupted automatically to play the TA message.
Normal playback of the audio source resumes at the end of the
transmission of the message.
Press TA to activate or deactivate the
reception of traffic messages.
When the radio is displayed on the
screen, press the control knob to display
the contextual menu.
Select "RDS" and confirm to save.
"RDS" is displayed in the screen.

04
183
301_en_Chap12a_RD5(RD45)_ed01-2014
AUDIO
Radio text is information transmitted by the radio station related to
the current programme or song.With the radio displayed on the screen,
press the control knob to display the
contextual menu.
Turn the control knob to select "RADIO
TEXT" then press to confirm.

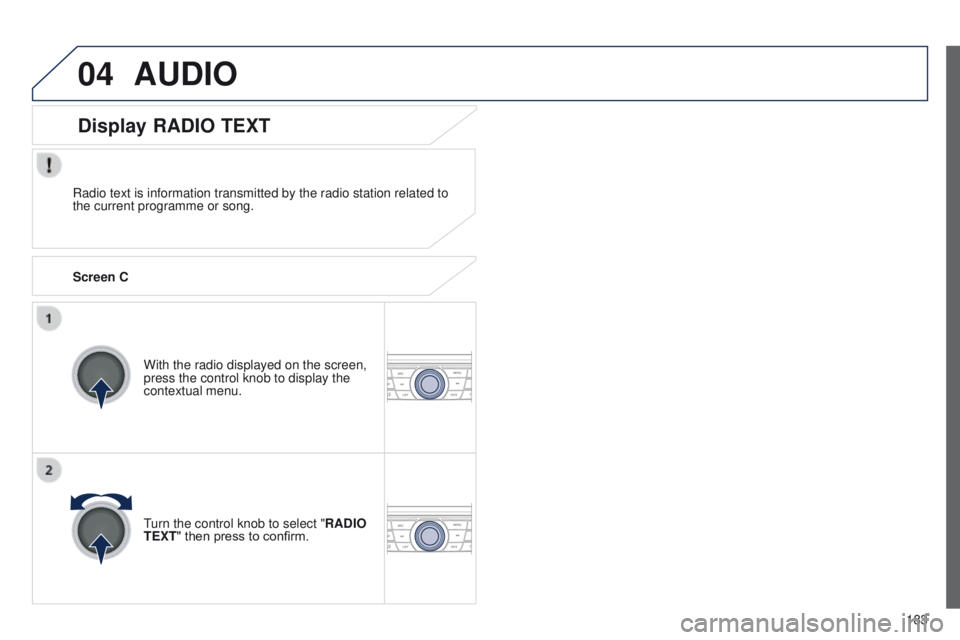

Display RADIO TEXT
Screen C

04
184
301_en_Chap12a_RD5(RD45)_ed01-2014
AUDIO

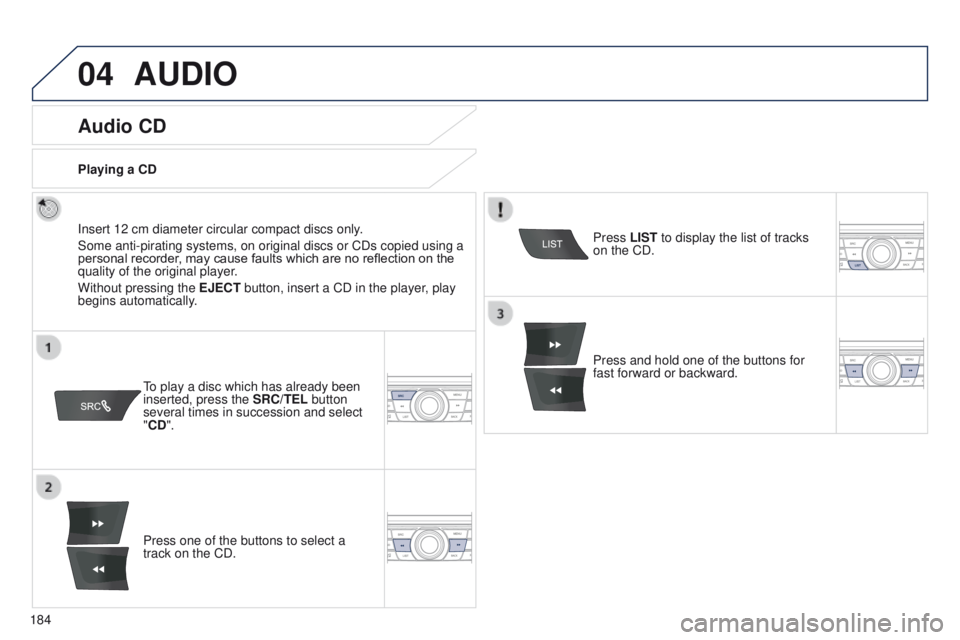

Audio CD
Insert 12 cm diameter circular compact discs only.
Some anti-pirating systems, on original discs or CDs copied using a
personal recorder, may cause faults which are no reflection on the
quality of the original player.
Without pressing the EJECT button, insert a CD in the player, play
begins automatically.To play a disc which has already been
inserted, press the SRC/TEL button
several times in succession and select
"CD".
Press one of the buttons to select a
track on the CD.
Playing a CD
Press LIST to display the list of tracks
on the CD.
Press and hold one of the buttons for
fast forward or backward.

04
185
301_en_Chap12a_RD5(RD45)_ed01-2014
AUDIO

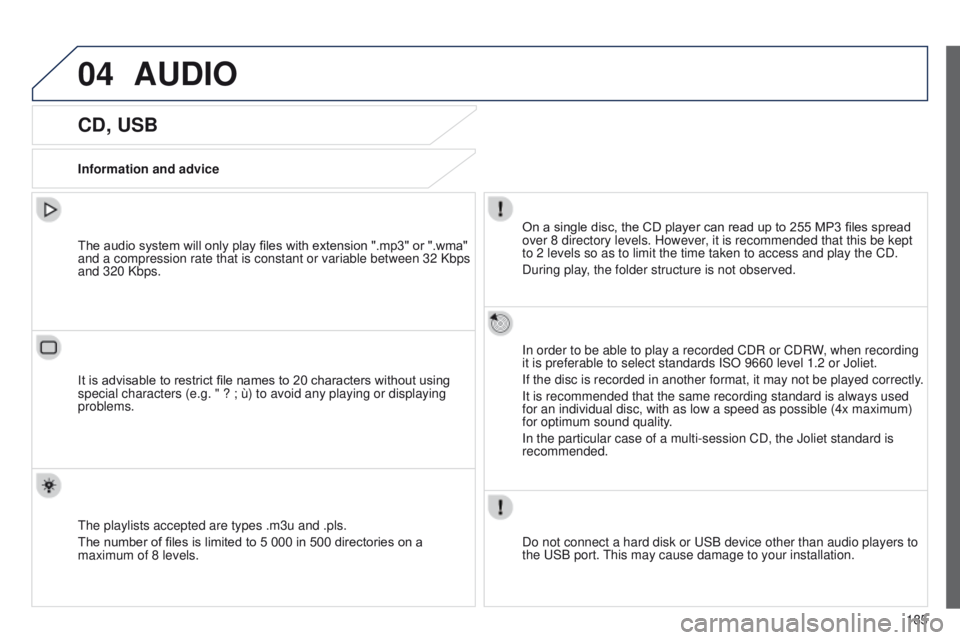

CD, USB
Information and adviceOn a single disc, the CD player can read up to 255 MP3 files spread
over 8 directory levels. However, it is recommended that this be kept
to 2 levels so as to limit the time taken to access and play the CD.
During play, the folder structure is not observed.
In order to be able to play a recorded CDR or CDRW, when recording
it is preferable to select standards ISO 9660 level 1.2 or Joliet.
If the disc is recorded in another format, it may not be played correctl\
y.
It is recommended that the same recording standard is always used
for an individual disc, with as low a speed as possible (4x maximum)
for optimum sound quality.
In the particular case of a multi-session CD, the Joliet standard is
recommended.
Do not connect a hard disk or USB device other than audio players to
the USB port. This may cause damage to your installation.
The audio system will only play files with extension ".mp3" or ".wma"
and a compression rate that is constant or variable between 32 Kbps
and 320 Kbps.
It is advisable to restrict file names to 20 characters without using
special characters (e.g. " ? ; ù) to avoid any playing or displayin\
g
problems.
The playlists accepted are types .m3u and .pls.
The number of files is limited to 5 000 in 500 directories on a
maximum of 8 levels.

04
186
301_en_Chap12a_RD5(RD45)_ed01-2014
CD, USB
AUDIO

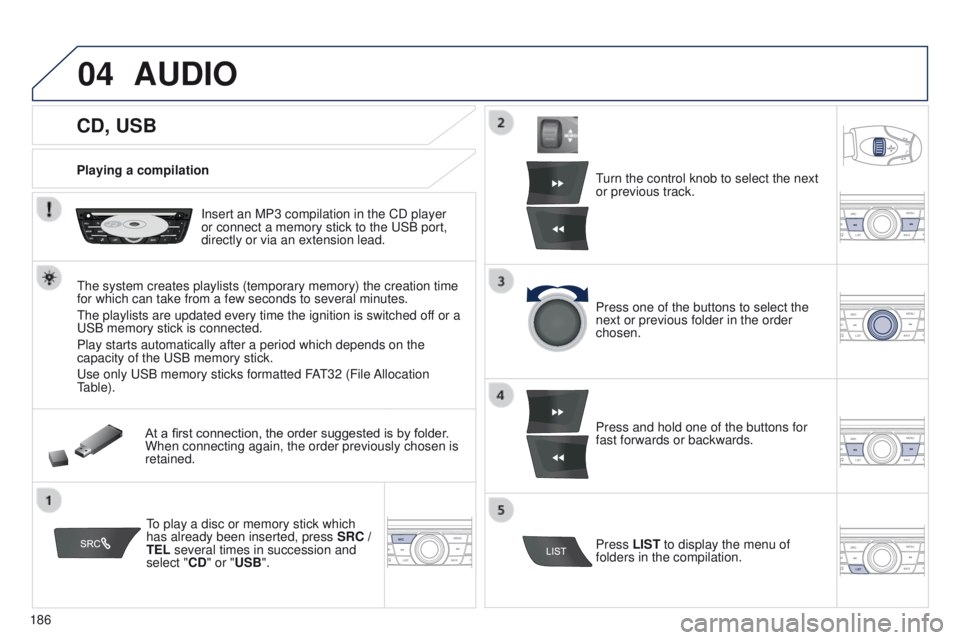

Playing a compilationInsert an MP3 compilation in the CD player
or connect a memory stick to the USB port,
directly or via an extension lead.
The system creates playlists (temporary memory) the creation time
for which can take from a few seconds to several minutes.
The playlists are updated every time the ignition is switched off or a
USB memory stick is connected.
Play starts automatically after a period which depends on the
capacity of the USB memory stick.
Use only USB memory sticks formatted FAT32 (File Allocation
Table). At a first connection, the order suggested is by folder.
When connecting again, the order previously chosen is
retained.
To play a disc or memory stick which
has already been inserted, press SRC /
TEL several times in succession and
select "CD" or "USB". Turn the control knob to select the next
or previous track.
Press one of the buttons to select the
next or previous folder in the order
chosen.
Press and hold one of the buttons for
fast forwards or backwards.
Press LIST
to display the menu of
folders in the compilation.

04
BACK
187
301_en_Chap12a_RD5(RD45)_ed01-2014

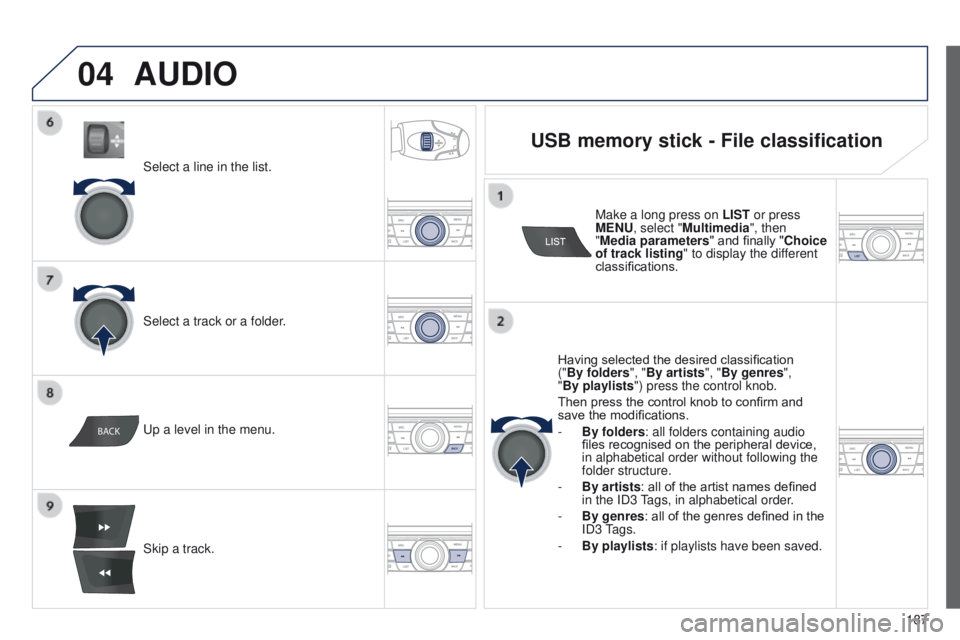

Select a line in the list.
Select a track or a folder.
Skip a track. Up a level in the menu.
AUDIO
USB memory stick - File classification
Having selected the desired classification
("By folders", "By artists", "By genres",
"By playlists") press the control knob.
Then press the control knob to confirm and
save the modifications.
-

By folders
: all folders containing audio
files recognised on the peripheral device,
in alphabetical order without following the
folder structure.
-

By artists : all of the artist names defined
in the ID3

Tags, in alphabetical order.
-

By genres
: all of the genres defined in the
ID3 Tags.
-

By playlists
: if playlists have been saved.
Make a long press on
LIST or press
MENU, select "Multimedia", then
"Media parameters " and finally "Choice
of track listing " to display the different
classifications.

04
188
301_en_Chap12a_RD5(RD45)_ed01-2014
AUDIO

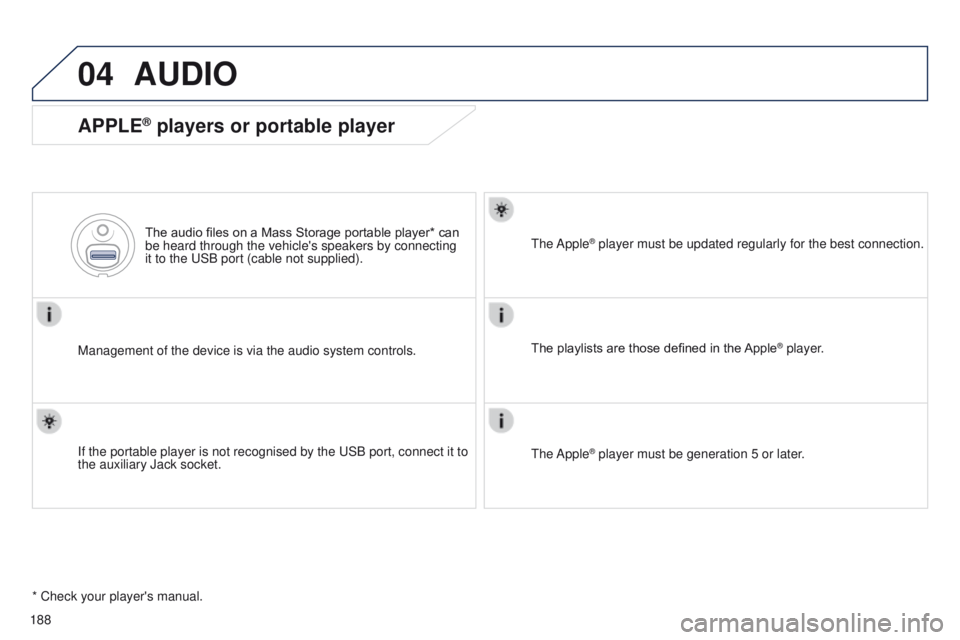

APPLE® players or portable player
Management of the device is via the audio system controls.The audio files on a Mass Storage portable player* can
be heard through the vehicle's speakers by connecting
it to the USB port (cable not supplied).
If the portable player is not recognised by the USB port, connect it to \
the auxiliary Jack socket. The Apple
® player must be updated regularly for the best connection.
The playlists are those defined in the Apple
® player.
The Apple
® player must be generation 5 or later.
* Check your player's manual.
